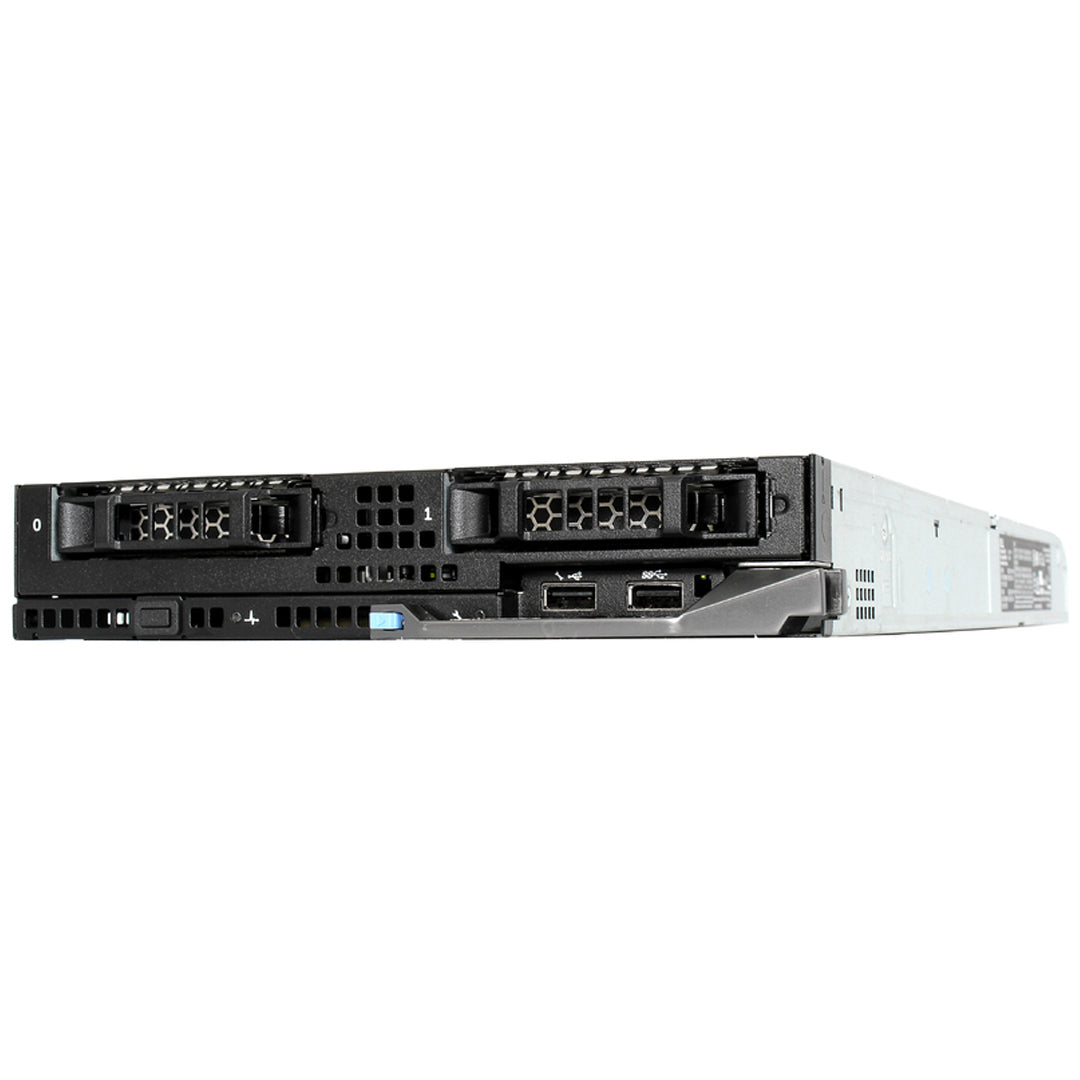

Dell PowerEdge FC630 CTO Blade Server

Brand:
Type:
CTO Servers
Condition:
ECS Refurbished & Tested

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Submit for Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Server Chassis

Processors

Intel Xeon E5-2600v3

Supports up to (2) processors

Intel Xeon E5-2600v4

Supports up to (2) processors

Memory

12 DIMMs per processor (up to 24 DIMMs in a dual-processor configuration)

Internal Dual SD Module (IDSDM)

RAID Controllers

uSATA (1.8") Drives

SFF (2.5") SAS/NLSAS Drives

SFF (2.5") SATA Drives

Network Daughter Card

Mezzanine Card for Fabric B

Mezzanine Card for Fabric C

iDRAC Remote Options

ECS Warranty

Helpful Tip: Once desired configuration is selected click "Add to Cart". From the cart page you can submit a submit a quote request for best pricing

Dell PowerEdge FC630 CTO Blade Server Product Description

An impressively powerful two-socket FX converged architecture server, the Dell PowerEdge FC630 is designed to be a workhorse for data centers looking for new levels of efficiency and density in an incredibly small footprint.

With powerful processors, impressively large memory and highly scalable I/O capabilities, the PowerEdge FC630 excels at running applications for midsize and large businesses, like enterprise resource planning and customer relationship management. Combining exceptional performance and functional flexibility, the FC630 is also ideal for large databases or substantial virtualization environments.

Dell PowerEdge FX Architecture

PowerEdge FC630

  • Up to 24 DIMMs of DDR4 memory
  • Powered by Intel Xeon processor E5-2600 v4 product family
  • Access to 2 PCIe 3.0 slots and dual-port 10GB SNA

Flexible, scalable, powerful

Powered by up to two 22-core Intel Xeon E5-2600 v4 processors, each FC630 has 24 DIMMs of memory, two 2.5-inch or eight 1.8-inch front-access drives, a 10GB SNA and access to two PCI Express (PCIe) expansion slots in the shared chassis.

Fit the infrastructure to the job

With the capability to handle demanding business applications and the databases that support them, the future-ready FC630 is the perfect building block for the core of a corporate data center. Offering exceptional performance and a rich set of storage options, including the FD332 storage block with up to 16 direct attached drives, the FX architecture enables you to build an infrastructure that is tailor-made to suit your unique IT requirements.


The efficiencies of shared infrastructure

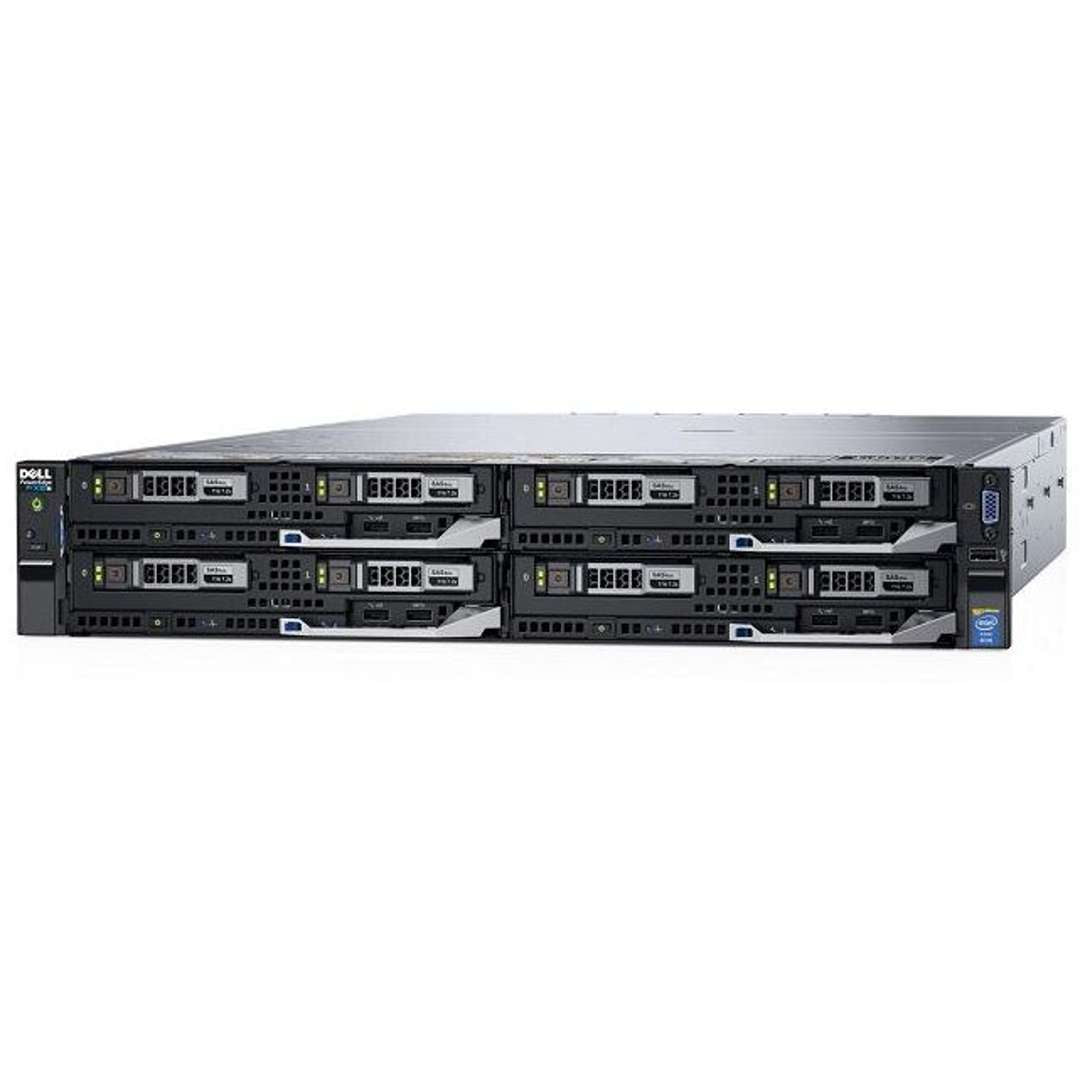

FC630 servers are housed in the FX2 enclosure — a 2U rack-based converged platform that delivers the density of a blade architecture with the simplicity and cost benefits of rack-based systems — all in a compact modular design. The FX2 delivers efficiency through shared power, cooling, networking, and management, as well as PCIe expansion slots and I/O module options that enable DAS, SAN or NAS storage.
FeatureTechnical specification
Form factorHalf-width – supports up to 4 sleds per PowerEdge FX2 enclosure
DimensionsH: 4.03 cm (1.58 in)
W: 21.09 cm (8.3 in)
D: 50.83 cm (20.01 in)
ProcessorIntel® Xeon® processor E5-2600 v4 product family
Processor sockets: 2
Cache:2.5MB per core; core options: 4, 6, 8, 10, 12, 16, 18, 22
Chipset: Intel C610 series
Memory1Up to 1.5TB (24 DIMM slots): 4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s

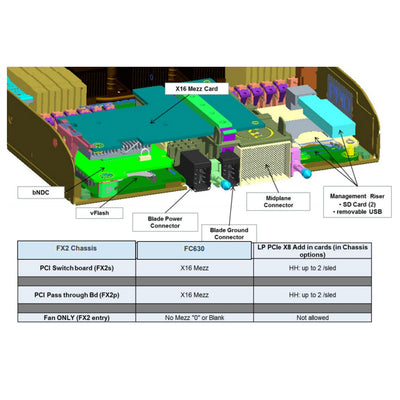

I/O mezzanine cardsAccess to 2 x PCIe 3.0 (x8) expansion slots
RAID controllersInternal controllers: PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P
Primary storageHot-plug hard drive options:
PowerEdge Express Flash NVMe PCIe SSD, SATA HDD/SSD or SAS HDD/SSD

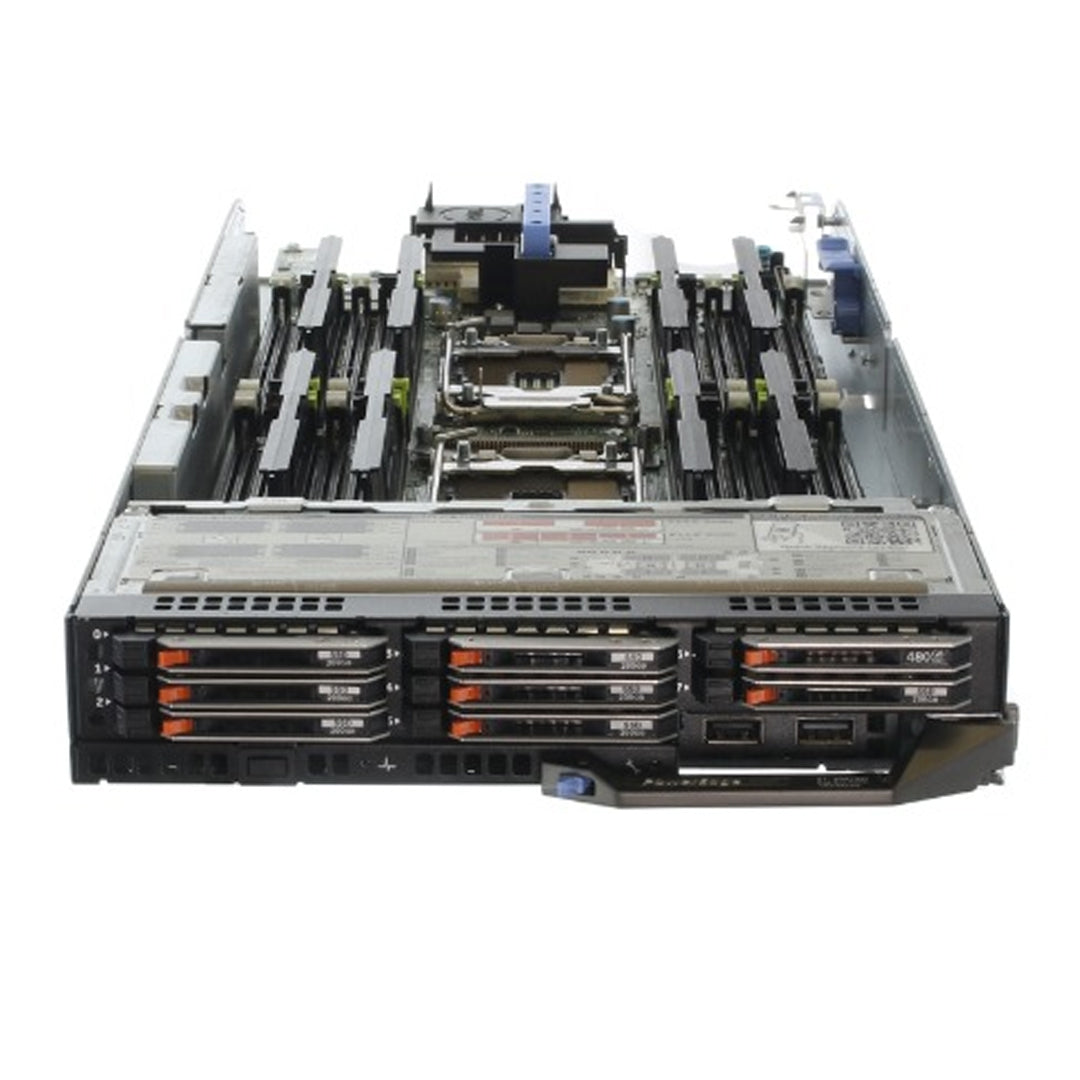

Up to 8 x 1.8" SSD or 2 x 2.5"
Optional adaptersOptional NICs and HBAs
Power suppliesChassis level – PowerEdge FX2 hot-plug PSU: 2000W, 1600W AC or 1100W AC in 1+1 redundant or 2+0
non-redundant configurations
Video cardVideo type Matrox® G200 (integrated with iDRAC8)
Video memory: 16MB shared with iDRAC8 application memory
Systems management• FX uses Chassis Management Controller (CMC) to manage all resources (server nodes and shared infrastructure) in a single web console
• OpenManage portfolio for FX supports local and remote management, consistent with other PowerEdge products
• CMC and iDRAC are available with either Enterprise or Express licensing to best suit specific management needs
• Server nodes each contain proven iDRAC8 with Lifecycle Controller for agent-free, automated systems management
Operating systemsMicrosoft® Windows Server® 2008 R2
Microsoft Windows Server 2012
Microsoft Windows Server 2012 R2
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux
VMware® ESX®
For more information on the specific versions and editions, visit Dell.com/OSsupport.
