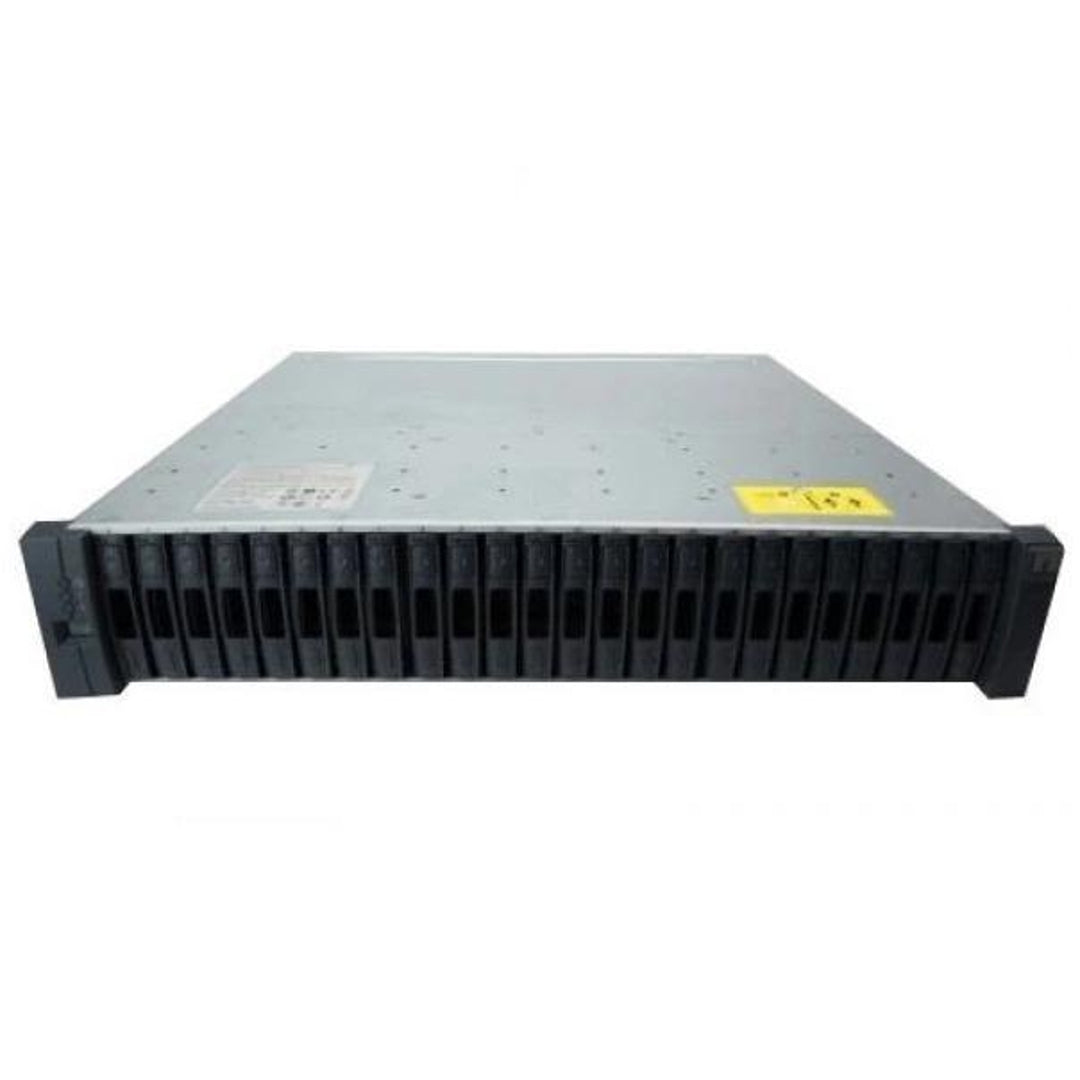

NetApp DS2246 Expansion Shelf with 24x 600GB 10K sas HDDs (X422A-R5)

Part#:
DS2246-24X-600GB
Brand:
NetApp
Type:
Disk Shelves
Condition:
ECS Refurbished & Tested
Warranty:
ECS 1 Year Hardware Warranty
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Parts Included:
  • 1x DS2246 Disk Shelf
  • 24x 600GB 10K SAS 2.5" Disk Drives (X422A-R5)
  • 2x IOM6 Controller (X5713A-R5)
  • 2x Power Supplies with Fans - 750W, AC (X519A-R6)
  • 2x .5 QSFP to QSFP SAS Cables (X6557A-R6)
  • 1x Rail Kit II, Cab, R6 (X877B-R6)
  • 2x Power Cable (NA), -C, R6 (X800E-R6-C)

NetApp DS2246 with 24x 600GB SAS 10K X422A-R5 Disk Shelf achieves both storage and performance in a 2U form factor. The DS2246 has the ability to use performance SAS drives, SSD's or Self-Encrypting drives. This DS2246 is populated with 24 600GB 10K SAS Drives (X422A-R5). Comes with all necessary parts as well as a 1-Year Parts Replacement Warranty as standard.



NetApp DS2246 Disk Shelf Specifications

NETAPP DS2246 DISK SHELF SPECIFICATIONS
Form Factor 2U
Drives per Enclosure 24
Supported Drive Types 2.5" 450GB 10K SAS HDD
2.5" 600GB 10K SAS HDD
2.5" 900GB 10K SAS HDD
2.5" 1.2TB 10K SAS
2.5" 1.8TB 10K SAS

SSDs Supported
200GB, 400GB, 800GB, 1.6TB & 3.6TB

Mixed:
400GB SSD + 1.2TB SAS
800GB SSD + 1.8TB SAS
200GB SSD + 900GB SAS
400GB SSD + 900GB SAS
Supported Controllers FAS2000 Series
FAS/V3070
FAS/V3100 Series
FAS/V3200 Series
FAS/V6000 Series
FAS/V6200 Series
Data ONTAP Version Required For FAS2040: 7.3.4 or later & 8.0.1 or later

For other Controllers: 7.3.3P2 or later & 8.0P1 or later
Shelf architecture and I/O Bandwidth SAS 6Gbps
SAS 3Gbps with FAS2040 and FAS2050 systems

Connections require PCIe SAS HBA card or available embedded SAS port
Shelf I/O modules Dual IOM6 modules
Power Supplies and Cooling Dual redundant hot-pluggable power supplies and fan assembly
AC input Power Voltage 50 - 60 Hz
Weight 49 lbs
Dimensions Height: 3.4"
Width: 19"
Depth: 19.1"
Temperature Operating Temp: 50ºF to 104ºF
Non-Operating Temp: -40ºF to 158ºF
Self-Encrypting Drives Supported 900GB 10K
1.8TB 10K
800GB SSD
1.6TB SSD
800GB SSD + 1.8TB 10K AES-256, FIPS 140-2 compliant
Compatible SAS Cables X6557-R6 - SAS Cable .5M (QSFP-QSFP) (112-00176)
X6558-R6 - SAS Cable 2M (QSFP-QSFP) (112-00177)
X6559-R6 - SAS Cable 5M (QSFP-QSFP) (112-00178)
Compatible Ethernet Cables X6560-R6 - RJ45 to RJ45 .5M CAT6 (112-00194)
X6561-R6 - RJ45 to RJ45 2M CAT6 (112-00195)
X6562-R6 - RJ45 to RJ45 5M CAT6 (112-00196)
Compatible Filers FAS6280, FAS6280A, FAS6240, FAS6240A, FAS6210, FAS6210A, FAS3270A, FAS3270, FAS3240A, FAS3240, FAS3210A, FAS3210, FAS6080A, FAS6080, FAS6070A, FAS6070, FAS6040A, FAS6040, FAS6030A, FAS6030, FAS3170A, FAS3170, FAS3160A, FAS3160, FAS3140A, FAS3140, FAS3070A, FAS3070, FAS3040, FAS3040A, FAS2240A, FAS2240 FAS2040A, FAS2040, V6280, V6280A, V6240, V6240A, V6210, V6210A, V3270A, V3270, V3240A, V3240, V3210A, V3210, V6080A, V6080, V6070A, V6070, V6040A, V6040, V6030A, V6030, V3170A, V3170, V3160A, V3160, V3140A, V3140, V3070A, V3070, V3040, V3040A
Alternate Part Numbers DS2246-1014-24S-PB-R5-C
DS2246-1014-24S-PBR-R5-C
DS2246-1014-24S-SQ-R5
DS2246-1014-24S-R5-C
Disk Shelf, 24 x 600GB, 10K, 6Gb SAS, IOM6, PB, -C, R5
Disk Shelf, 24 x 600GB, 10K, 6Gb SAS, IOM6, PBR, -C, R5
Disk Shelf, 24 x 600GB, 10K, 6Gb SAS, IOM6, QS, R5
Disk Shelf, 24x 600GH, 10K, 6Gb SAS, IOM6, -C, R5
