Specs
Quick Specs
2U rack server
Storage | Max: N/A24 SFF SAS/NL-SAS (HDD/SSD)
Controllers:Supports up to 2 Enclosure Modules (EMM)
Ports Per Controller:Four 12Gb/s SAS Ports
PERC Controller:12Gb SAS HBA or
H830 / H840 PCIe 3.0, 2P 12Gbps SAS
0, 1, 5, 6, 10, 50, 60
Enables expansion to 8 enclosures
(Click to View)
The MD1420 offers:

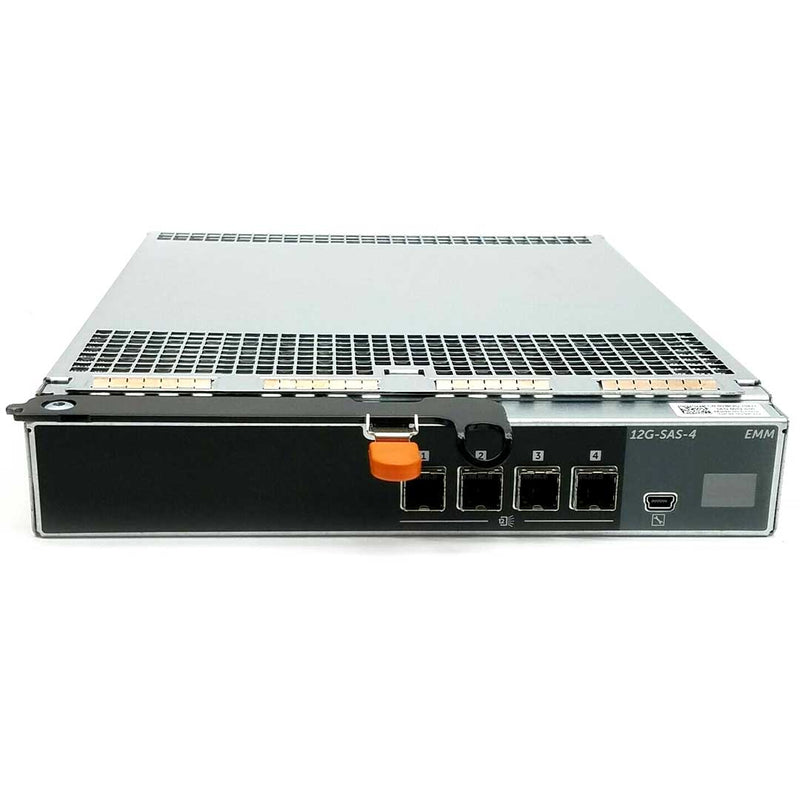

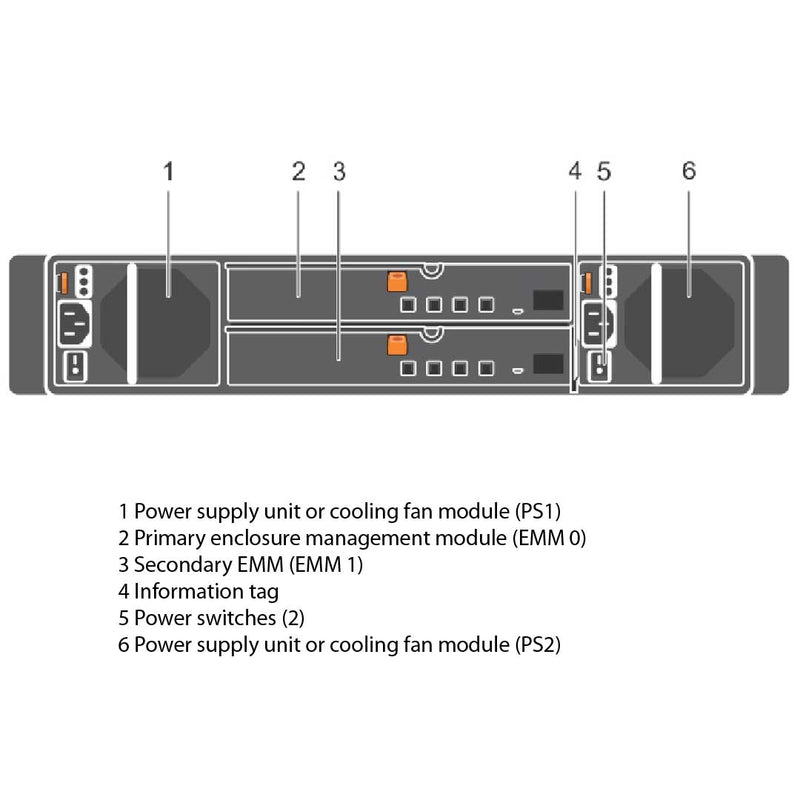

- Supports up to 2 EMM Modules for redunantcy.
- Hold two 600W PSU's
- Has two Modes, Unified Single Path and Redundant Path

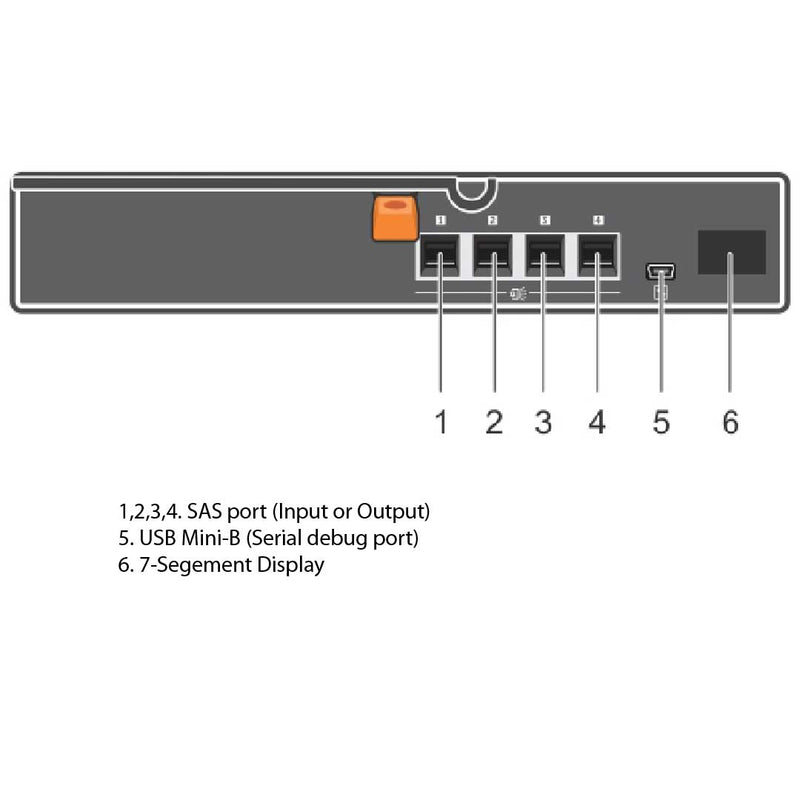

- 4 mini-SAS HD connector for connection to the host or expansion
The MD1420 offer low-cost storage expansion with double the bandwidth using 12Gbps SAS connectivity to support your growing application workloads.
RAID Controllers:
The intelligence of the Dell PowerEdge RAID Controller (PERC) H830 or H840 HostRAID adapter, which enables the software to recognize all of your storage as a single unit, helps increase reliability and fault tolerance. You can place up to eight MD enclosures behind a PowerEdge server using a 12Gb SAS HBA or the PERC9 series with a 12Gb RAID controller.
Designed for capacity and performance
The MD Series offers the versatility needed to meet both your storage capacity and performance requirements. The MD1400 and MD1420 models are specifically designed to work with the latest PowerEdge servers using the PERC H830 or H840 RAID controllers with 12Gbps SAS offering unmatched I/O performance for database applications, streaming digital media environments, and storage-intensive applications.
Seamless integration and management
Leveraging the technology and design of PowerEdge servers, the MD1400 and the MD1420 use the same hot-swappable drives, fans, and power supplies to minimize the cost of spares. If drive security is a priority, the option to use self-encrypted drives (SED) with drive-level encryption ensures your data is secure, even if the drive is removed. Additionally, SEDs support instant Secure Erase of drives which permanently removes data when repurposing or decommissioning drives.
When combined with Dell’s storage-optimized PowerEdge servers and the new MD Series of expansion enclosures, you have an affordable direct-attached storage option in Microsoft environments.
Looking to Customize?
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Spec Sheet 4
| Feature | MD1400 | MD1420 |
|---|---|---|

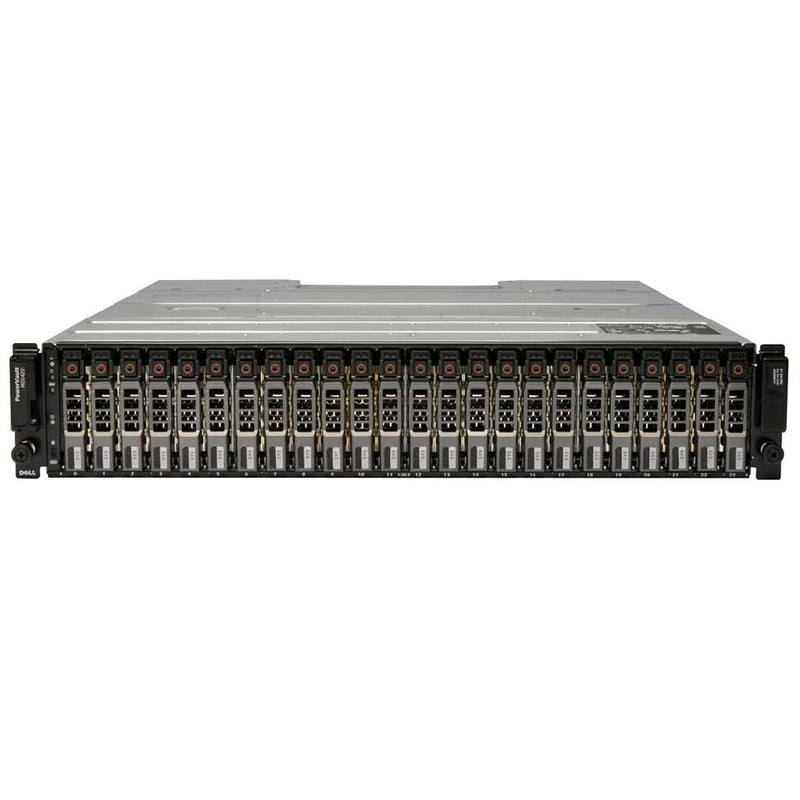

| Drives | Up to 12 hot-pluggable 3.5” or 2.5” drives (2.5” available with adapter) | Up to 24 hot-pluggable 2.5” drives |
| Drive performance and capacities | 3.5” and 2.5” NL-SAS, 2.5” SAS and 2.5” SSD drives | 2.5” NL-SAS, SAS and SSD drives |
| Maximum capacity per enclosure | Up to 168TB when using 12 x 14TB NL-SAS 3.5” HDDs | Up to 57.6TB when using 24 x 2.4TB NL-SAS 2.5” HDDs |
| Expansion capabilities | PERC H830/H840 HBA enables expansion to 8 enclosures, PCIe 3.0, 12Gbps SAS, dual -port, 4 ports per enclosure | |
| Host connectivity | ||
| Unified mode | Unified mode (single path) for daisy chaining of up to 8 enclosures per PERC H830/H840 (4 enclosures per port, single path) Unified mode (recommended redundant path) for daisy chaining up to 4 enclosures per PERC H830 (4 enclosures connected to both ports via redundant path cabling) | |
| Enclosure management modules (EMM) and RAID levels | ||
| EMM | 2 EMM provide redundant enclosure management capability | |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 | |
| Back-panel connectors per EMM | ||
| Connectivity | 4 mini-SAS HD connector for connection to the host or expansion | |
| Service management | USB mini-B connector (for factory use only) | |
| Power supplies per PSU | ||
| Wattage - AC and DC power | AC - 600W; DC - 700W | |
| Host heat dissipation | AC - 2047BTU/hr.; DC - 2388BTU/hr. | |
| Input voltage range | 100-240V AC, auto-sensing; 48V DC | |
| Frequency range | 50/60Hz | |
| Amperage | 8.6A at 100V, 4.3A at 240V | |
| Available hard drive power (per slot) | ||
| Supported continuous consumption | Up to 1.2A at +5V Up to 0.5A at +12V |
|
| Physical | ||
| Rack support | Dell ReadyRails™ II static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded-hole racks | |
| Height x width x depth | 8.7 cm (3.43”) x 48.2 cm (18.98”) x 54.61 (23.3”) depth includes PSU | 8.7 cm (3.43”) x 48.2 cm (18.98”) x 53.9 (21.22”) depth includes PSU |
| Weight | 28.59 kg (63.03 lb) (maximum configuration) 9.0 kg (19.8 lb) (empty) | 24.2 kg (53.35 lb) (maximum configuration) 8.8 kg (19.4 lb) (empty) |
| Environmental | ||
| Temperature | Operating: 10° to 35°C (50° to 95°F) with maximum temperature gradation of 10°C per hour Storage: -40° to 65°C (-40° to 149°F) with temperature gradation of 20°C per hour | |
| Relative humidity | Operating: 8% to 85% (non-condensing) with maximum humidity gradation of 10% per hour Storage: 5% to 95% (non-condensing) | |
| Altitude | Operating: -16 to 3048 m (-50 to 10,000 ft) Storage: -16 to 10,600 m (-50 to 35,000 ft) |
|
