-*Image may differ from actaul product

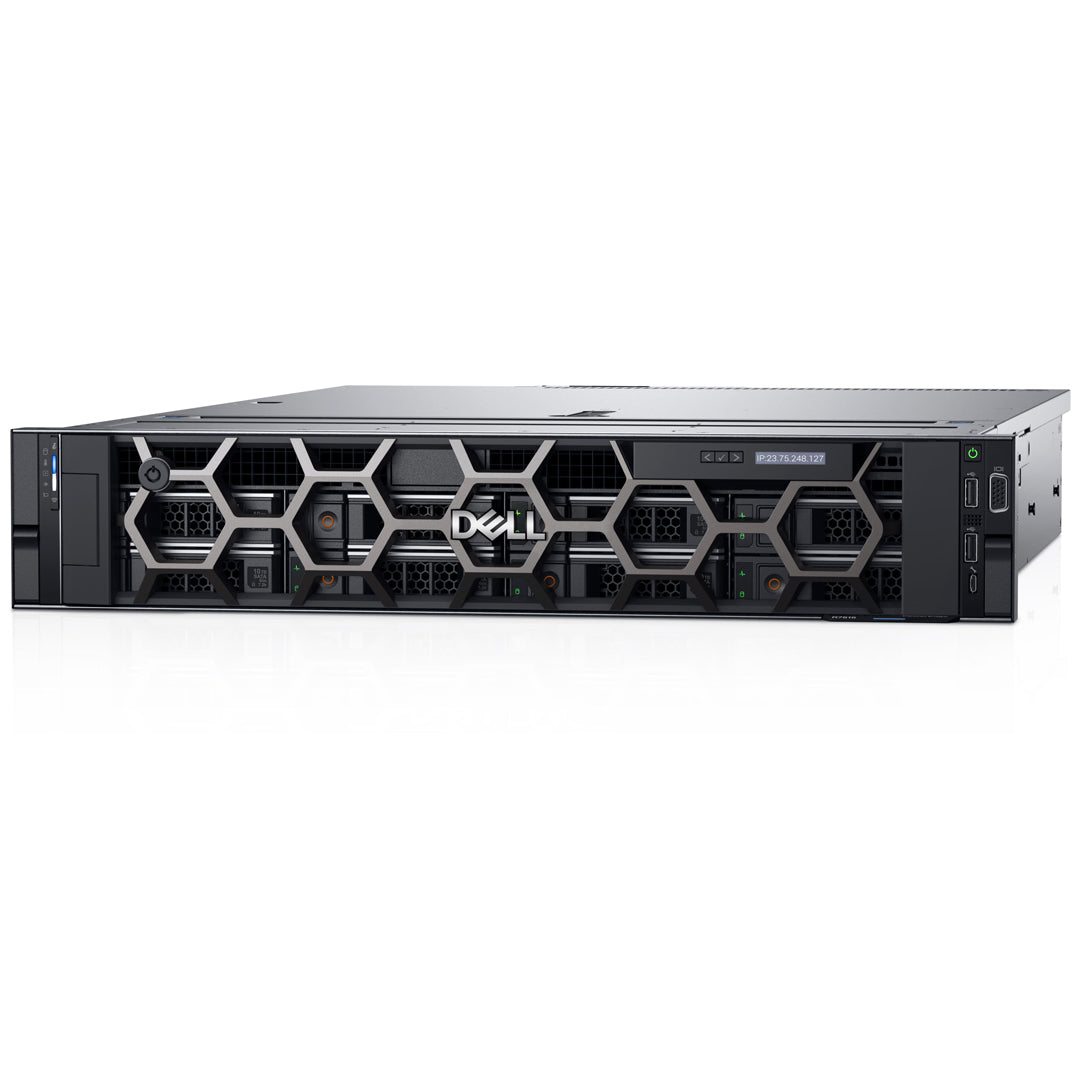

Dell PowerEdge R7515 Rack Server Chassis (8x3.5")

Dell PowerEdge R7515 Rack Server Chassis (8x3.5")

Price: Ask for Quote

Brand:

Dell

MPN:

DPE-R7515-8x3.5-Chassis

Type:

Chassis

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Refurbished Dell EMC PowerEdge R7515 CTO Rack Server

Quick Specs

Form Factor:

2U rack server

Processor | Max: 64 Cores

1x 2nd or 3rd Gen AMD EPYC

Memory | Max: 1TB RDIMM | 2TB LRDIMM

16 ECC DDR4 RDIMM/LRDIMM 3200Mhz

Storage | Max: N/A

Front bays:
Up to 8 x3.5” Hot Plug SATA/SAS HDDs

Boot Options

Boot Optimized Server Storage (BOSS)
IDSDM

RAID Controller: (mini-PERC)

S150 (SATA SW RAID 0, 1, 5 and 10.)
H330, H730P, H740P, H840, HBA330, 12Gb/s SAS HBA

NIC/LOM

2 x 1GbE
2 x 10GbE BT
2 x 10GbE SFP+
2 x 25GbE SFP28

Remote Management:

iDRAC9 with Lifecycle Controller

PCIe Slots:

Up to 4
2 x Gen3 slots 2 x16
2 x Gen4 slots 2 x16

GPU:

Up to 4 Single-Wide GPU(T4)
Up to 1 Full-Height FPGA

Ideal for:

Data Analytics
Virtualization

The Dell EMC PowerEdge R7515 (2U rack system) is a 1-socket, 2U server that is designed to run complex workloads using highly scalable memory, I/O ports, and network channels. The system is based on the 2nd and 3rd Generation AMD EPYC processors, which support several SKUs ranging from 16 cores and up to 64 cores, up to 16 DIMMs, PCI Express-4.0 enabled expansion slots, and a choice of LOM riser technologies.

Deliver breakthrough performance, innovation and density for traditional and emerging workloads

Data center evolution starts with modern platforms that scale easily and are optimized for application performance. The Dell EMC PowerEdge R7515 is built upon a scalable system architecture and provides choice and flexibility to meet performance demands. High-level specifications:

100%more processing cores and faster data transfer speeds with PCIe Gen 4
20%more memory performance for scale out environments
Direct connect SAS/SATA/ NVMe for vSAN Ready Nodes
High core count performance for highest VM density in a single-socket design
Multi-die architecture offers low latency and floating-point performance for big data and containers

Increase efficiency and accelerate operations in the Dell EMC PowerEdge R7515

The Dell EMC OpenManage systems management portfolio delivers an efficient and comprehensive solution for PowerEdge servers through tailored, automated, and repeatable processes.

Automate server life cycle management with scripting via the iDRAC Restful API with Redfish conformance.
Simplify and centralize one to many management with the OpenManage Enterprise console.
Utilize the OpenManage Mobile app and PowerEdge Quick Sync 2 to easily manage servers using a phone or tablet.
Resolve issues with up to 72% less IT effort using automated proactive and predictive technology from ProSupport Plus and SupportAssist.

Fortify your data center with integrated security

Every PowerEdge server is designed with a cyber resilient architecture, integrating security deeply into every phase in the lifecycle, from design to retirement.

Enhance security with platform enablement of AMD Secure Memory Encryption (SME) and Secure Encrypted Virtualization (SEV).
Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust
Maintain server firmware safety with digitally signed firmware packages.
Detect and remediate unauthorized or malicious change with drift detection and system lockdown.
Securely and quickly wipe all data from storage media including hard drives, SSDs and system memory with System Erase.

Memory Speed Options

The PowerEdge R7515 system supports up to 16 DIMMS, 2 TB of memory, and speeds up to 3200 MT/s

DIMM type	DIMM ranking	Capacity	DIMM rated voltage, Speed	AMD
DIMM type	DIMM ranking	Capacity	DIMM rated voltage, Speed	1DPC	2DPC
RDIMM	1R	8 GB	DDR4 (1.2 V), 3200 MT/s	3200 MT/s	2933 MT/s
RDIMM	2R	16 GB, 32 GB, 64 GB	DDR4 (1.2 V), 3200 MT/s	3200 MT/s	2933 MT/s
LRDIMM	8R	128 GB	DDR4 (1.2 V), 3200 MT/s	2666 MT/s	2666 MT/s
LRDIMM	8R	128 GB	DDR4 (1.2 V), 3200 MT/s	3200 MT/s	2933 MT/s
NOTE: The older 32 GB capacity RDIMM memory with x4 data width and 8Gb DRAM density cannot be mixed with the newer 32 GB capacity RDIMM memory with x8 data width and 16Gb DRAM density in the same AMD EPYC™ processor unit.
NOTE: The older 128 GB capacity LRDIMM memory at 2666 MT/s speed cannot be mixed with the new 128 GB capacity LRDIMM memory at 3200 MT/s speed.

Hard Drive Configurations

The PowerEdge R7515 supports the following drive configurations:

R7515 configuration details	Storage module	Rear storage module	Controllers
8 x 3.5 -inch, SAS or SATA only	8 x 3.5-inch	None	CPU Direct SATA, SWRAID SATA, Mini PERC (H330, H730P, H740P, HBA330)
24 x 2.5-inch, SAS	24 x 2.5-inch	None	Mini PERC (H730P, H740P, HBA330)
24 x 2.5-inch, 12 SAS + 12 Universal	24 x 2.5-inch	None	CPU direct NVMe; SWRAID NVMe, Mini PERC (H740P, HBA330)
12 x 3.5-inch, SAS	12 x 3.5-inch	None	Mini PERC (H730P, H740P, HBA330)
14 x 3.5-inch, 12 SAS (front) + 2 SAS (Back)	12 x 3.5-inch	Rear 2 x 3.5-inch	Mini PERC (H730P, H740P, HBA330)
24 x 2.5-inch, 8 Universal 16 NVMe only (2x16 PCIe uplinks)	24 x 2.4-inch NVMe	None	CPU direct NVMe; SWRAID NVMe, Mini PERC (H740P, HBA330)
24 x 2.5-inch, NVMe	24 x 2.5-inch NVMe	None	Not applicable
NOTE: SAS represents SAS/SATA capable backplane.
NOTE: Universal represents SAS/SATA/NVMe capable slots.

Expansion Card Riser Configurations

Expansion card riser	PCIe slots on the riser	Processor connection	Height	Length	Slot width
Riser-1B (2U riser)	Slot 2	Processor 1	Full Height	Full Length	x16
Riser-1B (2U riser)	Slot 3	Processor 1	Full Height	Full Length	x16
Riser-1A (low profile riser right)	Slot 2	Processor 1	Low Profile	Half Length	x16
Riser-2 (low profile riser left)	Slot 3	Processor 1	Low Profile	Half Length	x16
NOTE: The expansion-card slots are not hot-swappable.

This Product Is Compatible With The Following Systems:

Dell Series R7515

Manuals

Base Standard Capabilities

Feature	Technical Specification
Processor	One 2nd or 3rd Generation AMD EPYCTM Processor with up to 64 cores
Memory	DDR4: Up to 16 x DDR4 RDIMM (1TB), LRDIMM (2TB), bandwidth up to 3200 MT/S
Storage controllers	HW RAID: PERC 9/10 - HBA330, H330, H730P, H740P, H840, 12G SAS HBA Chipset SATA/SW RAID(S150): Yes
Drive bays	Front bays: Up to 8 x3.5” Hot Plug SATA/SAS HDDs Up to 12x 3.5” hot-plug SAS/SATA HDDs Up to 24x 2.5” Hot Plug SATA/SAS/NVMe Rear Bays: Up to 2x 3.5” hot-plug SAS/SATA HDDs Internal: 2 x M.2 (BOSS)
Power supplies	800W Platinum 750W Titanium 750W Platinum 1100W Platinum 1600W Platinum
Fans	Stanadard/High Peformance Fan N+1 Fan redunadancy
Dimensions	Height: 86.8mm (3.42”) Width: 434.0mm (17.09”) Depth: 647.1mm (25.48”) Weight: 27.3 kg (60.19 lb)
Form Factor	2U Rack Server
Embedded mgmt	iDRAC9 iDRAC RESTful API with Redfish iDRAC Direct Quick Sync 2 BLE/wireless module
Bezel	Optional LCD bezel or security bezel
OpenManage™ Software	Consoles OpenManage Enterprise OpenManage Enterprise Power Manage OpenManage Mobile Mobility OpenManage Mobile Tools Dell EMC RACADM CLI Dell EMC Repository Manager
Integrations & Connections	OpenManage Integrations BMC Truesight Microsoft System Center Red Hat Ansible Modules VMware® vCenter™	OpenManage Connections IBM Tivoli Netcool/OMNIbus IBM Tivoli Network Manager IP Edition Micro Focus Operations Manager Nagios Core Nagios XI
Security	Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown TPM 1.2/2.0, TCM 2.0 optional
Embedded NIC
Networking Options (NDC)	2 x 1GbE 2 x 10GbE BT 2 x 10GbE SFP+ 2 x 25GbE SFP28
GPU Options	Up to 4 Single-Wide GPU(T4); Up to 1 Full-Height FPGA
Ports	Front Ports: 1 x Dedicated iDRAC direct micro-USB 1 x USB 2.0 1 x Video	Rear Ports 2 x 1GbE 1 x Dedicated iDRAC network port 1 x Serial (optional) 2 x USB 3.0 1 x Video
PCIe	Up to 4: 2 x Gen3 slots 2 x16 2 x Gen4 slots 2 x16
Operating System and Hypervisors	Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V SUSE Linux Enterprise Server Red Hat Enterprise Linux VMware ESXi

Spec Sheet 4

Feature	PowerEdge R7515	PowerEdge R7415
Processor	2 nd Generation AMD EPYC SP3 3 rd Generation AMD EPYC SP3	AMD Naples SP3
Memory	16x DDR4 RDIMM, LRDIMM, 3DS	16x DDR4 RDIMM, LRDIMM
Disk Drives	3.5-inch and 2.5-inch: ● 12 G SAS ● 6 G SATA HDD/SSD	3.5-inch and 2.5-inch: ● 12 G SAS ● 6 G SATA HDD/SSD
Storage Controllers	● Mini PERC: HBA330, H330, H730P, H740P, H840, HBA355e ● Host Bus Adapter: 12 Gbps SAS HBA ● SW RAID: S150	● Mini PERC: HBA330, H330, H730P, H740P, H840 ● Host Bus Adapter: 12 Gbps SAS HBA ● SW RAID: S140
PCIe SSD	Up to 24x PCIe SSD (Gen3)	Up to 24x PCIe SSD (Gen3)
PCIe Slots	Up to 4: ● 2 Gen3 slot (x16) ● 2 Gen4 slot (x16)-Slot 3/4	Up to 4: ● 3 Gen3 slot (x16) ● 1 Gen3 slot (x8)
OCP 2.0	OCP Type 1: (Connector A)	OCP Type 1: (Connector A)
USB Ports	● Front: 2 x USB 2.0, 1 x iDRAC USB(Micro USB) port ● Rear: 2 x USB 3.0_Gen1 port ● Internal: 1 x USB 3.0 port	● Front: 2x USB 2.0, 1x iDRAC USB(Micro USB) port ● Rear: 2x USB 3.0_Gen1 port ● Internal: 1 x USB 3.0 port
Rack Height	2U	2U
Power Supplies	● 495 W AC Platinum ● 1600 W AC Platinum ● 750 W Mix Mode Platinum ● 750 W AC Titanium ● 1100 W Mix Mode Platinum	● 495 W AC Platinum ● 1600 W AC Platinum ● 750 W AC Mix Mode Platinum ● 1100 W AC Mix Mode Platinum
System Management	● Lifecycle Controller 3.x ● OpenManage ● Quick Sync2.0 ● OMPC3 ● Digital License Key ● iDRAC Direct (dedicated micro-USB port) ● Easy Restore	● Lifecycle Controller 3.x ● OpenManage ● Quick Sync2.0 ● OMPC3 ● Digital License Key ● iDRAC Direct (dedicated micro-USB port) ● Easy Restore ● vFlash
Internal GPU	Up to 4x 75W or 1x 225W	None
Availability	● Hot-plug drives ● Hot-plug redundant power supplies ● BOSS ● IDSDM	● Hot-plug drives ● Hot-plug redundant power supplies ● BOSS ● IDSDM
