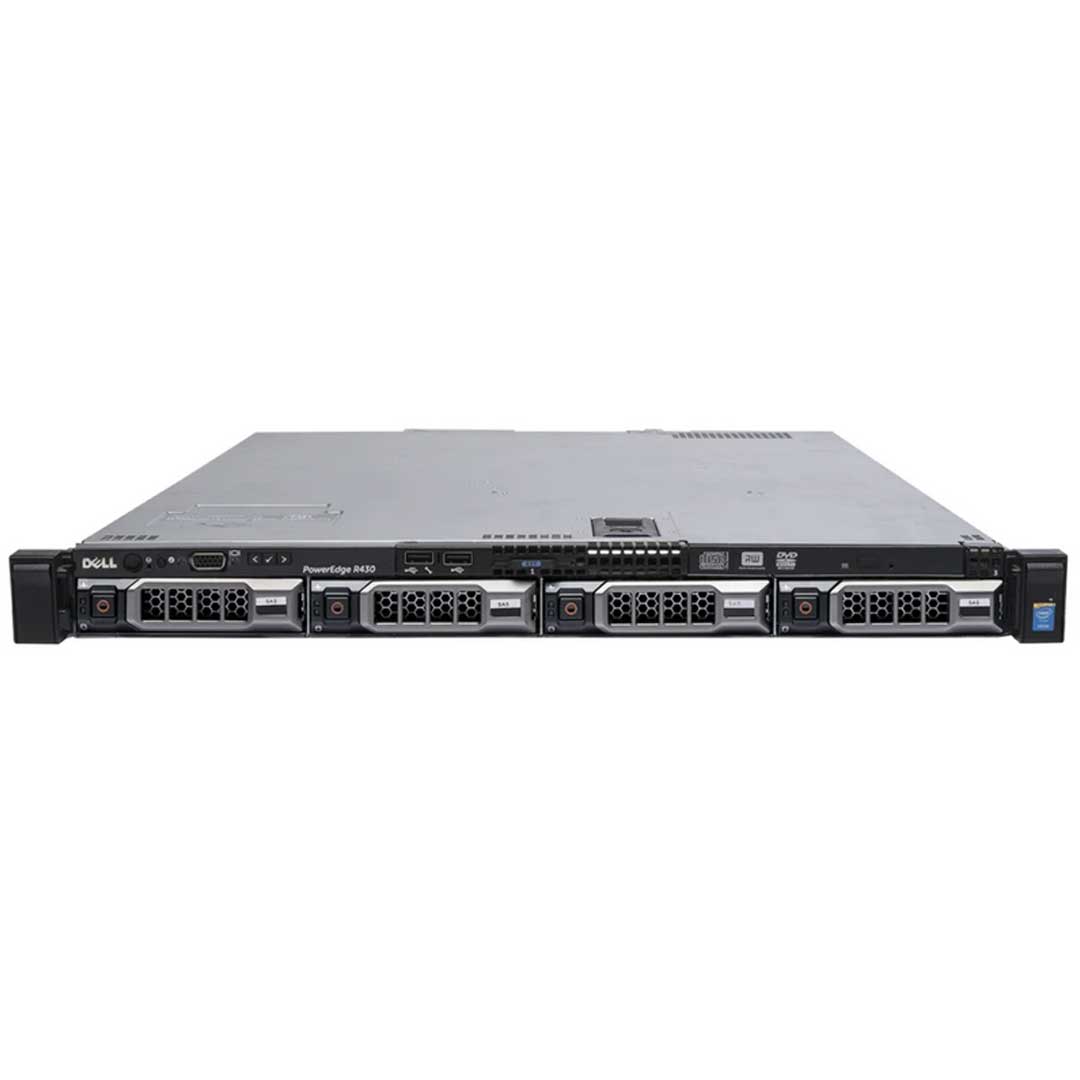

Dell PowerEdge R430 Rack Server Chassis (4x3.5")


Price: $180.00

Brand:
MPN:
DPE-R430-4x3.5-Chassis
Type:
Chassis
Condition:
ECS Refurbished & Tested

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.


-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Dell PowerEdge R430 Rack Server Chassis (4x3.5")

Quick Specs

Form Factor:

short-height 1U rack server short-depth (24-inch) chassis

Processor | Max: 20 Cores

2 x Intel Xeon E5-2600v3 or v4

Memory | Max: 384GB

12 DDR4 RDIMM 2400Mhz

Storage | Max: 16TB

4x 3.5" hot-plug SAS/NL-SAS/SATA (HDD/SSD)

RAID Controller:

S130 (SW RAID) H330, H730, H730P, H830

NIC/LOM:

4 x 1GbE LOM

Boot Options:

Internal dual SD module (IDSDM)
Internal USB

Remote Management:

iDRAC8 with Lifecycle Controller

PCIe Slots:

2x PCIe x16 3.0

GPU:

None

Ideal for:

  • Virtualization

Introducing the PowerEdge R430 - a powerful, two-socket entry rack server designed for peak performance, configuration flexibility, high availability and intuitive management in a compact package. With its short-height (1U) and short-depth (24-inch) chassis, the R430 overcomes space constraints without compromising on performance or storage capacity.

The R430 boasts up to 12 DDR4 DIMMs, 2 PCIe 3.0 I/O slots and scalable internal storage capacity of up to 10 x 2.5" hard drives. This, combined with its energy-efficient processors, memory, power supplies, and Fresh Air 2.0 capability, ensures maximum operational efficiency, driving better ROI and saving time for IT administrators.

PowerEdge R430 Supported Drive Configuration
  • Short-height, short-depth chassis
  • Up to 4 x 3.5" Cabled HDD
  • Up to 4 x 3.5" Hot Swap HDD/SSD
  • Up to 8 x 2.5" Hot Swap HDD/SSD
  • Up to 10 x 2.5" Hot Swap HDD/SSD
  • NOTE - SSD/SAS/SATA hard drives cannot be mixed in a system.
View of drive options for the R420 Rack Server

Storage Controllers

Your system includes a dedicated expansion card slot on the system board for an integrated storage controller card. Theintegrated storage controller card provides the integrated storage subsystem for the internal hard drives in your system.Thecontroller supports SAS and SATA hard drives and also enables you to set up the hard drives in RAID configurations. The RAIDconfigurations depend on the version of the storage controller included with your system. The controller supports SAS harddrives.

Image of the Mini Mono Storage Controller for the Dell R430 Rack Server
Boot & iDRAC options
Expansion bus specifications

The PowerEdge R430 system supports PCI express (PCIe) Generation 2 and 3 expansion cards, which need to be installed on the system board using expansion card risers. This system supports two types of expansion card risers.

Expansion card riser PCIe slots on the riser Height Width Link
PCIE_G3_X16 Left or Right riser Slot 1 low-profile half-length x16
Slot 2 low-profile half-length x16
PCIE_G3_X8 Butterfly riser Slot 1 full-height half-length x8
Slot 2 low-profile half-length x8
Power Supply Units (PSU)

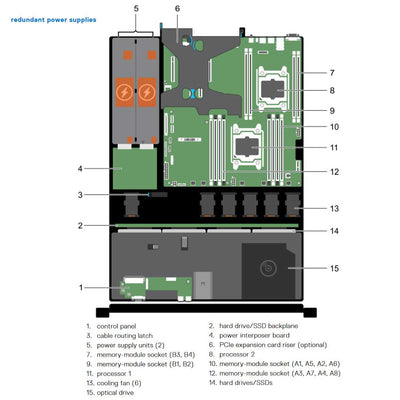

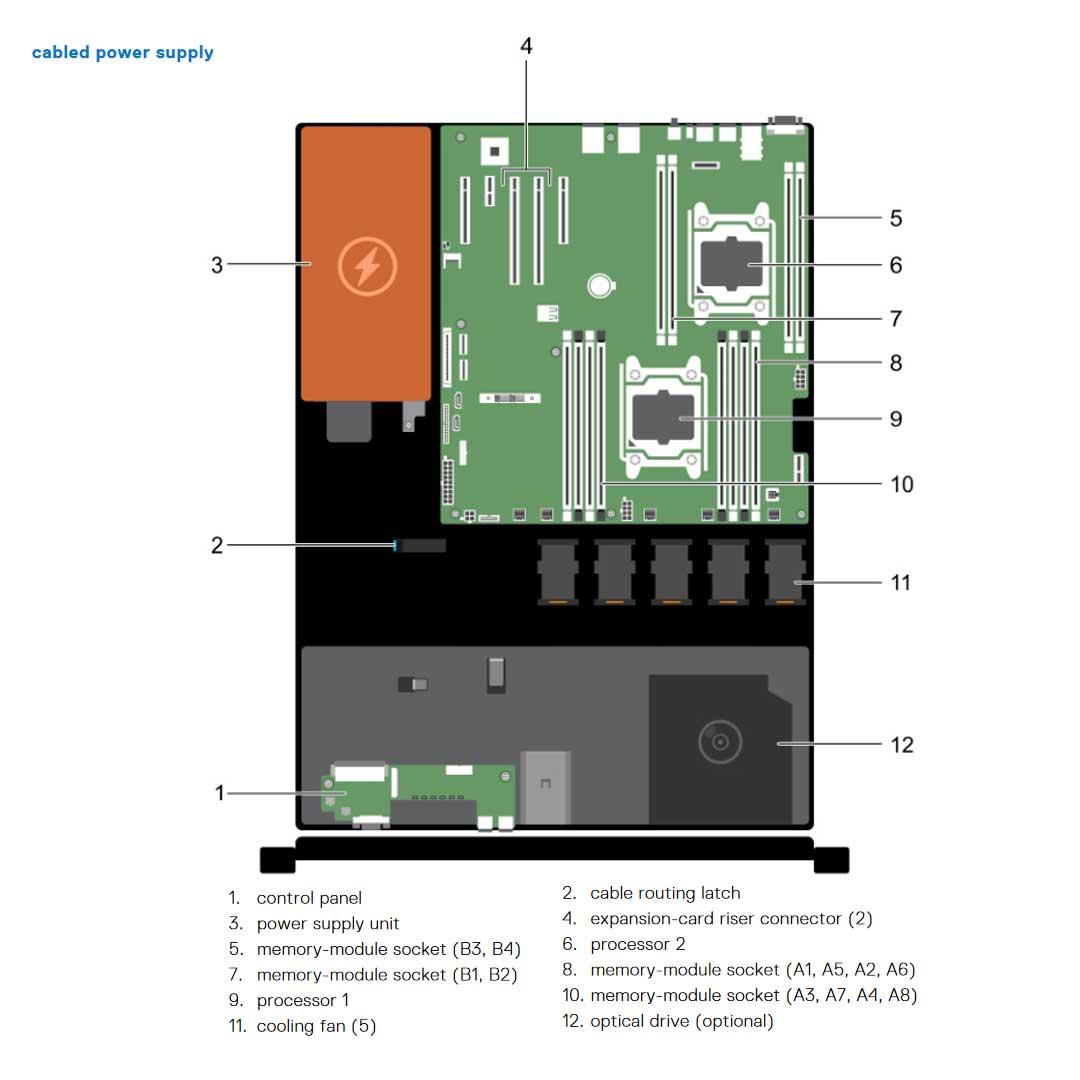

The PowerEdge R430 system supports up to two AC redundant power supply units (PSUs) and a single AC cabled PSU. The non-redundant configuration has One cabled 450W PSU. The second supported option is the redundant 550W 60MM PSUs. These PSUs can not be mixed, in the redundant configuration both PSUs must have the same max output. A cabled PSU is supported in systems with cabled hard drives and systems with x4 backplane.

PSU Class Heat dissipation
(maximum)
Frequency Voltage Current
550 W AC Platinum 2107 BTU/hr 50/60 Hz 100–240 V AC,
autoranging
7.4 A-3.7 A
450 W AC Bronze 1871 BTU/hr 50/60 Hz 100–240 V AC,
autoranging
6.5 A-3.5 A

This Product Is Compatible With The Following Systems:

Product Specs

Base Standard Capabilities

FeaturePowerEdge R430 Technical specification
Form factor1U rack server
Dimensions and weightH: 42.8 mm (1.68 in)
W: 482.4 mm (18.99 in) with rack latches; 434.0 mm (17.08 in) without rack latches
D: 607.0 mm (23.9 in) without bezel; 676.92 mm (26.7 in) with bezel
Weight
16.73 kg (36.88 lb) empty
19.9 kg (43.87 lb) maximum
ProcessorIntel® Xeon® processor E5-2600 v4 product family
Processor sockets: 2
Chipset: C610
Internal interconnect: Up to 9.6GT/s
Cache: 2.5MB per core; core options: 4, 6, 8, 10, 12, 14, 16, 18, 20
MemoryDDR4 RDIMMs at up to 2400MT/s
12 DIMM slots: 4GB/8GB/16GB/32GB
I/O slots2 PCIe 3.0
StorageSAS, SATA, nearline SAS, SSD Multiple R430 chassis available:
  • 10 x 2.5" hot-plug drives
  • 8 x 2.5" hot-plug drives
  • 4 x 3.5" hot-plug drives
  • 4 x 3.5" cabled drives
RAID controllersInternal controllers: PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P
External HBAs (RAID): PERC H830
Communications4 x 1GbE LOM
Power supplies450W, 550W PSU
ManagementSystems management
  • IPMI 2.0 compliant
  • Dell OpenManage Essentials
  • Dell OpenManage Mobile
  • Dell OpenManage Power Center
Remote management
iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade), 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
Dell OpenManage Connections:
  • Dell OpenManage Integration Suite for Microsoft® System Center
  • Dell OpenManage Integration for VMware® vCenter™
Dell OpenManage Integrations:
  • HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management
  • Dell OpenManage Plug-in for Oracle® Database Manager
Optional supported hypervisorsCitrix® XenServer, VMware vSphere® ESXi®, Red Hat® Enterprise Virtualization®
Operating systemMicrosoft® Windows Server® 2016
Microsoft Windows 2012
Microsoft Windows Server 2012 R2, x64
Red Hat® Enterprise Linux®
VMware® vSphere® ESXi®
SUSE® Linux Enterprise Server
Rack supportReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm.
