-*Image may differ from actaul product

Dell PowerEdge R250 Chassis - Cabled 4x3.5" SAS/SATA (HDD/SSD)

Cabled 4X3.5" Sas/Sata (Hdd/Ssd) | Dell PowerEdge R250 Chassis

Price: $661.25

Brand:

Dell CTO

MPN:

DPE-R250-4X3.5

Type:

Chassis

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Cabled 4X3.5" Sas/Sata (Hdd/Ssd) | Dell PowerEdge R250 Chassis

CTO Item

This part is strictly for configuring Dell servers. If you have landed on this page and you're looking for a specific part number. Please send us a "Request a Quote" with the part number you need.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Manuals

Base Standard Capabilities

Feature	Technical Specification
Processor	One Intel Xeon E-2300 series processor with up to 8 cores or one Intel Pentium processor with up to 2 cores
Memory	Four DDR4 DIMM slots, supports UDIMM 128 GB max, speeds up to 3200 MT/s Supports unregistered ECC DDR4 DIMMs only Note: For Pentium processor, the maximum memory speed is 2666 MT/s.
Storage controllers	Internal controllers: PERC H345, H755, HBA355i, S150 Internal Boot: Internal Dual SD Module or USB or Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs External HBAs (non-RAID): HBA355e

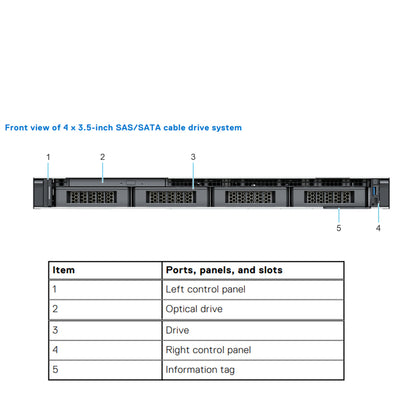

Drive bays	Front bays: Up to 4 x 3.5-inch hot swap SAS/SATA (HDD/SSD) max 30.72 TB Up to 2 x 3.5-inch cabled SAS/SATA (HDD/SSD) max 15.36 TB Up to 4 x 3.5-inch cabled SAS/SATA (HDD/SSD) max 30.72 TB
Power supplies	450 W Bronze 100-240 V AC, cabled 450 W Platinum 100-240 V AC, cabled 700 W Titanium 100-240 V AC, cabled 700 W Titanium 240 V DC, cabled
Cooling options	Air Cooling
Fans	Up to four cabled fans
Dimensions	Height: 42.8 mm (1.68 inches) Width: 482 mm (18.97 inches) Depth: 598.64 mm (23.56 inches) with bezel 585 mm (23.03 inches) without bezel
Form Factor	1U Rack Server
Embedded mgmt	iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Manual
Bezel	Optional bezel or security bezel
OpenManage™ Software	OpenManage Enterprise OpenManage Power Manager plugin OpenManage SupportAssist plugin OpenManage Update Manager plugin
Mobility	OpenManage Mobile
Integrations and Connections	OpenManage Integrations BMC Truesight Microsoft System Center Red Hat Ansible Modules VMware vCenter and vRealize Operations Manager	OpenManage Connections IBM Tivoli Netcool/OMNIbus IBM Tivoli Network Manager IP Edition Micro Focus Operations Manager Nagios Core Nagios XI
Integrations and Connections	Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown TPM 1.2/2.0, TCM 2.0 optional
Embedded NIC	2 x 1 GbE LOM
GPU Options	Not supported

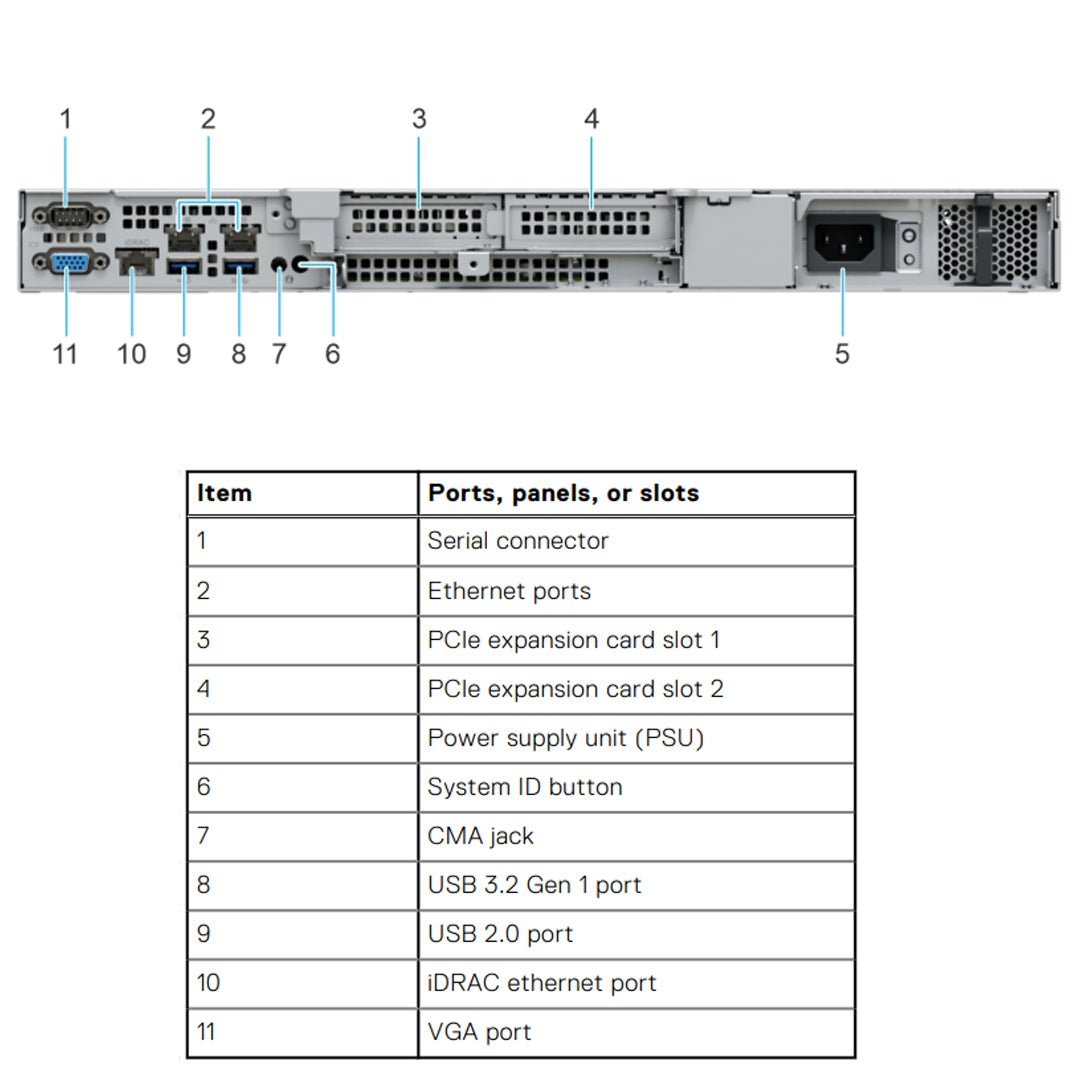

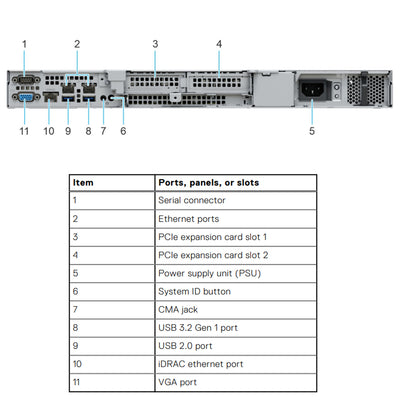

Ports	Front Ports: 1 x USB 2.0 1 x iDRAC Direct (Micro-AB USB) port Internal Ports 1 x USB 3.0 (optional)	Rear Ports 1 x USB 2.0 1 x iDRAC ethernet port 1 x USB 3.01 x USB 3.0 1 x VGA 1 x Serial port
PCIe	2 PCIe slots: 1 x8 Gen4 (x16 connector) low profile, half length 1 x8 Gen4 (x8 connector) low profile, half length
Operating System and Hypervisors	Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V SUSE Linux Enterprise Server VMware ESXi/vSAN Red Hat Enterprise Linux

Spec Sheet 4

Feature	PowerEdge R250	PowerEdge R240
Processor	One Intel® Xeon E-2300 series processor with up to 8 cores per processor	Coffee Lake-S E3-1200 V6 series. Pentium and Celeron up to 95 W
Memory	● 4 DDR4 DIMM slots, supports UDIMM 128 GB max, speeds up to 3200 MT/s NOTE: For Pentium processor, maximum memory supported is 2666 MT/s ● Supports unregistered ECC DDR4 DIMMs only	● 4 DDR4 DIMM slots, memory support 8,16 GB, DIMM speed up to 2666 MT/s ● Supports unregistered ECC DDR4 DIMMs only
Storage Drives	● Up to 4 x 3.5-inch SAS/SATA (HDD/ SSD) ● Up to 4 x 3.5-inch SAS/SATA (HDD/ SSD) ● 2 x 3.5-inch cabled SAS/SATA drives ● Max 80TB for 4HDD configuration	● Up to 4 x 3.5-inch hot-plug SAS/ SATA/ SSD ● Up to 4 x 3.5-inch cabled SAS/ SATA/ SSD ● Up to 2 x 3.5-inch cabled SAS/ SATA/ SSD ● Max 56 TB for 4 HDD configuration
Storage Controllers	Internal Controllers ● PERC H345, HBA355i, H755, H355 External Controllers ● HBA355e Software RAID ● S150	Internal Controllers ● PERC H330, H730p, HBA330 External Controllers ● 12 Gbps SAS HBA Software RAID ● S140
PCIe Slots	PCI Express® (PCIe)4.0 expansion slots	2 x PCIe Gen 3 slots
Embedded NIC (LOM)	Onboard LOM 1GbE x2	2 x 1GbE LOM
Networking options (OCP 3.0)	NA	NA
I/O ports	Front Ports ● 1 x iDRAC Direct (Micro-AB USB) port ● 1 x USB 2.0 Rear Ports ● 1 x USB 2.0 ● 1 x USB 3.0 ● 1 x VGA ● 1 x Serial Internal Ports ● 1 x USB 3.0 (Optional)	Front Ports ● 1 x Dedicated iDRAC direct microUSB ● 1 x USB 2.0 Rear Ports ● 1 x Serial ● 2 x USB 3.0 ● 1 x VGA Internal Ports ● 1 x USB 3.0
Form Factor	1U	1U
Power Supplies	● 450W Bronze 100-240 VAC, cabled ● 450W Platinum 100-240 VAC, cabled ● 700 W Titanium 100-240 V AC, cabled ● 700 W Titanium 240 V DC, cabled	● 250 W AC 1U cable (Bronze) ● 450 W AC 1U cable (Platinum)
Embedded management	● iDRAC9 ● iDRAC Direct ● iDRAC Service Module ● iDRAC RESTful API with Redfish	● iDRAC9 ● iDRAC RESTful API with Redfish ● iDRAC Direct
Front IO	● Power button w/LED x1 ● ID button w/LED x1 ● USB 2.0 x1 ● iDRAC MGMT USB x1 ● System Status LED x1	● Power button w/LED x1 ● ID button w/LED x1 ● USB 2.0 x1 ● iDRAC MGMT USB x1 ● System Status LED x1

Category: 15g, 1u, 2-pcie-slots, 3200-mhz, 4-dimms, 500-2000, ddr4, drive-capacity-30-72tb, drive-count-4, interface-type-sas, interface-type-sata, lff, memory-128gb, pcie-4, processor-cores-8-core, processor-count-1, rack, server-ff-rack
