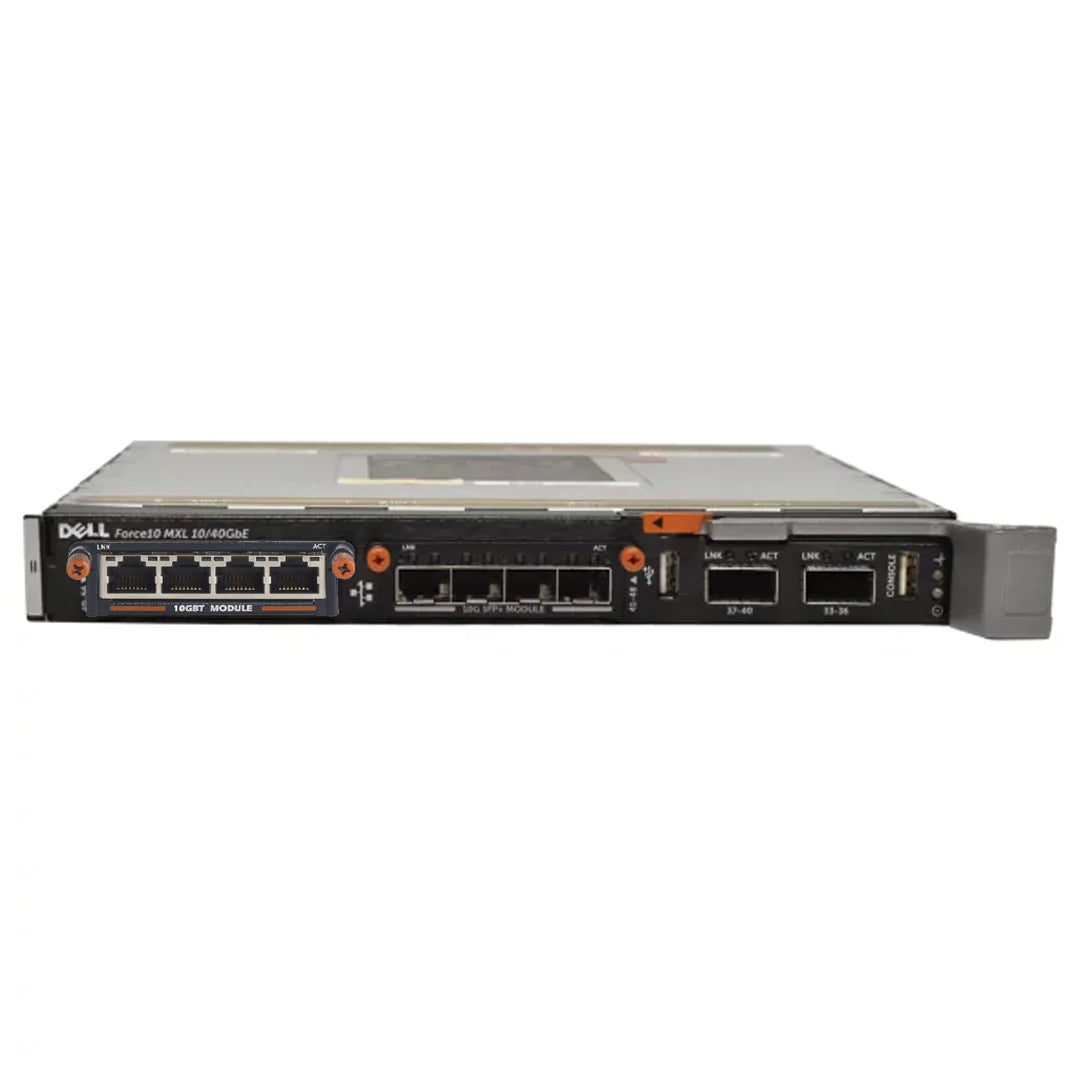

Dell Force10 MXL 10/40Gb Ethernet Switch - 4p 10GBASE-T & 4p 10GbE SFP+

ECS Refurbished & Tested

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.

*Adds to cart & you can request a quote from the cart page


Dell PowerEdge MXL 10/40Gb Ethernet Switch, layer 2 switch blade with two fixed 40GbE ports on the base module and support for two optional plug-in modules. The Aggregator operates in a Dell PowerEdge M1000e chassis, which can support up to 32 servers and six I/O Aggregator blade switches. The Aggregator runs the Dell Force10 Operating System (FTOS) and autoconfigures as an unmanaged switch with bridging and multiplexing functionality, which transmits traffic as follows:

• GbE/10GbE connections through the midplane to up to 32 server ports in the chassis
• 10GbE connections through uplink ports to top-of-rack (ToR) switches
• 40GbE connections through stacking ports to other I/O Aggregators in a switch stack

In a data center network, the Aggregator functions as a flat layer 2 passthrough switch that interoperates with Dell and third-party ToR devices.

The switch supports data center bridging (DCB) features, and provides seamless connectivity for a Fiber Channel over Ethernet (FCoE) server and iSCSI storage data traffic.

In its default operational mode, the Aggregator requires no additional configuration; network connectivity for servers in an M1000e chassis is enabled. By simplifying switch configuration and management, the Aggregator reduces complexity in a data center network.

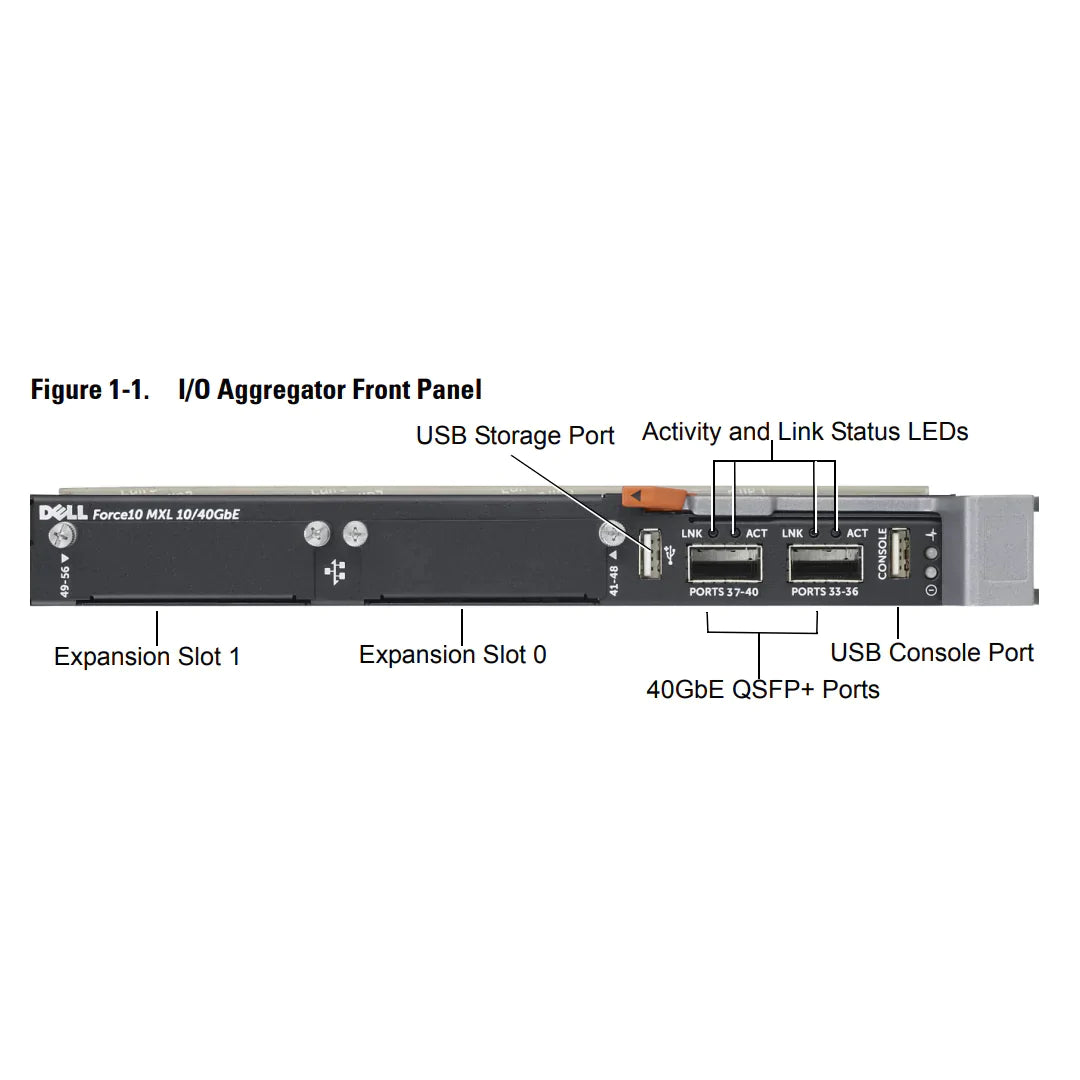

On the Aggregator, FlexIO plug-in modules (Figure 1-2) operate only as uplinks; stacking is not supported. The following modules are supported in the two expansion slots:

  • • 4-Port 10-Gigabit Ethernet module using SFP+ optics or direct-attach cables (1m, 3m, or 5m DAC) 4-Port 10GBASE-T module using RJ-45 connector (copper) cables
  • NOTE: Only one 4-Port 10GBASE-T module is supported in an Aggregator.
  • NOTE: The 10M speed is not supported on the 4-Port 10GBASE-T module. Only 100M, 1G, and 10G speeds are supported.
  • • 2-Port 40-Gigabit Ethernet QSFP+ (SR or direct attach only) module only for 10GbE SFP+ connections using 4x10GbE breakout cables.
