Home / All / Dell PowerEdge M1000e Blade Chassis v1.1
SKU: DPE-M1000e-CHASSIS-v1.1

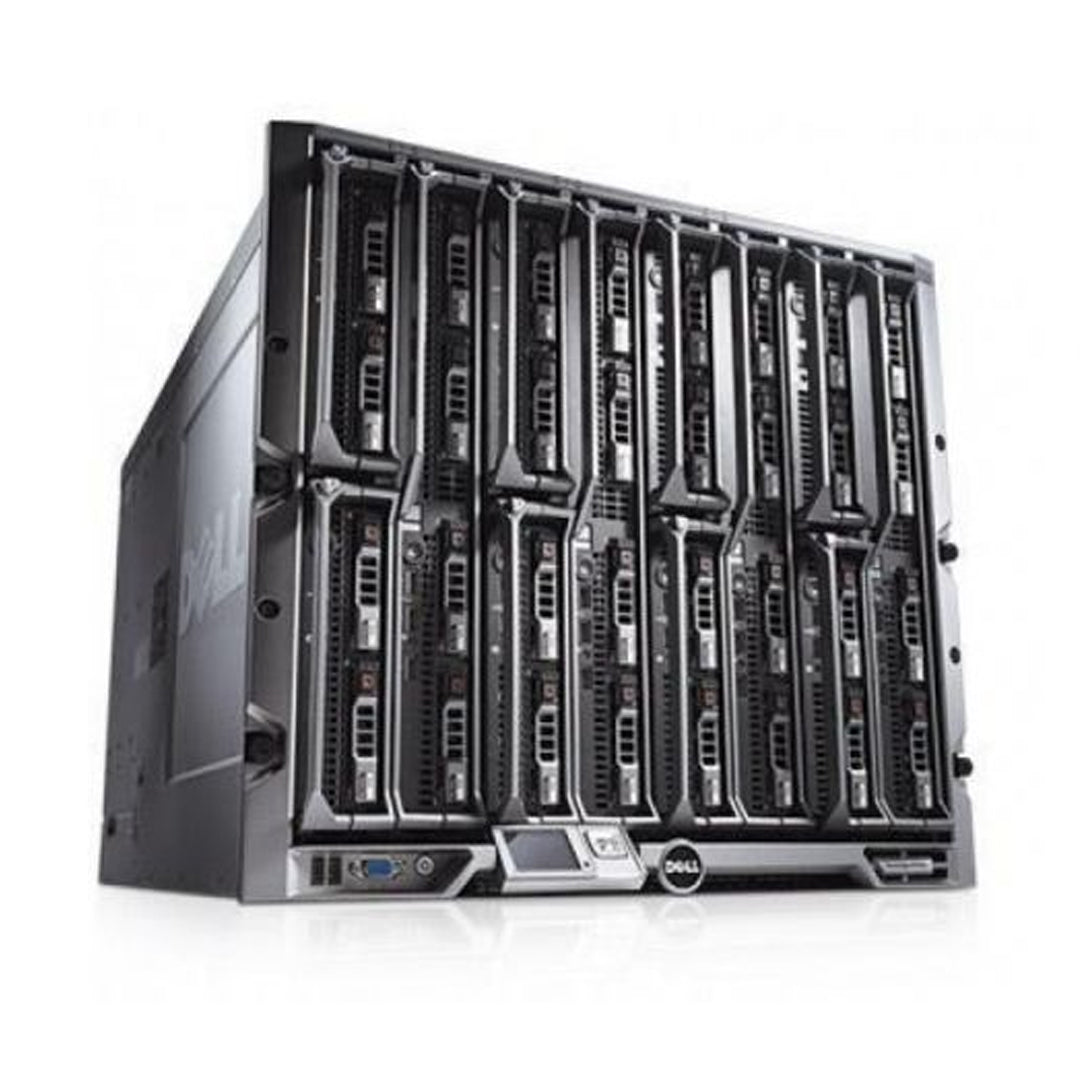

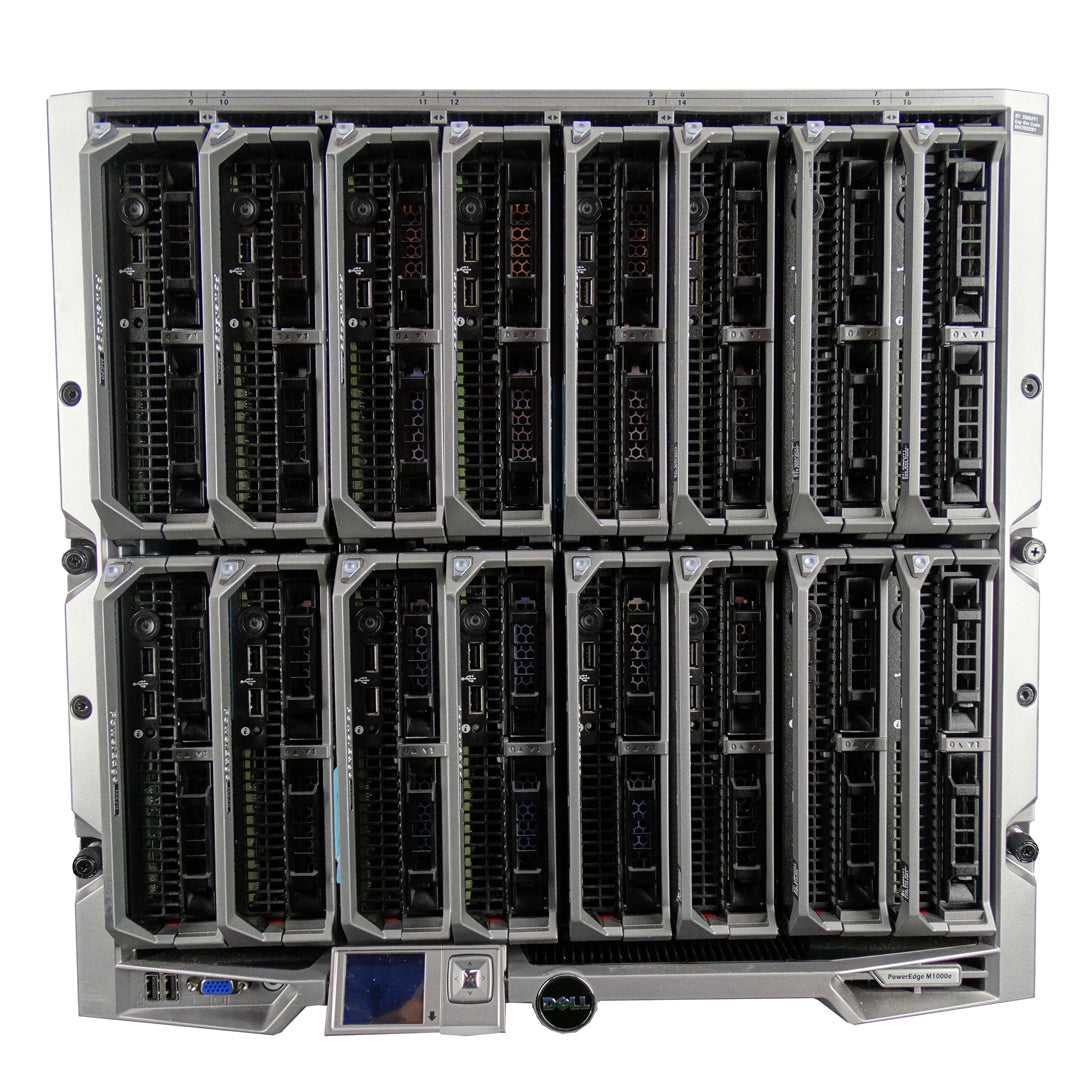

Dell PowerEdge M1000e Blade Chassis v1.1

Dell

| Chassis
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs
Version:

v1.1 Midplane provides 10GbE Connection over 1 lane.

Form Factor:

10U modular enclosure

Enclosure I/O modules:

Up to (6) total blade I/O modules for (3) fully redundant fabrics (A, B, C)

Management:

One (standard) or a second optional (redundant) Chassis Management Controller(s) (CMC)

Power Supplies:

Up to 6 high-efficiency power supplies

Fans:

9 Standard hot-pluggable, redundant fan modules

Rail Kits:

RapidRails™ static rails for 4-post square hole racks
VersaRails™ static rails for 4-post square or unthreaded round hole racks

M1000e Supports:
  • 8 full-height Blade Servers
  • 16 half-height Blade Servers
  • 32 quarter-height Blade Servers
Dimensions:
  • Height: 44.0cm (17.3 in.)
  • Width: 44.7cm (17.6 in.)
  • Depth: 75.4cm (29.7 in.)
  • Weight:
    Empty 98 lbs
    Fully Loaded 394 lbs

This is the M1000e Modular Enclosure, each Sled/Blade is a separate CTO you must configure.

Dell M1000e Blade Architecture
Leading energy efficiency

The M1000e enclosure takes advantage of its world-class design by coupling ultra-efficient power supplies with large variable-speed fans and optimized airflow to effectively cool the entire chassis while using less power.

Effortless scalability

Only Dell provides complete, scale-on-demand switch designs. With additional I/O slots and switch options, you have the flexibility you need to meet ever-increasing demands for I/O consumption. Plus, Dell’s FlexIO modular switch technology lets you easily scale to provide additional uplink and stacking functionality—no need to waste your current investment with a “rip and replace” upgrade.

Easy-to-use, powerful management tools

The M1000e helps reduce the cost and complexity of managing computing resources so you can focus on growing your business or managing your organization with features such as:

  • Centralized Chassis Management Controller (CMC) modules for redundant, secure access paths for IT administrators to manage multiple enclosures and blades from a single interface.
  • Dynamic and granular power management so you have the capability to set power thresholds to help ensure your blades operate within your specific power envelope.
  • Real-time reporting for enclosure and blade power consumption, as well as the ability to prioritize blade slots for power, providing you with optimal control over power resources.
FlexAddress technology: the simple, low-cost way to limit downtime

Dell’s patent-pending FlexAddress technology allows any M-Series blade enclosure to assign the World Wide Name (WWN) or Media Access Control (MAC) address of Fibre Channel, Ethernet and iSCSI controllers to an M1000e blade slot instead of directly to the blade. By removing the network and storage identity from the server hardware, customers are now able to upgrade and replace components or even an entire blade server without being forced to change the identity on the network or rezoning switches. Unlike other solutions, which often require separate management interfaces and proprietary hardware, FlexAddress will work with any network and is implemented directly from the integrated Chassis Management Controller by simply selecting the chassis slots and fabrics which you want to enable. FlexAddress delivers persistent network and storage identities, equipping your data center to handle predictable or even unplanned changes— add, upgrade, or remove servers without affecting your networks.

Looking to Customize?

Configure your M1000E — drives, RAID, rails, and warranty.
Talk to a sales expert today.

Build Your Refurbished M1000E →
