Refurbished Dell PowerEdge C4130 CTO Rack Server

Dell PowerEdge C4130 CTO Rack Server

Price: Configure for Price

Brand:

Dell

Type:

CTO Servers

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Dell PowerEdge C4130 CTO Rack Server

Quick Specs

Form Factor:

1U rack server

Processor | Max: N/A

2 x Intel Xeon E5-2600v4

Memory | Max:

16 DDR4 RDIMM or LRDIMM 2400Mhz

Storage | Max: N/A

2 SFF 1.8" (Drive Cage is placed above the LOM) or
4x SFF (HDD/SSD) (PSU 2 is removed for this cage to be installed in the same spot)

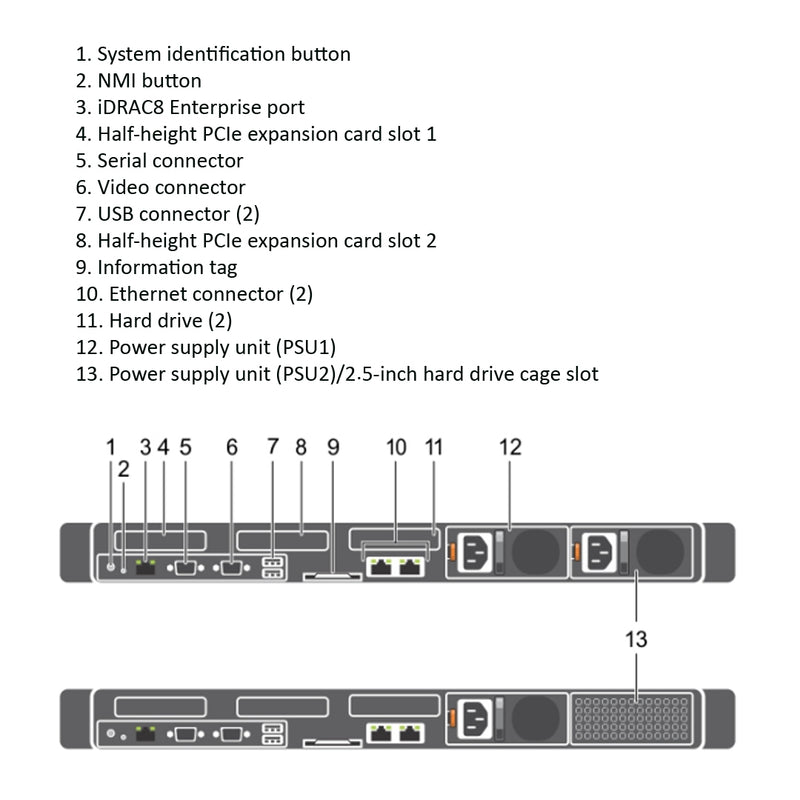

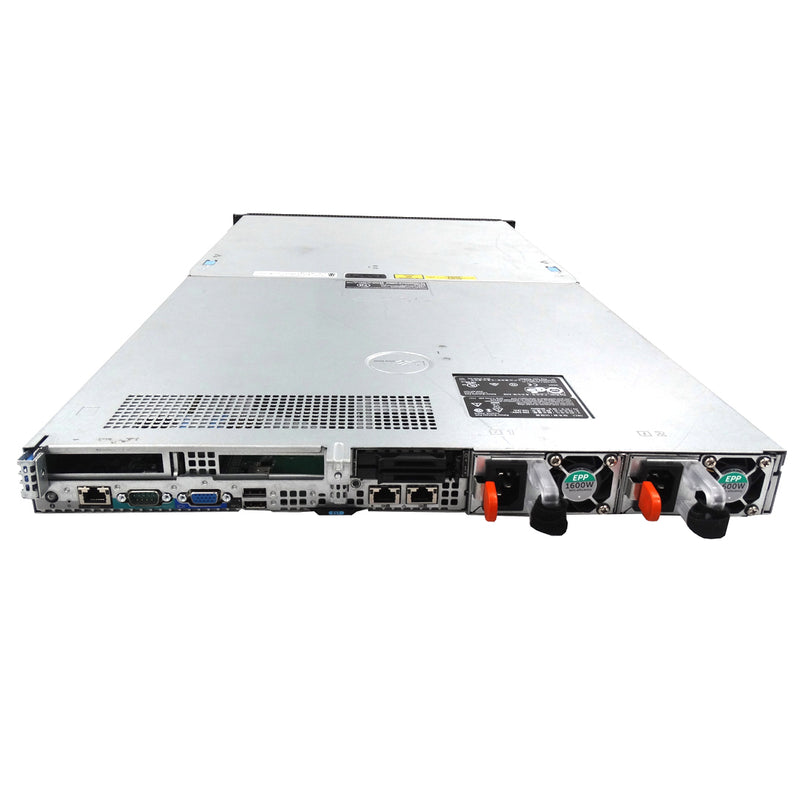

Rear Storage:

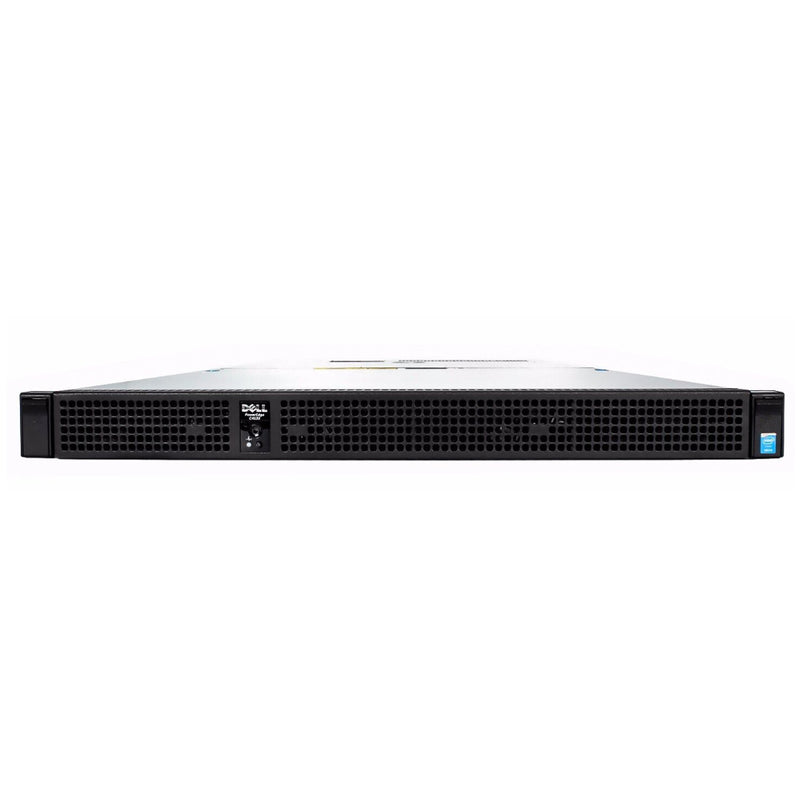

All Drives are rear. There are no front drives only GPUs in the front.

PCIe Slots:

2 PCIe 3.0

GPU:

Up to four 300W SMX2 or PCIe
Systems with NVLink configurations do not support the 2.5-inch SAS/SATA cabled hard drives.

Other Versions:

The PowerEdge C4130 provides supercomputing agility and performance in an ultra-dense platform purpose-built for high performance computing (HPC) and virtual desktop infrastructure (VDI) workloads. Speed through complex research, simulation and visualization problems in medicine, finance, energy exploration and related fields without compromising on versatility or data center space.

The C4130 Rack server supports two different types of GPUs on a 2 socket Intel E5-2600v4 system. The systems with NVLink board configuration do not support the optional 2.5 inch hard drive cage. While the PCIe GPU system supports either options. Both the PSUs work simultaneously, and your system does not support the PSU redundancy feature.

-All GPU cards must be of the same type and model. Mixing GPUs is not supported.
-Incorrect removal and installation of the GPUs will cause operational issues to your system.

Deliver peak performance

Get results faster with greater precision by combining up to two Intel Xeon E5-2600 v4 processors and up to four 300W dual-width PCIe accelerators in each C4130 server. Support for NVIDIA Tesla GPUs and Intel Xeon Phi coprocessors along with up to 1TB of DDR4 memory gives you ultimate control in matching your server architecture to your specific performance requirements.

Discover greater versatility

Enable extreme I/O flexibility for workload optimization with up to two PCIe 3.0 expansion slots and an optional 96-lane PCIe 3.0 switch that allows accelerators to be pooled across processors. Support for InfiniBand EDR and NVIDIA GPUDIRECT lets you tailor data throughput and reduce latency, while support for InfiniBand EDR protects your IT investment and reduces TCO.

Maximize operational efficiency

Optimize data center energy use with granular control of power and cooling using intuitive management tools that improve IT productivity and drastically reduce time spent on deployment and support tasks. Fault-tolerant cooling and redundant power supply options further increase server uptime and reduce costly interruptions for mission critical applications.

Purpose-built acceleration solution

The PowerEdge C4130 is an incredibly dense rack server designed to accelerate a range of demanding workloads including high-performance computing (HPC).

With up to four 300W double-width GPU accelerators or co-processors in just 1U of space — and with five unique configurations tailored to your needs — the C4130 delivers outstanding performance, flexibility and efficiency while reducing your space, cost and management requirements.

Meet your precise compute needs

Match your unique workload requirements with a balanced architecture offering a flexible combination of accelerator, processor, memory and I/O options.

Scalable performance with the latest Intel Xeon processor E5-2600 v4 product family (up to two processors), and up to 1TBof DDR4 memory
I/O flexibility with two rear PCIe 3.0 slots and support for InfiniBand FDR
Multiple configuration options including support for up to four GPUs or co-processors, even with a single CPU

Memory

There are a few rules for installing the memory correctly. To read them all please view the PDF Manuals below.

x4 and x8 DRAM based memory modules can be mixed
In a dual-processor configuration, the memory configuration for each processor should be identical.
Mixing of more than two memory module capacities in a system is not supported.
Mixing LRDIMMs and RDIMMs is not supported.

DIMM Type	DIMMs Populated/Channel	Voltage	Operating Frequency (in MT/s)	Maximum DIMM Rank/Channel
RDIMM	1	1.2 V	2400, 2133, 1866, 1600, 1333	Dual rank or single rank
RDIMM	2	1.2 V	2400, 2133, 1866, 1600, 1333	Dual rank or single rank
LRDIMM	1	1.2 V	2400, 2133, 1866, 1600, 1333	Quad rank
LRDIMM	2	1.2 V	2400, 2133, 1866, 1600, 1333	Quad rank

Storage

2x 1.8" Storage

This is the main storage option in the C4130 Dell Rack server. This is the only option that is supported by both configurations. This drive cage sits above the embedded LOM.

Image of the 4 drive cage that is placed in the PSU Slot

4x 2.5" Storage

This Drive Cage is very unique because it uses the same spot as the second PSU. When this cage is installed you are not able to install 2 PSU or have a redundant PSU configuration. This drive cage is also not supported on the SXM2 NVLink systems.

The Drive cage can support up to 4 cabled drives.

PCIe Expansion

This C4130 system supports 1 butterfly riser that can hold two different Low-Profile Gen 3 risers. The risers have support for multiple types of adapter cards or Storage controllers.

Depending on what GPU configuration and processor count you have installed with change the PCIe link width. Please read the manual below for more detail information about each configuration possible.

GPU Support

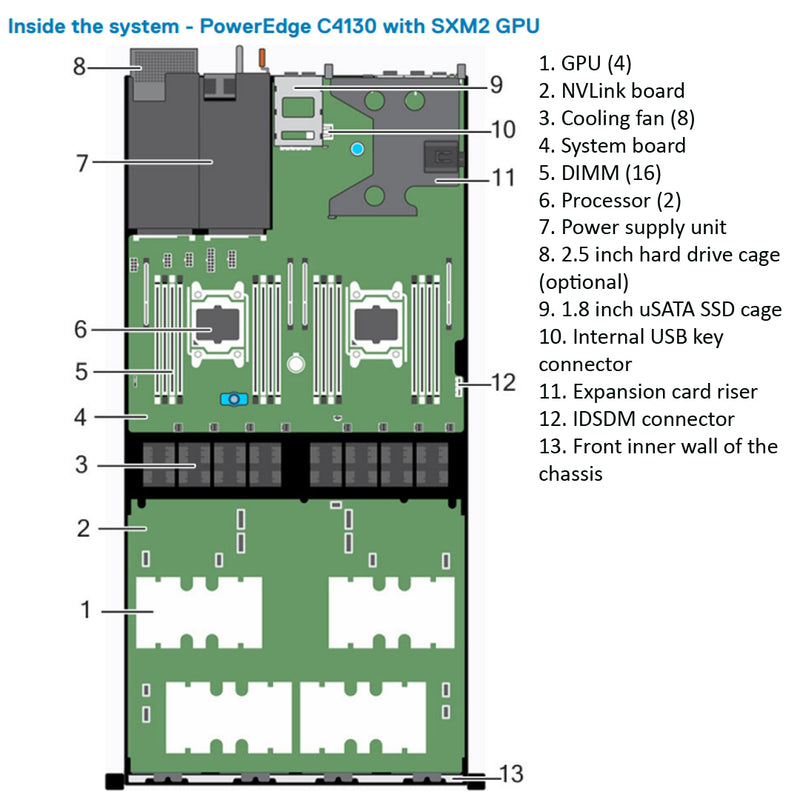

SMX2 NVLink GPU Chassis Dell PowerEdge C4130 SMX2 GPU Rack Server

SXM2 GPUs with NVLink. When this system is installed you are not able to install the 4 SFF Cabled Drives.

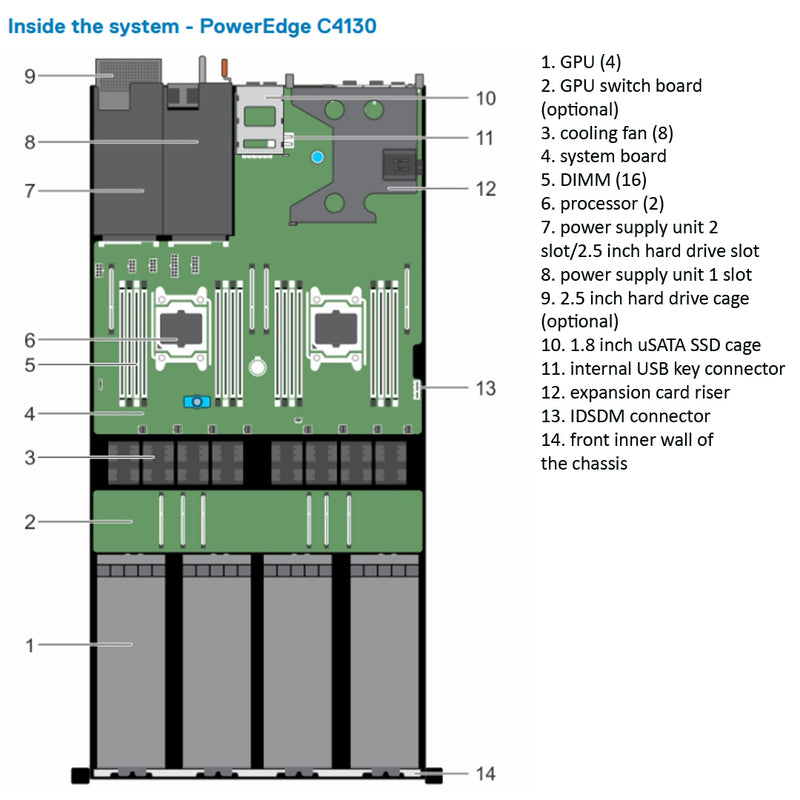

PCIe Switch GPU Chassis Dell PowerEdge C4130 PCIe GPU Rack Server

PCIe GPUs can be configured with the switch board or without.

Power & Dimensions

Power Supply Units (PSU)

The system can hold up to 2 PSU unless the 4x 2.5" Drive Cage is installed. At which point you are only able to install one PSU since the drive cage and the second PSU take up the same slot.

The Platinum 2000 W PSUs and 1600 W PSUs are rated only for 200 V AC to 240 V AC input.

2000 W AC
1600 W AC
1100 W AC (only for systems that support two GPUs)

Dimensions

Width: 434mm (17.04")
Length: 942.8mm (37.11")
Height: 43.1mm (1.69")
Weigth
- PowerEdge C4130 (with PCIe GPUs) 22.13 kg (48.79 lb)
- PowerEdge C4130 (with SXM2 GPUs) 22.73 kg (50.11 lb)

Feature	Technical specification
Form factor	1U rack server
Dimensions and weight	H: 4.31 cm (1.7 in), W: 43.4 cm (17.09 in), D: 88.58 cm (34.87 in); max weight: 20.2 kg (44.53 lb)
Processor	Intel® Xeon® processor E5-2600 v4 product family Processor sockets: 2 Chipset: C612 series Internal interconnect: Up to 9.6GT/s
Memory	DDR4 DIMMs at up to 2400MT/s; 16 DIMM slots: 4GB/8GB/16GB/32GB/64GB
Supported GPUs	NVIDIA Tesla K40, K80, M60, M40, P100 16GB, P100 12GB, and M10.
Network controller	2 x 1GbE LOM
Optional adapters	Emulex LPE 12000, Single Port 8Gb Fibre Channel HBA, Low Profile Emulex LPE 12002, Dual Port 8Gb Fibre Channel HBA, Low Profile Emulex LPe15000B-M8-D Single Port 8Gb Fibre Channel Adapter, Low Profile Emulex LPe15002B-M8-D Dual Port 8G Fibre Channel Adapter, Low Profile Emulex LPe16000B, Single Port 16Gb Fibre Channel HBA, Low Profile Emulex LPe16002B, Dual Port 16Gb Fibre Channel HBA, Low Profile Emulex LPe31000-M6-D Single Port 16Gb Fibre Channel HBA, Low Profile Emulex LPe31002-M6-D Dual Port 16Gb Fibre Channel HBA, Low Profile Intel Ethernet X540 DP 10GBASE-T Server Adapter, Low Profile Intel Omni-Path Host Fabric Adapter 100 Series 1 Port PCIe x16, Low Profile Intel X520 DP 10Gb DA/SFP+ Server Adapter, Low Profile Intel X550 Dual Port 10G Base-T Adapter, Low Profile Intel X710 Dual Port 10Gb Direct Attach, SFP+, Converged Network Adapter, Low Profile	Intel X710 Dual Port 10Gb, SFP+, Converged Network Adapter, Low Profile, With SR Optics Mellanox ConnectX® -3 Dual-Port VPI FDR LP Infiniband Adapter Mellanox ConnectX® -3 Single-Port VPI FDR LP Infiniband Adapter Mellanox ConnectX-3, Dual Port, VPI FDR, QSFP+ Adapter Mellanox ConnectX-3, Dual Port, VPI FDR, QSFP+ Adapter, with Optics Mellanox ConnectX-3, Single Port, VPI FDR, QSFP+ Adapter Mellanox ConnectX-3, Single Port, VPI FDR, QSFP+ Adapter, with Optics Mellanox ConnectX-4 Dual Port, EDR, VPI QSFP28 Low Profile Adapter Mellanox ConnectX-4 Single Port, EDR, VPI QSFP28 Low Profile Adapter QLogic 2560, Single Port 8Gb Optical Fibre Channel HBA, Low Profile QLogic 2562, Dual Port 8Gb Optical Fibre Channel HBA, Low Profile Qlogic 2660, Single Port 16Gb, Fibre Channel HBA, Low Profile Qlogic 2662, Dual Port 16GB Fibre Channel HBA, Low Profile
I/O slots	Up to 2x PCIe 3.0 low-profile adapters (back) Intel H-series (OmniPath)	Optional 96-lane PCIe 3.0 switch for certain accelerator configurations 4 x16 PCIe slots (front) for the GPU
Storage	Up to 2 x 1.8" SATA SSD boot drives Optional data drive tray supports up to 4 x 2.5" SAS/SATA drives Optional 12Gb/s SAS and 6Gb/s SATA (with PERC9 card)
RAID controller	Optional internal controller: PERC H330, H730, H730P and H810
Power supplies	1600W, 2000W hot-plug power supply unit (PSU) Redundant PSU (1+1) option available
Systems management	Systems management: IPMI 2.0 compliant; Dell OpenManage Essentials; Dell OpenManage Mobile; Dell OpenManage Power Center Remote management: iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade) iDRAC Quick Sync	Dell OpenManage Integrations: •Dell OpenManage Integration Suite for Microsoft® System Center Dell OpenManage Connections: •HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management •Dell OpenManage Plug-in for Oracle® Database Manager
Operating systems	Microsoft Windows Server® 2012 Microsoft Windows Server 2012 R2 Novell® SUSE® Linux Enterprise Server Citrix® XenServer®	Red Hat® Enterprise Linux VMware® ESX® For information on specific operating systems and additions, visit Dell.com/OSsupport.

Feature

Technical specification

Form factor

1U rack server

Dimensions and weight

H: 4.31 cm (1.7 in), W: 43.4 cm (17.09 in), D: 88.58 cm (34.87 in); max weight: 20.2 kg (44.53 lb)

Processor

Intel® Xeon® processor E5-2600 v4 product family
Processor sockets: 2
Chipset: C612 series
Internal interconnect: Up to 9.6GT/s

Memory

DDR4 DIMMs at up to 2400MT/s; 16 DIMM slots: 4GB/8GB/16GB/32GB/64GB

Supported GPUs

NVIDIA Tesla K40, K80, M60, M40, P100 16GB, P100 12GB, and M10.

Network controller

2 x 1GbE LOM

Optional adapters

Emulex LPE 12000, Single Port 8Gb Fibre Channel HBA, Low Profile
Emulex LPE 12002, Dual Port 8Gb Fibre Channel HBA, Low Profile
Emulex LPe15000B-M8-D Single Port 8Gb Fibre Channel Adapter, Low Profile
Emulex LPe15002B-M8-D Dual Port 8G Fibre Channel Adapter, Low Profile
Emulex LPe16000B, Single Port 16Gb Fibre Channel HBA, Low Profile
Emulex LPe16002B, Dual Port 16Gb Fibre Channel HBA, Low Profile
Emulex LPe31000-M6-D Single Port 16Gb Fibre Channel HBA, Low Profile
Emulex LPe31002-M6-D Dual Port 16Gb Fibre Channel HBA, Low Profile
Intel Ethernet X540 DP 10GBASE-T Server Adapter, Low Profile
Intel Omni-Path Host Fabric Adapter 100 Series 1 Port PCIe x16, Low Profile
Intel X520 DP 10Gb DA/SFP+ Server Adapter, Low Profile
Intel X550 Dual Port 10G Base-T Adapter, Low Profile
Intel X710 Dual Port 10Gb Direct Attach, SFP+, Converged Network Adapter, Low Profile

Intel X710 Dual Port 10Gb, SFP+, Converged Network Adapter, Low Profile, With SR Optics
Mellanox ConnectX® -3 Dual-Port VPI FDR LP Infiniband Adapter
Mellanox ConnectX® -3 Single-Port VPI FDR LP Infiniband Adapter
Mellanox ConnectX-3, Dual Port, VPI FDR, QSFP+ Adapter
Mellanox ConnectX-3, Dual Port, VPI FDR, QSFP+ Adapter, with Optics
Mellanox ConnectX-3, Single Port, VPI FDR, QSFP+ Adapter
Mellanox ConnectX-3, Single Port, VPI FDR, QSFP+ Adapter, with Optics
Mellanox ConnectX-4 Dual Port, EDR, VPI QSFP28 Low Profile Adapter
Mellanox ConnectX-4 Single Port, EDR, VPI QSFP28 Low Profile Adapter
QLogic 2560, Single Port 8Gb Optical Fibre Channel HBA, Low Profile
QLogic 2562, Dual Port 8Gb Optical Fibre Channel HBA, Low Profile
Qlogic 2660, Single Port 16Gb, Fibre Channel HBA, Low Profile
Qlogic 2662, Dual Port 16GB Fibre Channel HBA, Low Profile

I/O slots

Up to 2x PCIe 3.0 low-profile adapters (back)
Intel H-series (OmniPath)

Optional 96-lane PCIe 3.0 switch for certain accelerator configurations
4 x16 PCIe slots (front) for the GPU

Storage

Up to 2 x 1.8" SATA SSD boot drives
Optional data drive tray supports up to 4 x 2.5" SAS/SATA drives
Optional 12Gb/s SAS and 6Gb/s SATA (with PERC9 card)

RAID controller

Optional internal controller: PERC H330, H730, H730P and H810

Power supplies

1600W, 2000W hot-plug power supply unit (PSU) Redundant PSU (1+1) option available

Systems management

Systems management:
IPMI 2.0 compliant; Dell OpenManage Essentials; Dell OpenManage Mobile; Dell OpenManage Power Center
Remote management:
iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade) iDRAC Quick Sync

Dell OpenManage Integrations:
•Dell OpenManage Integration Suite for Microsoft® System Center
Dell OpenManage Connections:
•HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management
•Dell OpenManage Plug-in for Oracle® Database Manager

Operating systems

Microsoft Windows Server® 2012
Microsoft Windows Server 2012 R2
Novell® SUSE® Linux Enterprise Server
Citrix® XenServer®

Red Hat® Enterprise Linux
VMware® ESX®
For information on specific operating systems and additions, visit Dell.com/OSsupport.
