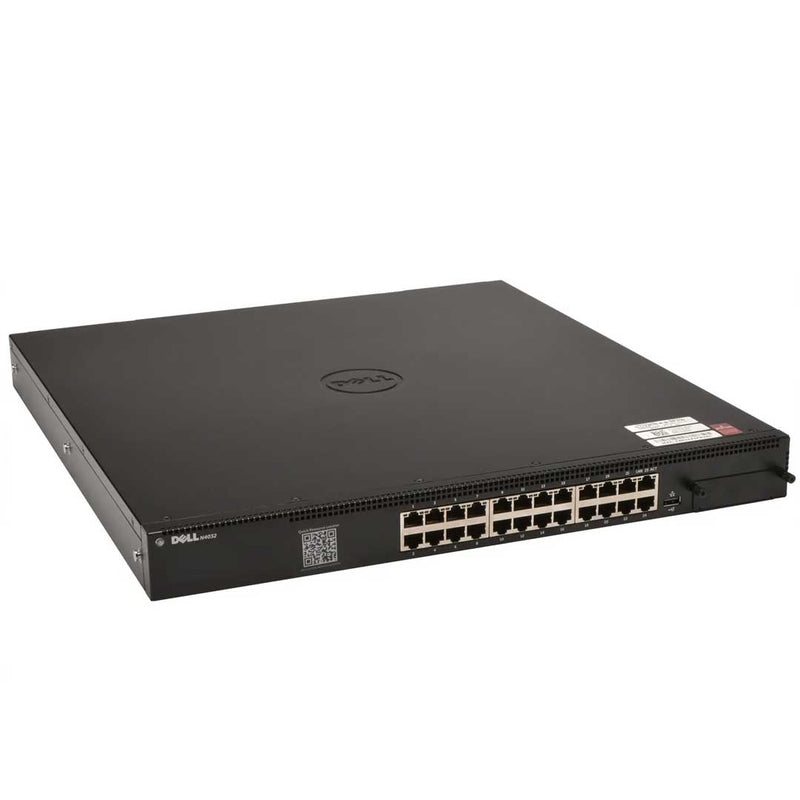

Dell EMC PowerSwitch N4032F 10GbE SFP+ 24-Port L3 Switch

Dell

| Switches
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Switch Specs

N4032F Features:
  • 24x 10GbE SFP+ auto-sensing (10Gb/1Gb) fixed ports
  • Hot swappable expansion module supporting dual-port QSFP+ (8x10GbE), quad-port 10GBaseT and quad-port SFP+.
  • 1x hot swap expansion module bay (Default comes with blank)
  • Options:
    • 4-port 10 Gigabit SFP+ hot swappable module
    • 4-port 10 Gigabit Base-T RJ-45 hot swappable module
    • 2-port 40 Gigabit QSFP+ hot swappable module
  • 2x redundant 460W PSU included
  • Power Cord Options:
    • 125V, 15A, 10 feet, NEMA 5-15/C13
    • 250V, 12A, 2 meters, C13/C14
    • Country- and region-specific power cord options available
Performance
  • MAC addresses: 131,072
  • Comes with Auto-MDI/MDIX
  • Static routes: 1,024 (IPv4)/1,024 (IPv6)
  • Dynamic routes: 8,160 (IPv4)/4,096 (IPv6)
  • Switch fabric capacity: 640Gbps (full duplex)
  • Forwarding rate: 476Mpps
  • Line-rate Layer 2 switching: All (non-blocking)
  • Line-rate Layer 3 routing: All (non-blocking)
  • Flash memory: 256MB
  • VLAN routing interfaces: 128
  • VLANs supported: 4,094
  • Max VLAN interfaces with ACLs applied: 24
  • Optional Modules Features
  • Blank module — defaults to 10G mode
Quad-Port SFP (QSFP) Uplink Module N4000 -QSFP — 2 x 40G QSFP port module - defaults to 2 x 40G

The QSFP module supports features four ports that support 10G SFP+ transceivers. The QSFP module supports the following features:

  • Four 10G ports with quad-breakout/QBO cable or one 40G port
  • Front-panel port status LEDs
Quad-Port SFP+ Uplink Module N4000 -SFP+ — 4 x SFP+ port module - defaults to 4 x 10G mode

The N4000-SFP+ module features four SFP+ ports, each providing the following features:

  • SFP+ optical interfaces
  • SFP+ copper twinax interface
  • Front-panel port status LEDs
10GBASE-T Copper Uplink Module N4000 -10GBT — 4 x 10GBASE-T ports module - defaults to 4 x 10G mode

The 10GBASE-T copper module features four copper ports that can support 10GbE/1GbE/100MbE switching and provides following features:

  • Complies with IEEE802.3z, IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3az, IEEE802.3an
  • Four 10GBASE-T/1GBASE-T/100MBASE-T copper ports.
  • Front-panel port status LEDs

The N4000 switch series offers a power-efficient and resilient 10 Gigabit Ethernet (10GbE) switching solution with support for 40GbE uplinks for advanced Layer 3 distribution for offices and campus networks. The N4000 switch series has high-performance capabilities and wire- speed performance utilizing a non-blocking architecture to easily handle unexpected traffic loads. The N4000 series includes dual internal hot- swappable 80PLUS-certified power supplies for high availability and power efficiency. The switches offer simple management and scalability via flexible user port stacking at 10Gbps or 40Gbps. The high-availability stacking architecture allows management of up to 12 switches from a single IP address.

Energy-efficient, cost-effective 10GbE switches for modernizing and scaling network infrastructure

The Dell EMC Networking N4032F front panel provides 24x 10GbE SFP+ auto-sensing (10Gb/1Gb) fixed ports.

Up to 32 10GbE ports (N4032 and N4032F) and up to 64 10GbE ports (N4064 and N4064F) using breakout cables.

Compatible With:
  • Dell N4032f

(Click to View)

Spec Sheet 4

PowerSwitch N4000 Specifications
N4000 series
  • N4032 24x 10GbE RJ45 auto-sensing (10Gb/1Gb/100Mb) fixed ports, 1x hot swap expansion module bay, 2x redundant 460W PSU included
  • N4032F: 24x 10GbE SFP+ auto-sensing (10Gb/1Gb) fixed ports, 1x hot swap expansion module bay, 2x redundant 460W PSU included
  • N4064: 48x 10GbE RJ45 auto-sensing (10Gb/1Gb/100Mb) fixed ports, 2x 40GbE QSFP+ fixed ports, 1x hot swap expansion module bay, 2x redundant 460W PSU included
  • N4064F: 48x 10GbE SFP+ auto-sensing (10Gb/1Gb) fixed ports, 2x 40GbE QSFP+ fixed ports, 1x hot swap expansion module bay, 2x redundant 460W PSU included
Power cords
  • 125V, 15A, 10 feet, NEMA 5-15/C13
  • 250V, 12A, 2 meters, C13/C14
  • Country- and region-specific power cord options available
Modules (optional)
  • 4-port 10 Gigabit SFP+ hot swappable module
  • 4-port 10 Gigabit Base-T RJ-45 hot swappable module
  • 2-port 40 Gigabit QSFP+ hot swappable module
Optics (optional)
  • Transceiver, SFP, 1000BASE-T
  • Transceiver, SFP, 1000BASE-SX, 850nm wavelength, up to 550m reach
  • Transceiver, SFP, 1000BASE-LX, 1310nm wavelength, up to 10km reach
  • Transceiver, SFP+, 10GbE, LRM, 1310nm wavelength, up to 220m reach
  • Transceiver, SFP+, 10GbE, SR, 850nm wavelength, up to 300m reach
  • Transceiver, SFP+, 10GbE, LR, 1310nm wavelength, up to 10km reach
  • Transceiver, QSFP+, 40GbE, SR4, 850nm wavelength, up to 150m reach
  • Transceiver, QSFP+, 40GbE, ESR, 850nm wavelength, up to 300m reach
  • Transceiver, QSFP+, 40GbE, LR4, 1310nm wavelength, up to 10km reach
  • Transceiver, QSFP+, 40GbE, PSM4 with 1m, 5m or 15m pigtail to MPO
Cables (optional)
  • Dell Networking cable, SFP+ to SFP+, 10GbE, copper twinax direct attach cable, 0.5m, 1m, 3m, 5m, 7m
  • Dell Networking cable, QSFP+ to 4x SFP+, 40GbE to 4x10GbE, passive copper breakout cable, 0.5m, 1m, 3m, 5m, 7m
  • Dell Networking cable, QSFP+ to QSFP+, 40GbE, passive copper direct attach cable, 0.5m, 1m, 3m, 5m, 7m
  • OM3 MTP fiber cable, QSFP+ to QSFP+, 40GbE, requires QSFP+ optics, 1m, 3m, 5m, 7m, 10m, 25m, 50m, 75m, 100m
  • Fiber breakout cable, QSFP+ to 4x SFP+, 40GbE MTP to 4x 10GbE LC, requires 1x QSFP+ and 4x SFP+ optics, 1m, 3m, 5m, 7m
