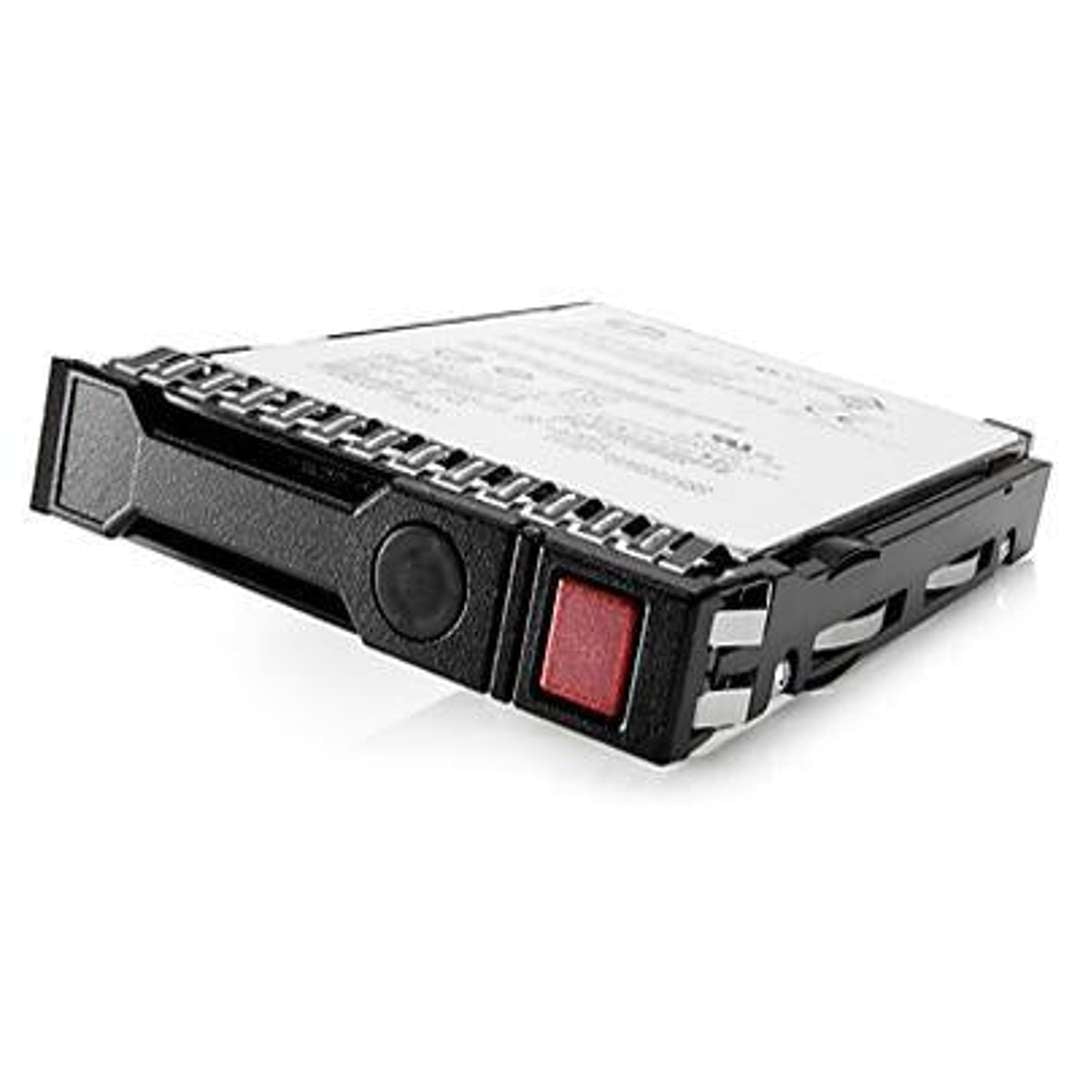

AP858A - HPE MSA 300GB Pluggable SAS 3.5" HD 6G 15K LFF DP

Part#:
AP858A
Brand:
HPE
Type:
Hard Drives
Condition:
ECS Refurbished & Tested
Warranty:
ECS 1 Year Hardware Warranty
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

HPE MSA 300GB Pluggable SAS 3.5" HD 6G 15K LFF DP

Known SKU Identifiers

HPE Model Number AP858A
HP Spare Part SKU 601775-001
HP Option SKU

Overview:
HP MSA2 / MSA2000 controller enclosures and large form factor expansion enclosures accept unique HP SAS disk drive modules with different firmware and different trays than other HP storage arrays and Proliant servers. The disk drives have SAS interposers attached to the back which convert the native dual port SAS interface to an SCA-40 connector. While this SCA-40 connector has the same shape as a Fibre Channel (FC) connector, the drives are NOT utilizing the FC protocol. If you look closely at the interposer, the circuitry is rather simplistic and no bridge / translator chip is attached. The interposer is, more or less, acting as a signal filter and port relocator to connect to the MSA2's proprietary backplane.

Specifications:
Category StorageWorks HardDrive
Sub-Category 15K
Generation SAS MSA 2
Part Number AP858A-5Pack
Products ID 473427
Form Factor LFF
Capacity 300GB
Interface SAS
Enclosure Internal
Drive Dimensions 3.5 inches x 1/3H (Low Profile)
Spindle Speed 15000RPM
External Data Transfer Rate 6144MB/s
Seek Time 3.5ms
Average Latency 2ms
Interface (Detailed) SAS-300
Hot Swap Yes
MTBF 1700000 Hours

Price: $85.00
