Price: Ask for Quote
*Adds to cart & you can request a quote from the cart page
| CTO Server [Chassis] | HPE ProLiant DL560 Gen10 8SFF Configure-to-order Server |
|---|---|
| SKU Number | 841730-B21 |
| Processor | Intel C621 Chipset - 2U Server Chassis with 2 processor slots available; 4 processor configuration would require optional HPE |
| DIMM Slots | 24 DIMM slots for RDIMM, LRDIMM DDR4 Memory; (6 DIMM slots per processor can be used for HPE Persistent Memory) 48 DIMM configuration would require optional HPE ProLiant HPE DL5x0 Gen10 CPU Mezzanine Board Kit (872222-B21) and 4 processors |
| Storage Controller | HPE Smart Array S100i |
| Network Controller | None. FlexibleLOM slot (various options can be chosen for networking; NIC cards also available via expansion slots) |
| PCIe | 3 PCIe 3.0 slots (8 PCIe 3.0 slots are available if second processor is chosen and a Secondary and Tertiary Riser Kits has been installed) |
| Drive Cage - included | 8 SFF, no drives |
| microSD Slots | 1 microSD card slot (internal) |
| Fans | 6 hot plug fans, redundant |
| TPM Connector | 1 Trusted Platform Module (TPM) connector |
| UEFI | BIOS Legacy mode (field configurable) or Unified Extensible Firmware Interface (UEFI) mode (default) |
| USB | 1 x internal USB 2.0 slot, 1 x external (front) USB 2.0 slot, 1 x internal uSD slot |
| Video Ports | 2 video ports (1 front optional via the Universal Media Kit upgrade option, 1 rear) |
| Rails | Easy install rails and cable management arm are optional |

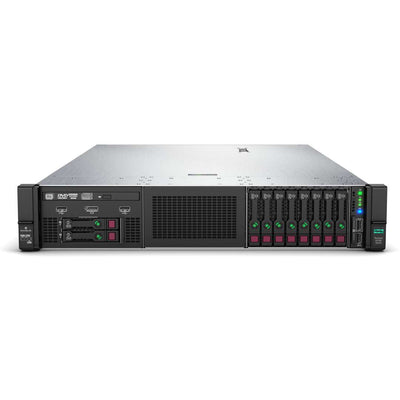

The refurbished HPE ProLiant DL560 Gen10 server is a high-density, 4P server with high-performance, scalability, and reliability, in a 2U chassis. Supporting the Intel Xeon Scalable processors with up to a 61% performance gain, the HPE ProLiant DL560 Gen10 server offers greater processing power, up to 6 TB of faster memory, and I/O of up to eight PCIe 3.0 slots.
HPE Persistent Memory offers unprecedented levels of performance for structured data management and analytics workloads. In addition, it offers the intelligence and simplicity of automated management with HPE OneView and HPE Integrated Lights Out 5 (iLO 5). The HPE ProLiant DL560 Gen10 server is the ideal server for business-critical workloads, virtualization, server consolidation, database, business processing, and general 4P data-intensive applications where data center space and the right performance are paramount.

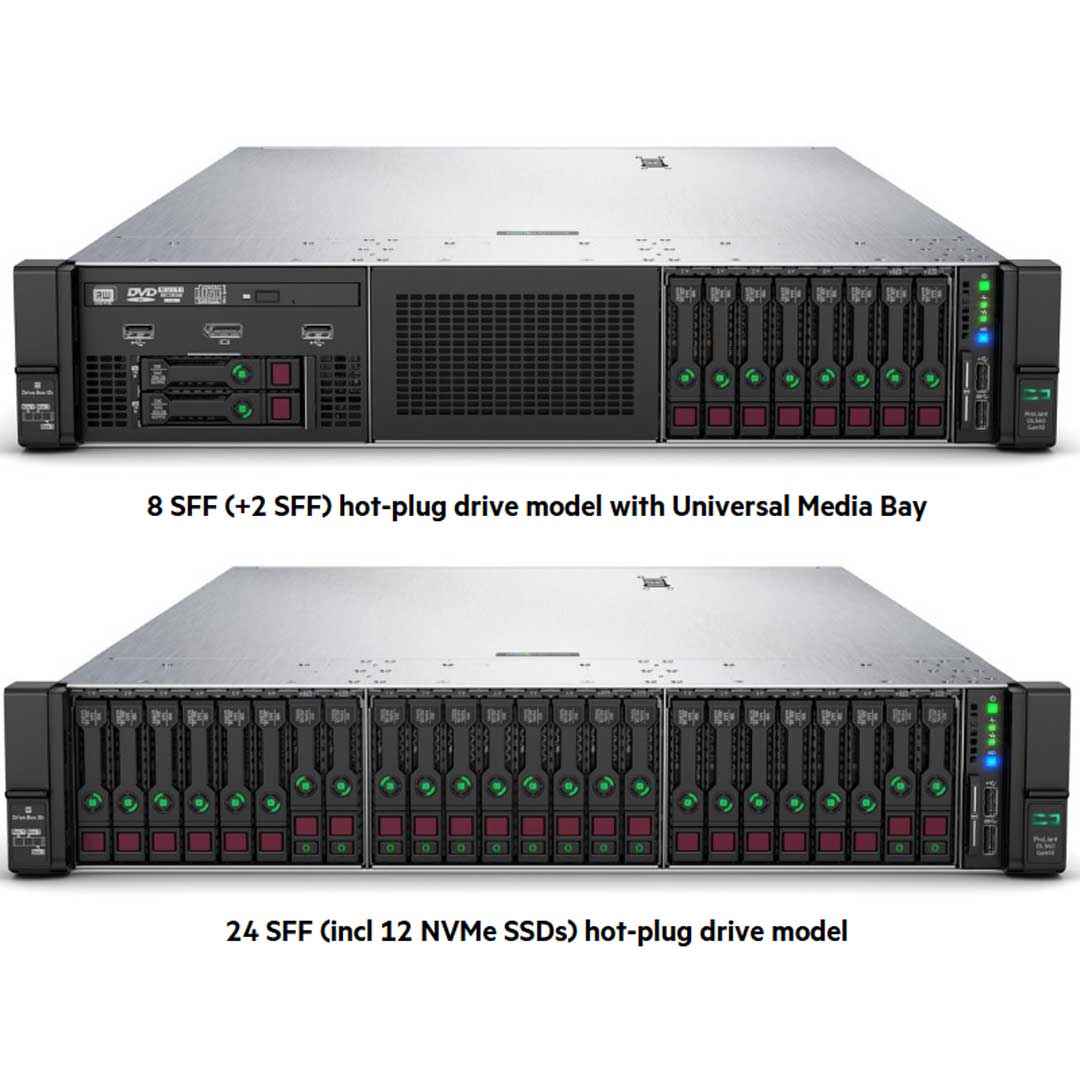

HPE ProLiant DL560 Gen10 server has a flexible processor tray allowing to scale up from two to four processors only when you need, saving on upfront costs. The flexible drive cage design supports up to 24 SFF SAS/SATA with a maximum of 12 NVMe drives.
Supports up to eight PCIe 3.0 expansion slots for graphical processing units (GPUs) and networking cards offering increased I/O bandwidth and expandability.
Up to four, 96% efficient HPE 800W or 1600W Flexible Slot Power Supplies, which enable higher power redundant configurations and flexible voltage ranges. The slots provide the capability to trade-off between 2+2 power supplies or use as extra PCIe slots.
Choice of HPE FlexibleLOM adapters offers range of networking bandwidth (1GbE to 25GbE) and fabric so you can adapt and grow to changing business needs.
| Technical specifications | HPE ProLiant DL560 Gen10 server |
|---|---|
| Processor name | Intel® Xeon® Scalable processors |
| Processor family | Intel® Xeon® Scalable 8200 series Intel® Xeon® Scalable 6200 series Intel® Xeon® Scalable 5200 series Intel® Xeon® Scalable 8100 series Intel® Xeon® Scalable 6100 series Intel® Xeon® Scalable 5100 series |
| Processor core available | 28 or 26 or 24 or 22 or 20 or 18 or 16 or 14 or 12 or 10 or 8 or 6 or 4, per processor, depending on model |
| Processor speed | 3.8 GHz, maximum depending on processor |
| Processor cache | 13.75 MB L3 or 16.50 MB L3 or 19.25 MB L3 or 22.00 MB L3 or 24.75 MB L3 or 27.50 MB L3 or 30.25 MB L3 or 33.00 MB L3 or 35.75 MB L3 or 38.50 MB L3, depending on model |
| Power supply type | 4 HPE Flexible Slot Power Supplies, maximum depending on model |
| Expansion slots | 8 maximum, for detail descriptions reference the QuickSpecs |
| Maximum memory | 6.0 TB with 128 GB DDR4, depending on processor model 12.0 TB with 512 GB Persistent Memory, depending on processor model |
| Memory, standard | 6.0 TB (48 X 128 GB) LRDIMM; 12.0 TB (24 X 512 GB) HPE Persistent Memory |
| Memory slots | 48 DIMM slots maximum |
| Memory type | HPE DDR4 SmartMemory and HPE Persistent Memory |
| System fan features | Hot plug redundant standard |
| Network controller | Optional FlexibleLOM |
| Storage controller | HPE Smart Array S100i or HPE Smart Array P408i-a SR Gen10 Controller or HPE Smart Array P816i-a SR Gen10 Controller, depending on model |
| Product Dimensions (imperial) | 3.44 x 17.54 x 29.71 in |
| Weight | 75.23 lb |
| Infrastructure management | HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (optional require licenses) |
| Drive supported | 8SFF SAS/SATA/SSD or Premium 6SFF and 2 NVMe SAS/SATA/SSD or 8SFF NVMe or 2SFF Premium HDD Front NVMe/SAS/SATA - for detailed configuration options refer to the QuickSpecs |
