Refurbished HPE DL560 Gen10 Configure to Order Rack Server
The refurbished HPE ProLiant DL560 Gen10 server is a high-density, 4P server with high-performance, scalability, and reliability, in a 2U chassis. Supporting the Intel Xeon Scalable processors with up to a 61% performance gain, the HPE ProLiant DL560 Gen10 server offers greater processing power, up to 6 TB of faster memory, and I/O of up to eight PCIe 3.0 slots.
HPE Persistent Memory offers unprecedented levels of performance for structured data management and analytics workloads. In addition, it offers the intelligence and simplicity of automated management with HPE OneView and HPE Integrated Lights Out 5 (iLO 5). The HPE ProLiant DL560 Gen10 server is the ideal server for business-critical workloads, virtualization, server consolidation, database, business processing, and general 4P data-intensive applications where data center space and the right performance are paramount.
What’s New for DL560 Gen10
- Supporting the second generation Intel Xeon Scalable processor family with up to a 7% per-core performance gain over first generation and with memory speeds up to 2933 MT/s.
- HPE Persistent Memory offers the flexibility to deploy as dense memory or fast storage using Intel Optane DC Persistent Memory and enables per-socket memory capacity of up to 3.0 TB.
- Enhanced iLO 5 security features such as Server Configuration Lock, iLO Security Dashboard and Workload Performance Advisor.
- HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
- Segment-optimized processors that offer flexibility and improved performance for specific workloads.
Flexible New Generation Expandability and Reliability for Multiple Workloads
HPE ProLiant DL560 Gen10 server has a flexible processor tray allowing to scale up from two to four processors only when you need, saving on upfront costs. The flexible drive cage design supports up to 24 SFF SAS/SATA with a maximum of 12 NVMe drives.
Supports up to eight PCIe 3.0 expansion slots for graphical processing units (GPUs) and networking cards offering increased I/O bandwidth and expandability.
Up to four, 96% efficient HPE 800W or 1600W Flexible Slot Power Supplies, which enable higher power redundant configurations and flexible voltage ranges. The slots provide the capability to trade-off between 2+2 power supplies or use as extra PCIe slots.
Choice of HPE FlexibleLOM adapters offers range of networking bandwidth (1GbE to 25GbE) and fabric so you can adapt and grow to changing business needs.
Know your Server - CTO Configuration Support
Need help with the configuration? Contact us today!
HPE DL560 Gen10 Base Knowledge.

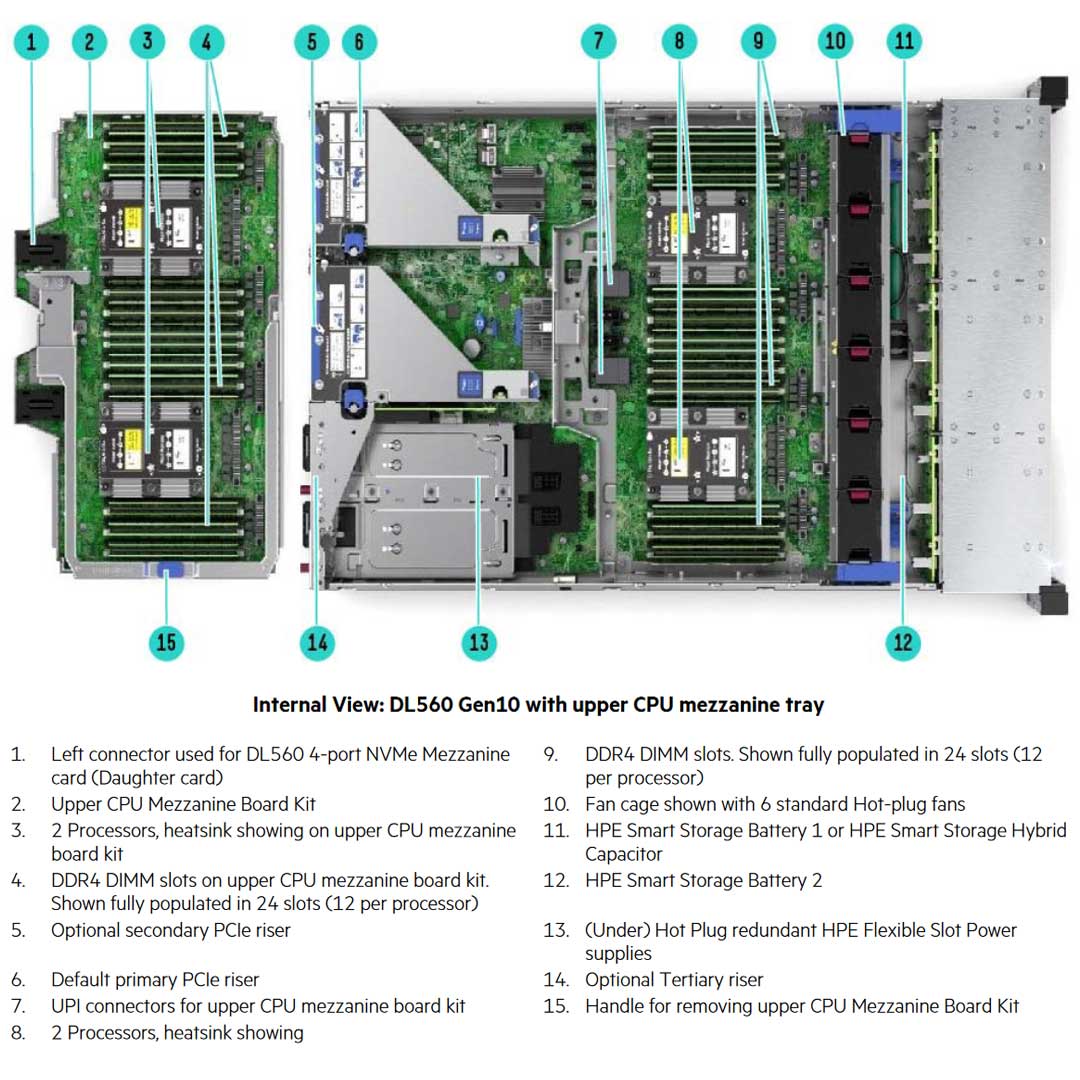

The HPE DL560is the first 4 Socket server in the Gen10 DL Line. With support for One, two or four 2nd Generation Intel® Xeon® Scalable Processors. The only way to install 4 processors with the HPE DL5x0 Gen10 CPU Version 2 Mezzanine Board Kit (P07991-B21). Mixing different processor models is not supported. The DL560 Gen10 can handle up to 12 DIMM slots per processor, 6 channels per processor, 2 DIMMs per channel for a total of 48 DIMMs on a 4-Socket configuration. The ‘L’ and ‘M’ processor SKUs can support up to 1.5TB per socket. More than 1.5TB per socket requires the use of HPE Persistent Memory kits: available in 512GB, 256GB, and 128GB.
HPE Persistent Memory is only supported on the 2nd generation processors. Mixing of RDIMM and LRDIMM memory is not supported. A maximum of 6 HPE Persistent Memory Kits per processor and a maximum of 24 kits are supported on the DL560. The HPE Persistent Memory Kits cannot be selected with HPE 800W Flex Slot -48VDC Hot Plug Low Halogen Power Supply Kit (865434-B21). Persistent memory kits of different capacities cannot be mixed within a server
The DL560 comes with embedded software RAID support for 10 SATA drives. Has the ability to expand up to 24 Drives with the 12GB SAS Expander(873444-B21). The system can install the Universal Media Bay (872267-B21) in Box 1 which is not available with the 24 SFF configuration. The HPE DL560 Gen10 8 SFF Bay 3 Cage/Backplane Kit (872237-B21) is shipped default with the server. There is an upgrade option to install 8 NVMe drives, but this option can only be installed in Box 2. A maximum of 12 NVMe drives can be supported with 2 NVMe drives in Bay 1, 8 NVMe drives in Box 2, and 2 NVMe drives in Box 3.
Max Memory Capacity:
- (LRDIMM) 6 TB 48 x 128 GB LRDIMM @2933 MT/s 2 DPC
- (RDIMM)5 TB 24 x 64 GB RDIMM @ 2933 MT/s 1 DPC
(RDIMM) 3.0 TB 48 x 64 GB RDIMM @ 2666 MT/s 2 DPC
- (HPE Persistent Memory) 12 TB 24 x 512 GB Persistent Memory Kit @2666 MT/s
Chassis Types

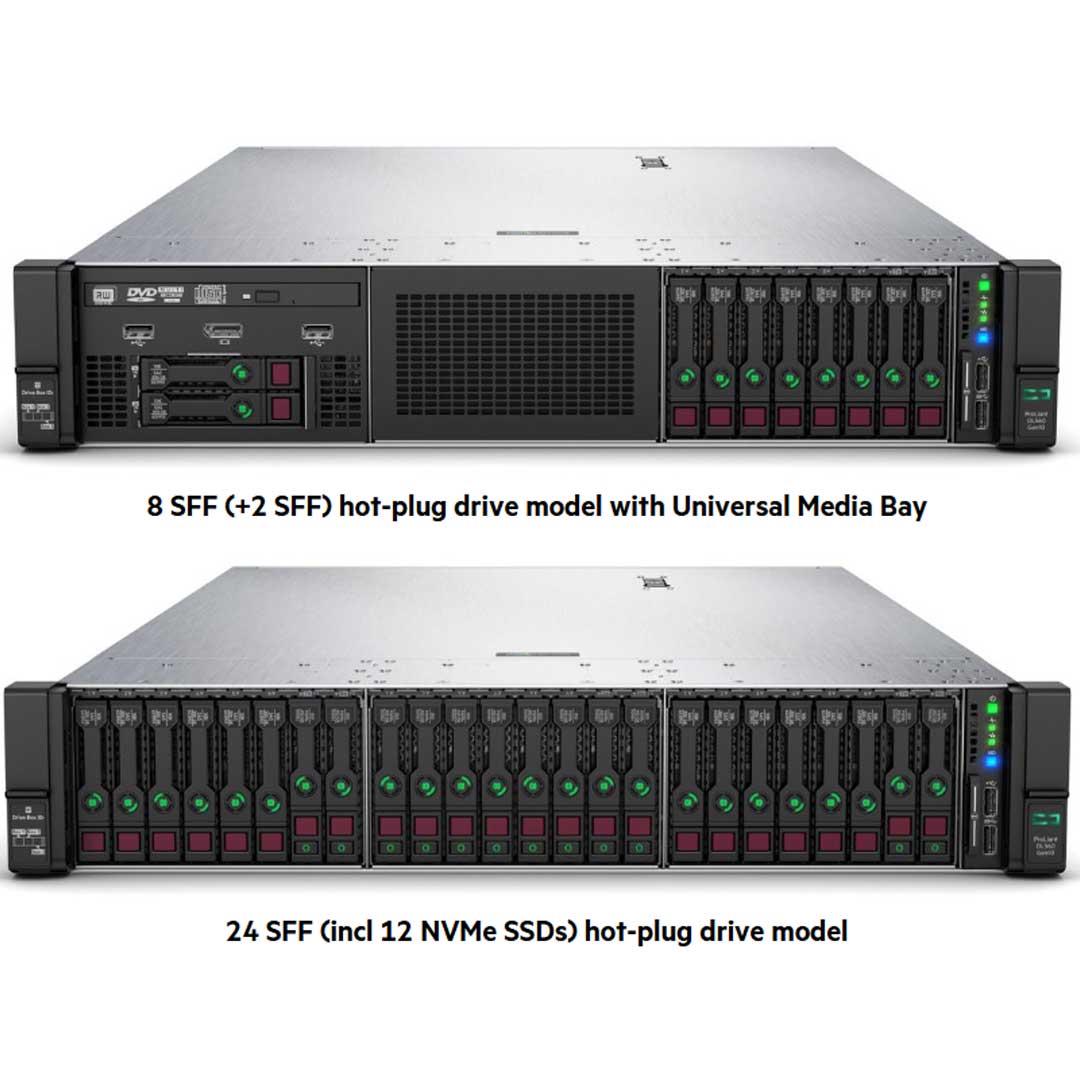

The HPE ProLiant DL560 Gen10 8SFF Configure-to-order Server (841730-B21) is a 2U Server Chassis with 2 processor slots available; 3 or 4 processors configuration would require CPU Version 2 Mezzanine Board Kit (P07991-B21).

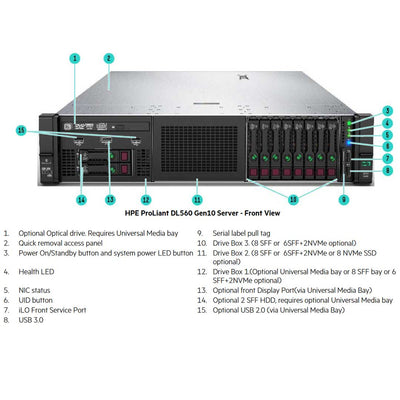

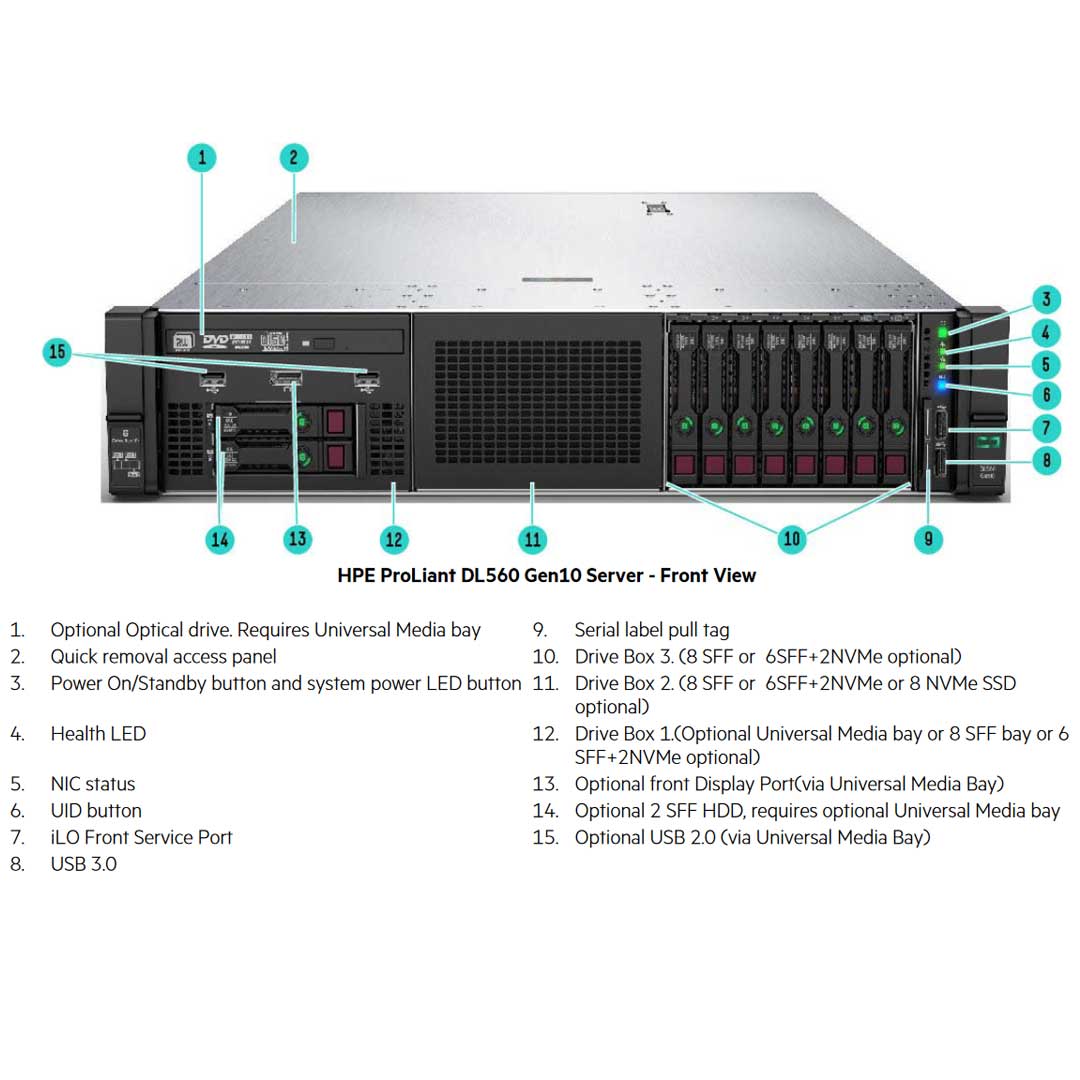

Since there is only 1 Chassis to choose from, let’s talk about the upgrades each front drive bay can handle. On the front of the DL560 Gen10 is 3 Boxes.
By default, Box 3 is filled with the 8SFF Drive Cage while Boxes 2 and 1 have blank Bays. Box 3 can support 8SFF HDD Drive Cage Bay 3 Kit (872237-B21), and the 2NVMe + 6SFF Drive Cage Bay Kit (872231-B21).
Box 2, which should be the next Box with Drives installed to have a balanced server, can support the following Drive upgrades. The 8SFF HDD Drive Cage Bay 2 Kit (872235-B21), the 2NVMe + 6SFF Drive Cage Bay 2 Kit (872229-B21), and finally this is the only box that can support the 8NVMe Drive Cage (872225-B21).
Box 1 is unique, it is the only box to support the Universal Media Bay Kit(872267-B21) which can support the 2SFF Front drive cage(872223-B21). Box 1 can also support the same drive cages as Box 3. The 8SFF HDD Drive Cage(872233-B21) and the 2NVMe + 6SFF Drive Cage Bay 1 Kit (872227-B21).
If you want to install 24 Front drives make sure to install the 12GB SAS Expander (873444-B21).
HPE DL560 Gen10 Plus Maximum Internal Storage
- Hot Plug SFF SATA HDD 48 TB 24 x 2 TB
- Hot Plug SFF SAS HDD 58 TB 24 x 2.4 TB
- Hot Plug SFF SATA SSD 184 TB 24 x 7.68 TB
- Hot Plug SFF SAS SSD 367 TB 24 x 15.3 TB
- SFF NVMe SSD 184 TB 12 x 15.36TB
HPE Smart Storage Controllers
HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. For legacy support an additional controller will be needed, and for CTO orders please also select the Legacy mode settings part, 758959-B22. HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled. For enabling, please select HPE FIO Enable Smart Array SW RAID (784308-B21).
HPE Smart Storage Hybrid Capacitor with 145mm Cable Kit (P02377-B21) supports up to 3 performance RAID controllers. If 4 or more performance RAID controllers are selected, HPE 96W Smart Storage Battery (P01366-B21) is required.
This server supports two HPE Smart Storage batteries or one HPE Smart Storage Hybrid Capacitor. To support P-series Smart Array controllers, an energy pack must be installed.
HPE DL560 Gen10 Plus Boot Drives
Two different options for Boot. You can use the HPE NS204i-p x2 Lanes NVMe PCIe3 x8 OS Boot Device (P12965-B21) or the HPE 32GB microSD RAID 1 USB Boot Drive (P21868-B21). The later does not take up a PCI slot.
HPE DL560 Gen10 Plus PCI Risers

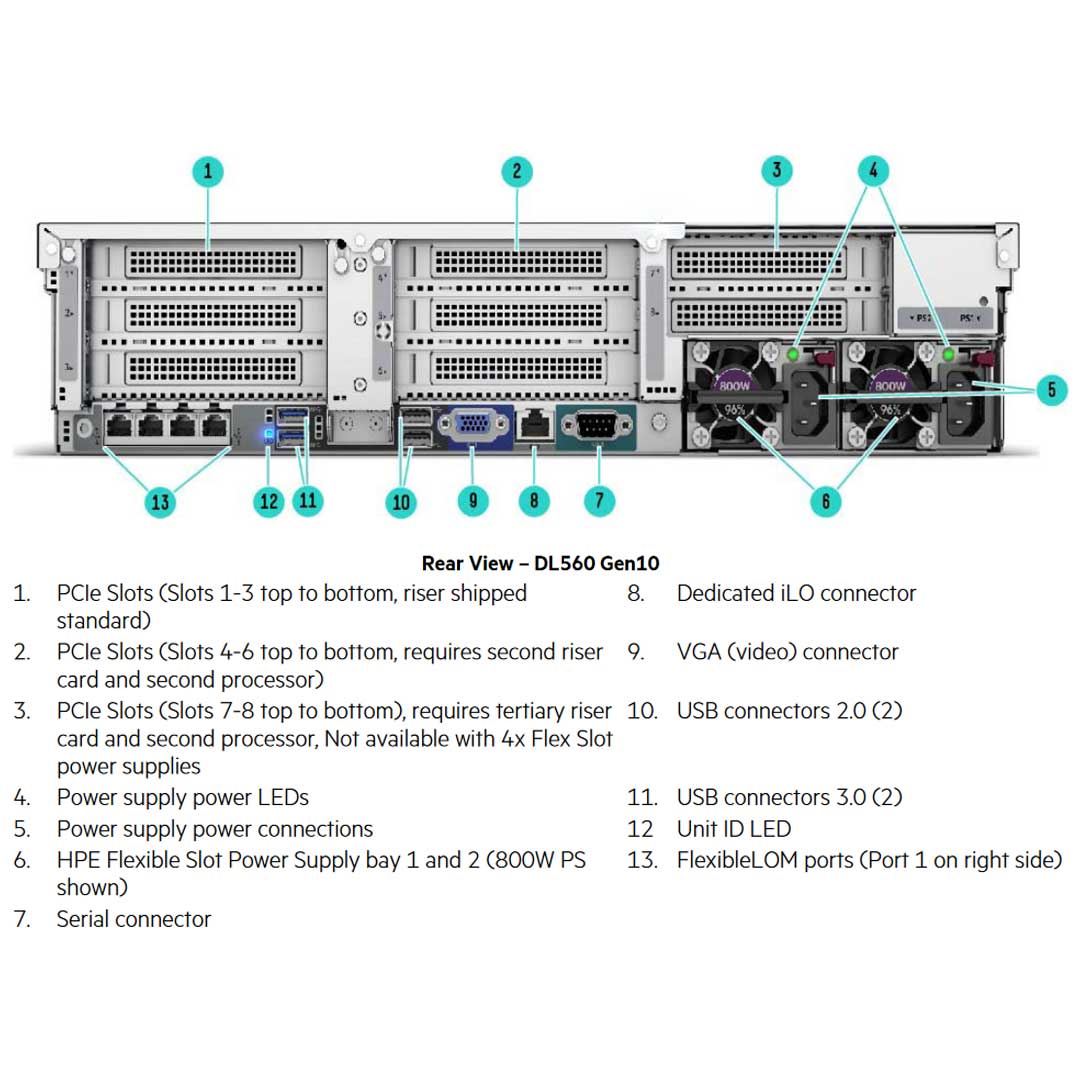

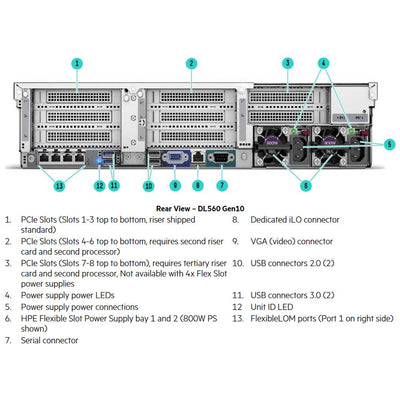

The DL560 Gen10 has 8 PCIe slots on 3 PCIe risers with the ability to support GPUs, Accelerators, drives and PCIe devices. If you install the secondary or tertiary risers you will need the 2nd processor to be installed. The tertiary risers can only be installed when using two PSUs. There is no space for tertiary risers when the four PSU’s are installed. If a secondary riser is required it needs to be ordered separately. This is because the tertiary riser is a butterfly riser and comes with PCIe slots 2 and 3 on it.
With support for up to 12 NVMe drives, this DL560 server has a few options. You can install the normal risers with NVMe ports on them, but there is a special NVMe expander that requires the Version 2 Mezzanine Board Kit (P07991-B21). The optional 4-port NVMe Mezzanine card (874633-B21) supports a maximum of 8 NVMe drives and does not consume a PCIe slot. It goes on top of the HPE DL5x0 Gen10 CPU Version 2 Mezzanine Board Kit (P07991-B21) and requires a four-processor configuration.
PCIe Riser Options - Click Here to Open
| Primary Riser (Standard)-Default |
|---|
| Expansion Slots # |
Technology |
Bus/Connector Width |
Form Factor/Connector |
Notes |
| 1 |
PCIe 3.0 |
x8 |
3/4 length/full height |
Proc 1 |
| 2 |
PCIe 3.0 |
x16 |
3/4 length/full height |
Proc 1 |
| 3 |
PCIe 3.0 |
x8 |
3/4 length/full height |
Proc 1 |
| None |
2 x M.2 |
SATA Lanes |
M.2 |
Chipset |
| Secondary Riser (Optional) 826704-B21 HPE DL Gen10 x16/x16 GPU Riser Kit |
|---|
| Expansion Slots (Prim/Sec)# |
Technology |
Bus/Connector Width |
Form Factor/Connector (Prim) |
Form Factor/Connector (Sec) |
Notes (Prim/Sec) |
| 2/5 |
PCI 3.0 |
x16 |
3/4 length/full height |
Half length/full height |
Proc 1/2 |
| 3/6 |
PCI 3.0 |
x8 |
3/4 length/full height |
Half length/full height |
Proc 1/2 |
| Secondary Riser (Optional) 873418-B21 HPE DL560 Gen10 4-port 8 NVMe Slimline Riser Kit |
|---|
| Expansion Slots (Prim/Sec)# |
Technology |
Bus/Connector Width |
Form Factor/Connector |
Notes (Prim/Sec) |
| None |
NVMe |
x8 |
Slimeline |
Proc 1/2 |
| None |
NVMe |
x8 |
Slimeline |
Proc 1/2 |
| None |
NVMe |
x8 |
Slimeline |
Proc 1/2 |
| None |
NVMe |
x8 |
Slimeline |
Proc 1/2 |
| Secondary Riser (Optional) 873420-B21 HPE DL560 Gen10 x8/x8/x8 1-port 2 NVMe Slimline Riser Kit |
|---|
| Expansion Slots (Prim/Sec)# |
Technology |
Bus/Connector Width |
Form Factor/Connector (Prim) |
Form Factor/Connector (Sec) |
Notes (Prim/Sec) |
| 1/4 |
PCI 3.0 |
x8 |
3/4 length/full height |
Half length/full height |
Proc 1/2 |
| 2/5 |
PCI 3.0 |
x8 |
3/4 length/full height |
Half length/full height |
Proc 1/2 |
| 3/6 |
PCI 3.0 |
x8 |
3/4 length/full height |
Half length/full height |
Proc 1/2 |
| None |
NVMe |
x8 |
Slimeline |
Slimeline |
Proc 1/2 |
| Secondary Riser (Optional) 870548-B21 HPE DL Gen10 x8/x16/x8 Riser Kit |
|---|
| Expansion Slots # |
Technology |
Bus Width |
Form Factor |
Notes |
| 4 |
PCI 3.0 |
x8 |
Half length/full height |
Proc 2 |
| 5 |
PCI 3.0 |
x16 |
Half length/full height |
Proc 2 |
| 6 |
PCI 3.0 |
x8 |
Half length/full height |
Proc 2 |
| Tertiary butterfly riser (Optional) 872253-B21 HPE DL560 Gen10 x8/x8 Tertiary Riser Kit |
|---|
| Expansion Slots # |
Technology |
Bus Width |
Form Factor |
Notes |
| 7 |
PCI 3.0 |
x8 |
Half length/full height |
Proc 2 |
| 8 |
PCI 3.0 |
x8 |
Half length/full height |
Proc 2 |
| Tertiary riser (Optional) 872255-B21 HPE DL560 Gen10 x8 1-port 2 NVMe Slimline Riser Kit |
|---|
| Expansion Slots # |
Technology |
Bus Width |
Form Factor/Connector |
Notes |
| 7 |
PCI 3.0 |
x8 |
Half length/full height |
Proc 2 |
| None |
NVMe |
x8 |
Slimeline |
Proc 3 |
| Tertiary riser (Optional) 872257-B21 HPE DL560 Gen10 2-port 4 NVMe Slimline Tertiary Riser Kit |
|---|
| Expansion Slots # |
Technology |
Bus Width |
Form Factor/Connector |
Notes |
| None |
NVMe |
x8 |
Slimeline |
Proc 2 |
| None |
NVMe |
x8 |
Slimeline |
Proc 2 |
| 4-port NVMe Mezzanine card (Optional) 874633-B21 |
|---|
| Expansion Slots # |
Technology |
Bus Width |
Form Factor/Connector |
Notes |
| None |
NVMe |
x8 |
Slimeline |
Proc 3 |
| None |
NVMe |
x8 |
Slimeline |
Proc 3 |
| None |
NVMe |
x8 |
Slimeline |
Proc 3 |
| None |
NVMe |
x8 |
Slimeline |
Proc 3 |
HPE DL560 Gen10 Plus GPU / Workload Accelerator
A maximum of 2 GPU cards can be supported, 1 in primary riser expansion slot 2 and another in secondary riser expansion slot 5. Not supported on the 24SFF Configuration. For GPUs, you will need to make sure you install a correct Riser with GPU Support.
| Part Number |
Card |
Qty Support |
PCIe Speed
|
| Q0V77A |
NVIDIA Quadro P2000 GPU Module |
2 |
Gen3 |
| R2U55C |
NVIDIA Quadro P2200 GPU Module |
2 |
Gen3 |
| R0W29C |
NVIDIA Tesla T4 16GB Module |
2 |
Gen3 |
Networking Abilities | OCP 3.0, Stand-up card
The HPE ProLiant DL560 Gen10 servers offer a flexible network technology - FlexibleLOMs, which offers customers a choice of 1 Gb, 10 Gb, 25 Gb or 10 Gb and 100 Gb base-T Ethernet or converged networking in their embedded adapter. A range of NIC cards are also available to enhance networking capabilities. A minimum of two Gigabytes (2 GB) of server memory is required per adapter. This DL560 Gen10 Rack Server does not come with embedded Lom, you must choose a NIC.
HPE DL560 Gen10 Plus Cooling
6 hot plug fans are shipped as standard with N+1 redundancy. Processors over a certain TPD will come with a performance heatsink.
HPE DL560 Gen10 Plus Flex Slot your power!
The tertiary risers can only be installed when using two PSUs. There is no space for tertiary risers when the four PSUs are installed. If a secondary riser is required, it needs to be ordered separately. All power supplies in a server should match, mixing Power Supplies is not supported. HPE DL560 Gen10 4x Power Supply Enablement Kit (875675-B21) must be ordered when selecting 4 power supplies.
HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.
The server supports four power supply redundancy modes in UEFI System Utilities
-
1 + 1 Redundancy—In a two-power supply configuration, the server will continue to operate if one power supply fails. This mode is not applicable in a four-power supply configuration.
-
2 + 2 Redundancy—In a four-power supply configuration, the server will continue to operate if two power supplies fail or if one AC feed loses power.
-
3 + 1 Redundancy—In a four-power supply configuration, the server will continue to operate if a single power supply fails. The server will initiate operating system shutdown if two power supplies fail. No AC power redundancy is possible.
-
4 + 0 Redundancy—In a four-power supply configuration, there is no power supply redundancy. The server consumes more power than redundancy can supply and will initiate operating system shutdown if one or more power supplies
By default, the server is configured for 1 + 1 power redundancy.
More Info
Rail kits are optional for DL560 Gen10 and are no longer included as standard with the server. Customers have the option to purchase their server without a rail kit.
If you have any questions or concerns, please contact us for support.
HPE DL560 Gen10 Plus Lights Out! iLO
HPE iLO 5 ASIC
HPE Integrated Lights-Out (HPE iLO) - Monitor your servers for ongoing management, service alerting, reporting, and remote management with HPE iLO.
UEFI - Configure and boot your servers securely with industry-standard Unified Extensible
Firmware Interface (UEFI).
RESTful API - iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards..
Intelligent Provisioning – Hassle-free server and OS provisioning for 1 or few servers with Intelligent Provisioning.
