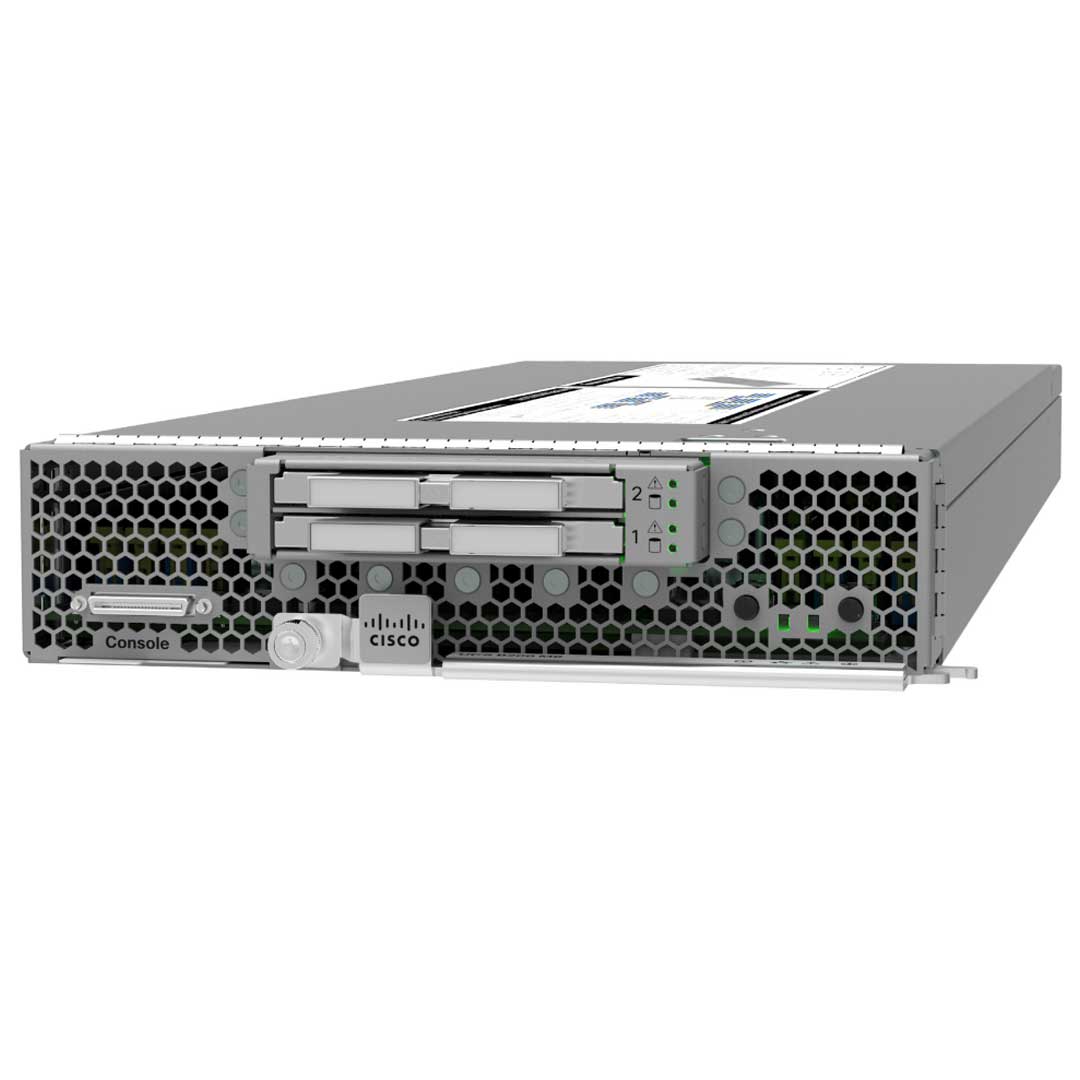

Cisco UCS B200 M6 Blade Server CTO

Brand:
Type:
CTO Servers
Condition:
ECS Refurbished & Tested
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Submit for Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Select a Chassis

All Fans and Power come from the Cisco UCS 5108 Modular Blade Enclosure.

Select Processor Intel Xeon 3rd Gen

Supports up to 2 CPUs'
Not all CPUs support a Dual configuration. The following can only support 1 CPU per Blade.
UCS-CPU-I8351N
UCS-CPU-I6314U
UCS-CPU-I6312U.

Platinum Processor Intel Xeon 3rd Gen

Gold Processor Intel Xeon 3rd Gen

Silver Processor Intel Xeon 3rd Gen

Select Memory (Optional)

16 DImms on a Single CPU Configuration
32 Dimms on a Dual CPU Configuration

Selecte PMem Memory (Optional)

Please read the manual for more information about the amount of PMems supported

Memory Extras (Optional)

Memory Modes and Blanks

Select Front Mezzanine

SAS/SATA Drives need the UCSB-RAID12G-M6
PCIe NVMe Drives need the UCSB-LSTOR-PT-M6
SATA M.2 Drives need the UCSB-MSTOR-M6 Mini Storage Carrier.
UCS-M2-HWRAID is needed with M.2 Storage Carrier.

Cisco B200 M6 Rear mLOM

Cisco B200 M6 Rear Mezzanine (VIC or Port Expander) (Optional)

Drives SAS/SATA (Optional)

Supports up to 2 drives
SAS/SATA Drives need the UCSB-RAID12G-M6

Drives NVMe (Optional)

Supports up to 2 Drives
PCIe NVMe Drives need the UCSB-LSTOR-PT-M6

Drives M.2 (Optional)

Support up to 4 M.2 Drives
SATA M.2 Drives need the UCSB-MSTOR-M6 Mini Storage Carrier.
UCS-M2-HWRAID is needed with M.2 Storage Carrier.

Cisco B200 M6 TPM (Optional)

ECS Warranty

Helpful Tip: Once desired configuration is selected click "Add to Cart". From the cart page you can submit a submit a quote request for best pricing

Quick Specs

  • From Factory: Half-Width Blade Server
  • Processors | Max: 56 Cores
    2 x Intel Xeon Scalable (Gen 3)
  • Memory | Max: 10TB (w/ PMem)
    32 3200MHz DDR4 DIMMs
    Up to 16 DIMM Support for Intel Optane™ DC Persistent Memory
  • Storage | Max: 15.2TB
    2 x SAS/SATA/NVMe
  • Controllers:
    UCSB-RAID12G-M6,
    UCSB-LSTOR-PT-M6
  • Adapters: 1 x Front and 2 x Rear Mezzanine Slots
  • Throughput I/O: 80 Gbps
  • GPU: None
  • Boot: 4 x M.2 SATA drives (UCS-M2-HWRAID)

Other Versions:

  • Enclosure: UCS 5108
  • UCS B200 M4
  • UCS B200 M5
  • UCS B200 M6

The Cisco UCS B200 M6 Blade Server is a high-performance, half-width blade server optimized for data center environments. It supports up to two Intel Xeon Scalable processors (3nd generation), offering up to 80 cores per server, delivering powerful computing capabilities for demanding workloads. The server can support up to 10 TB of DDR4 memory across 32 DIMM slots when persistent memory (Pmem) is installed, enabling high-memory configurations for resource-intensive applications. Storage options include two 2.5-inch drives, with support for SAS, SATA, SSD, and NVMe drives, offering flexibility for various data storage requirements. Integrated with Cisco UCS Manager, the B200 M6 provides seamless management and scalable infrastructure, making it an ideal solution for businesses looking to streamline operations and scale efficiently in modern data centers.

The Cisco UCS B200 M6 Blade Server is designed to meet the rigorous demands of modern data centers and enterprise applications. Its powerful processing performance and extensive memory capacity make it well-suited for a wide range of workloads, including virtualization, database management, and high-performance computing. The server offers versatile storage configurations, accommodating everything from transactional databases to large-scale data analytics. With its integration into Cisco UCS Manager, the B200 M6 streamlines system management, boosts operational efficiency, and accelerates deployment, providing organizations with a reliable solution to optimize and scale their IT infrastructure.



Cisco M6 B200 Boot Options M.2
2 x SATA M.2 Storage Modules
  • Holds up to 2 M.2 SATA SSDs
  • RAID 1 and JBOD mode
  • The SATA M.2 drives can boot in UEFI mode only.
  • (CIMC/UCSM) is supported for configuring of volumes and monitoring
  • Hot-plug replacement is not supported.



For M.2 SATA drives, select the boot-optimized RAID controller (UCS-M2-HWRAID) for hardware RAID across one or two SATA M.2 drives, and one UCSB-MSTOR-M6 mini storage carrier. The RAID controller connects to the mini-storage carrier, and up to two SATA M.2 drives plug into the RAID controller.


Intel® Virtual RAID on CPU (Intel® VROC)
  • Intel® VROC is only supported with Intel drives
  • Small Form Factor (SFF) drive support (only)
  • RAID 0/1/5/10 support
  • No battery backup (BBU) or external SuperCap needed
  • Intel VROC NVMe operates in UEFI mode only



The server supports Intel® Virtual RAID on CPU (Intel® VROC), an enterprise RAID solution for Intel NVMe SSDs. Intel® VMD is a controller integrated into the CPU PCIe root complex, allowing Intel® VMD NVMe SSDs to connect directly to the CPU. This enables the full performance potential of Intel® Optane™ SSDs. Intel® VROC replaces traditional hardware RAID HBA cards, providing more direct connectivity between the drives and the CPU.



Current Configuration

Select a Chassis

Select Processor Intel Xeon 3rd Gen

Select Memory (Optional)

Selecte PMem Memory (Optional)

Memory Extras (Optional)

Select Front Mezzanine

Cisco B200 M6 Rear mLOM

Cisco B200 M6 Rear Mezzanine (VIC or Port Expander) (Optional)

Drives SAS/SATA (Optional)

Drives NVMe (Optional)

Drives M.2 (Optional)

Cisco B200 M6 TPM (Optional)

ECS Warranty

*list also serves as quick links to each section

Welcome to the Request Express Quoting Form!

for: Cisco UCS B200 M6 Blade Server CTO


This streamlined form is designed to simplify the quoting process for you. Whether you're uncertain about specific parts or seeking a hassle-free experience, you're in the right place.

Provide us with the necessary details, and we'll generate a customized quote for your server. Even if you're unsure about the exact components you need, we've got you covered. Our team will tailor a solution based on the information you provide.

Let's get started!
Simply fill out the form, and we'll take care of the rest.


Name *
Email *
Message *
Preferred Brand
Form Factor
Rack Unit of Height (#U)
Processor(s)
Memory
Total Amount of Memory
Total Amount of Usable Storage

Storage Type


RAID

List Networking Connection needed:
Rack Space Restrictions
Which OS do you plan on using:


Price as Configured: 0

Add to Cart

Error Submitting Cart. Please get in touch with us for support.

Please select all the mandatory items in the configuration list before submitting the cart.

One or more items in your cart has no price. This will be submitted as a "Request for a Quote".

Product Specs

Base Standard Capabilities

ItemSpecifications
ProcessorsUp to 3rd Gen Intel Xeon Scalable processors (1 or 2)
Memory32 DDR4 DIMM slots: 16, 32, 64, 128 GB up to 3200 MHz
Intel Optane DC persistent memory16 DIMM slots: 128, 256, and 512 GB at up to 3200 MHz
mLOMmLOM slot for Cisco UCS VIC 1440
Mezzanine adapter (rear)1 rear mezzanine adapter for: Cisco UCS VIC 1480 mezzanine card, Cisco port expander mezzanine card
Mezzanine adapter (front)1 front mezzanine adapter for: Cisco FlexStorage 12-Gbps SAS RAID Controller, Cisco FlexStorage 12-Gbps SAS RAID Controller with 2-GB cache, Cisco FlexStorage M.2 Boot RAID Controller
Internal storage2 hot-pluggable front-access 7 mm form factor drives: SSD, Enterprise performance and value SSDs with up to 7.7 TB per drive or M.2: Up to 960 GB per drive. Note: Drives require a RAID or pass-through controller in the front mezzanine adapter slot.
Temperature: operating50° to 95°F (10° to 35°C)
Temperature: nonoperating-40° to 149°F (-40° to 65°C)
Humidity: operating5% to 93% noncondensing
Humidity: nonoperating5% to 93% noncondensing
Altitude: operating0 to 10,000 ft (0 to 3000 m); maximum ambient temperature decreases by 1°C per 300 m
Altitude: nonoperating40,000 ft (12,000 m)
