Base Standard Capabilities
| Feature | Techinal Specifications | |
|---|---|---|
| Processor | • Up to two 4th Generation Intel Xeon Scalable processors with up to 56 cores per processor • Intel® C741 chipset with optional Intel® QuickAssist Technology | |
| Memory | 32 DDR5 DIMM slot, supports RDIMM max 8 TB, speeds up to 4800 MT/s | |
| Availability | Supports registered ECC DDR5 DIMMs only | |
| Storage controllers | • Internal controllers: PERC H755 MX, PERC H965i MX, HBA350i MX • Internal boot: USB or Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 SSDs 480 GB or 960 GB • Software RAID: S160 | |

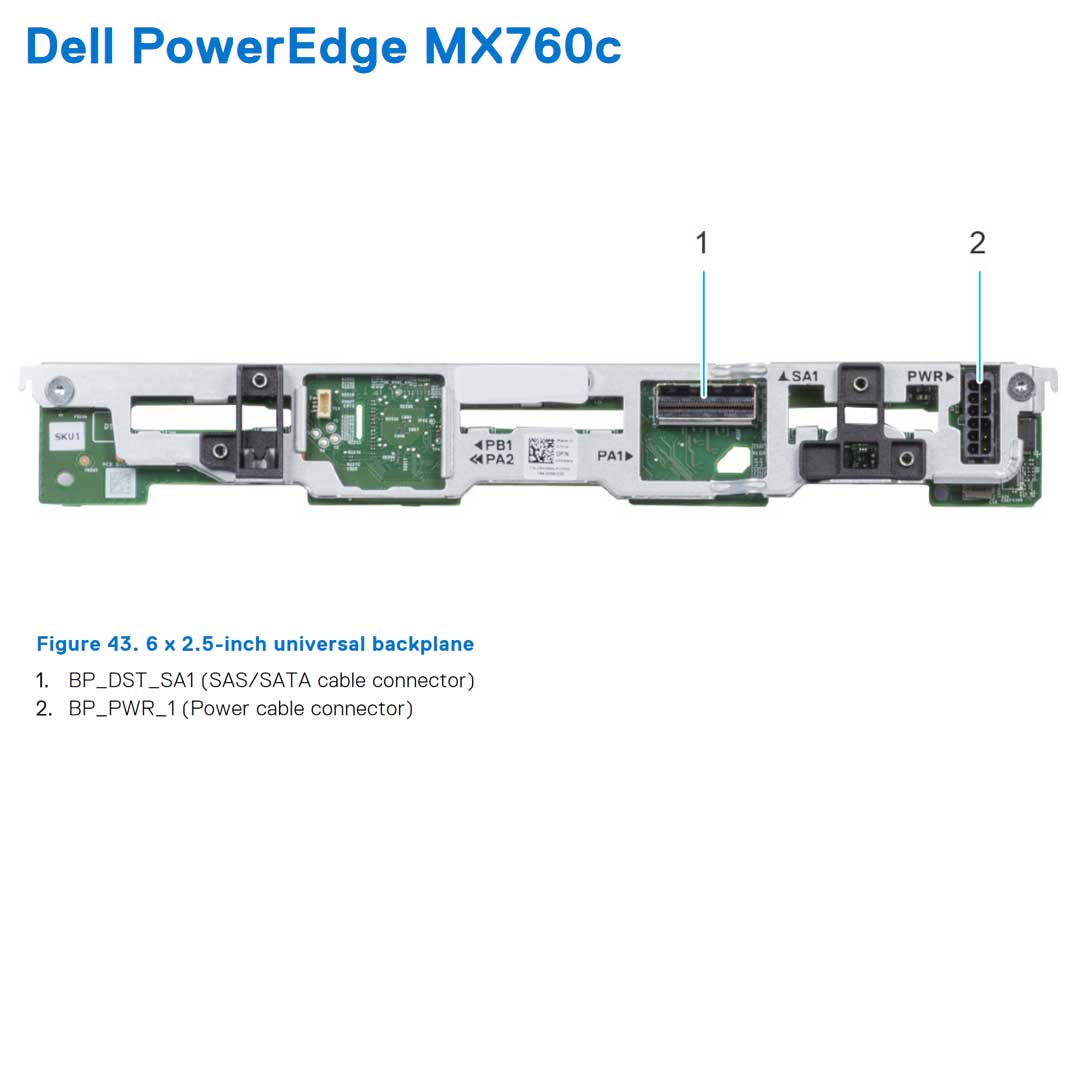

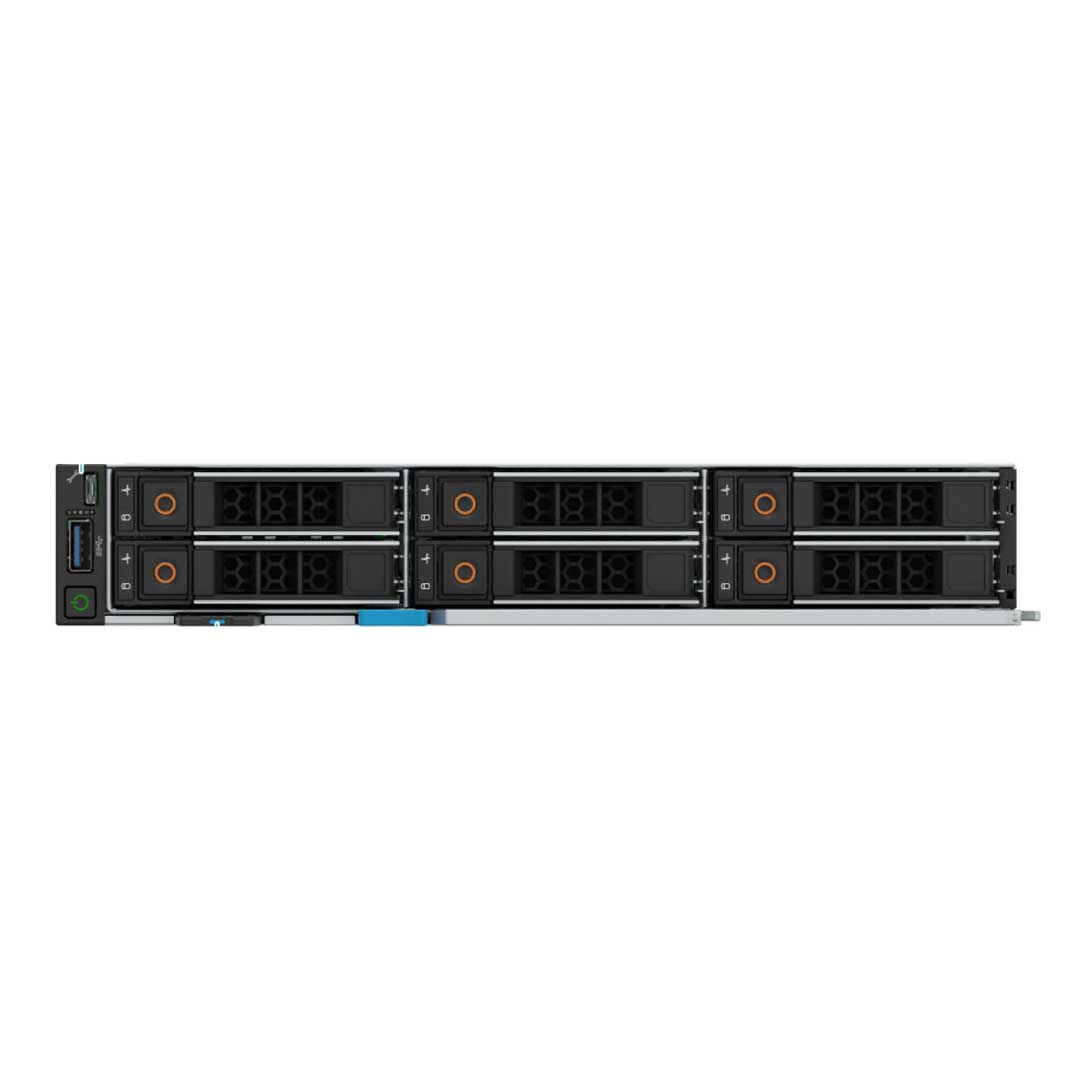

| Drive Bays | Front bays: • Up to 4 x 2.5-inch SAS/SATA (HDD/SSD) max 61 TB • Up to 6 x 2.5-inch SAS /SATA (HDD/SSD) max 46.08 TB • Up to 6 x 2.5-inch NVMe/SAS/SATA (HDD/SSD) max 92 TB • Up to 8 x E3.s NVMe PCIe Gen 5 SSD max 61 TB | |
| Power Supplies | MX7000 chassis: Up to six 3000 W AC Platinum PSU and grid redundancy support | |
| Fans | MX7000 chassis: 5 rear and 4 front-accessible hot-swap fans with full redundancy (Gen 2 fan required) | |
| Dimensions | • Height — 51.0 mm (2 inches) • Width — 257.0 mm (10 inches) • Depth — 631.77 mm (24.8 inches) | |
| Weight | 8.59 kg (18.93 pound) | |

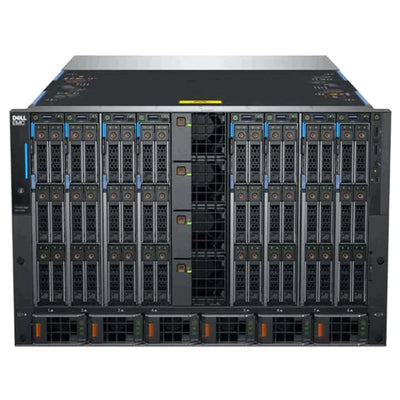

| Form Factor | Up to 8 independent hot-swappable, 1U single-width compute sled in a MX7000 chassis | |
| Embedded Management | MX7000 chassis: OpenManage Enterprise Modular Edition (OME-Modular); • Up to 2 redundant MX9002m management modules • Unified control: single management point for server, storage and networking • Intelligent automation: Operational template methodology and comprehensive RESTful API • Quick Sync 2 Bluetooth Low Energy (BLE) / wireless module option | On compute sled: • iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module |
| OpenManage Software | • CloudIQ for PowerEdge plug in • OpenManage Enterprise • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin | |
| OpenManage Integrations | • BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager | |
| Security | • Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check) • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ | |
| Ports | Front ports • 1 x iDRAC Direct port (Micro-AB USB) • 1 x USB 3.0 | Internal port • 1 x USB 3.0 |
| Networking_Options (NDC) | • MX7000 chassis Fabric options: up to 2 pairs redundant general purpose switch or passthrough modular bays (Fabrics A and B); redundant pair of storage specific switch bays (Fabric C) • Up to 25 Gb CNA/NIC or 100 Gb NIC per port for Mezz A/B, 32 Gb Fibre Channel | |
| PCIe | • One x16 PCIe Gen4 slot for PERC - connected to processor 1 • One x16 PCIe Gen4 slot for Mezz A - connected to processor 1 • One x16 PCIe Gen5 slot for Mezz B - connected to processor 2 • One x16 PCIe Gen4 slot for Mini Mezz - connected to processor 1 • Two x8 PCIe Gen5 (SL1, SL2) connectors for NVMe drive – connected to processor 1 • Two x8 PCIe Gen5 (SL4, SL5) connectors for NVMe drive – connected to processor 2 • One x4 PCIe Gen4 for BOSS-N1 HWRAID card | |
| Operating System and Hypervisors | • Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware vSAN/ESXi | |
