Dell EMC PowerSwitch S5232F-ON 32-Port 750W (ONIE) Switch

Dell EMC PowerSwitch S5232F-ON Switch

The S5232F-ON is a highly versatile and powerful network switch designed for high-density deployments and small-scale fabric implementations. With its ability to achieve up to 128 10GbE or 128 25GbE ports using breakout cables, the S5232F-ON is an ideal choice for organizations looking to upgrade their network infrastructure.

The S5232F-ON can be used in spine and leaf configurations along with S5248F-ON 1/10/25GbE ToR switches, providing a cost-effective solution for aggregating 10/25/40/50/100 uplinks. The switch provides line-rate performance via non-blocking switch fabrics, with a capacity of 3.2Tbps (6.4Tbps full-duplex), ensuring that your critical applications and services run smoothly and efficiently.

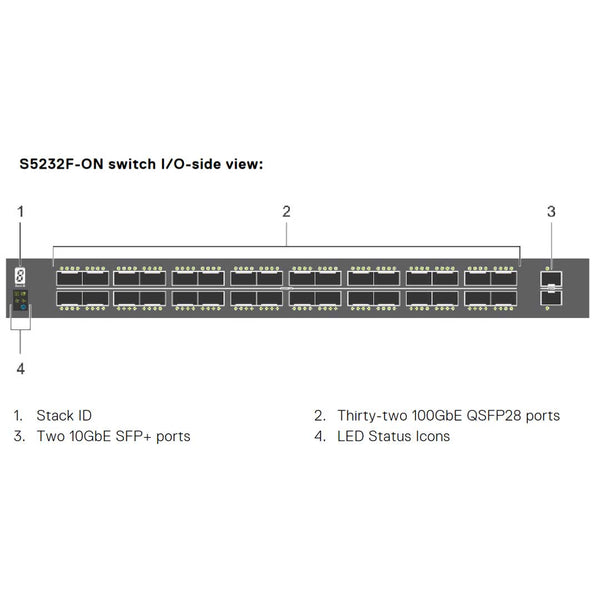

Featuring 32 quad small form-factor pluggable (QSFP) ports that support 100 Gigabit Ethernet (GbE) connections, and 2 small form-factor pluggable plus (SFP+) ports that support 10 Gigabit Ethernet (GbE) connections, the S5232F-ON delivers lightning-fast network speeds and low latency.

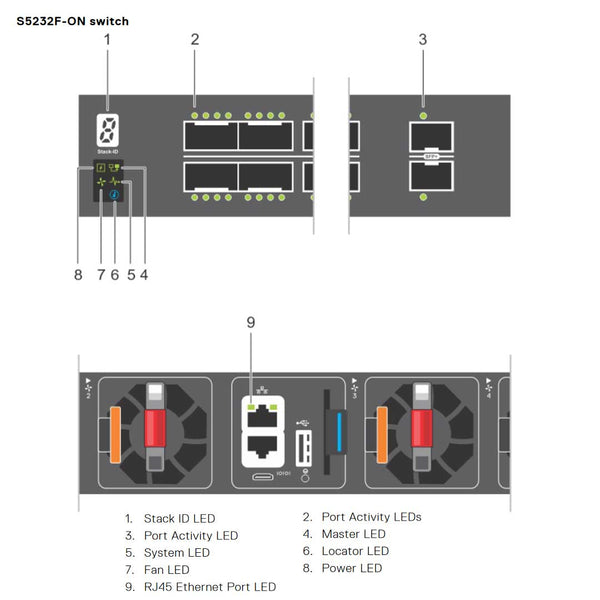

In addition to its powerful networking capabilities, the S5232F-ON also includes a seven-segment stacking indicator that provides clear and concise feedback on the status of switch stacking. The switch also includes a micro-USB-B console port and a USB type-A port, allowing for easy configuration and management of the switch.

With a maximum power consumption of 635W and a typical operating power of 360W, the S5232F-ON is both efficient and environmentally friendly. The switch also features 4 hot-swap fans and power supply, ensuring that it provides reliable and consistent performance, even under heavy workloads.

S5232F-ON:

• Open Network Install Environment (ONIE)
• The S5232F-ON switch qualifies as network equipment building system-3 (NEBS-3) compliant.
• 32 x 100GbE QSFP28
• 2 x 10GbE SFP+
• Seven-segment stacking indicator
• 1 micro-USB-B console port
• 1 USB type-A port
• 635WMax Power Consumption

• 360WTypical Operating Power
• 4 Hot-Swap Fans and Power Supply

S5232F-ON Configurations:

• 96 x 10GbE + 8 x 100GbE
• 96 x 25GbE + 8 x 100GbE
• 128 x 10GbE
• 128 x 25GbE
• 64 x 50GbE
• 32 x 40GbE
• 32 x 100GbE

• S5232F, 32x 100 GbE QSFB28 + 2x 10GbE SFP+, 2x AC PSU, Fan modules, I/O Panel to PSUAirflow, Dell EMC SmartFabric OS10
• S5232F, 32x 100 GbE QSFB28 + 2x 10GbE SFP+, 2x AC PSU, Fan modules, PSU to I/O PanelAirflow, Dell EMC SmartFabric OS10
• S5232F, 32x 100 GbE QSFB28 + 2x 10GbE SFP+, 2x AC PSU, Fan modules, I/O Panel to PSUAirflow, NO-OS
• S5232F, 32x 100 GbE QSFB28 + 2x 10GbE SFP+, 2x AC PSU, Fan modules, PSU to I/O PanelAirflow, NO-OS
• S5232F, 32x 100 GbE QSFB28 + 2x 10GbE SFP+, 2x AC PSU, Fan modules, I/O Panel to PSUAirflow, Dell EMC SmartFabric OS10, TAA
• S5232F, 32x 100 GbE QSFB28 + 2x 10GbE SFP+, 2x AC PSU, Fan modules, PSU to I/O PanelAirflow, Dell EMC SmartFabric OS10, TAA

Key Features with Dell EMC SmartFabric OS10

• Consistent DevOps framework across compute, storage and networking elements
• Standard networking features, interfaces and scripting functions for legacy network operations integration
• Standards-based switching hardware abstraction via Switch Abstraction Interface (SAI)
• Pervasive, unrestricted developer environment via Control Plane Services (CPS)
• OS10 Enterprise Edition software enables Dell Technologies layer 2 and 3 switching and routing protocols with integrated IP services, quality of service, manageability and automation features
• OS10 supports Precision Time Protocol (PTP, IEEE 1588v2) to synchronize clocks on network devices.
• Leverage common open source tools and best practices (data models, commit rollbacks)
• Increase VM Mobility region by stretching L2 VLAN within or across two DCs with unique VLT capabilities
• Scalable L2 and L3 Ethernet Switching with QoS, ACL and a full complement of standards based IPv4 and IPv6 features including OSPF, BGP and PBR
• Enhanced mirroring capabilities including local mirroring, Remote Port Mirroring (RPM), and Encapsulated Remote Port Mirroring (ERPM)
• Converged network support for Data Center Bridging, with priority flow control (802.1Qbb), ETS (802.1Qaz), DCBx and iSCSI TLV Enhanced mirroring capabilities including local mirroring, Remote Port Mirroring (RPM), and Encapsulated Remote Port Mirroring (ERPM)
• Converged network support for Data Center Bridging, with priority flow control (802.1Qbb), ETS (802.1Qaz), DCBx and iSCSI TLV

Switch Capabilities
