Dell EMC PowerSwitch S5296F-ON 96-Port 893W (ONIE) Switch

Dell EMC PowerSwitch S5296F-ON Switch

The S5296F-ON is a powerful and flexible network switch designed for enterprise networks and data centers. With its advanced set of features and capabilities, the S5296F-ON is a top-performing switch that can handle the most demanding network applications.

Featuring 96 small form-factor pluggable (SFP) ports that support 25 Gigabit Ethernet (GbE) connections, and 8 quad small form-factor pluggable (QSFP) ports that support 100 Gigabit Ethernet (GbE) connections, the S5296F-ON delivers unparalleled network speeds and low latency.

The S5296F-ON switch also includes a seven-segment stacking indicator that provides clear and concise feedback on the status of switch stacking. The switch also includes a micro-USB-B console port and a USB type-A port, allowing for easy configuration and management of the switch.

With a maximum power consumption of 893W and a typical operating power of 457W, the S5296F-ON is an efficient and environmentally-friendly switch. The switch also features 4 hot-swap fans and power supply, ensuring that it provides reliable and consistent performance, even under heavy workloads.

The S5296F-ON supports Open Network Install Environment (ONIE), making it easy to install and configure network operating systems. This feature enables customers to choose from a wide range of network operating systems, including open-source solutions and commercially available operating systems, allowing for greater flexibility and customization.

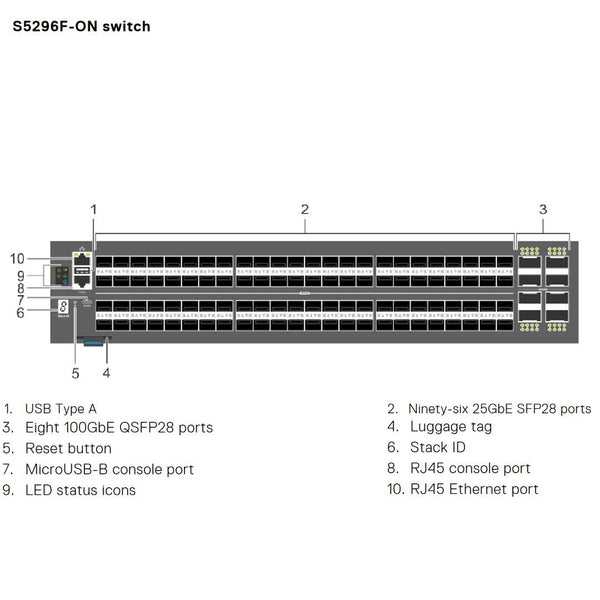

S5296F-ON:

• Open Network Install Environment (ONIE)
• 96 x 25GbE SFP28
• 8 x 100GbE QSFP28

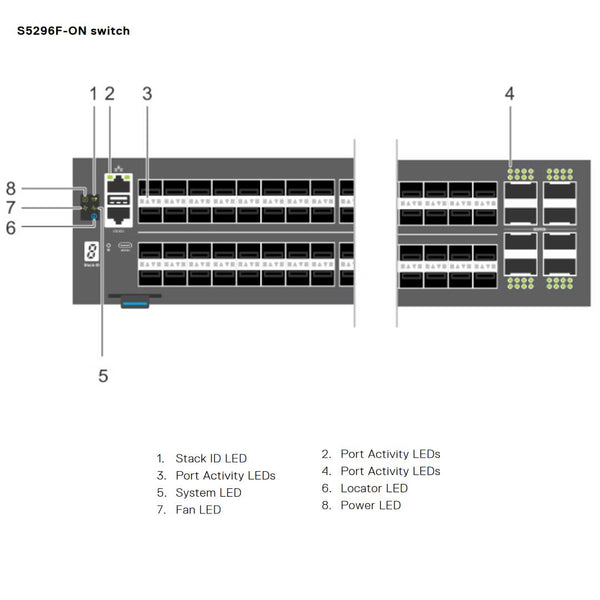

• Seven-segment stacking indicator
• 1 micro-USB-B console port
• 1 USB type-A port
• 893WMax Power Consumption

• 457WTypical Operating Power

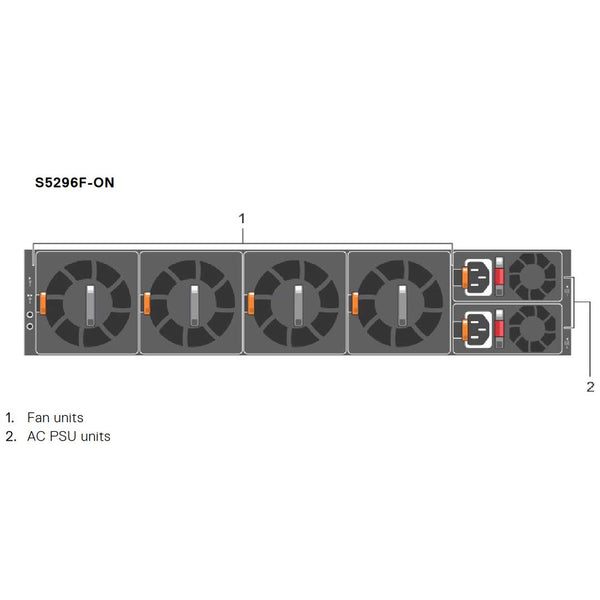

• 4 Hot-Swap Fans and Power Supply

S5296F-ON Configurations:

• 96 x 10GbE + 8 x 100GbE
• 96 x 25GbE + 8 x 100GbE
• 128 x 10GbE
• 128 x 25GbE
• 64 x 50GbE
• 32 x 40GbE
• 32 x 100GbE

• S5296F, 96x 25GbE SFP28 + 8x 100GbE QSFP28, 2x AC PSU, Fan modules,I/O Panel to PSUAirflow, Dell EMC SmartFabric OS10
• S5296F, 96x 25GbE SFP28 + 8x 100GbE QSFP28, 2x AC PSU, Fan modules,PSU to I/O PanelAirflow, Dell EMC SmartFabric OS10

• S5296F, 96x 25GbE SFP28 + 8x 100GbE QSFP28, 2x AC PSU, Fan modules,I/O Panel to PSUAirflow, NO-OS

• S5296F, 96x 25GbE SFP28 + 8x 100GbE QSFP28, 2x AC PSU, Fan modules,PSU to I/O PanelAirflow, NO-OS

• S5296F, 96x 25GbE SFP28 + 8x 100GbE QSFP28, 2x AC PSU, Fan modules,I/O Panel to PSUAirflow, Dell EMC SmartFabric OS10, TAA

• S5296F, 96x 25GbE SFP28 + 8x 100GbE QSFP28, 2x AC PSU, Fan modules,PSU to I/O PanelAirflow, Dell EMC SmartFabric OS10, TAe

Key Features with Dell EMC SmartFabric OS10

• Consistent DevOps framework across compute, storage and networking elements
• Standard networking features, interfaces and scripting functions for legacy network operations integration
• Standards-based switching hardware abstraction via Switch Abstraction Interface (SAI)
• Pervasive, unrestricted developer environment via Control Plane Services (CPS)
• OS10 Enterprise Edition software enables Dell Technologies layer 2 and 3 switching and routing protocols with integrated IP services, quality of service, manageability and automation features
• OS10 supports Precision Time Protocol (PTP, IEEE 1588v2) to synchronize clocks on network devices.
• Leverage common open source tools and best practices (data models, commit rollbacks)
• Increase VM Mobility region by stretching L2 VLAN within or across two DCs with unique VLT capabilities
• Scalable L2 and L3 Ethernet Switching with QoS, ACL and a full complement of standards based IPv4 and IPv6 features including OSPF, BGP and PBR
• Enhanced mirroring capabilities including local mirroring, Remote Port Mirroring (RPM), and Encapsulated Remote Port Mirroring (ERPM)
• Converged network support for Data Center Bridging, with priority flow control (802.1Qbb), ETS (802.1Qaz), DCBx and iSCSI TLV Enhanced mirroring capabilities including local mirroring, Remote Port Mirroring (RPM), and Encapsulated Remote Port Mirroring (ERPM)
• Converged network support for Data Center Bridging, with priority flow control (802.1Qbb), ETS (802.1Qaz), DCBx and iSCSI TLV
