Dell PowerEdge R210II CTO Rack Server

Brand:
Type:
CTO Servers
Condition:
ECS Refurbished & Tested
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Submit for Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Server Chassis

Processors

Intel Xeon E3-1200v2

Supports (1) processor

Bezel (Optional)

Memory

Supports up to 4 DIMMs

RAID Controllers (Optional)

Drives 3.5" LFF (Optional)

Drives 2.5" SFF (Optional)

PCIe Riser Full Height (Optional)

1 PCIe Slot (Full Height)

iDRAC Remote Options (Optional)

Power Supplies

Supports (1) PSU

Optical Drive (Optional)

Rail Kits (Optional)

ECS Warranty

Helpful Tip: Once desired configuration is selected click "Add to Cart". From the cart page you can submit a submit a quote request for best pricing

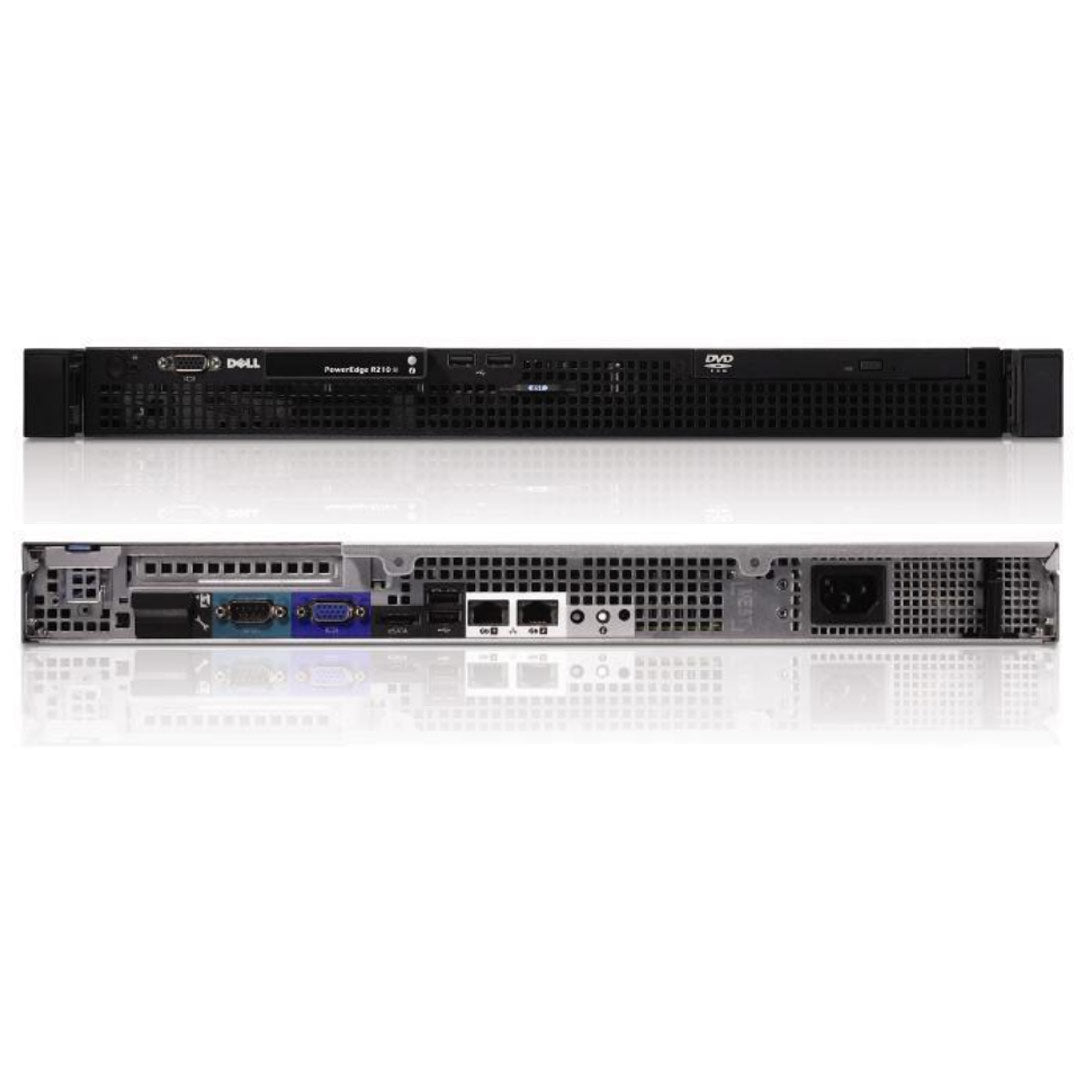

Refurbished Dell PowerEdge R210II CTO Rack Server

Quick Specs

Form Factor:

1U rack server

Processor | Max: 2-4 Cores

1 x Intel Processor

Memory | Max: 32GB

4x DDR3 UDIMM 1600Mhz

Storage | Max: 6TB

Cabled 2x LFF or 4x SFF SAS/NL-SAS/SATA (HDD/SSD)
Mixing Drives is not supported

Rear Storage:

None

PCIe Slots:

1x PCIe2.0 x16

GPU:

None

Management:

iDRAC6 optional

The Dell PowerEdge R210 II is an enterprise-ready, ultra-compact 1-socket rack server made for single-tier architectures.

Enjoy ultimate flexibility with the compact PowerEdge R210 II. Deployable in almost any environment, R210 II has the power you need to run your business and the scalability to help it grow. Share, manage and protect your data, all with one system.


Even better for business

Tailored to meet the needs of growing businesses and remote offices by offering enterprise-level performance, the compact PowerEdge R210 II rack server has what your business needs to increase productivity and provide better protection for important business data. The PowerEdge R210 II offers key data security and flexibility features. Whether it is running business applications that facilitate data sharing and protection or providing the management and scalability needed to support your business growth, the PowerEdge R210 II is an ideal choice for businesses and remote offices seeking exceptional performance.


Business value

The Dell PowerEdge R210 II has a choice of options that deliver value, including the required processor performance for business applications as well as impressive scalability to meet your business needs. The PowerEdge R210 II offers:

  • Technology that delivers value with performance along with essential features to operate your small businesses efficiently.
  • A range of technology options customizable to suit your business needs.
  • A full selection of Intel processors to meet your performance needs. Choose from Intel Xeon processor E3-1200 product family, Intel Xeon processor E3-1200 V2 product family, Intel Pentium G600 and G800 series, or Intel Celeron G400 and G500 series.

Flexible, secure technology

Securing your most valuable asset, your data, is important. That is why the PowerEdge R210 II has built-in redundant hard drives, encryption, security and other data protection options to help keep your data as safe as possible. Coupled with the latest version of Windows Small Business Server 2011 (SBS 2011), the PowerEdge R210 II delivers an integrated solution that can further protect your data by providing automatic backup and restore functionality as well as offering email, remote access and collaboration to help take your business to the next level. The R210 II also includes lower wattage power supplies and features a built-in user interface for ease of deployment. With the PowerEdge R210 II you can:

  • Protect data with hardware- and software-enabled encryption.
  • Secure business information with a RAID configuration to make copies of data automatically.
  • Provide email, collaboration, remote access and automatic backup and data restore functionality with Windows Small Business Server 2011.
  • Make server deployment easy with the optional embedded management and deployment controller


Current Configuration

Server Chassis

Processors

Bezel (Optional)

Memory

RAID Controllers (Optional)

Drives 3.5" LFF (Optional)

Drives 2.5" SFF (Optional)

PCIe Riser Full Height (Optional)

iDRAC Remote Options (Optional)

Power Supplies

Optical Drive (Optional)

Rail Kits (Optional)

ECS Warranty

*list also serves as quick links to each section

Welcome to the Request Express Quoting Form!

for: Dell PowerEdge R210II CTO Rack Server


This streamlined form is designed to simplify the quoting process for you. Whether you're uncertain about specific parts or seeking a hassle-free experience, you're in the right place.

Provide us with the necessary details, and we'll generate a customized quote for your server. Even if you're unsure about the exact components you need, we've got you covered. Our team will tailor a solution based on the information you provide.

Let's get started!
Simply fill out the form, and we'll take care of the rest.


Name *
Email *
Message *
Preferred Brand
Form Factor
Rack Unit of Height (#U)
Processor(s)
Memory
Total Amount of Memory
Total Amount of Usable Storage

Storage Type


RAID

List Networking Connection needed:
Rack Space Restrictions
Which OS do you plan on using:


Price as Configured: 0

Add to Cart

Please select all the mandatory items in the configuration list before submitting the cart.

One or more items in your cart has no price. This will be submitted as a "Request for a Quote".

Product Specs

Base Standard Capabilities

FeaturePowerEdge R210 II Technical Specification
Form factor1U rack
ProcessorsIntel® Xeon® processor E3-1200 product family
Intel Xeon processor E3-1200 V2 product family
Dual-core Intel Pentium® G600 and G800 series
Dual-core Intel Celeron® G400 and G500 series
Processor sockets1
Frontside bus or HyperTransportDMI II (Direct Media Interface)
Cache8MB
ChipsetIntel C202
Memory1Up to 32GB (4 DIMMs): 1GB/2GB/4GB/8GB DDR3 up to 1600MT/s
I/O SlotsOne PCIe x16 G2 slot
RAID controllerInternal controllers:
PERC H200 (6Gb/s)
PERC S100 (software based)
PERC S300 (software based)
External HBAs (non-RAID):
PERC H800 (6Gb/s) with 512MB of battery-backed cache; 512MB, 1GB non-volatile battery-backed cache
External HBAs (non-RAID):
6Gbps SAS HBA
Drive baysCabled options available:
Up to two 3.5” SAS, SATA or SSD drives
Maximum internal storage1Up to 6TB
Hard drivesCabled hard drive options:
2.5” SATA SSD, SAS (10K)
3.5” SAS (15K), nearline SAS (7.2K), SATA (7.2K, 5.4K)
CommunicationsBroadcom NetXtreme 5709 Dual Port Gigabit Ethernet NIC, Copper, with TOE PCIe x4
Broadcom NetXtreme 5709 Dual Port Gigabit Ethernet NIC, Copper, TOE/iSCSI PCIe x4
Broadcom NetXtreme II 5709 Quad Port Gigabit Ethernet NIC, Copper, with TOE/iSCSI PCIe x4
Intel Gigabit ET Dual Port Adapter, Gigabit Ethernet NIC, PCIe x4
Intel Gigabit ET Quad Port Adapter, Gigabit Ethernet NIC, PCIe x4
Power supplySingle cabled power supply, 250W (80+ SILVER)
AvailabilityQuad-pack LED diagnostics, ECC Memory, add-in RAID, TPM/TCM
VideoMatrox® G200eW with 8MB memory
Remote managementiDRAC6 optional
Systems managementDell™ OpenManage™
BMC, IPMI 2.0 compliant
Unified Server Configurator
Lifecycle Controller enabled through optional iDRAC6 Express, iDRAC6 Enterprise, and vFlash media

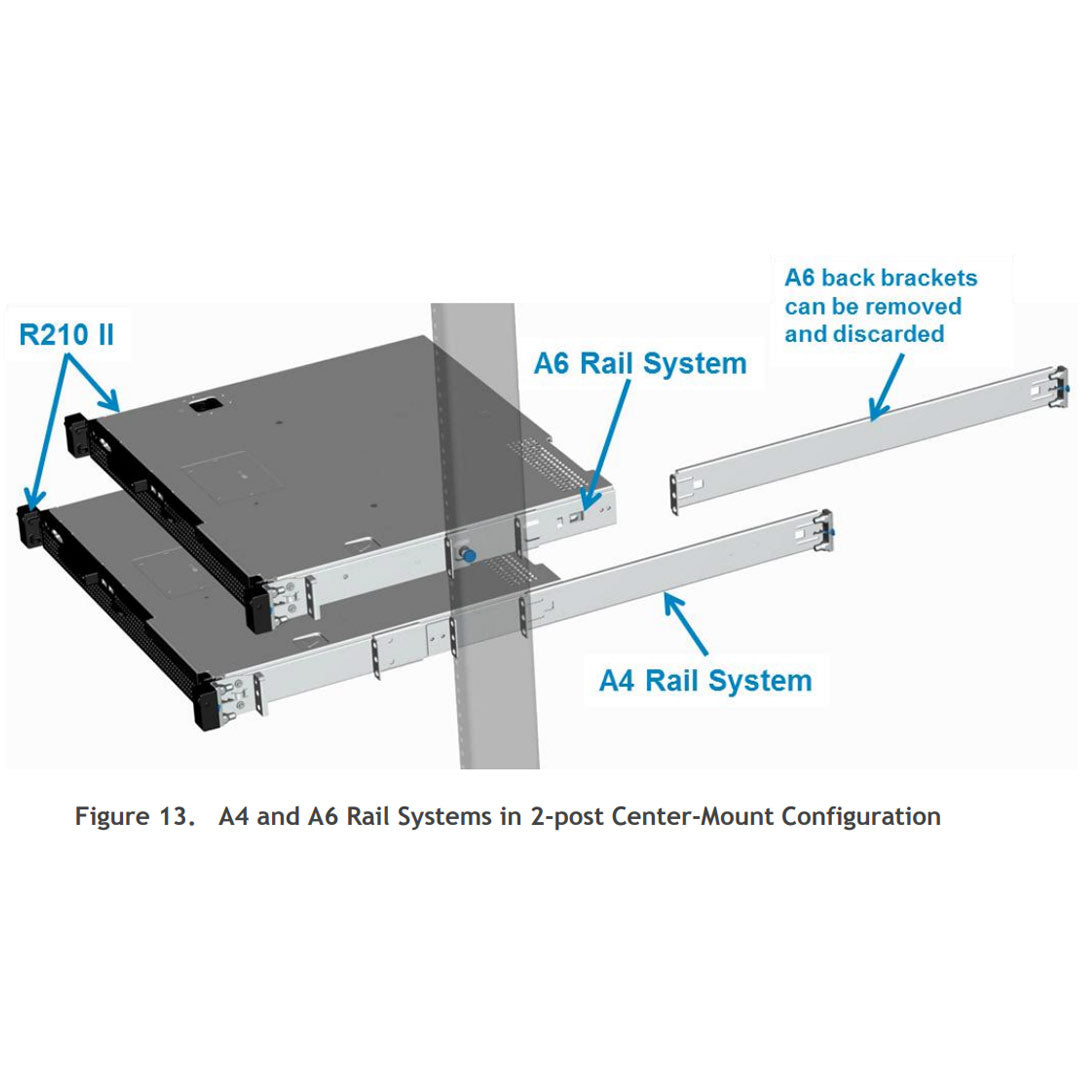

Rack supportReadyRails™ static rails for toolless mounting in 4-post racks with square or unthreaded round holes or tooled mounting
in 4-post threaded and 2-post (Telco) racks
Operating systemsMicrosoft® Windows Server® 2012
Microsoft Windows Server 2012 Essentials
Microsoft Windows® Small Business Server 2011
Microsoft Windows Server 2008 R2 Foundation SP12
Microsoft Windows Server 2008 SP2, x86/x64 (x64
includes Hyper-V®)
Microsoft Windows Server 2008 R2 SP1, x64 (includes
Hyper-V)
Microsoft Windows HPC Server 2008
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux®
Virtualization options:
VMware® vSphere® ESXi™
Citrix® XenServer®
Red Hat Enterprise Virtualization®
For more information on the specific versions and
additions, visit Dell.com/OSsupport.
Featured database applicationMicrosoft SQL Server® solutions (see Dell.com/SQL)

Compare Servers

Feature R210 R210II R310
Processor Intel® Xeon® processor 3400 series
Intel Celeron® G1101
Intel Pentium® G6950
Intel Core™ i3 processor 500 series
Intel Xeon processor E3-1200 product family
Intel Xeon processor E3-1200 V2 product family
Intel Pentium G600 and G800 series
Intel Celeron G400 and G500 series
Intel Xeon processors 3400 series
Intel Celeron G1101
Intel Pentium G6950
Intel Core i3 processor 500 series
Front Side Bus Direct Media Interface
(DMI) 2.5Gb/s
Direct Media Interface II
(DMI) 5.0Gb/s
Direct Media Interface
(DMI) 2.5Gb/s
Sockets 1 1 1
Cores 2 or 4 2 or 4 2 or 4
L2/L3 Cache Up to 8MB Up to 8MB Up to 8MB
Chipset Intel 3420 Intel C202 Intel 3420
DIMMs 4 DDR3 1066/1333MT/s 4 DDR3 up to 1600MT/s 6 DDR3 1066/1333MT/s
Min/Max RAM 1GB/32GB 1GB/32GB 1GB/32GB
Hard Drive Bays 2 x 3.5” or
2 x 2.5”
2 x 3.5” or
4 x 2.5”
4 x 3.5” or
4 x 2.5”
Optional hot-plug
Hard Drive Types SATA SSD, SAS, nearline SAS, SATA SATA SSD, SAS, nearline SAS, SATA SATA SSD, SAS, nearline SAS, SATA
External Drive Bay 1 for slim optical disk drive (ODD) 1 for slim optical disk drive (ODD) 1 for slim optical disk drive (ODD)
Embedded Hard Drive Controller Chipset-based SATA Chipset-based SATA, PERC S100 (embedded SW RAID) Intel 3420, PERC S100 (embedded SW RAID)
Optional Storage Controller Non-RAID:
SAS 5/E
LSI 2032 (for tape backup unit only)
RAID:
SAS 6/iR
PERC 6/E
PERC S100 (software RAID)
PERC S300 (software RAID)
PERC H200
PERC H800
Non-RAID: 6Gb/s SAS HBA
RAID:
PERC S100 (software RAID)
PERC S300 (software RAID)
PERC H200
PERC H800
Non-RAID: SAS 5/E
LSI 2032 (for tape backup unit only)
6Gb/s SAS HBA
RAID: SAS 6/iR
PERC 6/E
SAS 5/E
PERC S300 (software RAID)
PERC H200
PERC H700
PERC H800
Availability ECC memory, quad-pack LED diagnostic, add-in RAID, TPM/CTPM ECC memory, quad-pack LED diagnostic, add-in RAID, TPM/CTPM ECC memory, hot-plug hard drives, redundant power supplies, quad-pack LED diagnostic or LCD (with hotplug hard drive chassis), TPM
Server Mgt. BMC, IPMI 2.0 compliant, full Dell OpenManage™ suite
Optional: iDRAC6
Express, iDRAC6
Enterprise, vFlash media
BMC, IPMI 2.0 compliant, full Dell OpenManage suite
Optional: iDRAC6 Express, iDRAC6 Enterprise, vFlash media
BMC, IPMI 2.0 compliant, full Dell OpenManage suite
Optional: iDRAC6 Express, iDRAC6 Enterprise, vFlash media
I/O Slots 1 x PCIe x16 1 x PCIe x16 1 x PCIe x16 (x8 routing)
1 x PCIe x8 (x8 routing)
1 x PCIe x8 (x4 routing)
NIC/LOM 2 x GbE LOM 2 x GbE LOM 2 x GbE LOM
USB 2 front, 2 back, 2 internal 2 front, 2 back, 2 internal 2 front, 2 back, 2 internal
Power Supplies Non-redundant, 250W (80+ Bronze) autoranging (100V~240V) Non-redundant, 250W (80+ Bronze) auto-ranging (100V~240V) Non-redundant, 350W (80+ Bronze)
Optional redundant, 400W (80+ Silver) auto-ranging (100V~240V)
Fans Non-redundant, non-hotpluggable Non-redundant, non-hotpluggable Non-redundant, non-hotpluggable
Form Factor 1U Rack 1U Rack 1U Rack
