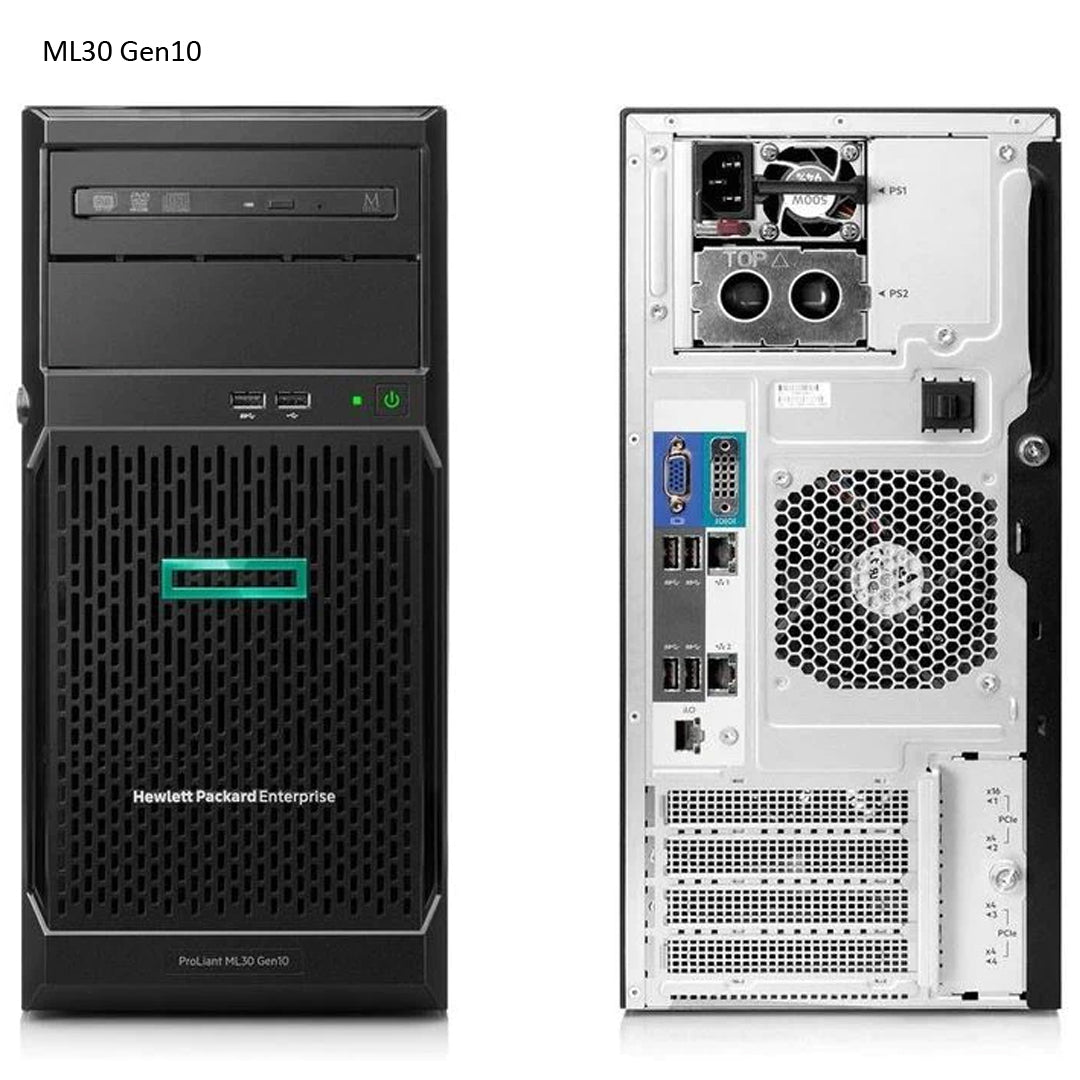

HPE ProLiant ML30 Gen10 4 LFF Non Hot Plug Server Chassis | P06760-B21

ECS Refurbished & Tested

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.

*Adds to cart & you can request a quote from the cart page

CTO Server [Chassis] HPE ProLiant ML30 Gen10 4LFF Non Hot Plug CTO Server
HPE ProLiant ML30 Gen10 4LFF Hot Plug CTO Server HPE ProLiant ML30 Gen10 8SFF Hot Plug CTO Server
SKU Number P06760-B21 P06761-B21 P06762-B21
Processor 1
DIMM Slots 4 DIMM slots for UDIMM DDR4 Memory
Storage Controller Embedded S100i SW RAID with 4
SATA ports
Embedded S100i SW RAID with 4 SATA ports, choice of HPE Smart
Array controller
PCIe 4 PCIe 3.0 slots
Drives Cage - included 4LFF Non Hot Plug 4LFF Hot Plug 8SFF Hot Plug
Network Controller Embedded HPE Ethernet 1Gb 2-Port 361i Adapter or
Embedded HPE Ethernet 1Gb 2-Port 332i Adapter
optional 1/10Gb standup card
Fans 1 non hot plug, non-redundant system fan
USB 2 front, 4 rear, 1 internal

Know your Server - CTO Configuration Support

Need help with the configuration? Contact us today!

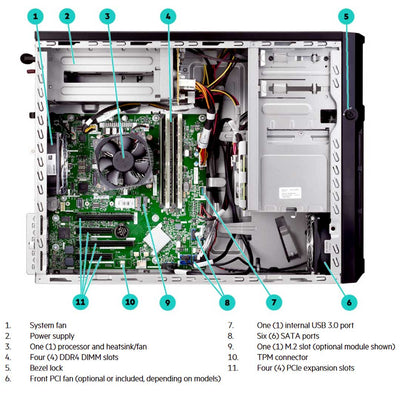

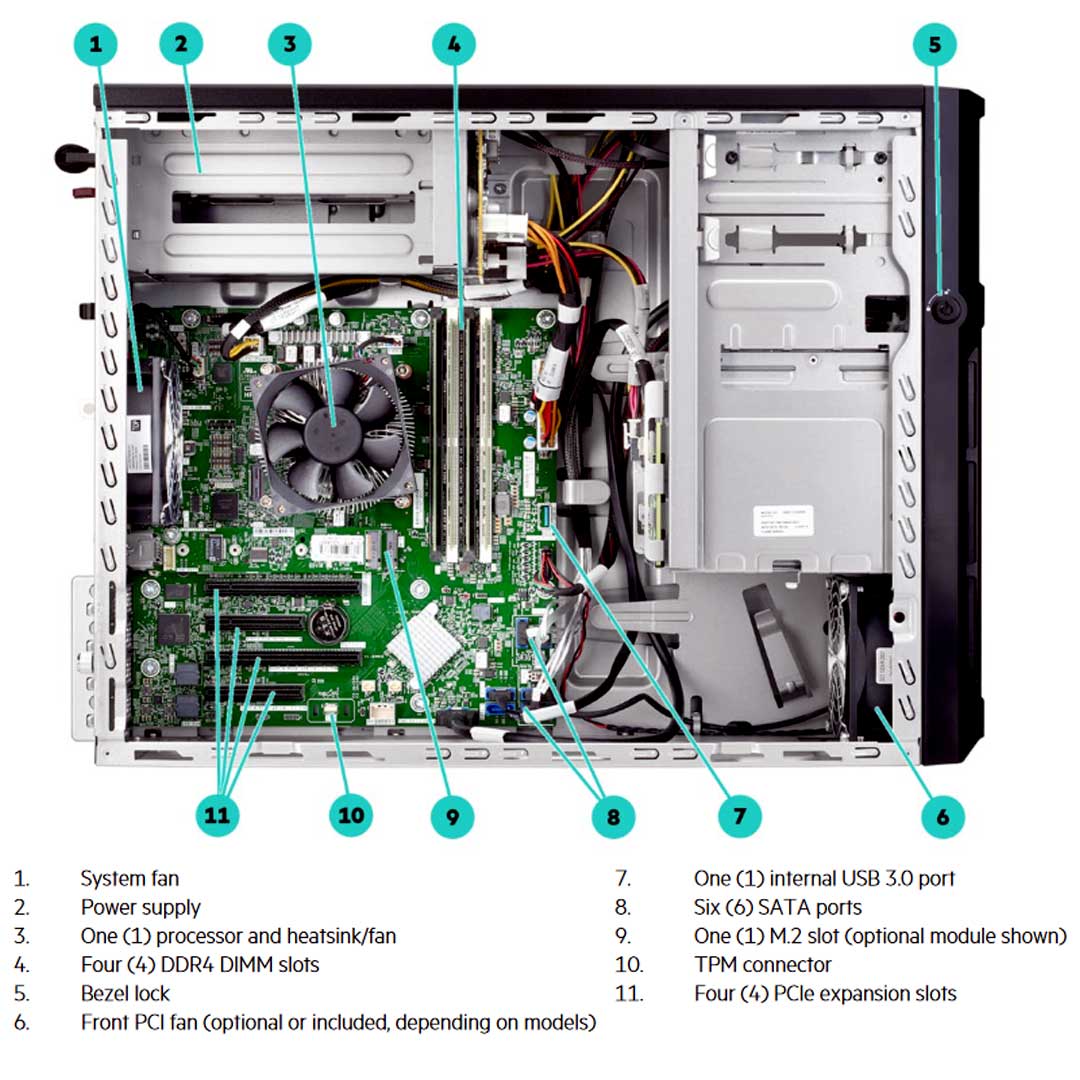

System Board (P19337-001)
Embedded withHPE361i 1Gb 2-Port Network Adapter and only supports theIntel Xeon E-2200 Family/Intel Core i3-9100/Intel Pentium Gold G5420processor.

Tower-to-Rack Conversion

The HPE ML30 Tower server can easily be converted into a Rack server by simply adding the HPE ML Gen10 Tower to Rack Conversion Kit (874578-B21). This kit is everything you need to get “Sliding”. This rail kit comes with the rail tray that the server sits on top of and is mounted to from the back. The server tray is that actual piece mounted to the rails that slide out for easy access to the server.

Which Chassis should I choose?
HPE has provided three different CTO models to choose from. Each comes with 4 PCIe 3.0 Slots, the stand Embedded S100i SW RAID with 4 SATA ports (can have support for 6 SATA drives with 2pcs drive enablement kits (812248-B21)), and an embedded HPE Ethernet 1Gb 2-Port 361i Adapter
optional 1/10Gb standup card. Only the Hot-Plug Chassis can have the choice of a Smart Array along with or instead of the S100i. If you’re not sure what chassis would work best, contact us today.

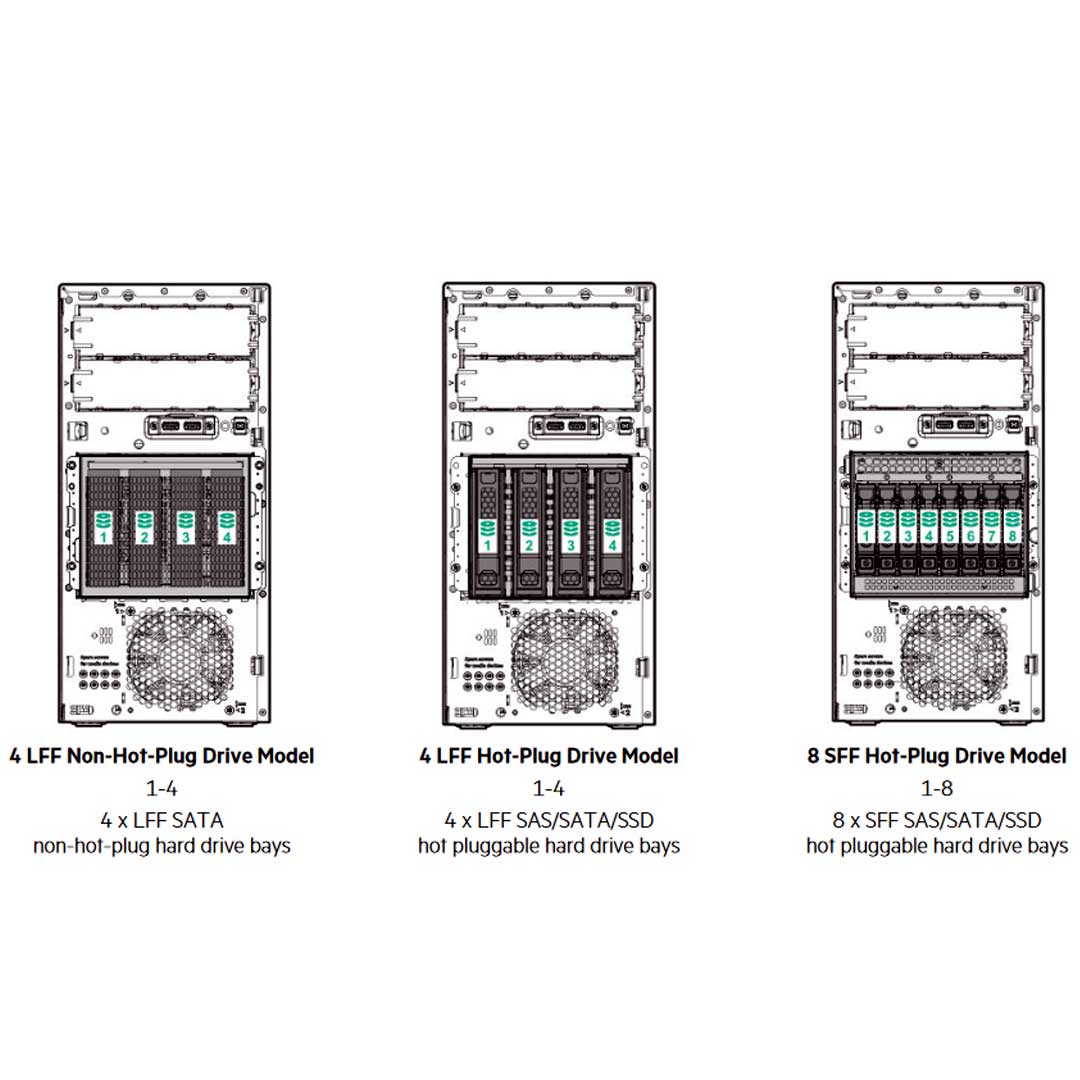

Chassis Options:

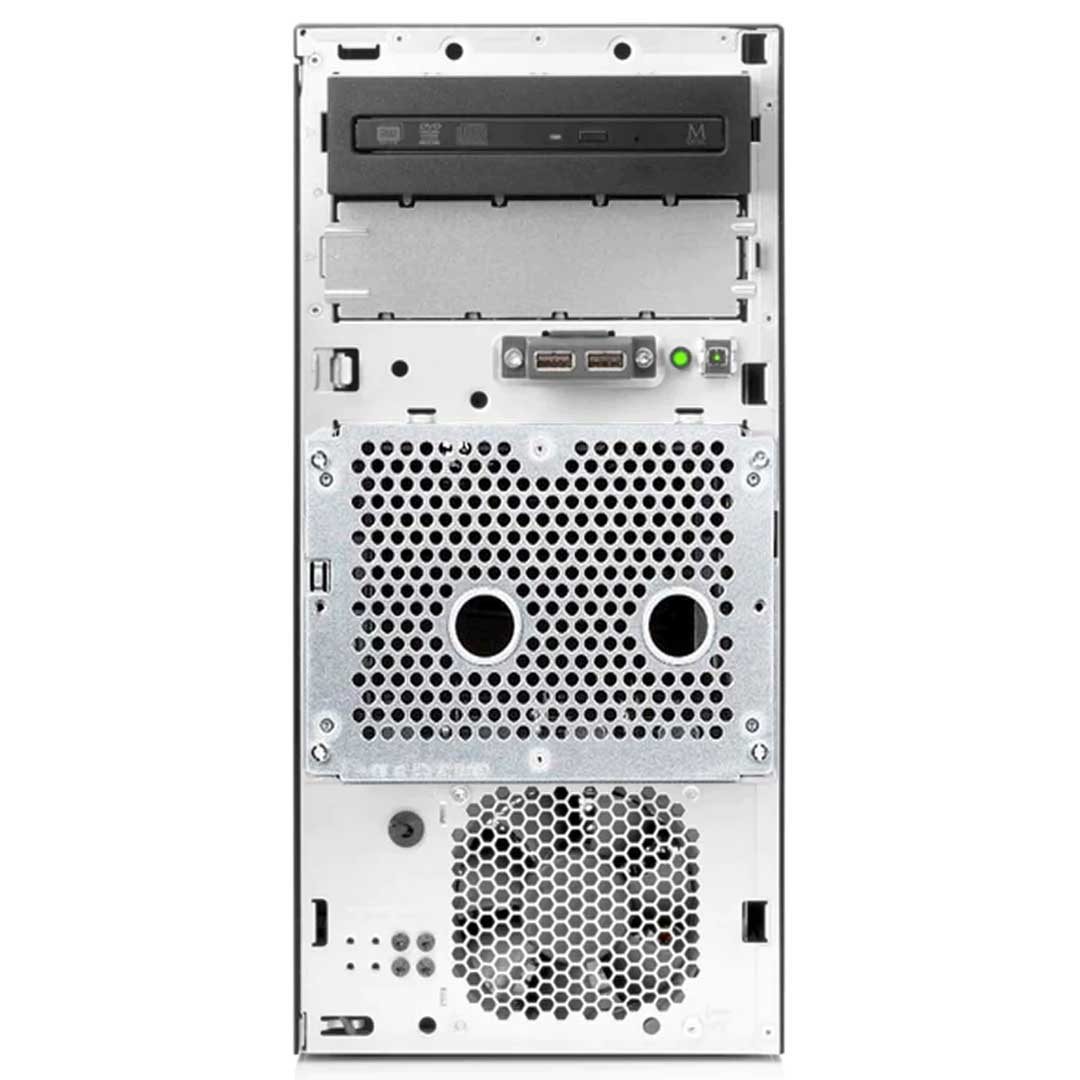

  • 4 LFF Non-Hot-Plug SATA HDD (P06760-B21)
  • 4 LFF Hot-Plug SAS/SATA HDD (P06761-B21)
  • 8 SFF Hot-Plug SAS/SATA HDD (P06762-B21)
  • *** Each server has a spot for 1xM.2 NVMe SSD for boot this also supports the dedicated iLO port.

We need more Power!
Starting March 1st, 2020, only the 350W Gold-level PSU (power supply) and the 500W PSU meet the European Union (EU) Lot 9 regulation requirement for CE marking. Do not order the Bronze-level 350W PSU (820303-B21) in countries that require CE marking, especially the EU countries.

Flex Hot-Plug Power Supply Enablement Kit
To go from the 300W Non-Hot-Plug Power Supply Unit (PSU) (P21652-B21) to the Flex Slot Platinum 500W Power Supply Unit (PSU) (865408-B21). You’ll need the enablement cage (686665-001) and the Flexible Slot power supply backplane (P07479-001). If you only install one of the Hot-Plug Redundant Power Supplies, then you’ll also need the Flexible Slot Power Supply Blank (775423-001) to keep the airflow optimal.

What Graphics Accelerators Can Be Used?
First off the GPUs can only be used when a Xeon E processor is selected. These are not allowed with the Non-Hot-Plug Chassis system.

  • HPE NVIDIA Quadro P2200 75W Gen3 GPU Module (R2U55C)
  • HPE NVIDIA Quadro P1000 47W Gen3 GPU Module (R3K70C)
  • *** Must install the HPE 500W Flex Slot Power Supply Kit (865408-B21)
  • *** Must install the HPE ML30 Gen10 Front PCI Fan and Baffle Kit (P06303-B21)

How to Keep Cool?
If you install the M.2 SSD dedicated iLO module (P06687-B21), any PCI-e Cards or you select the 4 LFF Hot-Plug or the 8 SFF Hot-Plug Chassis. Then the HPE ML30 Gen10 Front PCI Fan and Baffle Kit (P06303-B21) is required. Except if you choose the Non-Hot-Plug Chassis with the E208e-p controller and 1Gb network adapters.

Product Specs for HPE P06760-B21


Spec Sheet

Technical Guide
