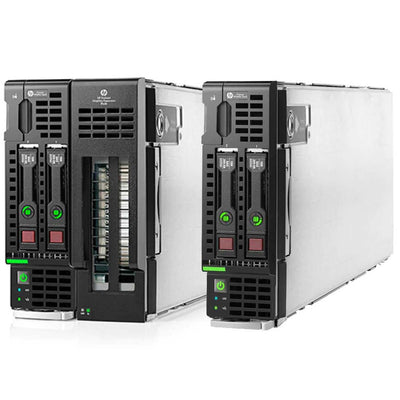

HPE ProLiant WS460c Gen9 CTO Graphics Server Blade

MPN:
WS460CG9
Brand:
HPE
Type:
CTO Servers
Condition:
ECS Refurbished & Tested

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

WS460c Gen9 Product Description

The HPE ProLiant WS460c Gen9 Graphics Server Blade now delivers even more performance with new Intel Xeon Processor E5-2600 v3 processors and 2,133 MHz DDR4 memory. It is the industry’s first bladed technology to support up to six MXM form factor GPUs per blade, lowering the cost per user while enabling remote users to easily complete large model visualizations.

What's New for WS460c Gen9

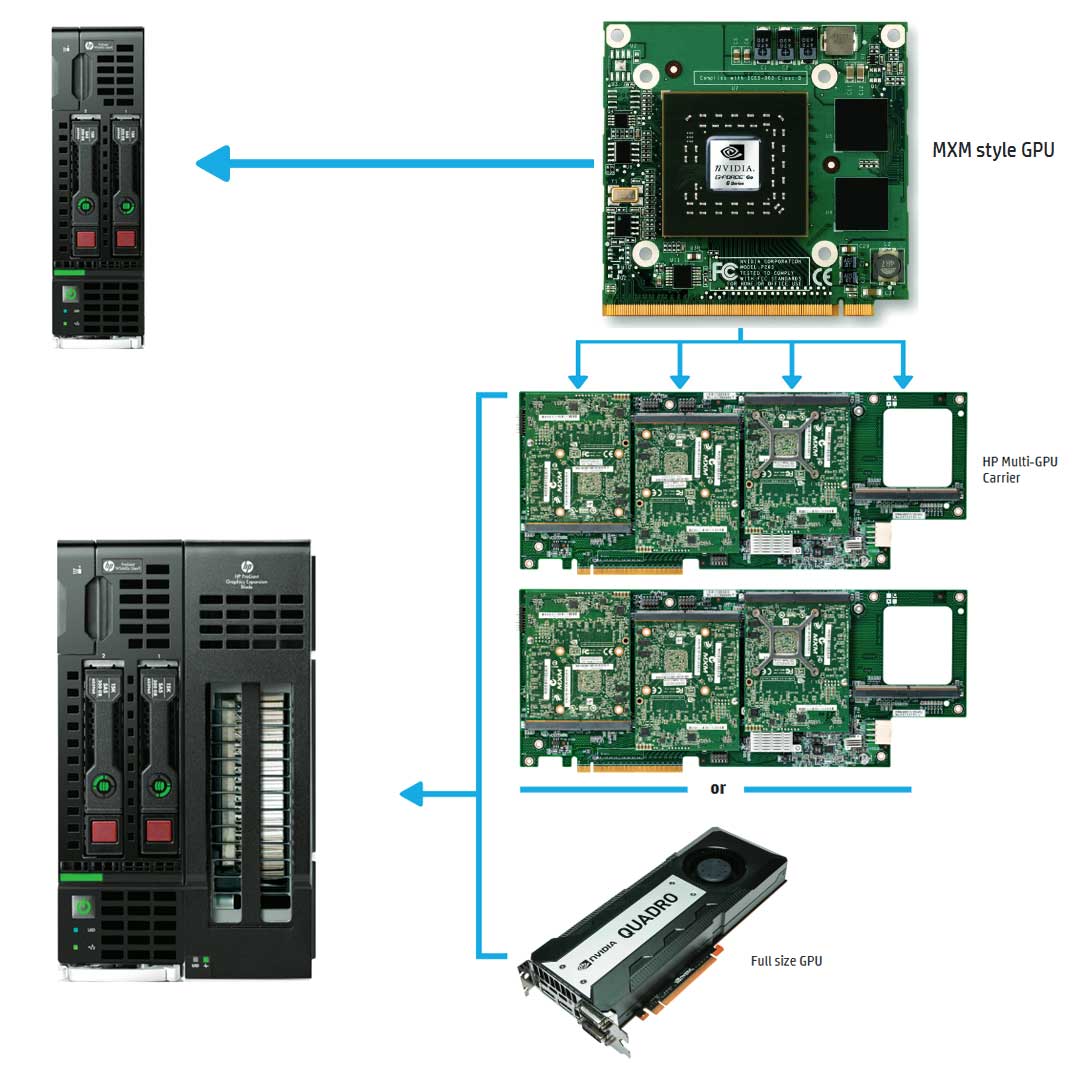

  • New Graphics options, including the NVIDIA Tesla M60 and Quadro M3000SE

  • NVMe SFF Solid State Disk (SSD) support.

  • Support for 2400 MT/s DDR4 memory.

  • Support for the Intel E5-2600 v3 or v4 product family.

Operational Efficiency

The HP ProLiant WS460c Gen9 Graphics Server Blade has a high host density of up to 16 (or 8 expansion) blades and high graphics density of up to 48 GPUs per 10U rack space.

Simplified and streamlined through converged architecture. HP BladeSystem inherent power, cooling and cost efficiency.

GPU Accelerated End-User Computing

The HP ProLiant WS460c Gen9 Graphics Server Blade delivers a virtualized, full-fidelity desktop experience including support for 3D graphics applications.

Provides hardware accelerated graphics for workstation class performance. Up to 70% performance increases with Intel Xeon E5-2600 v3 processors.

HP DDR4 SmartMemory at 2133 MHz (up to 512 GB): +14% - 33% throughput compared to competition and 35% lower power consumption than 1.5v DDR3 at the same bin speed.

Improved Resource Use and Access Flexibility

The HP ProLiant WS460c Gen9 Graphics Server Blade increases user density and resource utilization through virtualized graphics.

Removes graphics performance bottlenecks with graphics accelerated virtualized desktop environment. provides a high level of access flexibility.

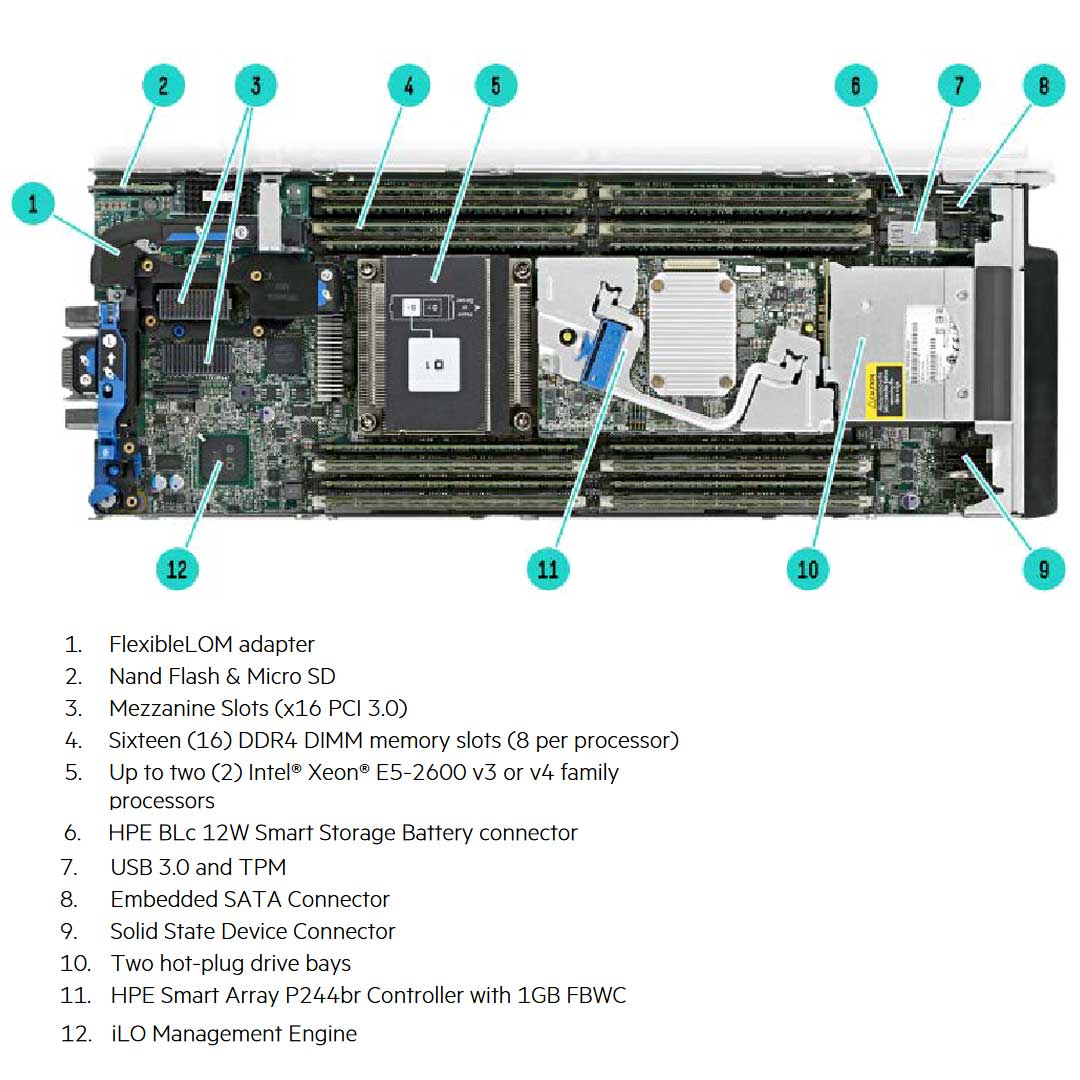

Product features

Feature
Description
Processor 1(One of the following depending on selection)
E5-2600 v3 series Processors
  • HPE BL460c Gen9 Intel Xeon E5-2690v3 (2.6 GHz/12-core/30MB/135 W)

  • HPE BL460c Gen9 Intel Xeon E5-2680v3 (2.5 GHz/12-core/30MB/120 W)

  • HPE BL460c Gen9 Intel Xeon E5-2670v3 (2.3 GHz/12-core/30MB/120 W)

  • HPE BL460c Gen9 Intel Xeon E5-2660v3 (2.6 GHz/10-core/25MB/105 W)

  • HPE BL460c Gen9 Intel Xeon E5-2650v3 (2.3 GHz/10-core/25MB/105 W)

  • HPE BL460c Gen9 Intel Xeon E5-2640v3 (2.6 GHz/8-core/20MB/90 W)

  • HPE BL460c Gen9 Intel Xeon E5-2683v3 (2 GHz/14-core/35MB/120 W)

  • HPE BL460c Gen9 Intel Xeon E5-2630v3 (2.4 GHz/8-core/20MB/85 W)

  • HPE BL460c Gen9 Intel Xeon E5-2620v3 (2.4 GHz/6-core/15MB/85 W)

  • HPE BL460c Gen9 Intel Xeon E5-2623v3 (3 GHz/4-core/10MB/105 W)

  • HPE BL460c Gen9 Intel Xeon E5-2609v3 (1.9 GHz/6-core/15MB/85 W)

  • HPE BL460c Gen9 Intel Xeon E5-2603v3 (1.6 GHz/6-core/15MB/85 W)

  • HPE BL460c Gen9 Intel Xeon E5-2650Lv3 (1.8 GHz/12-core/30MB/65 W)

  • HPE BL460c Gen9 Intel Xeon E5-2698v3 (2.3 GHz/16-core/40MB/135 W)

  • HPE BL460c Gen9 Intel Xeon E5-2630Lv3 (1.8 GHz/8-core/20MB/55 W)

  • HPE BL460c Gen9 Intel Xeon E5-2695v3 (2.3 GHz/14-core/35MB/120 W)

  • HPE BL460c Gen9 Intel Xeon E5-2637v3 (3.5 GHz/4-core/15MB/135 W)

  • HPE BL460c Gen9 Intel Xeon E5-2697v3 (2.6 GHz/14-core/35MB/145 W)

  • HPE BL460c Gen9 Intel Xeon E5-2667v3 (3.2 GHz/8-core/20MB/135 W)

  • HPE BL460c Gen9 Intel Xeon E5-2643v3 (3.4 GHz/6-core/20MB/135 W)

  • HPE BL460c Gen9 Intel Xeon E5-2699v3 (2.3 GHz/18-core/45MB/145 W)

E5-2600 v4 series processors
  • HPE BL460c Gen9 Intel Xeon E5-2690v4 (2.6 GHz/14-core/35MB/135 W)

  • HPE BL460c Gen9 Intel Xeon E5-2683v4 (2.1 GHz/16-core/40MB/120 W)

  • HPE BL460c Gen9 Intel Xeon E5-2680v4 (2.4 GHz/14-core/35MB/120 W)

  • HPE BL460c Gen9 Intel Xeon E5-2660v4 (2.0 GHz/14-core/35MB/105 W)

  • HPE BL460c Gen9 Intel Xeon E5-2650v4 (2.2 GHz/12-core/30MB/105 W)

  • HPE BL460c Gen9 Intel Xeon E5-2650Lv4 (1.7 GHz/14-core/35MB/65 W)

  • HPE BL460c Gen9 Intel Xeon E5-2640v4 (2.4 GHz/10-core/25MB/90 W)

  • HPE BL460c Gen9 Intel Xeon E5-2630v4 (2.2 GHz/10-core/20MB/85 W)

  • HPE BL460c Gen9 Intel Xeon E5-2630Lv4 (1.8 GHz/10-core/25MB/55 W)

  • HPE BL460c Gen9 Intel Xeon E5-2623v4 (2.6 GHz/4-core/10MB/85 W)

  • HPE BL460c Gen9 Intel Xeon E5-2620v4 (2.1 GHz/8-core/20MB/85 W)

  • HPE BL460c Gen9 Intel Xeon E5-2609v4 (1.7 GHz/8-core/20MB/85 W)

  • HPE BL460c Gen9 Intel Xeon E5-2603v4 (1.7 GHz/6-core/15MB/85 W)

  • HPE BL460c Gen9 Intel Xeon E5-2699v4 (2.2 GHz/22-core/55MB/145 W)

  • HPE BL460c Gen9 Intel Xeon E5-2698v4 (2.2 GHz/20-core/50MB/135 W)

  • HPE BL460c Gen9 Intel Xeon E5-2697v4 (2.3 GHz/18-core/45MB/145 W)

  • HPE BL460c Gen9 Intel Xeon E5-2697Av4 (2.6 GHz/16-core/40MB/145 W)

  • HPE BL460c Gen9 Intel Xeon E5-2695v4 (2.1 GHz/18-core/45MB/120 W)

  • HPE BL460c Gen9 Intel Xeon E5-2667v4 (3.2 GHz/8-core/25MB/135 W)

  • HPE BL460c Gen9 Intel Xeon E5-2643v4 (3.4 GHz/6-core/20MB/135 W)

  • HPE BL460c Gen9 Intel Xeon E5-2637v4 (3.5 GHz/4-core/15MB/135 W)

Cache memory(One of the following depending on processor)
  • 55MB (1 x 55MB) L3 cache (For twenty two-core processors)

  • 50MB (1 x 50MB) L3 cache (For twenty-core processors)

  • 45MB (1 x 45MB) L3 cache (For eighteen-core processors)

  • 40MB (1 x 40MB) L3 cache (For sixteen-core processors)

  • 35MB (1 x 35MB) L3 cache (For fourteen-core processors)

  • 30MB (1 x 30MB) L3 cache (For twelve-core processors)

  • 25MB (1 x 25MB) L3 cache (For ten-core processors)

  • 20MB (1 x 20MB) L3 cache (For six or eight-core processors)

  • 15MB (1 x 15MB) L3 cache (For quad or six-core processors)

  • 10MB (1 x 10MB) L3 cache (For quad-core processors)

Chipset
  • Intel C610 series chipset

  • Intel E5-2600 v3 or v4 processor family

Upgradeability
Upgradeable to two (2) processors
On system management chipset
HPE iLO (Firmware HPE iLO4 2.0), 4GB NAND with 1GB USB user space configurable via UEFI and accessible via iLO
Memory protection
  • Advanced ECC

  • Memory Online Spare Mode (Rank Spare Mode)

Memory 2(One of the following depending on selection)
Type
HPE SmartMemory,DDR4 Load Reduced (LRDIMM), or Registered (RDIMM)
Maximum (LRDIMM)
1TB (16 x 64GB) up to 2400 MT/s at 1.2 V
Maximum (RDIMM)
512GB (16 x 32GB) up to 2133 MT/s at 1.2 V
Network controller(One of the following depending on selection)
  • One (1) 20Gb 2-port FlexFabric FLB, 10Gb 2-port HPE FlexFabric FLB, or 10Gb 2-port ethernet FLB3

  • One (1) HPE FlexFabric 10Gb 2-port 536FLB FlexibleLOM4

  • One (1) HPE FlexFabric 10Gb 2-port 560FLB FlexibleLOM4

  • One (1) HPE FlexFabric 20Gb 2-port 630FLB FlexibleLOM4

  • One (1) HPE FlexFabric 20Gb 2-port 650FLB FlexibleLOM4

  • Standard iLO Network Controller:

    • One (1) 10/100 Mb/s port for the HPE iLO 4 to Onboard Administrator link. The Onboard Administrator (with 10/100/1000 Mb/s) to BladeSystem link is 1 Gb/s

Maximum internal storage 5(One of the following depending on Model)
Hot-plug SFF SAS
4.0TB
2 x 2.0TB
Hot-plug SFF SATA
4.0TB
2 x 2.0TB
Hot-plug SFF SAS SSD
7.68TB
2 x 3.84TB
Hot-plug SFF SATA SSD
7.68TB
2 x 3.84GB
Hot-plug SFF NVMe SSD
4.0TB
2 x 2.0TB
Interfaces 6
Micro SDHC slot
One (1) internal Micro Secure Digital High Capacity (Micro SDHC) card slot
USB 3.0 port
One (1) internal USB 3.0 connector for USB flash media drive keys
Graphics
Integrated Matrox G200eh video controller
  • 1600 x 1200 (32 b/p)

  • 1920 x 1200 (16 b/p)

HPE iLO Management On System Management Memory
  • 16MB flash video memory

  • 256MB DDR 3 with ECC (112MB after ECC and video)

Form factor

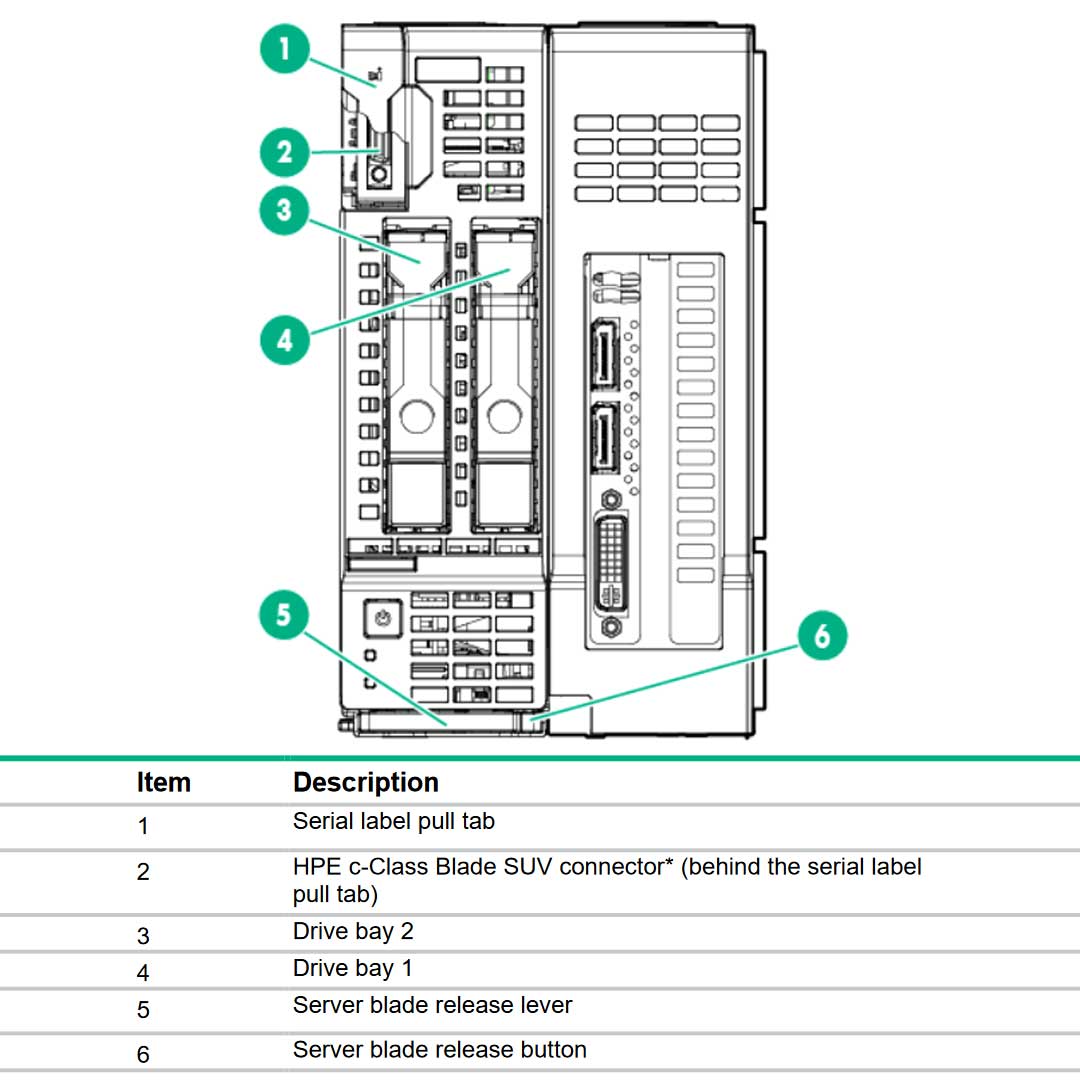

HPE ProLiant WS460c Gen9 and WS460c Gen8 Graphics Expansion Blade are both half-height server blade that plugs into the HPE BladeSystem c3000 and c7000 enclosures
Security
  • Power-on password

  • Administrator's password

  • Keyboard password (QuickLock)

  • HPE iLO Management On System Management Chipset with:

    • SSL encryption

    • Secure Shell version 2

    • Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser, CLP and XML scripting interface

    • AES and RC4 encryption of video

  • External USB port enable/disable

  • Network server mode

  • Serial interface control

  • TPM (Trusted Platform Module) 1.2 option

  • Advanced Encryption Standard (AES)

  • Intel Advanced Encryption Standard-New Instructions (AES-NI)

  • FIPS 140-2 Level-2 certification pending

Industry standard compliance
  • ACPI 2.0

  • Microsoft logo certifications

  • USB 3.0 support

  • IPMI 2.0

  • Secure digital 2.0

  • TPM 1.2 support

  • IEEE (specific IEEE standards depending on Ethernet adapter card(s) installed)

  • Advanced Encryption Standard (AES)

  • Triple Data Encryption Standard (3DES)

  • SNMP

  • SSL 2.0

  • DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)

  • Active directory v1.0

  • PCIe 3.0

  • ASHRAE A3

  • FIPS 140-2 Level-2 certification pending

NOTE: 1. DIMM slots 4 and 5 are not accessible when either the E5-2699 v3, the E5-2697 v3, the E5-2643 v3, the E5-2637 v3, or the E5-2667 v3 is used. In a 2 processor configuration, there are twelve (12) total available DIMM slots.HT indicates that the processor model supports Intel Hyper-Threading Technology.Turbo indicates the maximum potential frequency when using Intel Turbo Boost Technology. The frequency boost increment is dependent on the processor SKU and the number of active cores. In general, a higher boost increment is obtained when fewer cores are active.DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.Supports 1 or 2 processors. Mixing different processor models is not supported.For the Intel C610 Chipset E5-2600 v3 Series, the letter preceding the model number indicates the Product Line (E3, E5, E7); 2600x, 2 = number of CPUs in a Node, 6 is socket/segment designation, 00 = Processor SKU, and x = L for low power SKUs.The WS460c Gen9 includes two I/O mezzanine expansion slots. A processor must be installed in processor slot 1 for access to the first mezzanine expansion slot (expansion slot 1). A processor must be installed in processor slot 2 for access to the second mezzanine expansion slot (expansion slot 2). All processors within the server must be identical.All processors support Intel Hyper-Threading and Intel Turbo Boost Technologies except the E5-2603 v3 and E5-2609 v3. The letter Lfollowing the model number indicates denotes lower wattage.The processor model as well as the memory configuration determines the maximum speed memory can operate.

2. Support for 64GB LRDIMM and 32GB RDIMM available later in 2015.HPE memory from previous generation servers (DDR3) is not compatible with this server. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen9. LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a server. Depending on the memory configuration and processor model, the memory speed may run at 2133 MHz, 1866 MHz, or 1600 MHz.

3. Windows 7, 8.1 directly presiding on system (i.e. "OS on bare-metal"), is supported only with HPE Flex-10 10Gb 2-port 536FLB with basic network functions only. All other adapters supported with use on server OS or hypervisor environment only.FlexFabric supported only with server OS and/or in a virtualized environment using hypervisors.Supports FCoE, , TCP/IP offload engine, hardware-based accelerated iSCSI, iSCSI boot, and autosensing 10GbE/1GbE.Each port is autosensing the speed, and can interoperate with 1Gb HPE BladeSystem c-Class interconnect components. Both ports will operate at the same speed. FlexFabric capabilities require the use of an HPE Virtual Connect FlexFabric or Flex10/10D module.

4. FlexibleLOMs are not compatible with prior generation c-Class server blades.

5. Use of GPU options is limited to a 30°C operating environment when using NVMe on theWS460c Gen9.

For NVMe support, please select the NVMe FIO setting (825555-B21) available on CTO modelsonly.

The ProLiant WS460c Gen9 server includes the HPE hot-plug small form factor (SFF) SmartDrive carrier for enhanced management and reduced maintenance errors. HPE drives from previous generation servers (prior to Gen8) are not compatible with the ProLiant WS460c Gen9 drive bays.

6. The above options are intended for integrated hypervisor virtualization environments.

top

Software overview

Feature
Description
Operating Systems (OS) and virtualization software support for ProLiant servers
Client OS:
  • Microsoft Windows 7 Professional (64-bit), Enterprise (64-bit)1

  • Microsoft Windows 8.1 Professional (64-bit), Enterprise (64-bit)

  • Microsoft Windows 10 Professional (64-bit, Enterprise (64-bit)

  • Red Hat Enterprise Linux (RHEL) Desktop 6.5 or later (64-bit only)

Server Operating Systems:
  • Microsoft Windows Server 2016 (64-bit) Standard and DataCenter editions (Citrix XenApp)

  • Microsoft Windows Server 2012 R2 (64-bit) Standard, Enterprise and DataCenter editions (Citrix XenApp)

  • Red Hat Enterprise Linux (RHEL) 6.5 or later (64-bit only)

  • VMware Horizon View 6 or later, vSphere 5.5 or later

  • Citrix XenDesktop 7 or later, XenServer 6.5 or later2

NOTE: 1.Windows 7 is supported only with Legacy BIOS mode.

2. Citrix XenServer supported only with Legacy BIOS mode.

top

Physical specifications

Specification
Description
Dimensions (H x W x D) (with bezel)

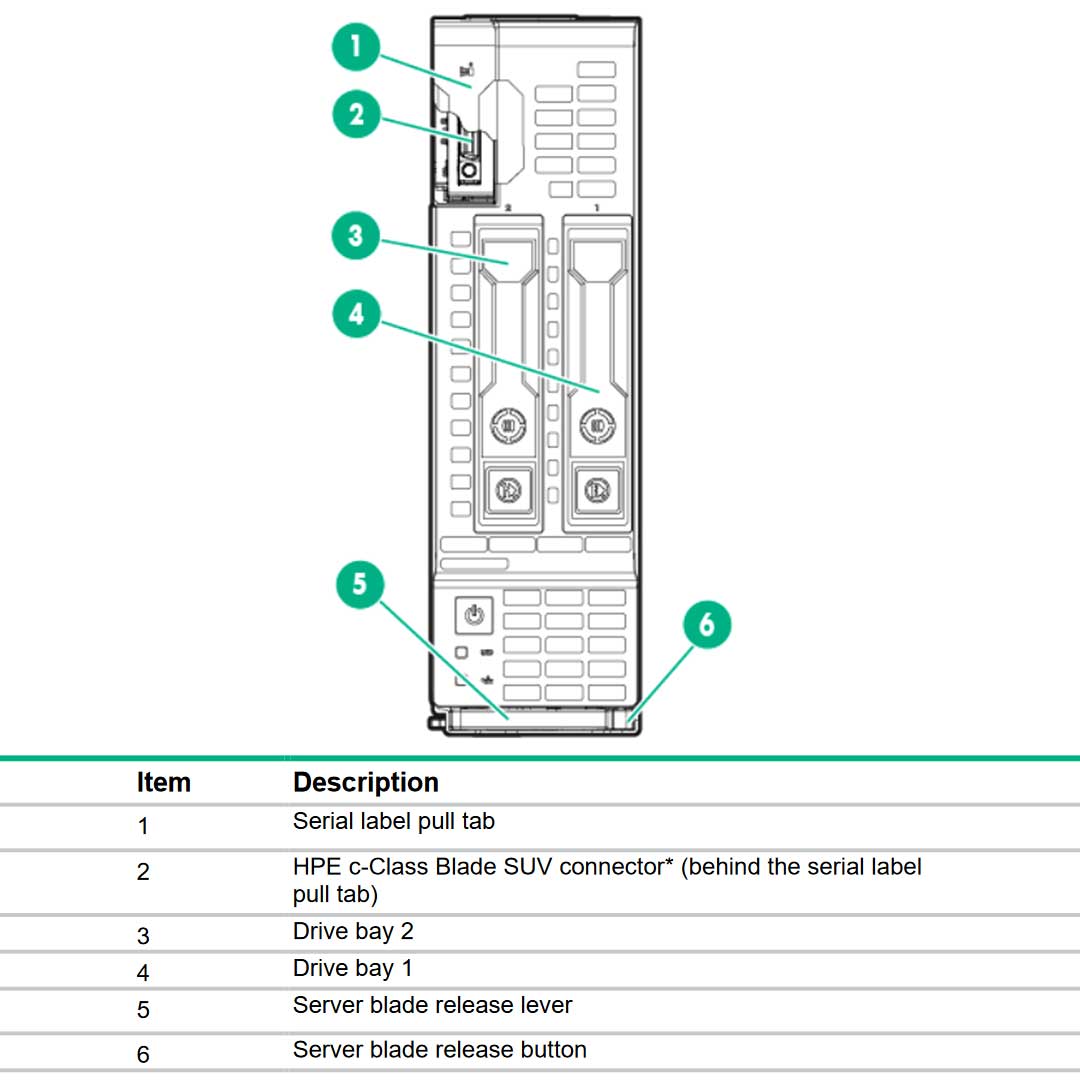

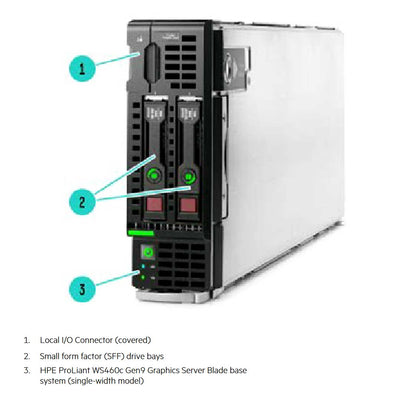

  • Single-width model

    18.07 x 5.54 x 51.76 cm (7.11 x 2.18 x 20.37 in)

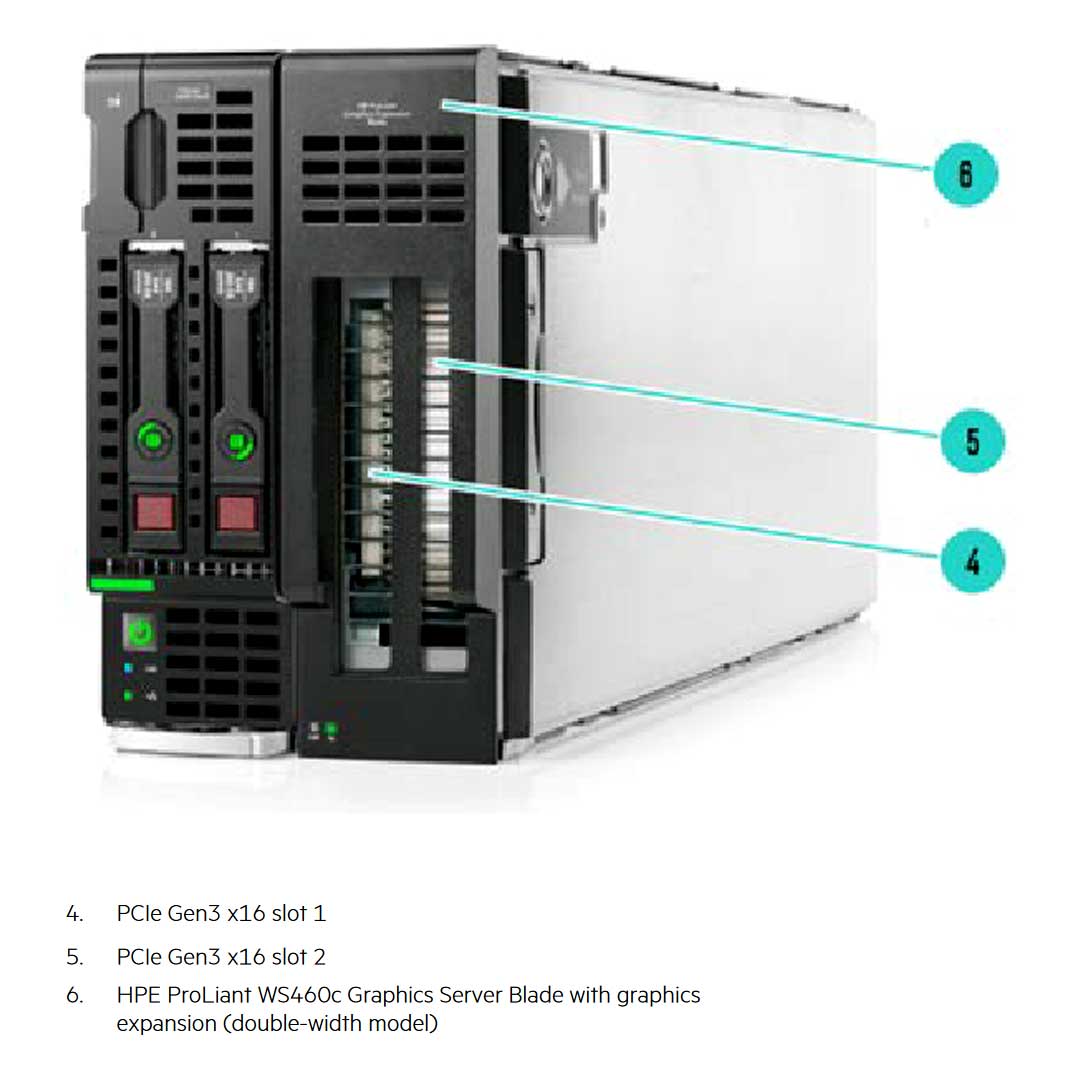

  • Double-width model

    18.07 x 11.08 x 51.76 cm (7.11 x 4.46 x 20.37 in)

Weight (approximate)
Single-width type
Maximum: All processors, 16 DIMMs, hard drives, mezzanine cards, and two flash cache batteries installed)
6.33 kg (14.00 lb)
Minimum: One processor and 2 DIMMs installed
4.75 kg (10.50 lb)
Double-width type
Maximum: All processors, 16 DIMMs, hard drives, mezzanine cards, and two flash cache batteries installed), dual MultiGPU Carrier with eight Q1000M
10.09 kg (22.25 lb)
Minimum: One processor and 2 DIMMs installed, expansion blade slot 1,2 enabled, both slots vacant
7.12 kg (15.69 lb)

top

Environmental specifications

Specification
Description
System inlet temperature (Single-width model)
Operating temperature
10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1,000 ft) above sea level to a maximum of 3,050 m (10,000 ft), no direct sustained sunlight
Maximum rate of change is 10°C/hr (18°F/hr)
The upper limit may be limited by the type and number of options installed
System performance may be reduced if operating with a fan fault or above 30°C (86°F)
If ambient temperature over 30°C (86°F), and GPUpower load is consistently and significantly high, GPUfrequency will throttle down, and in extreme cases,system may initiate a protection shutdown sequence
NOTE: Use of GPU options is limited to a 30°Coperating environment when using NVMe on theWS460c Gen9
Non-operating temperature
-30° to 60°C (-22° to 140°F)
Maximum rate of change is 20°C/hr (36°F/hr)
System inlet temperature (Double-width model)
Operating temperature
10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1,000 ft) above sea level to a maximum of 3,050 m (10,000 ft), no direct sustained sunlight
Maximum rate of change is 10°C/hr (18°F/hr)
The upper limit may be limited by the type and number of options installed
System performance may be reduced if operating with a fan fault or above 30°C (86°F)
If ambient temperature over 30°C (86°F), and GPU power load is consistently and significantly high, GPU frequency will throttle down, and in extreme cases, system may initiate a protection shutdown sequence
Non-operating temperature
-30° to 60°C (-22° to 140°F)
Maximum rate of change is 20°C/hr (36°F/hr)
Extended ambient operating support
For approved hardware configurations, the supported system inlet range is extended to be:
5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft)
Relative humidity(non-condensing)
Operating relative humidity
10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing
Non-operating relative humidity
5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing
Altitude
Operating altitude
3,050 m (10,000 ft)
This value may be limited by the type and number of options installed
Maximum allowable altitude change rate is 457 m/min (1,500 ft/min)
Non-operating altitude
9144 m (30,000 ft)
Maximum allowable altitude change rate is 457 m/min (1500 ft/min)

top


Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.

*Adds to cart & you can request a quote from the cart page
