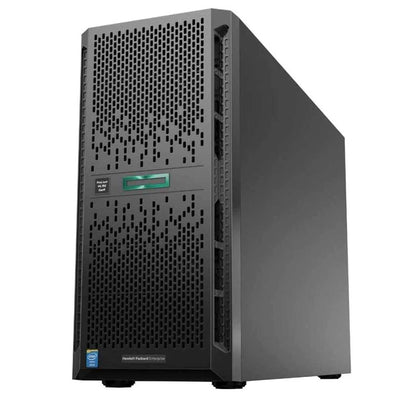

Refurbished HPE ProLiant ML150 Gen9 Configure to Order Tower Server

Brand:
Type:
CTO Servers
Condition:
ECS Refurbished & Tested

Multi-Quantity Discounts Available for ALL Line Items

** LARGE DISCOUNTS available for complete systems. Pricing displayed is for single item purchases **

Use the configuration tool to create your solution and submit it us for a quote OR send us a message with your complete build requirements to receive best pricing

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Submit for Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Server Chassis

HPE Processors

Intel Xeon E5-2600v3

Supports up to (2) processors

Intel Xeon E5-2600v4

Supports up to (2) processors

HPE Memory

8 DIMMs per processor (up to 16 DIMMs in a dual-processor configuration)

HPE RAID Controllers

HPE SFF Drives SAS (2.5in)

HPE SFF Drives SATA (2.5in)

HPE LFF Drives SAS (3.5in)

HPE LFF Drives SATA (3.5in)

HPE Network Adapters

6 PCIe Slots (Full Height)

HPE Power Supplies

Supports (1) PSU

HPE Expansion

6 PCIe Slots (Full Height)

HPE Options

HPE Optical Drives

ECS Warranty

Helpful Tip: Once desired configuration is selected click "Add to Cart". From the cart page you can submit a submit a quote request for best pricing

Refurbished HPE ML150 Gen9 Configure to Order Tower Server

No matter what your business size, if you’re going to be competitive in today’s global, digital economy, you need the right compute at the right price. The refurbished HPE ProLiant ML150 Gen9 Server is a dual-socket tower server that delivers exceptional value with a low initial capital outlay—making it ideal for stretching limited budgets.

The HPE ProLiant ML150 Gen9 Server features essential performance with support for up to two Intel Xeon E5-2600 v3 or E5-2600 v4 Processors, along with expansion options that allow you to grow as needed—all in a chassis depth of 24 inches. Built-in ProLiant technologies not only simplify server deployment and management, but also automate mundane IT tasks to improve productivity and efficiency so you can recognize ongoing business benefits.

What's New ML150 Gen9

  • HPE 12TB SATA 7.2 K LFF HDD

  • HPE RDX 4TB USB 3.0 External/ Internal Disk Backup System

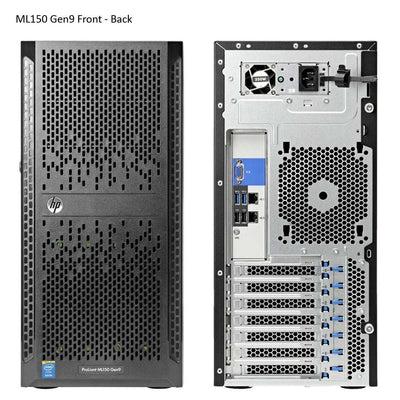

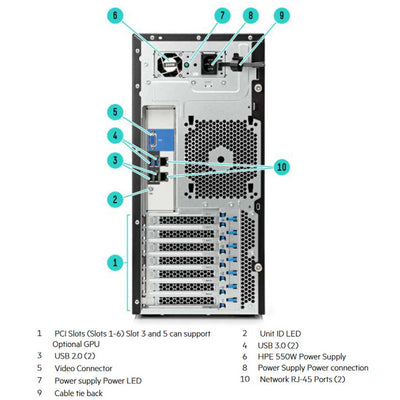

ML150 Gen9 front-back

ML150 Gen9 front-back

Performance to Meet Growing SMB Requirements

The HPE ProLiant ML150 Gen9 Server is designed for the SMB with up to two processors, in a tower form factor that can be rack mounted. Built-in intelligence, with the right balance of storage, performance, efficiency, manageability and with enough headroom for future growth.

Supports up to two Intel Xeon E5-2600 v4 processors with up to 18 cores, up to 120W offering both improved performance and efficiency.

Help prevent data loss and downtime with enhanced error handling while improving workload performance and power efficiency with up to (16) DIMM slots of HPE DDR4 SmartMemory.

Embedded SATA HPE Dynamic Smart Array B140i Controller for boot and data. Choice of HPE Smart Array Controllers for increased performance, data availability and 12 Gb/s SAS technology or HPE Smart HBAs with reliable high-performance SAS connectivity capable of running HBA mode or simple RAID mode.

Increased GPU support (two single wide and one double wide GPU card support) to boost performance in graphic and VDI applications for financial services, education, scientific research and medical imaging.

Efficiency and Expandability to Fit the Needs of Growing, Budget-Conscious Businesses

The HPE ProLiant ML150 Gen9 Server is designed as a dual-socket tower server providing configuration flexibility and expansion options to meet a wide range of different capacities, connectivity, and design requirements.

Flexible expansion capacity with (6) PCIe expansion slots, (8) USB ports, and power supply options.

Compact server with a 24-inch chassis depth; newly designed and saves precious real estate space and is suitable for your growing business within a compact office environment.

Offering expandability with greater capacity with up to (10) Large Form Factor (LFF) disk drives or (16) Small Form Factor (SFF) disk drive options and increased I/O expansion.

Improved ambient temperature standard with ASHRAE A3 helps customer reduce cooling expense.

Product features

Feature
Description
Processor
Model
CPU frequency
Cores
L3 Cache
Power
QPI
DDR4 Hz
E5-2660v3
2.6 GHz
10
25MB
105 W
9.6 GT/s
2133
E5-2650v3
2.3 GHz
10
25MB
105W
9.6 GT/s
2133
E5-2650Lv3
1.8 GHz
12
30MB
65 W
9.6 GT/s
2133
E5-2640v3
2.6 GHz
8
20MB
90 W
8.0 GT/s
1866
E5-2630v3
2.4 Ghz
8
20MB
85 W
8.0 GT/s
1866
E5-2630Lv3
1.8 GHz
8
20MB
55 W
8.0 GT/s
1866
E5-2609v3
1.9 GHz
6
15MB
85 W
6.4 GT/s
1600
E5-2620v3
2.4 GHz
6
15MB
85 W
8.0 GT/s
1866
E5-2603v3
1.6 GHz
6
15MB
85 W
6.4 GT/s
1600
E5-2660v4
2.0 GHz
14
35MB
105 W
9.6 GT/s
2400
E5-2650v4
2.2 GHz
12
30MB
105 W
9.6 GT/s
2400
E5-2650Lv4
1.7 GHz
14
35MB
65 W
9.6 GT/s
2400
E5-2640v4
2.4 GHz
10
25MB
90 W
8.0 GT/s
2133
E5-2630v4
2.2 GHz
10
25MB
85 W
8.0 GT/s
2133
E5-2630Lv4
1.8 GHz
10
25MB
55 W
8.0 GT/s
2133
E5-2620v4
2.1 GHz
8
20MB
85 W
8.0 GT/s
2133
E5-2609v4
1.7 GHz
8
20MB
85 W
6.4 GT/s
1866
E5-2603v4
1.7 GHz
6
15MB
85 W
6.4 GT/s
1866
E5-2695v4
2.1 GHz
18
45MB
120 W
9.6 GT/s
2400
E5-2683v4
2.1 GHz
16
40MB
120 W
9.6 GT/s
2400
E5-2680v4
2.4 GHz
14
35MB
120 W
9.6 GT/s
2400
Cache memory
  • 15MB (1 x 15MB) level 3 cache (For six-core processors)

  • 20MB (1 x 20MB) level 3 cache (For eight-core processors)

  • 30MB (1 x 30MB) level 3 cache (For twelve-core processors)

  • 25MB (1 x 25MB) level 3 cache (For ten-core processors)

  • 35MB (1 x 35MB) level 3 cache (For fourteen-core processors)

Chipset
  • Intel C610 series chipset

  • Intel E5-2600v3 processor family

On system management chipset
HPE iLO (Firmware HPE iLO4 2.0) 2GB NAND
Memory
Type
  • HPE SmartMemory

  • DDR4 Registered (RDIMM) or Load Reduced (LRDIMM)

DIMM slots available
16
Maximum capacity (LRDIMM)
512GB (16 x 32GB LRDIMM @2400 MHz)
Maximum capacity (RDIMM)
512GB (16 x 32GB RDIMM @2400 MHz)
NOTE: This server does not support mixing LRDIMMs or RDIMMs. Attempting to mix any combinationof these DIMMs can cause the server to halt during BIOS installation
Memory protection
Advanced ECC
Online spare
Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip
Memory online spare mode detects a rank that is degrading and switches operation to the spare rank
Network controller
Broadcom 5717 Dual-port 1Gb
Expansion slots
Expansion Slots #
Technology
Bus Width
Connector Width
Bus Number
Form Factor
Notes
7
HPE ML Gen9 Dedicated iLO Port Kit
x1
x1
-
Dedicate for ML Series
-
6
PCIe 3.0
x8
x8
-
Full length/full height
For processor 1
5
PCIe 3.0
x16
x16
-
Full length/full height
For processor 1
4
PCIe 3.0
x8
x8
-
Half length/full height
For processor 1
3
PCIe 3.0
x16
x16
-
Full-height, full-lengthslot
For processor 2
2
PCIe 3.0
x8
x8
-
Half length/full height
For processor 1
1
PCIe 3.0
x8
x8
-
Half length/full height
For processor 2
Storage controller
Entry models
HPE Dynamic Smart Array B140i Controller
Base models
HPE Dynamic Smart Array B140i Controller
Performance models
HPE H240 FIO Smart Host Bus Adapter
NOTE: B140i can't mix with any standup internal controller
Internal storage devices
Optical drive
Optional SATA 9.5 mm DVD-ROM optical drive
Optional SATA 9.5 mm DVD RW optical drive
NOTE:
  • Optical is optional in entry, base and performance BTO models

  • ML150 Gen9 Slim ODD enablement kit (P/N: 784603-B21) isrequired for any DVD options
Hard drives
None ship standard
NOTE:
  • Mixing drive cage types is not allowed

  • All Pre-configured Models come populated with hard drive blanksinstalled. The 4LFF configurations includes 2 blanks and 8SFF includes 6blanks

  • NHPE SATA is limited to B140i controller

Hard drive bays
Up to 10 Non-hot plug SATA 3.5 in drives
(4) Hot plug LFF SAS/SATA HDD bays; upgradable to (8)
(8) Hot plug SFF SAS/SATA HDD bays; upgradable to (16)
NOTE:
  • NHPE SATA is limited to B140i controller

  • NHPE SATA is limited to B140i controller

  • H240 8LFF/8SFF require 2 cable kit P/N: 784606-B21

  • H240 8LFF/8SFF require 2 cable kit P/N: 784606-B21

Maximum internal storage

Capacity
Configuration
Hot Plug LFF SAS
80TB
8 x 10TB
Hot Plug LFF SATA
80TB
8 x 10TB
Hot Plug SFF SAS
32TB
16 x 2TB
Hot Plug SFF SATA
32TB
16 x 2TB
Non-Hot Plug LFF SATA
40TB
10 x 4TB
Hot Plug LFF SAS SSD
12.8TB
8 x 1.6TB
Hot Plug LFF SATA SSD
30.72TB
8 x 3.84TB
Hot Plug SFF SAS SSD
30.72TB
16 x 1.92TB
Hot Plug SFF SATA SSD
61.44TB
16 x 3.84TB
Power supply
  • HPE 550 W FIO power supply

  • HPE 900 W AC 240 V dc redundant power supply

NOTE:
  • Each redundant power supply backplane can support up to two (2) power input modules.Non-redundant configurations with a single power input module installed can provide up to 900 W (200 – 240 V ac) and up to 550 W (100 – 127 V ac) of power

  • Redundant configurations with twopower input modules installed can provide up to 800 W (200 – 240 V ac) and up to 550 W (100 –127 V ac) of power

Rack options
HPE T/R conv tray universal kit

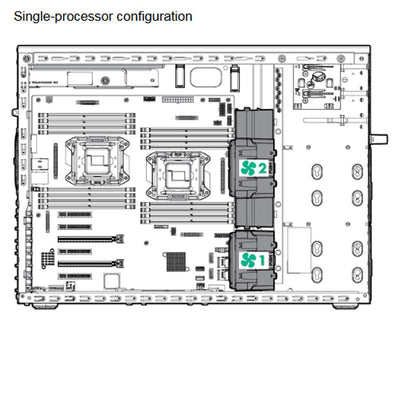

System fans

Non-redundant
Redundant
1 P model
2 fans
NA
NOTE: Two (2) Non-hot plug, non-redundant fans ship as standard

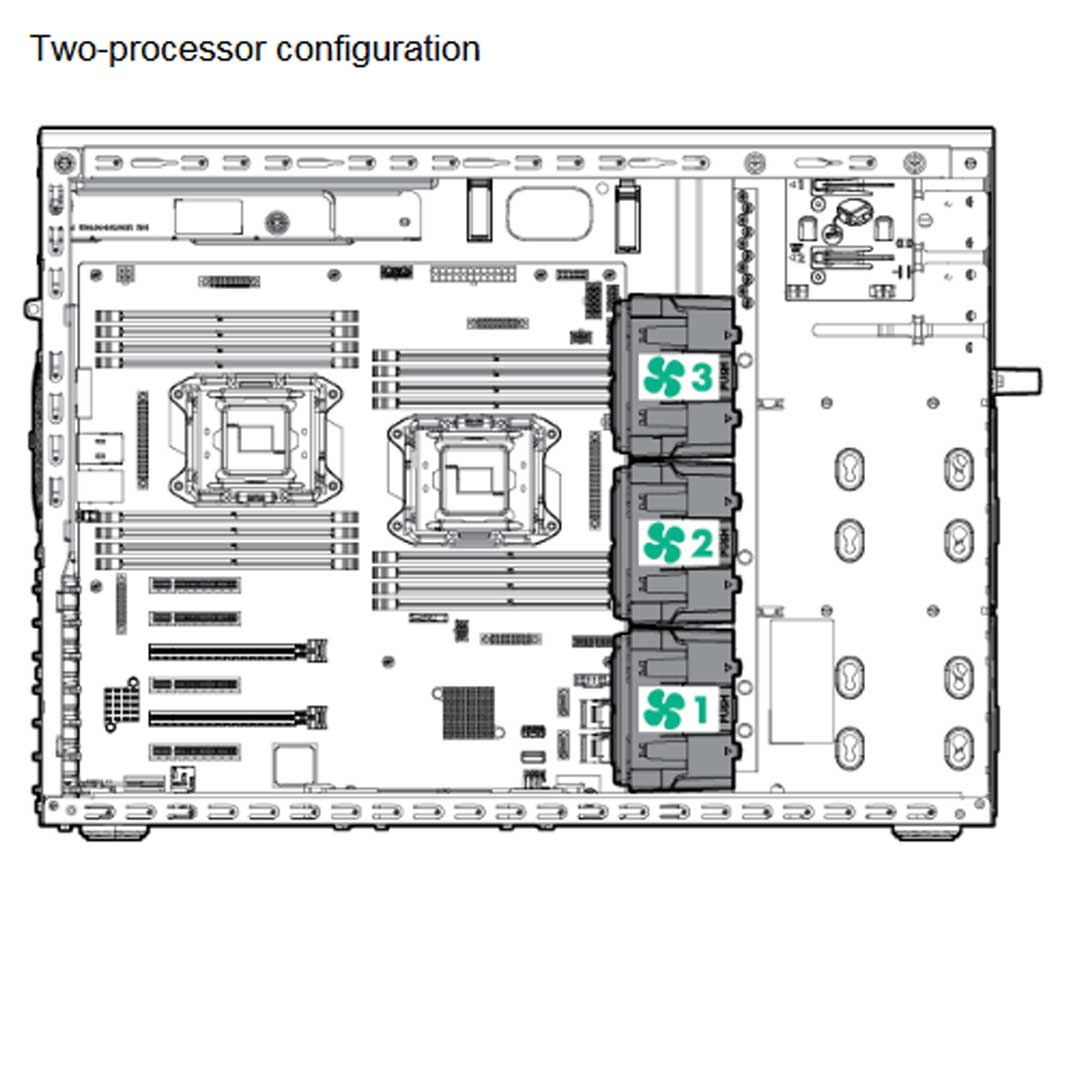

2 P model
3 fans
NA
NOTE: Third fan is shipped with 2nd CPU kit. Third fan is only required in 2P configurations

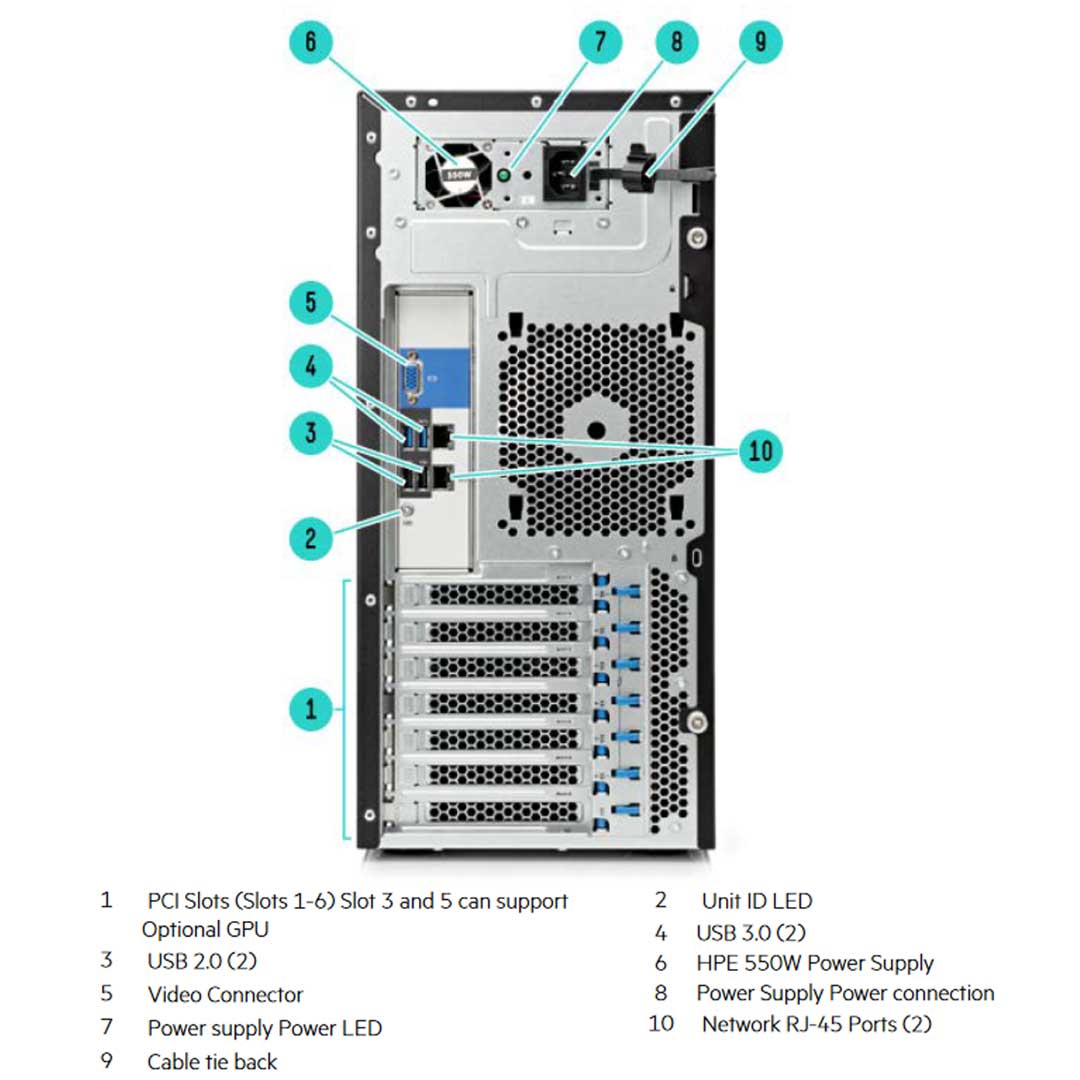

Interfaces
Video
1 (Rear)
Network RJ-45 (Ethernet)
2
HPE iLO remote management network port
2Gb dedicated
NOTE: Dedicated port for iLO is optional
Micro SD Slot
1 (Internal)
NOTE: The Micro-SD slot is not a hot-pluggable device. Users should not attempt to plug aMicro-SD card into the Micro-SD slot while the server is powered
USB 3.0
5 (2 rear, 1 internal, 2 front)
USB 2.0
3 (2 rear, 1 internal)
U
