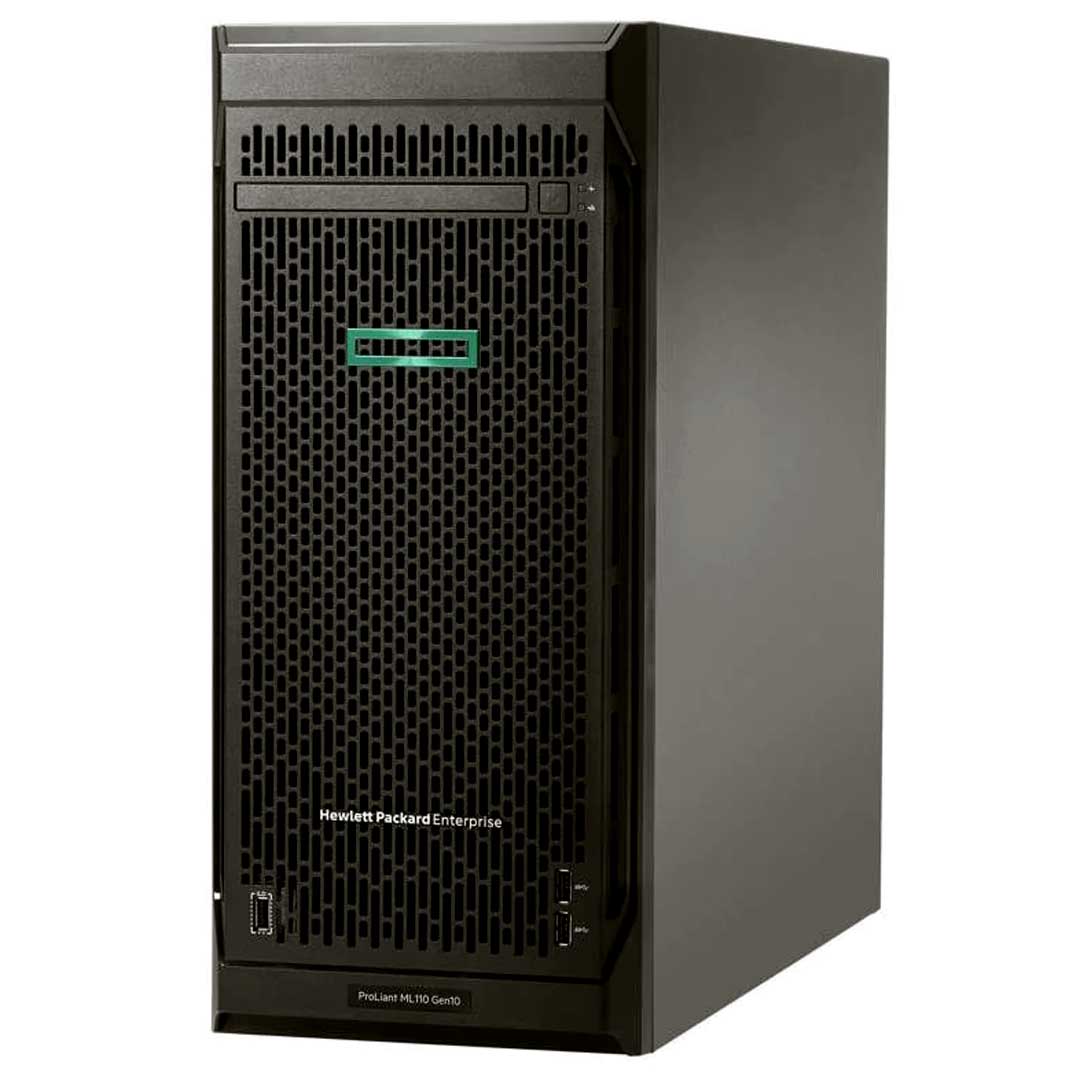

HPE ProLiant ML110 Gen10 CTO Tower Server

Part#:
ML110G10
Brand:
HPE
Type:
CTO Servers
Condition:
ECS Refurbished & Tested
Warranty:
ECS 1 Year Hardware Warranty

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Submit for Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Server Chassis

HPE Processors

Intel Xeon Gold

Supports (1) processor

Intel Xeon Silver

Supports (1) processor

Intel Xeon Bronze

Supports (1) processor

HPE Memory

HPE RAID Controllers

HPE SFF Drives SAS (2.5in)

HPE SFF Drives SATA (2.5in)

HPE LFF Drives SAS (3.5in)

HPE LFF Drives SATA (3.5in)

HPE M.2 Drives

Requires SATA M.2 Kit (878783-B21)

HPE Network Adapters

5 PCIe Slots (Full Height)

HPE Power Supplies

Supports (1) PSU

HPE Expansion

5 PCIe Slots (Full Height)

HPE Options

HPE Rail Kits

HPE Optical Drives

ECS Warranty

HPE ML110 Gen10 CTO Tower Server Product Description

The HPE ProLiant ML110 Gen10 server is an enhanced single processor tower with performance, expansion, and security at an affordable price. It supports the Intel Xeon Scalable processor, HPE DDR4 SmartMemory with a maximum capacity of 192 GB, five PCIe slots, eight large form factor (LFF) or 16 small form factor (SFF) disk drives. It can easily be converted to a rack using 4.5U of rack space.

The HPE ProLiant ML110 Gen10 server also offers optional redundant fan and redundant power supply to satisfy automatic fail-over needs, making this the ideal server for small- to mid-sized businesses, and remote and branch offices.

What’s New for ML110 Gen10

  • Enhanced iLO 5 security features such as Server Configuration Lock, iLO Security Dashboard and Workload Performance Advisor.
  • Supports the second generation Intel Xeon Scalable processor family with up to 16 cores and up to 110W.
  • NVIDIA Quadro P2000 GPU Module (Optional)
  • HPE 12TB SAS/ SATA 7.2K LFF HDD
  • Intel Xeon scalable processors , up to 16 cores, up to 110 W
  • Redundant fan kit (Optional)
  • Support up to 8 LFF NHP SATA HDDs
  • HPE DDR4 SmartMemory up to 2933 MT/s

ML110 Gen10 8LFF 16SFF

ML110 Gen10 8LFF 16SFF

Right-sized, with the Balance of Performance to Meet Growing SMB Requirements

The HPE ProLiant ML110 Gen10 server is compact with less than a 19-inch depth, quiet, and affordable that can deliver the performance needed for the compute demands of a growing office small- to mid-sized business.

Supports industry standard technology leveraging the Intel Xeon Scalable Processors operating with speeds of up to 3.8 GHz and up to 16 cores offering improved performance.

Supports up to two optional graphic processing units (GPUs) allowing one double wide and one single wide card to boost performance in graphic and Virtual Desktop Infrastructure (VDI) applications such as financial services, education, scientific research and medical imaging.

The embedded HPE Dynamic Smart Array S100i Controller for SATA disk drives supports boot, data and media needs. These enhanced HPE Smart Array Controllers provide the flexibility to choose the optimal 12 Gbps controller most suited to your environment, as well as operate in both SAS and HBA modes.

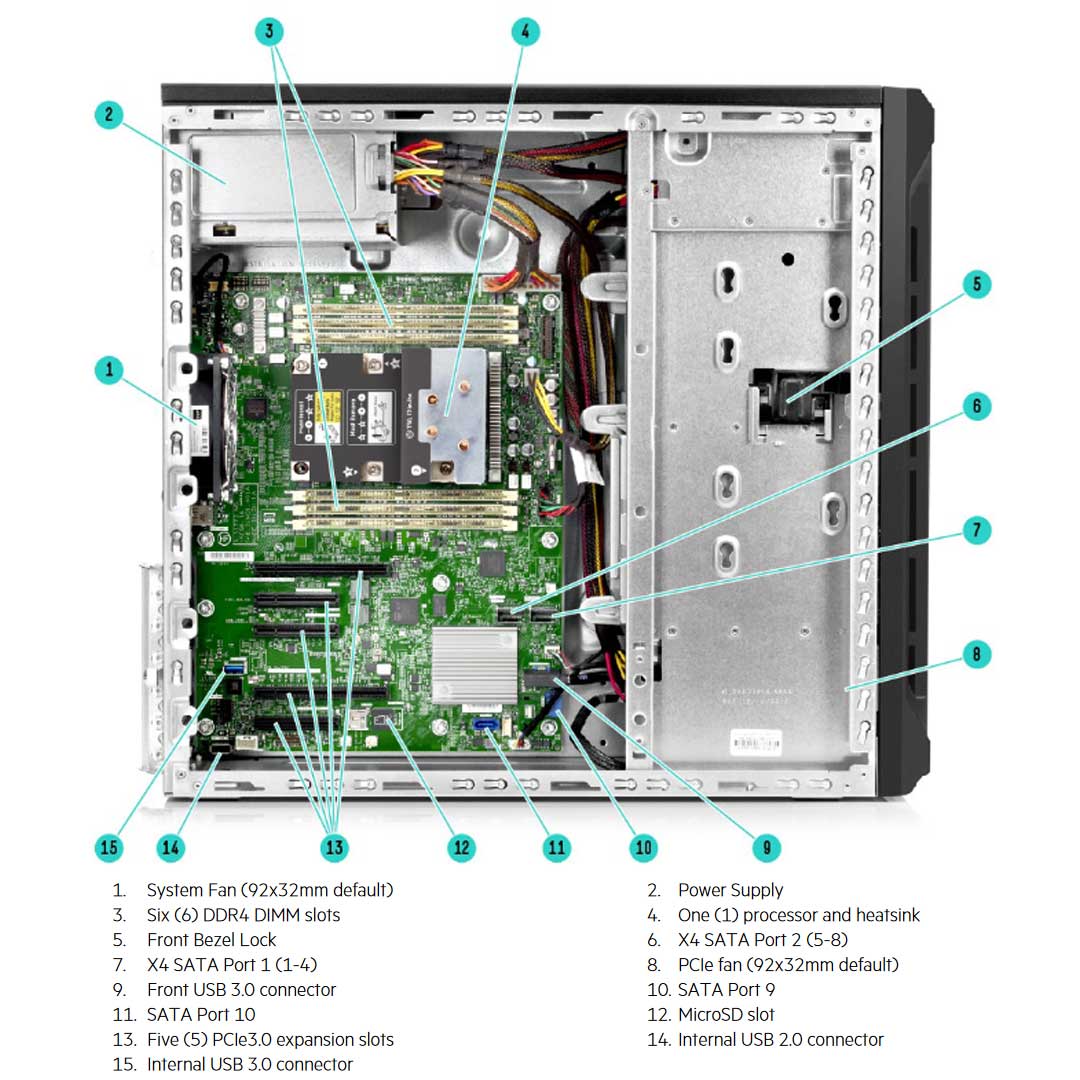

ML110 Gen top view

ML110 Gen top view

Expandability to Fit the Needs of Growing, Budget-conscious Businesses

The HPE ProLiant ML110 Gen10 server offers up to six DIMM slots with support for up to 192 GB of HPE DDR4 SmartMemory, helping to prevent data loss and downtime with enhanced error handling while improving workload performance and power efficiency.

Supports optional redundant fan and redundant power supplies reducing data loss and downtime, making your server more reliable. Flexible expansion capacity with five PCIe expansion slots, eight USB ports and one optional serial port.

HPE SmartDrives deliver enhanced performance, capacity, and reliability to meet various customer segments and workload requirements at the right economics. Supports up to eight large form factor (LFF) disk drives or 16 small form factor (SFF) disk drive options.

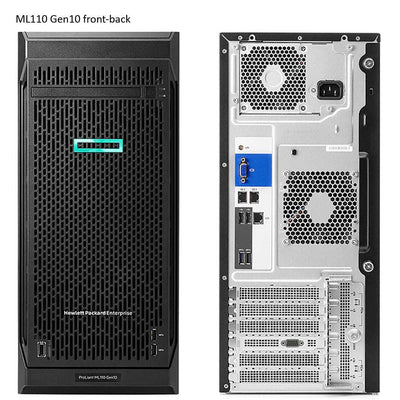

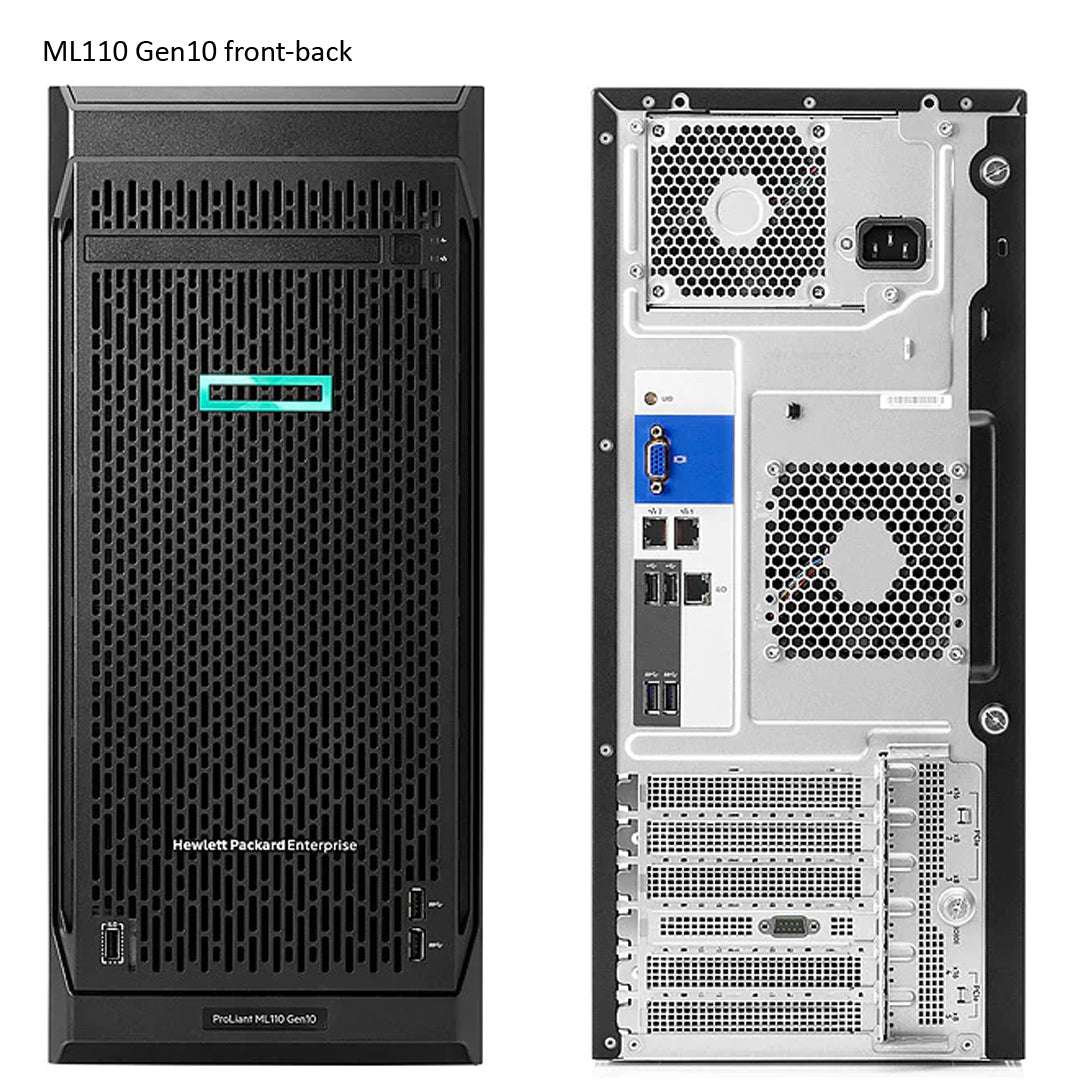

ML110 Gen10 front-back

ML110 Gen10 front-back

Product features

Feature
Description
Processors1
Intel first generation Xenon scalable processors
Intel Xeon Models
CPU Frequency
Cores
L3 Cache
Power
UPI
DDR4
Memory Per Socket
Gold processors
Gold 5122 Processor
3.6 GHz
4
16.50MB
105 W
2 @ 10.4 GT/s
2666 MT/s
192GB
Gold 5120 Processor
2.2 GHz
14
19.25MB
105 W
2 @ 10.4 GT/s
2400 MT/s
192GB
Silver processors
Silver 4112 Processor
2.6 GHz
4
8.25MB
85 W
2 @ 9.6 GT/s
2400 MT/s
192GB
Silver 4110 Processor
2.1 GHz
8
11.00MB
85 W
2 @ 9.6 GT/s
2400 MT/s
192GB
Silver 4108 Processor
1.8 GHz
8
11.00MB
85 W
2 @ 9.6 GT/s
2400 MT/s
192GB
Bronze processors
Bronze 3106 Processor
1.7 GHz
8
11.00MB
85 W
2 @ 9.6 GT/s
2133 MT/s
192GB
Bronze 3104 Processor
1.7 GHz
6
11.00MB
85 W
2 @ 9.6 GT/s
2133 MT/s
192GB
Intel second generation Xenon scalable processors
Intel Xeon Models
CPU Frequency
Cores
L3 Cache
Power
UPI
DDR4
Memory Per Socket
Gold processors
Gold 5122 processor
3.8 GHz
4
16.50MB
105 W
2 @ 10.4 GT/s
2933 MT/s
192GB
Gold 5218N Processor
2.3 GHz
16
22.00MB
110 W
2 @ 10.4 GT/s
2666 MT/s
192GB
Gold 5215 Processor
2.5 GHz
10
13.750MB
85 W
2 @ 10.4 GT/s
2666 MT/s
192GB
Silver processors
Silver 4216 Processor
2.1 GHz
16
22.00MB
100 W
2 @ 9.6 GT/s
2400 MT/s
192GB
Silver 4215 Processo
2.5 GHz
8
11.00MB
85 W
22 @ 9.6 GT/s
2400 MT/s
192GB
Silver 4214 Processor
2.2 GHz
12
16.50MB
85 W
2 @ 9.6 GT/s
2400 MT/s
192GB
Silver 4210 Processor
2.2 GHz
10
13.75MB
85 W
2 @ 9.6 GT/s
2400 MT/s
192GB
Silver 4208 Processor
2.1 GHz
8
11.00MB
85 W
2 @ 9.6 GT/s
2400 MT/s
192GB
Bronze processors
Bronze 3204 Processor
1.9 GHz
6
8.25MB
85 W
2 @ 9.6 GT/s
2133 MT/s
192GB
Bronze 3206R Processor
1.9 GHz
8
8.25MB
85 W
2 @ 9.6 GT/s
2133 MT/s
192GB
Chipset2
Intel C621 chipset
Form factor
Tower (4.5U)
System fans
  • 1 Default system fan module (92 x 32 mm)

  • 1 Default PCIe fan module (92 X 32 mm)

On system management chipset3
HPE iLO 5 ASIC
Memory4
Type
  • HPE SmartMemory and standard memory

  • DDR4 Registered (RDIMM)

Dual In-Line Memory Module (DIMM) Slots available
6
6 DIMM slots per processor, 6 channels per processor, 1 DIMM per channel
Maximum capacity (RDIMM)
192GB
6 x 32GB RDIMM - 2666 MT/s
Memory protection
For more information on HPE Server memory options RAS feature, please check the below link:
Expansion slots5
Slots #
Technology
Bus Width
Connector Width
Slot Form Factor
Notes
5
PCIe 3.0
X4
X8
Full-Height, Half-Length slot
PCH
4
PCIe 3.0
X16
X16
Full-Height, Full-Length slot
Proc 1
3
PCIe 3.0
X8
X8
Full-Height, Half-Length slot
Proc 1
2
PCIe 3.0
X4
X8
Full-Height, Half-Length slot
Proc 1
1
PCIe 3.0
X16
X16
Full-Height, 3/4 length (Up to 9.5 in) Slot
Proc 1
Storage controllers
The Gen10 Controller naming framework has been updated to simplify identification as depicted in the below link:
Essential RAID Controller
Performance RAID Controller
HPE Smart Array E208i-p SR Gen10 Controller
HPE Smart Array P408i-p SR Gen10 Controller
HPE Smart Array E208e-p SR Gen10 Controller
HPE Smart Array P408e-p SR Gen10 Controller
Software RAID6
HPE Smart Array S100i SR Gen10 SW RAID
Internal storage devices
Optical drive7
  • Optional SATA 9.5 mm DVD-ROM optical drive

  • Optional SATA 9.5 mm DVD RW optical drive

One of the following depending on model10
Hard drives
None ship standard

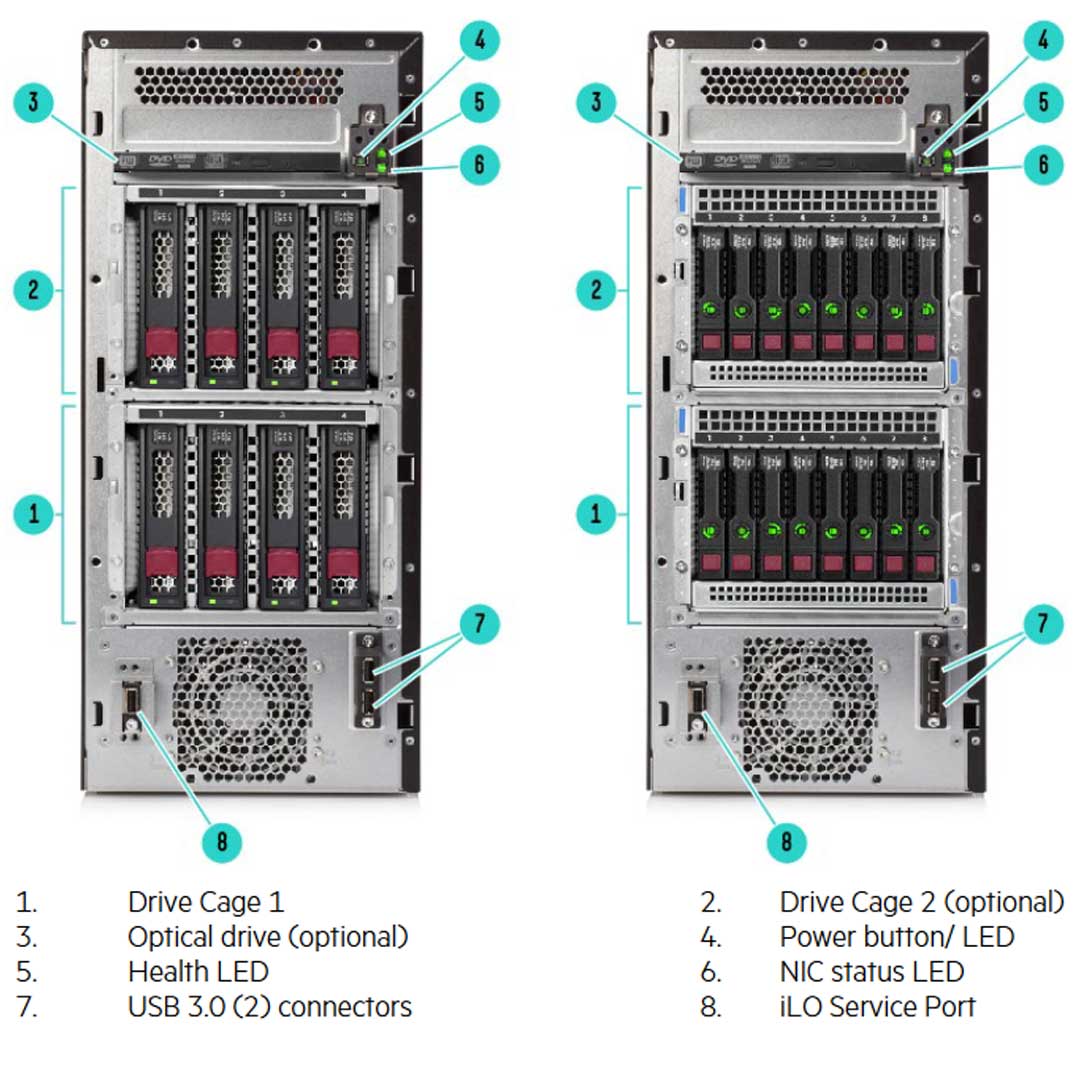

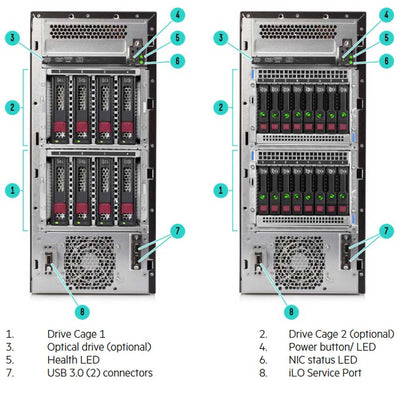

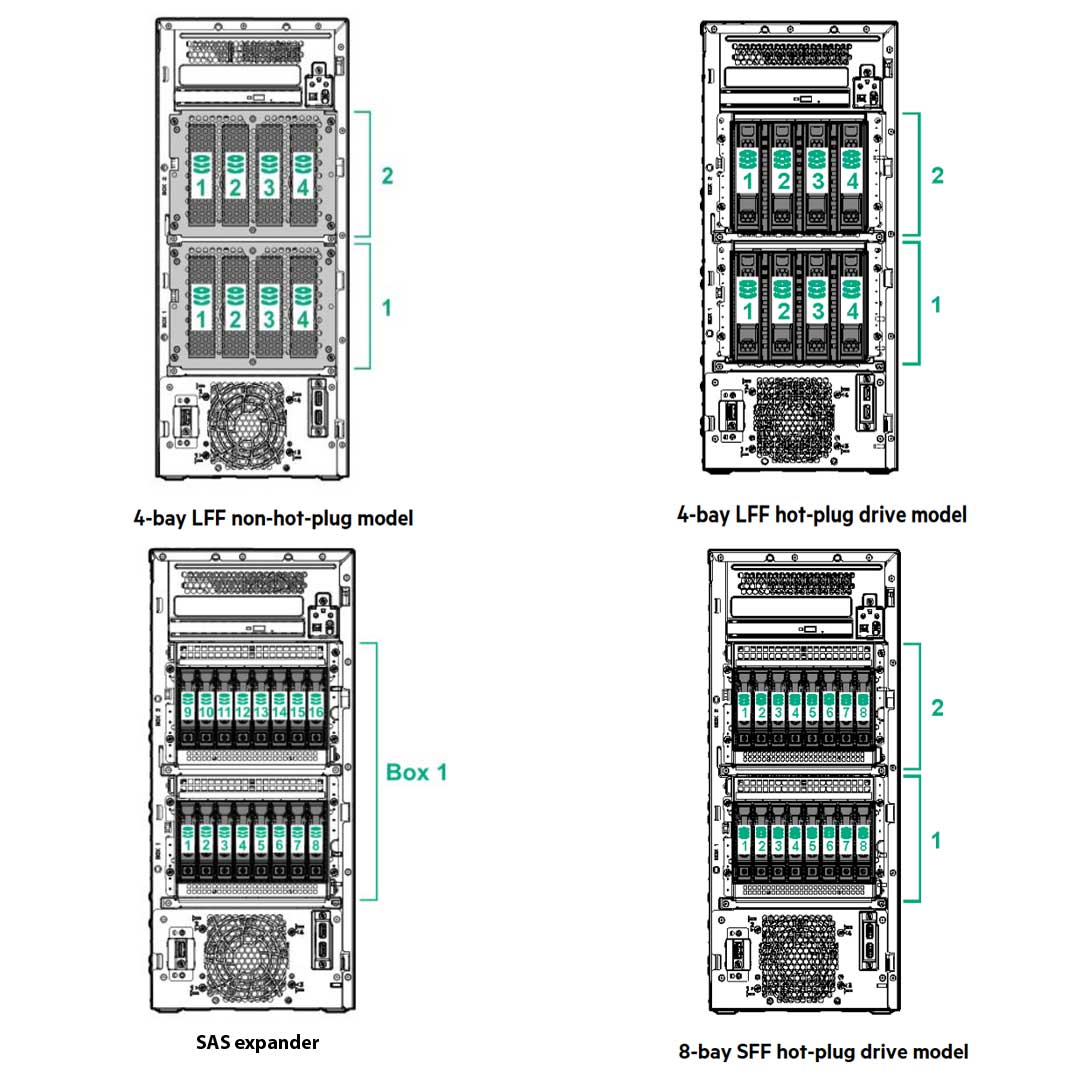

Hard drive bays
  • Up to 8 Non-Hot plug SATA 3.5 in drives

  • 4 Hot plug LFF SAS/SATA HDD bays; upgradable to 8

  • 8 Hot plug SFF SAS/SATA HDD bays; upgradable to 16

Maximum internal storage8
 Internal Storage
Capacity
Configuration
Hot plug LFF SAS
96TB
8 x 12TB
Hot plug LFF SATA
96TB
8 x 12TB
Hot plug SFF SAS
38.4TB
16 x 2.4TB
Hot plug SFF SATA
32TB
16 x 2TB
Non hot plug LFF SATA
32TB
8 x 4TB
Hot plug LFF SATA SSD
30.72TB
8 x 3.84TB
Hot plug SFF SAS SSD
61.44TB
16 x 3.84TB
Hot plug SFF SATA SSD
61.44TB
16 x 3.84TB
Power supply9
  • HPE ML110 Gen10 350 W ATX power supply kit

  • HPE ML110 Gen10 550 W ATX power supply kit

  • HPE 800 W flex slot platinum hot plug low halogen power supply kit

  • HPE 500 W flex slot platinum hot plug low halogen power supply kit

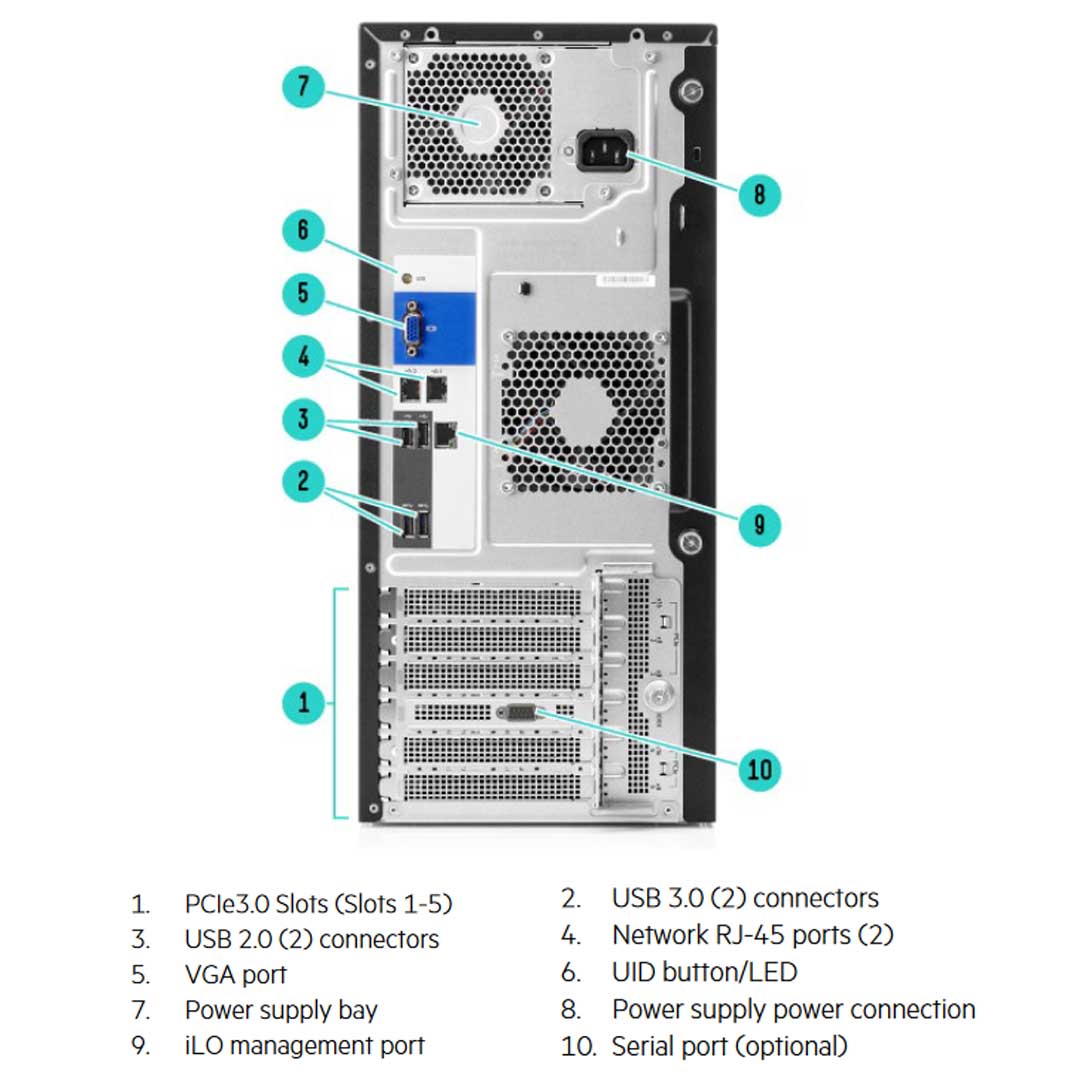

Interfaces10
VGA Port
1 Standard (At system rear)
Network RJ-45 (Ethernet)
2 Standard (At system rear)
Serial
1 Optional (At system rear)
iLO Management port
1 Standard (At system rear)
iLO Service port
1 Standard (At system front)
MicroSD slot
1 Standard (At system internal)
USB 3.0
5 (2 Front, 2 rear, 1 internal)
USB 2.0
3 (2 Rear, 1 internal)
Industry standard compliance11
  • ACPI 6.1 Compliant

  • PCIe 3.0 Compliant

  • WOL Support

  • Microsoft logo certifications

  • Novell certified

  • PXE Support

  • VGA port

  • USB 3.0 Compliant

  • USB 2.0 Compliant

  • Energy star 2.1

  • SMBIOS 3.1

  • Unified Extensible Firmware Interface Forum (UEFI) 2.6

  • ASHRAE A3

Graphics
  • Integrated video standard

    • Video modes up to 1920 x 1200 @60 Hz (32 bpp)

    • 16MB video memory

  • HPE iLO 5 On system management memory

    • 32MB Flash

    • 4Gb DDR 3 with ECC protection

HPE Server UEFI/legacy ROM12
  • UEFI Enables numerous new capabilities specific to HPE ProLiant servers such as:

    • Secure boot and secure start enable for enhanced security

    • Operating System (OS) specific functionality

    • Support for > 2.2TB (Using GPT) boot drives

    • USB 3.0 stack

    • Embedded UEFI shell

    • Mass configuration deployment tool using iLO RESTful API that is Redfish API conformant

    • PXE boot support for IPv6 networks

    • Workload profiles for simple performance optimization

UEFI Boot mode only:
  • Trusted Platform Module (TPM) 2.0 support

  • iSCSI software initiator support

  • HTTP/HTTPs boot support as a PXE alternative

  • Boot support for option cards that only support a UEFI option ROM

Embedded management
  • HPE Integrated Lights-Out (HPE iLO)

  • UEFI

  • Intelligent provisioning

  • iLO RESTful API

Server utilities
  • Active Health System (AHS)

  • AHS Viewer

  • Smart update

  • iLO amplifier pack

  • HPE iLO mobile application

  • RESTful interface tool

  • Scripting tools

  • HPE OneView standard

  • HPE Systems Insight Manager (HPE SIM)

Security
  • UEFI Secure boot and secure start support

  • Immutable silicon root of trust

  • FIPS 140-2 validation (iLO 5 certification in progress)

  • Common criteria certification (iLO 5 certification in progress)

  • Configurable for PCI DSS compliance

  • Ability to rollback firmware

  • Secure erase of NAND/User data

  • TPM 1.2 Option

  • TPM 2.0 Option

Server management
  • HPE iLO Advanced

  • HPE iLO advanced premium security edition

  • HPE OneView Advanced

  • One Config Simple (SCE)

  • HPE InfoSight for Servers

NOTE:

    • For more information on Intel xeon processors, please check the below link:

      Click here to access the page for Intel Xeon processors  Non-HPE site .

    • Gold - 5100 series - Supports 6-channel DDR4 - 2400 MHz (SKU 5122 = supports 2666) providing up to 192GB memory capacity. Intel turbo boost technology, Intel Hyper-Threading technology, Intel AVX-512 (1 x 512-bit FMA) (SKU 5122 supports 2 x 512 bit FMA), 48 lanes PCIe 3.0, advanced RAS supported
    • Silver - 4100 series - 6-channel DDR4 - 2400 MHz providing up to 192GB memory capacity. Intel turbo boost technology, Intel Hyper-Threading technology, Intel AVX-512 (1 x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported.
    • Bronze - 3100 series - Supports 6-channel DDR4 - 2133 MHz providing up to 192GB memory capacity. Intel AVX- 512 (1 x 512-Bit FMA), 48 lanes PCIe 3.0, standard RAS supported
  1. For more information regarding Intel chipsets, please check the below link:

    Click here to access the page for Intel Server Chipsets  Non-HPE site .

  2. For more information on iLO, please check the below link for the quickspecs:

    Click here to access the quickspecs page for HPE Integrated Lights-Out (iLO) .


    • LRDIMM is not qualified by this server. This server does not support mixing LRDIMMs and RDIMMs. Attempting to mix any combination of these DIMMs can cause the server to halt during BIOS installation. All memory installed in the server must be of the same type.
    • The maximum memory speed is a function of the memory type, memory configuration, and processor model.

    • Bus width indicates the number of physical electrical lanes running to the connector.
    • Although the speed of slot is designed for 32 Gb/s, the actual running speed will be lower than it was designed. Hence slot 2 and slot 5 will be least recommended for usage.

    • HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. For legacy support an additional Controller will be needed, and for CTO orders please also select the legacy mode settings part, 758959-B22.
    • HPE Smart Array S100i SR Gen10 SW RAID is OFF by default and must be enabled.
    • The S100i supports 10 ports as 2 additional ports are leveraged to support the M.2 option.
  3. Optical is optional in BTO models.

    • Mixing drive cage types is not allowed.
    • All Pre-Configured models come populated with hard drive blanks installed. The 4LFF configurations includes 3 blanks and 8SFF includes 7 blanks. Additional hard drive blanks can be ordered using either P/N 807878-B21 for the HPE LFF HDD blank kit or P/N 666987-B21 for the HPE SFF HDD blank kit. These part numbers for single HDD blanks below are also provided should require replacement HDD blanks for the server.
    • NHP SATA is limited to S100i controller.

    • ATX power supply will not support redundant fan option.
    • Flex slot platinum power supplies support power efficiency of up to 94% and include a standard C-14 power inlet connector.
    • The 800 W flex slot platinum hot plug low halogen power supply kit requires the RPS enablement kit.
    • The RPS enablement kit will support two power supplies.
  4. The MicroSD slot is not Hot-Pluggable, please power down the server before installation or removal.


    • The UEFI system utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information on UEFI, please check the below link:

      Click here to view the information on Unified Extensible Firmware Interface (UEFI) .

    • For UEFI boot mode, boot environment and OS image installations should be configured properly to support UEFI.
    • UEFI FIO setting (758959-B22) can be selected to configure the system in legacy mode in the factory for HPE ProLiant Gen10 Server.

top

Physical specifications

Specifications
Description
Dimensions (H x W x D)
44 x 19.5 x 48.05 cm (17.32 x 7.68 x 18.92 in)
Weight (Approximate)
Minimum: 13.5 kg (29.82 lb)
Maximum: 25.0 kg (55.0 lb)

top

Electrical specifications

Specifications
Description
Input requirements (Per power supply)
Rated line voltage
100 to 120 V ac
Rated input frequency
  • For 350 W and 550 W power supply: 8 A (At 100~240 V ac)

  • 50 to 60 Hz

Rated input power
  • For 550 W power supply: < 639 W (At 100 V ac), < 605 W (At 200 V ac)

  • For 350 W power supply: < 427 W (At 100 V ac), < 427 W (At 200 V ac)

BTU rating
  • For 550 W power supply: 2204 BTU/hr (At 100 V ac), 2113 BTU/hr (At 200 V ac)

  • For 350 W power supply: 1452 BTU/hr (At 100 V ac), 1544 BTU/hr (At 200 V ac)

Power supply output (Per power supply)
Rated Steady-State power
For 550 W power supply: 550 W (At 100 V ac), 550 W (At 200 V ac)
Maximum peak power
For 350 W power supply: 350 W (At 100 V ac), 350 W (At 200 V ac)

top

Environmental specifications

Specifications
Description
System inlet temperature
Standard operating temperature
  • 10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight

  • Maximum rate of change is 20°C/hr (36°F/hr)

  • The upper limit and rate of change may be limited by the type and number of options installed

  • System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F)

Extended ambient operating support
5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3048 m (10,000 ft)
Non-Operating temperature
  • -30° to 60°C (-22° to 140°F)

  • Maximum rate of change is 20°C/hr (36°F/hr)

Relative humidity (Rh)
Operating
8% to 90% - Rh, 28°C maximum wet bulb temperature, Non-Condensing
Non-operating
5% to 95% - Rh, 38.7°C (101.7°F) maximum wet bulb temperature, Non-Condensing
Altitude
Operating
  • 3050 m (10,000 ft)

  • Maximum allowable altitude change rate is 457 m/min (1500 ft/min)

Non-operating
  • 9144 m (30,000 ft)

  • Maximum allowable altitude change rate is 457 m/min (1500 ft/min)

Acoustic noise
Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels. HPE representative provide information from the HPE EMESC website for further technical details regarding the configurations listed below.
Idle
LWAd
  • 4.0 Bels Entry

  • 4.0 Bels Perf

LpAm
  • 24.8 dBA Entry

  • 24.1 dBA Perf

Operating
LWAd
  • 4.0 Bels Entry

  • 4.0 Bels Perf

LpAm
  • 25.1 dBA Entry

  • 24.1 dBA Perf

top
