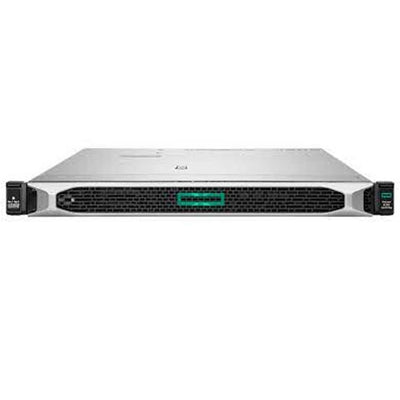

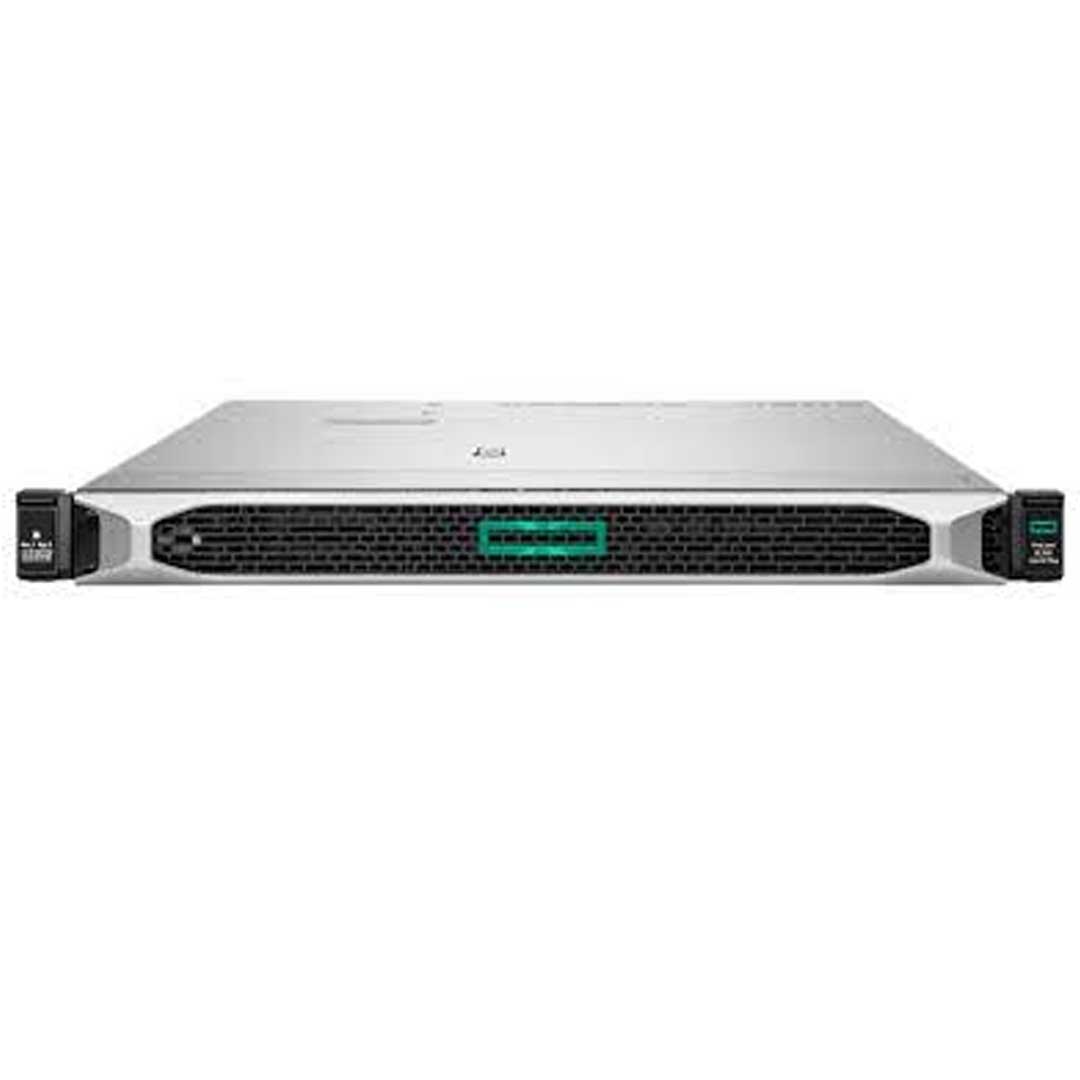

HPE ProLiant DL20 Gen10 CTO Server

Part#:
DL20G10
Brand:
HPE
Type:
CTO Servers
Condition:
ECS Refurbished & Tested
Warranty:
ECS 1 Year Hardware Warranty

HPE DL20 Gen10 CTO Rack Server Product Description

The HPE ProLiant DL20 Gen10 server delivers a compact and versatile server at an affordable price. Deploy the portable form factor in small, remote or branch offices, as a compact yet powerful point of sale platform in transport, retail and hospitality environments, or as a flexible configuration for customization in space constrained environments of military and government customers.

HPE ProLiant DL20 Gen10 server blends performance, reliability and manageability. This 1 socket, 1U server powered by Intel Pentium, Intel Core™ i3 or Intel Xeon E processors provides unique enterprise-class capabilities at a great value—making it an ideal rack server platform for growing businesses, enterprises, and service providers. Outstanding configuration flexibility caters to a variety of business requirements and a range of HPE Qualified Options to fit most needs.

What's New for DL20 Gen10

  • Supports latest Intel Xeon E-2200 Series up 8 Cores processors.
  • HPE 361i 1Gb 2-Port network adapter on models with the new Intel Xeon E-2200 Series.
  • HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
  • Dedicated HPE iLO Management Port as an option kit for faster and more secure data transmission.
  • Available aggressively priced SMB Offers regionally released as “Smart Buy Express” in the U.S. and Canada, “Top Value” in Europe, and “Intelligent Buy” in Asia Pacific.

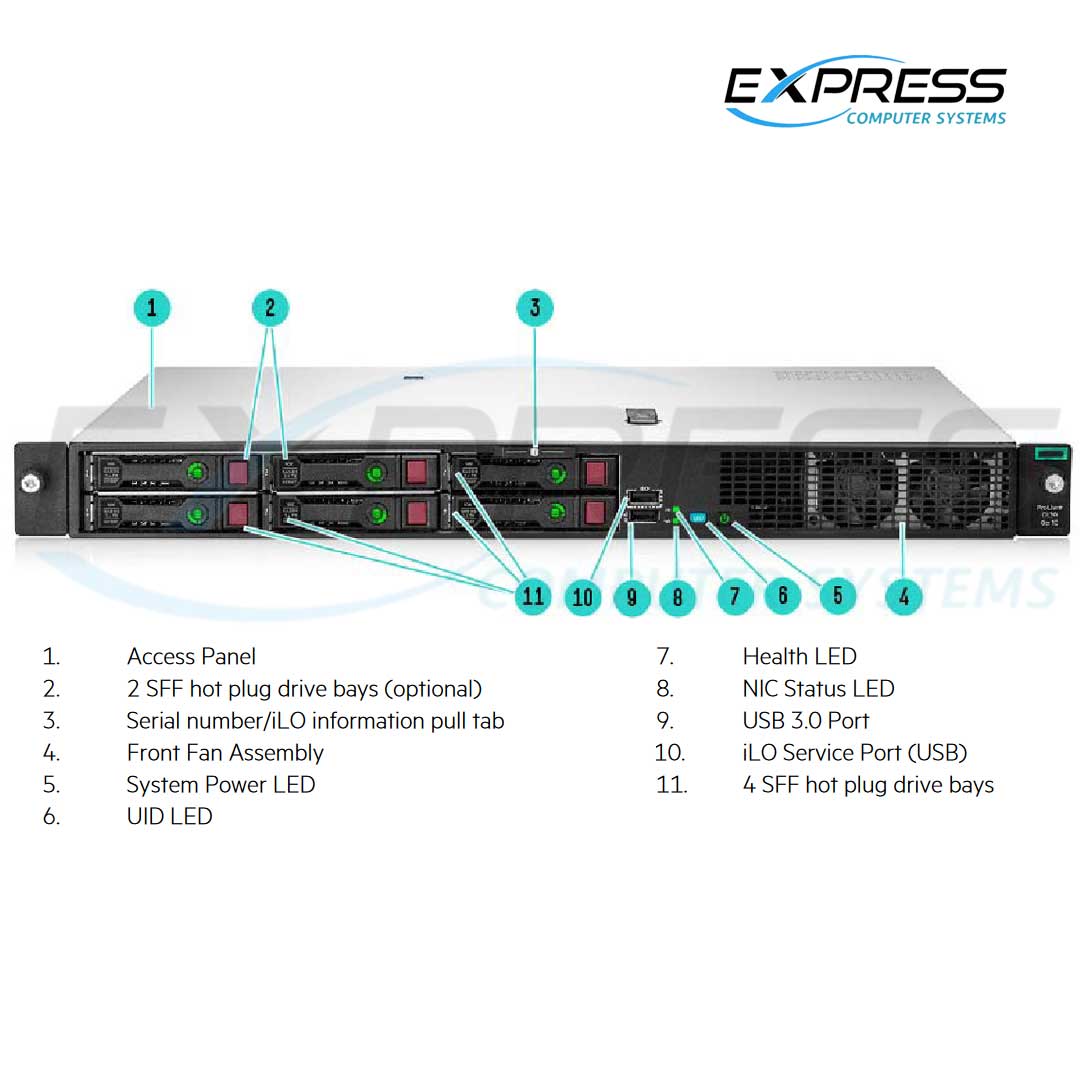

DL20 Gen10 4SFF

DL20 Gen10 4SFF

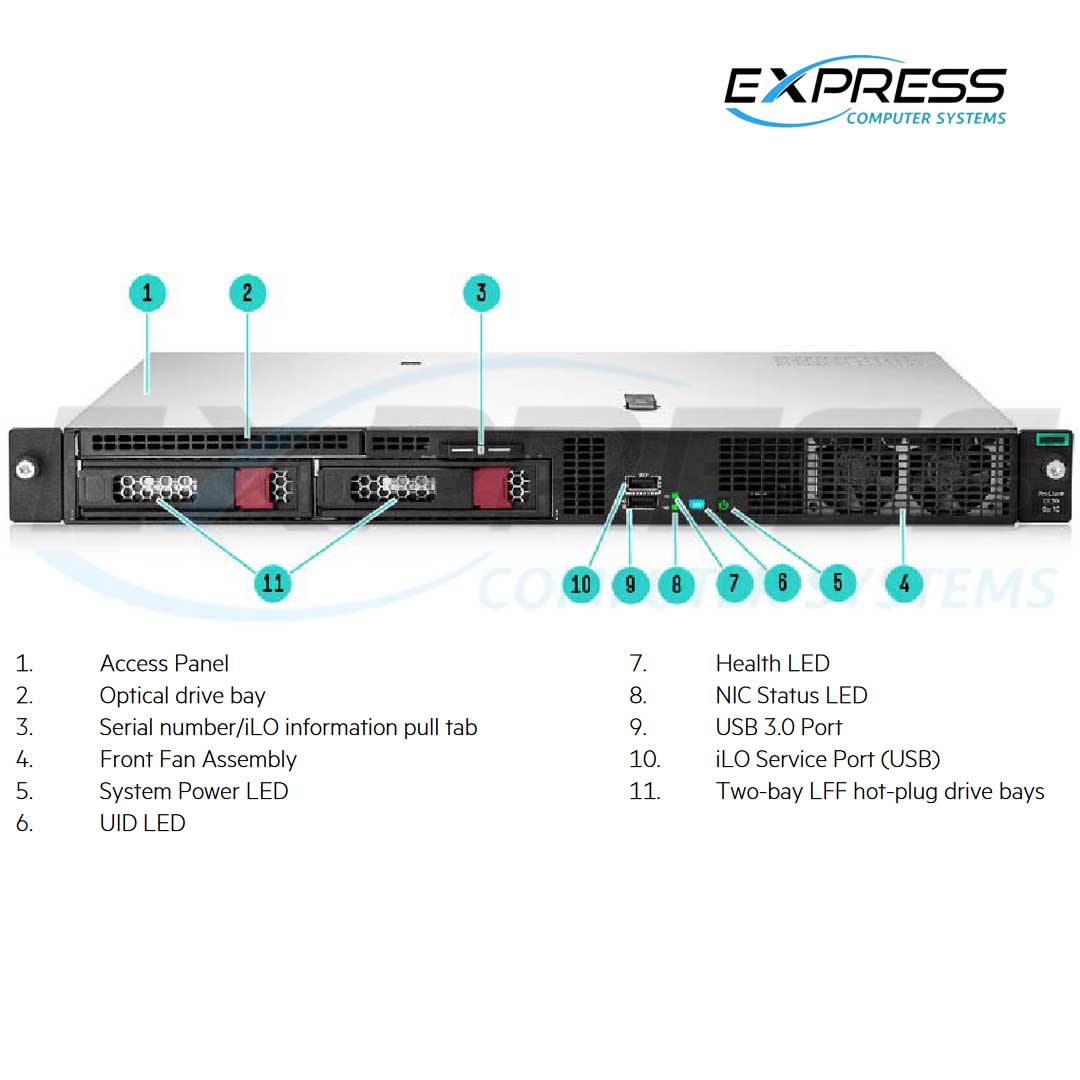

DL20 Gen10 2LFF

DL20 Gen10 2LFF

Compact and Simple Design for an Affordable Solution

HPE ProLiant DL20 Gen10 server is a short-depth chassis of 15.05 inch providing mobility and easy deployment in a wide variety of environments.

HPE ProLiant DL20 Gen10 server has great quality and design features that are a hallmark of the HPE ProLiant family such as tool-less access to system components and enhanced serviceability.

It provides affordable configuration choices along with a wide variety of HPE Qualified Options that addresses light workloads to the most demanding requirements.

HPE ProLiant DL20 Gen10 server also supports low-cost Pentium and Core series processors to meet entry configuration requirements.

Right Balance of Performance, Flexibility, Reliability, and Manageability for Growing Business Needs

You have a wide choice of dual core, quad core and hexa core Intel Pentium and Xeon E processors with up to 64 GB of DDR4 ECC memory to handle any demands that your workload might make on the HPE ProLiant DL20 Gen10 server.

It offers outstanding configuration flexibility with support for up to two large form factor (LFF) or six small form factor (SFF) drives, four DDR4 UDIMMs, 290W or 500W or 800W power supplies, and a more efficient deployment of options via HPE FlexibleLOM and PCIe slots.

The HPE ProLiant DL20 Gen10 server combines a dense and compact form factor with redundant power supply capability, which keeps your business running and provides data protection and accessibility even in the event of a power supply failure.

Along with an embedded 2 x 1GbE, you have a choice of HPE FlexibleLOM or PCIe standup adapters that offer a choice of networking bandwidth (1GbE to 10GbE) and fabric so you can adapt and grow to changing business needs.

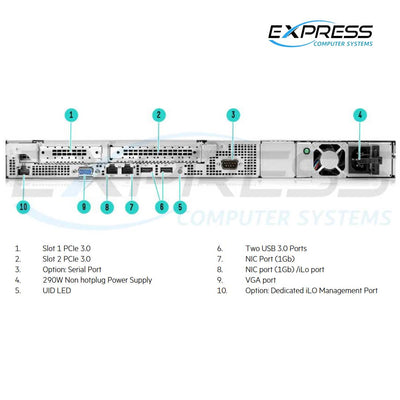

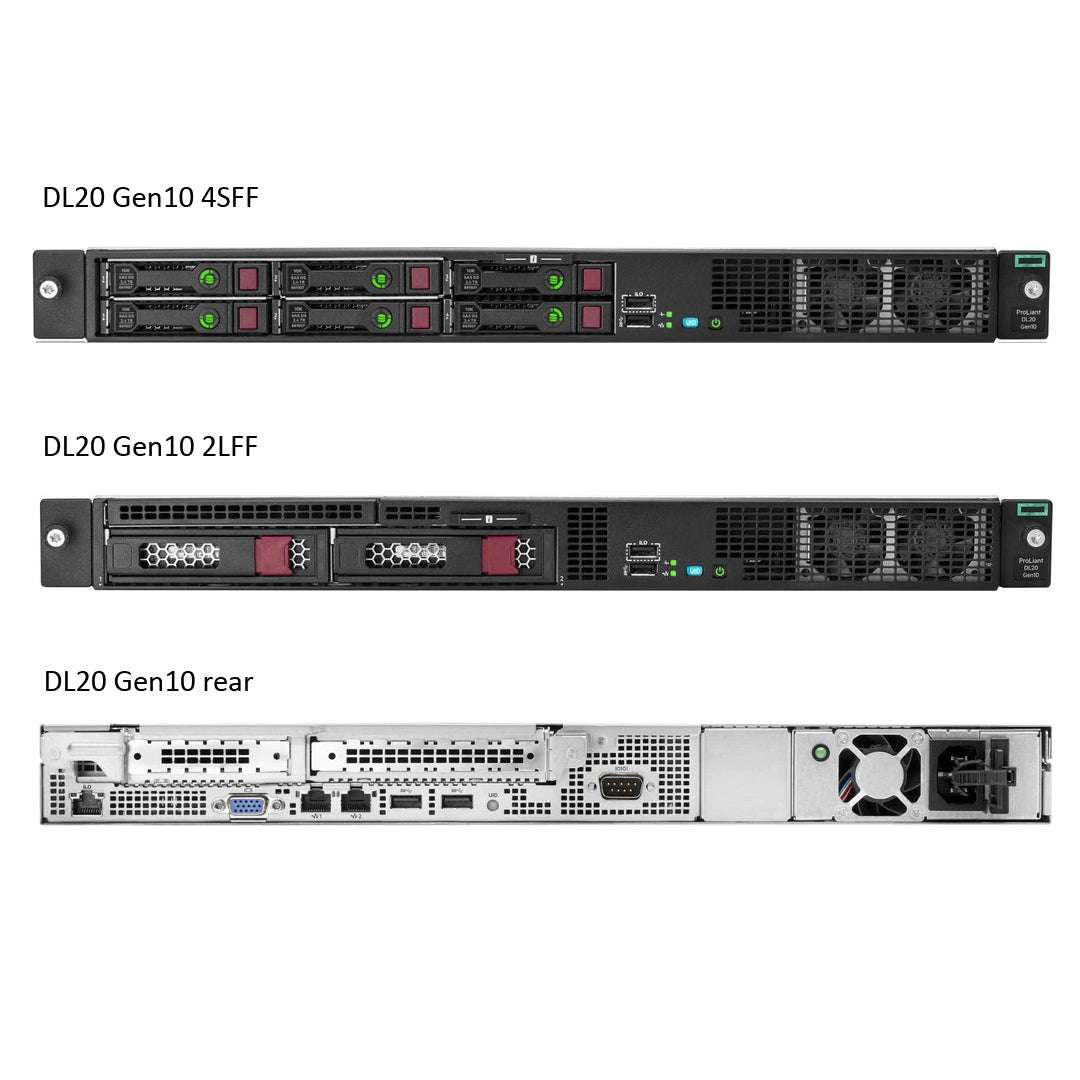

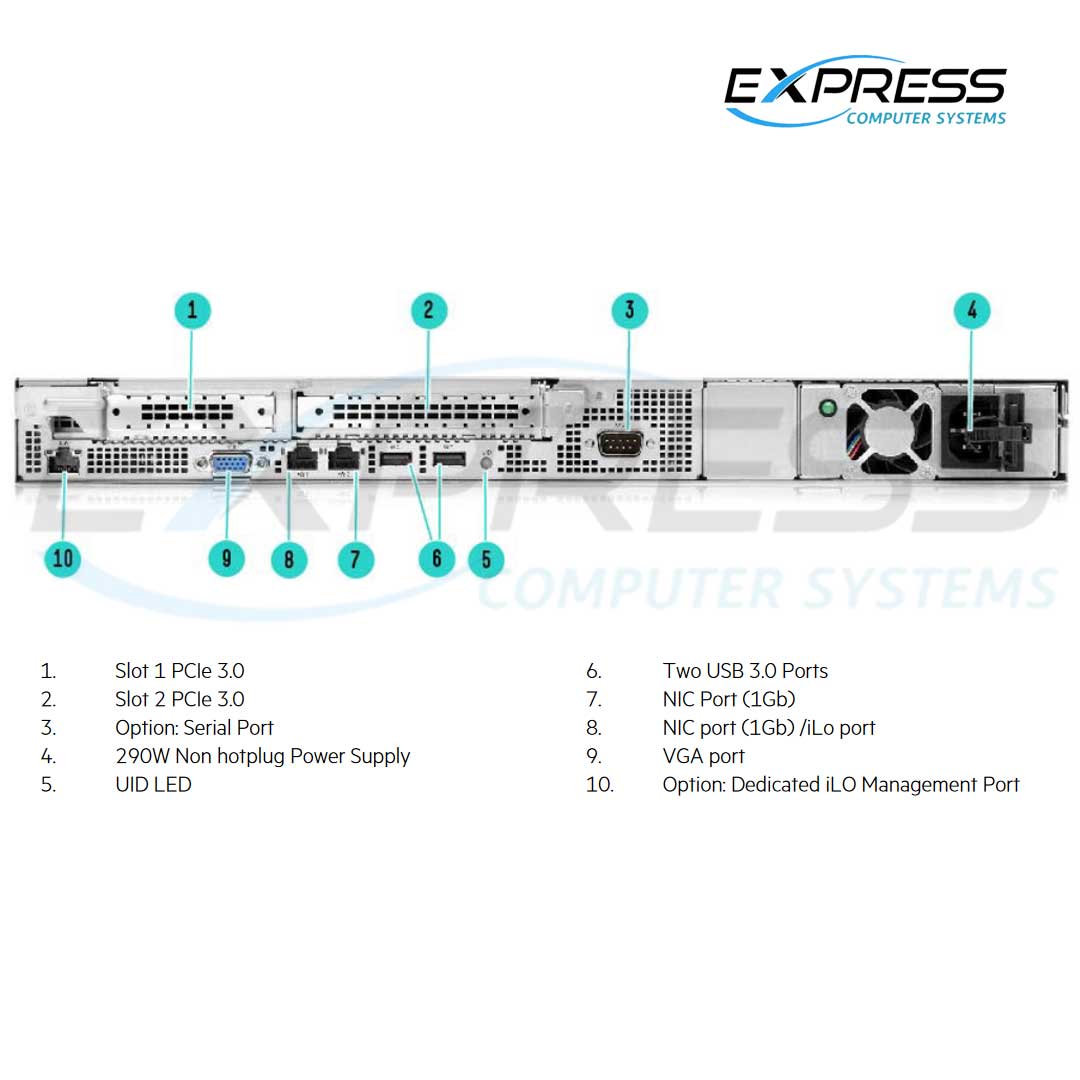

DL20 Gen10 rear

DL20 Gen10 rear

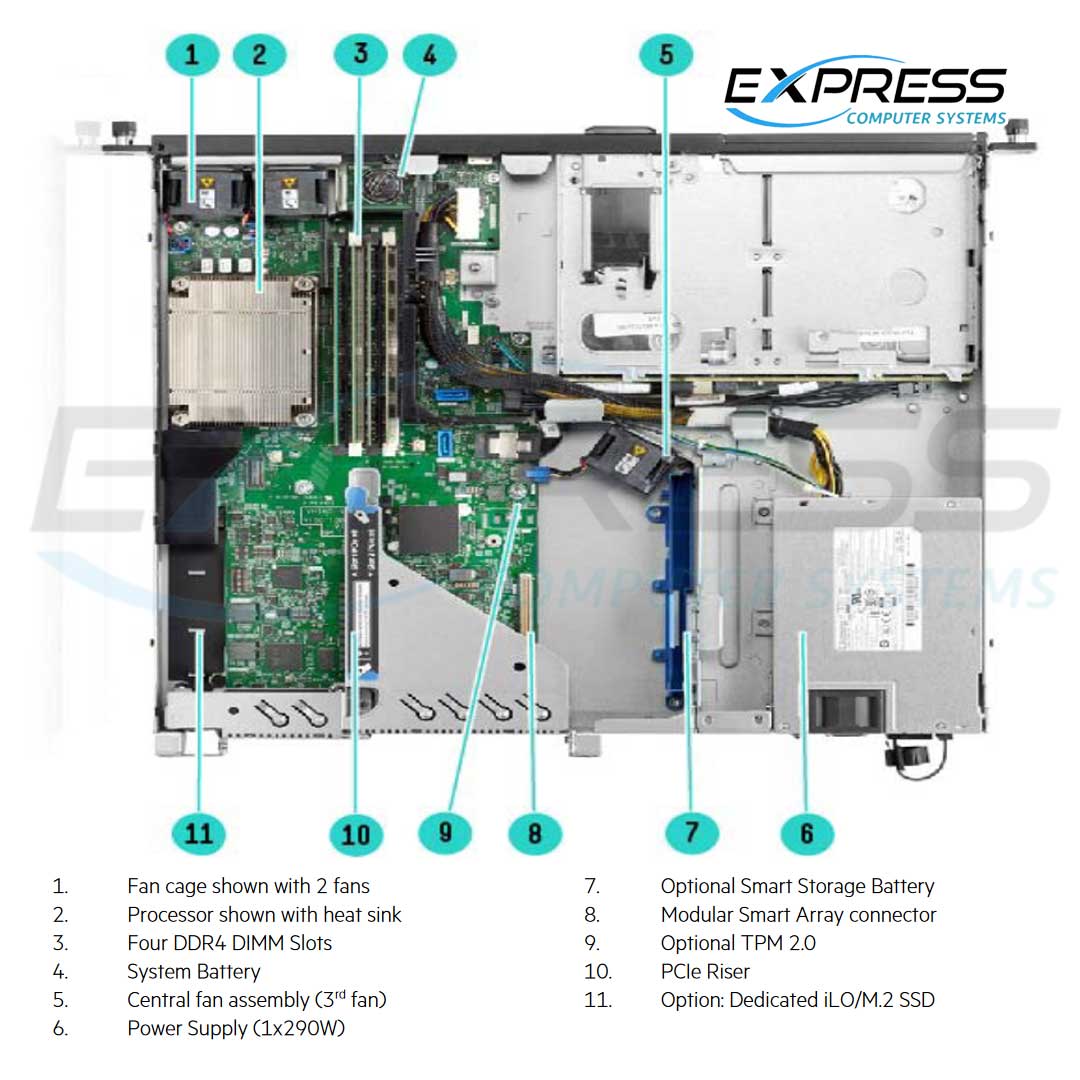

Product features

Feature
Description
Processors
Intel Xeon processor E-Series processor family is designed to deliver the best combination of performance, built-in capabilities, and cost-effectiveness. The product also supports Intel Pentium and Intel Core-i3 dual core processors
Choose one of the following processors based on the model
Intel Xeon E-2200 Series
Intel Models
CPU Frequency
Cores
L3 Cache
Power
DDR4
Intel SGX
G5420
3.8 GHz
2
4MB
54 W
2400
No
i3-9300
3.7 GHz
4
8MB
62 W
2400
No
E-2224
3.4 GHz
4
8MB
71 W
2666
No
E-2226G
3.4 GHz
6
12MB
80 W
2666
No
E-2234
3.6 GHz
4
8MB
71 W
2666
No
E-2236
3.4 GHz
6
12MB
80 W
2666
No
E-2244G
3.8 GHz
4
8MB
71 W
2666
No
E-2274G
4.0 GHz
4
8MB
71 W
2666
Yes
E-2286G
4.0 GHz
6
12MB
95 W
2666
Yes
E-2278G
3.4 GHz
8
16MB
80 W
2666
Yes
Intel Xeon E-2100 Series
Intel Xeon Models
CPU Frequency
Cores
L3 Cache
Power
DDR4
Intel SGX
G5400
3.7 GHz
2
4MB
58 W
2400
No
i3-8300
3.7 GHz
4
8MB
62 W
2400
No
E-2124
3.3 GHz
4
8MB
71 W
2666
No
E-2126G
3.3 GHz
6
12MB
80 W
2666
No
E-2134
3.5 GHz
4
8MB
71 W
2666
No
E-2136
3.3 GHz
6
12MB
80 W
2666
No
E-2144G
3.6 GHz
4
8MB
71 W
2666
No
E-2174G
3.8 GHz
4
8MB
71 W
2666
Yes
E-2186G
3.8 GHz
6
12MB
95 W
2666
Yes
Form factor
1U rack

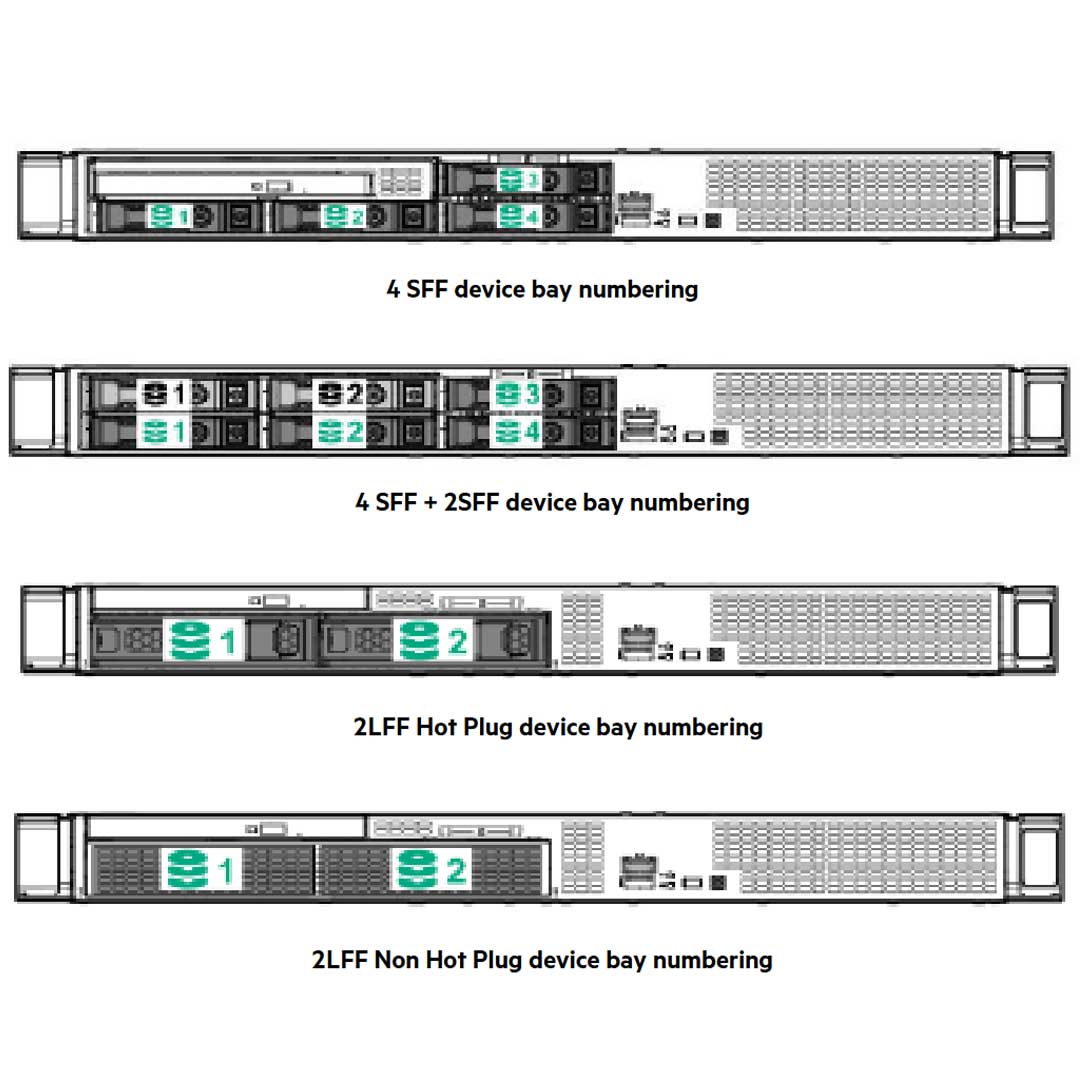

Chassis types
  • 4 SFF with options supporting: +2 SFF

  • 2 LFF Hot Plug

  • 2 LFF Non Hot Plug

System fans
Includes 3 standard single rotor non-hot plug and non-redundant fans
Chipset
Intel C242 Chipset
On system management chipset
HPE iLO 5 ASIC
Memory
Type
Dual in-line Memory Module (DIMM) Slots Available
Maximum capacity (UDIMM)
HPE DDR4 Unbuffered Unregistered Dual in-line Memory Module (UDIMM)
4
4 DIMM slots per processor
2 channels per processor
2 DIMMs per channel
64GB
4 x 16GB UDIMM - 2666 MT/s
Memory protection
ECC
Network controller
  • HPE Ethernet 1Gb 2-port 361i network Adapter (Intel i350)

  • HPE Ethernet 1Gb 2-port 332i network Adapter ( BCM5720)

  • The HPE ProLiant DL20 Gen10 server offers the user a dual-port NIC standard with the option to upgrade with a variety of networking options.

Expansion slots
Expansion Slots #
Technology
Bus Width2
Connector Width
Processor
Slot Form Factor
Primary FIO LP riser
1
PCIe 3.0
X 8
X 8
CPU1
Low profile
2
PCIe 3.0
X 8
X 16
CPU1
Full height half length
Flexible LOM riser 1
1
PCIe 3.0
X 8
X 8
CPU1
Flexible LOM
2
PCIe 3.0
X 8
X 16
CPU1
Full height half length
NOTE:
  1. This riser is mandatory for installing FlexibleLOMs.
  2. Bus Width indicates the number of physical electrical lanes running to the connector.
Storage controllers
Software RAID
HPE Smart Array S100i SR Gen10 software RAID
Essential RAID controllers
  • HPE Smart Array E208i-a SR G10 LH controller

  • HPE Smart Array E208e-p SR Gen10 controller

Performance RAID controllers
  • HPE Smart Array P408i-a SR G10 LH controller

  • HPE Smart Array P408e-p SR Gen10 controller

Internal storage devices
Optical drive:
Available on 4 SFF and 2 LFF CTO Servers as an option (DVD-ROM or DVD-RW)
Hard drives
None ship standard
Maximum storage
storage
Capacity
Configuration
Hot Plug SFF SAS HDD
14.4TB
4+2 x 2.4TB (With optional +2 drive option)
Hot Plug SFF SATA HDD
12TB
4+2 x 2.0TB (With optional + 2 drive option)
Hot Plug SFF SAS SSD
91.8TB
4+2 x 15.3TB (With optional + 2 drive option)
Hot Plug SFF SATA SSD
23.04TB
4+2 x 3.84TB (With optional + 2 drive option)
Hot Plug LFF SAS HDD
24TB
2 x 12TB
Hot Plug LFF SATA HDD
24TB
2 x 12TB
Hot Plug LFF SAS SSD
1.6TB
2 x 800GB
Hot Plug LFF SATA SSD
3.84TB
2 x 1.92TB
Power supply
  • HPE 290 W FIO power supply

  • HPE 500 W Flex Slot Platinum hot plug low halogen power supply kit

  • HPE 800 W Flex Slot -48 V dc Platinum hot plug low halogen power supply kit

Interfaces
Serial
1 Port - Optional
Video
1 Rear - VGA port (Standard on all chassis types)
Network ports
2 x 1 GbE Embedded NIC (Standard on all chassis types)
iLO Remote management port
1Gb Dedicated - Optional
USB 3.0
5 USB Ports (Standard)
  • Front: 1 x USB 3.0, 1 x USB iLO service port

  • Rear: 2 x USB 3.0

  • Internal: 1 x USB 3.0

Industry standard compliance
  • ACPI 6.1 Compliant

  • PCIe 3.0 Compliant

  • WOL Support

  • Microsoft Logo certifications

  • PXE Support

  • USB 3.0 Compliant

  • USB 2.0 Compliant

  • SMBIOS 3.1

  • Unified Extensible Firmware Interface (UEFI) Forum 2.6

  • Redfish API

  • IPMI 2.0

  • Secure Digital 4.0

  • Trusted Platform Module (TPM) 1.2 and 2.0 support

  • Advanced Encryption Standard (AES)

  • Triple Data Encryption Standard (3DES)

  • SNMP v3

  • TLS 1.2

  • DMTF Systems Management Architecture for Server Hardware Command Line (SMASH CLP)

  • Active Directory v1.0

  • ASHRAE A3/A4

  • Energy Star

Upgradeability
One of the following depending on model
  • FlexibleLOM connector for 1Gb or 10Gb or 25Gb networking options

  • Up to 4 DIMM slots available for higher memory capacity

  • Up to 4SFF (+2SFF optional) Drive bays or 2LFF Drive bays

  • HPE Smart Array or Smart HBA controller

  • Redundant power supply

  • Dedicated iLO management port

  • M.2 NVMe SSDs for boot

Graphics
16MB Video Memory
  • Integrated Matrox G200 video standard

  • Video modes up to 1920 x 1200- 60 Hz (32 bp)

  • 16MB Video Memory

  • HPE iLO 5 on system management memory

  • 32MB Flash

  • 4 Gbit DDR3 with ECC protection

Embedded management
  • HPE iLO

  • UEFI

  • Intelligent Provisioning

  • iLO RESTful API

Server utilities
  • Active Health System

  • Active Health System Viewer

  • Smart Update

  • iLO Amplifier Pack

  • HPE iLO Mobile Application

  • RESTful Interface tool (iLOREST)

  • Scripting Tools

  • HPE OneView Standard

  • HPE Systems Insight Manager (HPE SIM)

Security
  • UEFI Secure boot and secure start support

  • Immutable Silicon Root of Trust

  • FIPS 140-2 validation

  • Common criteria certification

  • Configurable for PCI DSS compliance

  • Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser

  • Support for Commercial National Security Algorithms (CNSA)

  • iLO Security Modes including a New iLO Advanced Premium Security License

  • Granular control over iLO interfaces

  • Smart card (PIV/CAC) and Kerberos based 2-factor Authentication

  • Tamper-free updates – components digitally signed and verified

  • Secure recovery – recover critical firmware to known good state on detection of compromised FW

  • Ability to rollback firmware

  • Secure erase of NAND

  • TPM 1.2 option

  • TPM 2.0 option

  • Chassis intrusion detection option

  • Intel SGX

top

Software overview

Feature
Description
Operating Systems and Virtualization Software
  • Windows Server 2016 and 2019 (Most recent version)

  • VMware vSphere 6.7 and 6.5 U2

  • Red Hat Enterprise Linux (RHEL) 7.6 and 8.0

  • SUSE Linux Enterprise Server (SLES) 15 and 12 SP3

  • ClearOS/VM 7.5

  • CentOS 7.5

NOTE:
  • VMware support is available on Intel Xeon E-Series processors only.
  • ClearOS allows user to build a fully functional server that is just right for user at no upfront cost.

top

Physical specifications

Specifications
Description
Dimensions (H x W x D)
SFF Drives
4.32 x 43.46 x 38.22 cm (1.70 x 17.11 x 15.05 in)
LFF Drives
4.32 x 43.46 x 38.22 cm (1.70 x 17.11 x 15.05 in)
Weight (Approximate)
7.88 kg (17.37 lb)
(Non hot Plug 2 LFF fully loaded (All hard drives, power supplies, and processors installed)
7.9 kg (17.41 lb)
Hot Plug 2LFF fully loaded (One hard drive, power supply, and processor installed)
Hot Plug 4SFF fully loaded (Two hard drives, power supply, and processor installed)

top

Electrical specifications

Specifications
Description
290 W Non-hot plug power supply
Rated line voltage
100 to 120 V ac
200 to 240 V ac
Rated input current
5.5 A Maximum (At 100 V ac)
Rated input frequency
50 to 60 Hz
Rated input power
550 W (At 100 V ac)
BTU rating (Maximum)
1130 BTU/hr (At 115 V ac)
1126 BTU/hr (At 230 V ac)
Power supply output (Per power supply)
Rated steady state power: 290 W Maximum
Maximum peak power: 366 W within 10 seconds
500 W/800 W Redundant power supply
Rated line voltage (Per power supply)
100 to 120 V ac
200 to 240 V ac
BTU rating (Maximum)
For 800 W power supply: 3207 BTU/hr (At 100 V ac), 3071 BTU/hr (At 200 V ac), 3112 BTU/hr (At 240 V dc) for China only
For 500 W power supply: 1979 BTU/hr (At 100 V ac), 1911 BTU/hr (At 200 V ac), 1965 BTU/hr (At 240 V dc) for China only
Power specifications
To review typical system power ratings use the Power Advisor which is available via the online tool located at Click here to view the "Rack and power infrastructure" for more information and also Click on the system of interest. Example: DL20 Gen10 - Follow the instructions of the next screens.
Power supply output (Per power supply)
Rated steady state power:
  • For 800 W power supply: 800 W (At 100 V ac), 800 W (At 240 V ac), 800 W (At 240 V dc) input for China only

  • For 500 W power supply: 500 W (At 100 V ac), 500 W (At 240 V ac), 500 W (At 240 V dc) input for China only

Maximum peak power:
  • For 800 W Power Supply:800 W (At 100 V ac), 800 W (At 240 V ac), 800 W (At 240 V dc) input for China only

  • For 500 W Power Supply: 500 W (At 100 V ac), 500 W (At 240 V ac), 500 W (At 240 V dc ) input for China only

  • For 800 W Power Supply: 800 W (At 100 V ac), 800 W (At 240 V ac), 800 W (At 240 V dc) input for China only

top

Environmental specifications

Specifications
Description
System inlet temperature
Standard operating support
10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 20°C/hr (36°F/hr). The upper limit and rate of change may be limited by the type and number of options installed.
System performance during standard operating support may be reduced if operating above 30°C (86°F).
Extended ambient operating support
For approved hardware configurations, the supported system inlet range is to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft).
For approved hardware configurations, the supported system inlet range is to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft).
System performance may be reduced if operating in the ambient operating range.
Non-operating
-30°C to 60°C (-22°F to 140°F) Maximum rate of change is 20°C/hr (36°F/hr).
Relative humidity (Non-condensing)
Operating: 8% to 90% - Relative humidity (Rh), 28°C maximum wet bulb temperature, non-condensing.
Non-operating: 5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing
Altitude
Operating: 3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Non-operating: 9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Acoustic noise
Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels
Configuration SKU
P17077-B21
P17078-B21
P17079-B21
P17080-B21
P17081-B21
Idle
LWAd
3.8 B
3.8 B
3.7 B
3.8 B
3.8 B
LpAm
20 dBA
21 dBA
21 dBA
21 dBA
20 dBA
Operating
LWAd
3.8 B
4.5 B
4.5 B
4.7 B
4.8 B
LpAm
21 dBA
29 dBA
29 dBA
29 dBA
30 dBA
Configuration SKU
P06476-B21
P08335-B21
P06477-B21
P06478-B21
P06479-B21
Idle
LWAd
3.8 B
3.8 B
3.7 B
3.8 B
3.8 B
LpAm
21 dBA
20 dBA
21 dBA
20 dBA
20 dBA
Operating
LWAd
4.3 B
4.5 B
4.5 B
4.6 B
4.4 B
LpAm
26 dBA
28 dBA
28 dBA
28 dBA
27 dBA
NOTE: Acoustics levels presented here are generated by the test configuration only. Acoustics levels will vary depending on system configuration. Values are subject to change without notification and are for reference only.

top

Safety certifications

Specifications
Description
Emissions Classification (EMC)
To view the regulatory information for users product, view the Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center: Click here to view the Enterprise Safety and Compliance for more information .

top
