Refurbished HPE ProLiant DL180 Gen9 Configure to Order Server

Brand:
Type:
CTO Servers
Condition:
ECS Refurbished & Tested

Multi-Quantity Discounts Available for ALL Line Items

** LARGE DISCOUNTS available for complete systems. Pricing displayed is for single item purchases **

Use the configuration tool to create your solution and submit it us for a quote OR send us a message with your complete build requirements to receive best pricing

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Submit for Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Server Chassis

HPE Processors

Intel Xeon E5-2600v3

Supports up to (2) processors - View product features for supported memory

Intel Xeon E5-2600v4

Supports up to (2) processors - View product features for supported memory

HPE Memory

8 DIMMs per processor (up to 16 DIMMs in a dual-processor configuration)

HPE RAID Controllers

HPE SFF Drives SAS (2.5in)

HPE SFF Drives SATA (2.5in)

HPE LFF Drives SAS (3.5in)

HPE LFF Drives SATA (3.5in)

HPE M.2 Drives

M.2 drives go in PCIe slot and use B140i SATA controller only

HPE PCIe Drives

Supports up to 5 PCIe Slots (Full Height)

HPE Network Adapters

Supports up to 5 PCIe Slots (Full Height)

HPE Host Bus Adapter

Supports up to 5 PCIe Slots (Full Height)

HPE FlexibleLOM Adapter

DL180 Gen9 FlexibleLOM Enablement Kit ( 780965-B21 ) is required when FlexibleLOM is selected

HPE InfiniBand Adapter

Supports up to 5 PCIe Slots (Full Height)

HPE Power Supplies

Supports up to (2) PSU's

HPE Expansion

HPE Options

HPE Rail Kits

HPE Optical Drives

HPE Security

ECS Warranty

Helpful Tip: Once desired configuration is selected click "Add to Cart". From the cart page you can submit a submit a quote request for best pricing

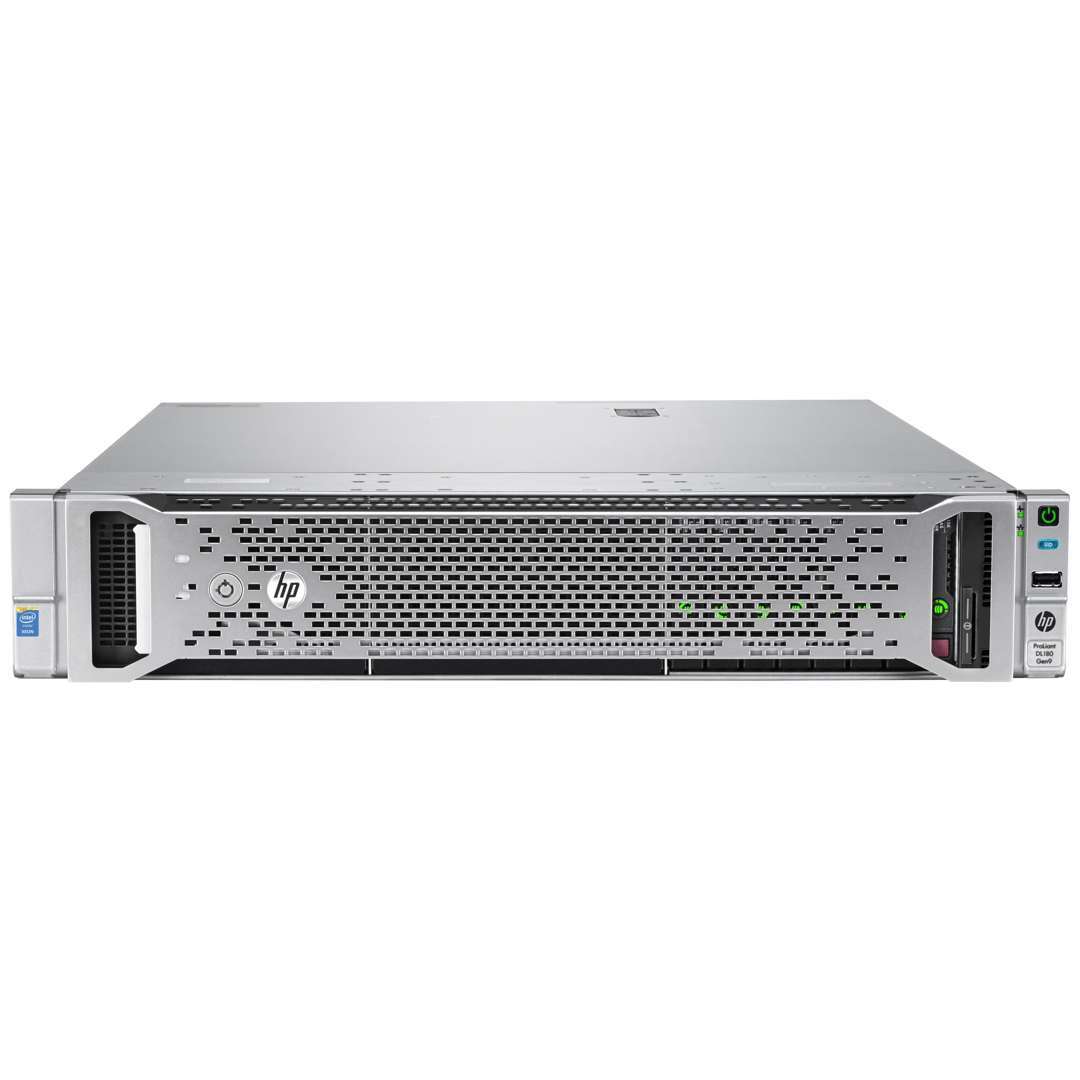

Refurbished HPE DL180 Gen9 Configure to Order Rack Server

Designed with just the right balance of scalability and performance, the refurbished HP ProLiant DL180 Gen9 Server is an optimized 2U model that helps growing businesses, data centers, and service providers alike manage their infrastructures more efficiently. With high availability and efficiency for dense storage applications, this server allows for more agile management that enables accelerated service delivery.

What's New for DL180 Gen9

  • HPE Smart Memory 2400 MHz memory (Up to 64GB)

  • Intel Xeon E5-2600v4 processor support (Up to 120 W)

  • New 900 W/240 V power supply

  • HPE Trusted Platform Module (TPM) 2.0

  • New HDD offerings

  • Support for ClearOS – an easy to use OS with an application marketplace

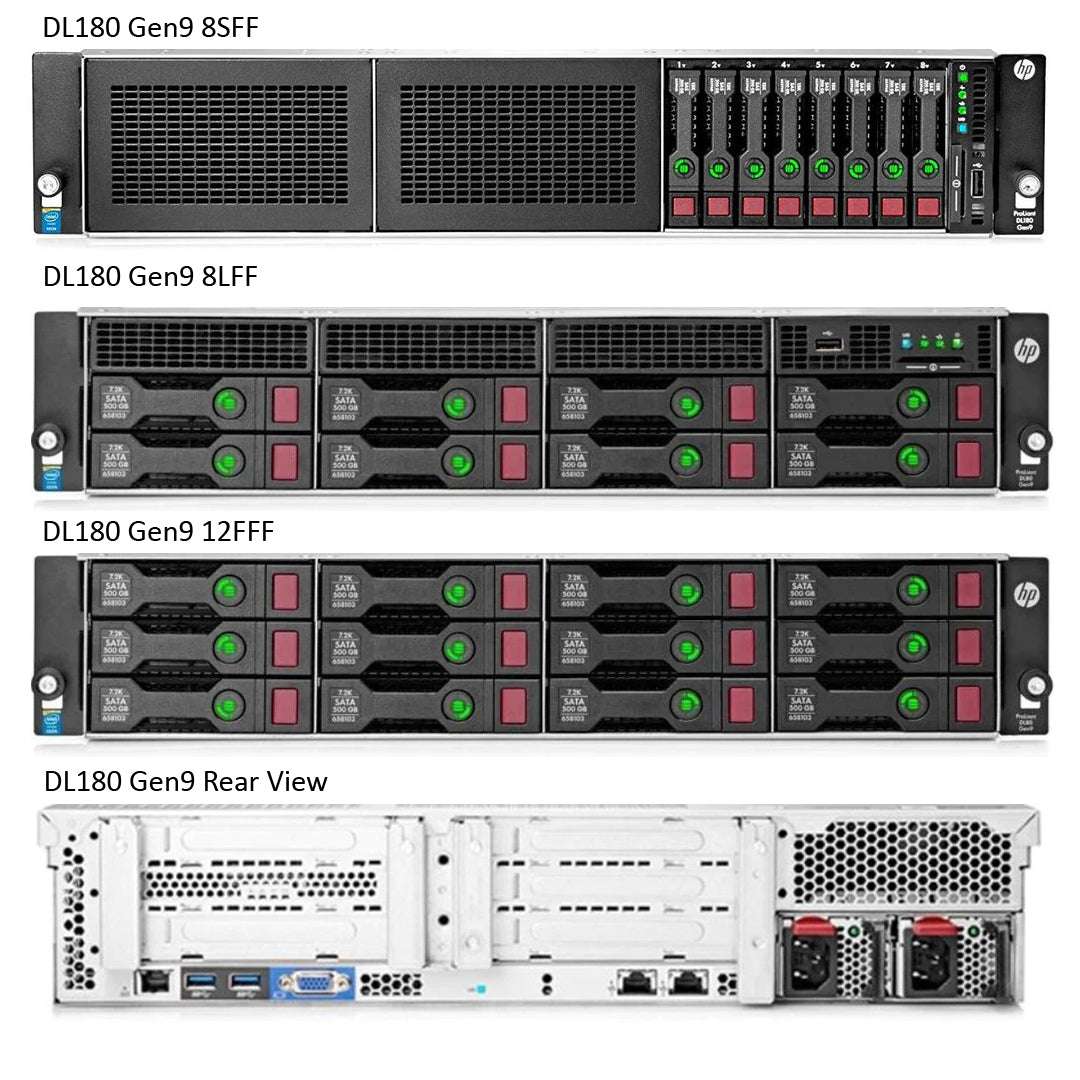

DL180 Gen9 8SFF

DL180 Gen9 8SFF

DL180 Gen9 8LFF

DL180 Gen9 8LFF

DL180 Gen9 12FFF

DL180 Gen9 12FFF

Scalability and Performance To Meet the New Standard of Growing Data Center Needs

The HPE ProLiant DL180 Gen9 Server provides ample storage capacity on demand with drive configurations ranging from (4) to (12) Large Form Factor (LFF) or (8) to (16) Small Form Factor (SFF) HPE SmartDrives, with flexibility of LFF non-hot plug (NHP) options at the right economics.

It supports up to two Intel Xeo processor E5-2600 v3/v4 processors with up to (12) cores and (16) DIMM slots of HPE DDR4 SmartMemory offering improved performance and efficiency.

Comes standard with 2x1GbE and choice of HPE FlexibleLOM or PCIe standup 1GbE or 10GbE Adapters provide you flexibility of networking bandwidth and fabric so you can adapt and grow to changing business needs.

Up to six PCIe 3.0 riser slots to support a wide range of GPUs and networking cards offering increased IO bandwidth and seamless expandability.

Embedded SATA HPE Dynamic Smart Array B140i Controller for boot and data. Choice of HPE Smart Array Controllers with increased performance, data availability with 12 Gb/s SAS technology or HPE Smart HBAs with reliable high performance SAS connectivity capable of running HBA mode or simple RAID mode.

High Availability and Efficiency for Dense Storage Applications

The HPE ProLiant DL180 Gen9 Server supports HPE SmartDrive technology which improves serviceability and prevents data loss with features, such as, self-describing LEDs and a Do Not Remove icon.

HPE SmartMemory prevents data loss and downtime with enhanced error handling. Support of up to 512 GB max capacity with speeds up to 2133 MHz with up to 14% performance gain.

80 PLUS certified entry-level redundant HPE Power Supplies provide up to 92% efficiency which combined with HPE power management features leads to reduction of power consumption.

Improved ambient temperature standard with ASHRAE A3 and A4 helps customers reduce cooling expense.

ENERGY STAR qualified server configurations illustrate a continued commitment to helping customers conserve energy and save money.

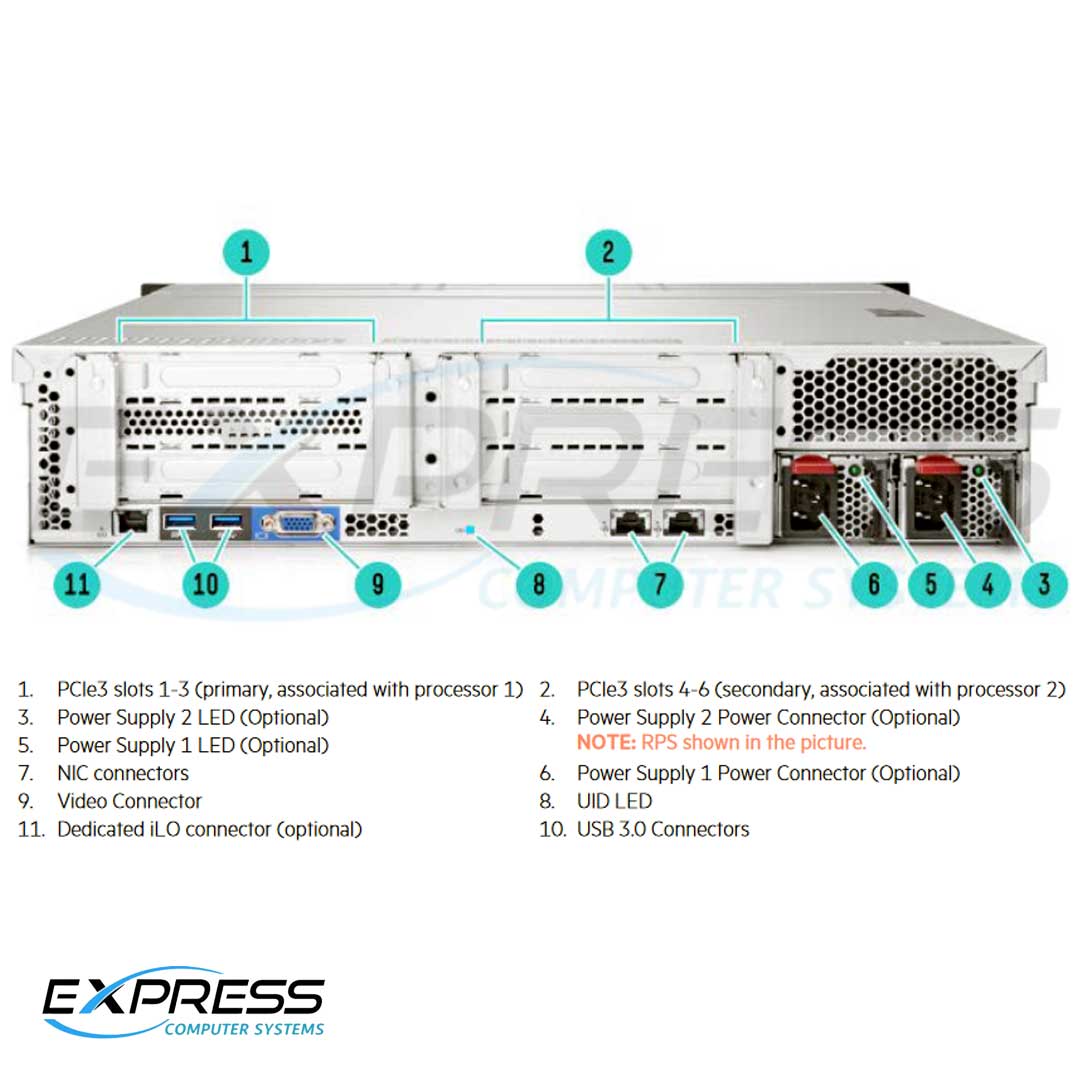

DL180 Gen9 rear

DL180 Gen9 rear

Product features

Feature
Description

On system management chipset
HPE iLO (Firmware HPE iLO4 2.0 or later) 2GB NAND
Processor
(One of the following depending on model)
Model
CPU Frequency
Cores
L3 Cache
Power
QPI
DDR4 MHz
E5-2660v3
2.6 GHz
10
25MB
105 W
9.6 GT/s
2133
E5-2650v3
2.3 GHz
10
25MB
105 W
9.6 GT/s
2133
E5-2650Lv3
1.8 GHz
12
25MB
65 W
9.6 GT/s
2133
E5-2640v3
2.6 GHz
8
20MB
90 W
8.0 GT/s
1866
E5-2630v3
2.4 GHz
8
20MB
85 W
8.0 GT/s
1866
E5-2630Lv3
1.8 GHz
8
25MB
55 W
8.0 GT/s
1866
E5-2620v3
2.4 GHz
6
15MB
85 W
8.0 GT/s
1866
E5-2609v3
1.9 GHz
6
15MB
85 W
8.0 GT/s
1600
E5-2603v3
1.6 GHz
6
15MB
85 W
6.4 GT/s
1600
E5-2695v4
2.1 GHz
18
45MB
120 W
9.6 GT/s
2400
E5-2683v4
2.1 GHz
16
40MB
120 W
9.6 GT/s
2400
E5-2680v4
2.4 GHz
14
35MB
120 W
9.6 GT/s
2400
E5-2660v4
2.0 GHz
14
35MB
105 W
9.6 GT/s
2400
E5-2650v4
2.2 GHz
12
30MB
105 W
9.6 GT/s
2400
E5-2650Lv4
1.7 GHz
14
35MB
65 W
9.6 GT/s
2400
E5-2640v4
2.4 GHz
10
25MB
90 W
8.0 GT/s
2133
E5-2630v4
2.2 GHz
10
25MB
85 W
8.0 GT/s
2133
E5-2630Lv4
1.8 GHz
10
25MB
55 W
8.0 GT/s
2133
E5-2623v4
2.6 GHz
4
10MB
85 W
8.0 GT/s
2133
E5-2620v4
2.1 GHz
8
20MB
85 W
8.0 GT/s
2133
E5-2609v4
1.7 GHz
8
20MB
85 W
6.4 GT/s
1866
E5-2603v4
1.7 GHz
6
15MB
85 W
6.4 GT/s
1866
Memory
(One of the following depending on model)
Type
  • HPE SmartMemory

  • DDR4 Registered (RDIMM) or Load Reduced (LRDIMM)

DIMM slots available
16 (8 DIMM slots per processor, 4 channels per processor, 2 DIMMs per channel)
Maximum capacity (LRDIMM)
1TB (16 x 64GB LRDIMM @ 2400 MHz)
Maximum capacity (RDIMM)
512GB (16 x 16GB RDIMM @ 2133 MHz)
Memory protection
(One of the following depending on model)
Advanced ECC
Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip
Online spare
Memory online spare mode detects a rank that is degrading and switches operation to the spare rank
Network controller
HPE Ethernet 1Gb 2-Port 361i adapter
Expansion slots
Expansion Slots
Technology
Bus Width
Connector Width
Form Factor
Primary riser (Optional)
1
PCIe 3.0
x 8
x 8
Full height, full length slot
2
PCIe 3.0
x 8
x 8
Full height, half length slot
3
PCIe 3.0
x 8
x 8
Full height, half length slot
Primary riser (Optional)
1
PCIe 3.0
x 16
x 16
Full height, full length slot
2
PCIe 3.0
x 8
x 8
Full height, half length slot
Riser with FlexibleLOM (Optional)
1
PCIe 3.0
x 8
x 8
Full height, full length slot
2
PCIe 3.0
x 8
x 8
Full height, half length slot
3
FlexibleLOM
-
-
Full height, half length slot
Storage controller
(One of the following depending on model)
Entry models
HPE Dynamic Smart Array B140i Controller
Base models
HPE Dynamic Smart Array B140i Controller
HPE H240 FIO Smart Host Bus Adapter
Storage models
HPE Flexible Smart Array P840/4G FIO Controller
Performance models
HPE Flexible Smart Array P840/4G FIO Controller
Internal storage devices
(One of the following depending on model)
Optical drives
Optional: DVD-ROM, DVD-RW

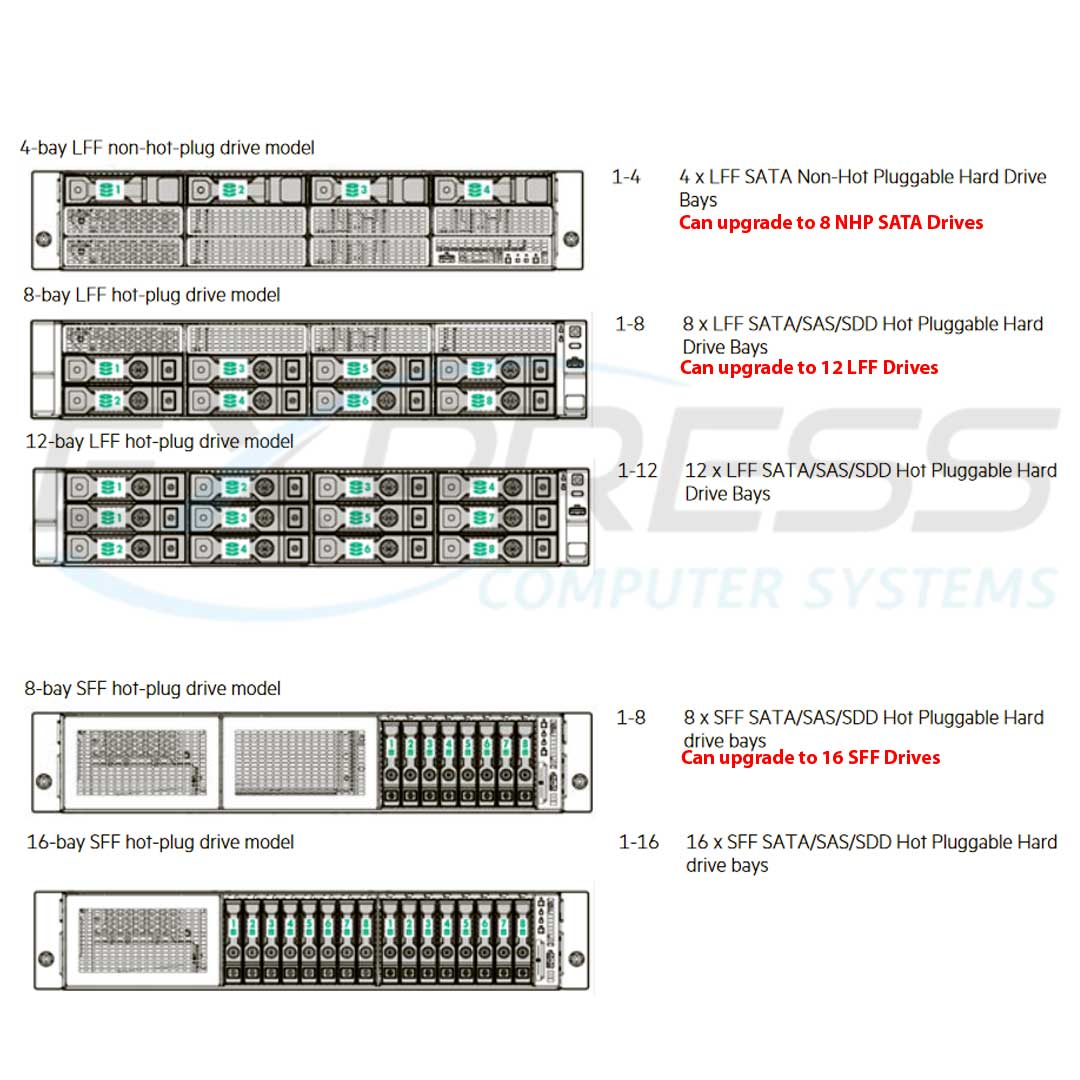

Hard drives
  • None ship standard

  • 8 SFF Drive bays total with Optical Bay

  • Optional: +8SFF drive bay (Total of 16SFF drive bays)

Hard drive bays
  • 8 LFF Drive bays total without optical bay

  • 12 LFF Drive bays total without optical bay

  • Up to 4 non-hot plug SATA 3.5-inch drives

Maximum internal storage
(One of the following depending on model)
Drive
Capacity
Configuration
Hot plug SFF SAS
32TB
16 x 2TB (With 16SFF drive cage)
Hot plug SFF SATA
32TB
16 x 2TB (With 16SFF drive cage)
Hot plug LFF SAS
96.0TB
12 x 8TB (With 12LFF drive cage)
Hot plug LFF SATA
96.0TB
12 x 8TB (With 12LFF drive cage)
Hot plug SFF SAS SSD
30.7TB
16 x 1.92TB (With 16SFF drive cage)
Hot plug SFF SATA SSD
25.6TB
16 x 1.6TB (With 16SFF drive cage)
Hot plug LFF SATA SSD
19.2TB
12 x 1.6TB (With 12LFF drive cage)
Non-Hot plug LFF SATA
32TB
8 x 4TB (With 8LFF drive cage)
Power supply
  • HPE 550 W FIO Power supply

  • HPE 900 W Redundant power supply

System fans
(One of the following depending on model)
Type
Non-Redundant
Redundant
1P Model
2 Fans
4 Fans
2P Model
4 Fans
5 Fans
Interfaces
Video
1 (Vaux Support)
LOM Network Ports
2 x 1GbE Network ports
HPE iLO Remote management network port
1 GbE (Optional)
SD Slot
1 Micro SD
USB
  • Up to 4 USB ports (Standard)

  • Front: 1 x USB 2.0 std; (1 x USB3.0 Optional upgrade with quick release ears)

  • Rear: 2 x USB 3.0

  • Internal: 1 x USB 3.0

Upgradeability
(One of the following depending on model)
  • Upgradeable to 2 processors (36 Cores)

  • Up to 16 DIMM slots available

  • FlexibleLOM slot for 1GbE or 10 GbE or QDR/FDR InfiniBand networking options

  • Optional 2 slot riser (x 16, x 8)

  • Redundant power supply

  • Redundant fan

  • Optical drive (8 SFF Only)

Graphics
Integrated Matrox G200eH2 video standard
  • 1280 x 1024 (32 b/p)

  • 1920 x 1200 (16 b/p)

Form factor
2U Rack form factor
4/8/12 LFF and 8/16 SFF Drive Bay Version (H x W x D) :
8.75 x 44.55 x 60.70 cm (3.44 x 17.54 x 23.9 in)



top

Software overview

Feature
Description
Operating Systems (OS) and virtualization software support for ProLiant servers
  • Microsoft Windows Server

  • Red Hat Enterprise Linux (RHEL)

  • SUSE Linux Enterprise Server (SLES)

  • Oracle Solaris

  • VMware

Embedded management
  • HPE Integrated Lights-Out (HPE iLO)

  • UEFI

  • RESTful API

  • Intelligent Provisioning

  • Embedded Remote Support

top

Physical specifications

Specifications
Description
Dimensions(With bezel)
  • SFF Drives: 8.75 x 44.55 x 60.7 cm (3.44 x 17.54 x 23.9 in)

  • LFF Drives: 8.75 x 44.55 x 60.7 cm (3.44 x 17.54 x 23.9 in)

Weight(Approximate)
  • Maximum:(All hard drives: front + rear, full power supply, and processor installed)

    21.59 kg (47/6 lb)

  • Minimum:(One SFF hard drive, single power supply, and processor installed. HDD not installed)

    16.59 kg (36.58 lb)

top

Electrical specifications

Specifications
Description
Rated line voltage
100 to 240 V ac
Rated input current
For 550 W Power Supply:
  • 6.7 A (At 100 V ac)

  • 3.3 A (At 100 V ac)

Rated input frequency
47 to 63 Hz
Rated input power
For 550 W Power Supply:
  • < 670 W (At 100 V ac)

  • < 660 W (At 200 V ac)

BTU Rating (Maximum)
For 550 W Power Supply:
  • 2201 BTU/hr (At 100 V ac)

  • 2153 BTU/hr (At 200 V ac)

Power supply output
Rated Steady-State Power
For 550 W Power Supply:
  • 550 W (At 100 V ac)

  • 550 W (At 200 V ac)

Maximum Peak Power
For 550 W Power Supply:
  • 550 W (at 100 V ac)

  • 550 W (at 200 V ac)

top

Environmental specifications

Specifications
Description
System inlet temperature
  • Standard Operating Support

    10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 20°C/hr (36°F/hr). The upper limit and rate of change may be limited by the type and number of options installed. System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F).

  • Extended Ambient Operating Support

    For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft).

    For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft).

    System performance may be reduced if operating in the extended ambient operating range or with a fan fault.

  • Non-operating

    -30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).

Relative humidity (Non-condensing)
  • Operating

    Minimum to be the higher (More moisture) of -12°C (10.4°F) dew point or 8% relative humidity. Maximum to be the lower (Less moisture) of 24°C (75.2°F) dew point or 90% relative humidity.

  • Non-operating

    5% to 95% Relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude
  • Operating

    3048 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

  • Non-operating

    9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Acoustic noise 1
Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
Idle
Type
L WAd
L pAm
Entry
5.4 B
39 dBA
Base
5.5 B
39 dBA
Storage
6.3 B
46 dBA
Performance
5.5 B
38 dBA
Operating
Entry
5.5 B
40 dBA
Base
5.6 B
40 dBA
Storage
6.3 B
46 dBA
Performance
5.5 B
38 dBA
NOTE: 1. The Listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels.

top

Safety certifications

Certifications
Description
Emissions classification(EMC)1
FCC Rating: Class A
Normative Standards:
  • CISPR 22

  • EN55022

  • EN55024

  • FCC CFR 47, Pt 15

  • ICES-003

  • CNS14336-1

  • CNS13438

  • GB4943

  • GB9254

  • EN 61000-3-2

  • EN 61000-3-3

  • EN 60950-1

  • IEC 60950-1

Industry standard compliance
  • ACPI 2.0b Compliant

  • PCIe 3.0 Compliant

  • PXE Support

  • WOL Support

  • Microsoft Logo certifications

  • USB 3.0 Support

  • ASHRAE A3/A42

Security
  • Power-on password

  • Serial interface control

  • Administrator's password

  • TPM 1.2

  • UEFI

NOTE: 1.Product conformance to cited product specifications is based on sample (Type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

2. Supports A3 extended ambience, A4 extended ambience will be available in Nov 2014.

top


Shipping Information

Express Computer Systems can ship to virtually any address in the world and provides you with the best shipping rates possible. Cost of shipping varies depending on what service you require, your destination and size of the shipment. Shipping costs will be calculated separately from your order and billed to you post purchase. In the notes section of your order please provide us with your preferred shipping method and we will get back to you.

Custom configured orders ship within 2 business days after all required products are in stock.

Please allow 3 business days for products that are not in stock to arrive to our facility in Irvine, California.

Domestic Shipments

Standard Ground Shipping time: 2-7 business days
Order processing time: 0-3 business days
Delivery time after order is placed: 2-10 business days
Excludes weekends, holidays or weather delays.
3 Business Days Shipping time: 3 business days
Order processing time: 0-3 business days
Delivery time after order is placed: 3-6 business days
Excludes weekends, holidays or weather delays.
2 Business Days Shipping time: 2 business days
Order processing time: 0-3 business days
Delivery time after order is placed: 2-5 business days
Excludes weekends, holidays or weather delays.
Overnight / Next Business Day Shipping time: 1 business day
Order processing time: 0-3 business days
Delivery time after order is placed: 1-4 business days
Excludes weekends, holidays or weather delays.


International Shipments

International Economy Shipping time: 4-6 business days
Order processing time: 0-3 business days
Delivery time after order is placed: 5-9 business days
Excludes weekends, holidays or weather delays.
International Priority Shipping time: 1-3 business days
Order processing time: 0-3 business days
Delivery time after order is placed: 2-6 business days
Excludes weekends, holidays or weather delays.



For more information on shipping view our Shipping Information page or send us a message

ECS Warranty Information

Express Computer Systems (ECS) provides a 1 year parts warranty against defects in material or workmanship that will affect the products functionality. All refurbished items are tested prior to shipping to guarantee up-time upon arrival. If you are having issues with an item we provided please Contact Us and we will do our best to assist you.

What does our ECS warranty cover?
We offer 1 year warranty as standard and additional years can be added to fit your needs. Please reach out to a sales associate via the Contact Us page or live chat for more information on extended coverage options. During the coverage period if your product fails we will offer a Next Business Day replacement. If we are unable to replace the product we will refund its original selling price. Shipping costs and tax are not refundable. Express Computer Systems retains the right to decide whether the goods will be replaced or refunded.

What is not covered by our warranty?
Our warranty does not cover any problem caused by the following conditions:

  1. accidents; misuse; carelessness; electrostatic discharge; shock; temperature or humidity beyond the specifications of the product; improper installation; operation; modification;
  2. any improper use that contravenes the instructions in the user manual;
  3. problems caused by other equipment. Our warranty is void if the product is returned with damaged, removed, counterfeit labels, or any modifications (including any component or external cover removal). Our warranties do not cover data loss or damages to any other equipment. In addition, our warranties do not cover incidental damages, consequential damages, or costs related to data recovery, removal, and installation.

Important notes:

  • Please ask for additional warranty/coverage that you may require in addition to the standard 1 ECS warranty prior to final purchase. Requesting additional warranty after your purchase can be denied.
  • FREE technical support is provided on purchased items via phone, email, or live chat.

About Express Computer Systems

Express Computer Systems is committed to transforming our customers’ IT infrastructure with high quality products at affordable costs. Our sales reps and customer support engineers understand our customers rely heavily on advanced technology to run their business but need to do so without breaking the bank.

We specialize in building custom server configurations, custom storage solutions, networking solutions, and components from top manufacturers including HPE, Dell, Cisco, NetApp, Dell EMC, HPE Nimble and many others.

Same-Day Shipping
At Express Computer Systems, we know hardware emergencies can happen at anytime. We also understand that you want to receive the best hardware as quickly as possible. At Express Computer Systems we'll ship the majority of our orders out the same day payment is made. Curious if the item you need will make it out on time? Feel free to contact us directly via the Contact Us link at the bottom, Live Chat feature or (800) 327-0730.

Buy, Sell, Rent, Lease, Trade-In
At Express Computer Systems we not only will sell you equipment at a great value, but we'll also purchase your used Dell, Cisco, NetApp or other networking equipment. Feel free to contact us with the model of the items you're looking to sell and we'll get you a quote ASAP. We also have flexible financing options for your purchasing needs.

In-House Configuration and Testing Lab
Every item we sell is tested on-site in our state-of-the-art hardware engineering lab. We use certified technicians to test every piece of equipment as well as updating all necessary firmware. The highest quality of testing and certification is guaranteed. We warranty all of our items we sell. Ask us today about warranty for a specific item.

Subscribe
