HPE ProLiant BL460c Gen10 CTO Server Blade

Part#:
BL460CG10
Brand:
HPE
Type:
CTO Servers
Condition:
ECS Refurbished & Tested
Warranty:
ECS 1 Year Hardware Warranty

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Submit for Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Server Chassis

HPE Processors

Intel Xeon Bronze

Supports up to (2) processors - Please reach out to us for more processor options

Intel Xeon Silver

Supports up to (2) processors - Please reach out to us for more processor options

Intel Xeon Gold

Supports up to (2) processors - Please reach out to us for more processor options

Intel Xeon Platinum

Supports up to (2) processors - Please reach out to us for more processor options

HPE Memory

8 DIMMs per processor (up to 16 DIMMs in a dual-processor configuration) - Please reach out to us for 2933MHz and 2400MHz options

HPE RAID Controllers

HPE SFF Drives SAS (2.5in)

HPE SFF Drives SATA (2.5in)

HPE M.2 Drives

The solid state M.2 drives require the selection of HPE BL460c Gen10 M.2 FIO Enablement Kit (873870-B21)

HPE Network Adapters

2 Mezzanine Slots (1 Type A and 1 Type A or Type B)

HPE FlexibleLOM Adapter

HPE Options

HPE BL460c Gen10 CTO Blade Server Product Description

Are you looking to scale business performance and securely drive traditional and Hybrid IT workloads across a converged infrastructure? Designed for a wide range of configuration and deployment options, the HPE ProLiant BL460c Gen10 Server Blade provides the flexibility to optimize your core IT applications with right-sized storage for the right workload for a lower TCO. All of this may be managed by HPE OneView, the converged management platform that accelerates IT operations, business delivery and boosts overall performance.

The HPE ProLiant BL460c Gen10 Server Blade now offers the Intel Xeon Processor Scalable Family with up to 25%5 bin to bin performance gain over the previous generation, plus 2666 MT/s HPE DDR4 SmartMemory. Additional support includes tiered storage controller options, internal 12 Gb/s SAS, 20 Gb n, support for two M.2, NVMe, or up to four uFF drives.

What's New for BL460c Gen10

  • Intel Xeon Scalable Family Generation 2 processors (x2xx) − New level of performance per core processors − New workload Optimized processors for key categories of applications
  • Two new CTO BladeSystem Server models for use with Intel® Xeon® Scalable Family Generation 2 processors .
  • Higher speed memory @ 2933 MT/s for a select new Intel Generation 2 processors
  • Additional Drive solutions

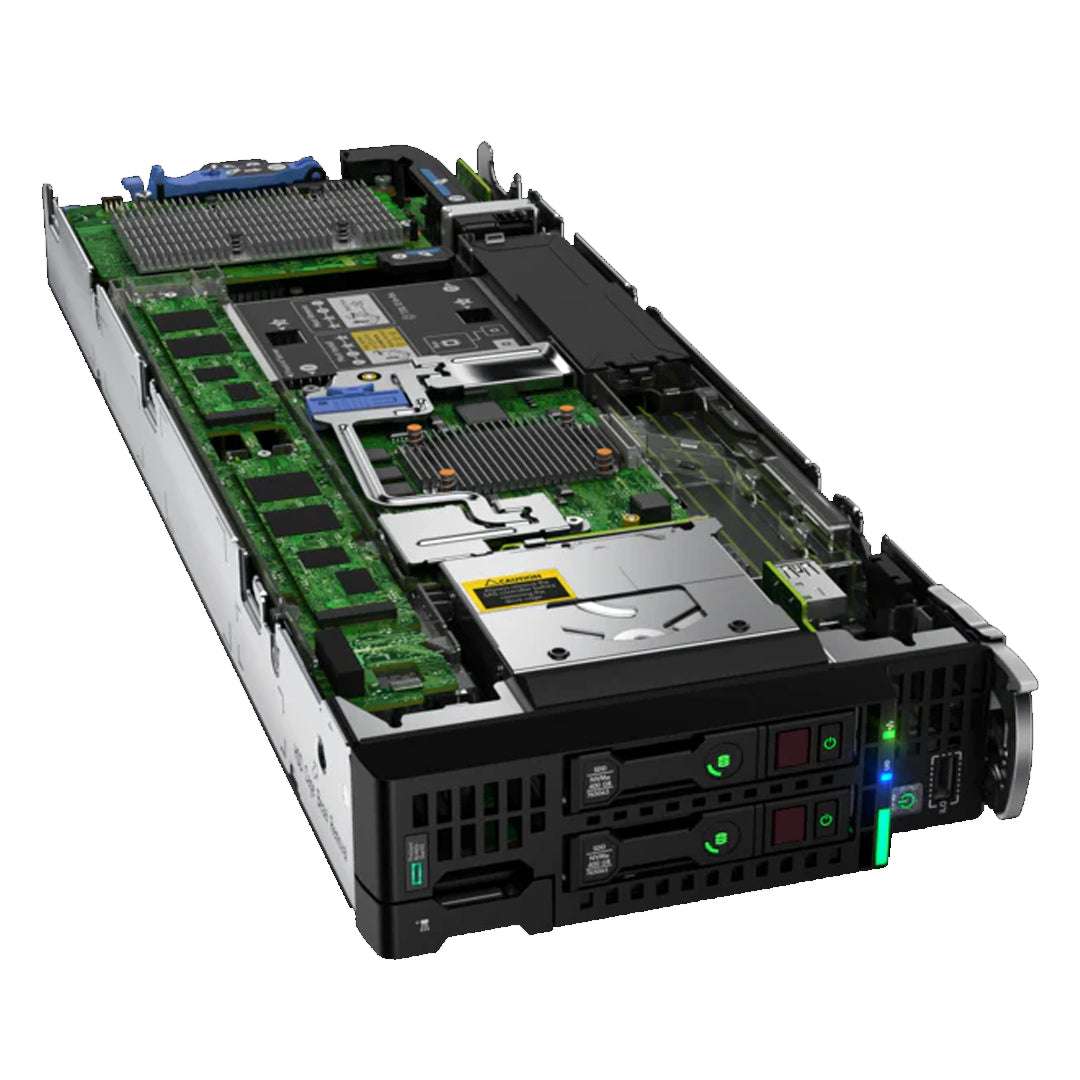

BL460c Gen10 side view

BL460c Gen10 side view

Improved Performances to Speed up Your Business Operations

Economics for your infrastructure.

The HPE ProLiant BL460c Gen10 Server Blade drives up to 75% reduction in licensing costs by modernizing your IT infrastructure.

Improve your time to value with 64% faster server deployment allowing you to capitalize on business opportunities in an increasingly fast paced environment.

Accelerate to Increase Business Agility

The HPE ProLiant BL460c Gen10 Server Blade supports industry standard technology leveraging the latest Intel Xeon Processor Scalable Family with up to 28 cores, internal 12 Gb SAS and up to 2 TB of HPE DDR4 SmartMemory.

Flexible storage options to quickly enable extended local capacity and cost effective boot disk storage. Up to four drives with uFF, or up to two drives with SFF and NVMe.

The HPE ProLiant BL460c Gen10 Server Blade with Generation 2 Intel Scalable Family of processors delivers unprecedented levels of performance for database and analytic workloads.

Streamline Operations wuith Converged Solutions and Management with OneView

Drive up to 40% staff time savings from daily operations.

Reduce IT deployment, maintenance time and support costs with software-defined templates to automate new server deployments.

Faster HPE Virtual Connect Enterprise Manager Software in-service Domain migration transitioning from legacy management tools to HPE OneView 3.0 and later when compared to previous versions.

HPE Integrated Lights-out (iLO) 5.0 software features server lifecycle management advancements including iLO Federation, which manages groups of servers at scale with built-in rapid discovery of all iLOs, group configurations, group health status, and ability to determine iLO licenses.

HPE Security Innovations

Silicon root of trust. Only HPE offers industry standard servers with major firmware (FW) anchored directly into the silicon. Millions of lines of FW code run before server operating system boots.

Firmware Runtime Validation. Daily checking of firmware every 24 hours verifying validity and credibility of UEFI, CPLD, iLO, IE, and ME.

Secure recovery - recovering firmware to known good state after detection of compromised code.

Commercial National Security Algorithms (CNSA). Highest level of security not offered by any other industry server providers.

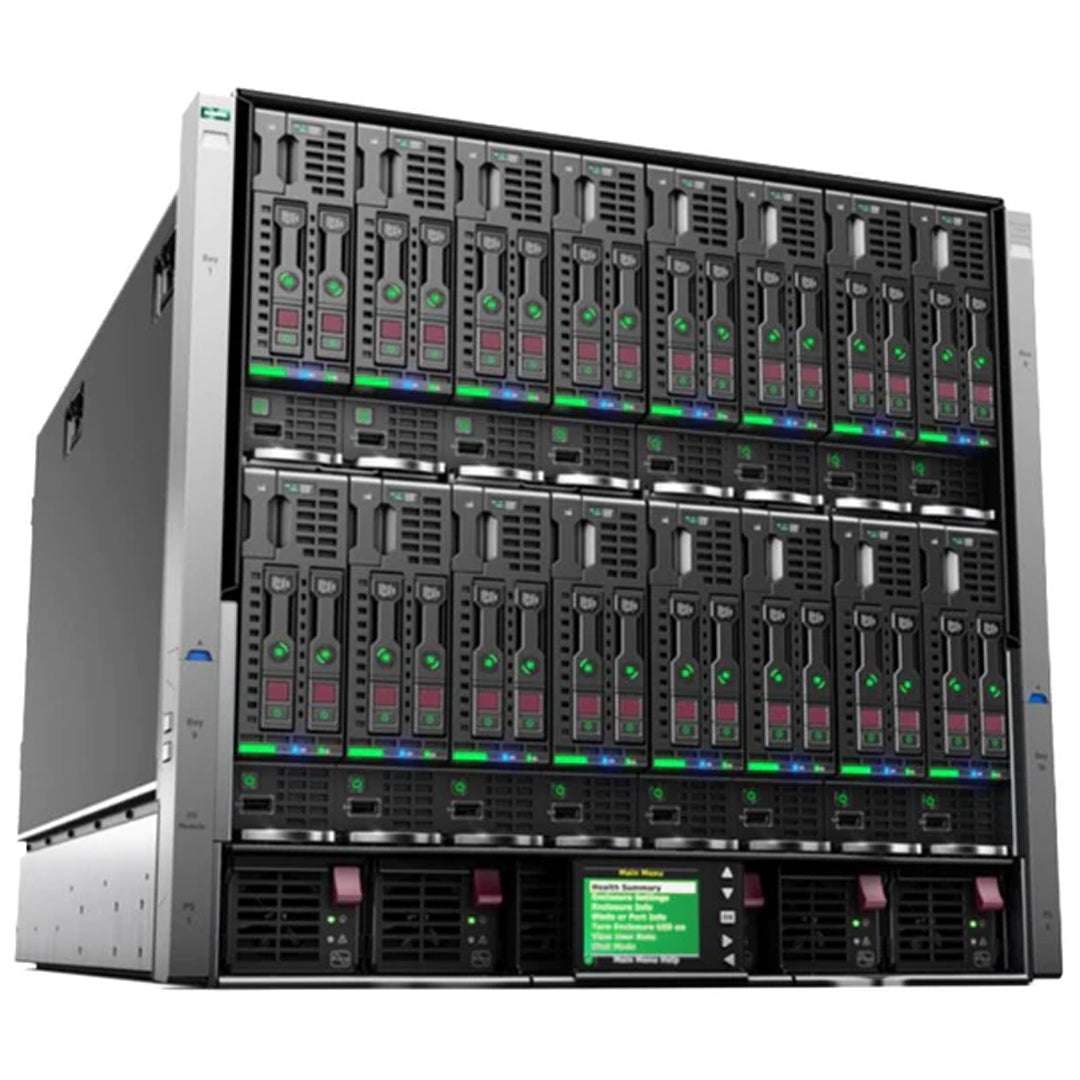

BL460c Gen10 in chassis

BL460c Gen10 in chassis

Product features

Feature
Description
Processors
Intel Xeon scalable processor family - 2nd generation1
Intel Xeon models
CPU Frequency
Cores
Power
DDR4 MT/s
Maximum memory per socket
Platinum processors
Platinum 8256 processor
3.8 GHz
4
105 W
2933 MT/s
1TB
Platinum 8253 processor
2.2 GHz
16
125 W
2933 MT/s
1TB
Gold processors
Gold 6252 processor
2.1 GHz
24
150 W
2933 MT/s
1TB
Gold 6248 processor
2.5 GHz
20
150 W
2933 MT/s
1TB
Gold 6242 processor
2.8 GHz
16
150 W
2933 MT/s
1TB
Gold 6240Y processor
2.6/2.8/3.1 GHz
18/14/8
150 W
2933 MT/s
1TB
Gold 6240 processor
2.6 GHz
18
150 W
2933 MT/s
1TB
Gold 6230 processor
2.1 GHz
20
125 W
2933 MT/s
1TB
Gold 5222 processor
3.8 GHz
4
105 W
2933 MT/s
1TB
Gold 5220 processor
2.2 GHz
18
125 W
2666 MT/s
1TB
Gold 5218B processor
2.3 GHz
16
125 W
2666 MT/s
1TB
Gold 5218 processor
2.3 GHz
16
125 W
2666 MT/s
1TB
Gold 5217 processor
3.0 GHz
8
115 W
2666 MT/s
1TB
Gold 5215 processor
2.5 GHz
10
85 W
2666 MT/s
1TB
Silver processors
Silver 4216 processor
2.1 GHz
16
100 W
2400 MT/s
1TB
Silver 4215 processor
2.5 GHz
8
85 W
2400 MT/s
1TB
Silver 4214Y processor
2.2/2.3/2.4 GHz
12/10/8
85 W
2400 MT/s
1TB
Silver 4214 processor
2.2 GHz
12
85 W
2400 MT/s
1TB
Silver 4210 processor
2.2 GHz
10
85 W
2400 MT/s
1TB
Silver 4208 processor
2.1 GHz
8
85 W
2400 MT/s
1TB
Bronze processor
Bronze 3204 processor
1.9 GHz
6
85 W
2133 MT/s
1TB

Product features

Feature
Description
Processors

Intel Xeon scalable processor family - 1st generation2
Intel Xeon models
CPU Frequency
Cores
L3 Cache
Power
QPI
Platinum processors
Platinum 8164 processor
2.0 GHz
26
35.75MB
150 W
3 @ 10.4 GT/s
Platinum 8160M processor
2.1 GHz
24
33.00MB
150 W
3 @ 10.4 GT/s
Platinum 8160 processor
2.1 GHz
24
33.00MB
150 W
3 @ 10.4 GT/s
Platinum 8158 processor
3.0 GHz
12
24.75MB
150 W
3 @ 10.4 GT/s
Platinum 8156 processor
3.6 GHz
4
16.50MB
150 W
3 @ 10.4 GT/s
Platinum 8153 processor
2.0 GHz
16
22.00MB
125 W
3 @ 10.4 GT/s
Gold processors
Gold 6152 processor
2.1 GHz
22
30.25MB
140 W
3 @ 10.4 GT/s
Gold 6148 processor
2.4 GHz
20
27.50MB
150 W
3 @ 10.4 GT/s
Gold 6142M processor
2.6 GHz
16
22.00MB
150 W
3 @ 10.4 GT/s
Gold 6142 processor
2.6 GHz
16
22.00MB
150 W
3 @ 10.4 GT/s
Gold 6140M processor
2.3 GHz
18
24.75MB
140 W
3 @ 10.4 GT/s
Gold 6140 processor
2.3 GHz
18
24.75MB
140 W
3 @ 10.4 GT/s
Gold 6138 processor
2.0 GHz
20
27.50MB
125 W
3 @ 10.4 GT/s
Gold 6136 processor
3.0 GHz
12
24.75MB
150 W
3 @ 10.4 GT/s
Gold 6134M processor
3.2 GHz
8
24.75MB
130 W
3 @ 10.4 GT/s
Gold 6134 processor
3.2 GHz
8
24.75MB
130 W
3 @ 10.4 GT/s
Gold 6132 processor
2.6 GHz
14
19.25MB
140 W
3 @ 10.4 GT/s
Gold 6130 processors
2.1 GHz
16
22.00MB
125 W
3 @ 10.4 GT/s
Gold 6128 processor
3.4 GHz
6
19.25MB
115 W
3 @ 10.4 GT/s
Gold 6126 processor
2.6 GHz
12
19.25MB
125 W
3 @ 10.4 GT/s
Gold 5122 processor
3.6 GHz
4
16.50MB
105 W
2 @ 10.4 GT/s
Gold 5120 processor
2.2 GHz
14
19.25MB
105 W
2 @ 10.4 GT/s
Gold 5118 processor
2.3 GHz
12
16.50MB
105 W
2 @ 10.4 GT/s
Gold 5115 processor
2.4 GHz
10
13.75MB
85 W
2 @ 10.4 GT/s
Silver processors
Silver 4116 processor
2.1 GHz
12
16.50MB
85 W
2 @ 9.6 GT/s
Silver 4114 processor
2.2 GHz
10
13.75MB
85 W
2 @ 9.6 GT/s
Silver 4112 processor
2.6 GHz
4
8.25MB
85 W
2 @ 9.6 GT/s
Silver 4110 processor
2.1 GHz
8
11.00MB
85 W
2 @ 9.6 GT/s
Silver 4108 processor
1.8 GHz
8
11.00MB
85 W
2 @ 9.6 GT/s
Bronze processors
Bronze 3106 processor
1.7 GHz
8
11.00MB
85 W
2 @ 9.6 GT/s
Bronze 3104 processor
1.7 GHz
6
11.00MB
85 W
2 @ 9.6 GT/s
Memory 3
One of the following depending on model:
The following memory supports Intel Xeon scalable processor family 1st generation
  • HPE 8GB (1 x 8GB) Single rank x 8 DDR4-2666 CAS-19-19-19 registered smart memory kit

  • HPE 16GB (1 x 16GB) Single rank x 4 DDR4-2666 CAS-19-19-19 registered smart memory kit

  • HPE 16GB (1 x 16GB) Dual rank x 8 DDR4-2666 CAS-19-19-19 registered smart memory kit

  • HPE 32GB (1 x 32GB) Dual rank x 4 DDR4-2666 CAS-19-19-19 registered smart memory kit

  • HPE 64GB (1 x 64GB) Quad rank x 4 DDR4-2666 CAS-19-19-19 Load Reduced Dual In-Line Memory Module (LRDIMM) smart memory kit

  • HPE 128GB (1 x 128GB) Octal rank x 4 DDR4-2666 CAS-22-19-19 LRDIMM smart memory kit

The following memory supports Intel Xeon scalable processor family 2nd generation
  • HPE 8GB (1 x 8GB) Single rank x 8 DDR4-2933 CAS-21-21-21 registered smart memory kit

  • HPE 16GB (1 x 16GB) Single rank x 4 DDR4-2933 CAS-21-21-21 registered smart memory kit

  • HPE 16GB (1 x 16GB) Dual rank x 8 DDR4-2933 CAS-21-21-21 registered smart memory kit

  • HPE 32GB (1 x 32GB) Dual rank x 4 DDR4-2933 CAS-21-21-21 registered smart memory kit

  • HPE 64GB (1 x 64GB) Dual rank x 4 DDR4-2933 CAS-21-21-21 registered smart memory kit

  • HPE 64GB (1 x 64GB) Quad rank x 4 DDR4-2933 CAS-21-21-21 LRDIMM smart memory kit

  • HPE 128GB (1 x 128GB) Octal rank x 4 DDR4-2933 CAS--24-21-21 LRDIMM smart memory kit

Type: HPE Smart Memory DDR4 Load Reduced (LRDIMM), or Registered (RDIMM)
Standard (Pre-Configured models):
  • 128GB (4 x 32GB) DDR4 2666 MT/s LDIMMs at 1.2 V

  • 64GB (4x 16GB) DDR4 2666 MT/s RDIMMs at 1.2 V

  • 16GB (2 x 8GB) DDR4 2666 MT/s RDIMMs at 1.2 V

Maximum (LRDIMM) 2TB:
  • 16 x 128GB up to 2666MT/s at 1.2 V (Processor dependent)

  • 16 x 128GB up to 2933MT/s at 1.2 V (Gen2 processor dependent)

Maximum (RDIMM) 1TB:
  • 16 x 32GB up to 2666MT/s at 1.2 V

  • 16 x 64GB up to 2933MT/s at 1.2 V (Gen2 processor dependent)

Memory protection
  • Advanced ECC

  • Memory mirroring

  • Memory online spare mode (Rank spare mode)

Network controller
One of the following depending on model
  • One (1) 20Gb 2-port FlexFabric FLB, 10Gb 2-port HPE FlexFabric FLB, or 10Gb 2-port Ethernet FLB4

  • One (1) HPE FlexFabric 10Gb 2-port 536FLB FlexibleLOM5

  • One (1) HPE FlexFabric 10Gb 2-port 560FLB FlexibleLOM5

  • One (1) HPE FlexFabric 20Gb 2-port 630FLB FlexibleLOM5

  • One (1) HPE FlexFabric 20Gb 2-port 650FLB FlexibleLOM5

  • Standard iLO network controller:

    One 10/100 Mb/s port for the HPE iLO 5 to onboard administrator link

    The Onboard Administrator (With 10/100/1000 Mb/s) to BladeSystem link is 1 Gb/s

Expansion slots
Two (2) I/O expansion mezzanine slots:
  • x16 PCIe 3.0 Type A (Supports type A mezzanine cards) (Expansion slot 1)6

  • x16 PCIe 3.0 Type B (Supports Type A and Type B mezzanine cards (Expansion slot 2)7

Mezzanine card options include:
  • Dual-port 20Gb FlexFabric, Dual-port 10Gb FlexFabric, 10 GbE options

  • Dual-port 16Gb Fibre Channel HBA for SAN connectivity

  • Dual-port 16Gb Fibre Channel HBA for SAN connectivity

  • QDR and FDR InfiniBand for low latency and high bandwidth server interconnectivity

  • I/O accelerator mezzanine options for high transaction rate local storage

HPE Server ROM
HPE ProLiant ROM is used to configure:
  • Processor and chipset status registers

  • System memory, memory map, and memory initialization

  • System hardware configuration (Integrated PCI devices and optional PCIe cards)

  • User-specific BIOS configuration using the HPE ROM-Based Setup Utility (RBSU)

HPE Server Unified Extensible Firmware Interface (UEFI)/Legacy ROM 8
UEFI Enables numerous new capabilities specific to HPE ProLiant servers such as:
  • Secure Boot

  • Operating system specific functionality

  • Support for > 2.2TB (Using GPT) boot drives

  • USB 3.0 Stack

  • Embedded UEFI Shell

  • Mass configuration deployment tool using iLO RESTful API

  • PXE Boot support for IPv6 networks

  • Boot support for option cards that only support a UEFI option ROM

UEFI Boot Mode only:
  • TPM 2.0 Support

  • NVMe Boot Support

  • Platform Trust Technology (PTT) can be enabled

  • iSCSI Software Initiator Support

  • HTTP/HTTPs Boot support as a PXE alternative

  • Boot support for option cards that only support a UEFI option ROM

Storage controller 9
All Build to Order (BTO) models
One HPE Smart Array P204i-b 12G SAS modular Controller with 1GB Flash-Backed Write Cache (FBWC), or HPE Smart Array S100i SR Gen10 SW RAID
Maximum internal storage 10
Two drives bays for SFF HPE Smart Drives. Capacities dependent on drive size selected.
Interfaces
Micro SDHC slot: One internal Micro Secure Digital High Capacity (Micro SDHC) card slot
USB 3.0 Port: One internal USB 3.0 connector for USB flash media drive keys
Industry standard compliance
  • ACPI 6.1 Compliant

  • PCIe 3.0 Compliant

  • WOL Support

  • Microsoft Logo certifications

  • PXE Support USB 3.0 compliant (Internal)

  • USB 2.0 Compliant (External ports VIA SUV)

  • SMBIOS 3.1

  • UEFI 2.6

  • Redfish API

Security
  • UEFI Secure boot and secure start support

  • Immutable silicon root of trust

  • Support for Commercial National Security Algorithms (CNSA)

  • iLO Security Modes including a New iLO Advance Premium Security License

  • Granular control over iLO interfaces

  • Tamper-free updates – Components digitally signed and verified

  • Secure Recovery – Recover critical firmware to known good state on detection of compromised firmware

  • Trusted Platform Module (TPM) 1.2 option

  • TPM 2.0 Option bezel locking kit

Enclosures
Hewlett Packard Enterprise offers two different c-Class server blade enclosures to meet users individual needs:
  • The HPE BladeSystem c7000 rack enclosure is 10U high and holds up to sixteen (16) ProLiant BL460c Gen10 servers plugged vertically

  • The HPE BladeSystem c3000 rack enclosure is 6U high and holds up to eight (8) HPE ProLiant BL460c Gen10 servers plugged horizontally

Graphics
Integrated matrox G200eh video controller
  • 1600 x 1200 (32 b/p)

  • 1920 x 1200 (16 b/p)

HPE iLO Management on system management memory
  • 16MB Flash video memory

  • 256MB DDR 3 with ECC (112MB after ECC and video)

Embedded management
Server utilities
  • Active health system

  • Active health system viewer

  • Smart update

  • iLO Amplifier pack

  • HPE iLO Mobile application

  • RESTful interface tool

  • Scripting tools

  • HPE OneView standard

  • HPE Systems Insight Manager (HPE SIM)

  • Fibre channel support

  • Compatible SAN

  • HPE Virtual connect

Server management
  • HPE OneView advanced

    Click here to view the HPE OneView page for more information .

  • HPE iLO Advanced

  • HPE OneView

  • HPE iLO advanced premium security edition

  • HPE Matrix operating environment

  • HPE iLO Scale-Out

  • HPE Cluster platforms

  • HPE High Performance Computing (HPC) interconnects

  • Get connected to HPE

  • Expansion blade support

  • Factory express portfolio for servers and storage

One Config Simple (SCE)
SCE is a guided self-service tool to help sales and non-technical people provide users with initial configurations in 3 to 5 minutes
If user require custom rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise User Business Center or an Authorized Partner for assistance
NOTE:

    • All processors are as is and are subject to change from HPE or Intel.
    • Memory per socket is based on the processor maximum supported memory, not the BL460c memory maximum.
    • Platinum – 8200 Series – Supports 2 socket (BL460c Gen10) compute module, 2 Socket supports 2UPI @ 10.4 GT/s, 6-Channel DDR4 @ 2933 MT/s supporting up to 1TB memory capacity. Intel Turbo Boost Technology, Intel Hyper-Threading Technology supported. Intel AVX-512 (2 x 512-bit FMA), VNNI, 48 lanes PCIe 3.0, Node Controller Support, Advanced RAS supported.
    • Gold –6200 Series - Supports 2 socket (BL460c Gen10) compute module, 2 Socket supports 2UPI @ 10.4 GT/s, 6-Channel DDR4 @ 2933 supporting up to 1TB memory capacity. Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512 (2x 512-bit FMA), VNNI, 48 lanes PCIe 3.0, Node Controller Support, Advanced RAS supported.
    • Gold – 5200 Series - Supports 2 socket (BL460c Gen10) compute module, 2 Socket supports 2UPI @ 10.4 GT/s, 6-Channel DDR4 @ 2666 MHz (SKU 5222=supports 2933), supporting up to 1TB memory capacity. Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA) (SKU 5222 supports 2x 512 bit FMA), VNNI, 48 lanes PCIe 3.0, Advanced RAS supported
    • Silver – 4200 Series - Supports 2 socket (BL460c Gen10) compute module, 2 Socket supports 2UPI @ 9.6 GT/s, 6-Channel DDR4 @ 2666 MHz supporting up to 1TB memory capacity. Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1 x 512-bit FMA), VNNI, 48 lanes PCIe 3.0, standard RAS supported.
    • Bronze – 3200 Series - Supports 2 socket (BL460c Gen10) compute module, 2 Socket supports 2UPI @ 9.6 GT/s, 6-Channel DDR4 @ 2133 MHz supporting up to 1TB memory capacity. Intel AVX-512(1 x 512-bit FMA), VNNI, 48 lanes PCIe 3.0, standard RAS supported.
    • Y processors come with Intel Speed Select. These processors allow Core selection at boot through HPE RBSU. Cores selected determine Frequency at which processor operates. Processor provides capability to configure and operate at 3 distinct operating points. Core count selected sets frequency of operations (Lower Core = Higher Frequency). Static Boot Time Configuration: BIOS discovers and prompts for setting at boot only. Frequency may vary.

    • Intel Xeon Platinum 8160M, Gold 6142M, 6140M, and 6134M support extended memory capacities up to 1.5TB per socket versus 768GB per socket for standard processors. However, maximum memory capacity for the server will be limited by maximum capacity DIMMs available and number of DIMM slots. The BL460c Gen10 will support a maximum memory capacity of 512GB per socket with 64GB DIMMs regardless of processor chosen. This maximum will increase as larger capcity DIMMs are qualified for the server.
    • When using processors of 135 W or greater, 10 fans are required in the c7000 for optimal performance.
    • Memory per socket is based on the processor maximum supported memory, not the BL460c memory maximum.
    • Platinum – 8100 Series - 2S - 2UPI @ 10.4 GT/s, 6-Channel DDR4 @ 2666 MT/s, 768 GB memory capacity (1.5TB on select skus), Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (2 x 512-bit FMA), 48 lanes PCIe 3.0, advanced RAS.
    • Gold – 5100, 6100 Series - 2S - 2UPI @ 10.4 GT/s, 6-Channel DDR4 @ 2400 MHz (SKU 5122=supports 2666), 768GB memory capacity (1.5TB on select skus), Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1 x 512-bit FMA) (SKU 5122 supports 2x 512 bit FMA), 48 lanes PCIe 3.0, advanced RAS.
    • Silver – 4100 Series - 2S - 2UPI @ 9.6 GT/s, 6-Channel DDR4 @ 2400 MHz, 768GB memory capacity, Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1 x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS.


    • Supports FCoE, TCP/IP offload engine, hardware-based accelerated iSCSI, iSCSI boot, and autosensing 10Gb/1Gb Ethernet.
    • Each port is autosensing the speed, and can interoperate with 1Gb HPE BladeSystem c-Class interconnect components. Both ports will operate at the same speed.
    • : FlexFabric capabilities require the use of an HPE Virtual Connect FlexFabric or Flex10/10D module. Fibre Channel over Ethernet (FCoE) is supported with HPE interconnects.
  1. FlexibleLOMs are not compatible with c-Class server blades prior to Gen9.
  2. This expansion slot supports dual-port mezzanine cards: one port is routed to interconnect module bay 3 and the other to bay 4.
  3. This expansion slot supports dual-port and quad-port mezzanine cards. For dual-port cards, one port is routed to interconnect module bay 5 and the other to bay 6. For quad-port cards, one port is routed to interconnect module bay 5, one to bay 6, one to bay 7, and one to bay 8. A second processor must be installed (In processor slot 2) to have access to the second expansion slot (Expansion slot 2).

    • The UEFI System Utilities function is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS.
    • For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.
    • HPE Legacy FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory.

    • The HPE Smart Array P204i-b and the HPE Smart Array S100i SR Gen10 SW RAID (chipset SATA) support up to two (2) Small Form Factor (SFF) or 4 ultra form factor (uFF) hot plug drive bays.
    • For NVMe support, please select the NVMe FIO setting (873373-B21) available on CTO models only.
  4. The ProLiant BL460c Gen10 server blade includes the HPE hot plug small form factor (SFF) SmartDrive carrier for enhanced management and reduced maintenance errors. HPE drives from previous generation servers (prior to Gen8) are not compatible with the ProLiant BL460c Gen10 drive bays.

top

Software overview

Feature
Description
Operating Systems (OS) and virtualization software
  • Microsoft Windows Server

  • VMware

  • Red Hat Enterprise Linux Server

  • SUSE Linux Enterprise Server

top

Physical specifications

Specification
Description
Dimensions (H x W x D) (With bezel)
18.07 x 5.54 x 51.76 cm (7.11 x 2.18 x 20.37 in)
Weight (Approximate)
Maximum: 6.33 kg (14 lb)
(All processors, 16 DIMMs, hard drives, mezzanine cards, and two flash cache batteries installed)
Minimum: 4.75 kg (10.50 lb)
(One processor and 2 DIMMs installed)

top

Electrical specifications

Specification
Description
Power
For power specifications including input requirements, BTU rating, and power supply output, refer the HPE BladeSystem c-Class Enclosures QuickSpecs
To review typical system power ratings use the HPE Power advisor online tool
NOTE: For optimal cooling and system performance the BL460c Gen10 Server Blade requires the c7000 enclosure to be configured with 10 fans and the c3000 enclosure to be configured with 6 fans.

top

Environmental specifications

Specification
Description
System inlet temperature
Operating:
  • 10° - 35°C (50 - 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight

  • Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed

  • System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F)

Non-Operating: (-30°) to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr)
Extended ambient operating support
For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft)
Relative humidity (Non-Condensing)
Operating: 10 to 90% Relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature
Non-Operating: 5 - 95% Relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature
Altitude
Operating: 3050 m (10000 ft)
This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min)
Non-Operating: 9144 m (30000 ft)
Maximum allowable altitude change rate is 457 m/min (1500 ft/min)
Acoustic noise
For acoustic noise specifications, refer the HPE BladeSystem c-Class Enclosures QuickSpecs

top
