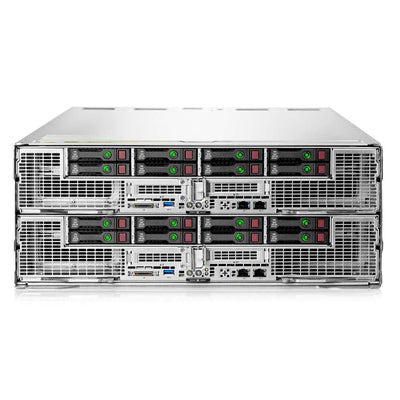

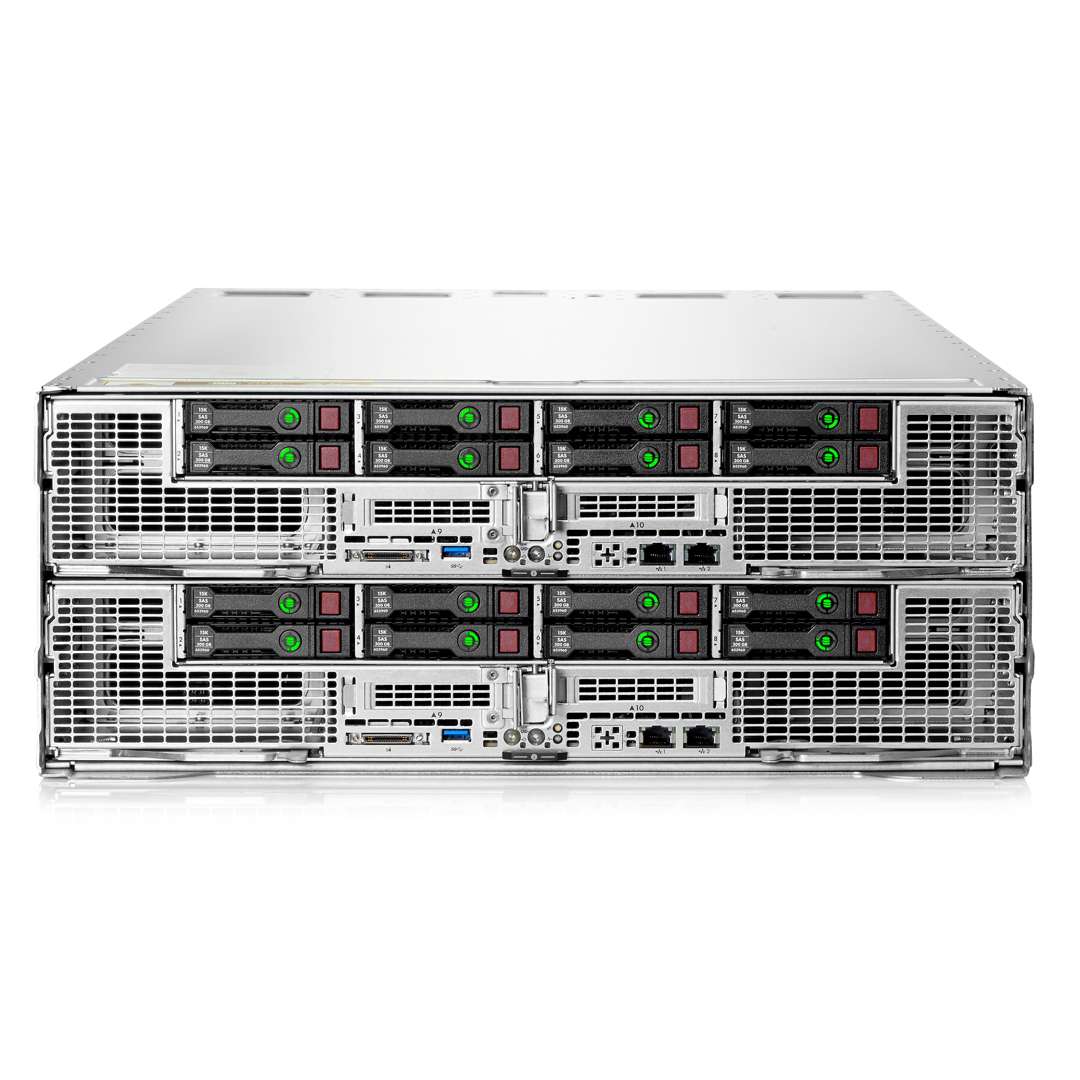

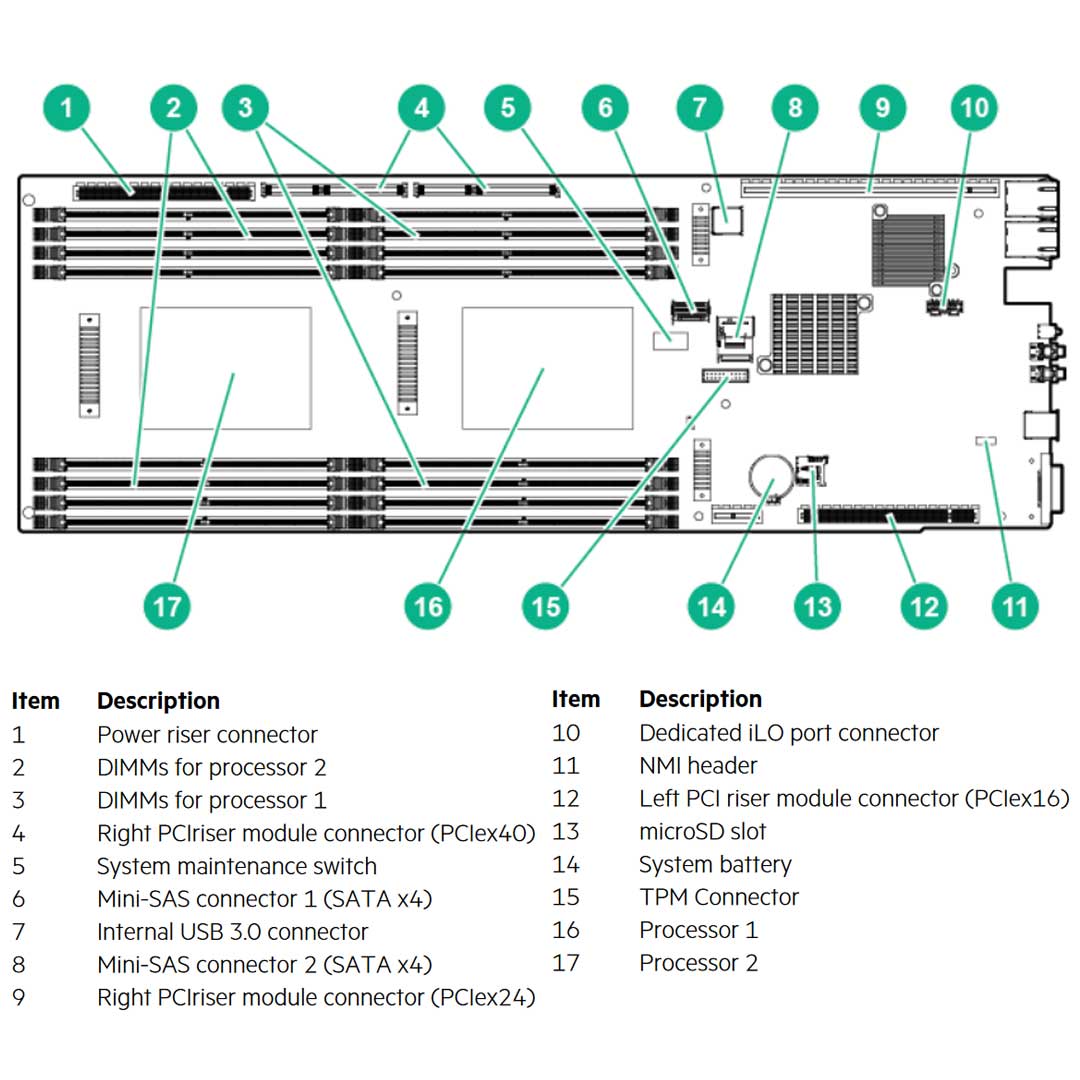

HPE Apollo 6500 Gen9 CTO Server

Part#:
6500G9
Brand:
HPE
Type:
CTO Servers
Condition:
ECS Refurbished & Tested

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Apollo 6500 System Product Description

Do you need to rapidly transform massive data streams?

The HPE Apollo 6500 System provides the tools and the confidence to deliver high performance computing (HPC) innovation. The system consists of three key elements: the HPE ProLiant XL270d Gen9 Server tray, the HPE Apollo d6500 Chassis, and the HPE Apollo 6000 Power Shelf.

The XL270d Gen9 Server provides up to 56 Tflops of single precision performance per server with eight NVIDIA Tesla M40 GPU and two Intel Xeon E5-2600 v4 processors in a 2U server. With a configurable internal PCIe Gen3 fabric, choose to optimize the GPU topology to match your specific needs. High-bandwidth, low-latency networking is tightly coupled to the accelerators allowing you to take full advantage of your network. Two x16 PCIe Gen3 slots for your choice of high speed fabrics.

The Apollo 6500 System: Your next accelerated computing solution.

What's New for Apollo 6500 System

  • Solve problems faster with up to 56 Tflops of single precision performance per 2U node.
  • Optimize accelerator configurations to match your workload.
  • Faster communications between nodes with two PCIe Gen3 x16 slots to enable your choice of high speed fabrics.

Flexible Configuration for the Most Demanding High-performance Computing Workloads

The HPE Apollo 6500 System supports up to eight 300W GPU or coprocessors delivering increased performance.

For workloads optimized for high peer to peer communication among the accelerators, place four (4) GPU on a single high speed PCIe switch, and two banks to a CPU for eight (8) GPU per CPU.

For workloads requiring higher CPU to GPU communications, choose our four (4) GPU per CPU configuration.

The HPE ProLiant XL270d Gen9 Server supports industry standard Intel Xeon E5-2600 v4 processors, solid state drives (SSD) with 12 G SAS and up to 1024 GB DDR4 2400 MHz memory for blazing performance.

Up to 16 HPE DDR4 2400 MHz Memory Modules per HPE ProLiant XL270d Gen9 Server for faster performance with data-intensive application workloads.

High-bandwidth, Low-latency Networking Between Accelerator Nodes

The HPE Apollo 6500 System includes two low profile PCIe Gen3 x16 slots to enable your choice of high speed fabrics..

In the 8:1 GPU to CPU topology, networking is directly attached to the PCIe Gen3 fabric of the GPU for reduced latencies between GPU nodes.

Supports GPUDirect with four (4) GPUs per HPE InfiniBand Adapter.

Product features

Feature
Description
Flexible configuration for the most demanding High-performance Computing (HPC) workloads
  • The HPE Apollo 6500 System supports up to eight (8) 300 W GPU or coprocessors delivering increased performance

  • For workloads optimized for high peer to peer communication among the accelerators, place four (4) GPU on a single high speed PCIe switch, and 2 banks to a CPU for eight (8) GPU per CPU

  • For workloads requiring higher CPU to GPU communications, choose our four (4) GPU per CPU configuration

  • The HPE ProLiant XL270d Gen9 Server supports industry standard Intel Xeon E5-2600 v4 processors, solid state drives (SSD) with 12G SAS and upto 1024GB DDR4 2400 MHz memory for blazing performance

  • Upto 16 HPE DDR4 2400 MHz memory modules per HPE ProLiant XL270d Gen9 Server for faster performance with data-intensive application workloads

High-bandwidth, low-latency networking between accelerator nodes
  • The HPE Apollo 6500 System includes two low profile PCIe Gen3 x 16 slots to enable users choice of high speed fabrics
  • In the 8:1 GPU to CPU topology, networking is directly attached to the PCIe Gen3 fabric of the GPU for reduced latencies between GPU nodes
  • Supports GPUDirect with four (4) GPUs per HPE InfiniBand adapter
Processor
E5-2600 v4 series processors (Please follow product offering to fill out processor SKU)
Model
CPU frequency
Cores
L3 Cache
Power
QPI
DDR4
E5-2643V4
3.4 GHz
6
20MB
135 W
9.6 GT/s
2400 MHz
E5-2650V4
2.2 GHz
12
30MB
105 W
9.6 GT/s
2400 MHz
E5-2660V4
2.0 GHz
14
35MB
105 W
9.6 GT/s
2400 MHz
E5-2667V4
3.2 GHz
8
25MB
135 W
9.6 GT/s
2400 MHz
E5-2680V4
2.4 GHz
14
35MB
120 W
9.6 GT/s
2400 MHz
E5-2683V4
2.1 GHz
16
40MB
120 W
9.6 GT/s
2400 MHz
E5-2690V4
2.6 GHz
14
35MB
135 W
9.6 GT/s
2400 MHz
E5-2695V4
2.1 GHz
18
45MB
120 W
9.6 GT/s
2400 MHz
E5-2698V4
2.2 GHz
20
50MB
135 W
9.6 GT/s
2400 MHz
Chipset
Intel C610 series chipset
On system management processor
HPE iLO (Firmware: HPE iLO 4)
Memory protection
  • Advanced ECC (Multi-bit error protection)

  • Memory online spare mode (Rank spare mode)

Memory
Type
DIMM Slots available
Maximum (LRDIMM) (Per server tray)
HPE SmartMemory
  • DDR4 Load Reduced (LRDIMM)

  • Registered (RDIMM)

16 DIMM Slots available
1024GB (16 x 64GB)
NOTE:
  • HPE memory from previous generation servers are not fully compatible with the HPE ProLiant XL270d Gen9 Server
  • To realize the performance memory capabilities listed in this document, HPE SmartMemory is required.
  • LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a server.
  • Depending on the memory configuration and processor model, the memory speed may run at 2133 MHz, or 2400 MHz. Refer Memory Population Table or the Online Memory Configuration Tool.
Network controller
Ethernet options
  • HPE Ethernet 10Gb 2P 530SFP+ adapter

  • HPE Ethernet 10Gb 2P 560SFP+ adapter

  • HPE Ethernet 10Gb 2P 561T adapter

  • HPE Ethernet 10Gb 2-port 562SFP+ adapter

  • HPE Ethernet 1Gb 4-port 366T adapter

  • HPE Ethernet 10G 2-port 546SFP+ adapter

  • HPE XL170r/190r dedicated NIC IM board Ki

  • HPE Ethernet 1Gb 4-port 331T adapter

  • HPE Ethernet 10Gb 2-port 572SFP+ adapter

  • HPE Ethernet 10Gb 2P 530T adapter

  • HPE Ethernet 1Gb 2P 361T adapter

  • HPE Ethernet 1Gb 2P 332T adapter

InfiniBand options
  • HPE IB FDR/EN 40Gb 2P 544+QSFP adapter

  • HPE IB EDR/EN 100Gb 1P 840QSFP28 adapter

  • HPE IB EDR/EN 100Gb 2P 840QSFP28 adapter

HPE Intel Omni-Path adapters
  • HPE 100Gb 1p OP101 QSFP28 x 16 OPA adapter

  • HPE 100Gb 1p OP101 QSFP28 x 8 OPA adapter

Expansion slots (EE)
Expansion slot
Technology
Bus width1
Source
Connector width
Form factor
1
PCIe 3.0
x 16
CPU1
x 16
Low profile
2
PCIe 3.0
x 16
Dependent on GPU riser selection
x 16
Low profile
NOTE:
  • The number of physical electrical lanes running to the connector.
GPGPU (General Purpose Graphics Processing UInit) Slots
Expansion slot
Technology
Bus width1
Source
Connector width
1 - 4
PCIe 3.0
x 16
Dependent on GPU riser selection
x 16
5 - 8
PCIe 3.0
x 16
Dependent on GPU riser selection
x 16
NOTE:
  • The number of physical electrical lanes running to the connector.

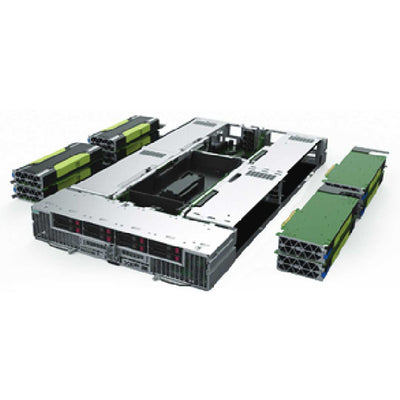

The XL270d supports two different GPGPU riser options. The first option HPE XL270d Gen9 8:1 Module Riser Kit (850500-B21) supports all GPGPUs and both low profile PCI slots on CPU1. The second option HPE XL270d Gen9 4:1 Module Riser Kit (850508-B21) supports the connection of GPGPU slot 5-8 and low profile slot 2 to CPU 2.

HPE XL270d Gen9 8:1 Module Riser Kit (850500-B21) Topology.

HPE Server ROM
HPE ROM (Read Only Memory) is now digitally signed using the Hewlett Packard Enterprise Corporate Signing Service. This signature is verified before the flash process starts, reducing accidental programming and preventing malicious efforts to corrupt system ROM
HPE server Unified Extensible Firmware Interface(UEFI) or legacy mode
The HPE ProLiant System BIOS is an EDK2 UEFI solution, and adheres to the latest revisions of UEFI Class 2 specifications which supports both legacy boot and UEFI boot operation. The HPE ProLiant XL270d Gen9 defaults to UEFI boot operation and can be factory or field configured for Legacy boot operation
Storage controller
Embedded Software RAID
HPE Dynamic Smart Array B140i controller (SATA Only)
RAID Controller1
HPE Smart Array P542D - XL270d Gen9 Server (SAS/SATA)
Host Bus Adapter (HBA)
  • HPE H241 Smart HBA (SAS/SATA)

  • HPE H240 Smart HBA (SAS/SATA)

Storage controller cable kits2
  • HPE XL270D B140i cable FIO kit

  • HPE XL270D Gen9 Mini-SAS H240 cable kit

  • HPE XL270D Gen9 Mini-SAS P440 cable kit

NOTE:
  • For optional array, the HPE Smart Array P542D- XL270d Gen9 Svr is the primary solution. A unique PCIe connection has been designed into the XL270d for this RAID controller. Use of any other RAID controllers will use one of the Low Profile PCIe slots that are typically used for fabric interconnects.
  • The embedded B140i will operate in UEFI mode only. For legacy support, AHCI mode is required.

This is the recommended RAID controller choice.

  • HPE Smart Array P440/4G controller (SAS/SATA)
  • HPE Smart Array P441/4G controller (SAS/SATA)
Internal storage devices
Internal MicroSD slot
Maximum internal storage
Hot plug SFF SAS 7.2 k
8TB
8 x 1.0TB
Hot plug SFF SAS 10 k
14.4TB
8 x 1.8TB
Hot plug SFF SAS 15 k
4.8TB
8 x 600GB
Hot plug SFF SATA
8TB
8 x 1TB
Hot plug SFF SATA SSD
30.7TB
8 x 3.84TB
Hot plug SFF SAS SSD
15.4TB
8 x 1.92TB
Interfaces
KVM
Serial USB Video port (SUV)
MicroSD
1 (Internal)
USB Ports
  • 2 (External via SUV)

  • 1 USB 3.0 (External)

  • 1 (USB 3.0 Internal)

HPE iLO Remote management network port
Aggregated via HPE Apollo 6500d Chassis
Option for dedicated NIC IM board kit
Health LED
1
Power
1
UID
1
Do not remove LED
1
Industry standard compliance
  • ACPI 2.0b Compliant

  • PCIe 3.0 Compliant

  • WOL Support

  • Microsoft logo certifications

  • PXE Support

  • USB 1.1,2.0 and 3.0 Compliant

  • SMBIOS 2.6.1

Embedded management
  • HPE Integrated Lights Out

  • UEFI

  • HPE RESTful API

  • Intelligent Provisioning

  • HPE Integrated Lights Out

Server utilities
  • HPE Smart update

  • HPE Systems Insight Manager (HPE SIM)

  • Scripting tool kit and Windows PowerShell

  • HPE RESTful interface tool

  • HPE iLO Mobile application

  • HPE Insight online

Security
  • Power-on password

  • Keyboard password

  • Keyboard password

  • Administrator's password

  • iLO 4 (Integrated Lights-Out 4) has 12 customizable user accounts and SSL encryption

  • iLO 4 Can be disabled VIA a global setting

  • iLO Advanced supports directory services integration

  • Trusted Platform Module (TPM) 2.0 option

Graphics
Integrated matrox G200 video standard
  • 1280 x 1024 (32 bp)

  • 1920 x 1200 (16 bp)

  • HPE iLO 4 on system management memory

  • 16MB Flash

  • 256MB DDR 3 with ECC (112MB after ECC and video)

Form factor

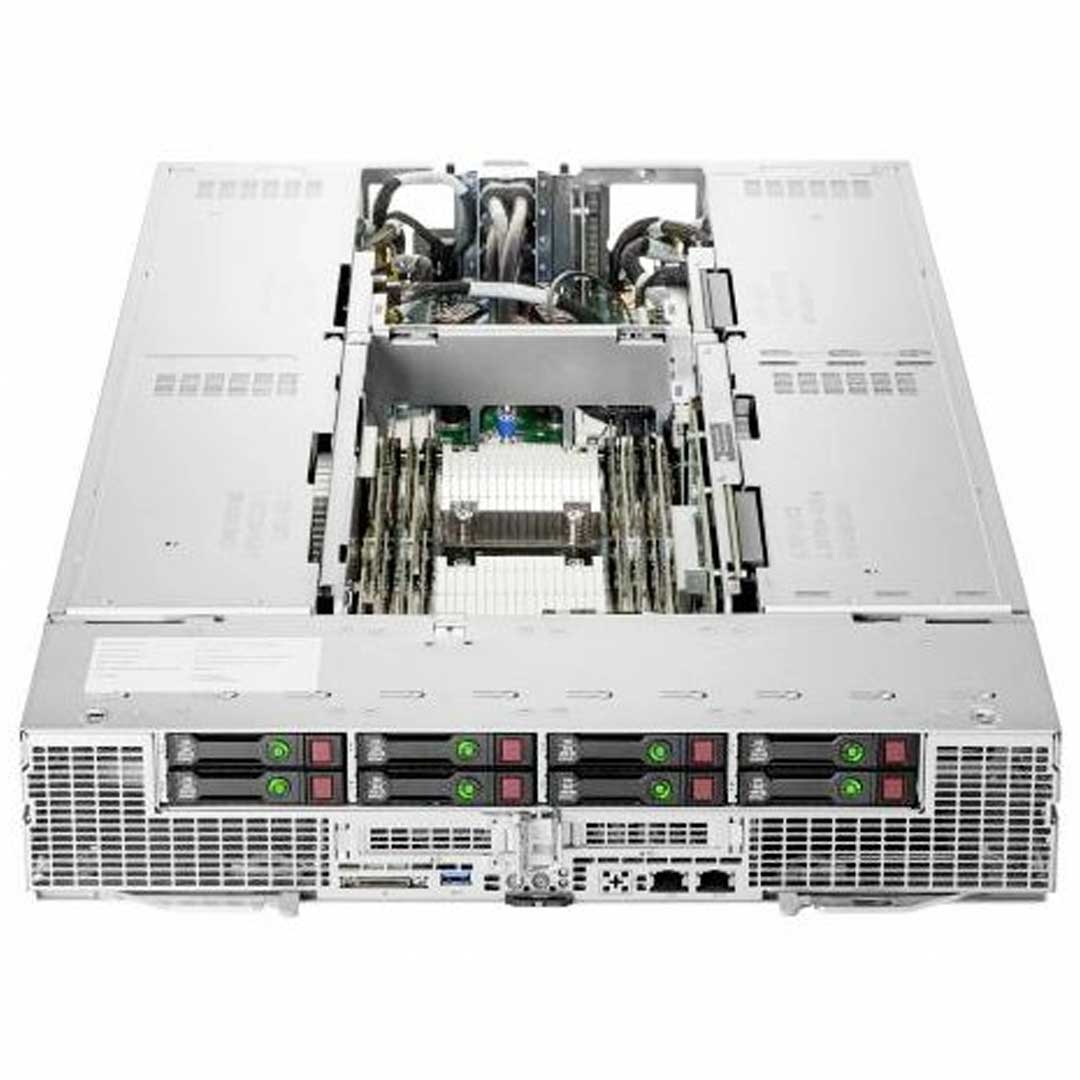

The ProLiant XL270d Gen9 Server is a single-slot tray for the HPE Apollo 6500d chassis

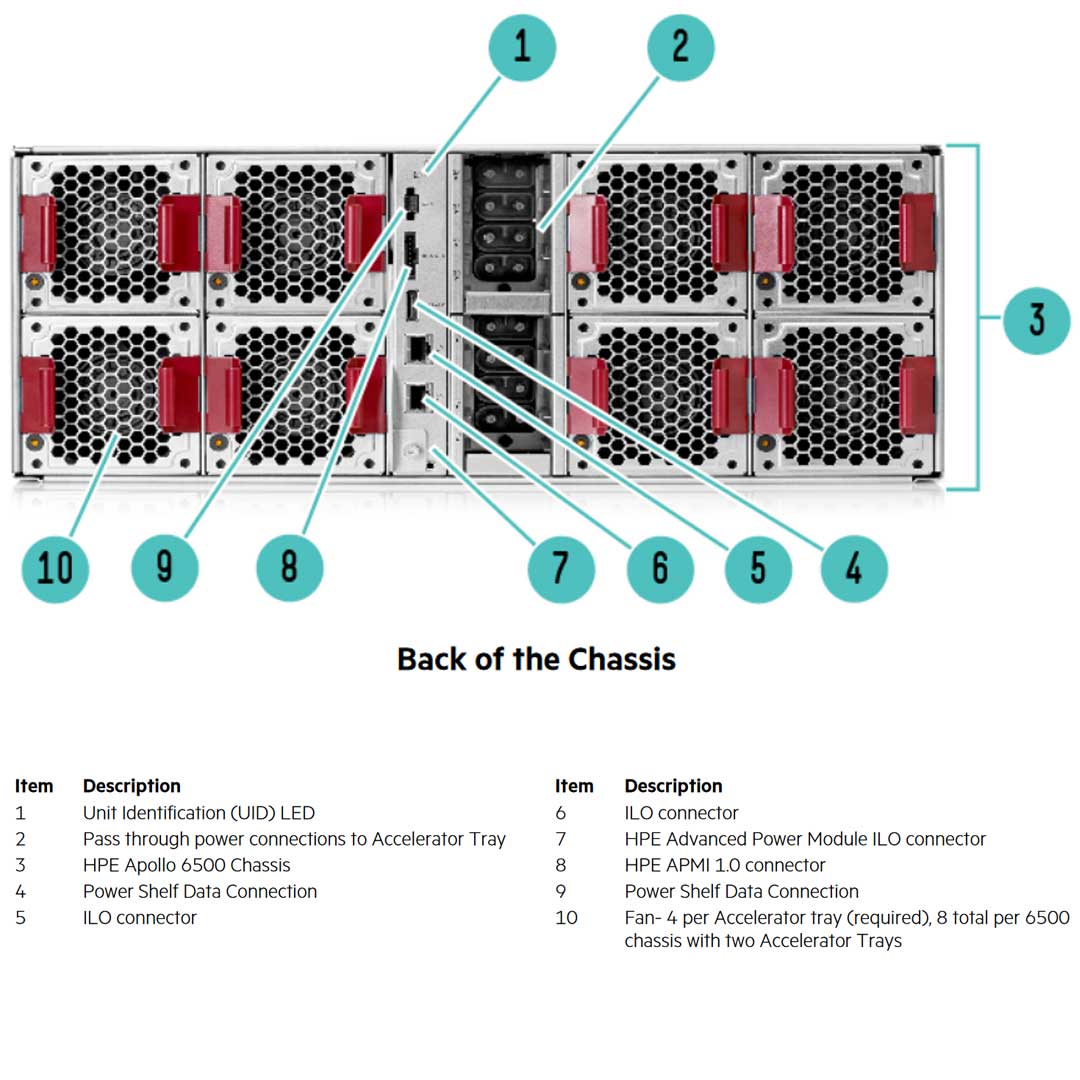

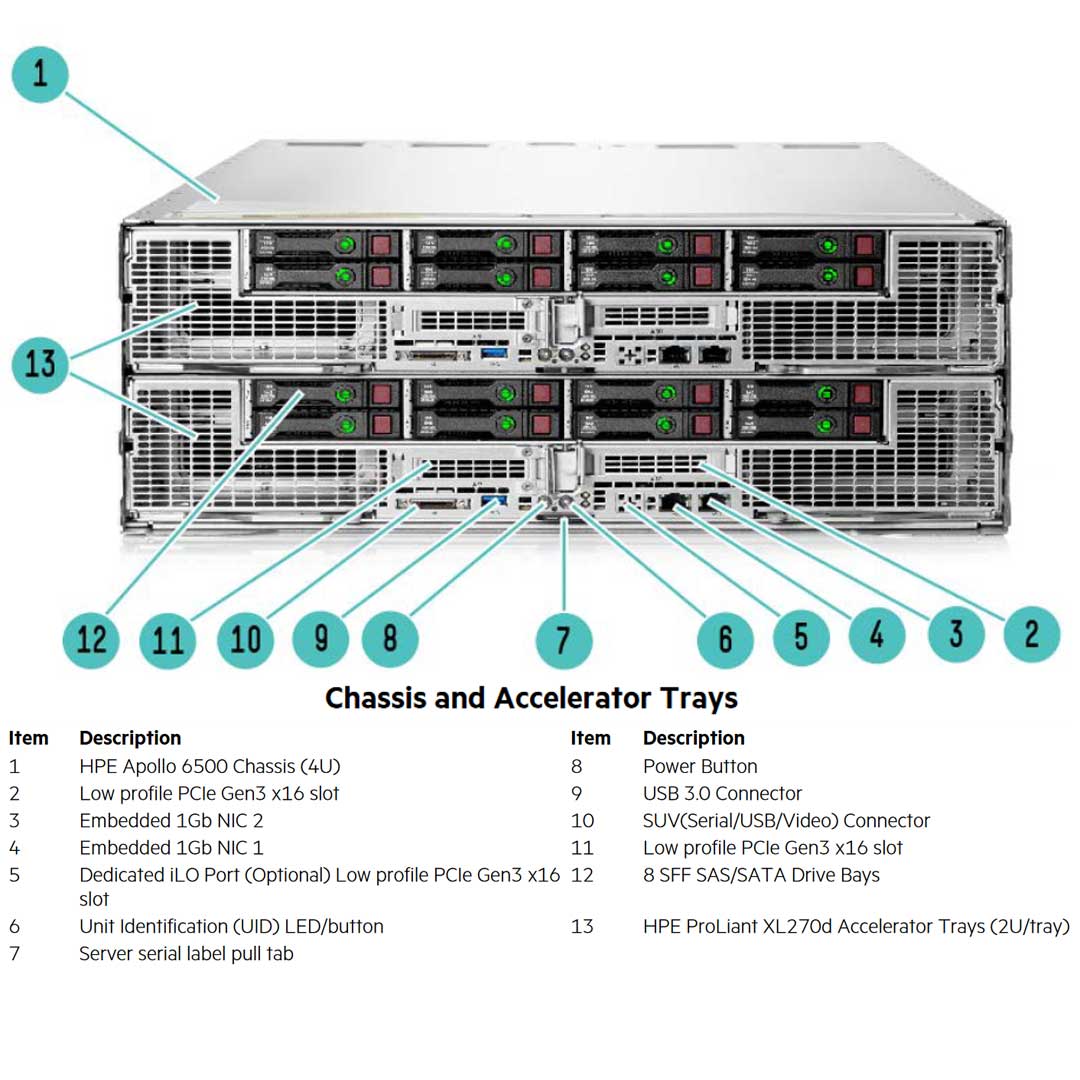

Chassis
Each HPE Apollo 6500 chassis is built with the following:
  • Two 2U slots for an accelerator tray

  • HPE Advanced power manager module

  • Four (4) dual rotor 80 x 80 x 86 mm fans per tray required

Server tray blank kit
A chassis requires that the two (2) server tray slots be populated with either an HPE ProLiant XL270d,server or an HPE Apollo 6500 Server node blank kit (850887-B21)
Rack airflow requirements
  • The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers

  • For maximum cooling, HPE Racks are recommended to allow these racks to befully loaded with servers using the latest processors

top

Software overview


Feature
Description
Operating systems and virtualization software support for ProLiant servers
  • Microsoft Windows Server 2012 R2

  • Red Hat Enterprise Linux (RHEL) 6.7, 7.2

  • SUSE Linux Enterprise Server (SLES) 11 SP4, 12

Insight management software
  • HPE Insight control

  • HPE Insight control for Microsoft system center

  • HPE Insight control for VMware vCenter server

  • HPE Virtual Connect Enterprise Manager (VCEM)

  • HPE Insight dynamics / Matrix operating environment

top

Physical specifications

Specification
Description
Dimensions (H x W x D)
17.70 x 44.81 x 96.00 cm (6.97 x 17.64 x 37.79 in)
Shipping dimensions
29.7 x 59.7 x 108.7 cm (11.72 x 23.51 x 42.80 in)
Chassis weight
Empty: 14.92 kg (32.89 lb)
Maximum: 73.22 kg (161.42 lb)
(Approximate)

top

Environmental specifications

Specification
Description
Operating temperature
10° to 35°C (50° to 95°F)
Non-operating temperature
-30° to 60°C (-22° to 140°F)
Operating humidity
10% to 90% Non-condensing
Non-operating humidity
5% to 95% Non-condensing
Acoustic noise
Listed are the declared A-Weighted sound power levels (LWAd) anddeclared average bystander position A-Weighted sound pressure levels(LpAm) when the product is operating in a 23°C ambient environment
Idle
Entry
Base
LWAd - Idle
7.1B
7.2B
LpAm - Idle
52 dBA
53 dBA
Operating
Entry
Base
LWAd - Operating
7.4B
7.4B
LpAm - Operating
54 dBA
54 dBA
NOTE: Operating temperature has an altitude derating of 1.8° F (1°C) per 1,000 ft (304.8 m). No direct sunlight. Upper operating limit is 10,000 ft (3,048 m) or 70 Kpa/10.1 psia. Upper non-operating limit is 30,000 ft (9,144 m) or 30.3 KPa/4.4 psia. Storage maximum humidity of 95% is based on a maximum temperature of 113° F (45°C). Altitude maximum for storage is 70 KPa.

top
