HPE Apollo 4510 Gen10 CTO System

Part#:
4510G10
Brand:
HPE
Type:
CTO Servers
Condition:
ECS Refurbished & Tested

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

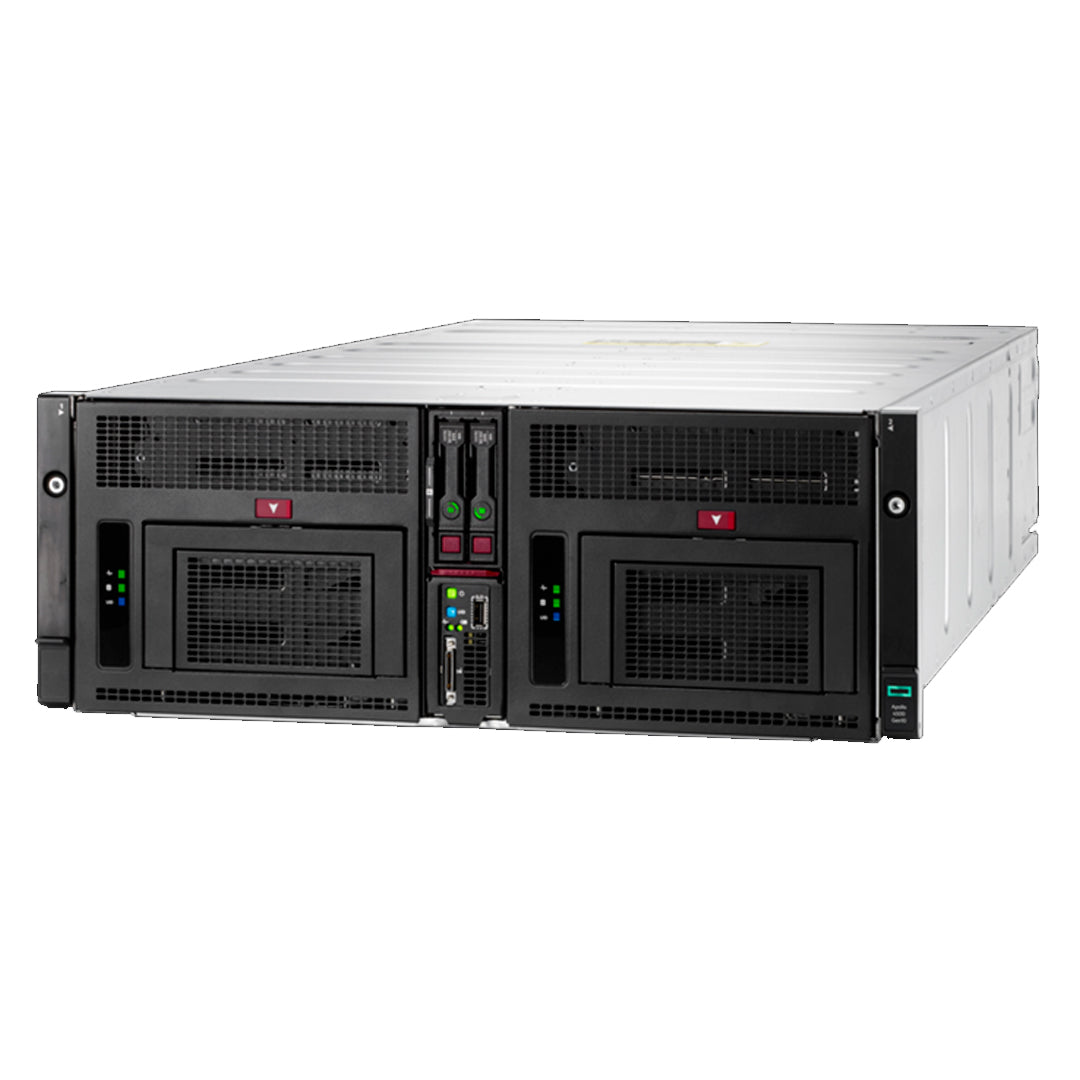

Apollo 4510 Gen10 Product Description

The HPE Apollo 4510 Gen10 System offers revolutionary storage density in a 4U form factor. Fitting in HPE standard 1075 mm rack, with one of the highest storage capacities in any 4U server with standard server depth. When you are running Big Data solutions, such as object storage, data analytics, content delivery, or other data-intensive workloads, the HPE Apollo 4510 Gen10 System allows you to save valuable data center space.

Its unique, density-optimized 4U form factor holds up to 60 large form factor (LFF) drives plus an additional two hot-plug small form factor (SFF) and/or internal M.2 drives. For configurability options, the LFF and SFF slots support SAS or SATA disk drives and SSDs, while the SFF and M.2 slots also support NVMe drives.

What's New for Apollo 4510 Gen10

  • Up to 60 hot-plug LFF drivers support in the front driver drawers with side loaded design
  • 4U form factor fitting in HPE Standard 1075 mm racks
  • Up to three X16 PCIe Gen3 slots.
  • HPE Scalable persistent memory
  • Front 2 hot-plug SFF in the HPE ProLiant XL450 Gen10 Server supports SAS/SATA/NVMe/SSD driverswith optional HPE Smart Array Gen10 controllers
  • Additional boot/drive options: SATA M.2, dual uFF SSD (2 x M.2 cartridges)
  • Intel Xeon processor scalable Family from 4 - 26 Cores, 85 - 150 W, 1.8 - 3.6 GHz
  • HPE DDR4 SmartMemory up to 2666 MT/s
  • HPE Flexible slot power supplies, 800 W and 1600 W, options of AC/ DC/ 277 V ac up to 96% efficiency

Purpose-built System for Big Data Solution Workloads

The HPE Apollo 4510 Gen10 System offers enterprise data centers dense storage and compute capabilities for Big Data Solutions, such as object storage or data analytics solutions.

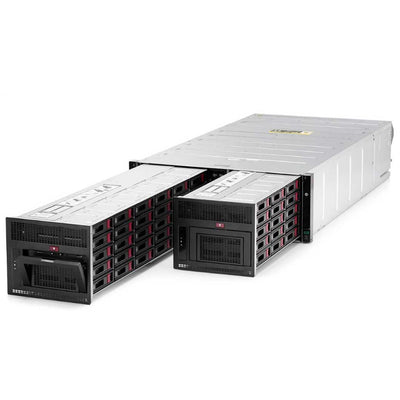

Up to 60 hot-plug front-loaded Large Form Factor (LFF) disk drives load into two drawers, delivering up to 840 TB per system.

Supports Intel Xeon Scalable processors with up to 26 cores and memory speeds up to 2933 MT/s providing the improved computing power for massive Big Data applications.

Scale-out System for Enterprise Customers

The HPE Apollo 4510 Gen10 System can fit in the Hewlett Packard Enterprise standard 1075 mm rack with 2 front loading disk drive drawers and can support up to 60 LFF hot-plug drives.

Enterprise customers who are looking for larger data capacity with standard racks in their data centers can scale out the data center capacity without deploying 1200 mm or deeper racks.

Delivering one of the highest storage capacities in any 4U server with standard server depth.

Security Innovations

The HPE Apollo 4510 Gen10 System combined with our industry standard HPE ProLiant Gen10 Servers deliver firmware anchored directly into the silicon, with security protection built in across the server life-cycle starting with Silicon Root of Trust.

Millions of lines of firmware code run before server operating system boots and with Runtime Firmware Validation, enabled by HPE iLO Advanced Premium Security Edition, the server firmware is checked every 24 hours verifying validity and credibility of essential system firmware.

Secure Recovery allows server firmware to roll back to the last known good state or factory settings after detection of compromised code.

Additional security options are available with Trusted Platform Module (TPM) to prevents unauthorized access to server and securely stores artifacts used to authenticate the server platforms while the Intrusion Detection Kit logs and alerts when the server hood is removed.

Product features

Feature
Description
Processors
Up to 2 of the following
Intel Xeon Models
CPU Frequency
Cores
L3 Cache
Power
DDR4
Memory per socket
Platinum processors
Platinum 8164 Processor
2.0 GHz
26
35.75MB
150 W
2666 MT/s
768GB
Platinum 8160 Processor
2.1 GHz
24
33MB
150 W
2666 MT/s
768GB
Platinum 8158 Processor
3.0 GHz
12
24.7 MB
150 W
2666 MT/s
768GB
Platinum 8156 Processor
3.6 GHz
4
16.50MB
105 W
2666 MT/s
768GB
Platinum 8153 Processor
2.0 GHz
16
22MB
125 W
2666 MT/s
768GB
Gold processors
Gold 6152 Processor
2 GHz
26
35.75MB
150 W
2666 MT/s
768GB
Gold 6148 Processor
2.4 GHz
20
27.50MB
150 W
2666 MT/s
768GB
Gold 6142 Processor
2.6 GHz
16
22MB
150 W
2666 MT/s
768GB
Gold 6140 Processor
2.3 GHz
18
24.75MB
140 W
2666 MT/s
768GB
Gold 6138 Processor
2 GHz
20
27.50MB
125 W
2666 MT/s
768GB
Gold 6136 Processor
3 GHz
12
24.75MB
150 W
2666 MT/s
768GB
Gold 6134 Processor
3.2 GHz
8
24.75MB
130 W
2666 MT/s
768GB
Gold 6132 Processor
2.6 GHz
14
19.25MB
140 W
2666 MT/s
768GB
Gold 6130 Processor
2.1 GHz
16
22MB
125 W
2666 MT/s
768GB
Gold 6128 Processor
3.4 GHz
6
19.25MB
115 W
2666 MT/s
768GB
Gold 6126 Processor
2.6 GHz
12
19.25MB
125 W
2666 MT/s
768GB
Gold 5122 Processor
3.6 GHz
4
16.50MB
105 W
2666 MT/s
768GB
Gold 5120 Processor
2.2 GHz
14
19.25MB
105 W
2400 MT/s
768GB
Gold 5118 Processor
2.3 GHz
12
16.50MB
105 W
2400 MT/s
768GB
Gold 5115 Processor
2.4 GHz
10
13.75MB
85 W
2400 MT/s
768GB
Silver processors
Silver 4116 Processor
2.1 GHz
12
16.50 MB
85 W
2400 MT/s
768GB
Silver 4114 Processor
2.2 GHz
10
13.75MB
85 W
2400 MT/s
768GB
Silver 4112 Processor
2.6 GHz
4
8.25MB
85 W
2400 MT/s
768GB
Silver 4110 Processor
2.1 GHz
8
11.00MB
85 W
2400 MT/s
768GB
Silver 4108 Processor
1.8 GHz
8
11.00MB
85 W
2400 MT/s
768GB
NOTE: Up to 2 processors supported. Mixing different processor models is not supported.
Chipset
Intel C621 chipset
One system management chipset
HPE iLO 5 ASIC
Memory
HPE DDR4 SmartMemory
Registered (RDIMM), Load Reduced (LRDIMM)
DIMM slots available
16 DIMM slots available with 2 processors, 6 channels per processor, Up to 2 DIMMs per channel
Capacity (LRDIMM)
1024GB (16 x 64GB LRDIMM)
Capacity (RDIMM)
512GB (16 x 32GB RDIMM)
Expansion slots
HPE Apollo 4500 Gen10 CPU0 x2/CPU1 x2 FIO I/O Module
Expansion Slots #
Technology
Bus Width
Connector Width
Form Factor
Notes
1
PCIe 3.0
X16
X16
Full-height, half-length slot
Proc 2; SA
2
PCIe 3.0
X16
X16
Full-height, half-length slot
Proc 1; SA
3
PCIe 3.0
X16
X16
Low profile slot
Proc 2
4
PCIe 3.0
X8
NA
FlexLOM
Proc 1
HPE Apollo 4500 Gen10 CPU0 x3/CPU1 x1 FIO I/O Module
Expansion Slots #
Technology
Bus Width
Connector Width
Form Factor
Notes
1
PCIe 3.0
X8
X8
Full-height, half-length slot
Proc 1; SA
2
PCIe 3.0
X8
X8
Full-height, half-length slot
Proc 1; SA
3
PCIe 3.0
X16
X16
Low profile slot
Proc 2
4
PCIe 3.0
X8
N/A
FlexLOM
Proc 1
Storage controllers
The Gen10 controller naming framework has been updated to simplify identification.
Storage controllers dedicated to server node
Software RAID
  • HPE Smart Array S100i SR Gen10 SW RAID

  • HPE Smart Array E208i-a SR Gen10 controller

  • HPE Smart Array P408i-a SR Gen10 controller

Storage controllers dedicated to bulk LFF drives
For hardware RAID/HBA of bulk storage LFF drives, one of the following controlled is required:
  • HPE Smart Array E208i-p SR Gen10 controller

  • HPE Smart Array P408i-p SR Gen10 controller

SAS controllers for external bulk drives:
  • HPE Smart Array E208e-p SR Gen10 controller

  • HPE Smart Array P408e-p SR Gen10 controller

NOTE:
  1. Minimum one or maximum two PCIe stand-up internal controller is required to support up to 60 bulk LFF drives

  2. Performance RAID Controllers (P series) require the HPE Smart Storage Battery (875241- B21) which is sold separately

  3. SAS Controllers for internal bulk drives reside in I/O module in the system

HPE Smart storage battery
Optional HPE 96 W smart storage battery (Up to 20 devices/145 mm cable) kit (875241-B21))
NOTE:The smart storage battery is required if one of the following controllers has been selected on a server node:
  • HPE Smart Array P408i-a SR Gen10 controller

  • HPE Smart Array P408i-p SR Gen10 controller

  • HPE Smart Array P408e-p SR Gen10 controller

Internal storage devices
Hard drives:
  • None ship standard

Drive Bays:
  • 2 SFF drive bays total in the HPE ProLiant XL450 Gen10 server

  • 60 LFF drive bays total in the HPE Apollo 4510 Gen10 chassis

Internal storage
Apollo 4510 Gen10: 1 x 60 model - 60 LFF drives per node
Hot plug LFF SAS
720TB
60 x 12TB
Hot plug LFF SATA
720TB
60 x 12TB
Hot plug LFF SAS SSD
460.8TB
60 x 7.68TB
Hot plug LFF SATA SSD
230.4TB
60 x 3.84TB
Hot plug SFF SATA SSD
7.68TB
2 x 3.84TB
Hot plug SFF SAS SSD
15.36TB
2 x 7.68TB
Hot plug SFF SATA
4TB
2 x 2TB
Hot plug SFF SAS
4.8TB
2 x 2.4TB
Hot plug SFF NVMe PCIe SSD
8TB NVMe
2 x 4TB NVMe
UFF dual M.2
3.68GB
4 x 340GB
NOTE: The node consists of two SFF (2.5 in) hard drive bays on the front of the server node
Interfaces
Network RJ-45
Two 1 GbE NIC ports
Management network port
Two 1 GbE dedicate
Front iLO service port
1 front
Power
1 front
Health LED
1 front
UID for node
1 front
UID for storage
1 per display board
SUV
Serial + USB + video (All in one)
Micro SD slot
1 Micro SD
NOTE:
  • User can elect to use a FlexibleLOM, which enables users to increase I/O capacity.

  • Management port is shared (Located on management module).

  • HPE 36pin SUV dongle cord Kit P/N is 676277-B21.

  • The Micro SD slot is not a hot-pluggable device. User should not attempt to plug an SD card into the SD slot while the server is powered.

System fans
System ships standard with 5 hot-plug fan modules
Graphics
Integrated video standard
  • Video modes up to 1920 x 1200-60 Hz (32 b/p)

Form factor
4U form factor
Server utilities
  • Active health system

  • Active health system viewer

  • Smart update

  • iLO amplifier pack

  • HPE iLO mobile application

  • RESTful interface tool

  • Scripting tools

  • HPE Systems Insight Manager (HPE SIM)

Embedded management
  • HPE Integrated Lights-Out (HPE iLO)

  • Unified Extensible Firmware Interface (UEFI)

  • Intelligent Provisioning

  • iLO RESTful API

Security
  • UEFI secure boot and secure start support

  • Immutable silicon Root of Trust

  • FIPS 140-2 validation (iLO 5 certification in progress)

  • Common criteria certification (iLO 5 certification in progress

  • Tamper-free updates - Components digitally signed and verified

  • Secure Recovery - Recover critical firmware to known good state on detection of compromised firmware

  • Ability to rollback firmware

  • Secure erase of NAND/User data

  • Trusted Platform Module (TPM) 2.0 option

Server management
  • HPE iLO advanced

  • HPE iLO Advanced Premium Security Edition

  • HPE OneView

  • HPE Insight Cluster Management Utility (CMU)

top

Software overview

Feature
Description
Operating systems and virtualization software support
  • Microsoft Windows Server

  • Canonical Ubuntu

  • Red Hat Enterprise Linux (RHEL)

  • SUSE Linux Enterprise Server (SLES)

  • VMware

top

Physical specifications

Specifications
Description
Dimensions(H x W x D):
17.58 x 44.80 x 90.43 cm (6.92 x 17.64 x 35.60 in)
Weight (Approximate)
Minimum (Empty)
Maximum (Full loaded)
61 kg (135 lb)
102 Kg (225 lb)

top

Electrical specifications

Specifications
Description
Rated line voltage
100 to 127 V ac
Per power supply
200 to 240 V ac
Rated input current
For 1600 W power supply:
  • 8.7 A (At 200 V ac)

  • 7.2 A (At 240 V ac)

Per power supply
For 800 W power supply:
  • 9.4 A (At 100 V ac)

  • 4.5 A (At 240 V ac)

Rated input frequency
50 to 60 Hz
Power supply output
Power:
For 1600 W power supply: 2200 W (At 200 - 240 V ac)
For 800 W power supply: 800 W (At 100 - 240 V ac)
Per power supply
Rated Steady-State power
For 1600 W power supply: 1600 W (At 200 - 240 V ac)
 For 800 W power supply: 800 W (At 100 - 240 V ac)

top

Safety certifications

Specifications
Description
Emissions Classification (EMC) - Regulatory information
To view the regulatory information for users product, view the safety and compliance information for server, storage, power, networking, and rack products.

top
