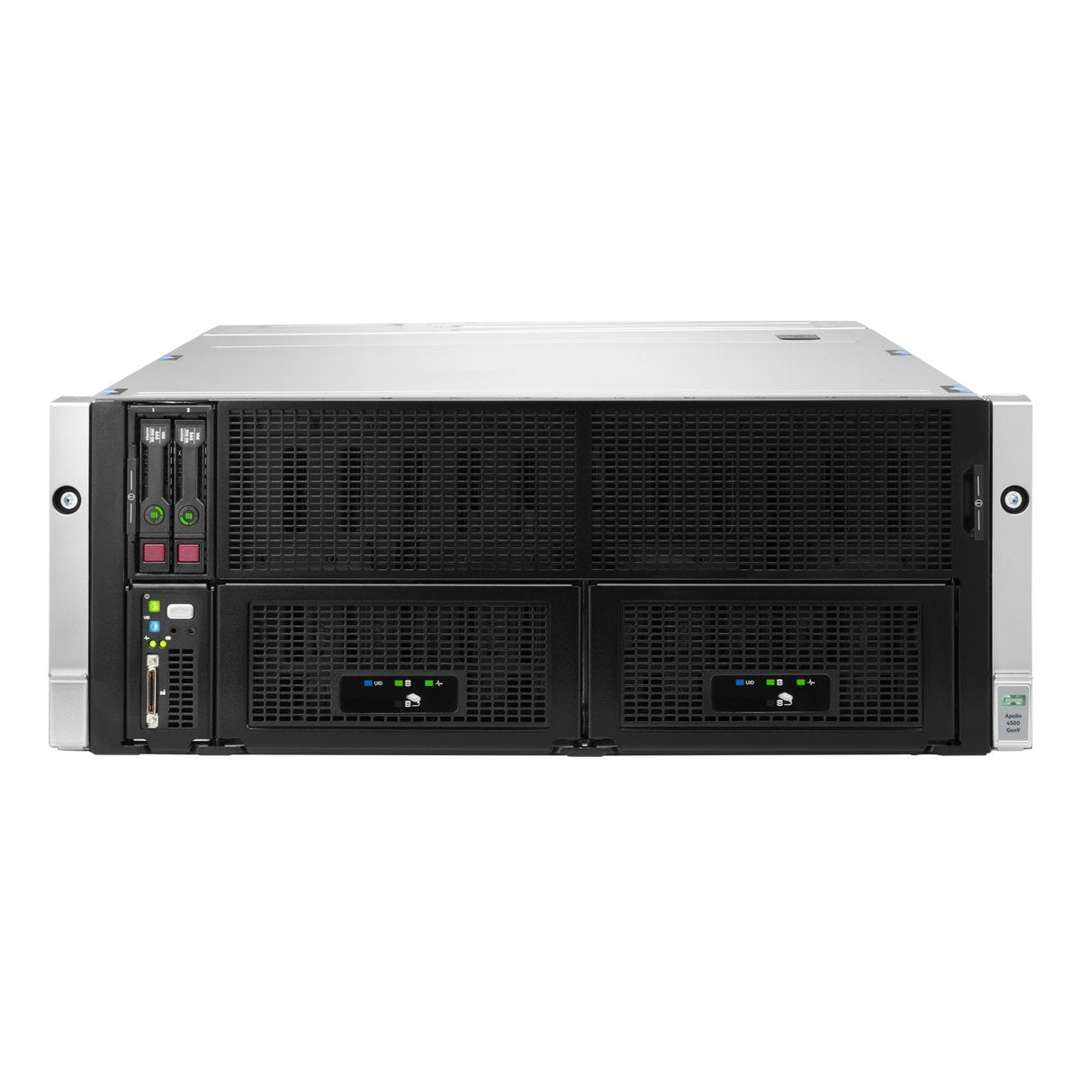

With the HPE Apollo 4500 Systems, HPE challenges the notion that one-size-fits all for Big Data infrastructure by creating purpose-built systems that specifically address storage and analytics workloads.
For object storage, the ultra-dense Apollo 4510 includes 1 server and up to 68 Large Form Factor (LFF) drives in a 4U chassis for a maximum of 680 TB per system.. For Hadoop® and other Big Data solutions, the Apollo 4530 uniquely offers 3 servers per chassis, ideal for housing 3 copies of data in a single system.
Extra Storage DAS Disk Shelves
The HPE ProLiant Apollo 4500 Gen9 can expand its storage with the addition of either the D6000 6Gb/s or the D6020 12Gb/s Disk Shelves.
The D6000 as part of a straight-forward in-rack 6 Gb/s SAS implementation that delivers high-density, low-cost external zoned direct attach storage for HPE BladeSystem servers. Easily configure storage on the fly with easy to use management software. Supports seventy (70) 3.5" LFF Universal hot pluggable SAS or SAS (Midline) MDL drives.
(Apollo 4520 Only) The D6020 12Gb/s Disk Shelve can be directly connected to ProLiant Gen9 servers using the Smart Array P441, and the P841 Controllers using a standard 2M SAS cable. The HPE D6020 also supports the HPE H241 Host Bus Adapter (HBA). The HPE Apollo A4520 supports six (6) D6020 enclosures per A4520 (3 per node).
NOTE: Each of these Disk Shelves have to be configured separately from this Apollo CTO.
HPE Apollo 4500 Gen9 Base Knowledge.
The first step to configuring the Apollo 4500 is knowing which of the 3 Chassis you need. The main thing to know about these chassis is the Storage and Node Server amounts. The Apollo 4520 is special in that it holds only SAS Drives. While the other two can hold a combination of SAS/SATA HDD and SSDs. Each server node holds up to 8 DDR4 DIMMs per processor with 16 total DIMMs on a two-socket configuration per server.
Below are the Chassis to choose from. The Apollo 4510 contains one I/O module; Apollo 4520 has two I/O modules, and Apollo 4530 has three I/O modules.

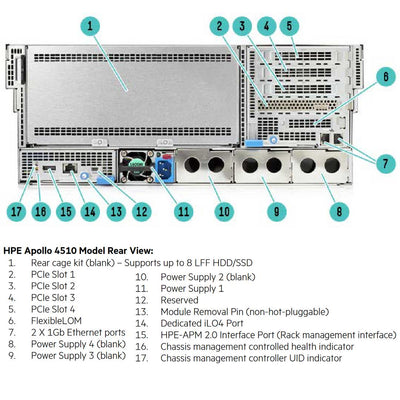

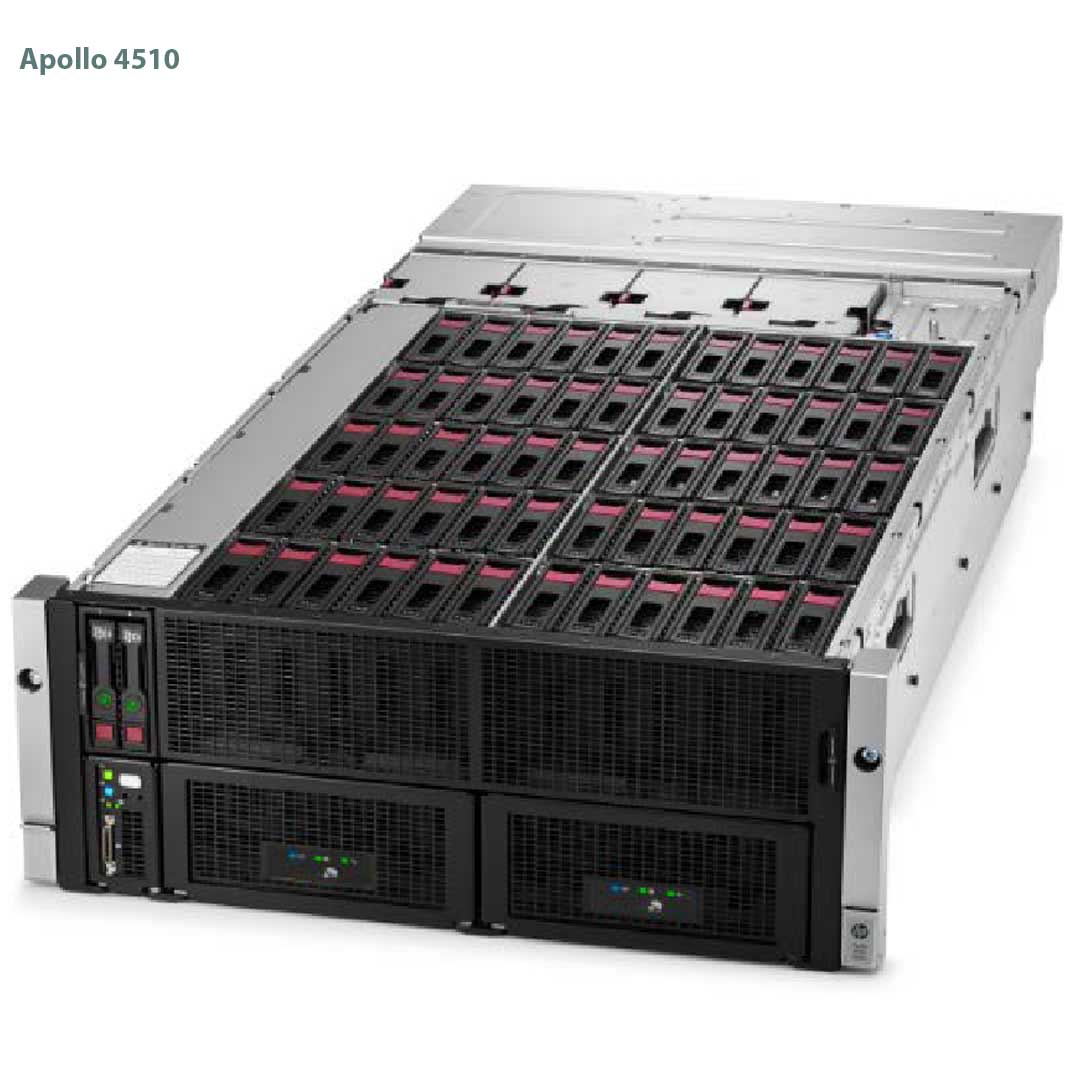

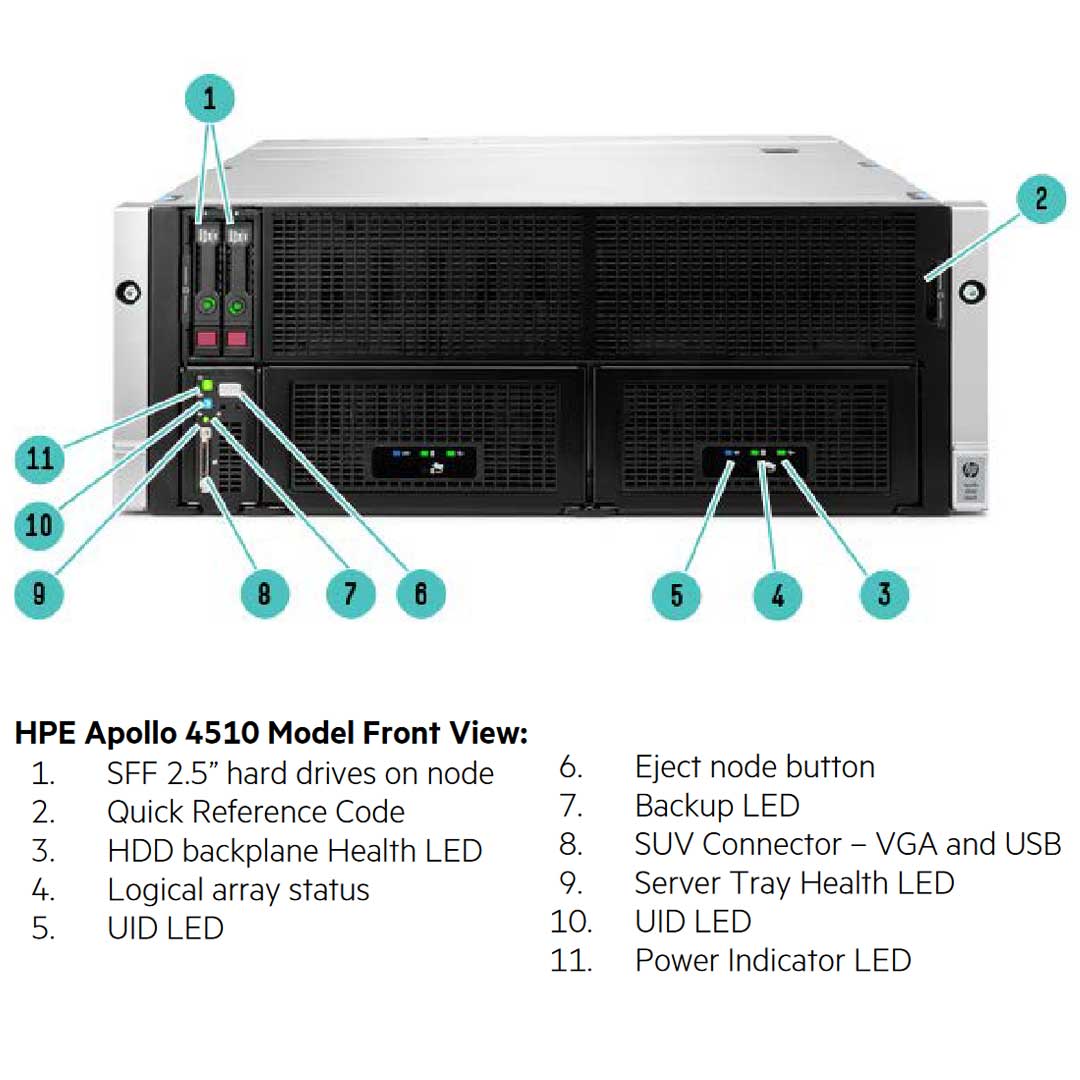

HPE Apollo 4510 - 799581-B21
This chassis holds (1) XL450 Node server (786593-B21) and a total of 68 LFF Drives when the rear 8 LFF Drive cage (799377-B21) is installed. The rear-drive cage is unique to this chassis only.
This server supports the following Storage Controller configuration. Single or Dual P440 and H20 Controllers. This system also supports (1) P840 Smart Array controller. The Management Module already comes with the Storage Battery which can support up to two controllers per server.

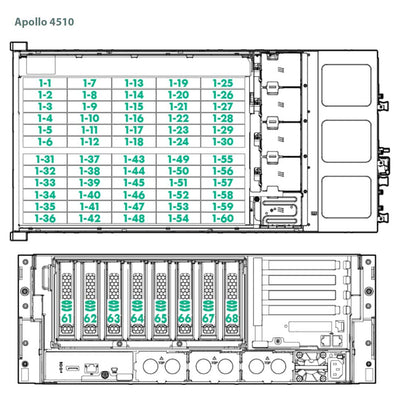

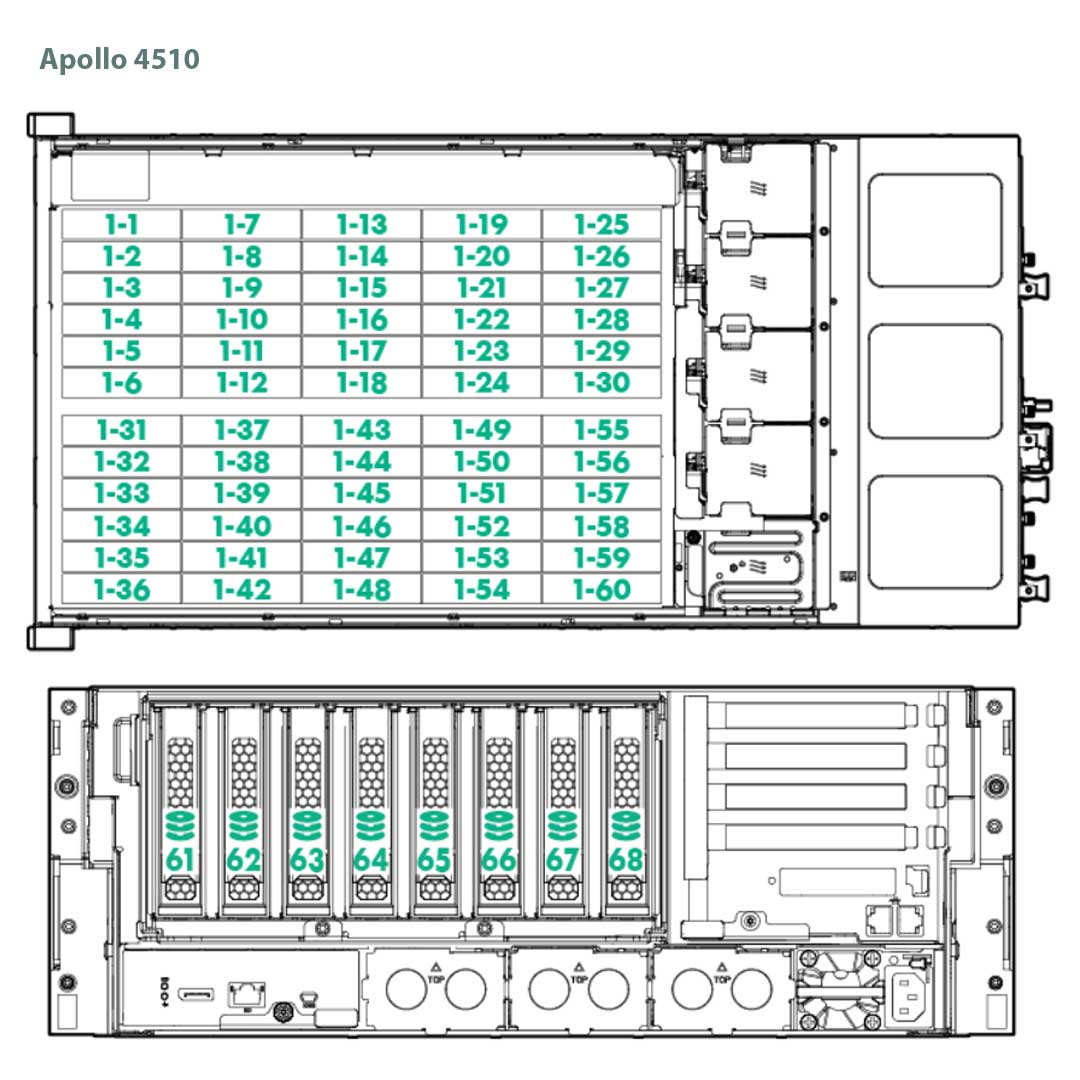

Apollo 4510 Drive Capacity:

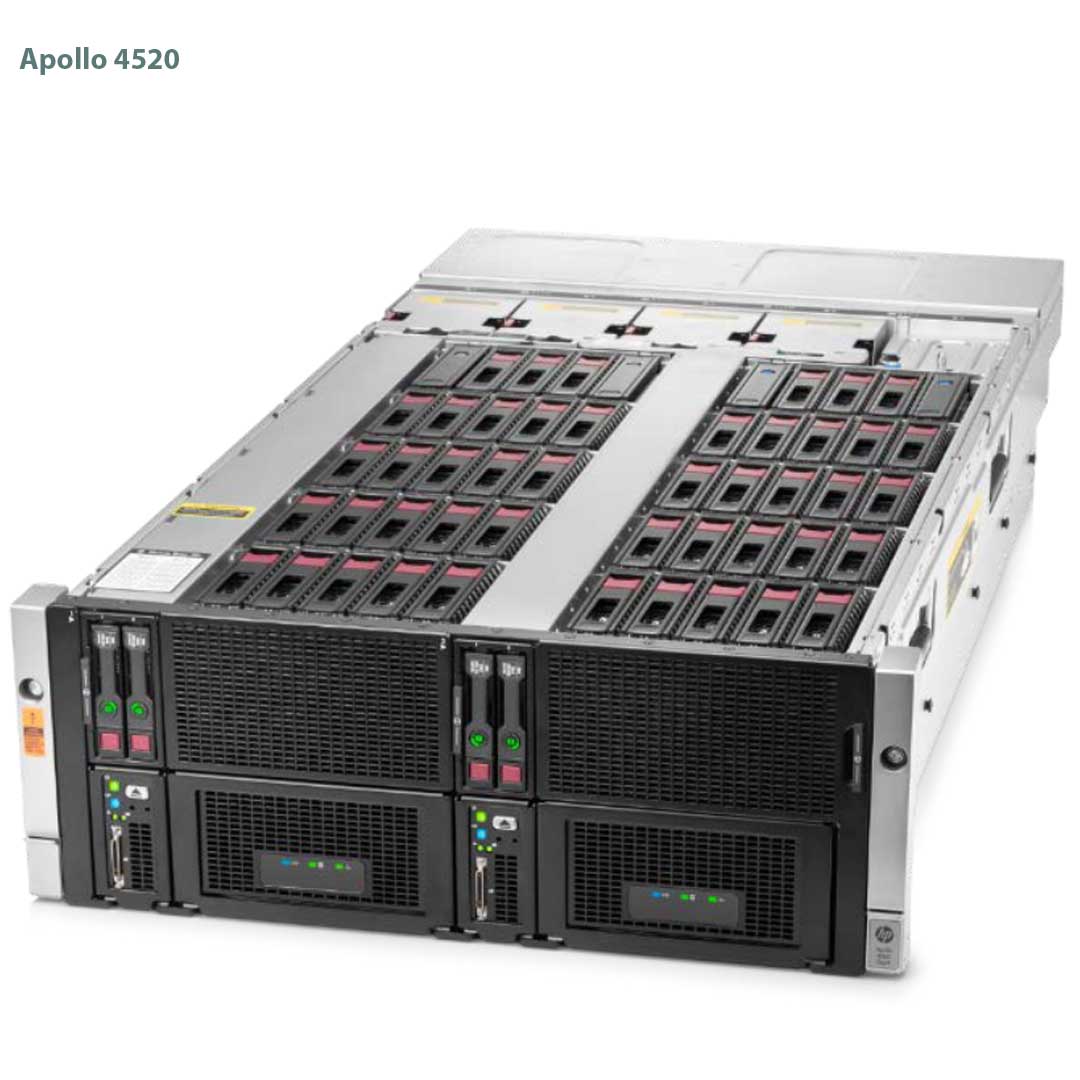

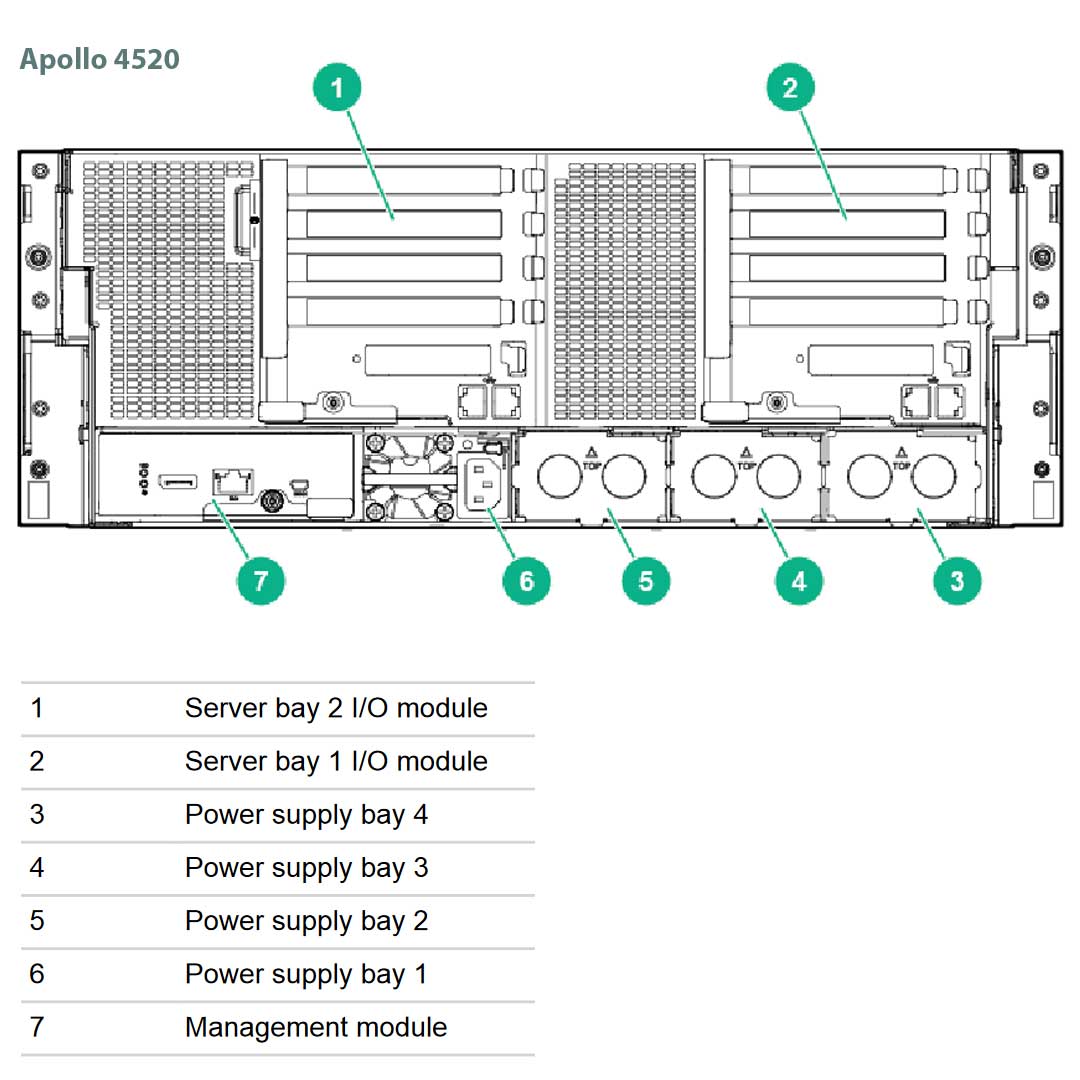

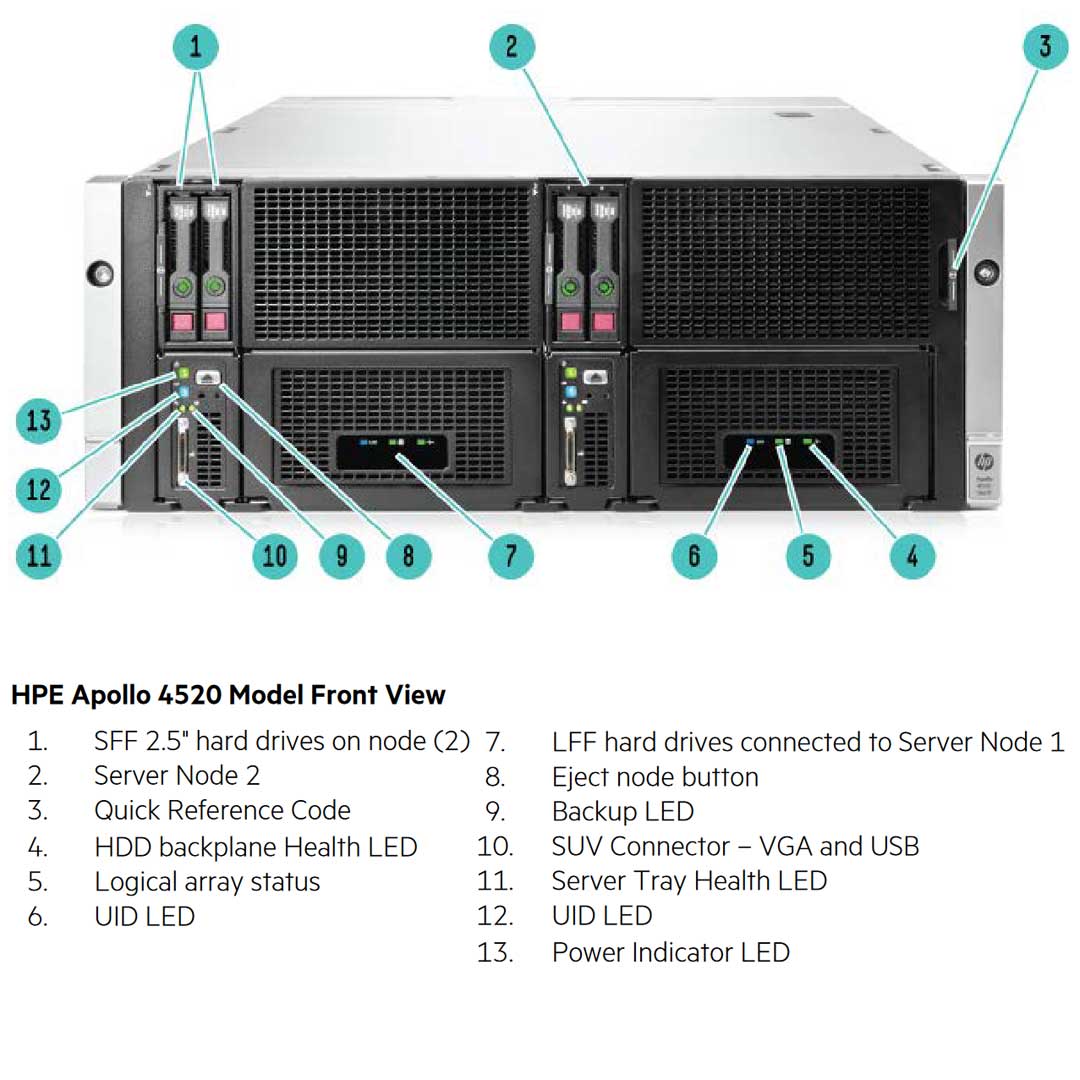

HPE Apollo 4520 - 799581-B22

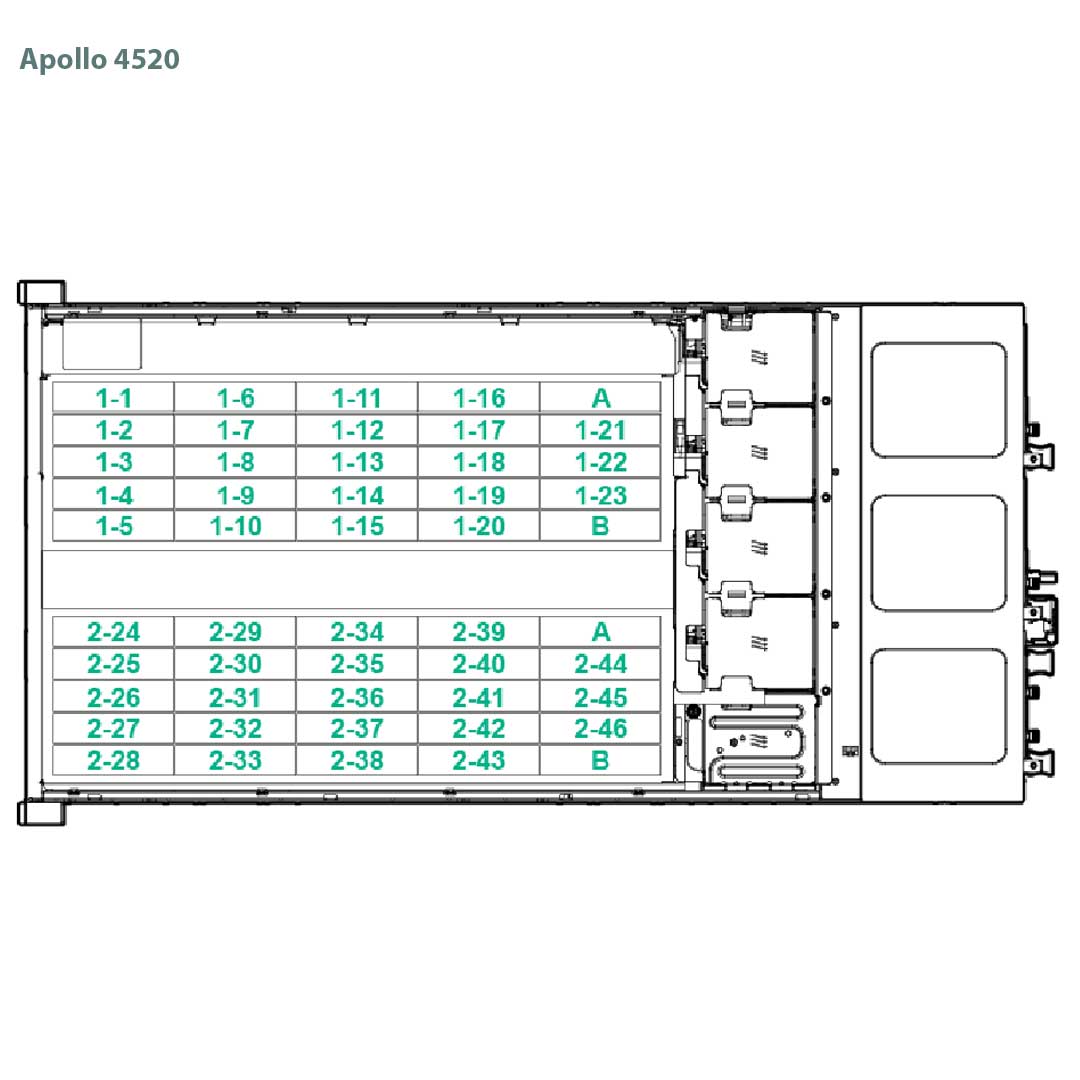

This chassis holds (2) XL450 Node servers (786594-B22) and a total of 23 LFF Drives per server with a total of 46 LFF Drives. The Apollo 4520 contains 2 expanders per server tray. These 2 Expanders allow for shared storage across the two servers.
The Apollo 4520 System uses HPE H240 Smart HBA for LFF SAS drives and supports single and dual installation for the HPE H240 Smart Host Bus Adapter. RAID Mode is not supported with the dual controllers selected.

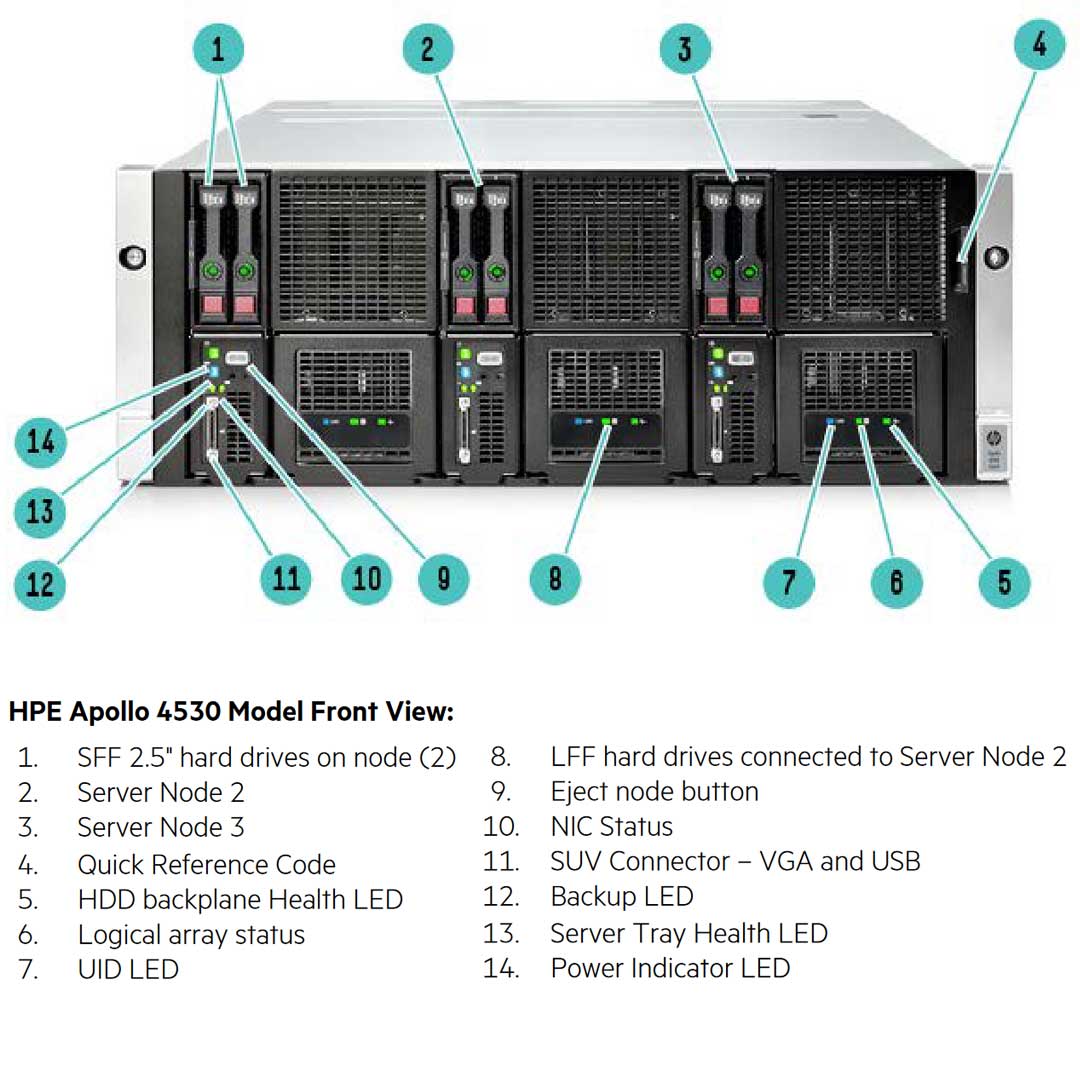

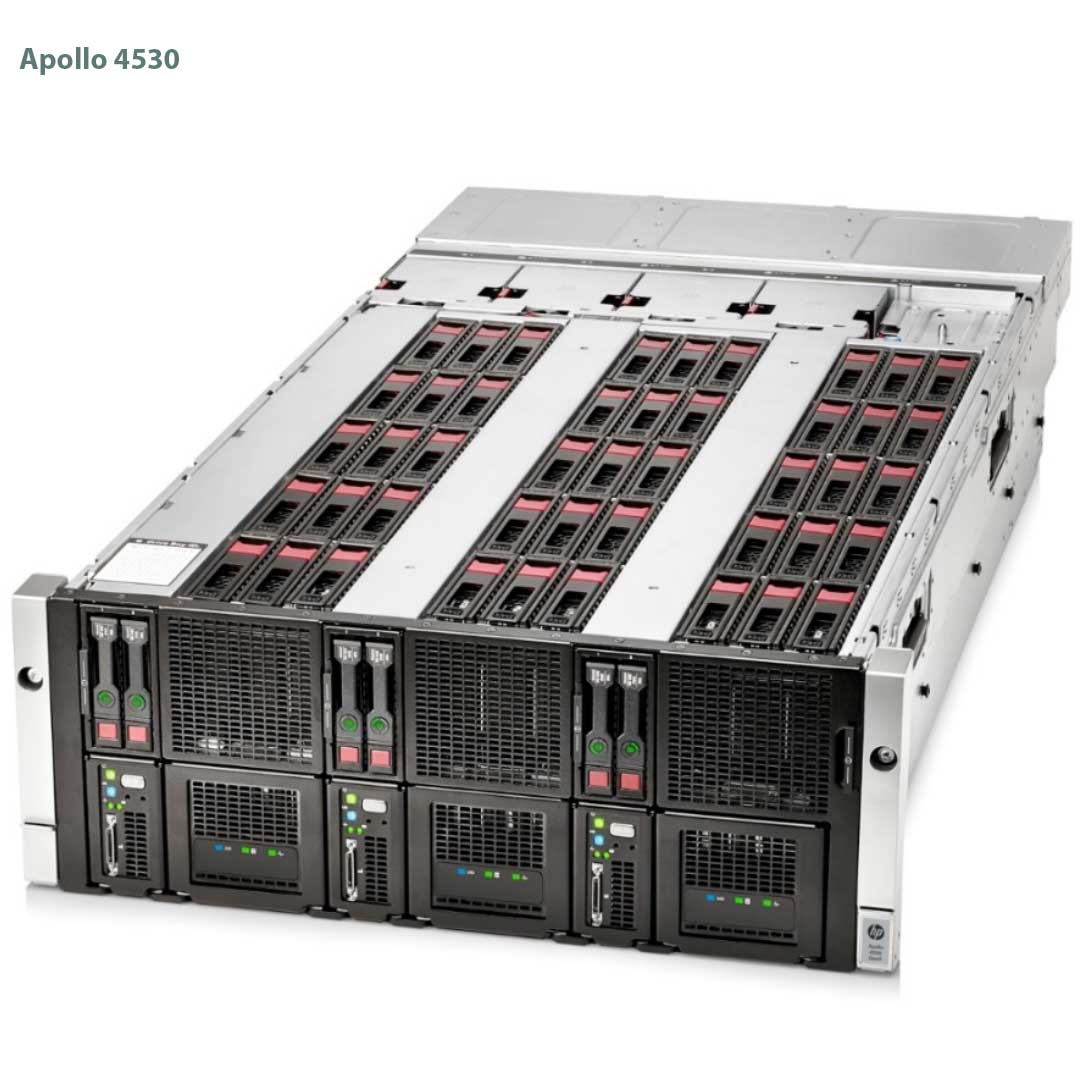

HPE Apollo 4530 - 799581-B23

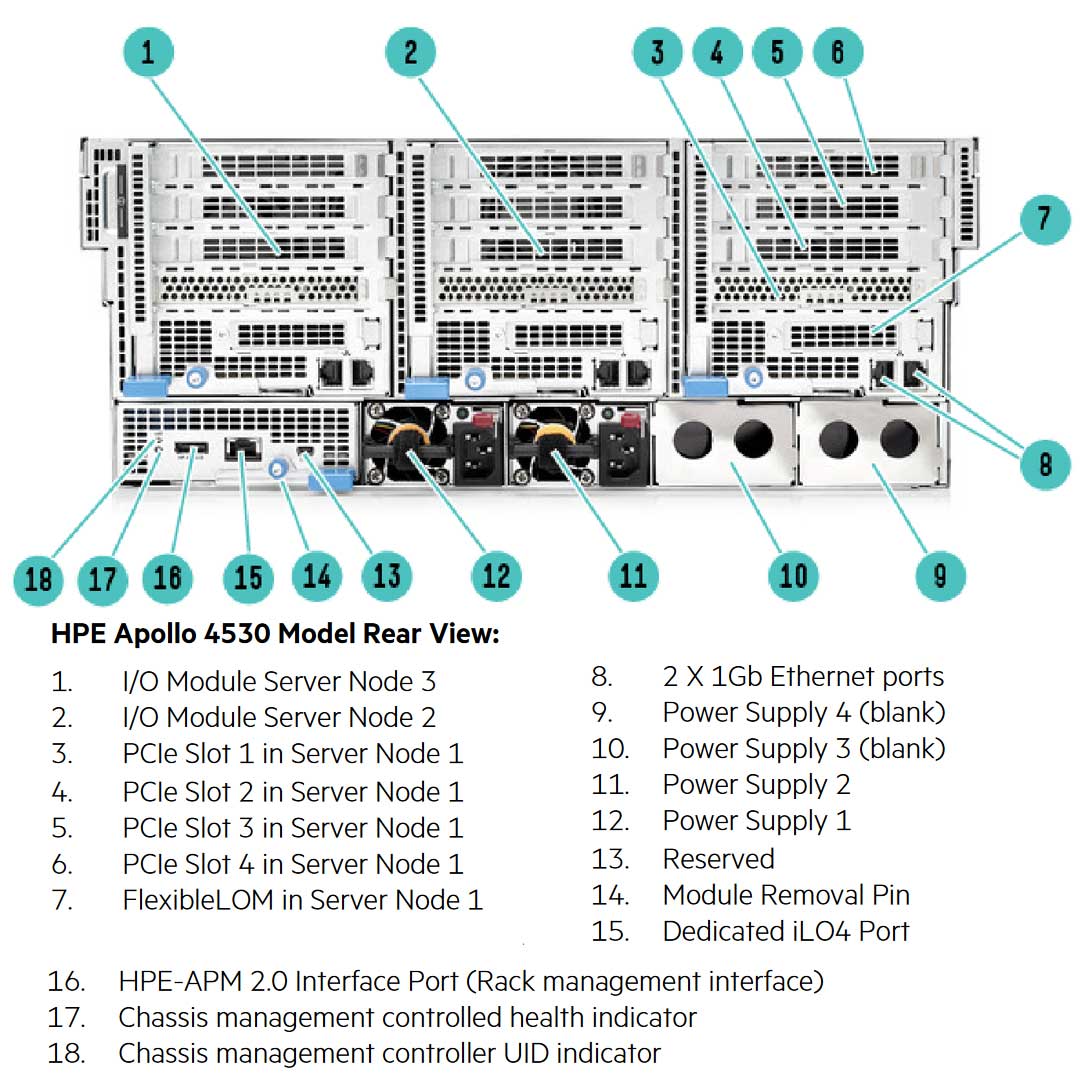

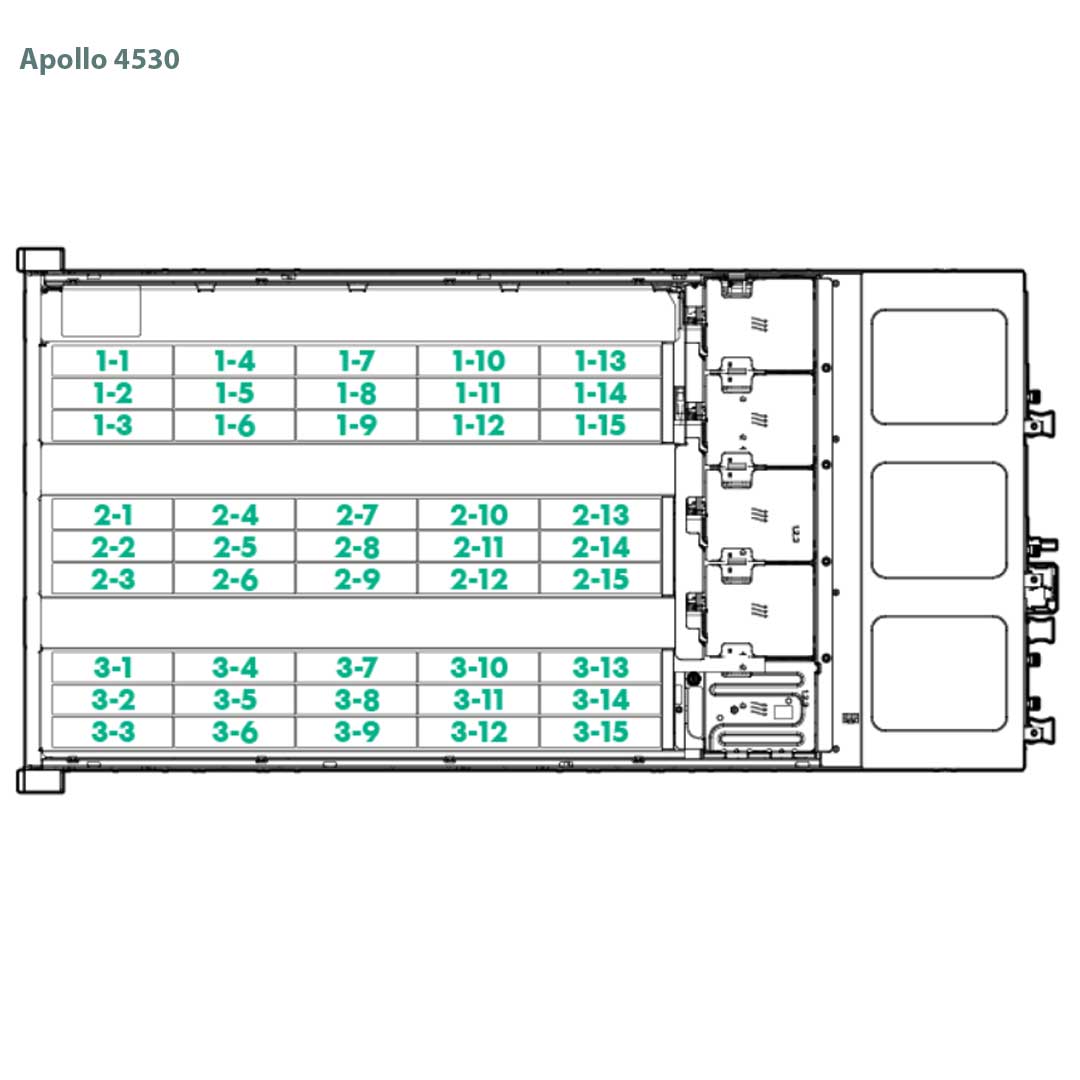

This chassis holds (3) XL450 Node servers (786595-B23) and 15 LFF Drives per server with a total of 45 LFF Drives. Each server node can only support a single configuration of the P440 and the H240 Smart Array Controllers. There is no support for the P840 controller with this Server node.
1xH240 | 2xH240 | 1xP440 | 2xP440 | 1xP840 | |
---|---|---|---|---|---|
Apollo 4510 | x | x | x | x | x |
Apollo 4520 | x | x | |||
Apollo 4530 | x | x |
HPE Smart Storage Controllers
HPE Dynamic Smart Array B140i SATA RAID is located on the server node and controls the two small form factor (SFF/2.5") hard drives and M.2 drives internally. If you do not plan on selecting an HPE Storage Controller, this B140i (784308-B21) option may be selected to support RAID and Hot-plug capabilities for SATA hard drives. The B140i does not support SAS hard drives.
The Apollo 4500 System, with its centralized HPE Smart Storage Battery, supports up to two Smart Array Controllers per node in the I/O module. This dual controller configuration per node server is only supported in the 4510 and 4520 Node Servers.
If SAS drives are selected, P244br or H244br is required.
The Apollo 4520 System uses HPE H240 Smart HBA for LFF SAS drives and requires software to manage failover.
For hardware RAID/HBA of bulk storage LFF drives, one of the following Controllers is required:
SAS Controllers for External bulk drives D6000 / D6020
SA/HBA that end in 1 refer to external controllers for storage outside of the system. 0 refers to internal storage
HPE Apollo 4500 Gen9 Plus PCI Risers
The total PCIe slots available depend on the number of processors selected. One processor provides support for 2 PCIe slots (slots 1 and 2) and Two processors provide support for 4 PCIe slots per XL450 Node Server. Each riser has 1 FlexibleLOM slot and 4 PCIe slots.
Expansion Slots # | Technology | Bus Width | Connector Width | Form Factor | Notes |
---|---|---|---|---|---|
0 | PCIe 3.0 | x8 | x16 | Low Profile | CPU0; FlexibleLOM |
1 | PCIe 3.0 | x8 | x16 | Low Profile | CPU0; SA/HBA |
2 | PCIe 3.0 | x8 | x16 | Low Profile | |
3 | PCIe 3.0 | x8 | x16 | Low Profile | |
4 | PCIe 3.0 | x8 | x16 | Low Profile |
The expansion slot descriptions above apply to Apollo 4510 and Apollo 4530 models. The Apollo 4520 System offers a choice of “HPE Apollo 4500 x16 I/O Module Kit,” (855128-B21). which contains one x16 bus width slot and three x8 PCIe slots, or “HPE Apollo 4500 x8 FIO I/O Module,” (855129-B21) which contains expansion slots identical to the above-listed chart.
Networking Abilities | FlexibleLOM
The Apollo 4500 Gen9 comes with the HPE Ethernet 1Gb 2-port 361i Network Adapter. You can elect to use a FlexibleLOM adapter, which enables increased I/O capacity. The HPE ProLiant XL450 Node server can also support InfiniBand and Omni-Path options up to 100Gb of networking speeds. Each ProLiant XL450 Node server can support up to 4 PCIe slots.
HPE Apollo 4500 Gen9 Cooling
Each chassis is shipped with 5 standard hot-plug fan modules. There are no upgrades to the cooling of this system.
HPE Power Supply Units (PSU)
A minimum of two power supplies per chassis is required with the max of 4 PSU supported.
HPE Apollo 4500 Gen9 Lights Out! iLO
HPE iLO 4
HPE Integrated Lights-Out (HPE iLO) - Monitor your servers for ongoing management, service alerting, reporting, and remote management with HPE iLO.
UEFI - Configure and boot your servers securely with industry-standard Unified Extensible
Firmware Interface (UEFI).
RESTful API - iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards..
Intelligent Provisioning – Hassle-free server and OS provisioning for 1 or few servers with Intelligent Provisioning.
Feature | Description | ||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Processor (One of the following depending on model) | E5-2600 v4 Series Twenty-Two Core Processors Intel Xeon E5 2699 v4 (2.2 GHz/22 core/55MB/145 W) Processor Twenty Core Processors Intel Xeon E5 2698 v4 (2.2 GHz/20 core/50MB/135 W) Processor Eighteen Core Processors
Sixteen Core Processors
Fourteen Core Processors
Twelve Core Processors Intel Xeon E5 2650 v4 (2.2 GHz/12-core/30MB/105 W) Processor Ten Core Processors
Eight Core Processors Intel Xeon E5 2620 v4 (2.1 GHz/8-core/20MB/85 W) Processor Six Core Processors Intel Xeon E5 2603 v4 (1.7 GHz/6-core/15MB/85 W) Processor E5-2600 v3 Series Sixteen Core Processors Intel Xeon E5-2698 v3 (2.3 GHz/16 core/40MB/135 W) Processor Fourteen Core Processors
Twelve Core Processors
Ten Core Processors
Eight Core Processors
Six Core Processors
| ||||||||||||||||||||||||||||||||||||
Chipset |
| ||||||||||||||||||||||||||||||||||||
Cache memory | E5-2600v4 Processors
E5-2600v3 Processors
| ||||||||||||||||||||||||||||||||||||
Legacy mode | HPE Legacy mode (FIO only - P/N 758959-B22) NOTE: UEFI is the default mode for CTO SKUs. Can change default to legacy VIA CTO. | ||||||||||||||||||||||||||||||||||||
On system management chipset | HPE Integrated Lights-Out (iLO) (Firmware: HPE iLO4) | ||||||||||||||||||||||||||||||||||||
Memory protection |
| ||||||||||||||||||||||||||||||||||||
Memory |
| ||||||||||||||||||||||||||||||||||||
Network controller | HPE Ethernet 1Gb 2-port 361i Adapter | ||||||||||||||||||||||||||||||||||||
Expansion slots dedicated to each server node |
| ||||||||||||||||||||||||||||||||||||
Storage controller (Dedicated to each server node) | Software RAID
SAS Controllers for external bulk drives
| ||||||||||||||||||||||||||||||||||||
Smart storage battery | HPE DL/ML/SL 96 W 145 mm smart stor battery | ||||||||||||||||||||||||||||||||||||
Internal bulk storage controller options by model | The following table shows supported controller choices for each model, per I/O module
| ||||||||||||||||||||||||||||||||||||
Internal storage devices |
| ||||||||||||||||||||||||||||||||||||
Internal storage | Apollo 4510: 1x68 Model - 68 LFF Drives per node
| ||||||||||||||||||||||||||||||||||||
Apollo 4520: 23 LFF Drives per node, 2 nodes total for a total of 46 LFF Drives per chassis
| |||||||||||||||||||||||||||||||||||||
Interfaces |
| ||||||||||||||||||||||||||||||||||||
Industry standard compliance |
| ||||||||||||||||||||||||||||||||||||
Server power cords | 6 Highline (IEC-IEC) power cord ships standard | ||||||||||||||||||||||||||||||||||||
System fans | System ships standard with 5 hot-plug fan modules | ||||||||||||||||||||||||||||||||||||
Graphics | Integrated Matrox G200 video standard
| ||||||||||||||||||||||||||||||||||||
Form factor | 4U form factor | ||||||||||||||||||||||||||||||||||||
Security |
| ||||||||||||||||||||||||||||||||||||
Insightmanagement |
| ||||||||||||||||||||||||||||||||||||
High performanceClusters (HPC) |
|
Feature | Description |
---|---|
Operating systems and virtualization software support for ProLiant servers |
|
Specification | Description |
---|---|
Dimensions (H x W x D) | 17.48 x 44.33 x 88.9 cm (6.88 x 17.45 x 35 in) |
Weight (Approximate): |
|
Specification | Description | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Network interface | 10Base-T/100Base-TX/1000Base-TX | |||||||||||
Compatibility |
| |||||||||||
Data transfer method | PCI express v 3.0, 8.0 GT/s, 5.0 GT/s and 2.5 GT/s bus speeds for a x1link | |||||||||||
Controller | I350 powerville | |||||||||||
Network transfer rate |
| |||||||||||
Connector | RJ-45 | |||||||||||
Cable support |
|
Specification | Description |
---|---|
Rated line voltage |
|
Rated input current |
|
Rated input frequency | 50 to 60 Hz |
Power supply output (Per power supply) | Maximum power
|
Specification | Description |
---|---|
Operating temperature | 10° to 35°C (50° to 95°F) |
Non-operating temperature | -30° to 60°C (-22° to 140°F) |
Operating relative humidity | 10% to 90% non-condensing |
Non-operating relative humidity | 5% to 95% non-condensing |
Operating altitude | 3048 m (10,000 ft) |
Non-operating altitude | 9144 m (30,000 ft) |
Specification | Description |
---|---|
Emissions Classification (EMC) | |
FCC rating | Class A |
Normative standards | CISPR 22; EN55022; EN55024; FCC CFR 47,Pt 15; ICES-003; CNS13438; K22;K24; EN61000-3-2; EN 61000-3-3; EN 60950-1; IEC60950-1 |
