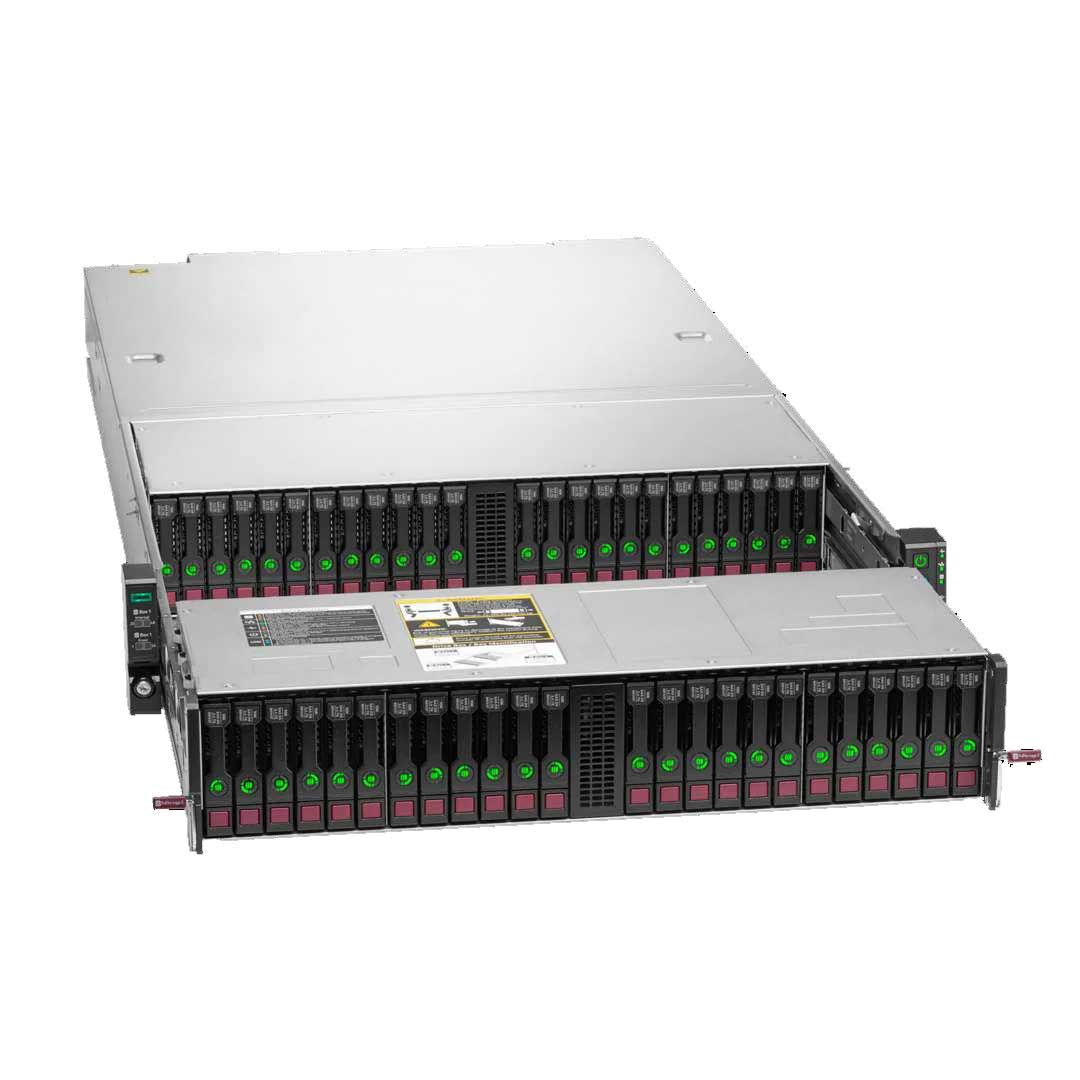

HPE Apollo 4200 Gen10 CTO Server

Part#:
4200G10
Brand:
HPE
Type:
CTO Servers
Condition:
ECS Refurbished & Tested

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Apollo 4200 Gen10 Product Description

The HPE Apollo 4200 Gen10 Server offers an architecture optimized for Big Data Analytics, Software-Defined Storage, backup and archive, and other data storage intensive workloads. Its unique, easily serviceable 2U design saves data center space with up to 28 LFF or 54 SFF hot-plug drives. It delivers accelerated performance with a superior bandwidth and balanced architecture, Intel Xeon Processors, and NVMe connected SSDs.

The focus on security extends from FIPS 140-2 Level 1 validated storage controllers down to the system silicon level, taking full advantage of HPE innovations in firmware protection, malware detection, and recovery. With HPE GreenLake Flex Capacity and HPE Financial Services, you can combine the economic agility benefits of consumption-based IT with the performance and security of on-premise.

What's New for Apollo 4200 Gen10

  • Supports Intel Xeon Scalable Processor Family.
  • Optional rear storage upgrade to support up to 6 SFF NVMe solid state drives (SSDs).
  • Higher bandwidth and more balanced system architecture design, and without trade-offs between drive bays and I/O slots.
  • Firmware-level security and optional chassis intrusion options.
  • Flexible HPE Smart Array Gen10 Controllers support and encryption features to meet different performance requirements for storage solutions.
  • Support for daisy-chaining of out-of-band management network ports.

Ultra-dense and Rack Scale

Highest data storage density in a unique, easier to service 2U standard rack depth chassis.

Up to 28 Large Form Factor (LFF) or 54 Small Form Factor (SFF) hot-plug drives and without I/O compromises. Up to 392 TB in 2U space with 14 TB LFF drives support for the LFF models.

Support for daisy-chaining of out of band management network ports for 95% reduction in management network port consumption per 42U rack.

Workload-optimized with Accelerated Performance

Balanced system architecture with 62% higher bandwidth from three Intel UltraPath Interconnect (UPI) design.

The latest generation Intel Xeon Scalable Processors with up to 28 cores each and DDR4 2933 MT/s HPE SmartMemory for up to 66% faster bandwidth.

Up to six NVMe-connected SFF SSDs for low latency and high bandwidth metadata access or data caching.

HPE Smart Array Gen10 Controllers with up to 65% better random and up to 25% better sequential performance, along with network controllers up to 100 Gb/s.

Data Secure by Design

HPE iLO 5 and HPE Silicon Root of Trust technology provides firmware protection, malware detection, and firmware recovery.

Optional HPE Smart Encryption for storage controller-based FIPS 140-2 Level 1 data at rest encryption.

Optional Defective Media Retention service to maximize sensitive data control in the event of a drive failure.

Product features

Feature
Description
Processors
Processors - Up to 2 of the following depending on model:
Intel Xeon Models
CPU Frequency
Cores
L3 Cache
Power
UPI
DDR4
Memory per socket
Platinum Processors
Platinum 8276 Processor
2.2 GHz
28
38.50MB
165 W
3 @ 10.4 GT/s
2933 MT/s
1TB
Platinum 8260 Processor
2.4 GHz
24
35.75MB
165 W
3 @ 10.4 GT/s
2933 MT/s
1TB
Platinum 8160 Processor
2.1 GHz
24
33.00MB
150 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold Processors
Gold 6252 Processor
2.1 GHz
24
35.75MB
150 W
3 @ 10.4 GT/s
2933 MT/s
1TB
Gold 6248 Processor
2.5 GHz
20
27.50MB
150 W
3 @ 10.4 GT/s
2933 MT/s
1TB
Gold 6242 Processor
2.8 GHz
16
22.00MB
150 W
3 @ 10.4 GT/s
2933 MT/s
1TB
Gold 6240 Processor
2.6 GHz
18
24.75MB
150 W
3 @ 10.4 GT/s
2933 MT/s
1TB
Gold 6238 Processor
2.1 GHz
22
30.25MB
140 W
3 @ 10.4 GT/s
2933 MT/s
1TB
Gold 6234 Processor
3.3 GHz
8
24.70MB
130 W
3 @ 10.4 GT/s
2933 MT/s
1TB
Gold 6230 Processor
2.1 GHz
20
27.50MB
125 W
3 @ 10.4 GT/s
2933 MT/s
1TB
Gold 6226 Processor
2.7 GHz
12
19.25MB
125 W
3 @ 10.4 GT/s
2933 MT/s
1TB
Gold 6148 Processor
2.4 GHz
20
27.50MB
150 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 6140 Processor
2.3 GHz
18
24.75MB
140 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 6134 Processor
3.2 GHz
8
24.75MB
130 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 6132 Processor
2.6 GHz
14
19.25MB
140 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 6130 Processor
2.1 GHz
16
22.00MB
125 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 5220 Processor
2.2 GHz
18
24.75MB
125 W
2 @ 10.4 GT/s
2666 MT/s
1TB
Gold 5218 Processor
2.3 GHz
16
22.00MB
125 W
2 @ 10.4 GT/s
2666 MT/s
1TB
Gold 5215 Processor
2.5 GHz
10
13.75MB
85 W
2 @ 10.4 GT/s
2666 MT/s
1TB
Gold 5118 Processor
2.3 GHz
12
16.50MB
105 W
2 @ 10.4 GT/s
2400 MT/s
768GB
Silver Processors
Silver 4216 Processor
2.1 GHz
16
22.00MB
100 W
2 @ 9.6 GT/s
2400 MT/s
1TB
Silver 4215 Processor
2.5 GHz
8
11.00MB
85 W
2 @ 9.6 GT/s
2400 MT/s
1TB
Silver 4214 Processor
2.2 GHz
12
16.50MB
85 W
2 @ 9.6 GT/s
2400 MT/s
1TB
Silver 4210 Processor
2.2 GHz
10
13.75MB
85 W
2 @ 9.6 GT/s
2400 MT/s
1TB
Silver 4208 Processor
2.1 GHz
8
11.00MB
85 W
2 @ 9.6 GT/s
2400 MT/s
1TB
Silver 4116 Processor
2.1 GHz
12
16.50MB
85 W
2 @ 9.6 GT/s
2400 MT/s
768GB
Silver 4114 Processor
2.2 GHz
10
13.75MB
85 W
2 @ 9.6 GT/s
2400 MT/s
768GB
Silver 4110 Processor
2.1 GHz
8
11.00MB
85 W
2 @ 9.6 GT/s
2400 MT/s
768GB
Form factor
2U rack
Chassis types 1

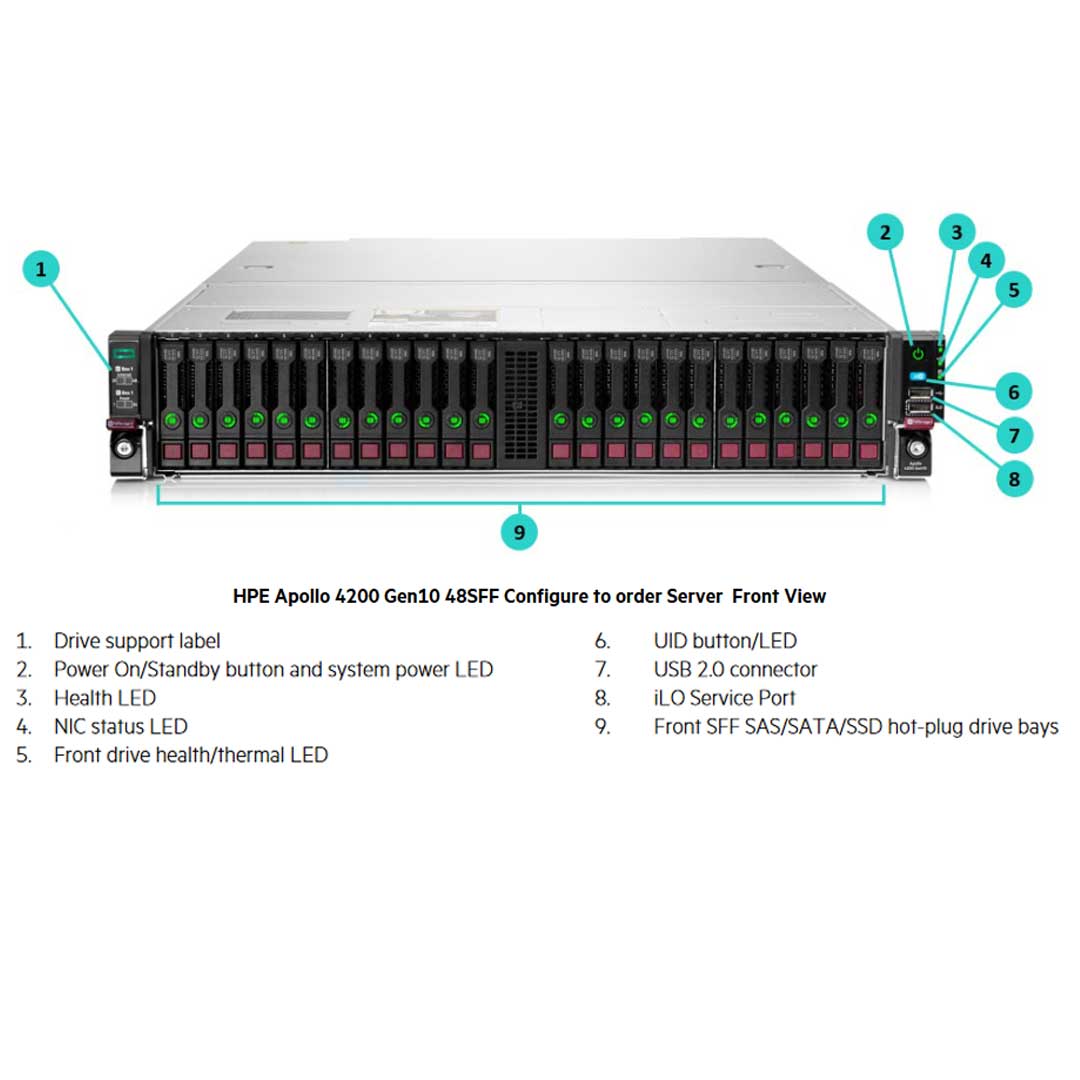

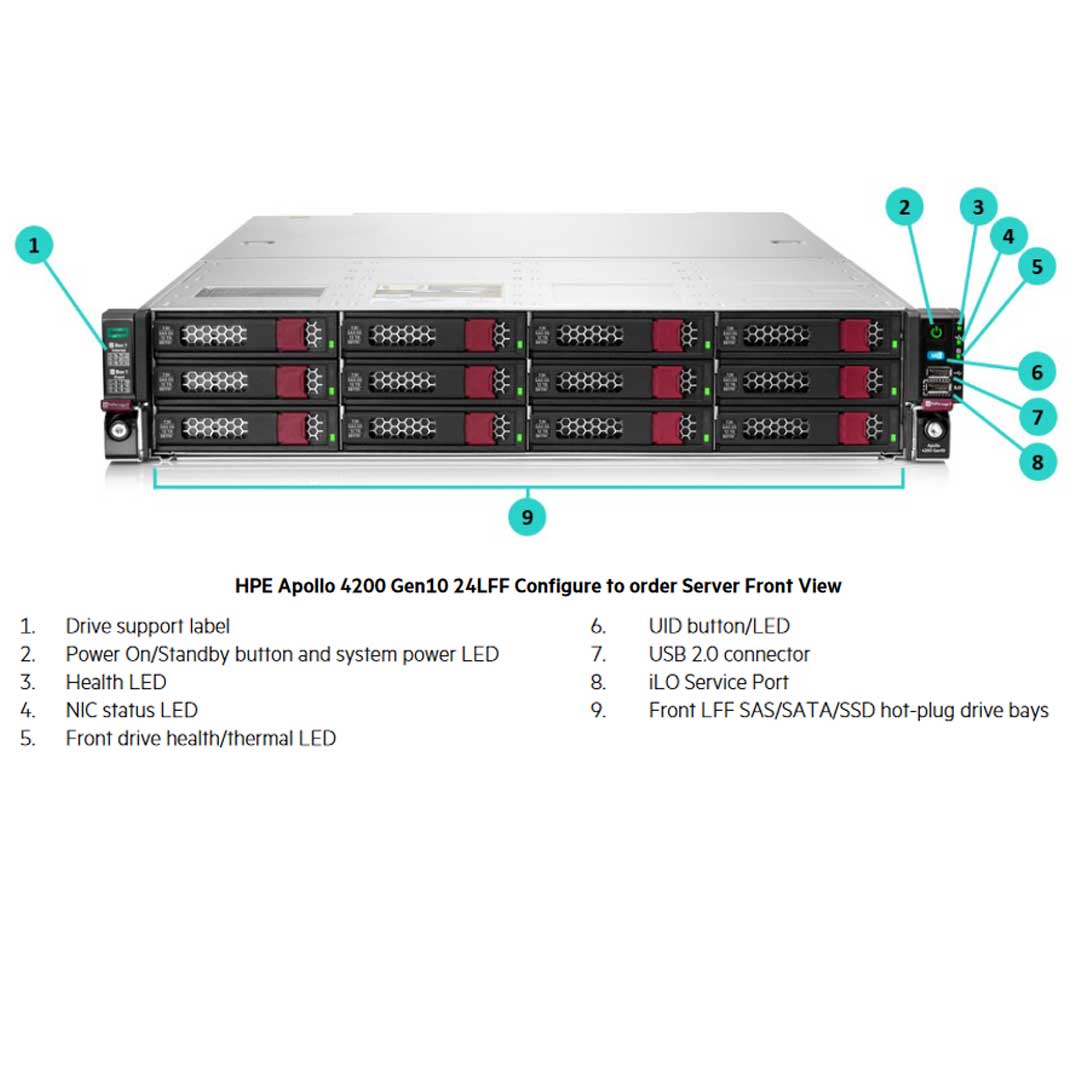

  • 24 LFF

  • 48 SFF

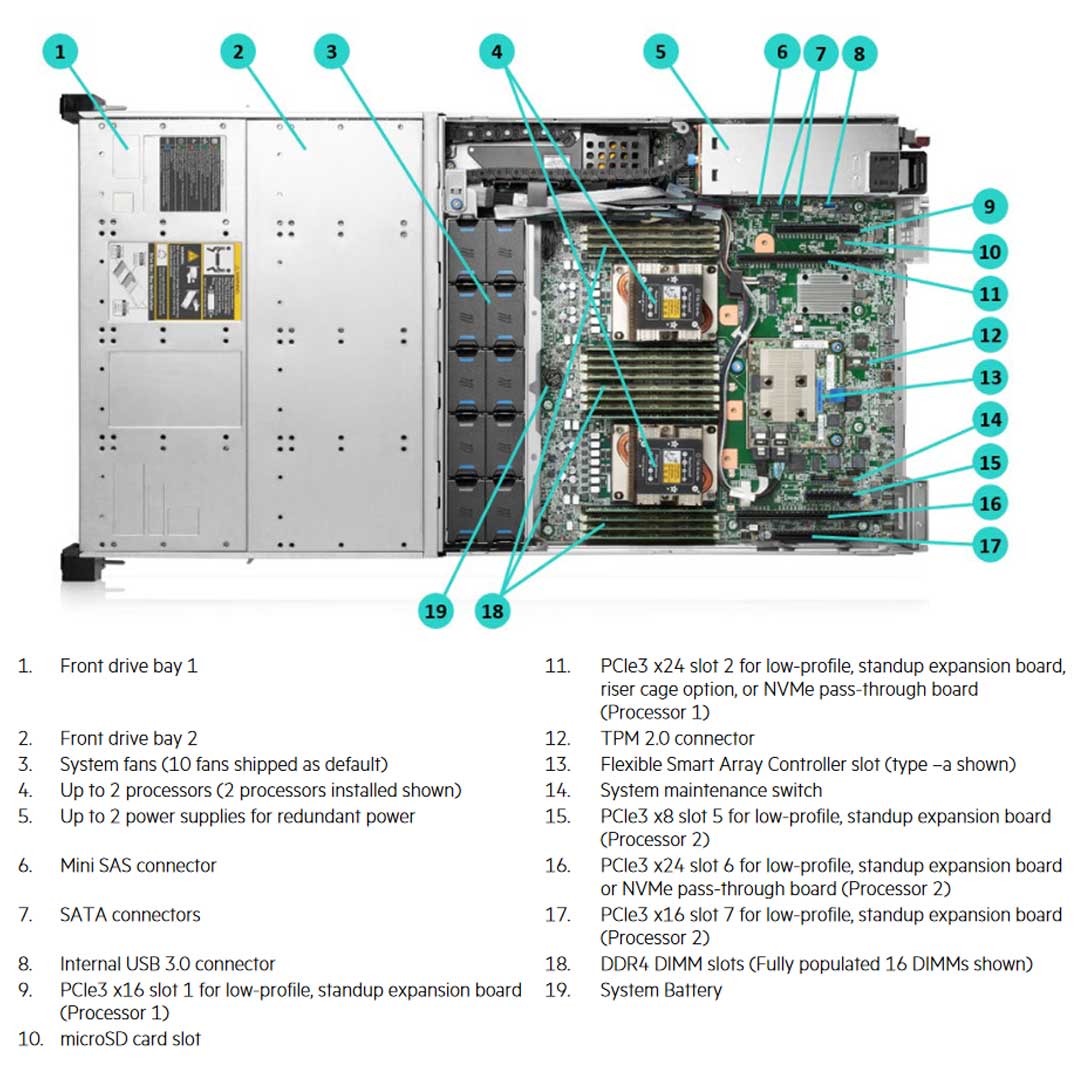

System fans
10 system fans shipped as default
Chipset 6
Intel C621 chipset
On system management chipset 7
HPE iLO 5 Application-Specific Integrated Circuit (ASIC)
System board
HPE ProLiant XL420 Gen10 Server
Memory 8
Type
HPE DDR4 SmartMemory Registered Dual In-Line Memory Module (RDIMM), Load Reduced (LRDIMM)
Dual In-line Memory Module (DIMM) slots available
16
8 DIMM slots per processor, 6 channels per processor, 2-1-1 deployment
Maximum capacity (LRDIMM)
2.0 TB
16 x 128 GB LRDIMM - 2933 MT/s
Maximum capacity (RDIMM)
1.0TB
16 x 64 GB RDIMM - 2933 MT/s
Maximum capacity (HPE Persistent Memory)
512GB per processor/socekt
Memory protection
Advanced ECC
Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip.
Online spare
Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.

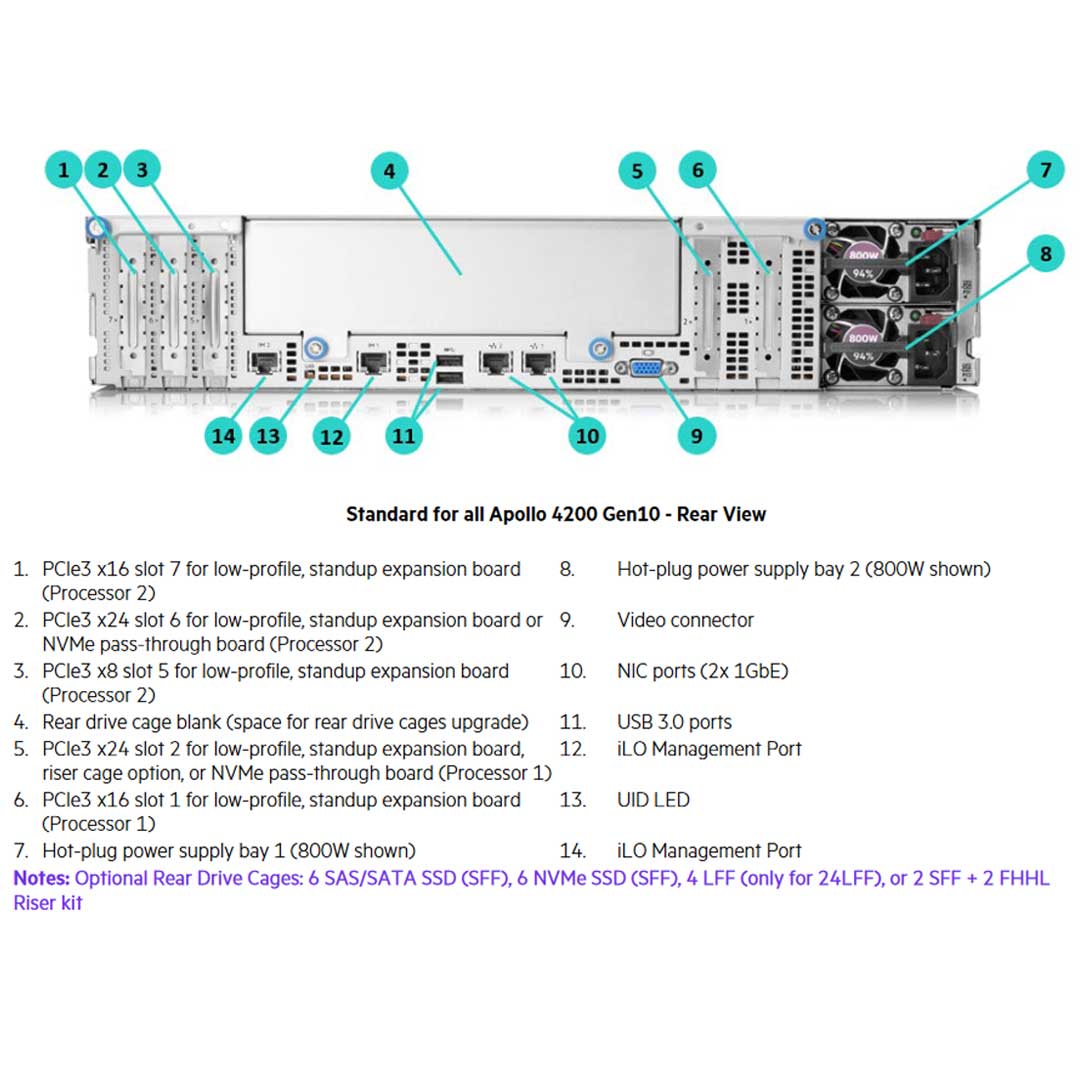

Expansion slots
Default expansion slots
Expansion Slots #
Technology
Bus Width
Connector Width
Processor
Slot Form Factor
1
PCIe 3.0
x16
x16
CPU1
Low profile
2
PCIe 3.0
x24
x24
CPU1
Low profile
5
PCIe 3.0
x8
x8
CPU2
Low profile
6
PCIe 3.0
x24
x24
CPU2
Low profile
7
PCIe 3.0
x16
x16
CPU2
Low profile
2 SFF + 2 Full-Height, Half-Length (FHHL) riser kit 9
3
PCIe 3.0
x16
x16
CPU1
FHHL
4
PCIe 3.0
x8
x8
CPU1
FHHL
Storage controllers
Software RAID 10
HPE Smart Array S100i SR Gen10 SW RAID
Essential RAID controllers
  • HPE Smart Array E208i-a SR G10 LH controller

  • HPE Smart Array E208i-p SR Gen10 controller

  • HPE Smart Array E208e-p SR Gen10 controller

Performance RAID controllers 11
  • HPE Smart Array P408i-a SR G10 LH controller

  • HPE Smart Array P408i-p SR Gen10 controller

  • HPE Smart Array P408e-p SR Gen10 controller

  • HPE Smart Array P816i-a SR G10 LH controller

  • HPE Smart Array P824i-p MR Gen10 controller

Internal storage devices
  • Hard drives

  • None ship standard

Maximum storage 12
Storage
Capacity
Configuration
Hot-Plug SFF SAS Hard Disk Drive (HDD)
120TB
48 + 2 x 2.4TB (With rear drive cage option)
Hot-Plug SFF SATA HDD
100TB
48 + 2 x 2.0TB (With rear drive cage option)
Hot-Plug SFF SAS SSD
384TB
48 + 2 x 7.68TB (With rear drive cage option)
Hot-Plug SFF SATA SSD
384TB
48 + 2 x 7.68TB (With rear drive cage option)
Hot-Plug LFF SAS HDD
392TB
24 + 4 x 14TB (With rear drive cage option)
Hot-Plug LFF SATA HDD
392TB
24 + 4 x 14TB (With rear drive cage option)
Hot-Plug LFF SAS SSD
107.52TB
24 + 4 x 3.84GB (With rear drive cage option)
Hot-Plug LFF SATA SSD
53.76TB
24 + 4 x 1.92TB (With rear drive cage option)
Hot-Plug SFF NVMe PCIe SSD (Rear drive cage only)
92.16TB
6 x 15.36TB NVMe
Power supply 13
  • HPE 800 W flex slot platinum Hot-Plug low halogen power supply kit.

  • HPE 1600 W flex slot platinum Hot-Plug low halogen power supply kit.

Interfaces
Video
1 rear - Video Graphics Array (VGA) port
Network ports
2 x 1 GbE Dmbedded NIC
iLO remote management port
2 x 1Gb Dedicated
MicroSD slot 14
1 MicroSD slot
USB 2.0
1 Front (Standard on all chassis types)
USB 3.0
Up to 3 total: 2 rear, 1 internal
Industry standard compliance 15
  • Advanced Configuration and Power Interface (ACPI) 6.1 compliant

  • Peripheral Component Interconnect express (PCIe) 3.0 compliant

  • Wake-on-LAN (WOL) support

  • Microsoft logo certifications

  • Preboot eXecution Environment (PXE) support

  • USB 3.0 compliant

  • USB 2.0 compliant

  • System Management BIOS (SMBIOS) 3.1

  • Unified Extensible Firmware Interface (UEFI) 2.6

  • Redfish API

  • Intelligent Platform Management Interface (IPMI) 2.0

  • Secure digital 4.0

  • Trusted Platform Module (TPM) 2.0 support

  • Advanced Encryption Standard (AES)

  • Triple Data Encryption Standard (3DES)

  • Simple Network Management Protocol (SNMP) v3

  • Transport Layer Security (TLS) 1.2

  • DMTF Systems Management Architecture for Server Hardware Command Line (SMASH CLP)

  • Active directory v1.0

  • American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE) A3/A4

  • Energy star

Graphics
  • Integrated video standard

    • Video modes up to 1920 x 1200 - 60 Hz (32 bp)

    • 16MB video memory

  • HPE iLO 5 on system management memory

    • 32MB flash

    • 4Gb DDR3 with ECC protection

HPE Server UEFI/legacy ROM 16
UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:
  • Secure boot and secure start enable for enhanced security.

  • Operating System (OS) specific functionality.

  • Support for > 2.2TB (Using GUID Partition Table (GPT)) boot drives.

  • USB 3.0 stack

  • Embedded UEFI shell

  • Mass configuration deployment tool using iLO RESTful API that is Redfish API conformant.

  • PXE boot support for IPv6 networks

  • Workload profiles for simple performance optimization.

  • UEFI boot mode only

  • TPM 2.0 support

  • NVMe boot support

  • Platform Trust Technology (PTT) can be enabled.

  • iSCSI software initiator support

  • HTTP/HTTPs boot support as a PXE alternative.

  • Boot support for option cards that only support a UEFI option ROM.

Embedded management
  • HPE Integrated Lights-Out (HPE iLO)

  • UEFI

  • Intelligent provisioning

  • iLO RESTful API

Server utilities
  • Active Health System (AHS)

  • AHS viewer

  • Smart update

  • iLO amplifier pack

  • HPE iLO mobile application

  • RESTful interface tool

  • Scripting tools

  • HPE OneView standard

  • HPE Systems Insight Manager (HPE SIM)

Security
  • UEFI secure boot and secure start support

  • Immutable silicon root of trust

  • FIPS 140-2 validation

  • Common criteria certification

  • Configurable for PCI DSS compliance

  • Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser.

  • Support for Commercial National Security Algorithms (CNSA).

  • iLO security modes including a new iLO advanced premium security license.

  • Granular control over iLO interfaces

  • Smart card (PIV/CAC) and kerberos based 2-factor authentication.

  • Tamper-Free updates - Components digitally signed and verified.

  • Secure recovery - Recover critical firmware to known good state on detection of compromised FW.

  • Ability to rollback firmware

  • Secure erase of NAND

  • TPM 2.0 option

  • Bezel locking kit

NOTE:
  1. Optional rear drive cages: 6 NVMe SSD (SFF), 4 LFF (Only for 24LFF), or 2 SFF + 2 FHHL riser kit.
  2. Check the below link for more information regarding Intel Xeon processors.

    Click here to access the page for Intel Xeon Processors .


    • Platinum processors: 2 and 4 socket capable, 2S - 2UPI, 4S - 3UPI, 8S - 3UPI - 10.4 GT/s.
    • 6-channel DDR4 - 2666 MT/s. 768GB max memory capacity (1.5TB on select skus).
    • Intel turbo boost technology, Intel Hyper-Threading technology Intel AVX-512 (2 x 512-bit FMA). 48 lanes PCIe 3.0, advanced RAS.

    • Gold processors: 2 and 4 socket capable, 2S - 2UPI, 4S - 3UPI - 10.4 GT/s. 6-channel DDR4 - 2400 MT/s (SKU 5122 - Supports 2666 MT/s).
    • 768GB max memory capacity (1.5TB on select skus).
    • Intel turbo boost technology, Intel Hyper-Threading technology, Intel AVX-512 (1 x 512-bit FMA) (SKU 5122 - Supports 2 x 512-bit FMA). 48 lanes PCIe 3.0, advanced RAS.

    • Silver processors: 2 socket capable, 2S - 2UPI - 9.6 GT/s. 6-channel DDR4 - 2400 MT/s, 768GB max memory capacity.
    • Intel turbo boost technology, Intel Hyper-Threading technology, Intel AVX-512 (1 x 512-bit FMA).
    • 48 lanes PCIe 3.0, standard RAS.
  3. Check the below link for more information regarding Intel chipsets:

    Click here to access the page for Intel Server Chipsets  .

  4. Check the below link for more information on iLO:

    Click here to access the QuickSpecs page for HPE iLO .


  5. If 2 SFF + 2 FHHL riser kit is installed, the PCIe slot 2 will be unavailable due to occupation of the riser.

    • HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. For legacy support an additional controller will be needed, and for Configure-To-Order (CTO) orders select the legacy mode settings part, 758959-B22.
    • HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled.
    • The S100i supports windows only
    • For Linux users, HPE offers a solution that uses In-Distro Open-Source software to create a Two-Disk RAID 1 boot volume. Check the below link for more information on this:

      Click here to access the page for Implementing Linux Software RAID1 on HPE ProLiant Servers .

  6. Check the below link for additional information on HPE Smart Array Gen10 controllers:

    Click here to access the Data sheet on HPE Smart Array Gen10 .


    • SFF NVMe PCIe SSD is only supported in the optional rear dirve cage.
    • Only 1 optional rear dirve cage can be installed per server.

    • Available in 94% efficiency
    • 1600 W power supplies only support high line voltage (200 V ac to 240 V ac).
  7. The MicroSD slot is not Hot-Pluggable, power down server before removal.
  8. Check the below link for additional technical thermal details regarding ambient temperatures, humidity and features support:

    Click here to access the Hewlett Packard Enterprise Information Library .


    • The UEFI system utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. Check the below link for more information on UEFI:

      Click here to access the webpage for Unified Extensible Firmware Interface (UEFI) .

    • For UEFI boot mode, boot environment and OS image installations should be configured properly to support UEFI.
    • UEFI FIO setting (758959-B22) can be selected to configure the system in legacy mode in the factory for the HPE ProLiant Gen10 Server.

top

Software overview

Feature
Description
OS and virtualization software
  • Windows Server 2016 (Most recent version)

  • VMware ESXi 6.0 U3

  • VMware ESXi 6.5 and U2 upon release

  • VMware ESXi 6.7 and U1 upon release

  • Red Hat Enterprise Linux (RHEL) 7.64

  • SUSE Linux Enterprise Server (SLES) 12 64-bit SP3 and 15 64-bit SP1

  • Ubuntu 16.04 and 18.04

  • Oracle Linux ver. 7.6

  • ClearOS1

  • CentOS2

NOTE:
  1. ClearOS allows user to build a fully functional server that is just right for user at no upfront cost. Check the below link for more information on ClearOS:

    Click here to access the page for ClearOS and ClearVM Software from HPE .

  2. For more information on HPE Certified and supported ProLiant Servers for OS and virtualization software and latest listing of software drivers available for the server.

    Click here to access the webpage for Server OS and virtualization software .

top

Physical specifications

Specifications
Description
Dimensions (H x W x D)
8.75 x 44.80 x 82.55 cm (3.44 x 17.63 x 32.50 in)
Weight (Approximate)
  • Minimum: 22.34 kg (49.25 lb)

  • Maximum: 40.60 kg (89.51 lb)

top

Electrical specifications

Specifications
Description
Rated line voltage
  • 100 to 120 V ac

  • 200 to 240 V ac

BTU rating (Maximum)
For 800 W power supply: 3207 BTU/hr (At 100 V ac), 3071 BTU/hr (At 200 V ac), 3112 BTU/hr (At 240 V ac) for China only
Power supply output (Per power supply)
Rated Steady-State power
  • For 1600 W power supply: 1600 W (At 240 V ac), 1600 W (At 240 V dc) for China only

  • For 800 W power supply: 800 W (At 100 V ac), 800 W (At 240 V ac), 800 W (At 240 V dc) input for China only

Maximum peak power
For 1600 W power supply: 1600 W (At 200 to 240 1 V ac), 1600 W (At 240 V dc) input for China only

top

Environmental specifications

Specifications
Description
Standard operating support
  • 10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 20°C/hr (36°F/hr). The upper limit and rate of change may be limited by the type and number of options installed

  • System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F)

  • For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft)

  • For approved hardware configuration for the system listed at the below url:

    Click here to access the Hewlett Packard Enterprise Information Library .

Extended ambient operating support
  • For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft)

  • For approved hardware configuration for the system listed at the below url:

    Click here to access the Hewlett Packard Enterprise Information Library .

  • System performance may be reduced if operating in the extended ambient operating range or with a fan fault

Relative humidity (Rh) (Non-Condensing)
  • Operating: 8% to 90% - Rh, 28°C (82.4°F) maximum wet bulb temperature, Non-Condensing

  • Non-Operating: 5% to 95% Rh, 38.7°C (101.7°F) maximum wet bulb temperature, Non-Condensing

Altitude
  • Operating: 3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min)

  • Non-Operating: 9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min)

Acoustic noise
Configuration SKU
Entry
Base
Performance
Idle
LWAd
5.1 B
5.1 B
5.2 B
LpAm
35 dBA
35 dBA
36 dBA
Operating
LWAd
5.3 B
5.2 B
5.9 B
LpAm
36 dBA
38 dBA
45 dBA
NOTE: Acoustics levels presented here are generated by the test configuration only. Acoustics levels will vary depending on system configuration. Values are subject to change without notification and are for reference only

top

Safety certifications

Specifications
Description
Emissions Classification (EMC)
To view the regulatory information for the product, view the safety and compliance information for server, storage, power, networking, and rack products, available at the HPESC:

top


Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.

*Adds to cart & you can request a quote from the cart page
