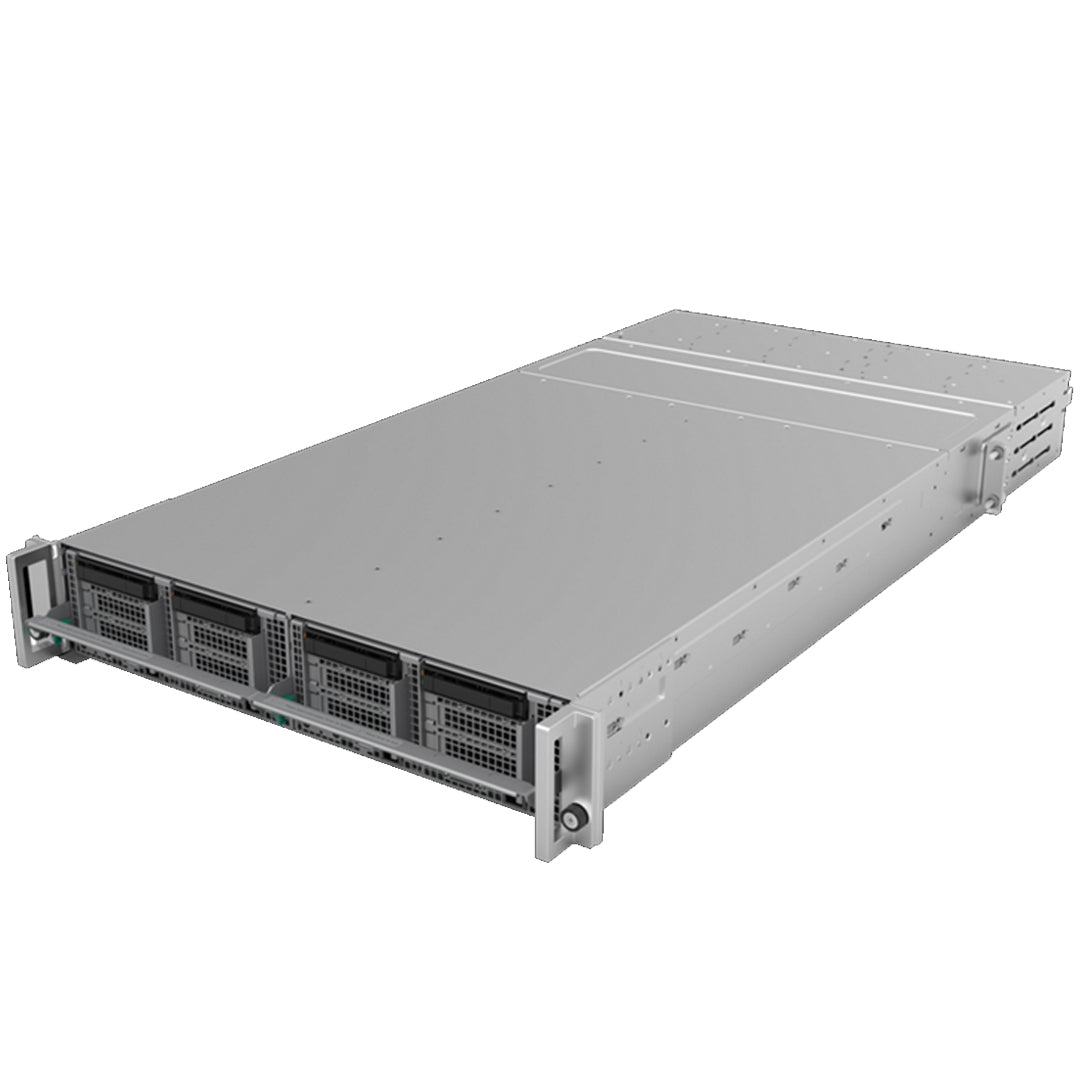

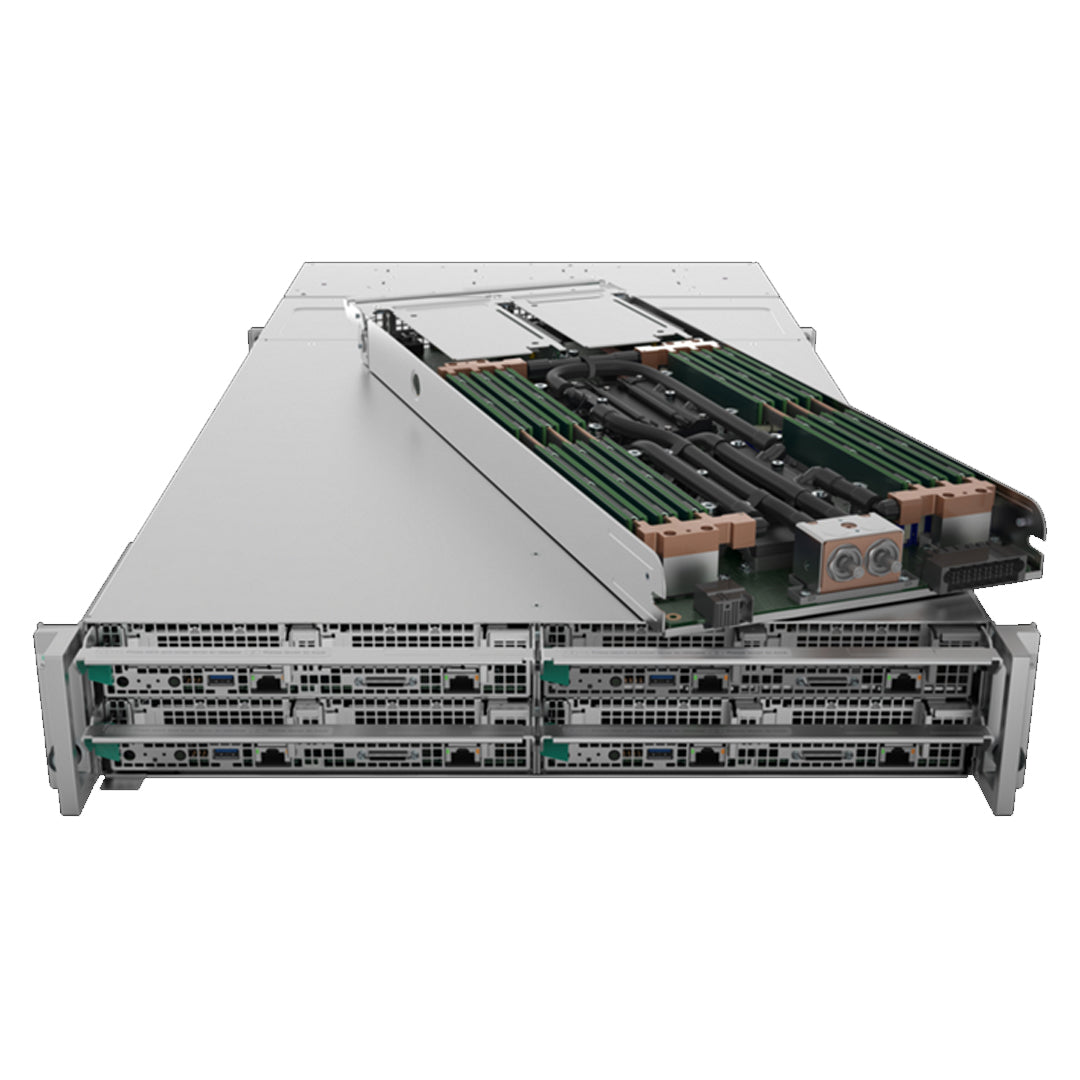

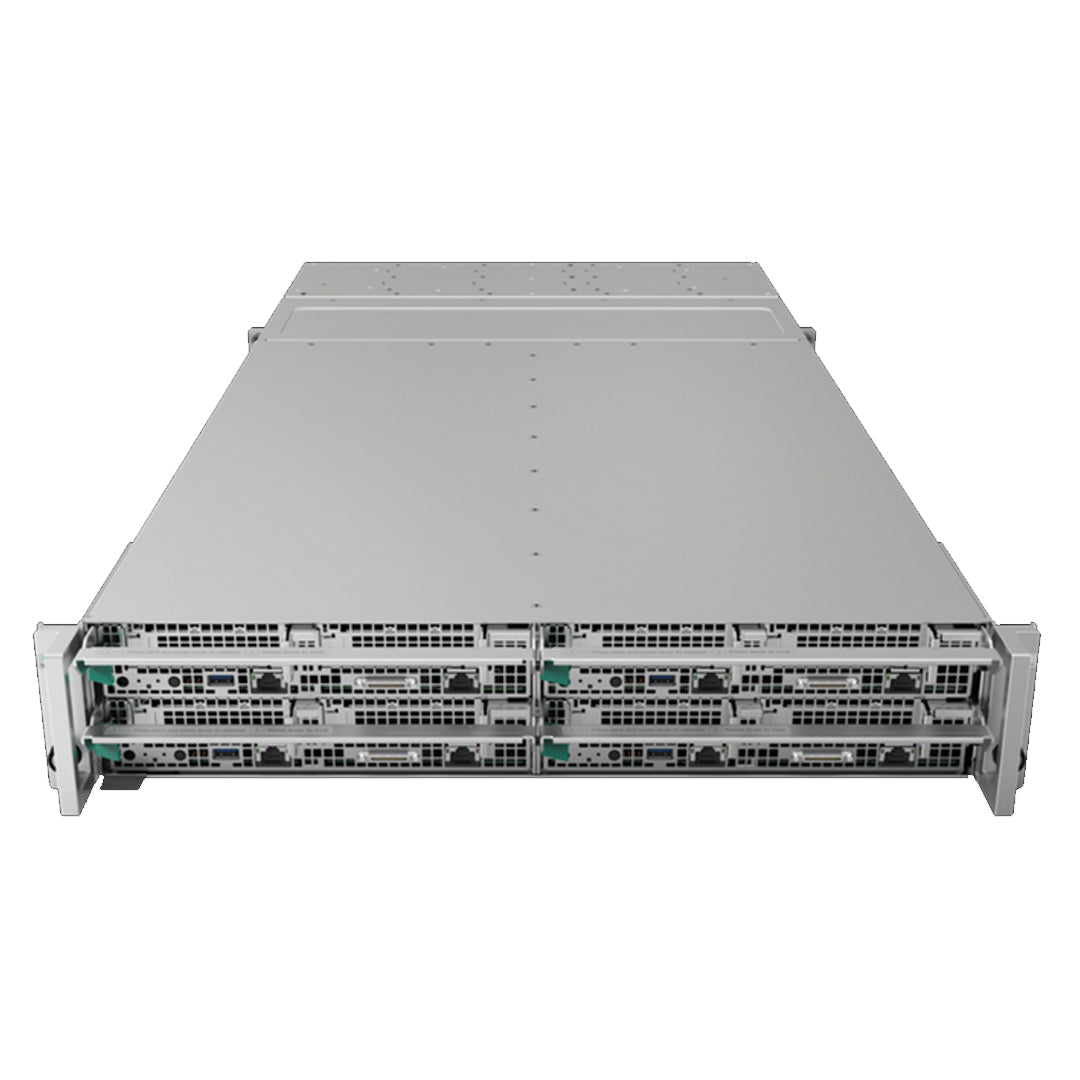

HPE Apollo 20 System CTO Server

MPN:
APOLLO20
Brand:
Type:
CTO Servers
Condition:
ECS Refurbished & Tested

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON Spare Drives, Controllers, Power Supplies, NICs, HBAs, SFPs, Cables, etc.

Apollo 20 System Product Description

The HPE Apollo 20 System is built on the 2nd Generation Intel Xeon 9200 family of processors which offer unmatched 2-socket performance leadership across popular workloads. Built to support both liquid-cooled and air-cooled options, the HPE Apollo 20 System takes advantage of the Hewlett Packard Enterprise experience in HPC cooling technologies as workloads continue to push power and density. The HPE Apollo 20 System offers up to 56 cores and 12 DIMMs per socket making it ideal for use in data-intensive industries including oil and gas, finance, AI, manufacturing, and life sciences.

What's New for Apollo 20 System

  • Supports 2nd Generation Intel Xeon Processor Scalable family for higher compute performance.
  • Available in 32, 48, or 56 cores with 12 DDR4 memory channels per CPU.
  • Built to support both liquid-cool and air-cooled options.
  • Available in 1U and 2U form factor.
  • PointNext world-wide support.

Standardized Scale-Out Platform for Diverse Workloads

The HPE Apollo 20 System offers uncompromised high-density for both power and cooling to get the most out of each footprint and lower total operating costs.

The HPE Apollo 20 System is designed for standard HPC workloads and applications, including Artificial Intelligence (AI).

Designed for memory demanding workloads ideally suited for use in data-intensive industries, including oil and gas, finance, manufacturing, and life sciences.

The 2nd Generation Intel Xeon 9200 family of processors offers unmatched 2-socket performance leadership across popular workloads.

Product features

Feature
Description
Processors (One of the following depending on Model)
E5-2600 v4 series
  • Twenty core processors

    • Intel Xeon E5 2698 v4 (2.2 GHz/20 core/50MB/135 W) Processor

  • Eighteen core processors

    • Intel Xeon E5 2695 v4 (2.1 GHz/18 core/45MB/120 W) Processor

  • Sixteen core processors

    • Intel Xeon E5 2683 v4 (2.1 GHz/16 core/40MB/120 W) Processor

  • Fourteen core processors

    • Intel Xeon E5 2690 v4 (2.6 GHz/14 core/35MB/135 W) Processor


    • Intel Xeon E5 2680 v4 (2.4 GHz/14 core/35MB/120 W) Processor


    • Intel Xeon E5 2660 v4 (2.0GHz/14 core/35MB/105 W) Processor


    • Intel Xeon E5 2650L v4 (1.7 GHz/14 core/35MB/65 W) Processor

  • Twelve core processors

    • Intel Xeon E5 2650 v4 (2.2 GHz/12 core/30MB/105 W) Processor

  • Ten core processors

    • Intel Xeon E5 2640 v4 (2.4 GHz/10 core/25MB/90 W) Processor


    • Intel Xeon E5 2640 v4 (2.2 GHz/10 core/20MB/85 W) Processor


    • Intel Xeon E5 2630L v4 (1.8 GHz/10 core/25MB/55 W) Processor


    • Intel Xeon E5 2630 v4 (2.1 GHz/8 core/20MB/85 W) Processor

  • Eight core processors

    • Intel Xeon E5 2620 v4 (2.1 GHz/8 core/20MB/85 W) Processor

  • Six core processors

    • Intel Xeon E5 2603 v4 (1.7 GHz/6 core/15MB/85 W) Processor

E5-2600 v3 series
  • Sixteen-core processors

    • Intel Xeon E5-2698 v3 (2.3 GHz/16 core/40MB/135 W) Processor

  • Fourteen-core processors

    • Intel Xeon E5-2695 v3 (2.3 GHz/14 core/35MB/120 W) Processor


    • Intel Xeon E5-2683 v3 (2 GHz/14 core/35MB/120 W) Processor

  • Twelve-core processors

    • Intel Xeon E5-2690 v3 (2.6 GHz/12 core/30MB/135 W) Processor


    • Intel Xeon E5-2680 v3 (2.5 GHz/12 core/30MB/120 W) Processor


    • Intel Xeon E5-2670 v3 (2.3 GHz/12 core/30MB/120 W) Processor


    • Intel Xeon E5-2650L v3 (1.8 GHz/12 core/30MB/65 W) Processor

  • Ten-core processors

    • Intel Xeon E5-2660 v3 (2.6 GHz/10 core/25MB/105 W) Processor


    • Intel Xeon E5-2650 v3 (2.3 GHz/10 core/25MB/105 W) Processor

  • Eight-core processors

    • Intel Xeon E5-2640 v3 (2.6 GHz/8 core/20MB/90 W) Processor


    • Intel Xeon E5-2630 v3 (2.4 GHz/8 core/20MB/85 W) Processor


    • Intel Xeon E5-2630L v3 (1.8GHz/8 core/20MB/55 W) Processor

  • Six-core processors

    • Intel Xeon E5-2620 v3 (2.4 GHz/6 core/15MB/85 W) Processor


    • Intel Xeon E5-2603 v3 (1.6 GHz/6 core/15MB/85 W) Processor

Cache memory (One of the following depending on Model)
E5-2600v4 processors
  • 50MB (1 x 50MB) Level3

  • 45MB (1 x 45MB) Level3

  • 40MB (1 x 40MB) Level3

  • 35MB (1 x 35MB) Level3

  • 30MB (1 x 30MB) Level3

  • 25MB (1 x 25MB) Level3

  • 20MB (1 x 20MB) Level3

E5-2600v3 processors
  • 40MB (1 x 40MB) Level3

  • 35MB (1 x 35MB) Level3

  • 30MB (1 x 30MB) Level3

  • 25MB (1 x 25MB) Level3

  • 20MB (1 x 20MB) Level3

  • 15MB (1 x 15MB) Level3

Chipset (One of the following depending on Model)
  • Intel C610 Series Chipset

  • Intel E5-2600 v3 Processor Family

  • Intel E5-2600 v4 Processor Family

On system management processor
HPE iLO (Firmware: HPE iLO 4)
Upgradeability
Upgradeable to two processors
Memory protection
  • Advanced ECC (multi-bit error protection)

  • Online Spare

  • Lock Step Mode

Memory
Type
HPE SmartMemory
DIMM Slots Available
16
Maximum (RDIMM or LRDIMMs) per server tray
1024GB (16 x 64GB) Registered memory configurations
Network controller
HPE Ethernet 1Gb 2-port 361i Adapter
Expansion slots dedicated to each server node
Expansion Slots #
Technology
Bus Width
Connector Width
Form Factor
Notes
0
PCIe 3.0
X8
X16
Low profile slot
CPU0; FlexibleLOM
1
PCIe 3.0
X8
X16
Low profile slot
CPU0; SA/HBA
2
PCIe 3.0
X8
X16
Low profile slot
CPU0; SA/HBA
3
PCIe 3.0
X8
X16
Low profile slot
CPU1
4
PCIe 3.0
X8
X16
Low profile slot
CPU1
Storage controllers (Dedicated to each server node)
Software RAID
  • HPE Dynamic Smart Array B140i SATA RAID

  • HPE Smart Array P244br/1G FIO Controller

  • HPE H244br FIO Smart HBA

  • SATA controls the drives

SAS controllers for internal bulk drives
  • HPE Smart Array P440/4G Controller

  • HPE Smart Array P840/4G Controller

  • HPE H240 Smart HBA

Storage controllers dedicated to bulk LFF drives
SAS controllers for external bulk drives
  • HPE H241 Smart HBA

  • HPE Smart Array P441/4G Controller

  • HPE Smart Array P841/4G Controller

Internal bulk storage controller options by model
The following table shows supported controller choices for each model, per I/O module.
Model
1xH240
2xH240
1xP440
2xP440
1xP840
Apollo 4510
X
X
X
X
X
Apollo 4520
X
X



Apollo 4530
X

X


Internal storage devices
USB Drive
Via USB port, external support only
Hard drives
None ship standard
Drive bays
  • 2 SFF drive bays total for each node

  • 68 LFF drive bays total in chassis for a Apollo 4510 model

  • 45 LFF drive bays total in chassis for a Apollo 4530 (15 drives per node)

Maximum internal storage (One of the following depending on Model)
Apollo 4510: 1x68 model - 68 LFF drives per node
Drives
Capacity
Configuration
Hot Plug LFF SAS
680TB
68 x 10TB
Hot Plug LFF SATA
680TB
68 x 10TB
Hot Plug LFF SAS SSD
108.8TB
68 x 1.6TB
Hot Plug LFF SATA SSD
65.3TB
68 x 960TB
Hot Plug LFF SATA SSD
3.84TB
2 x 1.92TB
Hot Plug SFF SATA SSD
3.2TB
2 x 1.6TB
Hot Plug SFF SATA
2TB
2 x 1TB
M.2 2280 SSD
680GB
2 x 340GB
Apollo 4520: 23 LFF drives per node, 2 nodes total for a total of 46 LFF drives per chassis
Drives
Capacity
Configuration
Hot Plug LFF SAS
368TB
46 x 8TB
Hot Plug LFF SAS SSD
73.6TB
46 x 1.6TB
Hot Plug LFF SAS SSD
6.4TB
4 x 1.6TB
M.2 2280 SSD
1.02TB
4 x 340GB
System fans
System ships standard with 5 hot-plug fan modules.
Interfaces
Network RJ-45
Two 1GbE NIC ports
Management network port
1GbE Dedicated
Health LED
1 front
Power
1 front
UID for node
1 front per node and 1 rear on management module
UID for storage
1 per display board
SUV
Serial + USB + video (all in one)
Industry standard compliance
  • ACPI 5.0

  • PCIe 3.0

  • PXE Support

  • WOL Support

  • Microsoft Logo certifications

  • PXE Support

  • USB 1.1 and 2.0 Compliant

  • SMBIOS 3.0.0

Graphics
Integrated Matrox G200 video standard
  • 1280 x 1024 (32 b/p)

  • 1920 x 1200 (16 b/p)

Security
  • Power-on password

  • Serial interface control

  • Administrator's password

  • iLO 4 (Integrated Lights-Out 4) has 12 customizable user accounts and SSL encryption

  • iLO 4 can be disabled via a Global Setting

  • iLO Advanced supports directory services integration

  • QuickLock, Network server mode

Form factor
4U form factor

top

Software overview

Feature
Description
Operating systems and virtualization software support for ProLiant servers
  • Microsoft Windows Server

  • Canonical Ubuntu

  • Red Hat Enterprise Linux (RHEL)

  • SUSE Linux Enterprise Server (SLES)

  • VMware

top
