HPE ProLiant ML310e Gen8 v2 CTO Server

Part#:
ML310EG8V2
Brand:
HPE
Type:
CTO Servers
Condition:
ECS Refurbished & Tested
Warranty:
ECS 1 Year Hardware Warranty

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Submit for Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Server Chassis

HPE Processors

Intel Xeon E3-1200v3

HPE Memory

Supports up to 4 DIMMs

HPE RAID Controllers

HPE SFF Drives SAS (2.5in)

HPE SFF Drives SATA (2.5in)

HPE LFF Drives SAS (3.5in)

HPE LFF Drives SATA (3.5in)

HPE Network Adapters

4 PCIe Slots (Full Height)

HPE Host Bus Adapter

4 PCIe Slots (Full Height)

HPE Power Supplies

Supports (2) CS PSU - Redundant Power Supply Enablement Kit (675843-B21) must be installed when using HP Common Slot power supplies

HPE Options

HPE Optical Drives

HPE Security

ECS Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

ML310e Gen8 v2 Product Description

Does your remote or branch office need a server that delivers the essential availability and expansion to accommodate your changing business needs? The HP ProLiant ML310e Gen8 v2 Server is a single-socket 4U tower server that is ideal for remote sites and corporate branch offices running file/print, web messaging, and small vertical applications or databases. It is compatible with the HP PS1810 Switch Series, extending the benefits of HP Converged Infrastructure (CI) for seamless network connectivity.

HPE ProLiant ML310e Gen8 v2, a single-socket 4U tower server, delivers essential availability and expansion needed to accommodate changing business needs. It is ideal for remote sites and corporate branch offices running file/print, web messaging, and small vertical applications or databases.

What's new

  • New HDD offering

  • Latest Intel Xeon E3-1200 v3 Series processors

Near Continuous Data Protection

The HPE ProLiant ML310e Gen8 v2 Server utilizes HPE SmartMemory which prevents data loss and downtime with enhanced error handling while improving workload performance and power efficiency. Support for 4 UDIMMs with up to 32GB max capacity.

Smart Array options provide businesses RAID mirroring and striping capability to protect critical data while the Flash-backed write cache (FBWC) captures and holds data indefinitely in the event of a power loss, equipment failure, human error or virus attacks.

HPE Smart Drives improve serviceability and prevents data loss with features such as icon-based status display and Do Not Remove LED.

Dedicated iLO port facilitates secured and faster data transmission. ECC memory protects businesses from data loss and unplanned system downtime.

Flexible Options To Meet Changing Business Needs

HPE ProLiant ML310e Gen8 v2 Server provides HPE SmartDrives which offers more drive options including eight (8) Small Form Factor (SFF) and four (4) Large Form Factor (LFF) drive cages giving you flexibility for increased capacity for your local storage. Support up to 4TB per slot.

Supports 1600MHz DDR3 memory, with up to four DIMMs (32GB max) for increasing performance.

Four PCI Express (PCIe) slots, including two PCIe 3.0 slots, provide additional I/O performance.

Seamless Network Connectivity Extends Benefits of Converged Infrastructure

The HPE ProLiant ML310e Gen8 v2 Server offers compatibility with 24-port HPE 1810 Series Switches to enhance both connectivity and data availability.

Common pool of resources and applications results in a higher level of simplicity and flexibility in operations.

User-friendly interface on HPE PS1810 Series Switches allow for a consolidated view of servers and switches in the network so workloads can be prioritized.

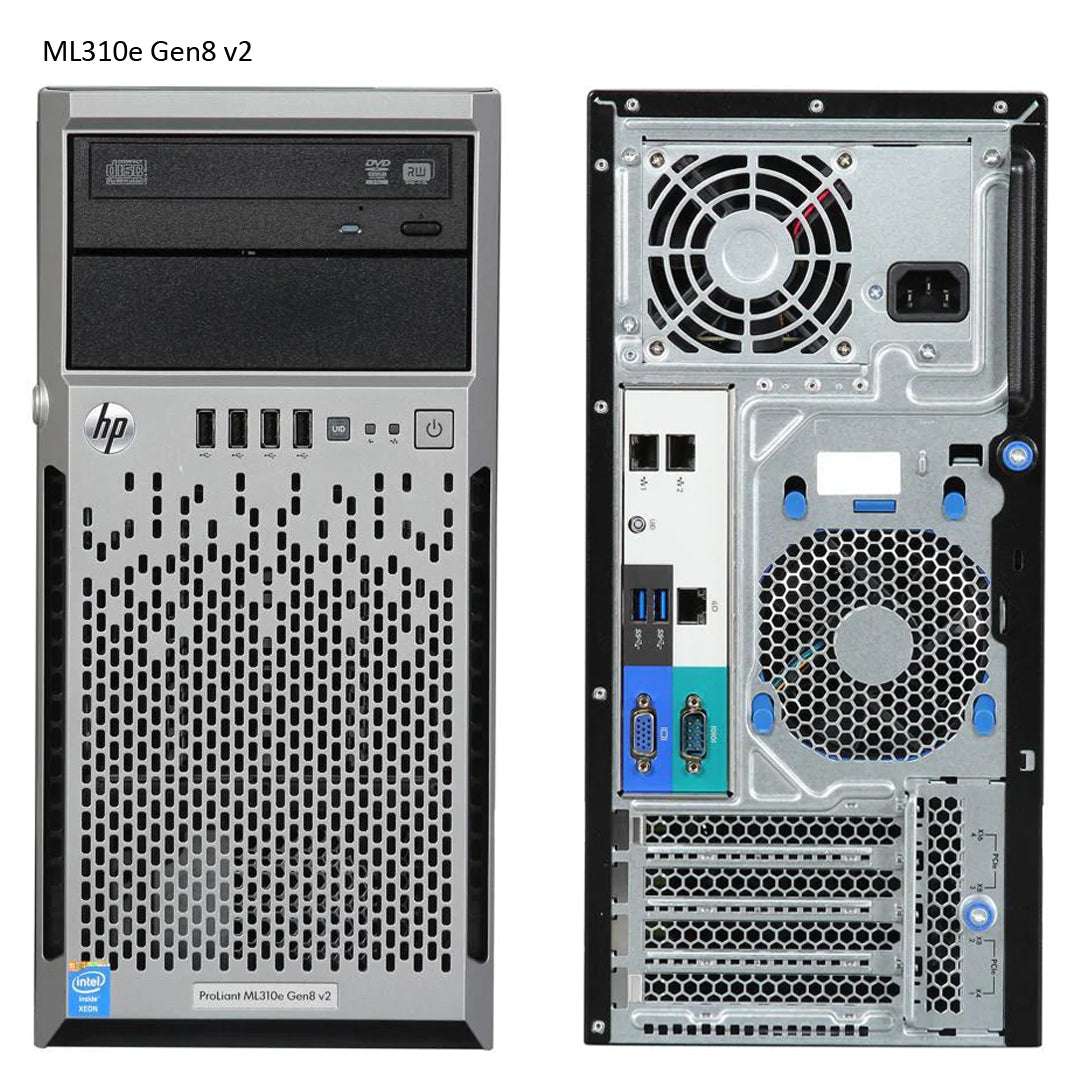

ML310e Gen8 v2 front-rear

ML310e Gen8 v2 front-rear

Product features

Feature
Description
Processor(one of the following depending on Model)1
Entry Processors:
  • Intel Pentium G3220 (3.0 GHz/2-core/3MB/54 W)

  • Intel Pentium G3240 (3.1 GHz/2-core/3MB/54 W)

Base Processors:
  • Intel CoreTM i3-4130 (3.4 GHz/2-core/3MB/54 W, HT)

  • Intel CoreTM i3-4130T (2.9 GHz/2-core/3MB/35 W, HT)

  • Intel Pentium G3240 (3.1 GHz/2-core/3MB/54 W)

  • Intel Pentium G3240 (3.1 GHz/2-core/3MB/54 W)

Performance Processors:
  • Intel Xeon E3-1230Lv3 (1.8 GHz/4-core/8MB/25 W, HT)

  • Intel Xeon E3-1220v3 (3.1 GHz/4-core/8MB/80 W)

  • Intel Xeon E3-1230v3 (3.3 GHz/4-core/8MB/80 W, HT)

  • Intel Xeon E3-1240v3 (3.4 GHz/4-core/8MB/80 W, HT)

  • Intel Xeon E3-1270v3 (3.5 GHz/4-core/8MB/80 W, HT)

  • Intel Xeon E3-1231v3 (3.4 GHz/4-core/8MB/80 W, HT)

  • Intel Xeon E3-1241v3 (3.5 GHz/4-core/8MB/80 W, HT)

  • Intel Xeon E3-1271v3 (3.6 GHz/4-core/8MB/80 W, HT)

Cache memory(one of the following depending on Model)
  • 8MB (1 x 8MB) L3 Cache (For Quad-core Xeon processors).

  • 3MB (1 x 3MB) L3 Cache (For Dual-core Pentium CoreTM i3 processors).

Chipset
Intel C222 Chipset
Upgradeability
  • Upgradeable to 4 cores

  • Up to 4 DIMM slots available for higher memory capacity

  • Up to 8 SFF Hard Drive Bays; Or 4 LFF Hard Drive Bays

  • 1 x8 and 1 x16 PCIe 3.0 (depends on processor) and 1 x8 and 1x4 PCIe 2.0 I/O slots for additional communications and storage expansion

  • Redundant Power Supply

  • Optical Drive Bay (up to 2)

On system management processor
HPE iLO (Firmware: HPE iLO4)
Memory protection
ECC
Memory (one of the following depending on model)
Type
HPE SmartMemory DDR3 Unbuffered (UDIMM)
DIMM Slots Available
4
Maximum Capacity (UDIMM)
32GB (4 x 8GB UDIMM @1600 MHz)
Network controller
HPE Ethernet 1Gb 2-port 332i Adapter
Expansion slots
Expansion Slot #
Technology
Bus Width2
Connector Width
Form Factor
4
PCIe 3.0
X8
X16
Full Length/Full Height
3
PCIe 3.0
X8
X8
Full Length/Full Height
2
PCIe 2.0
X4
x8
Full Length/Full Height
1
PCIe 2.0
X1
X4
Half Length/Full Height
Storage controller
HPE Dynamic Smart Array B120i Controller 3, 4
Internal storage devices
Optical Drives (One of the following depending on model)
Hard Drives
Hard Drive Bays (One of the following depending on model)
HPE Half-Height SATA DVD-ROM Optical Drive
1x500GB HPE LFF SATA HDD included in Performance Model
4 LFF drive bays (non-hot-plug and hot-plug)
HPE Half-Height SATA DVD-RW Optical Drive
8 SFF hot-plug drive bays
Maximum internal storage (one of the following depending on model)
Hot Plug LFF SAS
16TB
4 x 4TB
Hot Plug SFF SAS
9.6TB
8x 1.2TB
Non Hot Plug LFF SAS
2.4TB
4 x 600GB
Hot Plug LFF SATA
16TB
4 x 4TB
Hot Plug SFF SATA
8TB
8 x 1TB
Non Hot Plug LFF SATA
12TB
4 x 3TB
Hot Plug SFF SAS SSD
3.2TB
8 x 400GB
Hot Plug SFF SATA SSD
6.4TB
8 x 800GB
Hot Plug LFF SATA SSD
3.2TB
4 x 800GB
Interfaces
Serial
1 (rear)
Video
1 (rear)
Network RJ-45 (Ethernet)
2 (1 shared for HPE Integrated Lights-Out)
HPE iLO Remote Management Network Port
1Gb Dedicated
Micro SD slot 5
1 (internal)
USB 6
8 (4 front, 2 rear(USB3.0), 1 internal standard USB and 1 internal USB header)
Industry standard compliance
  • ACPI 2.0b Compliant

  • PCIe 3.0 Compliant

  • PXE Support

  • WOL Support

  • Microsoft Logo certifications

  • USB 2.0/3.0 Support

System fans
  • One (1) Non-redundant system fan ships standard

  • One (1) Non-redundant PCIe fan ships standard

Graphics
Integrated Matrox G200 video standard:
  • 1280 x 1024 (32 b/p)

  • 1920 x 1200 (16 b/p)

HPE iLO 4 On System Management Memory:
  • 16MB Flash

  • 256MB DDR 3 with ECC (112MB after ECC and video)

Form factor(one of the following depending on model)
  • Micro ATX Tower (4U) chassis with feet/bezel:

    14.5 in (36.82 cm) Height x 6.89 in (17.5 cm) Width x 18.71 in (47.52 cm) Length

  • 8 SFF Drive Bay Cage:

    4.6 in (11.72 cm) Height x 5.74 in (14.57 cm) Width x 4.79 in (12.16 cm) Length

  • 4 LFF Drive Bay Cage:

    4.6 in (11.72 cm) Height x 5.74 in (14.57cm) Width x 6.90 in (17.54 cm) Length

On system management
HPE iLO Management Engine
  • HPE iLO

  • HPE Agentless Management

  • HPE Active Health System

  • HPE Intelligent Provisioning

  • HPE iLO Mobile App

HPE insight management
  • HPE Insight Control

  • HPE iLO Advanced

  • HPE iLO Essentials

Security
  • Power-on password

  • Administrator's password

NOTE: 1: All support up to 1600 MHz DDR3 memory speeds.

2: Indicates the number of physical electrical lanes running to the connector.

3: Supports up to 6.0 Gb/s SATA. (SATA port 0/1 support 6 Gb/s and SATA port 2/3 support 3 Gb/s).

4: Supports RAID 0/1/10 only. No FBWC support. For FBWC, a standup Smart Array Controller card must be configured.

5: The Micro SD slot is not a hot-pluggable device. Users should not attempt to plug an Micro SD card into the Micro SD slot while the server is powered.

6: RHEL 5.9 OS would not be supporting USB 3.0.

top

Software overview

Feature
Description
Operating systems and virtualization software support for ProLiant servers
  • Microsoft Windows Server

  • Canonical Ubuntu

  • Red Hat Enterprise Linux (RHEL)

  • SUSE Linux Enterprise Server (SLES)

  • VMware

top

Physical specifications

Specification
Description
Dimensions (H x W x D) (With feet/bezel)
36.82 x17.5 x 47.52 cm (14.5.x 6.89 x 18.71 in)
Weight (Approximate)
  • Maximum (All hard drives, power supplies, and processors installed)

    • 18.96 kg (41.8 lb)

  • Minimum (One hard drive, power supply, and processor installed)

    • 11.47 kg (25.29 lb)

top

Electrical specifications

Specification
Description
Rated line voltage
100 to 240 V ac
Rated input current
6 A
Rated input frequency
47 to 63 Hz
Rated input power
  • 440 W at 100 V ac input

  • 440 W at 200 V ac input

BTU rating maximum
Maximum: 460 W - 1773 BTU / hr (At 120 V ac), 1715 (At 240 V ac)
Power supply output (Per power supply)
Rated Steady-State power
  • 350 W (At 100 V ac)

  • 350 W (At 200 V ac)

Maximum peak power
  • 350 W (At 100 V ac)

  • 350 W (At 200 V ac)

top

Environmental specifications

Specification
Description
System inlet temperature
Operating: 10° to 35°C (50° to 95°F)1
Non-operating: -30° to 60°C (-22° to 140°F)2
Relative humidity (Non-Condensing)
Operating: 10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature.
Non-operating: 5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature.
Altitude
Operating: 3048 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Non-operating: 9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Acoustic noise 3
Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
  • Idle:

    • LWAd: 4.0 B

    • LpAm: 26 dB-A

  • Operating:

    • LWAd: 4.0 B

    • LpAm: 26 dB-A

NOTE: 1: All temperature ratings shown are at sea level with an altitude derating of 1.0°C per every 304.8 m (1.8°F per every 1000 ft) above sea level to a maximum of 3048 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed. System performance may be reduced if operating with a fan fault or above 30°C (86°F).

2: Maximum rate of change is 20°C/hr (36°F/hr).

3. The Listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels.

top

Safety certifications

Certifications
Description
FCC rating
Class B
Normative standards
CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1
NOTE: Product conformance to cited product specifications is based on sample (Type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.
