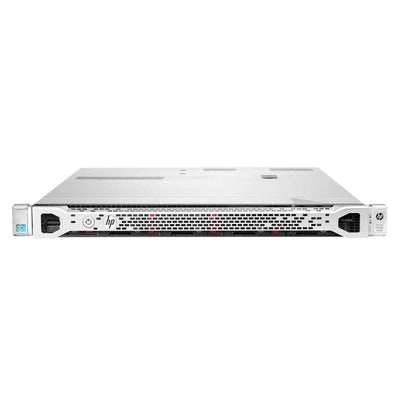

HPE ProLiant DL360p Gen8 CTO Rack Server

Part#:
DL360PG8
Brand:
HPE
Type:
CTO Servers
Condition:
ECS Refurbished & Tested

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Submit for Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Server Chassis

HPE Processors

Intel Xeon E5-2600v2

Supports up to (2) processors

Intel Xeon E5-2600

Supports up to (2) processors

HPE Memory

12 DIMMs per processor (up to 24 DIMMs in a dual-processor configuration) - Reference product features to match your processor with supported memory speed

HPE RAID Controllers

HPE SFF Drives SAS (2.5in)

HPE SFF Drives SATA (2.5in)

HPE LFF Drives SAS (3.5in)

HPE LFF Drives SATA (3.5in)

HPE PCIe Drives

2 PCIe Slots (1 Full Height and 1 Low Profile)

HPE Network Adapters

2 PCIe Slots (1 Full Height and 1 Low Profile)

HPE Host Bus Adapter

2 PCIe Slots (1 Full Height and 1 Low Profile)

HPE FlexibleLOM Adapter

HPE InfiniBand Adapter

2 PCIe Slots (1 Full Height and 1 Low Profile)

HPE Power Supplies

Supports up to (2) PSU's

HPE Options

HPE Rail Kits

HPE Optical Drives

HPE Security

ECS Warranty

HPE DL360p Gen8 CTO Rack Server Product Description

The HPE ProLiant DL360p Gen8 Server is ideal for enterprise applications. Industry leading performance, efficiency, capacity and reliability. Enterprise enhanced design for all workloads with versatility for future requirements. A space conscious 2 processor server with industry leading feature sets. Built to protect users investment and extend the life with reliability, accessibility and serviceability features designed in.

HP ProLiant DL360p Gen8 Server Best-in-class compute and storage in 1U. The HP ProLiant DL360p Gen8 comes with industry-leading two-socket performance, efficiency, capacity, and reliability in a space saving 1U size. It offers enterprise-class design for general purpose applications, such as, file/print or web, as well as, dynamic computing workloads, virtualization, and cloud solutions.

The HP ProLiant DL360p Gen8 was built to protect your investment and extend its life with reliability, accessibility, and serviceability features designed within it.

What's New for DL360p Gen8

  • Increased performance of up to 35% at the same or lower power levels with the new Intel Xeon E5-2600 v2 processors *Aug 2013. Performance results per Intel testing
  • Latest HPE Smart Array Controllers designed to maximize data availability, performance and capacity
  • New HPE Common Slot Power Supplies providing 96% server power efficiency, and new infrastructure power efficiencies with 277VAC and 380VDC input voltages
  • HPE SmartMemory for 16.6% better memory performance June 2013. HPE SmartMemory at 1866MHz @2 DPC vs. 1600MHz @2 DPC

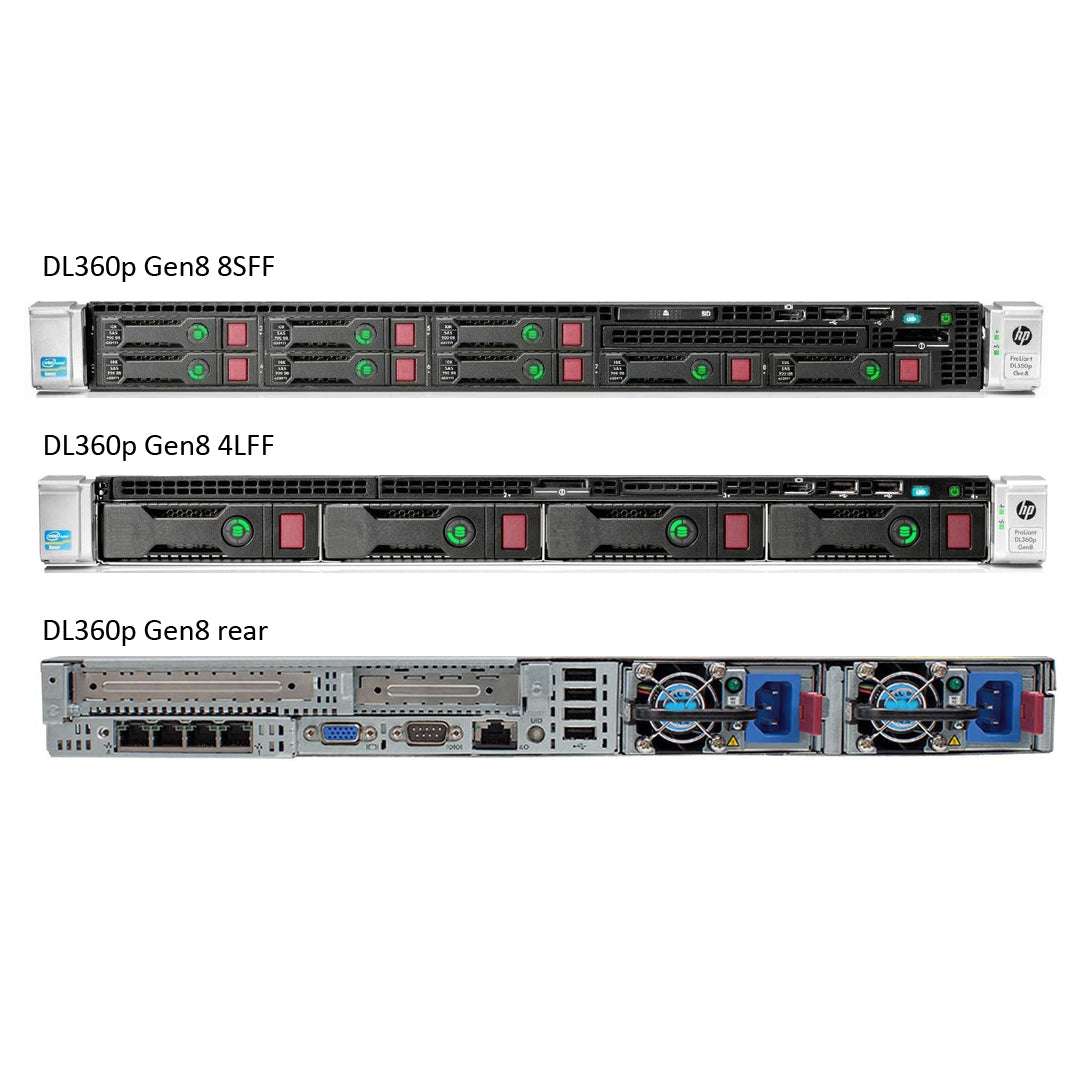

DL360p Gen8 8SFF

DL360p Gen8 8SFF

DL360p Gen8 4LFF

DL360p Gen8 4LFF

Improved Capacity and Performance on Compute and Storage

Intel Xeon processor E5-2600 v2 product family offers maximum performance, memory, I/O connectivity and bandwidth for demanding workloads.

The HPE Smart Storage Administrator management and configuration application provides a single pane of glass for HPE Smart Storage products and solutions.

HPE Smart Array Controllers maximize data availability, performance and capacity.

HPE SmartMemory, with speeds up to 1866 MHz, prevents data loss and downtime with enhanced error handling while improving workload performance and power efficiency.

DL360p Gen8 rear

DL360p Gen8 rear

Product features

Feature
Description
Processor 1
One of the following depending on the model
E5-2600 v2 Series processors
  • Entry processors  All support up to 1333MHz DDR3 memory speeds.

    • Intel Xeon E5-2609 v2 (2.50 GHz, 4-core, 10MB, 6.4 GT/s QPI, 80 W) Processor

    • Intel Xeon E5-2603 v2 (1.80 GHz, 4-core, 10MB, 6.4 GT/s QPI, 80 W) Processor

  • Base processors All support up to1600MHz DDR3 memory speeds.

    • Intel Xeon E5-2640 v2 (2.0 GHz/8-core/20MB/7.2 GT/s QPI/95 W, DDR3-1600, Hyper-Threading Technology (HT), Turbo2- 3/3/3/3/3/3/4/5)

    • Intel Xeon E5-2630 v2 (2.6 GHz/6-core/15MB/7.2 GT/s QPI/80 W, DDR3-1600, HT, Turbo2- 3/3/3/3/4/5)

    • Intel Xeon E5-2620 v2 (2.1 GHz/6-core/15MB/7.2 GT/s QPI/80 W, DDR3-1600, HT, Turbo2- 3/3/3/3/4/5)

    • Intel Xeon E5-2650L v2 (1.7 GHz/10-core/25MB/8.0 GT/s QPI/70 W, DDR3-1600, HT, Turbo2- 2/2/2/2/2/2/2/2/3/4)

    • Intel Xeon E5-2630L v2 (2.4 GHz/6-core/15MB/7.2 GT/s QPI/60-W, DDR3-1600, HT, Turbo2- 2/2/2/2/3/4)

  • Performance processors  All support up to 1866MHz DDR3 memory speeds.

    • Intel Xeon E5-2697 v2 (2.7 GHz/12-core/30MB/8.0 GT/s QPI/130 W, DDR3-1866, HT, Turbo2- 3/3/3/3/3/3/3/4/5/6/7/8) Processor

    • Intel Xeon E5-2695 v2 (2.4 GHz/12-core/30MB/8.0 GT/s QPI/115 W, DDR3-1866, HT, Turbo2- 4/4/4/4/4/4/4/4/5/6/7/8) Processor

    • Intel Xeon E5-2690 v2 (3.0 GHz/10-core/25MB/8.0 GT/s QPI/130 W, DDR3-1866, HT, Turbo2- 3/3/3/3/3/3/3/4/5/6)

    • Intel Xeon E5-2680 v2 (2.8 GHz/10-core/25MB/8.0 GT/s QPI/115 W, DDR3-1866, HT, Turbo2- 3/3/3/3/3/4/5/6/7/8)

    • Intel Xeon E5-2670 v2 (2.5 GHz/10-core/25MB/8.0 GT/s QPI/115 W, DDR3-1866, HT, Turbo2- 4/4/4/4/4/4/5/6/7/8)

    • Intel Xeon E5-2667 v2 (3.3 GHz/8-core/25MB/8.0 GT/s QPI/130 W, DDR3-1866, HT, Turbo2- 3/3/3/3/4/5/6/7)

    • Intel Xeon E5-2660 v2 (2.2 GHz/10-core/25MB/8.0 GT/s QPI/95 W, DDR3-1866, HT, Turbo2- 4/4/4/4/4/4/5/6/7/8)

    • Intel Xeon E5-2650 v2 (2.6 GHz/8-core/20MB/8.0 GT/s QPI/95 W, DDR3-1866, HT, Turbo2- 4/4/4/4/5/6/7/8)

    • Intel Xeon E5-2643 v2 (3.5 GHz/6-core/25MB/8.0 GT/s QPI/130 W, DDR3-1866, HT, Turbo2- 1/1/1/1/2/3)

    • Intel Xeon E5-2637 v2 (3.5 GHz/4-core/15MB/8.0 GT/s QPI/130 W, DDR3-1866, HT, Turbo2- 1/1/2/3)All support up to1600MHz DDR3 memory speeds.

E5-2600 Series processors
  • Entry processors All support up to 1066MHz memory speeds.

    • Intel Xeon E5-2609 (2.4 GHz/4-core/10MB/6.4 GT/s QPI/80 W)

    • Intel Xeon E5-2603 (1.8 GHz/4-core/10MB/6.4 GT/s QPI/80 W)

  • Base processors All support up to1333MHz DDR3 memory speeds

    • Intel Xeon E5-2640 (2.5 GHz/6-core/15MB/7.2 GT/s QPI/95 W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)

    • Intel Xeon E5-2630 (2.3 GHz/6-core/15MB/7.2 GT/s QPI/95 W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)

    • Intel Xeon E5-2620 (2.0 GHz/6-core/15MB/7.2 GT/s QPI/95 W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)

    • Intel Xeon E5-2630L (2.0 GHz/6-core/15MB/8.0 GT/s QPI/60-W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)

  • Performance processors All support up to 1600MHz DDR3 memory speeds.

    • Intel Xeon E5-2690 (2.9 GHz/8-core/20MB/8.0 GT/s QPI/135 W, DDR3-1600, HT, Turbo2- 4/4/4/5/5/7/7/9)

    • Intel Xeon E5-2680 (2.7 GHz/8-core/20MB/8.0 GT/s QPI/130 W, DDR3-1600, HT, Turbo2- 4/4/5/5/5/7/8/8)

    • Intel Xeon E5-2670 (2.6 GHz/8-core/20MB/8.0 GT/s QPI/115 W, DDR3-1600, HT, Turbo2- 4/4/5/5/6/6/7/7)

    • Intel Xeon E5-2667 (2.9 GHz/6-core/15MB/8.0 GT/s QPI/130 W, DDR3-1600, HT, Turbo2- 3/3/3/4/5/6)

    • Intel Xeon E5-2665 (2.4 GHz/8-core/20MB/8.0 GT/s QPI/115 W, DDR3-1600, HT, Turbo2- 4/4/5/5/6/6/7/7)

    • Intel Xeon E5-2660 (2.2 GHz/8-core/20MB/8.0 GT/s QPI/95 W, DDR3-1600, HT, Turbo2- 5/5/6/6/7/7/8/8)

    • Intel Xeon E5-2650 (2.0 GHz/8-core/20MB/8.0 GT/s QPI/95 W, DDR3-1600, HT, Turbo2- 4/4/5/5/5/7/8/8)

    • Intel Xeon E5-2650L (1.8 GHz/8-core/20MB/8.0 GT/s QPI/70 W, DDR3-1600, HT, Turbo2- 2/2/3/3/4/4/5/5)

    • Intel Xeon E5-2643 (3.3 GHz/4-core/10MB/8.0 GT/s QPI/130 W, DDR3-1600, HT, Turbo2- 1/1/2/2)

    • Intel Xeon E5-2637 (3.0 GHz/2-core/5MB/8.0 GT/s QPI/80 W, DDR3-1600, HT, Turbo2- 5/5)

Cache memory
One of the following depending on the model
  • 30MB (1 x 30MB) Level 3 (For twelve-core processors)

  • 25MB (1 x 25MB) Level 3 (For ten-core processors)

  • 20MB (1 x 20MB) Level 3 (For eight-core processors)

  • 15MB (1 x 15MB) Level 3 (For six-core processors)

  • 10MB (1 x 10MB) Level 3 (For quad-core processors)

  • 5MB (1 x 5MB) Level 3 (For dual-core processors)

Chipset
  • Intel C600 series chipset

  • Intel E5-2600 processor family

  • Intel E5-2600 v2 processor family

Upgradeability
  • Upgradeable to 2 processors (24 cores)6

  • Up to 24 Dual In-Line Memory Module (DIMM) slots available for higher memory capacity

  • Up to 8 Small Form Factor (SFF) hard drive bays or 4 Large Form Factor (LFF) or 10 SFF drive bay (Optional through CTO below)

  • FlexibleLOM slot for 1Gb or 10 GbE or QDR/FDR InfiniBand networking options

  • 2 PCIe 3.0 I/O Slots for additional communications and storage expansion

  • Redundant power supply

  • Optical drive bay (8 SFF/4 LFF)

On system management processor
HPE iLO (Firmware: HP iLO 4)
Memory protection
  • Advanced ECC

  • Online spare

  • Lock-Step mode

Memory 7
One of the following depending on the model
  • Type:

    HPE SmartMemory, DDR3 Registered DIMM (RDIMM), Load Reduced DIMM (LRDIMM) or Unbuffered DIMM (UDIMM) memory

  • DIMM Slots available:

    24 (12 DIMM slots per processor / 4 channels per processor / 3 DIMMs per channel)

  • Maximum capacity (LRDIMM):

    768GB (24 x 32GB @ 1066 MHz)

  • Maximum capacity (RDIMM):

    384GB (24 x 16GB @ 1333 MHz)

  • Maximum capacity (UDIMM):

    128GB (16 x 8GB @ 1333 MHz)

  • Maximum capacity (HDIMM):

    384GB (24 x 16GB @ 1333 MHz)

Network controller
One of the following depending on the model
HPE ProLiant Gen8 servers offer a new networking technology - flexible network technology. The HPE ProLiant DL360p Gen8 server offers the customer the choice of 1Gb and/or 10Gb networking solutions.
  • Entry models:

    HPE Ethernet 1Gb 4-port 331FLR adapter

  • Base models:

    HPE Ethernet 1Gb 4-port 331FLR adapter

  • High performance models:

    • HPE Ethernet 10Gb 2-port 530FLR-SFP+ adapter

    • HPE Ethernet 1Gb 4-port 331FLR adapter

    • HPE Ethernet 10Gb 2-port 533FLR adapter

  • Energy star certified models:

    HPE Ethernet 1Gb 4-port 331FLR adapter

Storage controller
One of the following depending on the model
  • Entry models:

    HPE Smart Array P420i/ZM (RAID 0/1/1+0)

  • Base models:

    HPE Smart Array P420i/1GB with Flash-Based Write Cache (FBWC) (RAID 0/1/1+0/5/5+0)

  • High performance models:

    HPE Smart Array P420i/2GB with FBWC (RAID 0/1/1+0/5/5+0)

  • Energy Star models:

    • HPE Smart Array P420i/1GB FBWC (RAID 0/1/1+0/5/5+0)

    • HPE Smart Array P420i/ZM (RAID 0/1/1+0)

Internal storage devices
  • Diskette drive:

    None

  • Optical drive:

    Optional DVD-ROM, DVD-RW

  • Hard drives:

    None ship standard

  • Hard drive bays:

    • 8 SFF Drive bays total with optical drive bay

    • Optional:

      • 4 LFF Bays with optical drive bay

      • 10 SFF Bays without optical

Maximum internal storage
Hot-Plug SFF SAS
20.0TB
10 x 2TB
Hot-Plug SFF SATA
20.0TB
10 x 2TB
Hot-Plug LFF SAS
32.0TB
4 x 8TB (With optional LFF drive cage)
Hot-Plug LFF SATA
32.0TB
4 x 8TB (With optional LFF drive cage)
Hot-Plug SFF SAS SSD
19.2TB
10 x 1.92TB
Hot-Plug SFF SATA SSD
16.0TB
10 x 1.6TB
Hot-Plug LFF SAS SSD
6.4TB
4 x 1.6TB (With optional LFF drive cage)
Hot-Plug LFF SATA SSD
6.4TB
4 x 1.6TB (With optional LFF drive cage)
Interfaces
  • Serial: 1

  • Video: 2 (1 Front, 1 back) not active simultaneously8

  • FlexibleLOM network ports: Some models come standard with 4 x 1GB ports while others come with 2 x 10GB ports.

  • HPE iLO remote management network port: 1Gb Dedicated

  • SD Slot: 1 internal secure9

  • USB 2.0 Ports: 7 total: 4 rear, 2 front, 1 internal (Secure)

Industry standard compliance
  • ACPI 2.0b Compliant

  • PCIe 3.0 Compliant

  • PXE Support

  • WOL Support

  • Microsoft logo certifications

  • USB 2.0 Compliant

Graphics
Integrated Matrox G200 video standard
  • 1280 x 1024 (32 b/p)

  • 1920 x 1200 (16 b/p)

HPE iLO 4 On system management memory
  • 16MB Flash

  • 256MB DDR 3 with ECC (112MB After ECC and video)

System fans 10
One of the following depending on the model
  • 6 Fan modules ship standard in 1 processor models

  • 8 Fan modules ship standard in 2 processor models

  • The HPE ProLiant DL360p Gen8 will support up to 8 fans with fan redundancy built in. One fan rotor failure will place server in degraded mode but fully functional. Two fan rotor failures could provide warning and imminent server shutdown

Form factor
One of the following depending on the model
  • 1U Rack form factor

  • 8 SFF And 10 SFF drive bay version (H x W x L): 4.32 x 43.47 x 69.85 cm (1.7 x 17.11 x 27.5 in)

  • 4 LFF Drive bay version (H x W x L): 4.32 x 43.47 x 74.67 cm (1.7 x 17.11 x 29.5 in)

NOTE:

    • HT indicates that the processor model supports Intel Hyper-Threading Technology.
    • Turbo indicates the maximum potential frequency increment when using Intel Turbo Boost Technology, with 8, 7, 6, 5, 4, 3, 2 or 1 core(s) active.
    • DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.
    • Up to 2 processors supported. Mixing different processor models is not supported.
    • For the Intel C600 Chipset E5-2600 Series, the letter preceding the model number indicates the Product Line (E3, E5, E7); 2600x, 2 = number of CPUs in a Node, 6 is socket/segment designation, 00 = Processor SKU, and x = L for low power SKUs.
  1. All support up to 1333 MHz DDR3 memory speeds.
  2. All support up to 1600 MHz DDR3 memory speeds.
  3. All support up to 1866 MHz DDR3 memory speeds.
  4. All support up to 1066 MHz memory speeds.
  5. Processor upgrade available from Intel Xeon Processors E5-2600 to E5-2600 v2. Contact HPE Technology Sales, local HPE Re-seller, or reference the following Customer Advisory regarding critical details before upgrading. An explanation of requirements and limitations are provided.

    Click here to access the HPE Support


    • HPE memory from previous generation servers are not qualified or warranted with this HPE ProLiant Server. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen8.

      Click here for additional information on HPE SmartMemory .

    • LRDIMM, RDIMM, UDIMM and HDIMMs are all distinct memory technologies and cannot be mixed within a server. The majority of ProLiant Gen8 servers support RDIMM, UDIMM and LRDIMM.
    • If only one processor is installed, only 12 DIMM slots are available. When populating with two processors 24 DIMM slots are available. For maximum speed on some memory options on 16 DIMM slots may be populated.
    • When using HDIMMs, 12 DIMMs per processor are required.
    • Depending on the memory configuration and processor model, the memory speed may run at 1866 MHz, 1600 MHz, 1333 MHz, or 1066 MHz.

      Click here to access HPE Server Memory Configurator .

  6. Front interface is a Mini-video connector and requires Front Video Adapter Kit (PN 655915-B21).
  7. The SD slot is not a hot-pluggable device. Customers should not attempt to plug an SD card into the SD slot while the server is powered.
  8. The processor option kit contains 2 additional fan modules, when upgrading from a 1 processor to two processor models.

top

Software overview

Feature
Description
Operating System (OS) and virtualization software support for ProLiant servers
  • Microsoft Windows Server

  • Canonical Ubuntu

  • Red Hat Enterprise Linux (RHEL)

  • SUSE Linux Enterprise Server (SLES)

  • Oracle Linux

  • VMware

  • Citrix XenServer

top

Physical specifications

Specifications
Description
Dimensions (H x W x D)
  • 8 Small Form Factor (SFF) and 10 SFF: 4.32 x 43.47 x 69.85 cm (1.7 x 17.1 x 27.5 in)

  • 4 Large Form Factor (LFF): 4.32 x 43.47 x 74.67 cm (1.7 x 17.1 x 29.5 in)

Weight (approximate)
  • Maximum(all hard drives, power supply, and processor installed):

    • 8 SFF: 19.2 kg (42.3 lb)

    • 10 SFF: 19.2 kg (42.3 lb)

    • 4 LFF: 20.7 kg (45.6 lb)

  • Minimum (one hard drive, power supply, and processor installed): 14.51 kg (32 lb)

Electrical specifications

Specifications
Description
Rated line voltage
100 to 120 V ac
Rated input current
4.5 A (at 120 V ac) to 2.2 A (at 240 V ac)
Rated input frequency
50 to 60 Hz
BTU rating (maximum)
  • 1773 Btu/hr (at 120 V ac)

  • 1715 Btu/hr (at 240 V ac)

Rated steady-state power
  • 460 W (at 100 to 120 V ac)

  • 460 W (at 200 to 240 V ac)

  • 750 W (at 100 to 120 V ac)

  • 750 W (at 200 to 240 V ac)

Maximum peak power
  • 460 W (at 100 to 120 V ac)

  • 460 W (at 200 to 240 V ac)

  • 750 W (at 100 to 120 V ac)

  • 750 W (at 200 to 240 V ac)

Environmental specifications

Specifications
Description
System inlet temperature (operating)
10° to 35°C (50° to 95°F), at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3048 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed.
System performance may be reduced if operating with a fan fault or above 30°C (86°F).
System inlet temperature (non-operating)
-30° to +60°C (-22° to +140°F). Maximum rate of change is 20°C/hr (36°F/hr).
Relative humidity (operating)
10% to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing
Relative humidity (non-operating)
5% to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing
Altitude (operating)
3048 m (10,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min)
Altitude (non-operating)
9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min)
Acoustic noise
Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
Entry Configuration
Idle
LWAd
5.0 Bels
Average Bystander
LpAm
33 dBA
Operating
LWAd
5.1 Bels
Average Bystander
LWAd
35 dBA
Base Configuration
Idle
LWAd
5.0 Bels
Average Bystander
LpAm
33 dBA
Operating
LWAd
5.6 Bels
Average Bystander
LpAm
39 dBA
Performance Configuration
Idle
LWAd
5.1 Bels
Average Bystander
LpAm
34 dBA
Operating
LWAd
5.8 Bels
Average Bystander
LpAm
42 dBA


Entry Configuration tested included one Intel E5-2609, 2.4GHz, 80W processor, one 500GB SAS HDD, one 8GB RDIMM's 1333MHz, one 460W power supply and 4x1GbE, embedded P420i controller.

Base Configuration tested included one Intel E5-2640, 2.5GHz, 95W processor, four 500GB SAS HDD, two 8GB RDIMM's 1333MHz, one 460W power supply and 4x1GbE, embedded P420i controller with 1GB FBWC.

Performance Configuration tested included two Intel E5-2660, 2.2GHz, 95W processor, eight 500GB SAS HDD, four 8GB RDIMM's 1600MHz, two 750W power supplies and 4x1GbE, embedded P420i controller with 2GB FBWC.

Values are subject to change without notification and are for reference only.

Performance of system, options, and ancillary equipment will vary depending on the system configuration.

Levels presented do not account for non-Hewlett-Packard installed hardware.

Safety certifications

Feature
Description
FCC rating
Class A
Normative standards
CISPR 22; EN 55022; EN 55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22; K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1
