Price: Configure for Price
The Dell EMC PowerVault MD3800i Series storage array is a high-availability storage solution designed to provide redundant access to data storage. It can support both single and dual RAID controller configurations and offers 10G/1000 BaseT connectivity to the host server. The array can support up to 24 2.5" HDD/SSD drives and up to 64 servers directly connected per controller, with a maximum of 96 drives when combined with expansion enclosures.

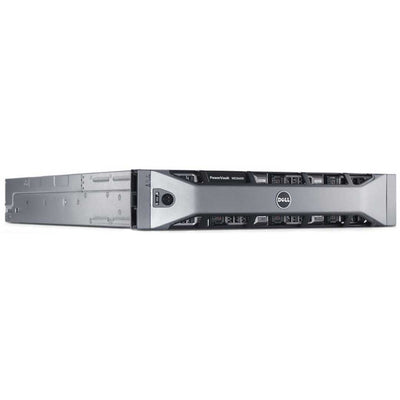

The Dell EMC PowerVault MD3600i and 3620i Series storage array provides 10 G/1000 BaseT connectivity to the host server. Itenables access to 4 physical hosts.
Keeping pace with the latest technology
The RAID controller modules provide high-performance, advanced virtual disk configuration, and fault-tolerant disk subsystemmanagement. Each RAID controller module contains 2GB or 4GB of mirrored cache for high availability and a battery-poweredcache offload mechanism.
Versatile options your way

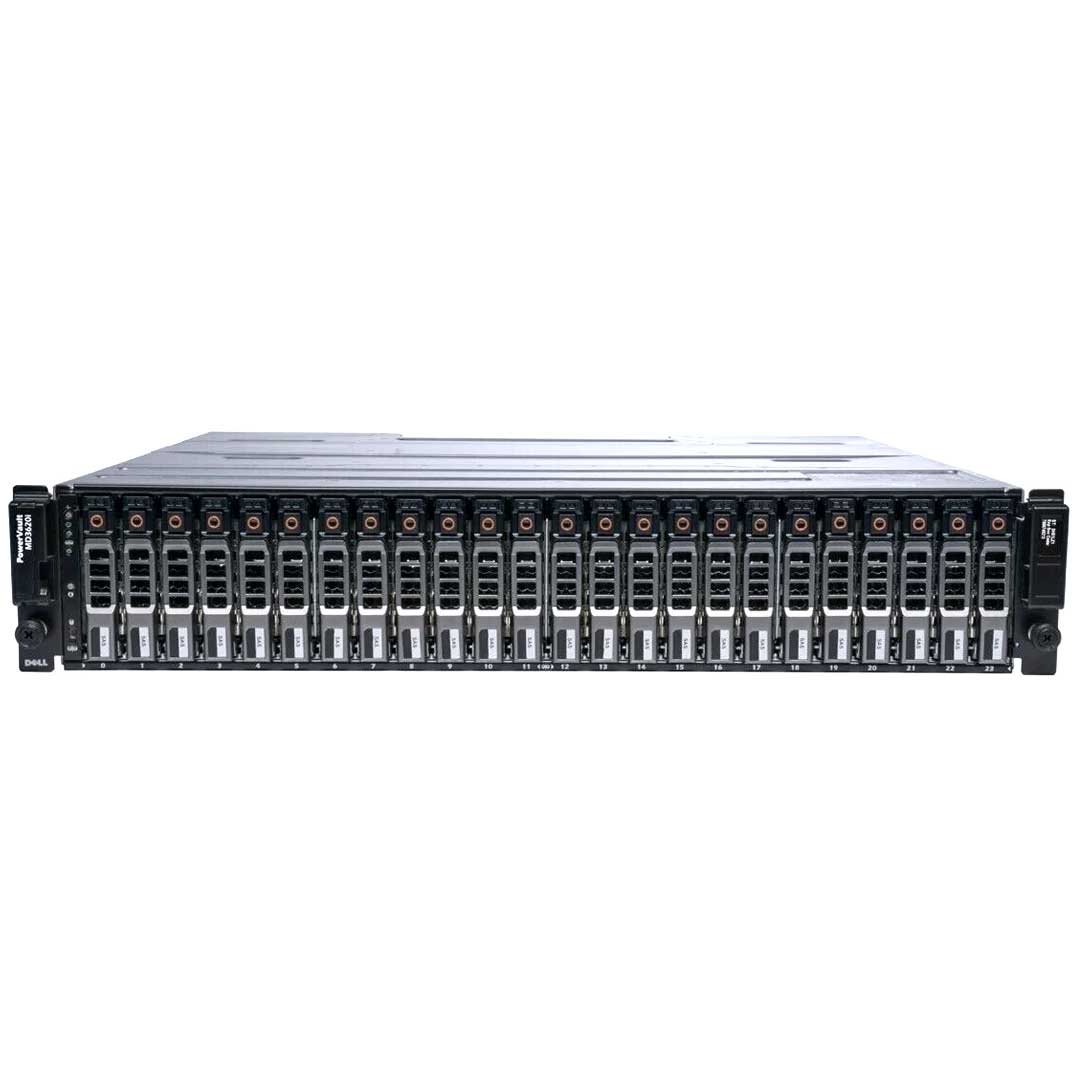

The MD3620i iSCSI array series offers two 10Gb Ethernet iSCSI SAN solutions that are ideal for entry-level storage consolidation in virtualized environments that require high availability and high performance. The array series supports a range of drive types, enclosures, and RAID levels all within a single array.
| Feature | Dell™ PowerVault™ MD3600i Series |
|---|---|
| Hard Disk Drives | MD3600i – Up to twelve (12) 3.5 inch SAS, Near-line SAS and SSD drives MD3620i – Up to twenty-four (24) 2.5 inch SAS, Near-line SAS and SSD drives |
| 3.5” Drive Performance and Capacities | 15,000 RPM SAS drives available in 300 GB, 450 GB and 600 GB 7,200 RPM Near-line SAS drives available in 500 GB, 1TB and 2TB |
| 2.5” Drive Performance and Capacities | 15,000 RPM SAS drives available in 73 GB and 146 GB 10,000 RPM SAS drives available in 146 GB and 300 GB 7,200 RPM Near-line SAS drives available in 500 GB Solid State Drive (SSD) available in 149 GB (available in 3.5” HDD carriers) |
| Expansion Capabilities | Expand up to 96 total drives using MD1200 and/or MD1220 expansion enclosures |
| Host Connectivity | |
| Single Controller Models | Supports up to 2 servers directly connected or up to 64 servers when configured with an Ethernet switch |
| Dual Controller Models | Supports up to 4 servers directly connected or up to 64 servers when configured with Ethernet switches |
| Storage Controllers and RAID Levels | |
| Storage Controllers | Each controller contains 2GB of battery-backed cache Dual controllers operate in an active-active environment mirroring each other’s cache Cache protection is provided via flash memory for permanent data protection |
| RAID Levels | Support for RAID levers 0, 1, 10, 5, 6 Up to 96 physical disks per group in RAID 0, 1, 10 Up to 30 physical disks per group in RAID 5, 6 Up to 256 virtual disks |
| Array Management and Optional Premium Features | |
| Array Management | 2 nd generation Modular Disk Storage Manager, Java based user interface Multi-path software provides failover management of redundant data paths between the server and storage array |
| Optional Premium Features | Snapshots: Up to 8 snapshots per virtual disk and 128 per system Snapshots Plus Virtual Disk Copy: Up to 8 simultaneous virtual disk copies High Performance Tier firmware upgrade increases array IO performance |

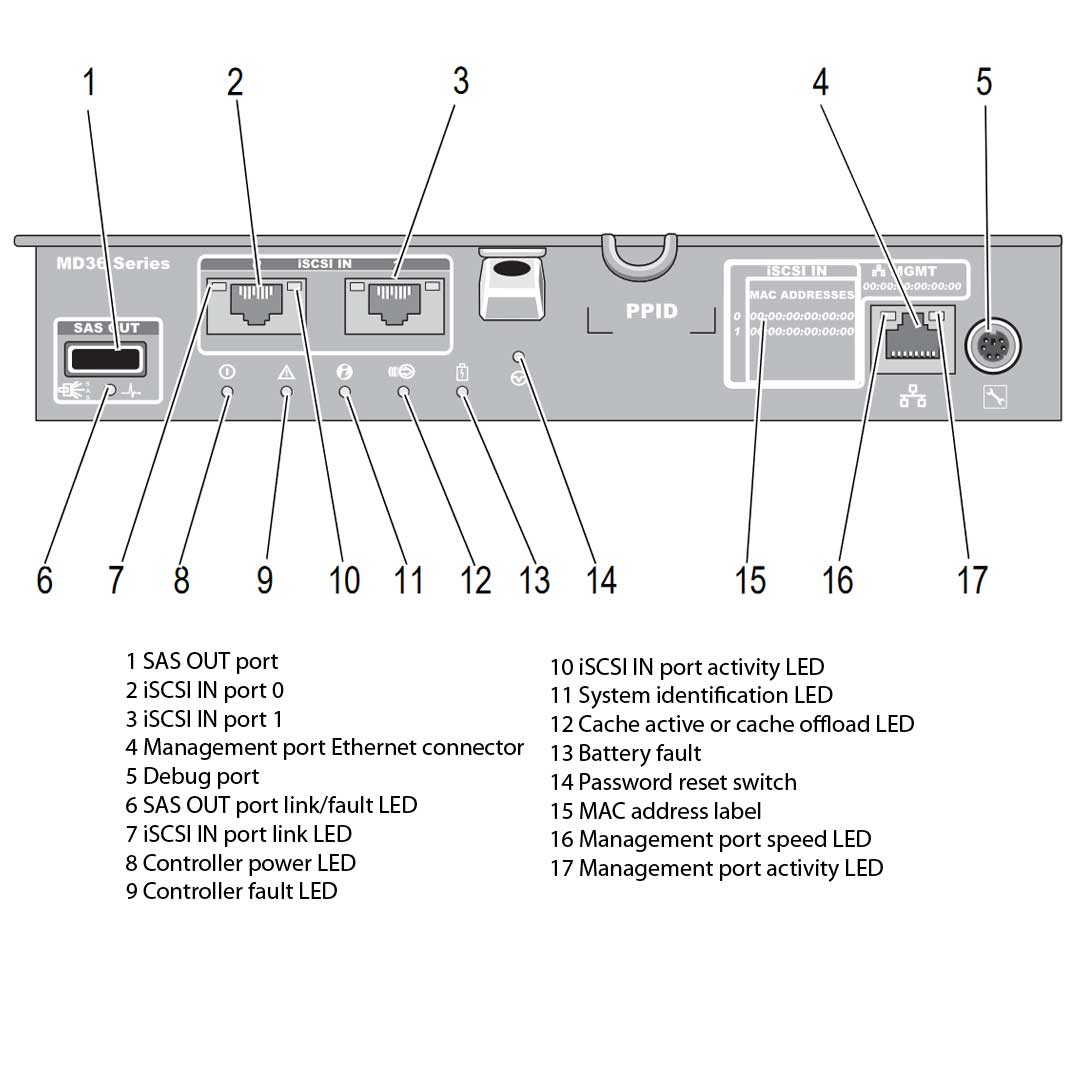

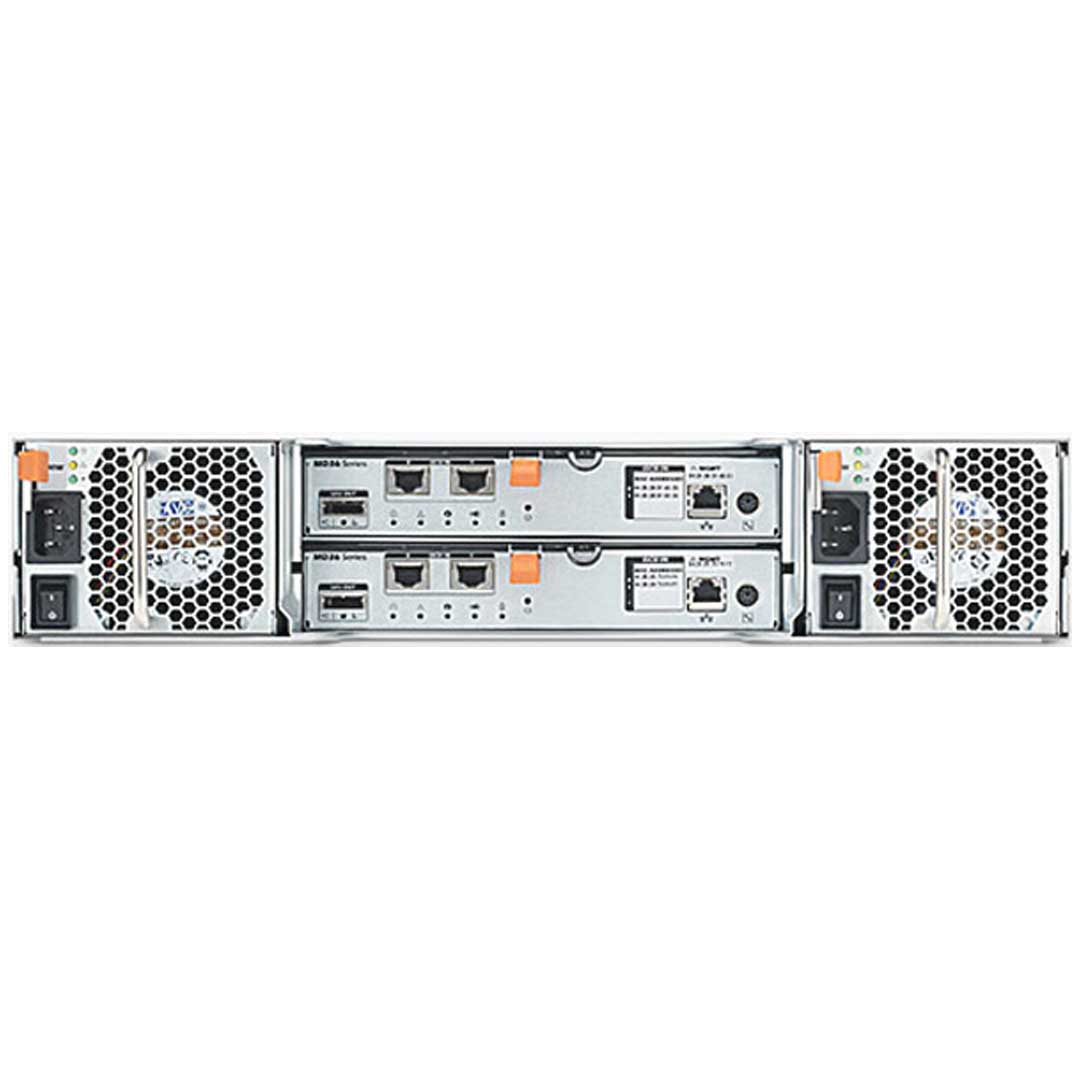

| Back-Panel Connectors (per controller) | |
| Host Connectivity | Two RJ-45 10Gb Ethernet |
| Expansion Connectivity | One x4 6Gb SAS (8088 mini connector) |
| Remote Management | One RJ-45 1Gb Ethernet |
| Service Management | One PS/2 Serial |
| LED Indicators | |
| Front Panel | 1 two-color LED indicator for system status, 1 single-color LED indicator for power, 1 LED unused in this system |
| Hard Drive Carrier | 1 single-color activity LED, 1 two-color LED status indicator per drive |
| Storage Controller | 1 one-color LED power indicator, 1 one-color LED controller fault indicator, 1 one-color LED controller identifier, 1 one-color LED cache activity indicator, 1 one-color LED battery fault indicator |
| Power Supply/Cooling Fan Module | 3 one-color LED status for AC status, DC status and power supply cooling fan fault |
| Power Supplies (per supply) | |
| Wattage | 600 W peak output |
| Maximum Heat Dissipation | 150 W |
| Input Voltage Range | 90 to 264 VAC |
| Frequency Range | 47 to 63 Hz |
| Maximum Input Current at Rated Power | 55 A for 10ms or less, 25 A for 10-150ms |
| Available Hard Drive Power (per slot) | |
| Supported Continuous Consumption | 3.5” drive: 25 Watts; 2.5” drive: 12 Watts |
| Physical | |
| Height x Width x Depth | MD3600i: 8.68cm (3.42”) x 44.63cm (17.57”) x 56.1cm (22.09”) MD3620i: 8.68cm (3.42”) x 44.63cm (17.57”) x 50.8 (20”) |
| Weight | MD3600i: 29.3kg (64.59 lbs.) (maximum configuration) MD3620i: 24.2kg (53.35 lbs.) (maximum configuration) |
| Environmental | |
| Temperature | Operating: 10° to 35°C (50° to 95°F) with a maximum temperature gradation of 10°C per hour |
| Relative Humidity | Operating: 20% to 80% (non-condensing) with a maximum humidity gradation of 10% per hour |
| Altitude | Operating: -16 to 3048 m (-50 to 10,000 ft) Note: For altitudes above 2950 feet, the maximum operating temperature is de-rated 1°F/550 ft. |
 Spec Sheet | Technical Guide |
