Home / All / Dell PERC 11 HBA355e LP Non-RAID Controller | 6CDMK
SKU: 6CDMK

Dell PERC 11 HBA355e LP Non-RAID Controller | 6CDMK

Dell

| Adapter
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

  • Models: PCIe Host Bus Adapter
  • Drive Types: 12 Gb/s SAS, 6 Gb/s SAS/SATA, 3Gb/s SAS/SATA
  • PCI Support: PCI-e 4.0
  • SAS Connectors: 16 Port 4x4 External
  • Cache Memory: N/A
  • Write Back Cache: N/A
  • Boot Support: No
  • Max Drive Support: 240
  • RAID Support: N/A

Part Number:

  • 6CDMK

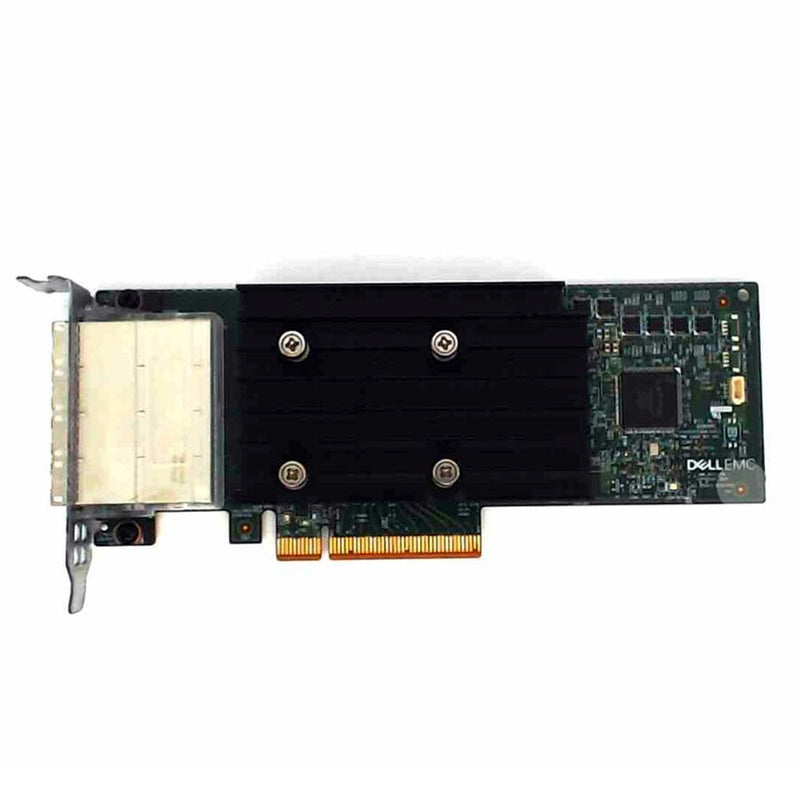

The Dell PERC 11 HBA355e x8 PCI-e Low Profile Non-RAID Controller delivers high-speed connectivity for external SAS/SATA storage devices. Built on PCI-e 4.0 architecture, it supports up to 240 drives through a 16-port 4x4 external configuration, making it ideal for expansive, direct-attached storage setups.
Designed for non-RAID environments, the HBA355e provides reliable performance without the complexity of RAID management. Its low-profile form factor ensures compatibility with a wide range of server chassis, offering maximum throughput for enterprise storage infrastructures that require scalable external drive support.
Compatible With:
  • Dell C6600
  • Dell C6620
  • Dell R250
  • Dell R340
  • Dell R350
  • Dell R440
  • Dell R450
  • Dell R540
  • Dell R550
  • Dell R650
  • Dell R650xs
  • Dell R6515
  • Dell R6525
  • Dell R740xd
  • Dell R750
  • Dell R750xa
  • Dell R750xs
  • Dell R7515
  • Dell R7525
  • Dell R940xa
  • Dell XR5610

(Click to View)

Spec Sheet 4

Model & Form Factors Interface Support PCI Support SAS Connectors Cache Memory Write Back Cache RAID Levels Max Drive Support RAID Support
H755N Front (NVMe Only) Gen3 (8 GT/s) NVMe
Gen4 (16 GT/s) NVMe		 PCIe Gen 4 2x8 Internal 8GB NV Flash Backed Cache 0,1,5,6,10,50,60 8/per controller Hardware
H755 Adapter FH 3 Gbps SATA
6 Gbps SATA/SAS
12 Gbps SATA/SAS
Gen3 (8 GT/s) NVMe
Gen4 (16 GT/s) NVMe		 PCIe Gen 4 2x8 Internal 8GB NV Flash Backed Cache 0, 1, 5, 6, 10, 50,60 16/controller
50 with SAS Expander
*Platform limit		 Hardware RAID
H755 Adapter LP
H755 Front (SAS/SATA Only) 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 2x8 Internal 8GB NV Flash Backed Cache 0,1,5,6,10,50,60 16/controller
50 with SAS Expander
*Platform limit		 Hardware RAID
H755 MX 3 Gbps SATA
6 Gbps SATA/SAS
12 Gbps SATA/SAS
Gen3 (8 GT/s) NVMe
Gen4 (16 GT/s) NVMe		 PCIe Gen 4 1x8 Internal 8GB NV DDR4 2666MT/s Flash Backed Cache 0, 1, 5, 6, 10, 50,60 8, Limited by platform N/A
H750 Adapter FH 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA
*SAS/SATA ONLY		 PCIe Gen 4 1x8 Internal 8GB NV Flash Backed Cache 0,1,5,6,10,50,60 8/controller
50 with SAS Expander
*Platform limit		 Hardware RAID
H750 Adapter LP
H355i Adapter FH 12Gb/s SAS
6Gb/s SATA		 PCIe Gen 4 2x8 Internal No Cache No Cache 0,1,10 Up To 32 RAID
or 32 Non-RAID		 Hardware
H355i Adapter LP
H355 Front 12Gb/s SAS
6Gb/s SATA		 PCIe Gen 4 2x8 Internal No Cache No Cache 0,1,10 Up To 32 RAID
>or 32 Non-RAID		 Hardware
HBA355 Front (internal) 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 2x8 Internal N/A N/A N/A 16/controller
50 with SAS Expander
*Platform limit		 N/A
HBA355i Adapter FH 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 2x8 Internal N/A N/A N/A 16/controller
50 with SAS Expander
*Platform limit		 N/A
HBA355i Adapter LP
HBA355e Adapter FH 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 4x4 External N/A N/A N/A 240 N/A
HBA355e Adapter LP
H350 Adapter FH 12Gb/s SAS
6Gb/s SATA		 PCIe Gen 4 1x8 Internal No Cache No Cache 0,1,10 Up To 32 RAID
or 32 Non-RAID		 Hardware
H350 Adapter LP
H350 Mini Mono 12Gb/s SAS
6Gb/s SATA		 PCIe Gen 4 2x4 Internal N/A N/A 0, 1, 10 Without SAS Expander:
8 drives per controller

With SAS Expander:
Limited by platform offering 		N/A
HBA350i Adapter (internal) 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 2x8 Internal N/A N/A N/A 16/controller
50 with SAS Expander
*Platform limit		 N/A
HBA350 MX (internal) 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 1x8 Internal N/A N/A N/A 8
*Platform limit		 N/A
