HPE ProLiant DL580 Gen9 Server Chassis | 793161-B21

Price: Ask for Quote

ECS Refurbished & Tested

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.

CTO Server [Chassis] HPE ProLiant DL580 Gen9 Configure-to-order Server
SKU Number 793161-B21
Processor 4U Server Chassis with front-accessible processor and memory drawer
Storage Controller Embedded HPE Smart Array 12G P830i Controller
PCIe 9 PCIe Gen3.0 I/O Expansion slots (5x16 slots, 4x8 slots)

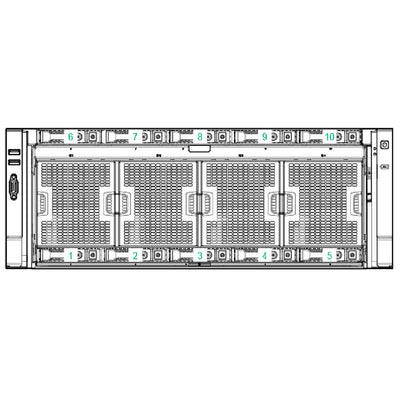

Drive Cage - included 5 Hot-plug SAS/SATA SFF SSD or HDD Bays (Lower)
Fans 4 hot plug fans (eight rotors with N+1 redundancy), front accessible
USB 8 USB 2.0 ports (2 front, 4 rear, 2 internal)

HPE ProLiant DL580 Gen9 Server Chassis | 793161-B21

The refurbished HPE ProLiant DL580 Gen9 Server is the 4S enterprise standard x86 server offering commanding performance, rock-solid reliability and availability, and compelling consolidation and virtualization efficiencies. Supporting Intel Xeon E7-4800/8800 v4/v3 processors, the DL580 Gen9 Server offers enhanced processor performance, up to 6 TBs of memory, greater IO bandwidth (9 PCIe Gen 3.0 slots), and 12 Gb/s of SAS speeds.

The HP ProLiant DL580 Gen9 Server is ideal for mission-critical enterprise, business intelligence, and database applications. This server can handle your most demanding workloads, business data, and advanced analytical tasks— while freeing IT teams to focus on innovations for your business.

What's New for DL580 Gen9

  • New 128GB memory
  • HPE Lockstep memory mode FIO setting
  • HPE 2.4TB SAS 12G Enterprise 10K SFF SC 512e DSF HDD

Commanding Performance and Scalability

The HPE ProLiant DL580 Gen9 Server provides up to 26% increased processor performance with Intel Xeon E7-4800/8800 v4/v3 processors than the previous generation.

HPE SmartMemory prevents data loss and downtime with enhanced error handling. Support of up to 6 TB DDR4 max capacity (96 DIMM slots) with speeds up to 2400MHz with up to 23% performance gain. Ideal for large-scale in-memory computing and virtualization.

Comes standard with nine FL/FH PCIe 3.0 slots for GPGPUs and choice of HPE FlexibleLOM or PCIe standup 1GbE, 10GbE or InfiniBand Adapters provide you flexibility of networking bandwidth and fabric so you can adapt and grow to changing business needs.

Faster access to your data with the redesigned HPE Flexible Smart Array and HPE Smart SAS HBA Controllers allow you the flexibility to choose the optimal 12 Gb/s SAS controller most suited to your environment. Additional support for HPE NVMe Mixed Use and Write Intensive PCIe Workload Accelerators.

Rock-solid Availability and Reliability

The HPE ProLiant DL580 Gen9 Server provides increased system availability and less need for service with advanced error recovery, error diagnosis, and built-in redundancy; all features of the DL580 Server Comprehensive Fault Management and Diagnostics.

Improved reliability and data protection with HPE Smart Array Controllers featuring HPE Secure Encryption and Advanced Data Mirroring, and HPE SmartDrive technology.
Increased security with four new levels of Secure Boot with Unified Extensible Firmware Interface (UEFI) mode.

HPE Proactive Care Services helps customers prevent problems before they occur by integrating uptime and productivity into a personalized, simplified support experience.

Know your Server - CTO Configuration Support

Need help with the configuration? Contact us today!

This Product Is Compatible With The Following Systems:

Product Specs

Spec Sheet 4

Technical specifications HP ProLiant DL580 Gen9 Server
Compute Two, three, or four Intel Xeon E7 4800/8800 v3 processors; 4/8/10/12/14/16/18 cores; up to 3.2 GHz and 45 MB L3 cache
Memory HP SmartMemory (96) DDR4 DIMM slots and 6 TB maximum memory with 64 GB DIMMs (supports both R-DIMMs and LR-DIMMs up to 1,866 MHz)
Storage HP Smart Array P830i 12 Gbps SAS Controller
Flash-backed write cache (FBWC) 2 GB or 4 GB FBWC
HP SmartDrives Up to 10 SFF max, HDD/SSD (20 TB max), and optional 5 NVMe PCIe SSD support
I/O expansion Nine PCIe Gen3.0 FL/FH slots standard (four x8 and five x16 lanes slots); FlexibleLOM and Embedded SAS RAID Controller provide two additional I/O devices for a total of 11 PCIe devices per system.
Note: Slot availability is dependent on the number of processors installed.
Networking FlexibleLOM; choice of 4 x 1GbE, 2 x 10GbE, or 2 x 10 Gbps CNA or 2 x FDR InfiniBand
VGA/serial/USB ports/SD Two video (1f, 1r); eight USB (2f, 2i, 4r); 3/5 NIC; one microSD; Dual microSD (optional); external USB optical drive (optional)
GPU Support Up to 4 double-wide GPGPUs
System ROM UEFI and Legacy BIOS
Converged management HP OneView with HP iLO Advanced
Support management HP Insight Online with enhanced mobile app
Embedded management HP iLO 4, HP Intelligent Provisioning, HP System Update Manager (SUM), HP RESTful Interface Tool, HP Scripting Tools for Microsoft ® Windows ® PowerShell
Power supplies Up to four 1,500 W or 1,200 W (N+N redundant), 94 percent efficient (Platinum Plus); common slot
1,200 W power supplies: max power consumption—120 VAC–1,012 VA, 3,408 BTU, 230 VAC–1,332 VA, 4,447 BTU
1,500 W power supplies: max power consumption—230 VAC–1672 VA, 5,637 BTU
Fans Four hot plug (eight rotors with N+1 redundancy); front accessible
Security Secure Boot, Intel Secure Key, and TPM option
System RAS features HP Advanced Error Recovery, HP Memory Quarantine, HP Advanced Error Containment, HP Advanced Fault Resiliency, HP Advanced Event Detection and Reporting, and HP Qualified Options
Industry compliance ASHRAE A3 and A4 configurations supported
Power discovery services Supported
Location discovery services Supported
Form factor/chassis depth Rack (4U), 29"
Serviceability — Easy install rails Standard with CMA
