HPE MSA 2040 ES SFF Dual Controller SAN w/4 800GB Flash Bundle/S-Buy | P9H25SB

Price: Ask for Quote

Brand:
MPN:
P9H25SB
Type:
Storage Array
Condition:
ECS Refurbished & Tested

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.


-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

HPE MSA ES SFF Dual Controller SAN w/4 800GB Flash Bundle/S-Buy | P9H25SB

*Includes:

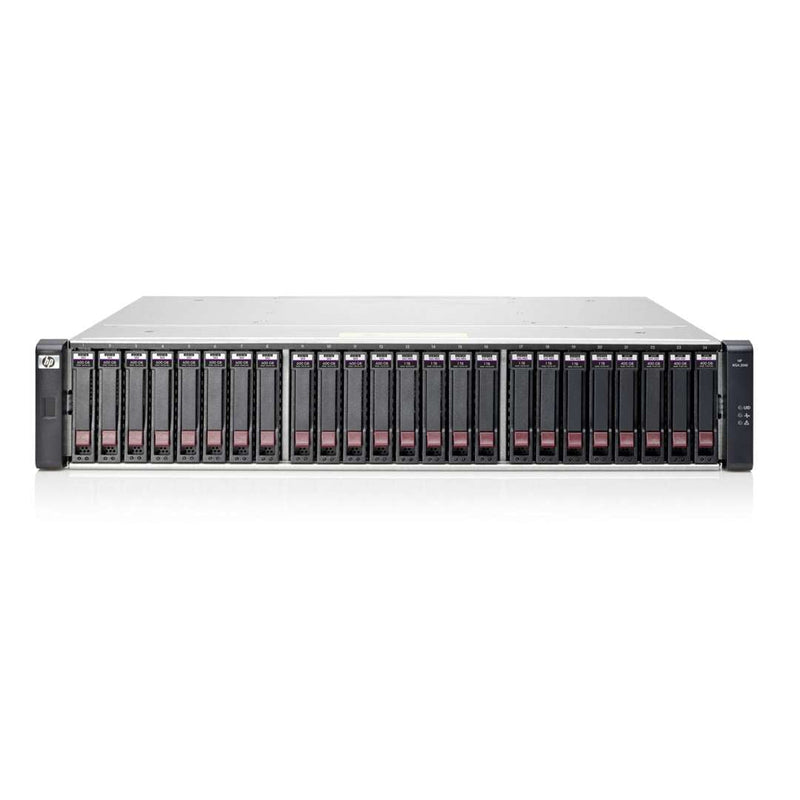

  • (1) HP MSA 2040 ES SAN DC SFF Storage K2R80A
  • (4) HPE MSA 800GB 12G Mixed Use SAS 2.5in SSD N9X96A
  • (1) HPE MSA 2040 Perf Auto Tiering E-LTU D4T79A

HPE MSA 2040, a High-Performance Storage array designed for Entry-Level Hewlett Packard Enterprise users desiring 8Gb/16Gb Fibre Channel (FC), 1 GbE/10 GbE iSCSI, or 12Gb SAS connectivity with 4 host ports per controller. The MSA 2040 Storage array provides excellent value for users needing performance balanced with price to support initiatives such as consolidation and virtualization.

The new HP MSA 2040 Storage arrays are positioned to provide excellent value for customers needing increased performance to support initiatives such as consolidation and virtualization. The MSA 2040 delivers this performance by leveraging a new controller architecture with more processing resources, 4GB cache per controller, and four host ports per controller standard. The controller architecture delivers incredible performance and allows users to extract full benefits from the latest storage technologies such as SSDs

The new MSA 2040 Storage ships standard with 64 Snapshots (upgradeable to 512) and Volume Copy software enabled for increased data protection and allows remote replication with optional Remote Snap software.

Simple: Flexible architecture. Easy to setup. Easy to manage

  • Choice of 8 Gb/16 Gb FC, 1 GbE/10GbE iSCSI and 6Gb/12Gb SAS to the configuration needs of your SAN infrastructure
  • Deploy single or dual controllers depending on high-availability and budgetary requirements
  • Select large or small form factor disk enclosures with choice of high-performance SSDs, Enterprise-class SAS or SAS Midline drives based on application, performance, and budget needs
  • Integrated setup and management tools for MSA are easy to manage for ProLiant/BladeSystem IT managers

Fast: The MSA 2040 sets new standards for $/IOPS in entry SAN, 3x to 4x today’s competition

  • New high-performance controller architecture delivering up to 4x the performance of today’s other entry-level SAN arrays
  • New MSA 2040 4-port controller architecture with 4GB cache supporting the latest FC, iSCSI & SAS interfaces translates into better application response time and the ability to support more virtualized workloads
  • SSD support with integrated lifecycle management improves application performance and allows customers to reduce their operating costs by reducing foot prints and power consumption

Future proof: 2x the bandwidth and the first entry SAN with 16Gb FC and now 12Gb SAS

  • Converged SAN Controller ports are upgradeable by SFPs to 8Gb/16Gb FC, and/or 1GbE/10Gb iSCSI. The MSA 2040 SAS controller supports 6Gb or 12Gb SAS facilitating ultra-high performance with or without required dedicated SAN infrastructure
  • 4th generation of MSA’s unique Data-in-Place upgrades provides unmatched investment protection

This Product Is Compatible With The Following Systems:

Product Specs

Base Standard Capabilities

Product features

Feature
Description
Capacity (Single enclosure and maximum additional drive enclosures)1

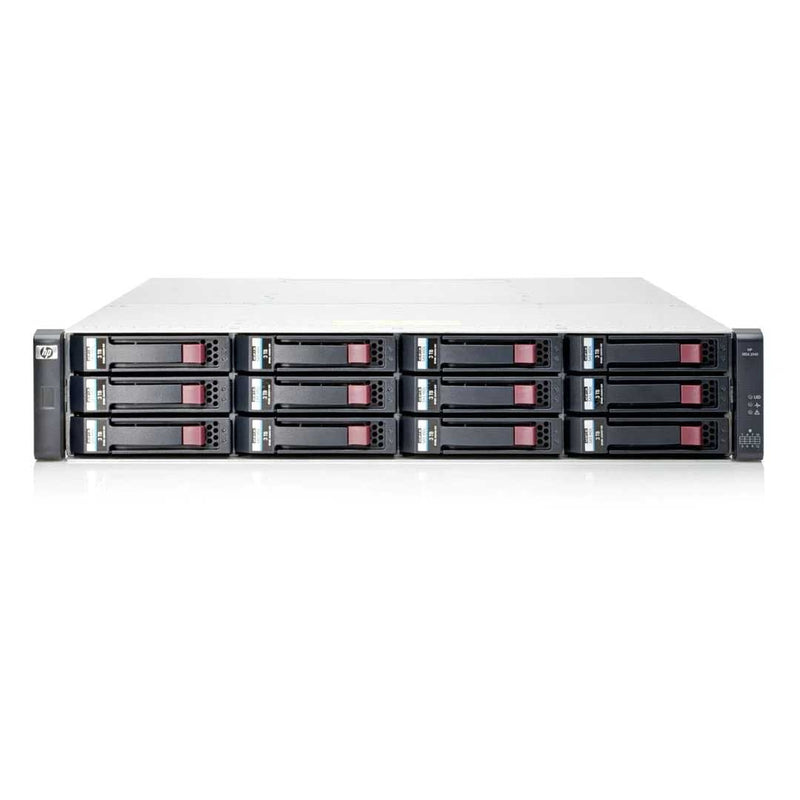

For LFF:
  • 120TB (Single LFF Array-Head - Using 12 x 10TB LFF SAS midline drives)

  • 960TB (7 LFF disk enclosures behind LFF array and using 10TB LFF SAS midline drives)

For SFF:
  • 76.8TB (Single SFF Array-Head - Using 24 x 3.2TB SFF SSD drives)

  • 637TB (7 SFF disk enclosures behind SFF array and using 3.2TB SFF SSD drives)

Pool capacity2
  • GL200: 169TB (154TiB)

  • GL210: 219TB (200TiB)

  • GL220: 329TB (300TiB)

  • GL220 with large pool support: 562TB (512TiB)

Cache3
6GB per controller
Total LUNs (LUN size are dependent of the Storage architecture: Linear versus virtualized)
  • 512

  • Maximum LUN size: 140TB (128TiB)

  • Thin provisioning allows to create the LUNs independent of the physical Storage

Host interconnect
  • MSA 2040 SAN controller will support up to four connections with options of 16Gb, 8Gb FC and 10 GbE, 1 GbE iSCSI per controller

  • MSA 2040 SAS controller will support up to four 6Gb/12Gb SAS connections per controller using Mini-SAS HD cables

Maximum drives with expansion
96 LFF/199 SFF
Maximum host supported
  • 64 in v2 UI

  • 512 in v3 UI

Protocol (Host connect)
16Gb FC
Server compatibility4
Supports most HPE ProLiant, BladeSystems and Integrity servers including
  • HPE ProLiant DL, ML

  • HPE c-Class Blade Servers

  • Integrity servers, IA64

Web browser support
  • The MSA 2040 supports target based management, and include a web interface and a telnet interface, and require a web browser for management

  • Beginning with GL200 or newer firmware, MSA 2040 users have the option to use one of two WBI's

  • Users taking advantage of virtualization features will be required to use SMU V3

  • The MSA 2040 management supports Microsoft Internet Explorer, Mozilla Firefox, and Google Chrome

NOTE:
  1. Maximum available Storage capacity depends on the RAID level being implemented
  2. The above pool capacities by firmware release apply to virtual Storage only. These are usable capacity/pool. Each MSA system can support two pools therefore, each MSA Storage system can have double the usable capacity listed above
  3. 6GB cache includes data (Read/write) cache = 4GB and metadata and system Operating System (OS) memory = 2GB
  4. Depends on protocol
