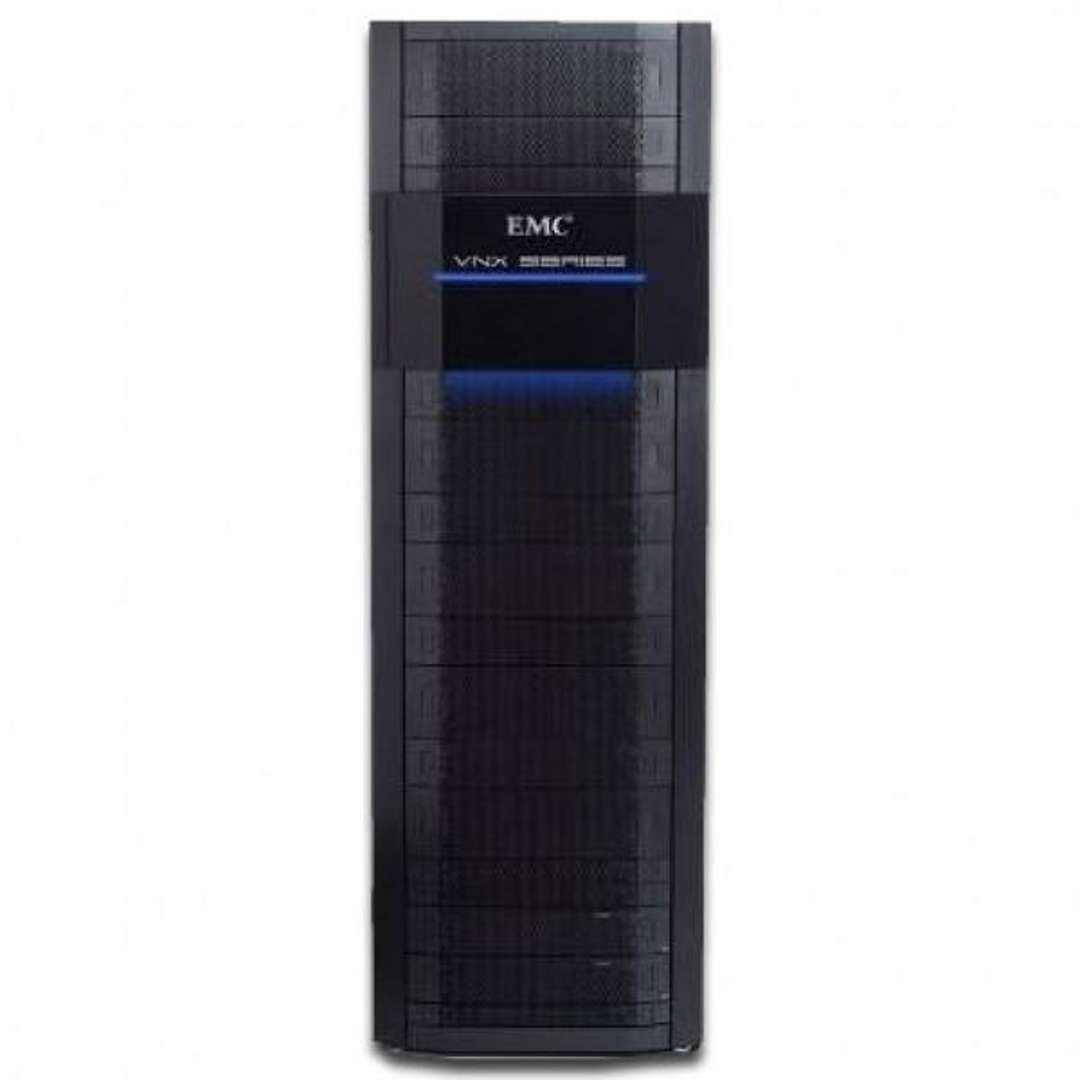

EMC VNX5800 Disk Processor Enclosure (DPE)

EMC VNX5800 Disk Processor Enclosure (DPE)

Price: Ask for Quote

Brand:

EMC

MPN:

VNX5800

Type:

Storage Array

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

EMC VNX5800 Disk Processor Enclosure (DPE)

VNX5800 Disk Processor Enclosure helps customers to keep pace with their growing businesses by expanding their system storage capacity. The VNX5800's intuitive design easily allows you to add new disks that can be used to expand existing storage pools or create new pools.

15 x 3.5", 25 x 2.5", 60 x 3.5" and 120 x 2.5"
3.5" & 2.5" SAS / NL-SAS / Flash
RAID 0 / 1 / 3 / 5 / 6 / 10
Fibre Channel (FC)
750 Max Disk Drives

EMC VNX5800 series unified storage system delivers uncompromising scalability and flexibility for mid-tier applications while providing market-leading simplicity and efficiency to minimize total cost of ownership. Using a modular architecture, the VNX5800 integrates hardware components for block, file and object with concurrent support for native NAS, iSCSI, Fibre Channel and FCoE protocols. The VNX5800 delivers file (NAS) functionality via 2-6 Data Movers and block (iSCSI, FCoE, and FC) storage via dual Storage Processors leveraging full 6Gbps SAS disk drive topology.

DELL EMC VNX5800 Base Knowledge.
Form Factor:
Chassis: 2U 25 (2.5”)
Standby Power Supply:
Disk Array Enclosures (DAE):
Max Drives: 750
Drives Supported: SAS, NL-SAS and Flash
I/O Supported:
Support for File (CIFS and NFS), Block (FC, iSCSI & FCoE) and Object

Storage Processor I/O Supported:
The SPs in this model use a 2.0 GHz, six-core Xeon E5 processor with 32 GB of RAM, supporting a maximum of 750 drives with the following host connectivity options: FC, iSCSI, and FCoE.
Each SP has five I/O module slots, and the VNX5800 supports the use of all five. Any slots without I/O modules populate with blanks (to ensure proper airflow).

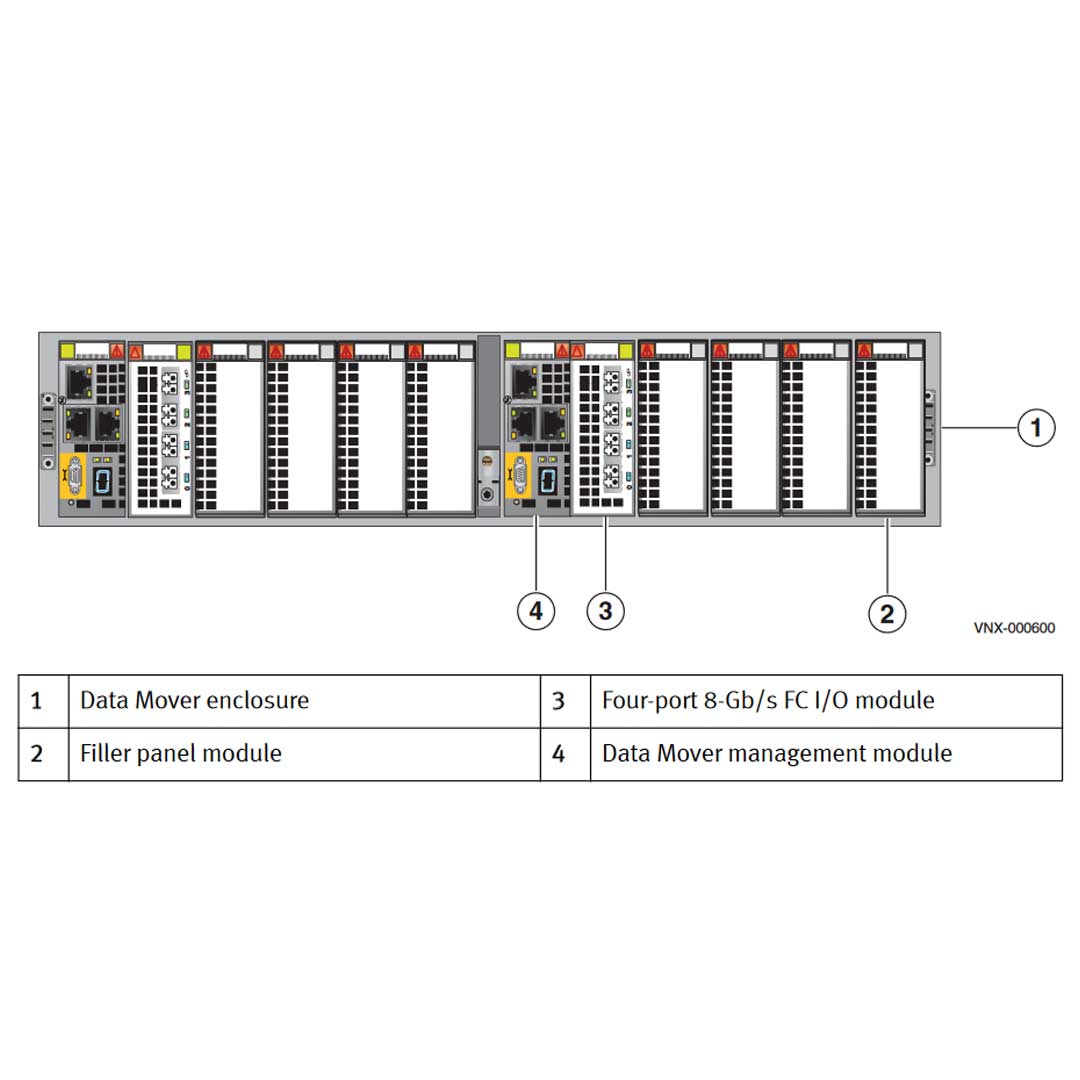

Data Movers Enclosure (DME):
Data Mover Enclosures (DMEs) with blades containing 2.4 GHz, four-core Xeon 5600 processors with 12 GB RAM per blade, with a maximum storage capacity of 256 TB per blade.
The DMEs can house two blades per 2U enclosure, and each blade can accept a maximum of three I/O modules for front-end connectivity.

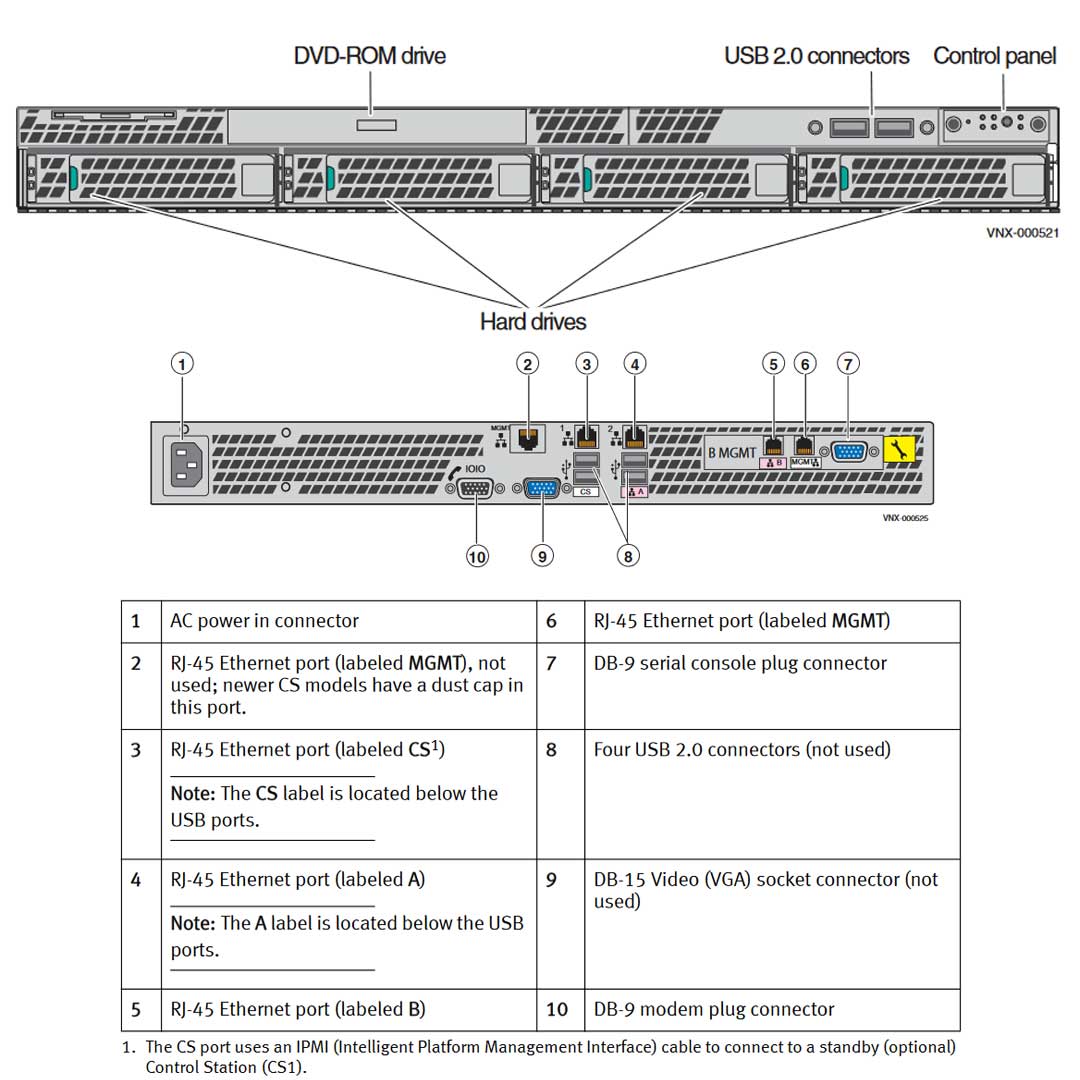

Control Station (CS):
The VNX5800 can support up to 2 Control Stations.

Disk Array Enclosure (DAE)
15x3.5”
60x3.5”
25x2.5”
120x2.5”

Storage Array Specs

EMC VNX5800 Technical Specifications

EMC VNX5800 TECHNICAL SPECIFICATIONS
Storage Type	Unified
Maximum Raw Capacity (per controller)	3000TB
Max FAST Cache	3TB
Number of Drives (Min/Max)	4/750
Array Enclosure	3U Disk Processor Enclosure - 25 x 2.5" SAS/Flash Drives
Drive Enclosure Options	25 x 2.5" NL-SAS/SAS/Flash Drives (2U) 15 x 3.5" NL-SAS/SAS/Flash (3U) 60 x 3.5" NL-SAS/SAS/Flash Drives (4U) 120 x 2.5" NL-SAS/SAS/Flash Drives (3U)
Drive Options	15 x 3.5" Drive Enclosure: 100GB 6Gbps SAS SSD 200GB 6Gbps SAS SSD 400GB 6Gbps SAS SSD 800GB 6Gbps SAS SSD 1.6TB 6Gbps SAS SSD 300GB 6Gbps 15K SAS 600GB 6Gbps 15K SAS 600GB 6Gbps 10K SAS 900GB 6Gbps 10K SAS 1.2TB 6Gbps 10K SAS 2TB 6Gbps 7.2K NL-SAS 3TB 6Gbps 7.2K NL-SAS 4TB 6Gbps 7.2K NL-SAS 25 x 2.5" Drive Enclosure: 100GB 6Gbps SAS SSD 200GB 6Gbps SAS SSD 400GB 6Gbps SAS SSD 800GB 6Gbps SAS SSD 1.6TB 6Gbps SAS SSD 300GB 6Gbps 15K SAS 600GB 6Gbps 15K SAS 600GB 6Gbps 10K SAS 900GB 6Gbps 10K SAS 1.2TB 6Gbps 10K SAS 1TB 6Gbps 7.2K NL-SAS 60 x 3.5" Drive Enclosure: 100GB 6Gbps SAS SSD 200GB 6Gbps SAS SSD 400GB 6Gbps SAS SSD 800GB 6Gbps SAS SSD 1.6TB 6Gbps SAS SSD 300GB 6Gbps 15K SAS 600GB 6Gbps 10K SAS 900GB 6Gbps 10K SAS 1.2TB 6Gbps 10K SAS 2TB 6Gbps 7.2K NL-SAS 3TB 6Gbps 7.2K NL-SAS 4TB 6Gbps 7.2K NL-SAS 120 x 2.5" Disk Enclosure: 100GB 6Gbps SAS SSD 200GB 6Gbps SAS SSD 400GB 6Gbps SAS SSD 800GB 6Gbps SAS SSD 1.6TB 6Gbps SAS SSD 300GB 6Gbps 15K SAS 1.2TB 6Gbps 10K SAS
Standby Power System	Internal Batteries, one for each storage processor
CPU / Memory Per Controller	2x Intel Xeon E5-2600 Six Core 2.0GHz / 64GB per Controller
Max Block UltraFlex IO Modules per Array	10
Embedded IO Ports per Array	2 x 4 Lane SAS ports (for BE Connection)
Base 6Gbps SAS BE Buses per Array	2 x 4 Lane
Max 6Gbps SAS BE Buses per Array	6 x 4 Lane or 2 x 4 Lane + 2 x 8 Lane
Max Total Ports per Array	44
2/4/8 Gbps FC Max Ports per Array	40
1 GBaseT iSCSI Max Total Ports per Array	32
10 GbE iSCSI Max Total Ports per Array	20
Max FCoE Total Ports per Array	20
File Components
# File Data Movers	2-6
# Control Stations	1 x 1U Server Standard, 2nd x 1U Server Optional
Data Mover CPU/Memory	Intel Xeon 5600 / 12GB
Max File UltraFlex IO MOdules per Data Mover	4
Min/Max 2/4/8 Gbps FC Ports per Data Mover	4
Max IP Ports per Data Mover	12
Max 1 GBaseT Ports per Data Mover	12
Max 10GbE Ports per Data Mover	6
Management	LAN 2x 10/100/1000 Copper GbE
Functional Limits
Max Raw Capacity	3000TB
Max SAN Hosts	2,048
Max Max Number of Pools	40
Max Number of LUNs (Pool)	2100
Max Number of LUNs (Classic)	4096
Max Pool Based LUN Size	256TB (Virtual Pool LUN)
Max File System Size	16TB
Maximum Usable File Capacity per Data Mover	256TB
Compatible Disk Array Expansions (DAEs)	VNXB6GSDAE15 VNXB6GSDAE25 VNXB6GSDAE60 VNXB6GSDAE120
Protocols Supported	CIFS, NFS, pNFS, FC, FCoE, ISCSI
Power - 25 x 2.5" DPE
AC Line Current (Operating Maximum)	4.4 A max at 200 Vac
Power Consumption (Operating Maxium)	870 VA (845 W) max
Power Factor	0.98 min at full load, low voltage
In-rush Current	30 A max for 1/2 line cycle, per line cord at 240 Vac
Startup Surge Current	29 A rms max for 50 ms, at any line voltage
AC Protection	10 A fuse on each power supply
AC Inlet Type	IEC320-C14 appliance coupler, per power zone
Dimensions
Height	5.25"
Width	17.5"
Depth	24"
Vertical Size	3 NEMA Units
Weight	90.395 lbs
ECS Warranty	1-Year Parts Replacement Warranty
