Dell PowerEdge C6220II 1U Barebone Node


Price: Request a Quote

Brand:
MPN:
DPE-C6220II-1U-NODE
Type:
Chassis
Condition:
ECS Refurbished & Tested

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.


-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

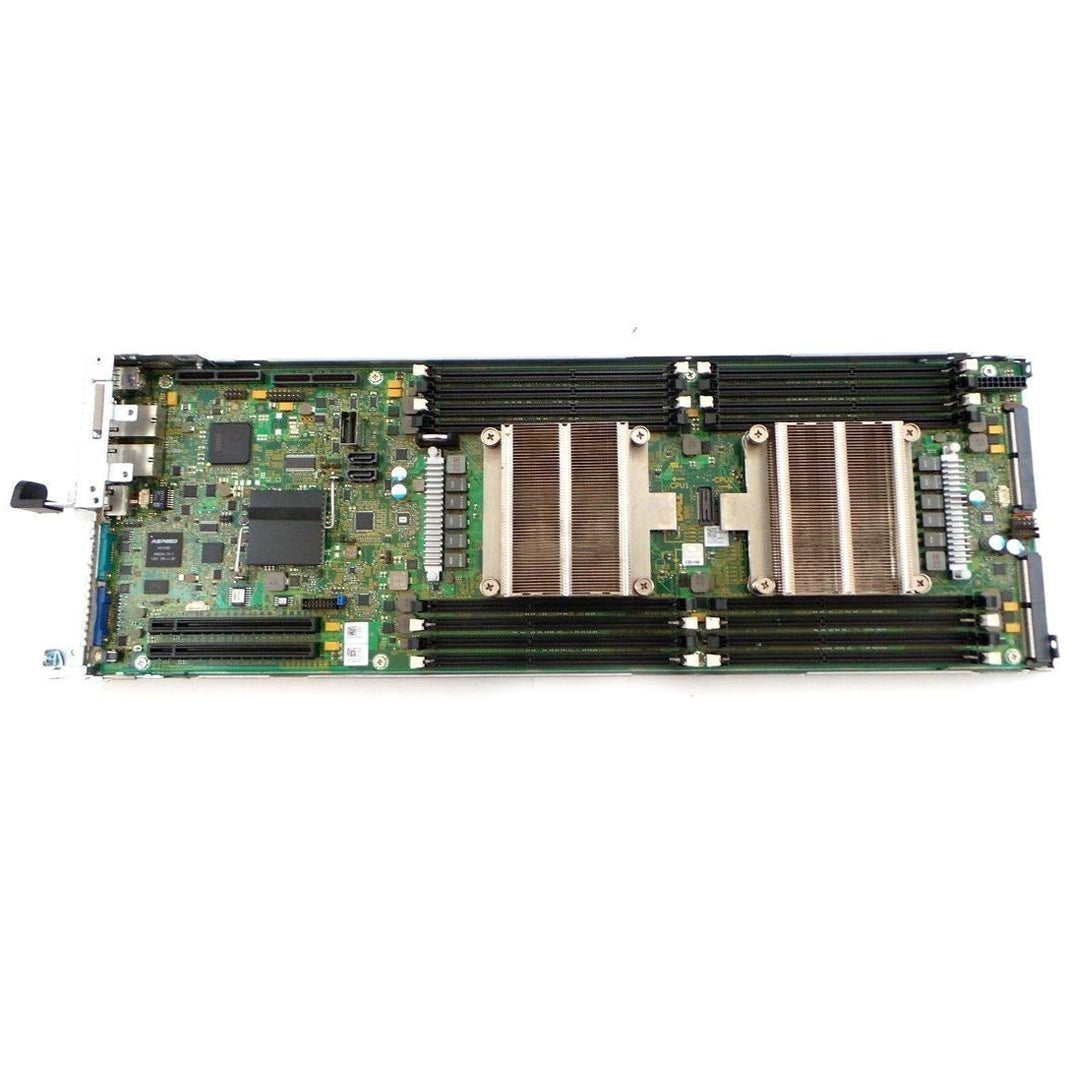

Dell PowerEdge C6220II 1U Barebone Node

Quick Specs

Form Factor:

1U/4N rack server

Processor | Max: 12 Cores

2x Intel Xeon E5-2600 v2

Memory | Max: 512GBTB

16 DDR3 RDIMM 1866Mhz

Storage:

1U - 1 midplane connection: power, control, 6 SATA/SAS or

Rear Storage:

 None

PCIe Slots:

1U - 2x PCIe 3.0

GPU:

Supported through C410x expansion chassis

Ideal for:

  • High-Performance Computing (HPC)
  • Video Analytics

This is just the node server, The C6220ii Enclosure Rack Servers must be configure separately.


Get >80% more performance with up to four 2-socket Intel Xeon E5-2600 processor-based servers in a smart 2U shared infrastructure chassis that saves more than 100 watts over previous designs.

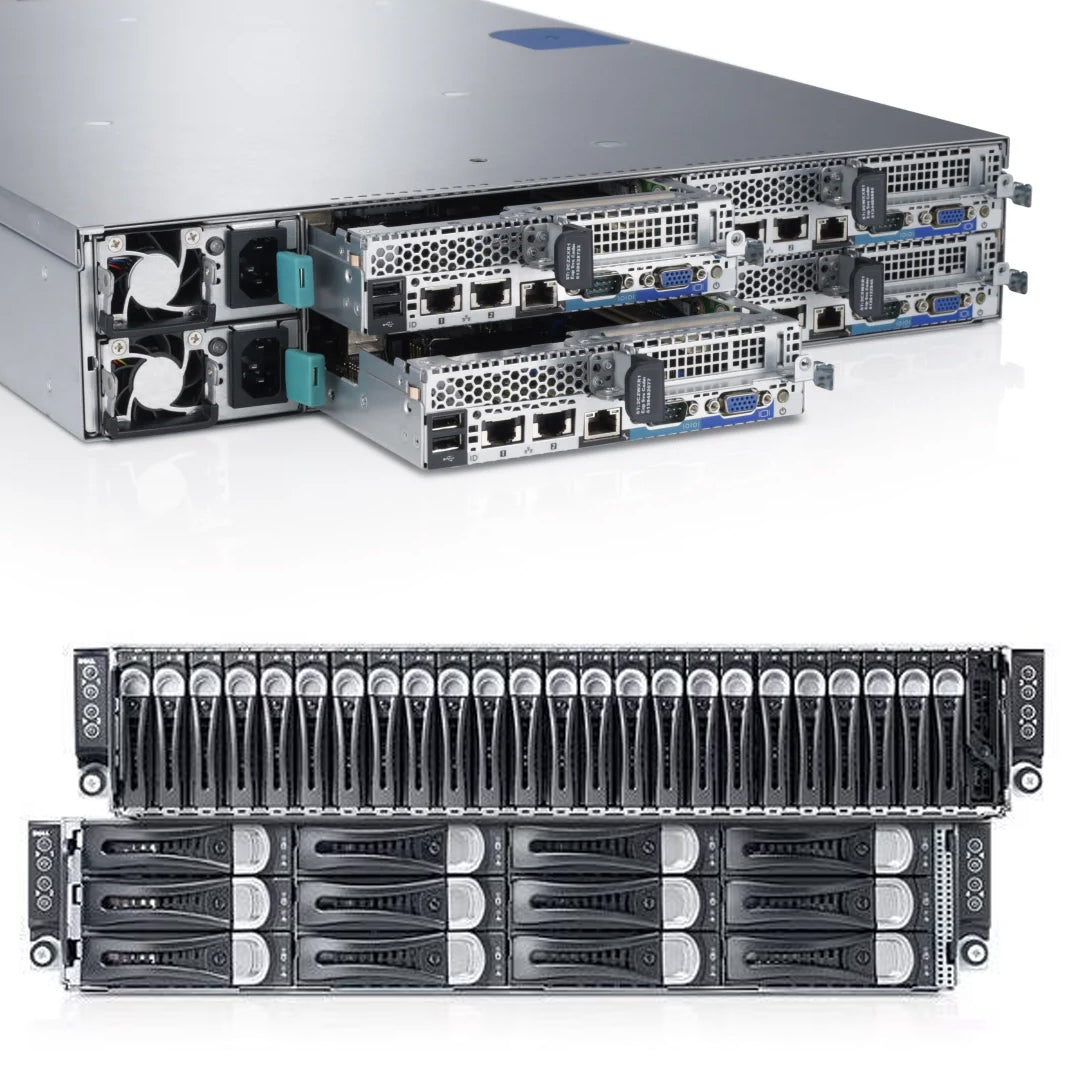

PowerEdge C6220 II

  • Intel Xeon E5-2600v2 processors boost performance by > 80%
  • 135W processors deliver ~20% more performance over 95W
  • 2.3x the memory bandwidth than the previous generation
  • Smart chassis improvements save more than 100W per chassis
  • Dell PowerEdge C6220II/C6000II CTO Enclosure Chassis

Designed with your needs in mind

Whether you’re seismic processing, video rendering or running scientific simulations, server performance, bandwidth and efficiency can impact time and cost to results.

The ability to run high-frequency processors can increase performance. Servers that can run at higher ambient temperatures can help reduce cooling costs. Simplified serviceability can save time while helping increase uptime, and the flexibility to run multiple configurations in the same chassis means the ability to do more with less.

We incorporated that customer feedback into the next‑generation Dell PowerEdge C6220II server. This scale‑out building block is a workhorse with up to four 2‑socket Intel Xeon E5-2600 processor-based servers in a streamlined 2U shared infrastructure chassis.


Deliver results faster

The high volume of computations requires performance, from the processor to the memory to the interconnect. Intel Xeon processor E5-2600 product family features Turbo Boost Technology 2.0 to deliver more than 80% more performance than the Intel Xeon 5600 processors.

In addition to this generational leap in processor performance, the PowerEdge C6220 II server supports up to 135 watt processors, adding ~20% in performance over the 95 watt processor.

When it comes to memory, 16 DIMM slots provide up to 256GB of memory per server node — up to four nodes — and 1600MT/s memory speed to help improve bandwidth per processor.

The Intel Xeon processor E5-2600 product family has 2.3x the memory bandwidth of the previous generation, with four memory channels, and the integrated I/O helps reduce latency up to 30%.

Node Options

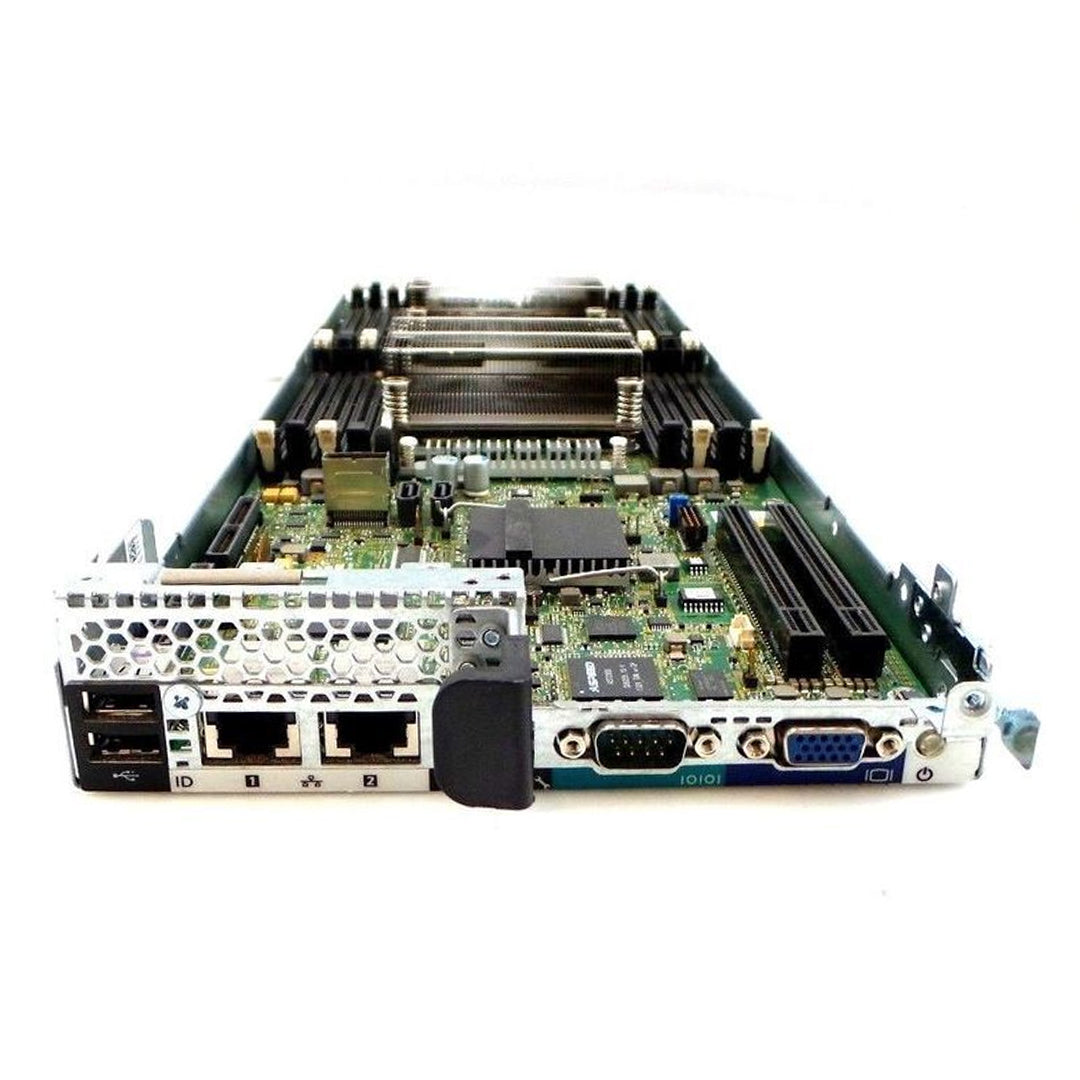

( View C6220ii 1U Node Server )
Form Factor:

1U Node Server

Processor | Max: 12 Cores

2x Intel Xeon E5-2600 v2

Memory | Max: 512GB

16 DDR3 RDIMM 1866Mhz

Storage:

1 midplane connection: power, control, 6 SATA/SAS

Rear Storage:

None

PCIe Slots:

1 Mezzanine Slot
 1 PCIe 3.0 slot

GPU:

GPUs are supported in the PowerEdge C6220ii only through the PowerEdge C410x expansion chassis.

( View C6220ii 2U Node Server )
Form Factor:

2U Node Server

Processor |Max: 12 Cores

2x Intel Xeon E5-2600 v2

Memory | Max: 512GB

16 DDR3 RDIMM 1866Mhz

Storage:

2 midplane connections:
bottom = power, control, 4 SATA/SAS
top = 4 SATA/SAS

Rear Storage:

None

PCIe Slots

1 Mezzanine Slot and
2 PCIe 3.0 slots

GPU:

GPUs are supported in the PowerEdge C6220ii only through the PowerEdge C410x expansion chassis.

This Product Is Compatible With The Following Systems:

Product Specs

Base Standard Capabilities

FeaturePowerEdge C6220 II technical specifications
Chassis2U rack mount
ProcessorsUp to four 2-socket servers, 4, 6, 8, 10 or 12 cores per processor
Intel Xeon processor E5-2600 v2 product family, with L3 cache: up to 30MB
Memory16 DIMM slots for up to 512GB per node:
• 4GB/8GB/16GB (1.5V) DDR3 RDIMM (1866MT/s)
• 32GB LV DDR3 RDIMM (1333MT/s)
• 4GB/8GB/16GB LV (1.35V) DDR3 RDIMM
(1600MT/s)
• 4GB LV DDR3 UDIMM (1600MT/s)
• 32GB LV DDR3 LRDIMM (1600MT/s)
ChipsetIntel C602 chipset
VideoIntegrated AST2300 with up to 16MB video RAM
Primary storageMaximum internal storage: 48TB SATA or NL 48TB SAS
Drive bays and hard
drives
24 x 2.5” or 12 x 3.5” hard drive options
2.5” SAS (15K): 146GB, 300GB
2.5” SAS (10K): 600GB, 900GB, 1.2TB
2.5” SATA: 500GB, 1TB
2.5” NL SAS (7.2K): 1TB
2.5” SATA SSD (eMLC): 100GB, 200GB, 400GB, 800GB
2.5” SATA SSD (MLC): 120GB, 160GB, 240GB, 300GB,
480GB, 800GB
3.5” SATA (7.2K): 1TB, 2TB, 3TB, 4TB
3.5” SAS (15K): 600GB
3.5” NL SAS (7.2K): 1TB, 2TB, 3TB, 4TB
ConnectivityIntel Ethernet Controller i350, 2 x 1Gb Ethernet; 1 x 100Mb Ethernet dedicated management port
USB ports2 external ports
I/O slots1U-node version: 1 x8 mezzanine, 1 x16 half-height (low profile), half-length slot
2U-node version: 1 x8 mezzanine slot; 1 x16 full-height, half-length slot; 1 x16 full-height, full-length slot
I/O adapter options1Gb Ethernet
Intel i350 quad-port 1Gb adapter
Intel 82580 ET quad-port 1Gb mezz
10Gb Ethernet
Intel 82599 dual-port 10Gb DA/SFP + mezz
Intel X520 dual-port 10Gb DA/SFP + mezz
InfiniBand
Mellanox® ConnectX®-2 QDR dual-port mezz
Mellanox ConnectX-3 FDR single-port mezz
Dell X410 host interface card (HIC) for connection to the
C410x
Drive and RAID
controllers
Intel C602: SATA or SSD drives only
LSI® 2008 6Gbs SAS mezzanine (optional)
LSI 9265-8i 6Gbs SAS add-in controller (optional)
Power suppliesDual hot-plug redundant high-efficiency 1200W or 1400W power supplies
FansShared cooling with quick-disconnect 4x 60mm speed fans detectable with PWM control
Operating systemsMicrosoft® Windows Server® 2012
Microsoft Windows Server 2012 R2 (includes Hyper-V®)
Microsoft Windows Server 2008 R2 Enterprise x64 SP1
(includes Hyper-V)
Microsoft Windows® HPC Server 2008 R2 x64 SP1
Novell® SUSE® Linux Enterprise Server 11
Red Hat® Enterprise Linux®
Server managementEmbedded BMC with IPMI 2.0 support with 1x 10/100 Mbps RJ45 connector
Intel Node Manager 2.0 compliant
HypervisorsCitrix® XenServer®
VMware® vSphere® ESXi™
Services
(Availability varies
by region. Please
contact your sales
representative for
details.)
Data Center Consulting Services
Rack Integration (U.S. only, not
available in China)
Rack Design Verification
Configuration Services/CFI
Onsite Deployment
Online Self Dispatch
Basic Support
ProSupport for IT
ProSupport for Data Center
4-Hour Support
Keep Your Hard Drive
Enterprise Wide Contract
IT Advisory Service
Remote Advisory Service
Certified Data Destruction
Specialized Onsite Services
Dimensions and weightHeight: 8.68 cm (3.42 in)
Width: 44.8 cm (17.6 in)
Depth: 79.0 cm (31.1 in)
Weight (maximum configuration): 37 kg (81.6 lb)
Weight (empty): 17.14 kg (37.8 lb)

Compare Servers

Specification PowerEdge C6220 PowerEdge C6220II
Chassis 2U rack 2U rack
Processors Intel Xeon processor E5-2600 product family Intel Xeon processor E5-2600 v2 product family
Cores 2, 4, 6 or 8 cores 2, 4, 6, 8, 10 or 12 cores
Cache 5MB, 10MB, 15MB or 20MB 10MB, 15MB, 20MB, 25MB or 30MB
Front side bus (FSB) Intel QuickPath Interconnect (QPI) Intel QPI
Memory (1) 16 x DDR3 RDIMM and UDIMM; up to 512GB 16 x DDR3 RDIMM and UDIMM; up to 512GB
Hard drive bays (hot plug) 4-node: up to 6 x 2.5” or
3 x 3.5” hard drives
2-node: up to 12 x 2.5” or
6 x 3.5” hard drives
4-node: up to 6 x 2.5” or
3 x 3.5” hard drives
2-node: up to 12 x 2.5” or
6 x 3.5” hard drives
Hard drive types Default SATA and SSD
Optional SAS via add-in controller
Default SATA and SSD
Optional SAS via add-in controller
External drive bay None None
Embedded hard drive controller Chipset-based SATA Chipset-based SATA
Optional storage controller Non-RAID: Intel C602
RAID: LSI 2008 Mezzanine, LSI 9210-8i, LSI 9265-8i (All at 3Gbps)
Non-RAID: Intel C602
RAID: LSI 2008 Mezzanine, LSI 9210-8i, LSI 9265-8i (All at 6Gbps)
PCIe slots 1U sled: 1 x16 PCIe 2.0 (half-height, half-length) + 1 x8 PCIe 3.0 (mezzanine) 2U sled: 2 x16 PCIe 2.0 (full height, full length) + 1 x8 PCIe 3.0 (mezzanine) 1U sled: 1 x16 PCIe 3.0 (half-height, half-length) + 1 x8 PCIe 3.0 (mezzanine) 2U sled: 1 x16 PCIe 3.0 full height, full length riser slot; 1 x16 PCIe 3.0 full height, half-length riser slot; and 1 x8 PCIe 3.0 (mezzanine)
Embedded NIC 2x Intel I350 GbE 2x Intel I350 GbE
Power supplies Hot-plug, redundant power supply 1200W (80+ Platinum);
auto-ranging (100V–240V) Redundant,
1400W (80+ Platinum) (240V)
Hot-plug, redundant power supply 1200W (80+ Platinum);
auto-ranging (100V–240V) Redundant,
1400W (80+ Platinum) (240V)
Power efficiency Platinum Platinum
Fans 4 x 60 mm, non-redundant, not hot-pluggable 4 x 60 mm, non-redundant, not hot-pluggable
Systems management BMC, IPMI 2,0 compliant; DMCI, iKVM, virtual media, Intel Node Manager 2.0 compliant BMC, IPMI 2,0 compliant; DMCI, iKVM, virtual media, Intel Node Manager 2.0 compliant
Dimensions (HxWxD) 8.7 cm (3.4 in.) x 44.8 cm (17.6 in.) x 79.0 cm (31.1 in.) 8.7 cm (3.4 in.) x 44.8 cm (17.6 in.) x 79.0 cm (31.1 in.)
Weight Max: 37 kg (81.6 lb) Max: 37 kg (81.6 lb)
1 - GB means 1 billion bytes and TB equals 1 trillion bytes; actual capacity varies with preloaded material and operating environment and will be less
