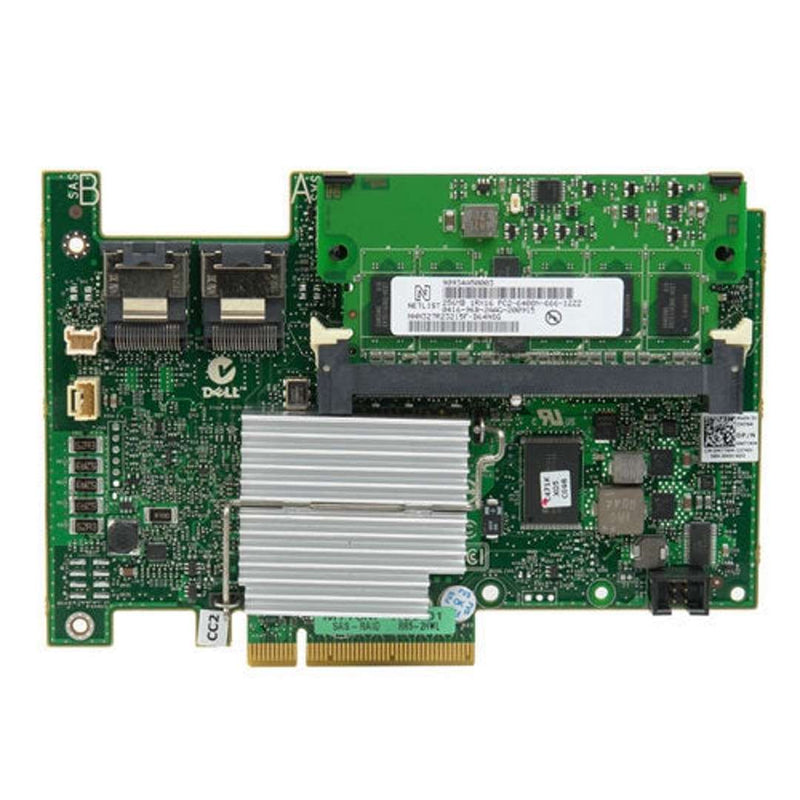

Dell PERC 7 H700 512MB SAS x8 PCI-e RAID Controller | R374M

Price: Ask for Quote

Brand:
MPN:
R374M
Type:
Storage Controllers
Condition:
ECS Refurbished & Tested

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.


-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

Category

Dell Controller

Sub-Category

RAID Controller

Generation

PCI-Express

Part Number

CNXVV

Products ID

474467

Device Type

Storage Controller (RAID) - Plug-in Card

Interface Type

PCI Express x8

Host Interface

6Gb/s SAS

Internal/External Connectors

2 Internal

Cache

512MB Non-Volatile (NV)

Channel Qty

8

Max Storage Devices Qty

16

RAID Level

RAID 0 1 5 6 10 50 60

Overview:

The Dell PERC H700 RAID controller has a PCIe interface and throughput of 6Gb/s. PERC H700 RAID controllers are compatible with select Dell PowerEdge servers. The PERC H700 with two x4 internal mini-SAS ports supports the PCIe 2.0 x8 host interface.

Dell Part Numbers:

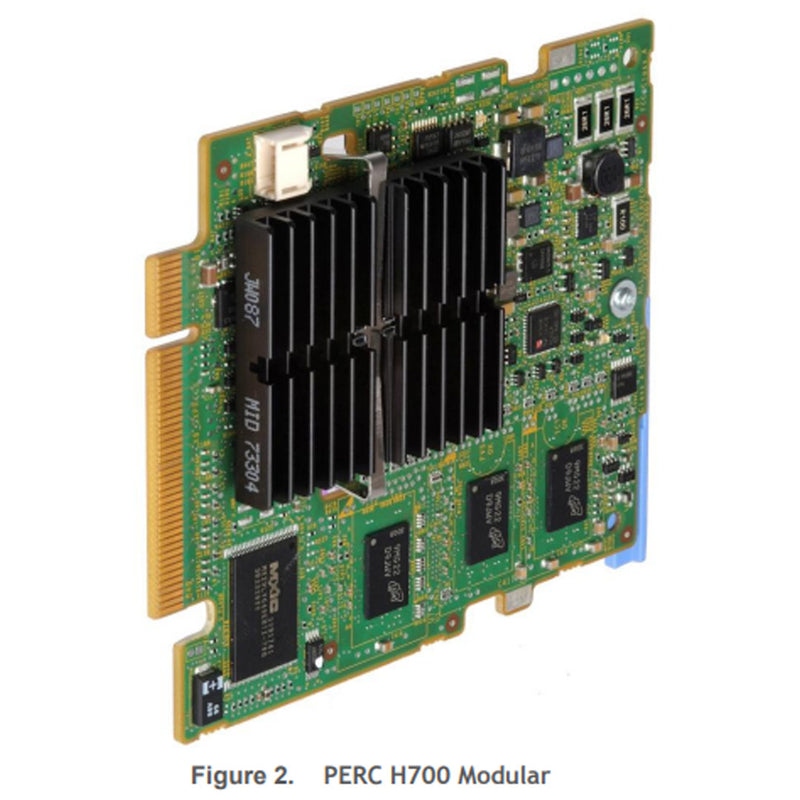

Integrated Model (as pictured)

Dell Part# 0CNXVV Dell Part# CNXVV
Dell Part# H2R6M
Dell Part# R374M
Dell Part# XXFVX

Adapter Model (includes PCI bracket)

Dell Part# 1THG8
Dell Part# J9MR2
Dell Part# K883J
Dell Part# W56W0

Product Specs

Compare Storage Controllers

Feature/Spec PERC H700 PERC 6/I PERC H800 PERC 6/E
Interface 6Gb (SAS 2.0) 3Gb (SAS 1.1) 6Gb (SAS 2.0) 3Gb (SAS 1.1)
Bus support x8 PCIe 2.0 x8 PCIe 1.0 x8 PCIe 2.0 x8 PCIe 1.0
Ports / Channels 8 (2 x4) 8 (2 x4) 8 (2 x4) 8 (2 x4)
Int/Ext Connectors 2 internal 2 internal 2 external 2 external
Cache Memory 512MB BBU 512MB Non-Volatile Cache (800 MHz DDR2) 256MB (667 MHz DDR2) 512MB TBBU 512MB TNVC 1GB TNVC (800 MHz DDR2) 256MB / 512MB (667 MHz DDR2)
Battery-Backed Cache Yes Yes Yes Transportable Yes Transportable
RAID Levels 0, 1, 5, 6, 10, 50, 60 0, 1, 5, 6, 10, 50, 60 0, 1, 5, 6, 10, 50, 60 0, 1, 5, 6, 10, 50, 60
Max physical drives in Large RAID volume (R10, R50, R60) 16 10 192 (8x MD1220) 144 (6x MD1120)
HDD Support SAS and SATA SAS and SATA SAS only SAS and SATA
SSD Support SAS and SATA SATA SAS only Not Supported
SED Support Yes (Local Key Management) Not Supported Yes (Local Key Management) Not Supported
Controller Firmware (latest rev) 7.1 6.2 7.1 6.2
Redundant Path No No Yes Yes
I/O Load Balancing No No Yes Yes
Cluster Support No No No No
Storage Management OpenManage™ 6.2 (minimum rev) OpenManage™ 5.4 (minimum rev) OpenManage™ 6.2 (minimum rev) OpenManage™ 5.4 (minimum rev)
