Price: Configure for Price

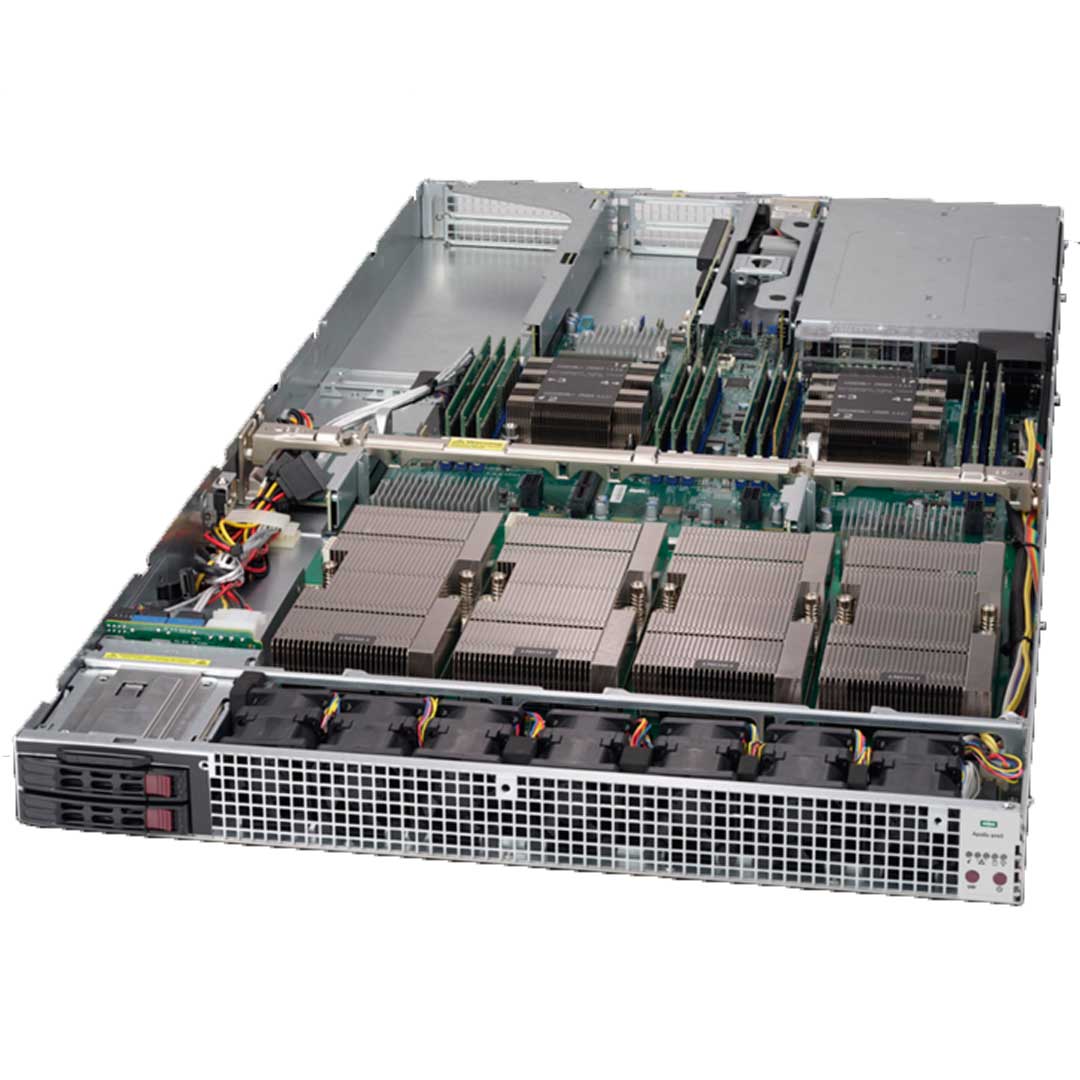

The HPE Apollo sx40 Server is a 1U dual socket server featuring up to four NVIDIA® Tesla® GPUs in SXM2 form factor and based on the Intel® Xeon® Processor Scalable Family. The HPE Apollo sx40 Server is an optimized industry standard server supporting deep learning and HPC workloads, using the SXM2 form factor to provide increased available GPU memory bandwidth and performance.
Enjoy quicker and easier deployments with systems configured, integrated, and tested by Hewlett Packard Enterprise. Using industry-standard IPMI 2.0 system management and the HPE Performance Software Suite, the server is easy to use and manage. The HPE Apollo sx40 Server delivers cost effective deep learning and HPC performance with high compute density (four GPUs per 1U rack space), helping to turn data into insights and insights into actions.
The HPE Apollo sx40 Server features up to four NVIDIA® Tesla®GPUs with the high-bandwidth, energy-efficient interconnect NVIDIA NVLink™ to accelerate mixed-application HPC computing as well as deep learning workloads. NV Link enables increased GPU memory bandwidth and performance for deep learning workloads.
Optimize the server for required workloads by choosing from the available CPUs in the Intel® Xeon® Processor Scalable Family, up to twelve 2666 MT/s DDR4 DIMMs, optional network adapters, and up to two SFF hard drives or solid state drives
The HPE Apollo sx40 Server features up to four NVIDIA Tesla GPUs with the high-bandwidth, energy-efficient interconnect NVIDIA NVLink™ to accelerate mixed-application HPC computing as well as deep learning workloads. NVLink enables increased GPU performance for deep learning workloads.
Optimize the server for required workloads by choosing from the available CPUs in the Intel Xeon Processor Scalable Family, up to twelve 2666MHz DDR4 DIMMs, optional network adapters, and up to two SFF hard drives or solid state drives.
Fully integrated and factory tested clusters are delivered with a complete cluster management software stack to simplify deployment and management, and can be custom configured for perfect right-sizing.
Multiple network topologies are supported in cluster builds: Fat Tree, Hypercube, and Enhanced Hypercube.
The HPE Apollo sx40 Server is air-cooled for easy integration into standard server environments.
The system is designed for energy efficiency with dual 2000W Titanium Level Power Supplies to drive today's powerful GPUs.
Select the right-sized network topology for the target cost model. For example, Fat Tree can be a strong, general purpose fabric which is effective for small systems, but can be expensive for large systems. Choose based on needs.
Integrated IPMI 2.0 enables standards-based systems-management.
The HPE Apollo sx40 Server alongside HPE Pointnext services provides expertise in HPC, data management, visualization, systems management, and high performance data analysis (HPDA).
Expect responsive global support.
Enable custom solutions, as one size does not fit all requirements.
Committed account and technical resource teams.
HPE Apollo sx40 Base Knowledge.

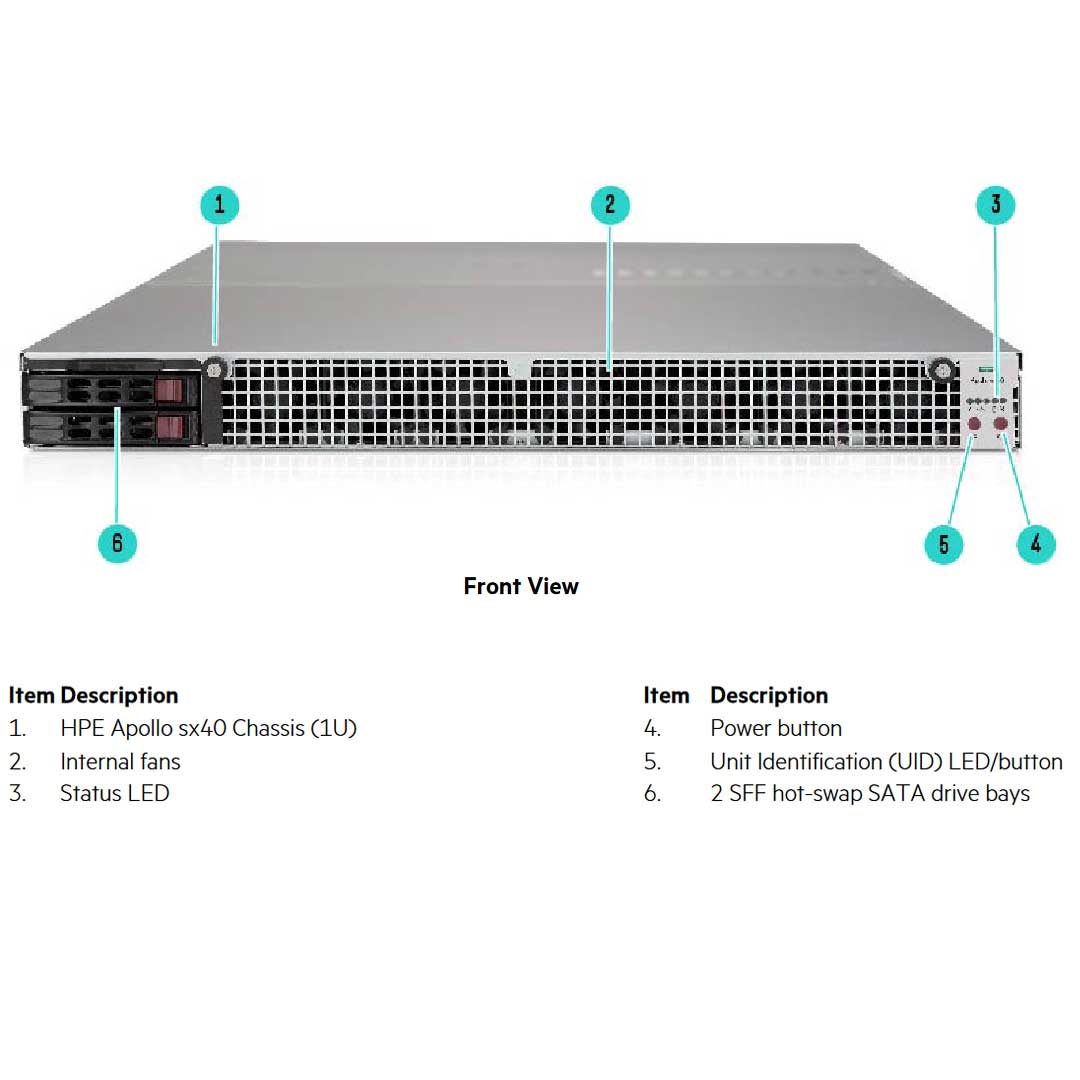

The Apollo sx40 is the SXM2 Version of the GPU Intense servers. The PCIe version is the HPE Apollo pc40 GPU Rack Server. Both servers are similar in that they both have 2 CPUs, 12 DIMMs, 2x 2000W Titanium PSUs, and 4 GPUs. This Apollo sx40 is a 1U form factor with support for 2 SFF Drives in the front. The sx40 Chassis can come with 4 V100 or 4 P100 GPUs and the 2 PSU installed..

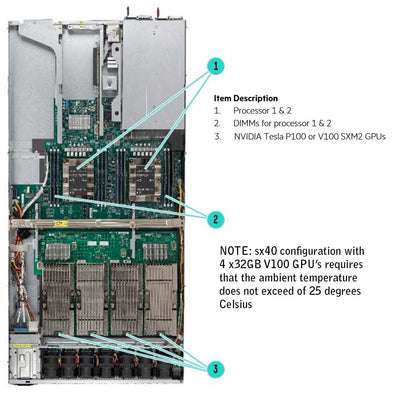

NOTE: sx40 configuration with 4 x32GB V100 GPU’s requires that the ambient temperature does not exceed of 25 degrees Celsius
12 DIMM Slots Available
DDR4 Load Reduced (LRDIMM), or Registered (RDIMM)
Maximum (LRDIMM) 1.5TB (12 x 128GB)
Maximum Internal Storage
| Product | Total Capacity |
|---|---|
| HPE 1TB SATA 7.2K SFF RW 512n DS HDD | 2x 1 TB |
| HPE 2TB SATA 7.2K SFF RW 512e DS HDD | 2x 2 TB |
| HPE 240GB SATA MU SFF RW DS SSD | 2x 240 GB |
| HPE 480GB SATA MU SFF RW DS SSD | 2x 480 GB |
| HPE 960GB SATA MU SFF RW DS SSD | 2x 960 GB |
| HPE 1.92TB SATA MU SFF RW DS SSD | 2x 1.92 TB |
| HPE 3.84TB SATA RI SFF RW DS SSD | 2x 3.8 TB |
HPE Apollo sx40 PCI/GPU Risers

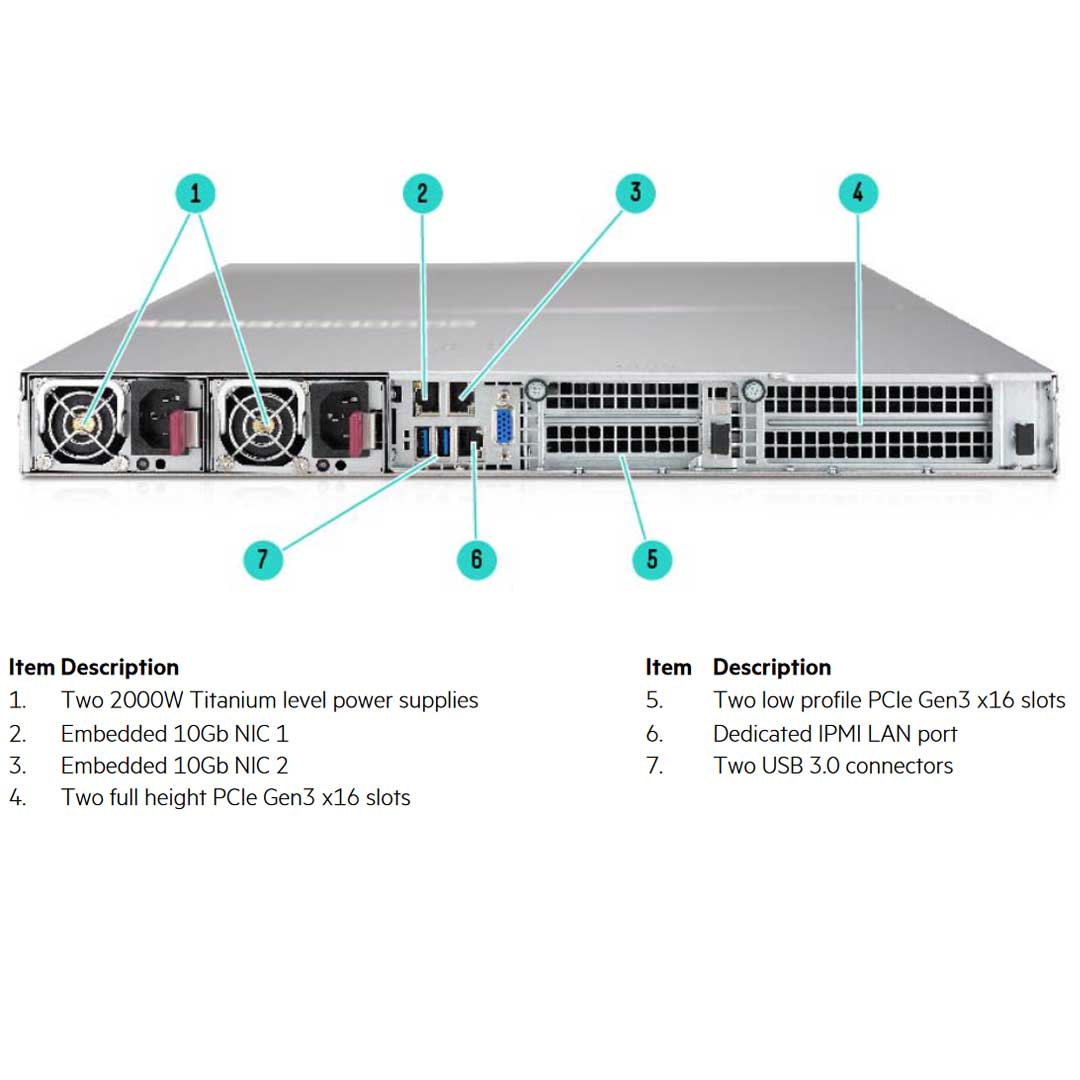

This sx40 has two low-profile PCIe slots and 2 Full-height PCIe slots. With 4 total PCIe slots this server has plenty of room for expansion of any kind. Like the HHHL NVMe PCIe cards.
Networking Abilities
The system comes with two 10GB RJ-45 Ports in the rear with the ability to upgrade and expand the networking abilities. When installing an InfiniBand Adapter you can get up to 100Gb/s.
HPE Apollo sx40Cooling
The Apollo sx40 comes with 7 fans behind the bezel cooling off the 4x P100 or A100 SXM2 GPUs. There is no other cooling option.
HPE Apollosx40 PSU
Just like the pc40 Apollo server this sx40 takes 2x 2000W PSU in the rear that come with the chassis.
HPE Apollo sx40 Server Management
UEFI - Configure and boot your servers securely with industry-standard Unified Extensible
Firmware Interface (UEFI).
HPE Insight Cluster Management Utility- HPE Insight Cluster Management Utility (CMU) is a Hewlett Packard Enterprise- licensed and Hewlett Packard Enterprise-supported suite of tools that are used for lifecycle management of hyperscale clusters of Linux systems. CMU includes software for the centralized provisioning, management, and monitoring of nodes. CMU makes the administration of clusters user-friendly, efficient, and effective.
Intelligent Provisioning – Hassle-free server and OS provisioning for 1 or few servers with Intelligent Provisioning.
