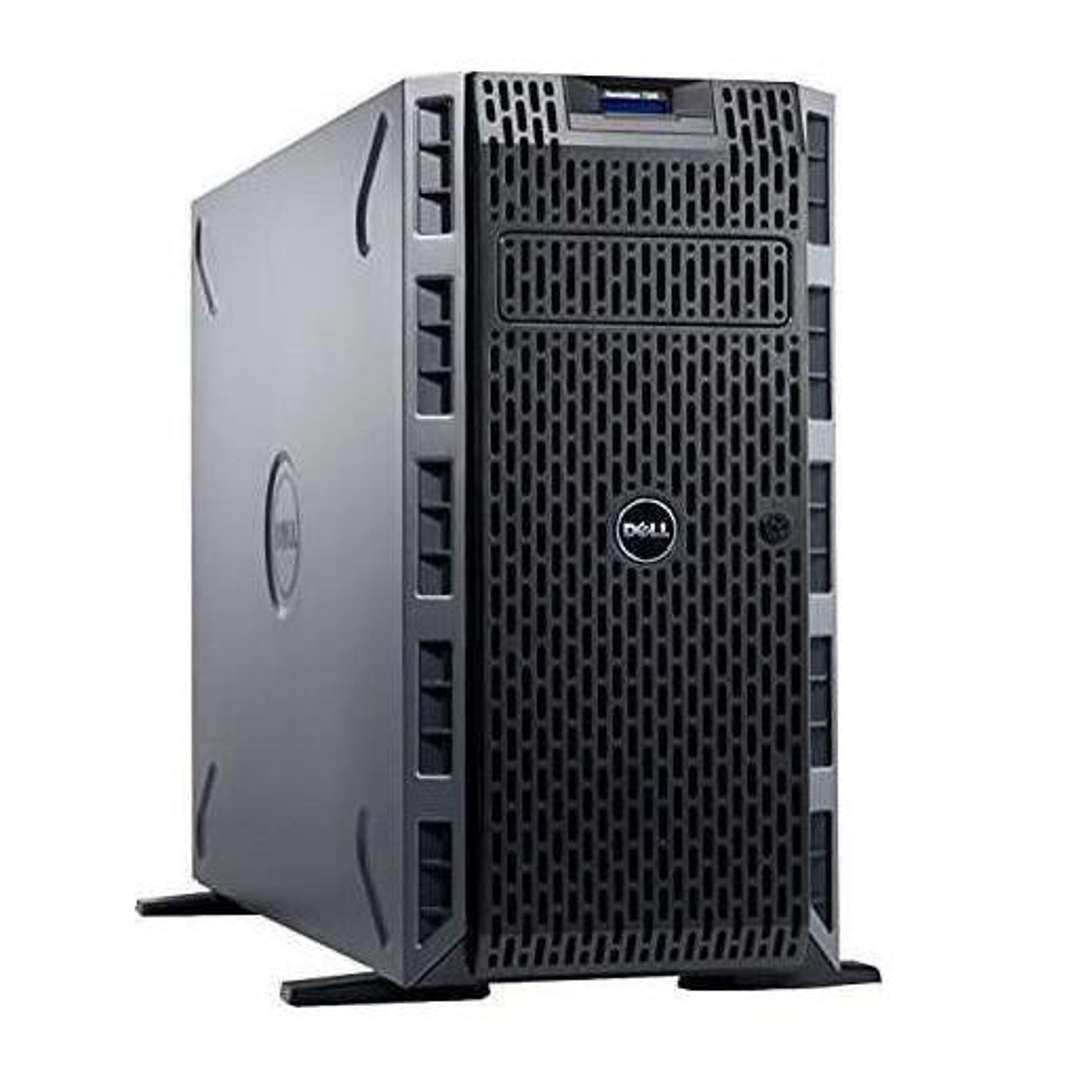

Dell PowerEdge T630 Tower Server Chassis (16x2.5")


Price: $870.00

Brand:
MPN:
DPE-T630-16x2.5-Chassis
Type:
Chassis
Condition:
ECS Refurbished & Tested

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.


-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Dell PowerEdge T630 Tower Server Chassis (16x2.5")

Quick Specs

Form Factor:

Tower server | 5U (rackable)

Processor | Max: 22 Cores (PP)

2x Intel Xeon E5-2600v4 or v3 Processors

Memory | Max: 1.5TB

24 DDR4 RDIMM 2400Mhz

Storage | Max: 48TB
16x 2.5” SAS/NL-SAS/SATA (HDD/SSD) + optional flex bay
Boot Options

IDSDM
Internal USB

RAID Controller:

S130 (SW RAID)
H330, H730, H730P
Internal HBA (non-RAID)
HBA330
External
H830

NIC/LOM

2 x 1GbE LOM

Remote Management:

iDRAC7 Express with Lifecycle Controller

PCIe Slots:

8 PCIe slots
Slot 1: x16 PCIe 3.0 for FL/FH
Slot 2: x8 PCIe 2.0 for FL/FH
Slot 3: x16 PCIe 3.0 for FL/FH
Slot 4: x8 PCIe 3.0 for HL/FH
Slot 5: x8 PCIe 2.0 for FL/FH
Slot 6: x16 PCIe 3.0 for FL/FH
Slot 7: x16 PCIe 3.0 for FL/FH
Slot 8 (Internal PERC slot): one x8 PCIe 3.0 for HL/FH

GPU:

Up to 4 optional 300W internal GPU

Ideal for:

  • Virtual Desktop Interface (VDI)
  • Virtualization

The Dell PowerEdge T630 rackable tower server delivers ultimate two-processor performance, versatility and availability for a wide range of demanding workloads in small and medium business environments.

Featuring the latest Intel Xeon processor E5-2600 v4 product family, huge internal storage capacity, extensive configuration flexibility and the most powerful GPU capability in the PowerEdge server portfolio, the PowerEdge T630 enables users to readily adapt to demanding workloads. From collaboration and productivity applications (mail and messaging, file and print, web serving, video serving) to Online Transaction Processing (OLTP) in retail environments, to record retention and management in healthcare and education, the T630 helps drive drive business success for small- to medium-sized businesses, large enterprise remote and branch offices, and data centers.

Drive Configurations:
  • 8 Bay - Up to 8x3.5" SAS/SATA/NL-SAS HDD or SSD
  • 12 Bay - Up to 8x3.5" SAS/SATA/NL-SAS HDD or SSD + FLEX IO 4x2.5" NVMe
  • 16 Bay - Up to 16x2.5" SAS/SATA/NL-SAS SSD
  • 18 Bay - Up to 18x3.5" SAS/SATA/NL-SAS HDD or SSD
  • 20 Bay - Up to 16x2.5" SAS/SATA/NL-SAS SSD + FLEX IO 4x2.5" NVMe
  • 32 Bay - Up to 16x2.5" SAS/SATA/NL-SAS SSD + FLEX IO 16x2.5" SAS/SATA/NL-SAS SSD (DUAL PERC)
  • 32 Bay - Up to 32x2.5" SAS/SATA/NL-SAS SSD (Single PERC)
  • Note: The Optional Flex Bay holds, Either 4 NVMe drives with a PCI-e Bridge Card installed. OR, 16 2.5" SSD Drives.

Deliver peak performance

Drive peak compute performance with the latest Intel E5 processors and up to 1.5TB of DDR4 memory. Accelerate data performance and throughput with Express Flash PCIe SSDs and PCI Express (PCIe) 3.0 I/O and storage tiering. Deliver greater performance and faster data analytics with support for up to four optional GPUs.


Maximize operational efficiency

Accelerate time to production and improve ROI with the Dell OpenManage portfolio — systems management tools that streamline and automate deployment. Control energy budgets with highly energy-efficient processors, memory, power supplies and Dell Fresh Air solutions.


Deliver greater versatility

Ensure fast response times as you grow by expanding the T630’s memory footprint up to 24 DDR4 DIMMs. Harness data explosion with massive internal storage capacity — 32 x 2.5" or 18 x 3.5" hard drives — and readily adapt to changing workload conditions with a platform pretested for virtualization and high-availability clusters.

Cooling & Fans

Like the pervious versions of this T600 Tower server, there are two cooling fans on the cooling shroud. You also have an optional cooling fan assembly that houses four cooling fans on your system.

If you install a GPU you will need to install all 6 fans in your system. There are other rules that go with installing a GPU, you can find those and the manual below.

Image of a the Optional Fan Cage for the Dell T630 Tower Server
Memory

The PowerEdge T630 system supports 1866 MT/s, 2133 MT/s or 2400 MT/s DDR4 Registered or Load-Reduced Error Correcting Code (ECC) DIMMs support for advanced ECC or memory optimized operation.

RDIMMs and LRDIMMs must not be mixed.
Mixing of more than two memory module capacities in a system is not supported. For more rules please read the manuals below.

Image of a Memory DIMM being installed in a Dell Server
Memory module sockets Memory capacity Minimum RAM Maximum RAM
Twenty-four 288–pin
  • 64 GB quad rank (LRDIMMs)
  • 4 GB single rank (RDIMMs)
  • 8 GB or 16 GB dual rank (RDIMMs)
  • 4 GB with single processor
  • 8 GB with dual processors (minimum one memory module per processor)
  • Up to 768 GB with a single processor
  • Up to 1536 GB with dual processors
PCIe Options
PCIe Slot Processor Connection Height Length Link Width Slot Width
1 (Gen3) Processor 1 Standard Height Full Length x16 x16
2 (Gen2) Platform Controller Hub Standard Height Full Length* x4 x8
3 (Gen3) Processor 1 Standard Height Full Length x16 x16
4 (Gen3) Processor 2 Standard Height Half Length x8 x8
5 (Gen2) Processor 2 Standard Height Full Length* x4 x8
6 (Gen3) Processor 2 Standard Height Full Length x16 x16
7 (Gen3) Processor 2 Standard Height Full Length x16 x16
8 (Internal PERC Slot) Processor 1 Standard Height Half Length x8 x8
*PCIe Generation 2 expansion card
To use PCIe slots 4, 5, 6, and 7, both the processors must be installed.
The expansion card slots are not hot-swappable.
GPU Support

Observe the following guidelines while installing a GPU card:

  • Install GPU Card Holder
  • Ensure that all GPU cards are of the same type or model.
  • A single processor configuration only supports up to two double or single width cards on slots 1 and 3.
  • A dual processor configuration supports up to four double or single width cards on slots 1, 3, 6, and 7.
  • Two double-width GPU cards on a single processor configuration and four double width GPU cards on a dual processor configuration
  • For four GPGPU configuration, only one PERC can be supported on internal slot.
  • A system with Express Flash configuration supports a maximum of two GPU cards.
  • Must have six fan configuration.
  • Must have a PSU of 1100 W and 1600 W power supply.

For all the rules please read the manual below

Power & Dimensions
Power Supply Units (PSU)
PSU Class Heat dissipation (maximum) Frequency Voltage
495 W AC Platinum 1908 BTU/hr 50/60 Hz 100–240 V AC, autoranging
750 W AC Platinum 2891 BTU/hr
Titanium 2843 BTU/hr 200–240 V AC, autoranging
1100 W AC Platinum 4100 BTU/hr 100–240 V AC, autoranging
1600 W AC Platinum 6000 BTU/hr 100–240 V AC, autoranging
1100 W DC (for China only) NA 4416 BTU/hr –(48–60) V DC
Dimensions
  • Length: 708.7 (27.91in)
  • Width: 217.9 (8.5in)
  • Height: 434.5 (17.10in)
  • Weight:
    • 3.5" - 49.65 kg
    • 2.5" - 42.36 kg

This Product Is Compatible With The Following Systems:

Product Specs

Base Standard Capabilities

FeaturePowerEdge T630 Technical specification
Form factorTower (5U rackable)
Dimensions and weightH: 443.5 mm (17.5 in) with feet; 430.5 mm (16.95 in) without feet
W: 304.5 mm (11.98 in) with feet opened; 217.9 mm (8.57 in) with feet closed
D: 692.8 mm (27.27 in) without bezel; 708.7 mm (27.9 in) with bezel
Maximum weight:
41.8 kg (92.15 lb) for 2.5” hard drive chassis
51.0 kg (112.43 lb) for 3.5” hard-drive chassis
ProcessorIntel® Xeon® processor E5-2600 v4 product family
Processor sockets2
Internal interconnect2 x Intel QuickPath Interconnect (QPI) links; 6.4GT/s, 8.0GT/s, 9.6GT/s
Cache2.5MB per core; core options: 4, 6, 8, 10, 12, 16, 18, 22
ChipsetIntel C610
MemoryUp to 1.5TB (24 DIMM slots): 2GB/4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s
I/O slots8 PCIe slots:
  • Slot 1: one x16 PCIe 3.0 for FL/FH card from CPU1
  • Slot 2: one x8 PCIe 2.0 for FL/FH card from PCH (x4 lanes)
  • Slot 3: one x16 PCIe 3.0 for FL/FH card from CPU1
  • Slot 4: one x8 PCIe 3.0 for HL/FH card from CPU2
  • Slot 5: one x8 PCIe 2.0 for FL/FH card from CPU2 (x4 lanes)
  • Slot 6: one x16 PCIe 3.0 for FL/FH card from CPU2
  • Slot 7: one x16 PCIe 3.0 for FL/FH card from CPU2
  • Slot 8 (Internal PERC slot): one x8 PCIe 3.0 for HL/FH card from CPU1
RAID controllersInternal controllers: PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P
Internal HBA (Non-RAID): HBA330
External HBAs (RAID): PERC H830
Drive baysInternal hard drive bay and hot-plug backplane:
  • Up to 8 x 3.5" SAS, SATA, nearline SAS, SSD, PCIe SSD drives with optional flex bay
  • Up to 18 x 3.5" SAS, SATA, nearline SAS, SSD drives
  • Up to 16 x 2.5" SAS, SATA, nearline SAS, SSD, PCIe SSD drives with optional flex bay
  • Up to 32 x 2.5" SAS, SATA, nearline SAS, SSD drives with flex bay
Hard drivesHot-plug hard drive options:
2.5" SAS, SATA, nearline SAS, SSD, Express Flash PCIe SSD
3.5" SAS, SATA, nearline SAS, SSD
Self-encrypting drives available
Embedded NICIntel dual-port 1GbE LOM
GPUSupport for up to 4 optional 300W internal GPU processing accelerators; (must be ordered at time of initial purchase).
Power suppliesTitanium efficiency 750W AC power supply
Gold efficiency 1100W DC power supply
Platinum efficiency 495W, 750W, 1100W or 1600W AC power supply
AvailabilityHigh-efficiency, hot-plug, redundant power supplies; hot-plug drive bays; dual internal SD module; hot-plug redundant fan; optional bezel; information tag; ECC memory switch independent partitioning, Single Device Data Correction (SDDC), spare rank, tool-less chassis, support for high-availability clustering and virtualization, proactive systems management alerts
Systems managementSystems management: IPMI 2.0 compliant,
Dell OpenManage Essentials, Dell OpenManage Mobile,
Dell OpenManage Power Center
Remote management: iDRAC8 with Lifecycle Controller,
iDRAC8 Express (default), iDRAC8 Enterprise (upgrade),
8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
Dell OpenManage Integrations:
•Dell OpenManage Integration Suite for Microsoft® System Center
•Dell OpenManage Integration for VMware® vCenter™
Dell OpenManage Connections:
•HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management
•Dell OpenManage Plug-in for Oracle® Database Manager
Rack supportReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm. Rack mount model available (must be ordered at time of initial purchase).
Operating systemsMicrosoft Windows Server® 2008/2012 R2
Microsoft Windows Server 2008/2012 R2 SP2, x86/x64
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux®
Optional embedded hypervisors:
Citrix® XenServer®
VMware vSphere® ESXi™
Red Hat Enterprise Virtualization®
