Price: $195.00
Total:- $195.00

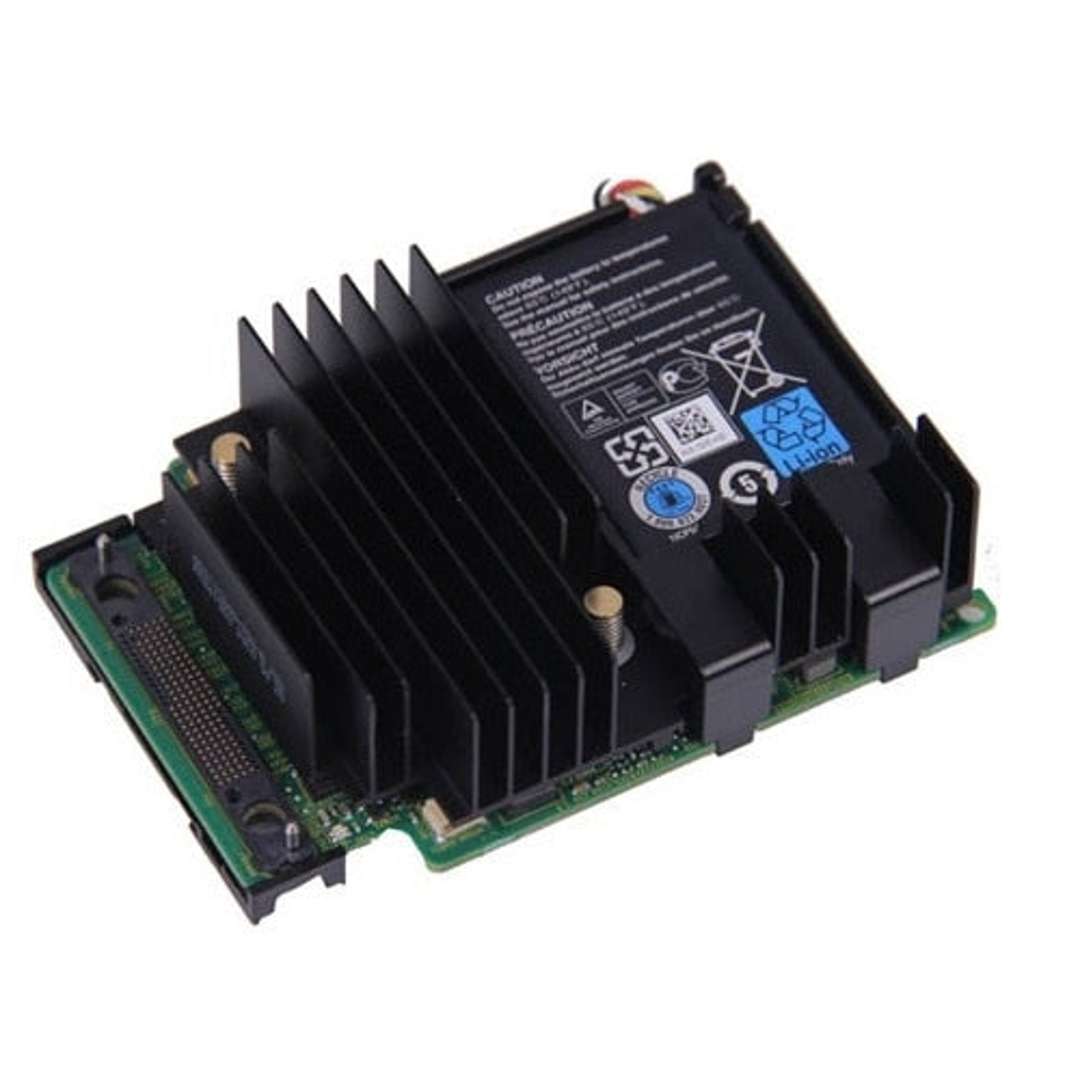

The PERC H730P Integrated RAID Controller from Dell offers reliability and performance in addition to providing management with the tolerant disk subsystem failures. This RAID controller offers expandable 2GB storage capacity to improve the performance of your server systems. The double module channel provides high-speed connectivity. This product has been tested and validated on Dell systems to ensure compatibility with your computer. It is supported by Dell Technical Support when used with a Dell system.
Interface Support
PCI Support :PCIe Gen 3
SAS Connection : 2 x 4 Internal
Cache Memory Size : 2GB NV
Write Back Cache : Flash Backed Cache
Raid Level : 0,1,5,6,10,50,60
Max Drive Support : 32
RAID Support : Hardware RAID
Designed For:PowerEdge R430, R530, R630, R730, R730xd, R7415, R6515
| Models | Drive Types | PCI Support | SAS Connectors | Cache Memory | Write Back Cache | RAID Levels | Max Drive Support | RAID Support |
|---|---|---|---|---|---|---|---|---|
| H830 Adapter | 12 Gb/s SAS 6 Gb/s SATA | PCI-e 3.0 | 2x4 External | 2 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 255 | Hardware |
| H730P Adapter | 12 Gb/s SAS 6 Gb/s SATA | PCI-e 3.0 | 2x4 Internal | 2 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 32 | Hardware |
| H730P MX | 12 Gb/s SAS 6 Gb/s SATA/SAS 3 Gb/s SATA | PCIe 3 | 2x4 Internal | 2 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | - | Hardware |
| H730P Mini Mono | 12 Gb/s SAS 6 Gb/s SATA | PCI-e 3.0 | 2x4 Internal | 2 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 32 | Hardware |
| H730P Mini Blade | 12 Gb/s SAS 6 Gb/s SATA | PCI-e 3.0 | 2x4 Internal | 2 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 32 | Hardware |
| H730 Adapter | 12 Gb/s SAS 6 Gb/s SATA | PCI-e 3.0 | 2x4 Internal | 1 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 32 | Hardware |
| H730 Mini Mono | 12 Gb/s SAS 6 Gb/s SATA | PCI-e 3.0 | 2x4 Internal | 1 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 32 | Hardware |
| H730 Mini Blade | 12 Gb/s SAS 6 Gb/s SATA | PCI-e 3.0 | 1x4 Internal | 1 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 32 | Hardware |
| H330 Adapter | 12 Gb/s SAS 6 Gb/s SATA | PCI-e 3.0 | 2x4 Internal | No Cache | No Cache | 0,1,5,10,50 | 16 RAID, 32 Non-RAID | Hardware |
| H330 Mini Mono | 12 Gb/s SAS 6 Gb/s SATA | PCI-e 3.0 | 2x4 Internal | No Cache | No Cache | 0,1,5,10,50 | 16 RAID, 32 Non-RAID | Hardware |
| H330 Mini Blade | 12 Gb/s SAS 6 Gb/s SATA | PCI-e 3.0 | 2x4 Internal | No Cache | No Cache | 0,1,5,10,50 | 8 | Hardware |
| S130 Software RAID | 6 Gb/s SATA | N/A | N/A | No Cache | No Cache | 0,1,5,10 | 10 | Software - Windows and Linux |
| 12 Gbps SAS Ext. HBA | 12 Gb/s SAS | PCI-e 3.0 | 2x4 External | No Cache | No Cache | No RAID Pass-Thru Only | 255 | No RAID Pass-Thru Only |
| Feature | PERC H330 | PERC H730 | PERC H730P | PERC H730P MX | PERC H830 | PERC FD33xD/FD33xS |
|---|---|---|---|---|---|---|
| RAID Levels | 0, 1, 5, 10, 50 | 0, 1, 5, 6, 10, 50, 60 | 0, 1, 5, 6, 10, 50, 60 | 0, 1, 5, 6, 10, 50, 60 | 0, 1, 5, 6, 10, 50, 60 | 0, 1, 5, 6, 10, 50, 60 |
| Enclosures per port | Not applicable | Not applicable | Not applicable | Not applicable | 8 (4 per port) | Not applicable |
| Processor | Dell Adapter SAS RAID-on-Chip, 8-port with LSI 3008 chipset | Dell Adapter SAS RAID-on-Chip, 8-port with LSI 3108 chipset | Dell Adapter SAS RAID-on-Chip, 8-port with LSI 3108 chipset | Dell Adapter SAS RAID-on-Chip, 8-port with LSI 3108 chipset | Dell Adapter SAS RAID-on-Chip, 8- port with LSI 3108 chipset | Dell Adapter SAS RAID-on-Chip, 8-port with LSI 3108 chipset |
| Battery Backup Unit | No | Yes | Yes | Yes | Yes | Yes |
| Non-Volatile cache | None | Yes | Yes | Yes | Yes | Yes |
| Cache policy | No | 1 GB DDR3 1333 Mhz cache | 2 GB DDR3 1866 Mhz cache | 2 GB DDR3 1866 Mhz cache | 2 GB DDR3 1866 Mhz cache | 2 GB DDR3 1866 Mhz cache |
| NOTE:H330 does not support caching, which affects performance in RAID 5 and RAID 50 arrays. For performance sensitive solutions, caching is recommended. | ||||||
| Cache function | Write Through and No Read Ahead | Write Back, Write Through, No Read Ahead, and Read Ahead | Write Back, Write Through, No Read Ahead, and Read Ahead | Write Back, Write Through, No Read Ahead, and Read Ahead | Write Back, Write Through, No Read Ahead, and Read Ahead | Write Back, Write Through, No Read Ahead, and Read Ahead |
| Maximum number of virtual disks | 16 | 64 | 64 | 64 | 240 | 64 |
| Maximum number of virtual disks per disk group | 16 | 16 | 16 | 16 | 16 | 16 |
| Hot swap devices supported | Yes | Yes | Yes | Yes | Yes | Yes |
| Hardware XOR Engine | No | Yes | Yes | Yes | Yes | Yes |
| Online capacity expansion | Yes | Yes | Yes | Yes | Yes | Yes |
| Dedicated and global hot spare | Yes | Yes | Yes | Yes | Yes | Yes |
| Drives Types | 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS | 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS | 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS | 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS | 6 Gbps SAS, and 12 Gbps SAS | 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS |
| PCIe Support | Gen 3 | Gen 3 | Gen 3 | Gen 3 | Gen 3 | Gen 3 |
| Non-RAID or pass through mode | Yes | Yes | Yes | Yes | Yes | Yes |
| Queue Depth | 895 | 928 | 928 | 928 | 928 | 928 |
