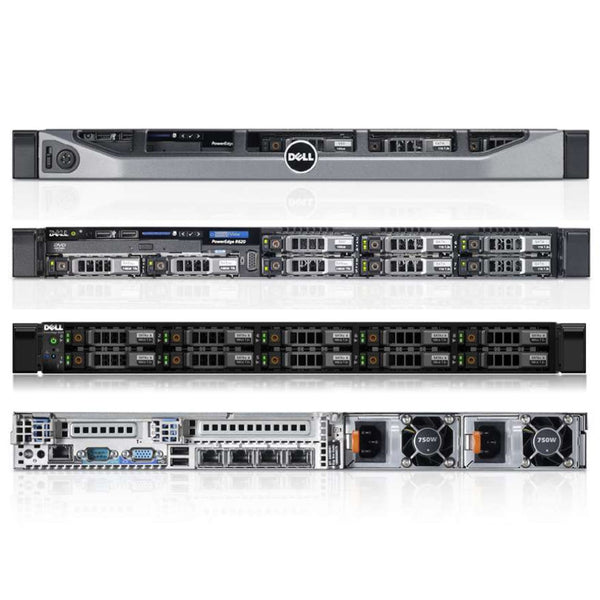

PER620-8x2.5 | Refurbished Dell PowerEdge R620 Rack Server Chassis (8x2.5")

Dell PowerEdge R620 Rack Server Chassis (8x2.5")

Price: Ask for Quote

Brand:

Dell

MPN:

DPE-R620-8x2.5-Chassis

Type:

Chassis

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Refurbished Dell PowerEdge R620 Rack Server Chassis (8x2.5")

Quick Specs

Form Factor:

1U rack server

Processor | Max: 8 Cores

2 x Intel Xeon E5-2600 or E5-2600v2

Memory | Max: 768GB

24 DDR3 RDIMM 1866Mhz

Storage | Max: 10TB

4 or 8 or 10 SFF SAS/NL-SAS/SATA (HDD/SSD)

Express Flash Drives:

Up to 2 Express Flash PCIe SSDs

RAID Controller:

PERC S110, H310, H710, H710P, H810

NIC/LOM:

Broadcom® 5720 4x1Gb Base-T (default)

Remote Management:

iDRAC7 with Lifecycle Controller

PCIe Slots:

2x or 3x PCIe 3.0

GPU:

Yes (available through CFI or field upgrade only)

Other Versions:

Ideal for:

High-Performance Computing (HPC)
Virtual Desktop Interface (VDI)
Virtualization

A hyper-dense 2-socket, 1U rack server, the Dell PowerEdge R620 has a large memory footprint and impressive I/O options that make it an exceptional platform for space-sensitive environments.

Designed for exceptional performance on a wide range of applications, the Dell PowerEdge R620 rack server is an impressive general purpose platform that is perfect for data centers with space constraints. With its hyper-dense memory (up to 768GB in a 1U form factor) and powered by Intel Xeon E5-2600 processors, the R620 really shines when handling virtualization, high performance computing (HPC), and workgroup collaboration applications

Accomplish more

Pack more computing power into a space-challenged data center with the PowerEdge R620, which offers an exceptionally large memory footprint along with balanced, scalable I/O capabilities, including integrated PCI Express 3.0-capable expansion slots. With reliability, availability and serviceability (RAS) features like hot-pluggable fans, disks, power-supply units (PSUs) and even redundant failsafe hypervisors, the R620 keeps your data center running with rock-steady reliability.

Dense design for demanding workloads

Virtualization environments demand high memory capacity to maximize the number of virtual machines per server, and the PowerEdge R620 was designed specifically with these environments in mind. It also offers outstanding computational density for HPC application clusters by providing powerful processing capabilities in a compact form factor.

Tailor your network fabric

The R620’s network features allow you to tailor your network throughput to match your application needs, enabling added I/O performance. Dell Select Network Adapters, our flexible NIC technology, let you choose the right network fabric without using up a valuable PCI slot. You can pick speed, technology, vendor and other options, like switch independent partitioning, which lets you share and manage bandwidth on 10GbE connections.

Performance-packed computing

Dramatically boost application performance with the latest Intel Xeon processor E5-2600 product family and up to 24 dual in-line memory modules (DIMMs). Built with 22-nanometer process technology and up to 12 cores per processor, it enables super-fast processing for compute-intensive tasks.

Processing density

Rely on the exceptional combination of a hyper-dense 2-socket, 1U rack design and the latest generation server processing technology to provide outstanding productivity for space-sensitive environments.

Impressive I/O capabilities

Take advantage of balanced, scalable I/O features that include integrated PCIe 3.0-capable expansion slots.

Flexible and scalable networking

Tailor your network throughput to match your application needs with features that allow you to take full advantage of your additional I/O performance.

Powerful systems management

Experience easy lifecycle manageability with intelligent hardware-driven systems administration, extensive power management and other innovative management tools.

Exceptional operational efficiency

Ensure maximum uptime and low-risk maintenance with next-generation reliability, availability and serviceability (RAS) features within the R620 infrastructure.

Versatile storage capacity

Maximize the utility of your rack space with internal storage features that enable a variety of different configurations, including Express Flash PCIe technology.

Security features

Security feature	Description
Cover latch	A tooled latch is integrated in the side cover to secure it to the rack chassis.
Bezel	An option metal bezel is mounted to the chassis front to provide the Dell ID. A lock on the bezel is used to protect un-authorized access to hard drives. System status is viewable on the LCD screen when the bezel is installed.
TPM	The Trusted Platform Module (TPM) is used to generate/store keys, protect/authenticate passwords, and create/store digital certificates. It also supports the Intel Xeon TXT functionality. TPM can also be used to enable the BitLocker™ hard drive encryption feature in Windows Server 2008. TPM 1.2 is supported. No TPM version is available for China or Russia.
Power-off security	BIOS has the ability to disable the power button function.
Intrusion alert	An internal switch is used to detect chassis intrusion
Secure mode	BIOS has the ability to enter a secure boot mode through system setup. This mode includes the option to lock out the power and NMI switches on the control panel or set up a system password.

GPU support

The R620 supports graphics processing unit (GPU) technology, which can provide accelerated performance for a variety of applications, including virtual desktop infrastructure (VDI) and HPC implementations.

Internal GPU support

The R620 supports a 75W GPU card. The GPU card can support up to 1GB of dedicated GDDR5 memory and is actively cooled. An internal GPU is available through certified factory installation (CFI) or field upgrade only.

GPU card	Width	Power consumption
NVIDIA® Quadro® 2000	Single	62W
NVIDIA Quadro 600	Single	39W
ATI™ FirePro™ V5800	Single	75W

Notes:

With an internal GPU or a ¾ length PCIe card, the R620 cannot support a 10Gb Dell Select Network Adapter (NDC) or any mini-type PERC. An adapter-type PERC is required with an internal GPU configuration.

This Product Is Compatible With The Following Systems:

Dell Series R620

Manuals

Base Standard Capabilities

Features	PowerEdge R620 technical specification
Form factor	1U rack
Processors	Intel Xeon processor E5-2600 product family
Processor sockets	2
Internal interconnect	2 x Intel QuickPath Interconnect (QPI) links: 6.4 GT/s, 7.2 GT/s, 8.0 GT/s
Cache	2.5MB per core; core options: 2, 4, 6, 8
Chipset	Intel C600
Memory	Up to 768GB (24 DIMM slots): 2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MT/s
I/O slots	3 PCIe slots: (10-drive-bay configuration is available only with the 3 PCIe slot option) Two x16 slots with x16 bandwidth, half-height, half-length One x16 slot with x8 bandwidth, half-height, half-length or 2 PCIe slots: One x16 slot with x16 bandwidth, full-height, 3/4 length One x16 slot with x16 bandwidth (or x8 with one processor only), half-height, half-length
RAID controller	Internal controllers: PERC S110 (SW RAID) PERC H310 PERC H710 PERC H710P	External HBAs (RAID): PERC H810 External HBAs (non-RAID): 6Gbps SAS HBA
Drive bays	Drive bay options: Up to 4 x 2.5” or Up to 8 x 2.5” or Up to 10 x 2.5” or Up to 4 x 2.5” + 2 x Express Flash	Hard drive options: 2.5" SSD, SAS HDD 3.5" SAS HDD, Nearline SAS HDD, SATA HDD Self-encrypting drives available Maximum internal storage1 Up to 10TB
Hard drives	Hot-plug hard drive options: 2.5 PCIe SSD, SAS SSD, SATA SSD, SAS (15K, 10K), nearline SAS (7.2K), SATA (7.2K) Self-encrypting drives available
Embedded NIC	Broadcom 5720 Quad Port 1GbE BASE-T (no TOE or iSCSI offload) Intel I350 Quad Port 1GbE BASE-T (no TOE or iSCSI offload) Intel X540 Dual Port 10GbE BASE-T with 2 x 1GbE (FCoE capability enabled on the 10GbE ports) Broadcom 57800S Dual Port 10GbE Base-T with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports Broadcom 57800S Dual Port 10GbE SFP+ with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports efficiency, hot-plug redundant 495W or 1100W power supplies; 1100W DC power supply; Auto-ranging power supplies
Availability	High-efficiency, hot-plug, redundant power supplies; hot-plug hard drives; TPM; dual internal SD support; hot-plug, redundant fans; optional bezel; information tag; ECC memory; interactive LCD screen; extended thermal support; ENERGY STAR compliant; switch independent partitioning
Remote management	iDRAC7 with Lifecycle Controller iDRAC7 Express (default), iDRAC7 Enterprise (upgrade option), 8GB vFlash media (upgrade option), 16GB vFlash media (upgrade option)
Systems management	IPMI 2.0 compliant Dell OpenManage Essentials and Dell Management Console Dell OpenManage Power Center Dell OpenManage Connections: OpenManage Integration Suite for Microsoft System Center Dell plug-in for VMware vCenter HP Operations Manager, IBM Tivoli Netcool , and CA Network and Systems Management
Rack support	ReadyRails II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm ReadyRails static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post (Telco) racks
Operating systems	Microsoft Windows Server 2012 Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V v2) Microsoft Windows Small Business Server 2011 SUSE Linux Enterprise Server Red Hat Enterprise Linux Virtualization options: Citrix XenServer VMware vSphere ESX and ESXi Red Hat Enterprise Vitualization For more information on the specific versions and additions, visit Dell.com/OSsupport.

Compare Servers

Feature	PowerEdge R610	PowerEdge R620
Chassis	1U rack	1U rack
Processors	IntelXeonprocessors 5500 and 5600 series	Intel Xeon processor E5-2600 and E5-2600 v2 product families
Internal interconnect	Intel QuickPath Interconnect	Intel QuickPath Interconnect
Memory	12 x DDR3 RDIMM and UDIMM Up to 192GB	24 x DDR3 RDIMM, UDIMM, and LRDIMM Up to 768GB
Hard drive bays (hot plug)	6 x 2.5”	10 x 2.5”
RAID controller	PERC 6/i, SAS 6/iR, PERC 6/E, H200, H700, H800	PERC S110, H310, H710, H710P, H810
Express Flash drives	N/A	Up to 2 Express Flash PCIe SSDs
PCI slots	2 PCIe 2.0	3 PCIe 3.0
Embedded NICs	4 x 1Gb with optional TOE	Select Network Adapter: minimum configuration of 4 x 1Gb, 10Gb (optional)
Power supplies	Hot-plug, redundant power supply units: 502W, 717W	Hot-plug, redundant power supply units: 495W, 750W, 1100W, 1100W DC
Dell OpenManage Systems Management	Dell OpenManage Lifecycle Controller 1.x iDRAC6 (Express or Enterprise) with Lifecycle Controller 1.x	OpenManage Essentials OMSA Agent OpenManage Power Center (requires iDRAC7 Enterprise with Lifecycle Controller) OpenManage Integrations and Connections iDRAC7 Express with Lifecycle Controller (standard option)
Support for internal GPU	No	Yes (available through CFI or field upgrade only)
Power efficiency	Gold	Titanium
Availability	Hot-plug drives Hot-plug redundant cooling Hot-plug redundant power supply units Internal SD module	Hot-plug drives Hot-plug redundant cooling Hot-plug redundant power supply units Internal dual SD module
