Supported Drives
Part Number | Encryption | Capacity | RPM | Checksum |
---|---|---|---|---|
Drive Type: NL-SAS | ||||
X315A-R6[1] | Yes | 4TB | 7.2k | BCS |
X317A[1] | Yes | 6TB | 7.2k | BCS |
X318A-R6 | No | 8TB | 7.2k | BCS |
X322A[1] | Yes | 10TB | 7.2k | BCS |
X336A-R6 | No | 4TB | 7.2k | BCS |
X339A | No | 2TB | 7.2k | BCS |
X380A | No | 10TB | 7.2k | BCS |
X388A | No | 16TB | 7.2k | BCS |
X477A-R6 | No | 4TB | 7.2k | BCS |
Drive Type: SAS | ||||
X488A-R5 | No | 900GB | 10k | BCS |
X489A-R6 | No | 1.2TB | 10k | BCS |
X490A-R6 | No | 1.8TB | 10k | BCS |
Drive Type: SATA | ||||
X302A-R5 | No | 1TB | 7.2k | BCS |
X306A-R5 | No | 2TB | 7.2k | BCS |
X308A-R5 | No | 3TB | 7.2k | BCS |
Drive Type: SSD | ||||
X363A-R6 | No | 3.84TB | N/A | BCS |
X364A | No | 3.84TB | N/A | BCS |
X366A-R6[1] | Yes | 1.6TB | N/A | BCS |
X374A | No | 960GB | N/A | BCS |
X448A-R6 | No | 200GB | N/A | BCS |
X449A-R6 | No | 800GB | N/A | BCS |
X575A-R6 | No | 400GB | N/A | BCS |
X576A-R6 | No | 1.6TB | N/A | BCS |
X577A-R6[1] | Yes | 800GB | N/A | BCS |
Footnotes | ||||
[1] Mixing NSE drives or shelves with any other type of encrypting or non-encrypting drives or shelves across a stand-alone platform or high-availability (HA) pair is not supported. |

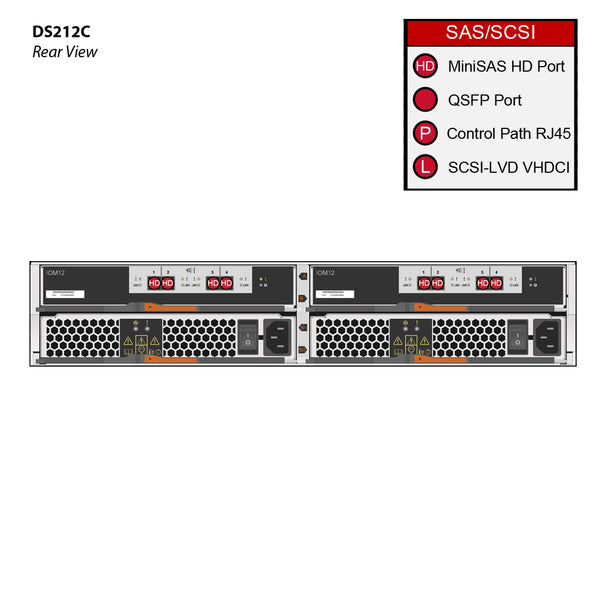

Supported Shelf Modules for NetApp DS212C
Module | Part Number | Interface | Max Data Rate | Min ONTAP |
---|---|---|---|---|
IOM12 | X5720A | IN: miniSAS HD, OUT: miniSAS HD | 12 Gbps | 9.11.1RC1, 9.10.1RC1, 9.9.1RC1, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1 |
Cables Compatibility for Module IOM12
Mktg Part No | Mfg Part No | Length | End 1 / End 2 | Description | Supported Speed(s) | Min OS |
---|---|---|---|---|---|---|
SAS 6/12 Gbps (Copper Cables) | ||||||
NetApp Cable X66030A | 112-00435 | 0.5m | MiniSAS HD / MiniSAS HD | Cable,miniSAS HD/miniSAS HD,0.5m | 6/12 Gbps | - |
NetApp Cable X66020A-R6 | 112-00429 | 1m | MiniSAS HD / QSFP | Cable,Storage,MiniSAS HD/QSFP,12Gb,1m | 6/12 Gbps | - |
NetApp Cable X66031A | 112-00436 | 1m | MiniSAS HD / MiniSAS HD | Cable,miniSAS HD/miniSAS HD,1m | 6/12 Gbps | - |
NetApp Cable X66021A-R6 | 112-00430 | 2m | MiniSAS HD / QSFP | Cable,Storage,MiniSAS HD/QSFP,12Gb,2m | 6/12 Gbps | - |
NetApp Cable X66032A | 112-00437 | 2m | MiniSAS HD / MiniSAS HD | Cable,miniSAS HD/miniSAS HD,2m | 6/12 Gbps | - |
NetApp Cable X66033A | 112-00438 | 3m | MiniSAS HD / MiniSAS HD | Cable,miniSAS HD/miniSAS HD,3m | 6/12 Gbps | - |
NetApp Cable X66022A-R6 | 112-00431 | 5m | MiniSAS HD / QSFP | Cable,Storage,MiniSAS HD/QSFP,12Gb,5m | 6/12 Gbps | - |
NetApp Cable X66034A | 112-00439 | 5m | MiniSAS HD / MiniSAS HD | Cable,miniSAS HD/miniSAS HD,5m | 6/12 Gbps | - |
Optical Cables | ||||||
NetApp Cable X66040A | 112-00449 | 1m | MiniSAS HD / MiniSAS HD | Cable,miniSAS HD/miniSAS HD,AOC,1m | 12 Gbps | 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1 |
NetApp Cable X66041A | 112-00450 | 2m | MiniSAS HD / MiniSAS HD | Cable,miniSAS HD/miniSAS HD,AOC,2m | 12 Gbps | 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1 |
NetApp Cable X66042A | 112-00451 | 3m | MiniSAS HD / MiniSAS HD | Cable,miniSAS HD/miniSAS HD,AOC,3m | 12 Gbps | 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1 |
NetApp Cable X66043A | 112-00452 | 5m | MiniSAS HD / MiniSAS HD | Cable,miniSAS HD/miniSAS HD,AOC,5m | 12 Gbps | 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1 |
NetApp Cable X66047A | 112-00456 | 5m | MiniSAS HD / 4xLC | Cable,Opt,miniSAS HD/LC,OM4,5m | 12 Gbps | 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1 |
NetApp Cable X66044A | 112-00453 | 15m | MiniSAS HD / MiniSAS HD | Cable,miniSAS HD/miniSAS HD,AOC,15m | 12 Gbps | 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1 |
NetApp Cable X66045A | 112-00454 | 30m | MiniSAS HD / MiniSAS HD | Cable,miniSAS HD/miniSAS HD,AOC,30m | 12 Gbps | 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1 |
NetApp Cable X66048A | 112-00457 | 30m | MiniSAS HD / 4xLC | Cable,Opt,miniSAS HD/LC,OM4,30m | 12 Gbps | 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1 |
NetApp Cable X66046A | 112-00455 | 50m | MiniSAS HD / MiniSAS HD | Cable,miniSAS HD/miniSAS HD,AOC,50m | 12 Gbps | 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1 |
Supported Power Cords for NetApp DS212C
Marketing Part No. | End 1 / End 2 | Length | Description | |
---|---|---|---|---|
Non-Cabinet Power Cords | ||||
X-50617-00 | IEC60320-C20 / IEC60320-C13 | 2.00 m | Power Cords,In-Cabinet,2m,C20-C13,E-Series | |
X800B-R6 | CEE 7/7 (Schuko) / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Cont Europe/Korea,10A/250V | |
X800C-R6 | BS1363 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,UK/Ireland,10A/250V | |
X800D-R6 | JIS-C-8303 / IEC60320-C13 | 1.83 m | Pwr Cord,Non-Cabinet,Japan,15A/125V | |
X800E-R6 | NEMA 5-15P / IEC60320-C13 | 1.83 m | Pwr Cord,Non-Cabinet,North America,15A/125V | |
X800F-R6 | AS/NZS 3112 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Aus/NZ,10A/250V | |
X800G-R6 | SEV 1011 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Switzerland,10A/250V | |
X800H-R6 | IRAM 2073 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Argentina,10A/250V | |
X800I-R6 | GB2099 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,China,10A/250V | |
X800J-R6 | DHCR107-2-D1 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Demark,10A/250V | |
X800K-R6 | SANS 164-1 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,India/S.Africa,10A/250V | |
X800L-R6 | SI32 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Israel,10A/250V | |
X800M-R6 | CEI 23-16 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Italy,10A/250V | |
X800N | EL208 / IEC60320-C13 | 2.50 m | Pwr Cord,10A,250V,2.5m,India | |
X800P-R6 | NEMA 6-15P / IEC60320-C13 | 1.83 m | Pwr Cord,Non-Cabinet,North America,15A/250V | |
X800T-R6 | CNS 10917-3 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Taiwan,BSMI,15A/125V | |
X800VB-R6 | NBR14136 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Brazil,10A/250V | |
X800W-R6 | CNS10917/CNS690 / IEC60320-C13 | 1.83 m | Pwr Cord,Non-Cabinet,Taiwan,10A/250V | |
X800Y-R6 | JIS-C-830 / IEC60320-C13 | 1.83 m | Pwr Cord,Non-Cabinet,Japan,15A/250V | |
In-Cabinet Power Cords | ||||
X-50617-00-0E-C | IEC60320-C13 / IEC60320-C20 | 1.83 m | Power Cord,In-Cabinet,2m,C20-C13,E-Series,0E,-C | |
X1558A-R6 | IEC60320-C14 / IEC60320-C13 | 1.20 m | Pwr Cord,In-Cabinet,48-In,C13-C14,10A/250V | |
X800-42U-35 | IEC60320-C14 / IEC60320-C13 | 0.89 m | Pwr Cord,In-Cabinet,C13-C14,35-inch | |
X800-42U-43 | IEC60320-C14 / IEC60320-C13 | 1.09 m | Pwr Cord,In-Cabinet,C13-C14,43-inch | |
X800-42U-64 | IEC60320-C14 / IEC60320-C13 | 1.63 m | Pwr Cord,In-Cabinet,C13-C14,64-inch | |
X800-42U-R6 | IEC60320-C14 / IEC60320-C13 | 0.68 m | Pwr Cord,In-Cabinet,27-In,C13-C14,10A/250V |
Supported Rail Kits for NetApp DS212C
Marketing Part No. | Manufacturing Part No. | Description | |
---|---|---|---|
Third-Party Cabinet Rail Kits | |||
X-02654-00 | 111-02852 | Kit,2-Post, Thin | |
X-02657-00 | 111-02657 | Kit,4-Post,Thin,Rnd/Sq-Hole, 24"-32" Rail |
Field Replacement Unit Parts for NetApp DS212C
Marketing Part No. | Manufacturing Part No. | Description | |
---|---|---|---|
Cabinets | |||
X870F-C | - | Cabinet,1280mm,Empty,No PDU,No Rails,-C | |
X870F-N-C | - | Cab,1280mm,Empty,No PDU,No Rails,-C | |
X870F-QS-C | - | Cabinet,1280mm,Empty,No PDU,No Rails,QS,-C | |
Chassis | |||
X5723A | 111-03068 | SHELF,EMPTY,2 PSU,913W,MIDPLANE II,DS212C | |
Conversion Kit | |||
X898A | TBD | DS212C, Kit,FAS2620 Conversion | |
Data Cable | |||
X66020A-R6 | 112-00429 | Cable,Storage,MiniSAS HD,QSFP,12G,1m | |
X66020A-R6-C | 112-00429 | Cable,Storage,MiniSAS HD,QSFP,12G,1m,-C | |
X66021A-R6 | 112-00430 | Cable,Storage,MiniSAS HD,QSFP,12G,2m | |
X66021A-R6-C | 112-00430 | Cable,Storage,MiniSAS HD,QSFP,12G,2m,-C | |
X66022A-R6 | 112-00431 | Cable,Storage,MiniSAS HD,QSFP,12G,5m | |
X66022A-R6-C | 112-00431 | Cable,Storage,MiniSAS HD,QSFP,12G,5m,-C | |
X66030A | 112-00435 | Cable,12Gb,Mini SAS HD,0.5m | |
X66030A-C | 112-00435 | Cable,12Gb,Mini SAS HD,0.5m,-C | |
X66030A-K-N | 112-00435 | Cable,12Gb,Mini SAS HD,0.5m | |
X66030A-N | 112-00435 | Cable,12Gb,Mini SAS HD,0.5m | |
X66030A-N-C | 112-00435 | Cable,12Gb,Mini SAS HD,0.5m,-C | |
X66031A | 112-00436 | Cable,12Gb,Mini SAS HD,1m | |
X66031A-C | 112-00436 | Cable,12Gb,Mini SAS HD,1m,-C | |
X66031A-K-N | 112-00436 | Cable,12Gb,Mini SAS HD,1m | |
X66031A-N | 112-00436 | Cable,12Gb,Mini SAS HD,1m | |
X66031A-N-C | 112-00436 | Cable,12Gb,Mini SAS HD,1m,-C | |
X66032A | 112-00437 | Cable,12Gb,Mini SAS HD,2m | |
X66032A-C | 112-00437 | Cable,12Gb,Mini SAS HD,2m,-C | |
X66032A-K-N | 112-00437 | Cable,12Gb,Mini SAS HD,2m | |
X66032A-N | 112-00437 | Cable,12Gb,Mini SAS HD,2m | |
X66032A-N-C | 112-00437 | Cable,12Gb,Mini SAS HD,2m,-C | |
X66033A | 112-00438 | Cable,12Gb,Mini SAS HD,3m | |
X66033A-C | 112-00438 | Cable,12Gb,Mini SAS HD,3m,-C | |
X66033A-K-N | 112-00438 | Cable,12Gb,Mini SAS HD,3m | |
X66033A-N | 112-00438 | Cable,12Gb,Mini SAS HD,3m | |
X66033A-N-C | 112-00438 | Cable,12Gb,Mini SAS HD,3m,-C | |
X66034A | 112-00439 | Cable,12Gb,Mini SAS HD,5m | |
X66034A-C | 112-00439 | Cable,12Gb,Mini SAS HD,5m,-C | |
X66034A-K-N | 112-00439 | Cable,12Gb,Mini SAS HD,5m | |
X66034A-N | 112-00439 | Cable,12Gb,Mini SAS HD,5m | |
X66034A-N-C | 112-00439 | Cable,12Gb,Mini SAS HD,5m,-C | |
X66040A | 112-00449 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m | |
X66040A-C | 112-00449 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C | |
X66040A-K-N | 112-00449 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m | |
X66040A-N | 112-00449 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m | |
X66040A-N-C | 112-00449 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C | |
X66041A | 112-00450 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m | |
X66041A-C | 112-00450 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C | |
X66041A-K-N | 112-00450 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m | |
X66041A-N | 112-00450 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m | |
X66041A-N-C | 112-00450 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C | |
X66042A | 112-00451 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m | |
X66042A-C | 112-00451 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C | |
X66042A-K-N | 112-00451 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m | |
X66042A-N | 112-00451 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m | |
X66042A-N-C | 112-00451 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C | |
X66043A | 112-00452 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m | |
X66043A-C | 112-00452 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C | |
X66043A-K-N | 112-00452 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m | |
X66043A-N | 112-00452 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m | |
X66043A-N-C | 112-00452 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C | |
X66044A | 112-00453 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,15m | |
X66045A | 112-00454 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,30m | |
X66046A | 112-00455 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,50m | |
X66047A | 112-00456 | Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m | |
X66047A-C | 112-00456 | Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C | |
X66047A-N-C | 112-00456 | Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C | |
X66048A | 112-00457 | Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m | |
X66048A-C | 112-00457 | Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C | |
X66048A-N-C | 112-00457 | Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C | |
Drive | |||
X302A-R5 | 108-00268 | Disk Drive,1.0TB 7.2k,DS424x,FAS2240-4 | |
X306A-R5 | 108-00270 | Disk Drive,2.0TB 7.2k,DS424x,2554/2240-4 | |
X308A-R5 | 108-00277 | Disk Drive,3.0TB 7.2K,DS424x,2554/2240-4 | |
X315A-R6 | 108-00368 | DSK DRV,4TB 7.2k,NSE,DS424x,2554/2220/2240-4 | |
X317A | 108-00399 | DSK DRV,6TB,7.2K,12G,NSE,DS212C | |
X318A-R6 | 108-00455 | DSK DRV,8TB,7.2K,12G,DS212C | |
X322A | 108-00551 | DSK DRV,10TB,7.2K,12G,NSE,DS212C | |
X336A-R6 | 108-00427 | DSK DRV,4TB,7.2K,12G,DS212C | |
X339A | 108-00426 | DSK DRV,2TB,7.2K,12Gb,DS212C,FAS2620 | |
X363A-R6 | 108-00467 | SSD,3.8TB,FAS2520/2554 | |
X364A | 108-00650 | SSD,3.8TB,DS212C,FAS2620,w/MSW | |
X366A-R6 | 108-00470 | SSD,1.6TB,NSE,DS4246,FAS2554 | |
X374A | 108-00573 | SSD,960GB,12G,DS212C,W/MSW | |
X380A | 108-00549 | DSK DRV,10TB,7.2K,12G,DS212C | |
X388A | 108-00885 | DSK DRV,16TB,7.2K,12G,DS212C | |
X448A-R6 | 108-00253 | SSD,200GB,DS4246,FAS2554/2240-4/2220 | |
X449A-R6 | 108-00319 | SSD,800GB,DS4246,FAS2554/2240-4/2220 | |
X477A-R6 | 108-00315 | DSK DRV,4TB 7.2k,DS4246,2554/2220/2240-4 | |
X488A-R5 | 108-00298 | Disk Drive,900GB 10K,2520/2220 | |
X489A-R6 | 108-00322 | Disk Drive,1.2TB 10K,2520/2220 | |
X490A-R6 | 108-00425 | Disk Drive,1.8TB 10K,FAS2520 | |
X575A-R6 | 108-00370 | SSD,400GB,DS424x,FAS2554/2240-4/2220 | |
X576A-R6 | 108-00373 | SSD,1.6TB,DS424x,FAS2554/2240-4/2220 | |
X577A-R6 | 108-00375 | SSD,800GB,NSE,DS4246,FAS2554 | |
Power Cord | |||
X-50617-00 | - | Jumper Crd,In-Cab,2m,C20-C13,E-Series | |
X-50617-00-0E-C | - | Jumper Crd,In-Cab,2m,C20-C13,E-Series,0E,-C | |
X1558A-R6 | - | Jumper Crd,In-Cab,48-IN,C13-C14 | |
X1558A-R6-C | - | Jumper Crd,In-Cab,48-IN,C13-C14-C | |
X800-42U-35 | - | Jumper Crd,In-Cab,C13-C14,35-inch | |
X800-42U-35-C | - | Jumper Crd,In-Cab,C13-C14,35-inch,-C | |
X800-42U-35-K-N | - | Jumper Crd,In-Cab,C13-C14,35-inch | |
X800-42U-35-N | - | Power Cable,In-Cabinet,C13-C14,35-inch | |
X800-42U-43 | - | Jumper Crd,In-Cab,C13-C14,43-inch | |
X800-42U-43-C | - | Jumper Crd,In-Cab,C13-C14,43-inch,-C | |
X800-42U-43-K-N | - | Jumper Crd,In-Cab,C13-C14,43-inch | |
X800-42U-43-N | - | Power Cable,In-Cabinet,C13-C14,43-inch | |
X800-42U-64 | - | Jumper Crd,In-Cab,C13-C14,64-inch | |
X800-42U-64-C | - | Jumper Crd,In-Cab,C13-C14,64-inch,-C | |
X800-42U-64-K-N | - | Jumper Crd,In-Cab,C13-C14,64-inch | |
X800-42U-64-N | - | Power Cable,In-Cabinet,C13-C14,64-inch | |
X800-42U-R6 | - | Jumper Crd,In-Cab,C13-C14 | |
X800-42U-R6-C | - | Jumper Crd,In-Cab,C13-C14,-C | |
X800B-R6 | - | Power Cable,Continental Europe,R6 | |
X800B-R6-C | - | Power Cable,Continental Europe,-C,R6 | |
X800C-R6 | - | Power Cable,UK and Ireland,R6 | |
X800C-R6-C | - | Power Cable,UK and Ireland,-C,R6 | |
X800D-R6 | - | Power Cable,Japan,R6 | |
X800D-R6-C | - | Power Cable,Japan,-C,R6 | |
X800E-R6 | - | Power Cable,North America,R6 | |
X800E-R6-C | - | Power Cable,North America,-C,R6 | |
X800F-R6 | - | Power Cable,Australia/New Zealand,R6 | |
X800F-R6-C | - | Power Cable,Australia/New Zealand,-C,R6 | |
X800G-R6 | - | Power Cable,Switzerland,R6 | |
X800G-R6-C | - | Power Cable,Switzerland,-C,R6 | |
X800H-R6 | - | Power Cable,Argentina,R6 | |
X800H-R6-C | - | Power Cable,Argentina,-C,R6 | |
X800I-R6 | - | Power Cable,China,R6 | |
X800I-R6-C | - | Power Cable,China,-C,R6 | |
X800J-R6 | - | Power Cable,Denmark,R6 | |
X800J-R6-C | - | Power Cable,Denmark,-C,R6 | |
X800K-R6 | - | Power Cable,India,South Africa,R6 | |
X800K-R6-C | - | Power Cable,India,South Africa,-C,R6 | |
X800L-R6 | - | Power Cable,Israel,R6 | |
X800L-R6-C | - | Power Cable,Israel,-C,R6 | |
X800M-R6 | - | Power Cable,Italy,R6 | |
X800M-R6-C | - | Power Cable,Italy,-C,R6 | |
X800N | - | POWER CABLE,INDIA BIS | |
X800N-C | - | Power Cable,India BIS,-C | |
X800P-R6 | - | Power Cable,North America,250V,R6 | |
X800P-R6-C | - | Power Cable,North America,250V,-C,R6 | |
X800T-R6 | - | Power Cable,Taiwan,BSMI,R6 | |
X800T-R6-C | - | Power Cable,Taiwan,BSMI,-C,R6 | |
X800VB-R6 | - | Power Cable,Brazil,IEC-60906-1-Plug | |
X800W-R6 | - | Power Cable,Taiwan,250V,BSMI,R6 | |
X800W-R6-C | - | Power Cable,Taiwan,250V,BSMI,-C | |
X800Y-R6 | - | Power Cable,Japan,250V/15A | |
X800Y-R6-C | - | Power Cable,Japan,250V/15A,-C | |
Power Supply Unit | |||
X5726A | 114-00148 | PSU,913W | |
RailKit | |||
X-02654-00 | 111-02852 | Rail Kit,Thin,Rnd/Sq-Hole,2-Post | |
X-02654-00-C | 111-02852 | Rail Kit,Thin,Rnd/Sq-Hole,2-Post,-C | |
X-02654-00-K-N | 111-02852 | Rail Kit,Thin,Rnd/Sq-Hole,2-Post | |
X-02654-00-N | 111-02852 | Rail Kit,Thin,Rnd/Sq-Hole,2-Post | |
X-02654-00-N-C | 111-02852 | Rail Kit,Thin,Rnd/Sq-Hole,2-Post | |
X-02657-00 | 111-02657 | Rackmount Kit,212C,4-post,Adj | |
X-02657-00-C | 111-02657 | Rail Kit,Thin,Rnd/Sq-Hole,4-Post,Adj,24-32,-C | |
X-02657-00-K-N | 111-02657 | Rackmount Kit,212C,4-post,Adj | |
X-02657-00-N | 111-02657 | Rackmount Kit,212C,4-post,Adj | |
X-02657-00-N-C | 111-02657 | Rail Kit,Thin,Rnd/Sq-Hole,4-Post,Adj,24-32,-C | |
Shelf Module | |||
X5720A | - | IOM12,SAS,12G |
Size, Weight, Acoustic, Power for NetApp DS212C
Associated Part No. | Configuration | Rack Units | Weight | Sound Power | Sound Pressure | Line Voltage Actual (Min to Max) | Amps Typical | Amps Worst | Watts Typical | Watts Worst | BTU / Hr Typical | BTU / Hr Worst |
---|---|---|---|---|---|---|---|---|---|---|---|---|
Empty Shelf (with AC PSU) | ||||||||||||
DS212C-0-12 | Empty | - | - | - | - | - | - | - | - | - | - | - |
Quickship Fully Populated | ||||||||||||
DS212C-07-10-12B-QS | 12x10TB,7.2K | 2 | 60.0 lb (27.2 kg) | 6.2 Bels | 44.7 dBA | 100 (100 to 120) | 2.04 | 3.13 | 199 | 306 | 680 | 1045 |
DS212C-07-10-12B-QS | 12x10TB,7.2K | 2 | 60.0 lb (27.2 kg) | 6.2 Bels | 44.7 dBA | 200 (200 to 240) | 1 | 1.54 | 196 | 300 | 669 | 1024 |
DS212C-07-10-12N-QS | 12x10TB,7.2K,NSE,NL-SAS | 2 | 60.0 lb (27.2 kg) | 6.2 Bels | 44.7 dBA | 100 (100 to 120) | 2.04 | 3.13 | 199 | 306 | 680 | 1045 |
DS212C-07-10-12N-QS | 12x10TB,7.2K,NSE,NL-SAS | 2 | 60.0 lb (27.2 kg) | 6.2 Bels | 44.7 dBA | 200 (200 to 240) | 1 | 1.54 | 196 | 300 | 669 | 1024 |
DS212C-07-16-12B-QS | Disk Shelf,12G,12x16TB,7.2K,-Q | 2 | 60.0 lb (27.2 kg) | 6.2 Bels | 44.7 dBA | 100 (100 to 120) | 2.35 | 3.43 | 230 | 336 | 785 | 1147 |
DS212C-07-16-12B-QS | Disk Shelf,12G,12x16TB,7.2K,-Q | 2 | 60.0 lb (27.2 kg) | 6.2 Bels | 44.7 dBA | 200 (200 to 240) | 1.16 | 1.69 | 226 | 330 | 772 | 1127 |
DS212C-07-4.0-12B-QS | 12x4TB,7.2K | 2 | 60.6 lb (27.5 kg) | 6.2 Bels | 44.7 dBA | 100 (100 to 120) | 2.32 | 3.41 | 227 | 334 | 775 | 1140 |
DS212C-07-4.0-12B-QS | 12x4TB,7.2K | 2 | 60.6 lb (27.5 kg) | 6.2 Bels | 44.7 dBA | 200 (200 to 240) | 1.14 | 1.68 | 223 | 328 | 762 | 1120 |
DS212C-07-6.0-12N-QS | 12x6TB,7.2K,NSE | 2 | 63.3 lb (28.7 kg) | 6.2 Bels | 44.7 dBA | 100 (100 to 120) | 2.33 | 3.42 | 228 | 335 | 779 | 1144 |
DS212C-07-6.0-12N-QS | 12x6TB,7.2K,NSE | 2 | 63.3 lb (28.7 kg) | 6.2 Bels | 44.7 dBA | 200 (200 to 240) | 1.15 | 1.68 | 224 | 329 | 765 | 1123 |
DS212C-07-8.0-12B-QS | 12x8TB,7.2K | 2 | 63.1 lb (28.6 kg) | 6.2 Bels | 44.7 dBA | 100 (100 to 120) | 2.36 | 3.45 | 231 | 338 | 789 | 1154 |
DS212C-07-8.0-12B-QS | 12x8TB,7.2K | 2 | 63.1 lb (28.6 kg) | 6.2 Bels | 44.7 dBA | 200 (200 to 240) | 1.16 | 1.7 | 227 | 332 | 775 | 1134 |
DS212C-FS-07-2.0-12B-QS | 12x2.0TB,NL-SAS | 2 | 57.8 lb (26.2 kg) | 6.2 Bels | 44.7 dBA | 100 (100 to 120) | 2.11 | 3.19 | 206 | 312 | 704 | 1065 |
DS212C-FS-07-2.0-12B-QS | 12x2.0TB,NL-SAS | 2 | 57.8 lb (26.2 kg) | 6.2 Bels | 44.7 dBA | 200 (200 to 240) | 1.04 | 1.57 | 202 | 306 | 690 | 1045 |
