NetApp DS212C Expansion Shelf (DS212C-07-10-12B-0P-C) 12x 10TB 7.2K NL-SAS HDD X380A 12 G


Stock: 20
Price: $6,950.00

Brand:
MPN:
DS212C-07-10-12B-0P-C
Type:
Disk Shelves
Condition:
ECS Refurbished & Tested

Total:- $6,950.00


-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

NetApp DS212C Expansion Shelf (DS212C-07-10-12B-0P-C) 12x 10TB 7.2K NL-SAS HDD X380A 12 G

NetApp DS212C - DS212C-07-10-12B-0P-C, has 12 drive bays with 12 X380A (10TB 7.2K NL-SAS) Disk Shelf achieves both storage and performance in a 2U (Rack Unit) 3.5" form factor, at speeds of 12 Gbps. This DS212C comes with all necessary parts and cables. Also comes with a 1-Year Parts Replacement Warranty as standard.

Parts Included:
  • 1X DS212C NetApp Disk Shelf
  • 12x 10TB 7.2K NL-SAS HDD 3.5" (X380A) 12 G
  • 2x IOM12 Controller Module (X5720A)
  • 2x Power Supply Unit (X5726A)
  • 2x Data Cables (X66030A) MiniSAS HD / MiniSAS HD (longer cables available please ask for custom order)
  • 1x Rail Kit (X-02654-00)
  • 2x Power Cables (X800E-R6)


Technical Specifications Physical Characteristics
  • Rack Unit(s): 2
  • Port(s): N/A
  • Drive Count: 12
  • Drive Speed(s): 12 Gbps
  • Drive(s):
    12 X380A (10TB 7.2K NL-SAS)
  • Supported Controller(s):
    FAS9500, FAS9000, FAS8700, FAS8300, FAS8200, FAS8000 series, FAS2700, FAS2600
  • Weight: 35.27 lb (16 kg)
  • Height: 3.43'' (8.7 cm)
  • Width: 17.6'' (44.7 cm)
  • Depth: 19.88'' (50.5 cm)
  • Width w/ Mounting Flanges: 18.9'' (48 cm)
  • Depth w/ Cable Management: 21.02'' (53.4 cm)
Environmental Requirements Clearance Dimensions
  • Operating Temperature Range: 50 to 104 deg F / 10 to 40 deg C
  • Storage Temperature Range: -40 to 158 deg F / -40 to 70 deg C
  • Transit Temperature Range: -40 to 158 deg F / -40 to 70 deg C
  • Operating Relative Humidity: 20 to 80 %
  • Storage Relative Humidity: 10 to 95 %
  • Transit Relative Humidity: 10 to 95 %
  • Operating Altitude Range: 0 to 9987.6 ft / 0 to 3045 m
  • Storage Altitude Range: -1000.4 to 39989.76 ft / -305 to 12192 m
  • Transit Altitude Range: -1000.4 to 39989.76 ft / -305 to 12192 m
  • Acoustic Noise - Sound Power: -
  • Acoustic Noise - Sound Pressure: -
  • Input Power Voltage: 100 to 120, 200 to 240
  • Front Clearance (Cooling / Maintenance): 6.02'' (15.3 cm) / 6.02'' (15.3 cm)
  • Rear Clearance (Cooling / Maintenance): 6.02'' (15.3 cm) / 12.99'' (33 cm)

Product Specs

Supported Drives

Part NumberEncryptionCapacityRPMChecksum
Drive Type: NL-SAS
X315A-R6[1]    Yes 4TB 7.2k BCS
X317A[1]    Yes 6TB 7.2k BCS
X318A-R6 No 8TB 7.2k BCS
X322A[1]    Yes 10TB 7.2k BCS
X336A-R6 No 4TB 7.2k BCS
X339A No 2TB 7.2k BCS
X380A No 10TB 7.2k BCS
X388A No 16TB 7.2k BCS
X477A-R6 No 4TB 7.2k BCS
Drive Type: SAS
X488A-R5 No 900GB 10k BCS
X489A-R6 No 1.2TB 10k BCS
X490A-R6 No 1.8TB 10k BCS
Drive Type: SATA
X302A-R5 No 1TB 7.2k BCS
X306A-R5 No 2TB 7.2k BCS
X308A-R5 No 3TB 7.2k BCS
Drive Type: SSD
X363A-R6 No 3.84TB N/A BCS
X364A No 3.84TB N/A BCS
X366A-R6[1]    Yes 1.6TB N/A BCS
X374A No 960GB N/A BCS
X448A-R6 No 200GB N/A BCS
X449A-R6 No 800GB N/A BCS
X575A-R6 No 400GB N/A BCS
X576A-R6 No 1.6TB N/A BCS
X577A-R6[1]    Yes 800GB N/A BCS
Footnotes
[1] Mixing NSE drives or shelves with any other type of encrypting or non-encrypting drives or shelves across a stand-alone platform or high-availability (HA) pair is not supported.

Supported Shelf Modules for NetApp DS212C

ModulePart NumberInterfaceMax Data RateMin ONTAP

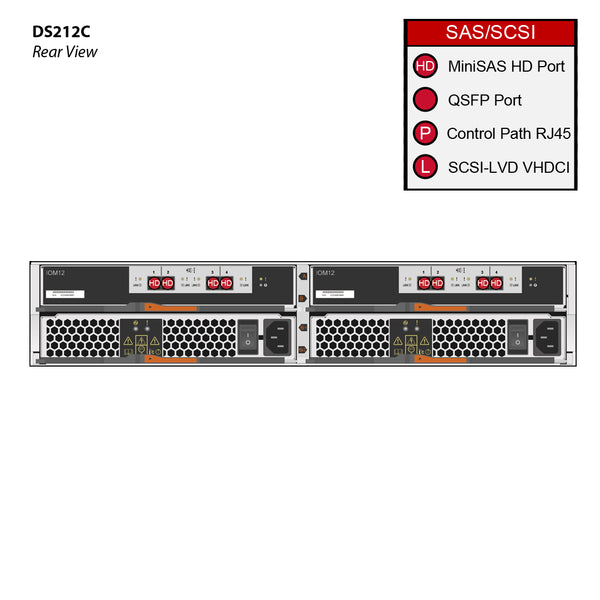

IOM12 X5720A IN: miniSAS HD, OUT: miniSAS HD 12 Gbps 9.11.1RC1, 9.10.1RC1, 9.9.1RC1, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1

Cables Compatibility for Module IOM12

Mktg Part NoMfg Part NoLengthEnd 1 / End 2DescriptionSupported Speed(s)Min OS
SAS 6/12 Gbps (Copper Cables)
NetApp Cable X66030A 112-00435 0.5m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,0.5m 6/12 Gbps -
NetApp Cable X66020A-R6 112-00429 1m MiniSAS HD / QSFP Cable,Storage,MiniSAS HD/QSFP,12Gb,1m 6/12 Gbps -
NetApp Cable X66031A 112-00436 1m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,1m 6/12 Gbps -
NetApp Cable X66021A-R6 112-00430 2m MiniSAS HD / QSFP Cable,Storage,MiniSAS HD/QSFP,12Gb,2m 6/12 Gbps -
NetApp Cable X66032A 112-00437 2m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,2m 6/12 Gbps -
NetApp Cable X66033A 112-00438 3m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,3m 6/12 Gbps -
NetApp Cable X66022A-R6 112-00431 5m MiniSAS HD / QSFP Cable,Storage,MiniSAS HD/QSFP,12Gb,5m 6/12 Gbps -
NetApp Cable X66034A 112-00439 5m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,5m 6/12 Gbps -
Optical Cables
NetApp Cable X66040A 112-00449 1m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,AOC,1m 12 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66041A 112-00450 2m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,AOC,2m 12 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66042A 112-00451 3m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,AOC,3m 12 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66043A 112-00452 5m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,AOC,5m 12 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66047A 112-00456 5m MiniSAS HD / 4xLC Cable,Opt,miniSAS HD/LC,OM4,5m 12 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66044A 112-00453 15m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,AOC,15m 12 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66045A 112-00454 30m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,AOC,30m 12 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66048A 112-00457 30m MiniSAS HD / 4xLC Cable,Opt,miniSAS HD/LC,OM4,30m 12 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66046A 112-00455 50m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,AOC,50m 12 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1

Supported Power Cords for NetApp DS212C

Marketing Part No.End 1 / End 2LengthDescription
Non-Cabinet Power Cords
X-50617-00 IEC60320-C20 / IEC60320-C13 2.00 m Power Cords,In-Cabinet,2m,C20-C13,E-Series
X800B-R6 CEE 7/7 (Schuko) / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Cont Europe/Korea,10A/250V
X800C-R6 BS1363 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,UK/Ireland,10A/250V
X800D-R6 JIS-C-8303 / IEC60320-C13 1.83 m Pwr Cord,Non-Cabinet,Japan,15A/125V
X800E-R6 NEMA 5-15P / IEC60320-C13 1.83 m Pwr Cord,Non-Cabinet,North America,15A/125V
X800F-R6 AS/NZS 3112 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Aus/NZ,10A/250V
X800G-R6 SEV 1011 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Switzerland,10A/250V
X800H-R6 IRAM 2073 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Argentina,10A/250V
X800I-R6 GB2099 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,China,10A/250V
X800J-R6 DHCR107-2-D1 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Demark,10A/250V
X800K-R6 SANS 164-1 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,India/S.Africa,10A/250V
X800L-R6 SI32 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Israel,10A/250V
X800M-R6 CEI 23-16 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Italy,10A/250V
X800N EL208 / IEC60320-C13 2.50 m Pwr Cord,10A,250V,2.5m,India
X800P-R6 NEMA 6-15P / IEC60320-C13 1.83 m Pwr Cord,Non-Cabinet,North America,15A/250V
X800T-R6 CNS 10917-3 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Taiwan,BSMI,15A/125V
X800VB-R6 NBR14136 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Brazil,10A/250V
X800W-R6 CNS10917/CNS690 / IEC60320-C13 1.83 m Pwr Cord,Non-Cabinet,Taiwan,10A/250V
X800Y-R6 JIS-C-830 / IEC60320-C13 1.83 m Pwr Cord,Non-Cabinet,Japan,15A/250V
In-Cabinet Power Cords
X-50617-00-0E-C IEC60320-C13 / IEC60320-C20 1.83 m Power Cord,In-Cabinet,2m,C20-C13,E-Series,0E,-C
X1558A-R6 IEC60320-C14 / IEC60320-C13 1.20 m Pwr Cord,In-Cabinet,48-In,C13-C14,10A/250V
X800-42U-35 IEC60320-C14 / IEC60320-C13 0.89 m Pwr Cord,In-Cabinet,C13-C14,35-inch
X800-42U-43 IEC60320-C14 / IEC60320-C13 1.09 m Pwr Cord,In-Cabinet,C13-C14,43-inch
X800-42U-64 IEC60320-C14 / IEC60320-C13 1.63 m Pwr Cord,In-Cabinet,C13-C14,64-inch
X800-42U-R6 IEC60320-C14 / IEC60320-C13 0.68 m Pwr Cord,In-Cabinet,27-In,C13-C14,10A/250V

Supported Rail Kits for NetApp DS212C

Marketing Part No.Manufacturing Part No.Description
Third-Party Cabinet Rail Kits
X-02654-00 111-02852 Kit,2-Post, Thin
X-02657-00 111-02657 Kit,4-Post,Thin,Rnd/Sq-Hole, 24"-32" Rail

Field Replacement Unit Parts for NetApp DS212C

Marketing Part No.Manufacturing Part No.Description
Cabinets
X870F-C - Cabinet,1280mm,Empty,No PDU,No Rails,-C
X870F-N-C - Cab,1280mm,Empty,No PDU,No Rails,-C
X870F-QS-C - Cabinet,1280mm,Empty,No PDU,No Rails,QS,-C
Chassis
X5723A 111-03068 SHELF,EMPTY,2 PSU,913W,MIDPLANE II,DS212C
Conversion Kit
X898A TBD DS212C, Kit,FAS2620 Conversion
Data Cable
X66020A-R6 112-00429 Cable,Storage,MiniSAS HD,QSFP,12G,1m
X66020A-R6-C 112-00429 Cable,Storage,MiniSAS HD,QSFP,12G,1m,-C
X66021A-R6 112-00430 Cable,Storage,MiniSAS HD,QSFP,12G,2m
X66021A-R6-C 112-00430 Cable,Storage,MiniSAS HD,QSFP,12G,2m,-C
X66022A-R6 112-00431 Cable,Storage,MiniSAS HD,QSFP,12G,5m
X66022A-R6-C 112-00431 Cable,Storage,MiniSAS HD,QSFP,12G,5m,-C
X66030A 112-00435 Cable,12Gb,Mini SAS HD,0.5m
X66030A-C 112-00435 Cable,12Gb,Mini SAS HD,0.5m,-C
X66030A-K-N 112-00435 Cable,12Gb,Mini SAS HD,0.5m
X66030A-N 112-00435 Cable,12Gb,Mini SAS HD,0.5m
X66030A-N-C 112-00435 Cable,12Gb,Mini SAS HD,0.5m,-C
X66031A 112-00436 Cable,12Gb,Mini SAS HD,1m
X66031A-C 112-00436 Cable,12Gb,Mini SAS HD,1m,-C
X66031A-K-N 112-00436 Cable,12Gb,Mini SAS HD,1m
X66031A-N 112-00436 Cable,12Gb,Mini SAS HD,1m
X66031A-N-C 112-00436 Cable,12Gb,Mini SAS HD,1m,-C
X66032A 112-00437 Cable,12Gb,Mini SAS HD,2m
X66032A-C 112-00437 Cable,12Gb,Mini SAS HD,2m,-C
X66032A-K-N 112-00437 Cable,12Gb,Mini SAS HD,2m
X66032A-N 112-00437 Cable,12Gb,Mini SAS HD,2m
X66032A-N-C 112-00437 Cable,12Gb,Mini SAS HD,2m,-C
X66033A 112-00438 Cable,12Gb,Mini SAS HD,3m
X66033A-C 112-00438 Cable,12Gb,Mini SAS HD,3m,-C
X66033A-K-N 112-00438 Cable,12Gb,Mini SAS HD,3m
X66033A-N 112-00438 Cable,12Gb,Mini SAS HD,3m
X66033A-N-C 112-00438 Cable,12Gb,Mini SAS HD,3m,-C
X66034A 112-00439 Cable,12Gb,Mini SAS HD,5m
X66034A-C 112-00439 Cable,12Gb,Mini SAS HD,5m,-C
X66034A-K-N 112-00439 Cable,12Gb,Mini SAS HD,5m
X66034A-N 112-00439 Cable,12Gb,Mini SAS HD,5m
X66034A-N-C 112-00439 Cable,12Gb,Mini SAS HD,5m,-C
X66040A 112-00449 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-C 112-00449 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C
X66040A-K-N 112-00449 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-N 112-00449 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-N-C 112-00449 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C
X66041A 112-00450 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-C 112-00450 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C
X66041A-K-N 112-00450 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-N 112-00450 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-N-C 112-00450 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C
X66042A 112-00451 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-C 112-00451 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C
X66042A-K-N 112-00451 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-N 112-00451 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-N-C 112-00451 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C
X66043A 112-00452 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-C 112-00452 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C
X66043A-K-N 112-00452 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-N 112-00452 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-N-C 112-00452 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C
X66044A 112-00453 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,15m
X66045A 112-00454 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,30m
X66046A 112-00455 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,50m
X66047A 112-00456 Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m
X66047A-C 112-00456 Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C
X66047A-N-C 112-00456 Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C
X66048A 112-00457 Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m
X66048A-C 112-00457 Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C
X66048A-N-C 112-00457 Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C
Drive
X302A-R5 108-00268 Disk Drive,1.0TB 7.2k,DS424x,FAS2240-4
X306A-R5 108-00270 Disk Drive,2.0TB 7.2k,DS424x,2554/2240-4
X308A-R5 108-00277 Disk Drive,3.0TB 7.2K,DS424x,2554/2240-4
X315A-R6 108-00368 DSK DRV,4TB 7.2k,NSE,DS424x,2554/2220/2240-4
X317A 108-00399 DSK DRV,6TB,7.2K,12G,NSE,DS212C
X318A-R6 108-00455 DSK DRV,8TB,7.2K,12G,DS212C
X322A 108-00551 DSK DRV,10TB,7.2K,12G,NSE,DS212C
X336A-R6 108-00427 DSK DRV,4TB,7.2K,12G,DS212C
X339A 108-00426 DSK DRV,2TB,7.2K,12Gb,DS212C,FAS2620
X363A-R6 108-00467 SSD,3.8TB,FAS2520/2554
X364A 108-00650 SSD,3.8TB,DS212C,FAS2620,w/MSW
X366A-R6 108-00470 SSD,1.6TB,NSE,DS4246,FAS2554
X374A 108-00573 SSD,960GB,12G,DS212C,W/MSW
X380A 108-00549 DSK DRV,10TB,7.2K,12G,DS212C
X388A 108-00885 DSK DRV,16TB,7.2K,12G,DS212C
X448A-R6 108-00253 SSD,200GB,DS4246,FAS2554/2240-4/2220
X449A-R6 108-00319 SSD,800GB,DS4246,FAS2554/2240-4/2220
X477A-R6 108-00315 DSK DRV,4TB 7.2k,DS4246,2554/2220/2240-4
X488A-R5 108-00298 Disk Drive,900GB 10K,2520/2220
X489A-R6 108-00322 Disk Drive,1.2TB 10K,2520/2220
X490A-R6 108-00425 Disk Drive,1.8TB 10K,FAS2520
X575A-R6 108-00370 SSD,400GB,DS424x,FAS2554/2240-4/2220
X576A-R6 108-00373 SSD,1.6TB,DS424x,FAS2554/2240-4/2220
X577A-R6 108-00375 SSD,800GB,NSE,DS4246,FAS2554
Power Cord
X-50617-00 - Jumper Crd,In-Cab,2m,C20-C13,E-Series
X-50617-00-0E-C - Jumper Crd,In-Cab,2m,C20-C13,E-Series,0E,-C
X1558A-R6 - Jumper Crd,In-Cab,48-IN,C13-C14
X1558A-R6-C - Jumper Crd,In-Cab,48-IN,C13-C14-C
X800-42U-35 - Jumper Crd,In-Cab,C13-C14,35-inch
X800-42U-35-C - Jumper Crd,In-Cab,C13-C14,35-inch,-C
X800-42U-35-K-N - Jumper Crd,In-Cab,C13-C14,35-inch
X800-42U-35-N - Power Cable,In-Cabinet,C13-C14,35-inch
X800-42U-43 - Jumper Crd,In-Cab,C13-C14,43-inch
X800-42U-43-C - Jumper Crd,In-Cab,C13-C14,43-inch,-C
X800-42U-43-K-N - Jumper Crd,In-Cab,C13-C14,43-inch
X800-42U-43-N - Power Cable,In-Cabinet,C13-C14,43-inch
X800-42U-64 - Jumper Crd,In-Cab,C13-C14,64-inch
X800-42U-64-C - Jumper Crd,In-Cab,C13-C14,64-inch,-C
X800-42U-64-K-N - Jumper Crd,In-Cab,C13-C14,64-inch
X800-42U-64-N - Power Cable,In-Cabinet,C13-C14,64-inch
X800-42U-R6 - Jumper Crd,In-Cab,C13-C14
X800-42U-R6-C - Jumper Crd,In-Cab,C13-C14,-C
X800B-R6 - Power Cable,Continental Europe,R6
X800B-R6-C - Power Cable,Continental Europe,-C,R6
X800C-R6 - Power Cable,UK and Ireland,R6
X800C-R6-C - Power Cable,UK and Ireland,-C,R6
X800D-R6 - Power Cable,Japan,R6
X800D-R6-C - Power Cable,Japan,-C,R6
X800E-R6 - Power Cable,North America,R6
X800E-R6-C - Power Cable,North America,-C,R6
X800F-R6 - Power Cable,Australia/New Zealand,R6
X800F-R6-C - Power Cable,Australia/New Zealand,-C,R6
X800G-R6 - Power Cable,Switzerland,R6
X800G-R6-C - Power Cable,Switzerland,-C,R6
X800H-R6 - Power Cable,Argentina,R6
X800H-R6-C - Power Cable,Argentina,-C,R6
X800I-R6 - Power Cable,China,R6
X800I-R6-C - Power Cable,China,-C,R6
X800J-R6 - Power Cable,Denmark,R6
X800J-R6-C - Power Cable,Denmark,-C,R6
X800K-R6 - Power Cable,India,South Africa,R6
X800K-R6-C - Power Cable,India,South Africa,-C,R6
X800L-R6 - Power Cable,Israel,R6
X800L-R6-C - Power Cable,Israel,-C,R6
X800M-R6 - Power Cable,Italy,R6
X800M-R6-C - Power Cable,Italy,-C,R6
X800N - POWER CABLE,INDIA BIS
X800N-C - Power Cable,India BIS,-C
X800P-R6 - Power Cable,North America,250V,R6
X800P-R6-C - Power Cable,North America,250V,-C,R6
X800T-R6 - Power Cable,Taiwan,BSMI,R6
X800T-R6-C - Power Cable,Taiwan,BSMI,-C,R6
X800VB-R6 - Power Cable,Brazil,IEC-60906-1-Plug
X800W-R6 - Power Cable,Taiwan,250V,BSMI,R6
X800W-R6-C - Power Cable,Taiwan,250V,BSMI,-C
X800Y-R6 - Power Cable,Japan,250V/15A
X800Y-R6-C - Power Cable,Japan,250V/15A,-C
Power Supply Unit
X5726A 114-00148 PSU,913W
RailKit
X-02654-00 111-02852 Rail Kit,Thin,Rnd/Sq-Hole,2-Post
X-02654-00-C 111-02852 Rail Kit,Thin,Rnd/Sq-Hole,2-Post,-C
X-02654-00-K-N 111-02852 Rail Kit,Thin,Rnd/Sq-Hole,2-Post
X-02654-00-N 111-02852 Rail Kit,Thin,Rnd/Sq-Hole,2-Post
X-02654-00-N-C 111-02852 Rail Kit,Thin,Rnd/Sq-Hole,2-Post
X-02657-00 111-02657 Rackmount Kit,212C,4-post,Adj
X-02657-00-C 111-02657 Rail Kit,Thin,Rnd/Sq-Hole,4-Post,Adj,24-32,-C
X-02657-00-K-N 111-02657 Rackmount Kit,212C,4-post,Adj
X-02657-00-N 111-02657 Rackmount Kit,212C,4-post,Adj
X-02657-00-N-C 111-02657 Rail Kit,Thin,Rnd/Sq-Hole,4-Post,Adj,24-32,-C
Shelf Module
X5720A - IOM12,SAS,12G

Size, Weight, Acoustic, Power for NetApp DS212C

Associated Part No. Configuration Rack Units Weight Sound Power Sound Pressure Line Voltage Actual (Min to Max) Amps Typical Amps Worst Watts Typical Watts Worst BTU / Hr Typical BTU / Hr Worst
Empty Shelf (with AC PSU)
DS212C-0-12 Empty - - - - - - - - - - -
Quickship Fully Populated
DS212C-07-10-12B-QS 12x10TB,7.2K 2 60.0 lb (27.2 kg) 6.2 Bels 44.7 dBA 100 (100 to 120) 2.04 3.13 199 306 680 1045
DS212C-07-10-12B-QS 12x10TB,7.2K 2 60.0 lb (27.2 kg) 6.2 Bels 44.7 dBA 200 (200 to 240) 1 1.54 196 300 669 1024
DS212C-07-10-12N-QS 12x10TB,7.2K,NSE,NL-SAS 2 60.0 lb (27.2 kg) 6.2 Bels 44.7 dBA 100 (100 to 120) 2.04 3.13 199 306 680 1045
DS212C-07-10-12N-QS 12x10TB,7.2K,NSE,NL-SAS 2 60.0 lb (27.2 kg) 6.2 Bels 44.7 dBA 200 (200 to 240) 1 1.54 196 300 669 1024
DS212C-07-16-12B-QS Disk Shelf,12G,12x16TB,7.2K,-Q 2 60.0 lb (27.2 kg) 6.2 Bels 44.7 dBA 100 (100 to 120) 2.35 3.43 230 336 785 1147
DS212C-07-16-12B-QS Disk Shelf,12G,12x16TB,7.2K,-Q 2 60.0 lb (27.2 kg) 6.2 Bels 44.7 dBA 200 (200 to 240) 1.16 1.69 226 330 772 1127
DS212C-07-4.0-12B-QS 12x4TB,7.2K 2 60.6 lb (27.5 kg) 6.2 Bels 44.7 dBA 100 (100 to 120) 2.32 3.41 227 334 775 1140
DS212C-07-4.0-12B-QS 12x4TB,7.2K 2 60.6 lb (27.5 kg) 6.2 Bels 44.7 dBA 200 (200 to 240) 1.14 1.68 223 328 762 1120
DS212C-07-6.0-12N-QS 12x6TB,7.2K,NSE 2 63.3 lb (28.7 kg) 6.2 Bels 44.7 dBA 100 (100 to 120) 2.33 3.42 228 335 779 1144
DS212C-07-6.0-12N-QS 12x6TB,7.2K,NSE 2 63.3 lb (28.7 kg) 6.2 Bels 44.7 dBA 200 (200 to 240) 1.15 1.68 224 329 765 1123
DS212C-07-8.0-12B-QS 12x8TB,7.2K 2 63.1 lb (28.6 kg) 6.2 Bels 44.7 dBA 100 (100 to 120) 2.36 3.45 231 338 789 1154
DS212C-07-8.0-12B-QS 12x8TB,7.2K 2 63.1 lb (28.6 kg) 6.2 Bels 44.7 dBA 200 (200 to 240) 1.16 1.7 227 332 775 1134
DS212C-FS-07-2.0-12B-QS 12x2.0TB,NL-SAS 2 57.8 lb (26.2 kg) 6.2 Bels 44.7 dBA 100 (100 to 120) 2.11 3.19 206 312 704 1065
DS212C-FS-07-2.0-12B-QS 12x2.0TB,NL-SAS 2 57.8 lb (26.2 kg) 6.2 Bels 44.7 dBA 200 (200 to 240) 1.04 1.57 202 306 690 1045



Shipping Information

Express Computer Systems can ship to virtually any address in the world and provides you with the best shipping rates possible. Cost of shipping varies depending on what service you require, your destination and size of the shipment. Shipping costs will be calculated separately from your order and billed to you post purchase. In the notes section of your order please provide us with your preferred shipping method and we will get back to you.

Custom configured orders ship within 2 business days after all required products are in stock.

Please allow 3 business days for products that are not in stock to arrive to our facility in Irvine, California.

Domestic Shipments
  • Standard Ground
    • Shipping time: 2-7 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 2-10 business days
    • Excludes weekends, holidays or weather delays.
  • 3 Business Days
    • Shipping time: 3 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 3-6 business days
    • Excludes weekends, holidays or weather delays.
  • 2 Business Days
    • Shipping time: 2 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 2-5 business days
    • Excludes weekends, holidays or weather delays.
  • Overnight / Next Business Day
    • Shipping time: 1 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 1-4 business days
    • Excludes weekends, holidays or weather delays.
International Shipments
  • International Economy
    • Shipping time: 4-6 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 5-9 business days
    • Excludes weekends, holidays or weather delays.
  • International Priority
    • Shipping time: 1-3 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 2-6 business days
    • Excludes weekends, holidays or weather delays.

For more information on shipping view our Shipping Information page or send us a message

ECS Warranty Information

Express Computer Systems (ECS) provides a 1 year parts warranty against defects in material or workmanship that will affect the products functionality. All refurbished items are tested prior to shipping to guarantee up-time upon arrival. If you are having issues with an item we provided please Contact Us and we will do our best to assist you.

What does our ECS warranty cover?
We offer 1 year warranty as standard and additional years can be added to fit your needs. Please reach out to a sales associate via the Contact Us page or live chat for more information on extended coverage options. During the coverage period if your product fails we will offer a Next Business Day replacement. If we are unable to replace the product we will refund its original selling price. Shipping costs and tax are not refundable. Express Computer Systems retains the right to decide whether the goods will be replaced or refunded.

What is not covered by our warranty?
Our warranty does not cover any problem caused by the following conditions:

  1. accidents; misuse; carelessness; electrostatic discharge; shock; temperature or humidity beyond the specifications of the product; improper installation; operation; modification;
  2. any improper use that contravenes the instructions in the user manual;
  3. problems caused by other equipment. Our warranty is void if the product is returned with damaged, removed, counterfeit labels, or any modifications (including any component or external cover removal). Our warranties do not cover data loss or damages to any other equipment. In addition, our warranties do not cover incidental damages, consequential damages, or costs related to data recovery, removal, and installation.

Important notes:

  • Please ask for additional warranty/coverage that you may require in addition to the standard 1 ECS warranty prior to final purchase. Requesting additional warranty after your purchase can be denied.
  • FREE technical support is provided on purchased items via phone, email, or live chat.

About Express Computer Systems

Express Computer Systems is committed to transforming our customers’ IT infrastructure with high quality products at affordable costs. Our sales reps and customer support engineers understand our customers rely heavily on advanced technology to run their business but need to do so without breaking the bank.

We specialize in building custom server configurations, custom storage solutions, networking solutions, and components from top manufacturers including HPE, Dell, Cisco, NetApp, Dell EMC, HPE Nimble and many others.

Subscribe
