-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

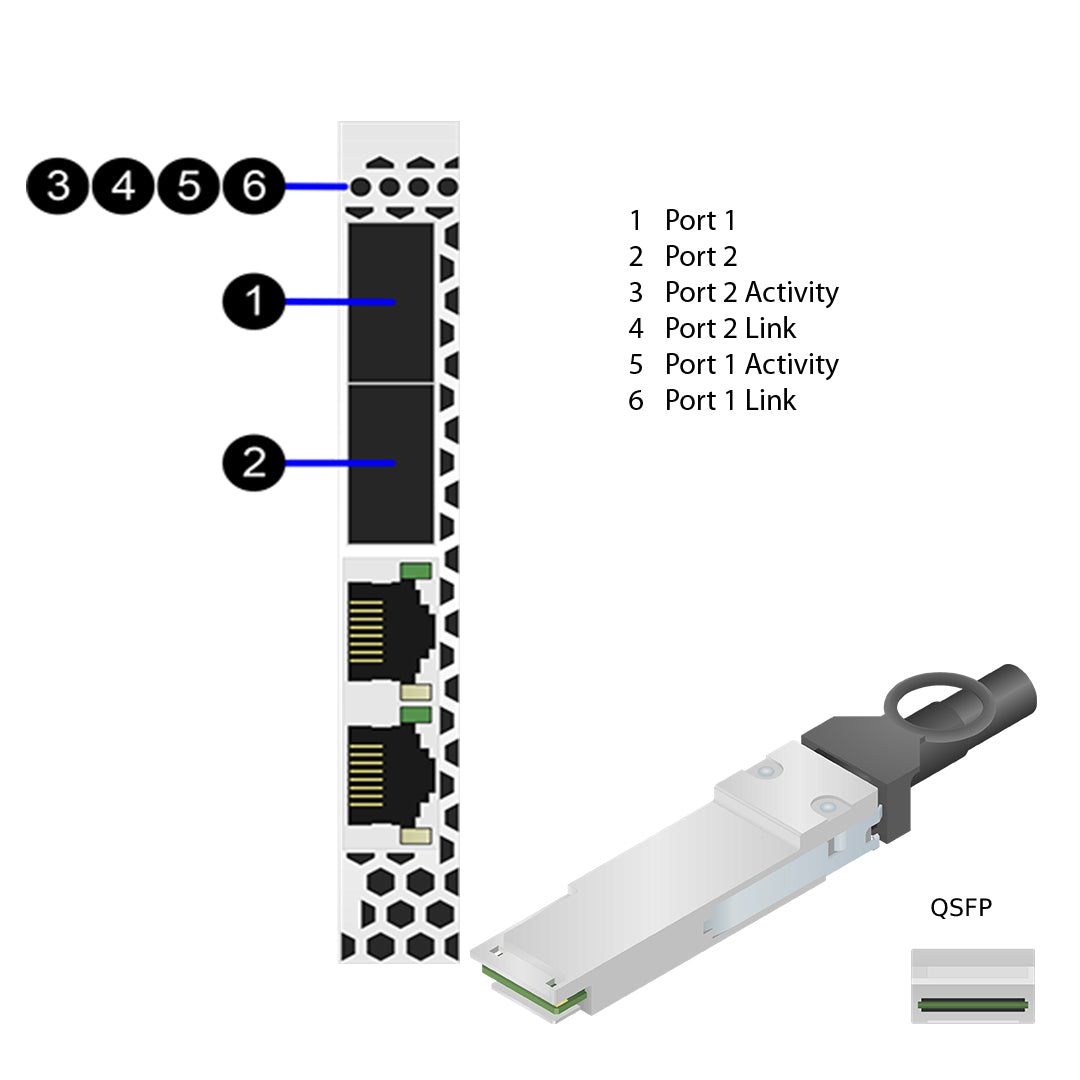

Adapter Specs
- Part Number: X1151A
- Mfg Number: 111-04635
- Spare Part Number: SP-1151A
- Bus Type: PCI-e
- Ports: Dual Port
- Plug Type: QSFP
- Cable Type: Copper Optical
- Speed: 100GbE
- Supported Protocol(s): Ethernet 100Gb,Ethernet 40/100 Gb
- Optical Module Included?: No
- Min ONTAP: N/A
Cables
Ethernet 40Gbps (Cu) Copper Cables
| Description | Mktg / Mfg Part No | Length | End 1 / End 2 |
|---|---|---|---|
| NetApp 3m | X66100-3 / 112-00543 | 3m | QSFP+ / QSFP+ |
| NetApp 5m | X66100-5 / 112-00544 | 5m | QSFP+ / QSFP+ |
Ethernet 100Gbps (Cu) Copper Cables
| Description | Mktg / Mfg Part No | Length | End 1 / End 2 |
|---|---|---|---|
| NetApp 0.5m | X66211A-05 / 112-00595 | 0.5m | QSFP28 / QSFP28 |
| NetApp 1m | X66211A-1 / 112-00573 | 1m | QSFP28 / QSFP28 |
| NetApp 1m | X66211B-1-C / 112-00573 | 1m | QSFP28 / QSFP28 |
| NetApp 2m | X66211A-2 / 112-00574 | 2m | QSFP28 / QSFP28 |
| NetApp 2m | X66211B-2-C / 112-00574 | 2m | QSFP28 / QSFP28 |
| NetApp 5m | X66211A-5 / 112-00576 | 5m | QSFP28 / QSFP28 |
| NetApp 5m | X66211B-5-C / 112-00576 | 5m | QSFP28 / QSFP28 |
Ethernet 40Gbps (Op) Optical Transceiver X65402 with Supported CablesNetApp XCVR Optical Fibre / Fiber Data Cable{}X65402 / 332-00389,AFBR-79EEPZ-NA1,AFBR-79EEPZ-NA2,FTL410QD2C-N1,FTL410QD2C-NQ,FTL410QD4C-N1,FTL410QD4C-NQ{}XCVR{}QSFP+ / MPO;NetApp 2m Optical Fibre / Fiber Data Cable{}X66200-2 / 112-00326{}2m{}MPO / MPO;NetApp 5m Optical Fibre / Fiber Data Cable{}X66200-5 / 112-00328{}5m{}MPO / MPO;NetApp 5m Optical Fibre / Fiber Data Cable{}X66205-5 / 112-00260{}5m{}MPO / 4xLC;NetApp 15m Optical Fibre / Fiber Data Cable{}X66200-15 / 112-00330{}15m{}MPO / MPO;NetApp 30m Optical Fibre / Fiber Data Cable{}X66200-30 / 112-00331{}30m{}MPO / MPO;NetApp 30m Optical Fibre / Fiber Data Cable{}X66205-30 / 112-00261{}30m{}MPO / 4xLC;
| Description | Mktg / Mfg Part No | Length | End 1 / End 2 |
|---|
Ethernet 100Gbps (Op) Optical Transceiver X65406 with Supported Cables
| Description | Mktg / Mfg Part No | Length | End 1 / End 2 |
|---|---|---|---|
| NetApp XCVR Optical Fibre / Fiber Data Cable | X65406 / 332-00450, FTLC1155RGPL-N1, FTLC1155RGPL-NQ | XCVR | QSFP28 / LC |
| NetApp 5m LC/LC | X66260-5 / 112-00353 | 5m | LC / LC |
| NetApp 30m LC/LC | X66260-30 / 112-00354 | 30m | LC / LC |
Ethernet 100Gbps (Op) Optical Transceiver X65405 with Supported Cables
| Description | Mktg / Mfg Part No | Length | End 1 / End 2 |
|---|---|---|---|
| NetApp XCVR Optical Fibre / Fiber Data Cable | X65405 / 332-00440,AFBR-89CDDZ-NA1,AFBR-89CDDZ-NA2,AFBR-89CDHZ-NA1,AFBR-89CDHZ-NA2,FTLC9551REPM,FTLC9558REPM,FTLC9558REPM-N1,FTLC9558REPM-NQ | XCVR | QSFP28 / MPO |
| NetApp 2m Optical Fibre / Fiber Data Cable | X66200-2 / 112-00326 | 2m | MPO / MPO |
| NetApp 5m Optical Fibre / Fiber Data Cable | X66200-5 / 112-00328 | 5m | MPO / MPO |
| NetApp 15m Optical Fibre / Fiber Data Cable | X66200-15 / 112-00330 | 15m | MPO / MPO |
| NetApp 30m Optical Fibre / Fiber Data Cable | X66200-30 / 112-00331 | 30m | MPO / MPO |
Min OS
NetApp Min OS:
| OS | Platforms |
|---|---|
| ONTAP 9.9.1P8 | AFF A400, ASA AFF A400, |
| ONTAP 9.9.1P7 | AFF A400, ASA AFF A400, |
| ONTAP 9.9.1P4 | AFF A400, ASA AFF A400, |
| ONTAP 9.9.1P3 | AFF A400, ASA AFF A400, |
| ONTAP 9.9.1P2 | AFF A400, ASA AFF A400, |
| ONTAP 9.9.1P10 | AFF A400, ASA AFF A400, |
| ONTAP 9.9.1P1 | AFF A400, ASA AFF A400, |
| ONTAP 9.9.1 | AFF A400, ASA AFF A400, |
| ONTAP 9.9.1RC1 | AFF A400, ASA AFF A400, |
| ONTAP 9.8P9 | AFF A400, ASA AFF A400, |
| ONTAP 9.8P8 | AFF A400, ASA AFF A400, |
| ONTAP 9.8P7 | AFF A400, ASA AFF A400, |
| ONTAP 9.8P6 | AFF A400, ASA AFF A400, |
| ONTAP 9.8P5 | AFF A400, ASA AFF A400, |
| ONTAP 9.8P4 | AFF A400, ASA AFF A400, |
| ONTAP 9.8P3 | AFF A400, ASA AFF A400, |
| ONTAP 9.8P2 | AFF A400, ASA AFF A400, |
| ONTAP 9.8P11 | AFF A400, ASA AFF A400, |
| ONTAP 9.8P10 | AFF A400, ASA AFF A400, |
| ONTAP 9.8P1 | AFF A400, ASA AFF A400, |
| ONTAP 9.8 | AFF A400, ASA AFF A400, |
| ONTAP 9.8RC1 | AFF A400, ASA AFF A400, |
| ONTAP 9.7P9 | AFF A400, ASA AFF A400, |
| ONTAP 9.7P8 | AFF A400, ASA AFF A400, |
| ONTAP 9.7P7 | AFF A400, ASA AFF A400, |
| ONTAP 9.7P6 | AFF A400, ASA AFF A400, |
| ONTAP 9.7P5 | AFF A400, ASA AFF A400, |
| ONTAP 9.7P4 | AFF A400, ASA AFF A400, |
| ONTAP 9.7P3 | AFF A400, ASA AFF A400, |
| ONTAP 9.7P2 | AFF A400, ASA AFF A400, |
| ONTAP 9.7P19 | AFF A400, ASA AFF A400, |
| ONTAP 9.7P17 | AFF A400, ASA AFF A400, |
| ONTAP 9.7P16 | AFF A400, ASA AFF A400, |
| ONTAP 9.7P15 | AFF A400, ASA AFF A400, |
| ONTAP 9.7P14 | AFF A400, ASA AFF A400, |
| ONTAP 9.7P13 | AFF A400, ASA AFF A400, |
| ONTAP 9.7P12 | AFF A400, ASA AFF A400, |
| ONTAP 9.7P11 | AFF A400, ASA AFF A400, |
| ONTAP 9.7P10 | AFF A400, ASA AFF A400, |
| ONTAP 9.7P1 | AFF A400, ASA AFF A400, |
| ONTAP 9.7 | AFF A400, |
| ONTAP 9.7RC1 | AFF A400, |
| ONTAP 9.11.1RC1 | AFF A400, ASA AFF A400, |
| ONTAP 9.10.1P5 | AFF A400, ASA AFF A400, |
| ONTAP 9.10.1P3 | AFF A400, ASA AFF A400, |
| ONTAP 9.10.1P2 | AFF A400, ASA AFF A400, |
| ONTAP 9.10.1P1 | AFF A400, ASA AFF A400, |
| ONTAP 9.10.1 | AFF A400, ASA AFF A400, |
| ONTAP 9.10.1RC1 | AFF A400, ASA AFF A400, |
