HPE ProLiant ML350 Gen10 CTO Server

Part#:
ML350G10
Brand:
HPE
Type:
CTO Servers
Condition:
ECS Refurbished & Tested
Warranty:
ECS 1 Year Hardware Warranty

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Submit for Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Server Chassis

HPE Processors

Intel Xeon Bronze

Supports up to (2) processors

Intel Xeon Silver

Supports up to (2) processors

Intel Xeon Gold

Supports up to (2) processors

Intel Xeon Platinum

Supports up to (2) processors

HPE Memory

12 DIMMs per processor (up to 24 DIMMs in a dual-processor configuration)

HPE RAID Controllers

HPE SFF Drives SAS (2.5in)

HPE SFF Drives SATA (2.5in)

HPE LFF Drives SAS (3.5in)

HPE LFF Drives SATA (3.5in)

HPE M.2 Drives

Requires the M.2 universal enablement card kit (878783-B21)

HPE PCIe Drives

8 PCIe Slots (Full Height)

HPE Network Adapters

8 PCIe Slots (Full Height)

HPE Host Bus Adapter

8 PCIe Slots (Full Height)

HPE InfiniBand Adapter

8 PCIe Slots (Full Height)

HPE Power Supplies

Supports up to (2) PSU's

HPE Expansion

8 PCIe Slots (Full Height)

HPE Options

HPE Rail Kits

HPE Optical Drives

ECS Warranty

HPE ML350 Gen10 CTO Tower Server Product Description

ProLiant ML350 Gen10 leverages the Intel Xeon Scalable processors with up to 71% performance gain and 27% increase in cores, along with the 2933 MT/s or 2666 MT/s HPE DDR4 SmartMemory supports up to 3.0 TB and 11% faster than 2400 MT/s. The shorter re-designed rackable chassis with multiple upgrade options provides flexibility that can expand as your business needs grow. It supports 12 Gb/s SAS, NVMe SSD, embedded 4x1GbE NIC with a broad range of graphics and compute options. Supported by the HPE Pointnext industry-leading service organization, HPE ProLiant ML350 Gen10 server helps you transform to a digital business with more agility and all within your limited IT budget.

What's New for ML350 Gen10

  • Supports Intel's 2nd generation Xeon Scalable processor with 16% increase in performance and HPE DDR4 SmartMemory 2933 MT/s, providing a boost in processing performance and memory speed.
  • Supports mixed LFF and SFF drive cages within the same server for tiered storage, offering the flexibility to mix drive types for cost and capacity size considerations.
  • HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
  • Enhanced iLO 5 security features such as Server Configuration Lock, iLO Security Dashboard and Workload Performance Advisor.
  • High performance graphic processing unit (GPU) and high-speed GPU bridge support for graphic-intensive applications such as Virtual Desktop Infrastructure (VDI) and machine learning.
  • Supports the new NVIDIA Quadro P2200 and P1000 GPU cards.

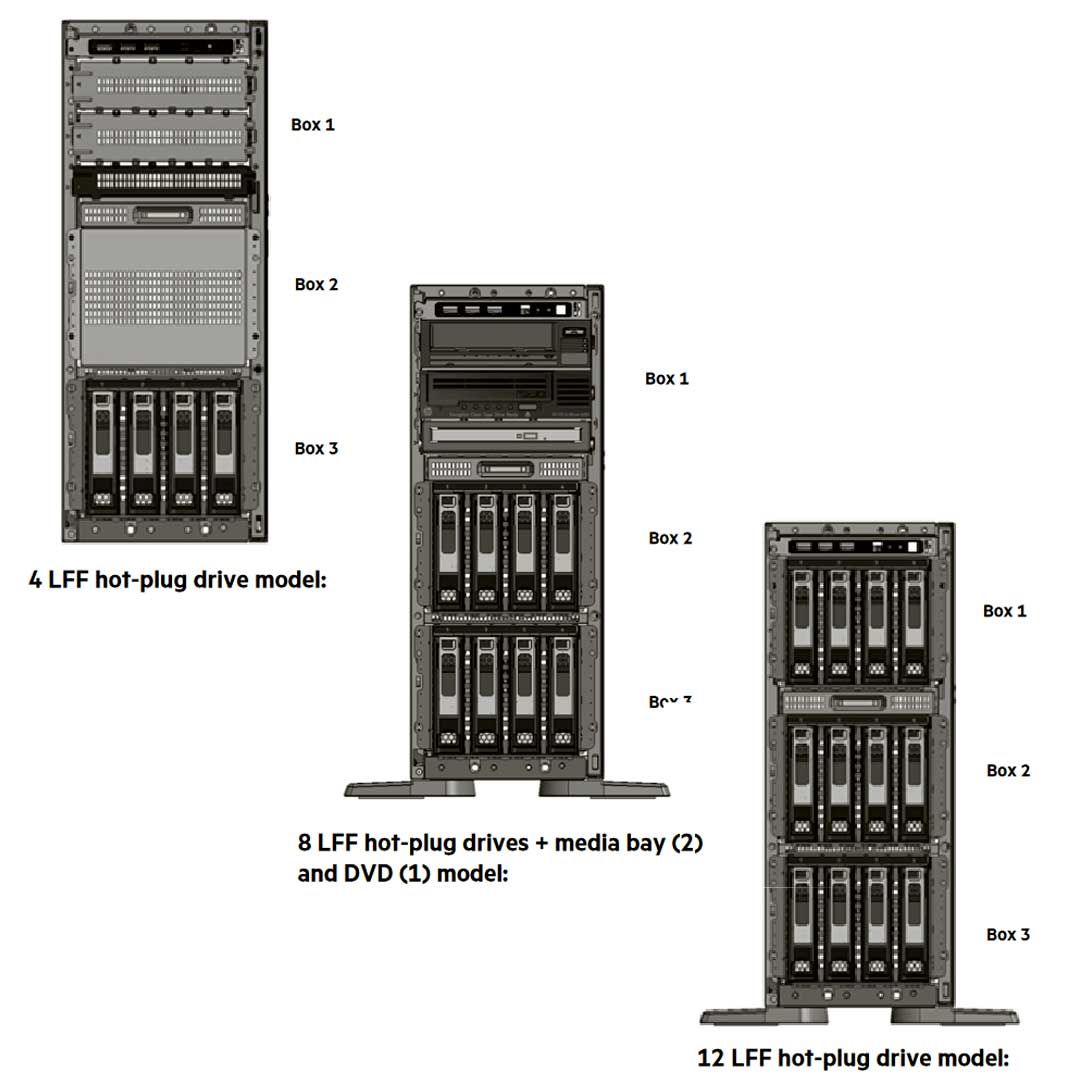

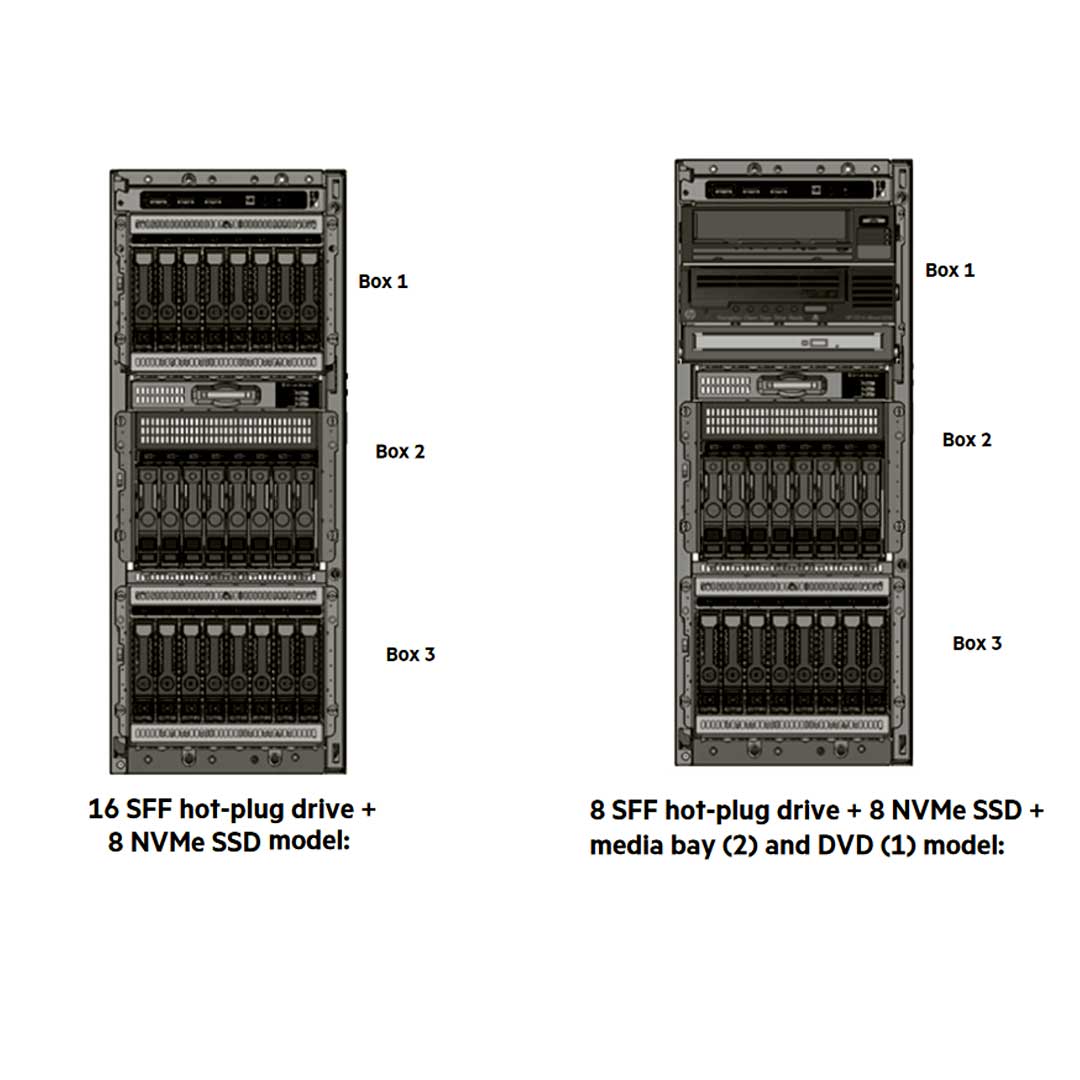

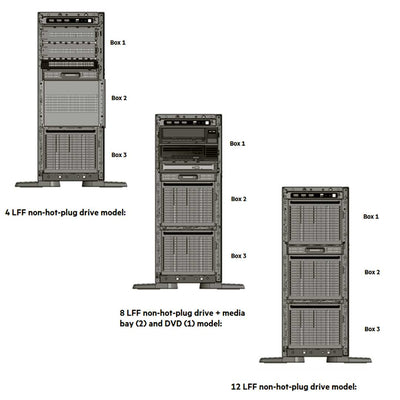

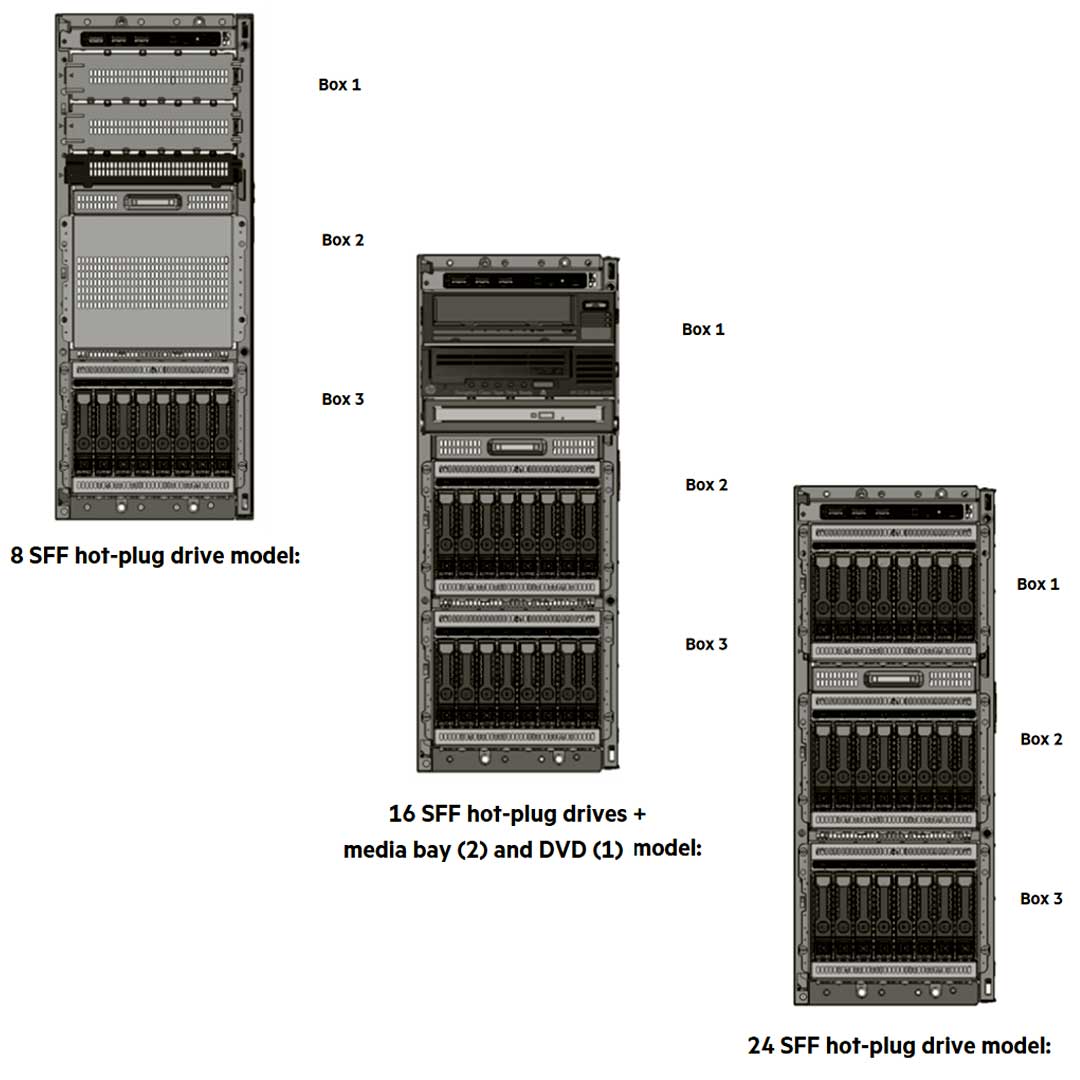

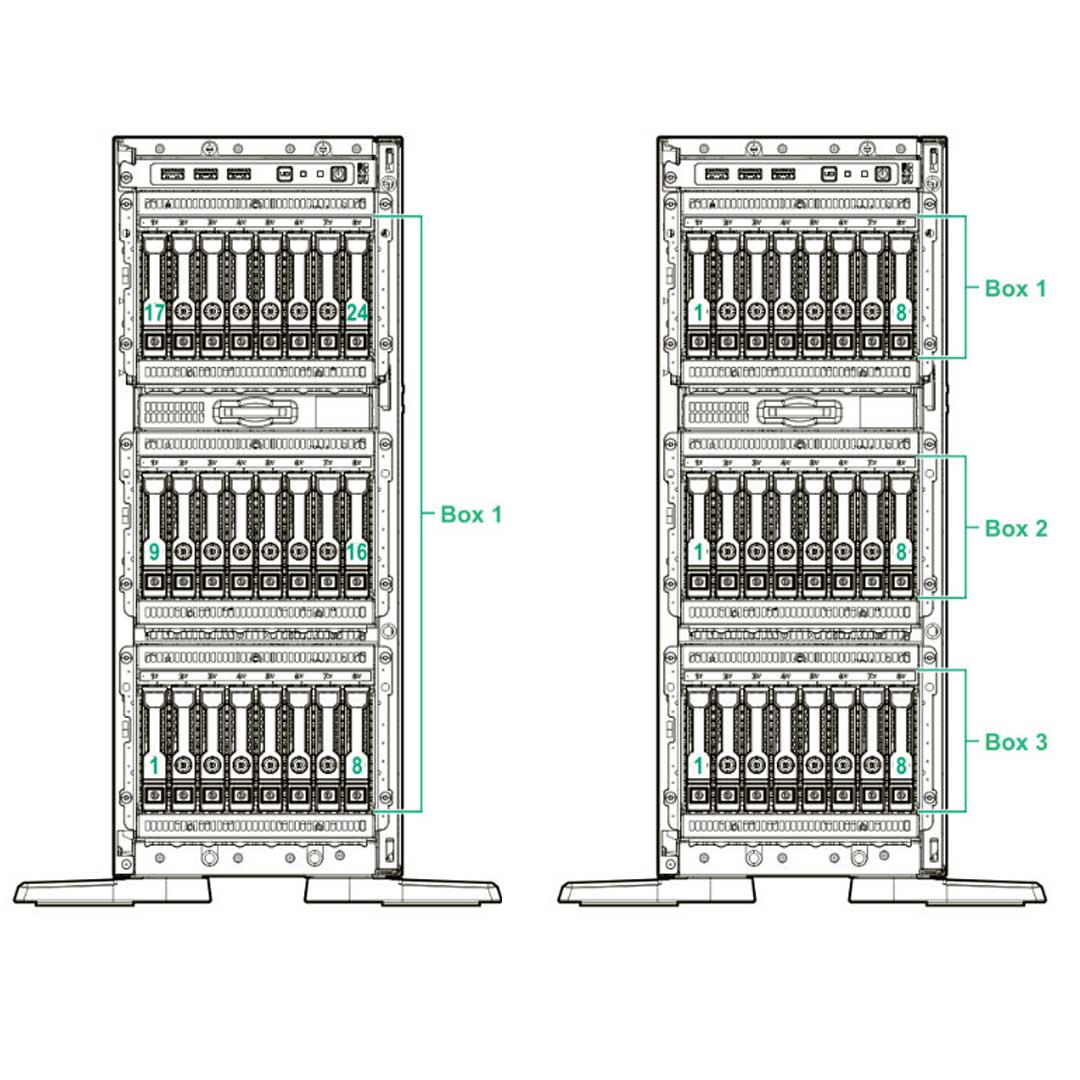

ML350 Gen10 12LFF 24SFF

ML350 Gen10 12LFF 24SFF

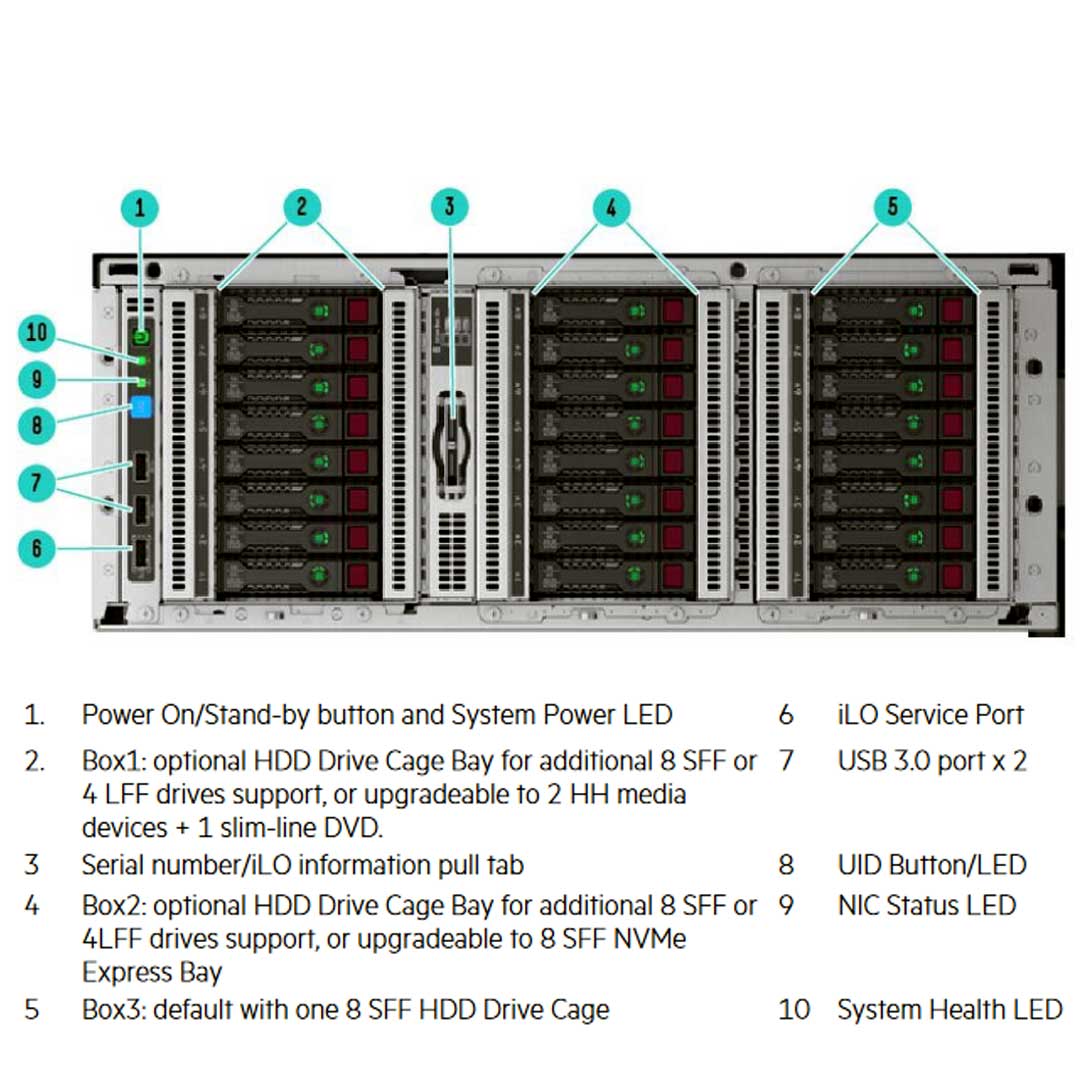

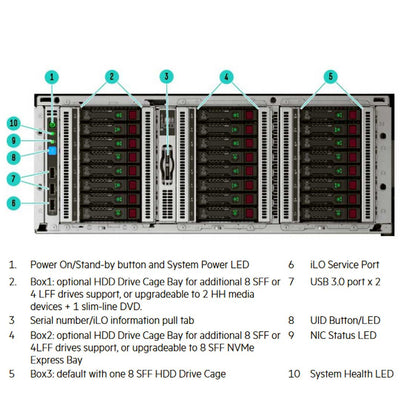

ML350 rack view

ML350 rack view

Perform with Unmatched Versatility

HPE ProLiant ML350 Gen10 server supports up to two Intel Xeon Scalable processors, starting from Bronze through Platinum, 4 cores expanding up to 28 core processors offering unparalleled performance.

Up to 24 DIMM slots to support the 2933 MT/s or 2600 MT/s HPE DDR4 SmartMemory, reducing data loss and downtime with the HPE Gen10 technology licensed Fast Fault Tolerance feature while increasing workload performance and power efficiency.

It supports a wide range of solutions from Azure to Docker to ClearOS along with the traditional operating systems.

GPU expansion supports up to four units to accelerate performance in VDI applications and machine learning for financial services, surveillance and security, educational and scientific research, as well as retail and medical imaging.

With the new addition of NVIDIA GV100 and NVLINK BRIDGE, NVIDIA Tesla 4 and NVIDIA RTX GPU option support, it transforms into a even more powerful AI Tower server with high-speed GPU connection, ray-tracing and AI.

Expand When Your Business Needs Grow

ProLiant ML350 Gen10 delivers expandability and flexibility with mixed LFF and SFF drive cages within the same server. Supporting 8 to 24 SFF or 16 SFF when mixed with 8 NVMe PCIe solid state drives, 4 to 12 LFF hot plug or non-hot plug drive protecting your IT investment in hybrid environment.

Large expansion capacity with eight PCIe slots, six USB ports, 5U rack conversion, and power supply options.

Embedded 4x1GbE and the choice of PCIe standup 1GbE, 10GbE or 25GbE adapters and Infiniband cards provide you the flexibility of networking bandwidth and fabric so you can scale and adapt to different needs as your business grows.

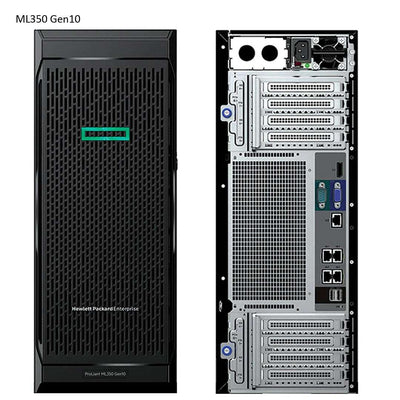

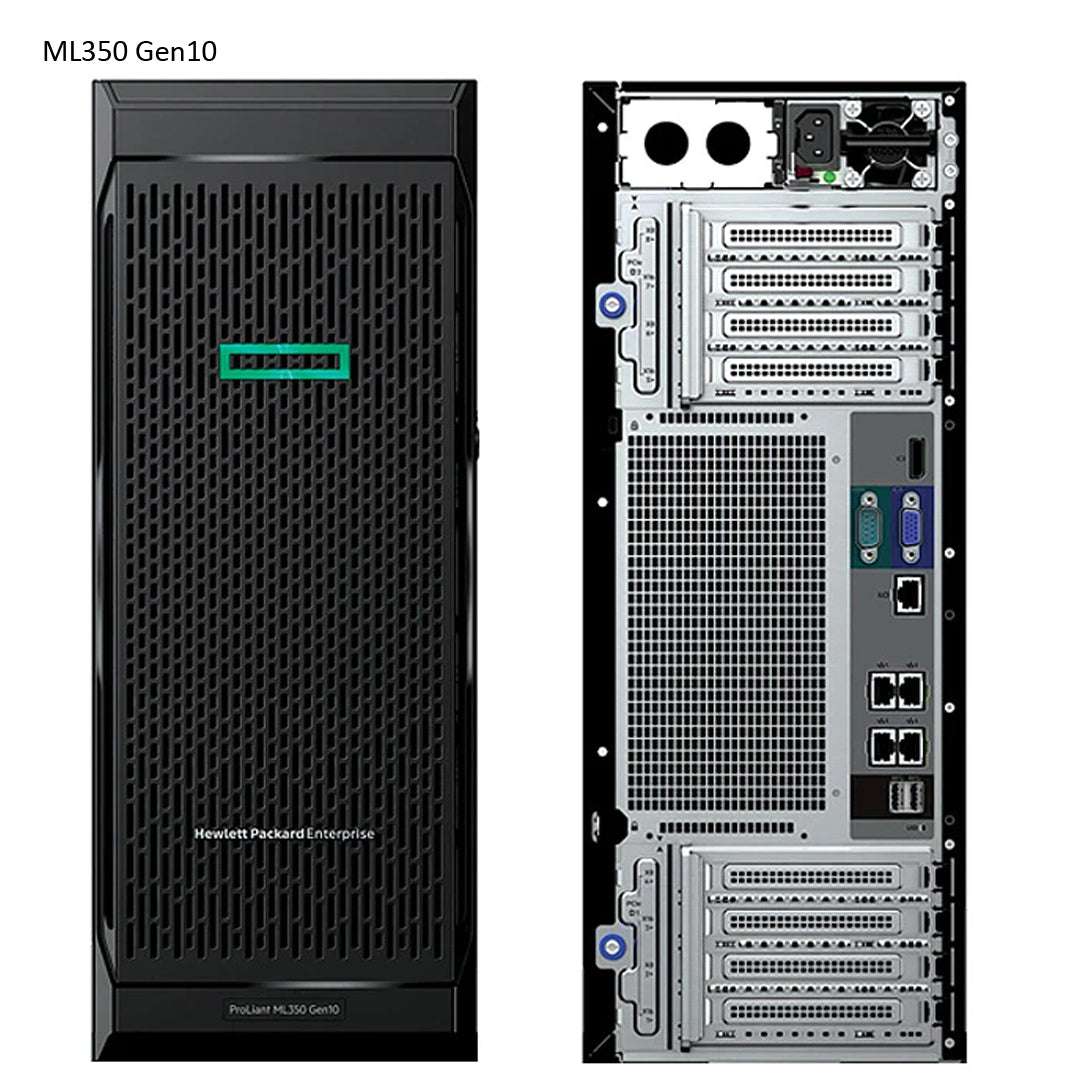

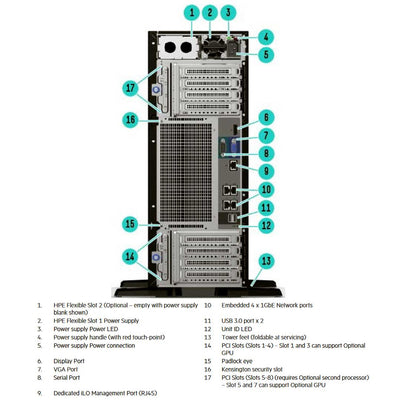

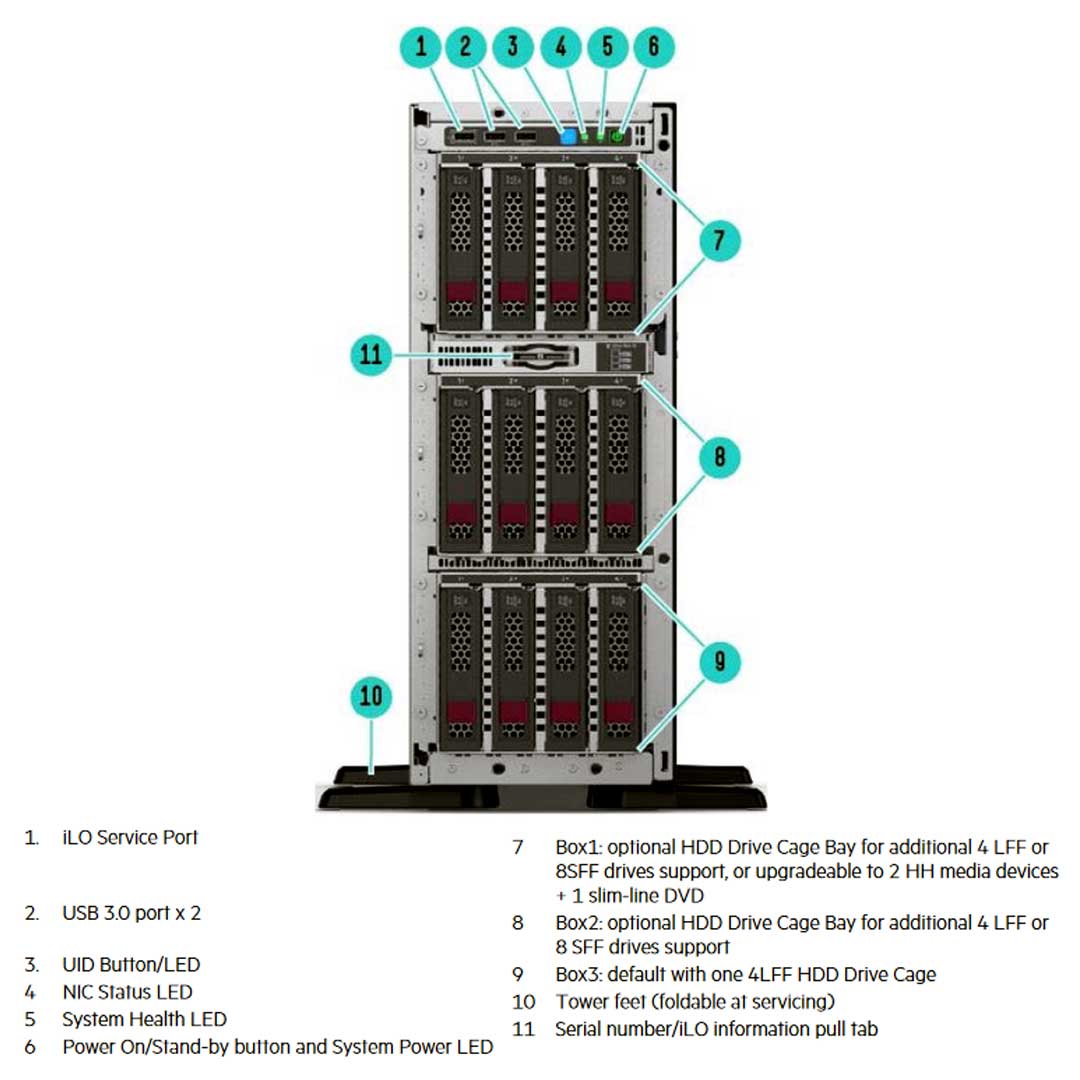

ML350 Gen10 front-back

ML350 Gen10 front-back

Product features

Feature
Description
Processors1
Intel First Generation Xeon Scalable Processors
Model
CPU frequency
Cores
L3 cache
Power
UPI
DDR4
Memory per socket
Platinum processors
Platinum 8180M processor
2.5 GHz
28
38.50MB
205 W
3 @ 10.4 GT/s
2666 MT/s
1.5TB
Platinum 8180 processor
2.5 GHz
28
38.50MB
205 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Platinum 8176M processor
2.1 GHz
28
38.50MB
165 W
3 @ 10.4 GT/s
2666 MT/s
1.5TB
Platinum 8176 processor
2.1 GHz
28
38.50MB
165 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Platinum 8170M processor
2.1 GHz
26
35.75MB
165 W
3 @ 10.4 GT/s
2666 MT/s
1.5TB
Platinum 8170 processor
2.1 GHz
26
35.75MB
165 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Platinum 8168 processor
2.7 GHz
24
33.00MB
205 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Platinum 8164 processor
2.0 GHz
26
35.75MB
150 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Platinum 8160M processor
2.1 GHz
24
33.00MB
150 W
3 @ 10.4 GT/s
2666 MT/s
1.5TB
Platinum 8160 processor
2.1 GHz
24
33.00MB
150 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Platinum 8158 processor
3.0 GHz
12
24.75MB
150 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Platinum 8156 processor
3.6 GHz
4
16.50MB
150 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Platinum 8153 processor
2.0 GHz
16
22.00MB
125 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold processors
Gold 6154 processor
3.0 GHz
18
24.75MB
200 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 6152 processor
2.1 GHz
22
30.25MB
140 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 6150 processor
2.7 GHz
18
24.75MB
165 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 6148 processor
2.4 GHz
20
27.50MB
150 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 6146 processor
3.2 GHz
12
24.75MB
165 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 6144 processor
3.5 GHz
8
24.75MB
150 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 6142M processor
2.6 GHz
16
22.00MB
150 W
3 @ 10.4 GT/s
2666 MT/s
1.5TB
Gold 6142 processor
2.6 GHz
16
22.00MB
150 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 6140M processor
2.3 GHz
18
24.75MB
140 W
3 @ 10.4 GT/s
2666 MT/s
1.5TB
Gold 6140 processor
2.3 GHz
18
24.75MB
140 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 6138 processor
2.0 GHz
20
27.50MB
125 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 6136 processor
3.0 GHz
12
24.75MB
150 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 6134M processor
3.2 GHz
8
24.75MB
130 W
3 @ 10.4 GT/s
2666 MT/s
1.5TB
Gold 6134 processor
3.2 GHz
8
24.75MB
130 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 6132 processor
2.6 GHz
14
19.25MB
140 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 6130 processor
2.1 GHz
16
22.00MB
125 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 6128 processor
3.4 GHz
6
19.25MB
115 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 6126 processor
2.6 GHz
12
19.25MB
125 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 5122 processor
3.6 GHz
4
16.50MB
105 W
3 @ 10.4 GT/s
2666 MT/s
768GB
Gold 5120 processor
2.2 GHz
14
19.25MB
105 W
3 @ 10.4 GT/s
2400 MT/s
768GB
Gold 5118 processor
2.3 GHz
12
16.50MB
105 W
3 @ 10.4 GT/s
2400 MT/s
768GB
Gold 5115 processor
2.4 GHz
10
13.75MB
85 W
3 @ 10.4 GT/s
2400 MT/s
768GB
Silver processors
Silver 4116 processor
2.1 GHz
12
16.50MB
85 W
2 @ 9.6 GT/s
2400 MT/s
768GB
Silver 4114 processor
2.2 GHz
10
13.75MB
85 W
2 @ 9.6 GT/s
2400 MT/s
768GB
Silver 4112 processor
2.6 GHz
4
8.25MB
85 W
2 @ 9.6 GT/s
2400 MT/s
768GB
Silver 4110 processor
2.1 GHz
8
11.00MB
85 W
2 @ 9.6 GT/s
2400 MT/s
768GB
Silver 4108 processor
1.8 GHz
8
11.00MB
85 W
2 @ 9.6 GT/s
2400 MT/s
768GB
Bronze processors
Bronze 3106 processor
1.7 GHz
8
11.00MB
85 W
2 @ 9.6 GT/s
2133 MT/s
768GB
Bronze 3104 processor
1.7 GHz
6
11.00MB
85 W
2 @ 9.6 GT/s
2133 MT/s
768GB
Intel Second Generation Xeon Scalable Processors
Intel Xeon Models
CPU Frequency
Cores
L3 Cache
Power
UPI
DDR4
Memory per socket
Platinum Processors
Platinum 8280L Processor
2.7 GHz
28
38.50MB
205 W
3 @ 10.4 GT/s
  • 2666 MT/s @ 2DPC

  • 2933 MT/s @ 1DPC

4.5TB
Platinum 8280M Processor
2.7 GHz
28
38.50MB
205 W
3 @ 10.4 GT/s
  • 2666 MT/s @ 2DPC

  • 2933 MT/s @ 1DPC

2TB
Platinum 8280 Processor
2.7 GHz
28
38.50MB
205 W
3 @ 10.4 GT/s
  • 2666 MT/s @ 2DPC

  • 2933 MT/s @ 1DPC

1TB
Platinum 8270 Processor
2.6 GHz
26
35.75MB
205 W
3 @ 10.4 GT/s
  • 2666 MT/s @ 2DPC

  • 2933 MT/s @ 1DPC

1TB
Platinum 8268 Processor
2.9 GHz
24
35.75MB
205 W
3 @ 10.4 GT/s
  • 2666 MT/s @ 2DPC

  • 2933 MT/s @ 1DPC

1TB
Platinum 8260L Processor
2.4 GHz
24
35.75MB
165 W
3 @ 10.4 GT/s
  • 2666 MT/s @ 2DPC

  • 2933 MT/s @ 1DPC

4.5TB
Platinum 8260M Processor
2.4 GHz
24
35.75MB
165 W
3 @ 10.4 GT/s
  • 2666 MT/s @ 2DPC

  • 2933 MT/s @ 1DPC

2TB
Platinum 8260Y Processor
2.4 GHz
24/20/16
35.75MB
165 W
3 @ 10.4 GT/s
  • 2666 MT/s @ 2DPC

  • 2933 MT/s @ 1DPC

1TB
Platinum 8260 Processor
2.4 GHz
24
35.75MB
165 W
3 @ 10.4 GT/s
  • 2666 MT/s @ 2DPC

  • 2933 MT/s @ 1DPC

1TB
Platinum 8256 Processor
3.8 GHz
4
16.50MB
105 W
3 @ 10.4 GT/s
  • 2666 MT/s @ 2DPC

  • 2933 MT/s @ 1DPC

1TB
Platinum 8253 Processor
2.2 GHz
16
22.00MB
125 W
3 @ 10.4 GT/s
  • 2666 MT/s @ 2DPC

  • 2933 MT/s @ 1DPC

1TB
Gold Processors
Gold 6254 Processor
3.1 GHz
18
24.75MB
200 W
3 @ 10.4 GT/s
  • 2666 MT/s @ 2DPC

  • 2933 MT/s @ 1DPC

1TB
Gold 6252 Processor
2.1 GHz
24
35.75MB
150 W
3 @ 10.4 GT/s
  • 2666 MT/s @ 2DPC

  • 2933 MT/s @ 1DPC

1TB
Gold 6248 Processor
2.5 GHz
20
27.50MB
150 W
3 @ 10.4 GT/s
  • 2666 MT/s @ 2DPC

  • 2933 MT/s @ 1DPC

1TB
Gold 6244 Processor
3.6 GHz
8
24.75MB
150 W
3 @ 10.4 GT/s
  • 2666 MT/s @ 2DPC

  • 2933 MT/s @ 1DPC

1TB
Gold 6242 Processor
2.8 GHz
16
22.00MB
150 W
3 @ 10.4 GT/s
  • 2666 MT/s @ 2DPC

  • 2933 MT/s @ 1DPC

1TB
Gold 6240 Processor
2.6 GHz
18
24.75MB
150 W
3 @ 10.4 GT/s
  • 2666 MT/s @ 2DPC

  • 2933 MT/s @ 1DPC

1TB
Gold 6230 Processor
2.1 GHz
20
27.50MB
125 W
3 @ 10.4 GT/s
  • 2666 MT/s @ 2DPC

  • 2933 MT/s @ 1DPC

1TB
Gold 6212U Processor
2.4 GHz
24
35.75MB
165 W
3 @ 10.4 GT/s
  • 2666 MT/s @ 2DPC

  • 2933 MT/s @ 1DPC

1TB
Gold 6210U Processor
2.5 GHz
20
27.5MB
150 W
3 @ 10.4 GT/s
  • 2666 MT/s @ 2DPC

  • 2933 MT/s @ 1DPC

1TB
Gold 5222 Processor
3.8 GHz
4
16.50MB
105 W
2 @ 10.4 GT/s
  • 2666 MT/s @ 2DPC

  • 2933 MT/s @ 1DPC

1TB
Gold 5220 Processor
2.2 GHz
18
24.75MB
125 W
2 @ 10.4 GT/s
2666 MT/s
1TB
Gold 5218 Processor
2.3 GHz
16
22MB
125 W
2 @ 10.4 GT/s
2666 MT/s
1TB
Gold 5218B Processor
2.3 GHz
16
22MB
125 W
2 @ 10.4 GT/s
2666 MT/s
1TB
Gold 5217 Processor
3.0 GHz
8
11MB
115 W
2 @ 10.4 GT/s
2666 MT/s
1TB
Gold 5215L Processor
2.6 GHz
10
13.75MB
85 W
2 @ 10.4 GT/s
2666 MT/s
4.5TB
Gold 5215M Processor
2.6 GHz
10
13.75MB
85 W
2 @ 10.4 GT/s
2666 MT/s
2TB
Gold 5215 Processor
2.5 GHz
10
13.75MB
85 W
2 @ 10.4 GT/s
2666 MT/s
1TB
Silver Processors
Silver 4216 Processor
2.1 GHz
16
22.00MB
100 W
2 @ 9.6 GT/s
2400 MT/s
1TB
Silver 4215 Processor
2.5 GHz
8
11.00MB
85 W
2 @ 9.6 GT/s
2400 MT/s
1TB
Silver 4214 Processor
2.2 GHz
12
16.50MB
85 W
2 @ 9.6 GT/s
2400 MT/s
1TB
Silver 4210 Processor
2.2 GHz
10
13.75MB
85 W
2 @ 9.6 GT/s
2400 MT/s
1TB
Silver 4208 Processor
2.1 GHz
8
11.00MB
85 W
2 @ 9.6 GT/s
2400 MT/s
1TB
Bronze Processors
Bronze 3204 Processor
1.9 GHz
6
8.25MB
85 W
2 @ 9.6 GT/s
2133 MT/s
1TB

top


Form factor
4U tower with rack conversion capability
Chassis types
  • 8 SFF chassis with optional SFF HDD cage kit (s), NVMe express bay, Half-Height (5.25) media bay up to2, and 1 Slim-Line DVD bay kit options

  • 4 LFF chassis with optional LFF HDD cage kit (s), Half-Height (5.25) media bay up to 2, and 1 Slim-Line DVD bay kit options

  • 4 LFF NHP chassis with optional LFF NHP HDD cage kit (s), Half-Height (5.25) media bay up to 2, and 1 Slim-Line DVD bay kit options

NOTE: The 8 SFF chassis can be upgraded with SFF HDD cage kit (s) to 16 or 24 SFF. Note a field upgrade to 24 SFF will require redundant fan kit (874572-B21)
System fans
Standard - Fan types included
Chipset
Intel C622 chipset
On system management chipset
HPE iLO 5 ASIC
Industry standard compliance
  • ACPI 6.1 compliant

  • PCIe 3.0 compliant

  • WOL support

  • Microsoft logo certifications

  • PXE support

  • VGA display port

  • USB 3.0 compliant

  • USB 2.0 compliant

  • Energy star

  • SMBIOS 3.1

  • UEFI 2.6

  • Redfish API

  • IPMI 2.0

  • Secure digital 2.0

  • Advanced Encryption Standard (AES)

  • Triple Data Encrytion Standard (3DES)

  • SNMP v3

  • TLS 1.2

  • DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)

  • Active directory v1.0

  • ASHRAE A3/A4

NOTE: For additional technical thermal details regarding ambient temperatures, humidity and features support ,visit: Click here to access the "HPE Information Library" .
ServerUEFI/legacy ROM
UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:
  • Secure boot and secure start enable for enhanced security

  • Operating system specific functionality

  • Support for > 2.2 TB (Using GPT) boot drives

  • USB 3.0 stack

  • Embedded UEFI shell

  • Mass configuration deployment Tool using iLO RESTful API that is Redfish API conformant

  • PXE boot support for IPv6 networks

  • Workload profiles for simple performance optimization

UEFI boot mode only:
  • TPM 2.0 support

  • NVMe boot support

  • Platform Trust Technology (PTT) can be enabled

  • iSCSI software initiator support

  • HTTP/HTTPs boot support as a PXE alternative

  • Boot support for option cards that only support a UEFI option ROM

NOTE:
  • For UEFI boot mode, boot environment and OS image installations should be configured properly to support UEFI

  • UEFI FIO setting (758959-B22) can be selected to configure the system in legacy mode in the factory for users HPEProLiant Gen10 Server

Interfaces
Serial
1 standard (At system rear)
VGA port
1 standard (At system rear)
Display port
1 standard (At system rear)
Embedded network ports
4 x 1Gb ports shipping standard, with optional stand up card
HPE iLO remote management network port
1Gb dedicated
Front iLO service port
1 standard
Micro SD slot
NOTE: The Micro SD slot is not a hot-pluggable device. Users should not attempt to plug an SD card into the SD slotwhile the server is powered
1 Micro SD (Internal)
USB 3.0/2.0
6 Total, standard: 2 front (USB 3.0), 2 rear (USB 3.0), 2 internal (1 x USB 3.0 and 1 x USB 2.0)
HPE server UEFI/legacy ROM
UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:
  • Secure boot and secure start enable for enhanced security

  • Operating system specific functionality

  • Support for > 2.2TB (Using GPT) boot drives

  • USB 3.0 stack

  • Embedded UEFI shell

  • Mass configuration deployment tool using iLO RESTful API that is Redfish API conformant

  • PXE boot support for IPv6 networks

  • Workload profiles for simple performance optimization

UEFI boot mode only:
  • TPM 2.0 support

  • NVMe boot support

  • PTT can be enabled

  • iSCSI software initiator support

  • HTTP/HTTPs boot support as a PXE alternative

  • Boot support for option cards that only support a UEFI option ROM

Embedded management
  • HPE Integrated Lights Out (HPE iLO)

  • UEFI

  • Intelligent Provisioning

  • iLO RESTful API

Server utilities
  • Active Health System

  • Active Health System Viewer

  • Smart update

  • iLO amplifier pack

  • HPE iLO mobile application

  • RESTful interface tool

  • Scripting tools

  • HPE OneView standard

  • HPE Systems Insight Manager (HPE SIM)

Graphics
Integrated video standard
  • Video modes up to 1920 x 1200-60 Hz (32 bp)

  • 16MB video memory

HPE iLO 5 on system management memory
  • 32MB flash

  • 4 Gbit DDR 3 with ECC protection

Memory
One of the following depending on model
Type
HPE DDR4 SmartMemory,Registered (RDIMM), Load Reduced (LRDIMM)
DIMM slots available
24
12 DIMM slots per processor, 6 channels per processor, 2 DIMMs per channel
Maximum capacity (LRDIMM)
3TB
24 x 128 GB LRDIMM - 2600 MT/s
Maximum capacity (RDIMM)
768GB
24 x 32 GB RDIMM - 2600 MT/s
Type
HPE DDR4 SmartMemory,Registered (RDIMM), Load Reduced (LRDIMM)
DIMM slots available
24
12 DIMM slots per processor, 6 channels per processor, 2 DIMMs per channel
Maximum capacity (LRDIMM)
3TB
24 x 128 GB LRDIMM - 2933 MT/s
Maximum capacity (RDIMM)
1.5GB
24 x 64 GB RDIMM - 2933 MT/s

Expansion slots
Slots #
Technology
Bus Width
Connector Width
Slot Form Factor
Notes
1
PCIe 3.0
X16
X16
Full-Height, Full-Length slot
Proc 1
2
PCIe 3.0
X4
X8
Full-Height, Full-Length slot
Proc 1
3
PCIe 3.0
X16
X16
Full-Height, Full-Length slot
Proc 1
4
PCIe 3.0
X4
X8
Full-Height, Full-Length slot
Proc 1
5
PCIe 3.0
X16
X16
Full-Height, Full-Length slot
Proc 2
6
PCIe 3.0
X8
X8
Full-Height, Full-Length slot
Proc 2
7
PCIe 3.0
X16
X16
Full-Height, Full-Length slot
Proc 2
8
PCIe 3.0
X8
X8
Full-Height, Full-Length slot
Proc 2

Storage controllers
For details on the HPE server memory options RAS feature, visit:
Software RAID
Essential RAID controller
Performance RAIDcontroller
  • HPE Smart Array S100i SR Gen10 SW RAID

  • HPE Smart Array E208i-a SR Gen10 Controller

  • HPE Smart Array E208i-p SR Gen10 Controller

  • HPE Smart Array E208e-p SR Gen10 Controller

  • HPE Smart Array P408i-a SR Gen10 Controller

  • HPE Smart Array P408i-p SR Gen10 Controller

  • HPE Smart Array P408e-p SR Gen10 Controller

  • HPE Smart Array P816i-a SR Gen10 Controller

  • HPE Smart Array P824i-p MR Gen10 Controller

NOTE:
  • Performance RAID controllers require the HPE Smart storage battery (P01367-B21) or HPE Smart storage hybrid capacitor (P02381-B21) which is sold separately
  • Separate cable kit will be required depending on configuration requirement. Refer to the later section for more information
Internal storage devices
One of the following depending on model
Optical drive:
  • Optional slim-line DVD-ROM/DVD-RW up to 1

  • Optional half-height (5.25 in) RDX or tape/LTO devices up to 2

Hard drives cages
  • 8 SFF Hot-Plug SAS/SATA HDD cages; upgradeable to 24 SFF drives

  • 4 LFF Hot-Plug SAS/SATA HDD cages; upgradeable to 12 LFF drives

  • 4 LFF Non-Hot-Plug SATA HDD cages; upgradeable to 12 LFF drives

  • 8 SFF PCIe NVMe Express Bay; upgradeable to 8 SFF NVMe SSDs

NOTE: All Pre-Configured models come with some hard drive blanks installed. Should the user need additional hard drive blanks, they can order more using either P/N 666987-B21: HPE SFF HDD blank kit or P/N 807878-B21: HPE LFF HDD spade blank Gen9 Kit. HDD blanks are not needed in the NHP LFF system
Power supply
  • HPE 500 W Standard Non-Hot-Plug Power Supply Kit

  • HPE 500 W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

  • HPE 800 W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

  • HPE 1600 W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Maximum internal storage
Internal Storage
Capacity
Configuration
Hot Plug SFF SAS
48.0TB
24 x 2TB
Hot Plug SFF SATA
48.0TB
24 x 2TB
Hot Plug LFF SAS
168.0TB
12 x 14TB
Hot Plug LFF SATA
168.0TB
12 x 14TB
Hot Plug SFF SAS SSD
184.32TB
24 x 7.68TB
Hot Plug SFF SATA SSD
92.16TB
24 x 3.84TB
Hot Plug LFF SAS SSD
46.08TB
12 x 3.84TB
Hot Plug LFF SATA SSD
46.08TB
12 x 3.84TB
Non Hot Plug LFF SATA
48.0TB
12 x 4TB
Hot Plug SFF NVMe PCIe SSD
32TB NVMe
8 x 2TB NVMe
NOTE: NHP LFF SKU supports SATA hard disk drives only.

top

Software overview

Feature
Description
Operating systems and virtualization software support
  • Windows Server 2012 R2

  • Windows Server 2016

  • Microsoft Hyper-V Server 2016 LTSC

  • Windows Server 2019 LTSC

  • Microsoft Hyper-V Server 2012 R2, 2016 & 2019

  • VMware vSphere 6.0 U3, 6.5 U2 & 6.7 U1

  • Red Hat Enterprise Linux (RHEL) 7.6 with Kbase (includes KVM)

  • SUSE Linux Enterprise Server (SLES) 12 SP3, 12 SP4, 15, (includes KVM)

  • ClearOS/ClearVM 7.6, 8.0

NOTE: ClearOS allows user to build a fully functional server that is just right for user at no upfront cost: Click here to access the "ClearOS Software from HPE" for more information .

top

Physical specifications

Specification
Description
Dimensions (H x W x D)
Tower: 46.25 x 17.4 x 64.8 cm (18.2 x 6.85 x 25.51 in)
Rack - System:17.4 x 44.5 x 64.8 cm (6.85 x 17.52 x 25.51 in)
Tower-to-Rack conversion kit (1U):
Depth without CMA: 4.445 x 45.2 x 69.2 cm (1.75 x 17.795 x 27.23 in)
Depth with CMA: 4.445 x 45.2 x 83.5 cm (1.75 x 17.795 x 32.89 in)
Weight (Approximate)
Minimum: 21 kg (46.30 lb)
Maximum: 42 kg (92.59 lb)

top

Electrical specifications

Specification
Description
Rated line voltage
  • 100 to 120 V ac

  • 200 to 240 V ac

BTU Rating
  • For 800 W power supply: 3067 BTU/hr (At 100 V ac), 2958 BTU/hr (At 200 V ac), 2949 BTU/hr (At 240 V ac)

  • For 500 W power supply: 1902 BTU/hr (At 100 V ac), 1840 BTU/hr (At 200 V ac), 1832 BTU/hr (At 240 V ac)

  • For 1600 W power supply: 5918 BTU/hr (At 200 V ac), 5884 BTU/hr (At 240 V ac)

Power supply output
Rated Steady-State Power
Maximum Peak Power
  • For 1600 W power Supply: 1600 W (At 240 V ac), 1600 W (At240 V ac)

  • For 800 W Power Supply: 800 W (At 100 V ac), 800 W (At 240 V ac), 800 W (At 240 V ac)

  • For 500 W Power Supply: 500 W (At 100 V ac), 500 W (At 240 V ac), 500 W (At 240 V ac)

  • For 1600 W Power Supply: 1600 W (At 200 to 240 V ac),1600 W (At 240 V ac)

  • For 800 W Power Supply: 800 W (At 100 to 127 V ac), 800 W(At 200 to 240 1V ac), 800 W (At 240 V ac)

  • For 500 W Power Supply: 500 W (At 100 to 127 V ac), 500 W(At 200 to 240 V ac), 500 W (At 240 V ac)

top

Environmental specifications

Specification
Description
Standard operating temperature
10° to 35° C (50° to 95° F)
Extended ambient operating temperature
5° to 10° C (41° to 50° F)
Non-operating temperature
-30° to 60° C (-22° to 140° F)
Operating relative humidity
8% to 90%
Non-operating relative humidity
5% to 95%
Operating altitude
3050 m (10,000 ft)
Non-operating altitude
9144 m (30,000 ft)
Acoustic noise
Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109)
Idle
Operating
LWAd
  • 4.0 B Entry
  • 3.9 B Base
  • 4.4 B Perf
LpAm
  • 28 dBA Entry
  • 27 dBA Base
  • 31 dBA Perf
LWAd
  • 4.2 B Entry
  • 4.3 B Base
  • 4.4 B Perf
LpAm
  • 29 dBA Entry
  • 30 dBA Base
  • 32 dBA Perf
NOTE:
  • Acoustics levels presented here are generated by the test configuration only. Acoustics levels will vary depending on system configuration. Values are subject to change without notification and are for reference only.
  • Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.
  • The Listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels, for example, higher-end Graphic Processing Units (GPU), NVMe SSDor NVMe M.2

top

Safety certifications

Specification
Description
Emissions Classification (EMC)
To view the regulatory information for users product, view the safety and compliance information for Server, Storage, Power, Networking, and Rack products.

top
