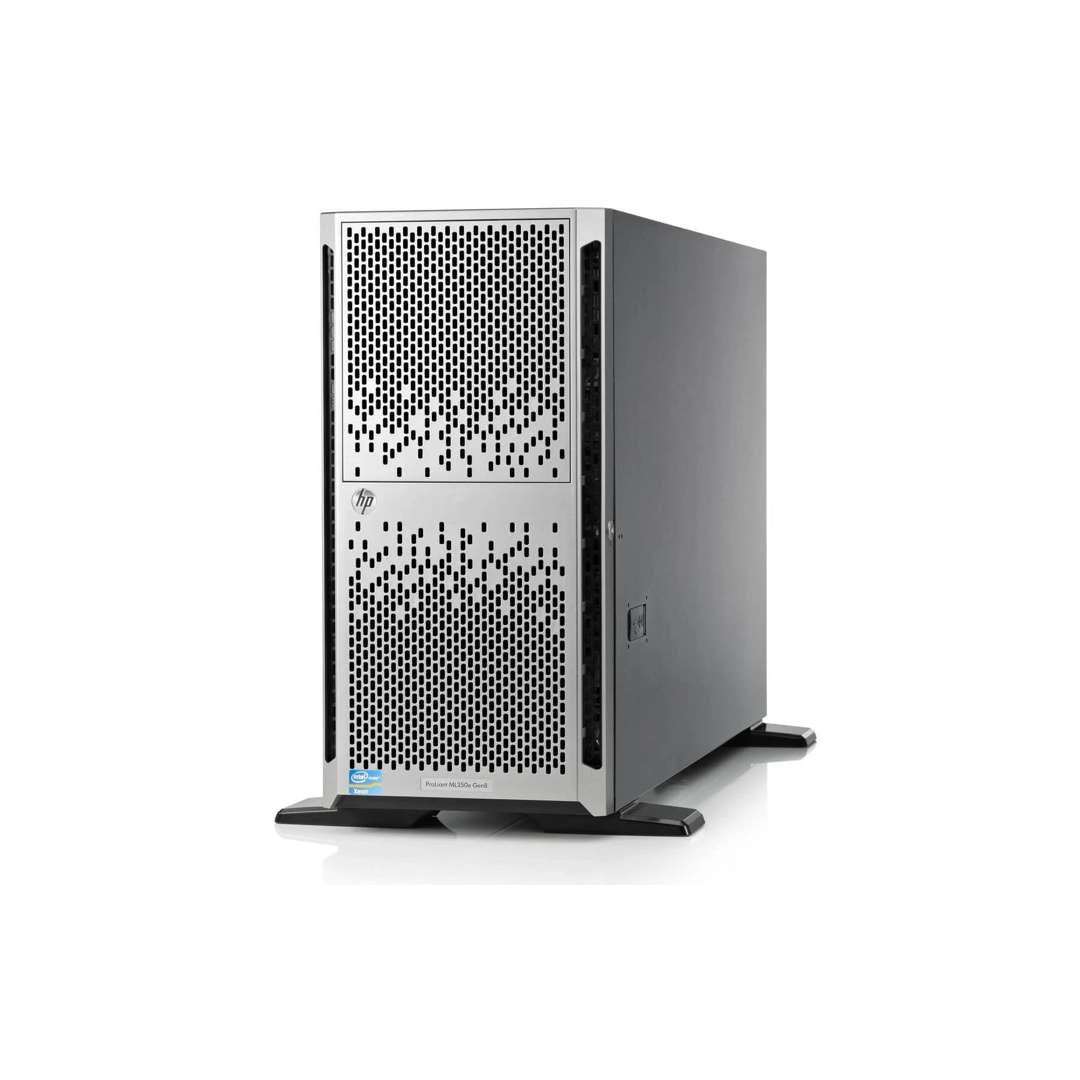

HPE ProLiant ML350e Gen8 CTO Server

Part#:
ML350EG8
Brand:
HPE
Type:
CTO Servers
Condition:
ECS Refurbished & Tested

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Submit for Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Server Chassis

Please reach out to us for Rack Mountable chassis options

HPE Processors

Intel Xeon E5-2400

Supports up to (2) processors - View product features for supported memory

HPE Memory

6 DIMMs per processor (up to 12 DIMMs in a dual-processor configuration)

HPE RAID Controllers

HPE SFF Drives SAS (2.5in)

HPE SFF Drives SATA (2.5in)

HPE LFF Drives SAS (3.5in)

HPE LFF Drives SATA (3.5in)

HPE Network Adapters

6 PCIe Slots (Full Height)

HPE Host Bus Adapter

6 PCIe Slots (Full Height)

HPE Power Supplies

Supports up to (2) PSU's - Redundant Enablement Kit (part # 664046-B21) is required for any common slot power supply

HPE Options

HPE Optical Drives

HPE Security

ECS Warranty

ML350e Gen8 Product Description

The HPE ProLiant ML350e Gen8 is a dual processor tower platform, which is built on the latest Intel Xeon E5-2400 processors to create unique system architecture. The HPE ProLiant ML350e Gen8 delivers the industry's most powerful embedded management technology with HPE integrated Lights-Out 4 (iLO4), which allows businesses to manage the servers anytime and from anywhere.

What's New for ML350e Gen8

  • Support for 12G SAS High Endurance Hot Plug SFF (2.5-inch) Enterprise Performance and Enterprise Mainstream Solid State Drives
ML350e v2 Gen8 rack view

ML350e Gen8 rack view

First Class Performance

Powered by Intel Xeon E5-2407 quad-core, quad-thread processor and 4GB DDR3 memory, the HP ProLiant ML350e Gen8 tower server system delivers substantial computing power to address demanding applications.

Flexible design provides low-cost expansion capabilities as your business grows giving you the flexibility of adding a second processor, additional hard drive space, more memory, and more storage.

ML350e Gen8 front-back

ML350e Gen8 front-back

Product features

Feature
Description
Processor (one of the following depending on model)
Eight-core processors 1
  • Intel Xeon E5-2470 (2.3 GHz/8-core/95 W/20MB) Processor
  • Intel Xeon E5-2450 (2.1 GHz/8-core/95 W/20MB) Processor
  • Intel Xeon E5-2450L (1.8 GHz/8-core/70 W/20MB) Processor
Six-Core processors 2
  • Intel Xeon E5-2440 (2.4 GHz/6-core/95 W/15MB) Processor

  • Intel Xeon E5-2430 (2.2 GHz/6-core/95 W/15MB) Processor

  • Intel Xeon E5-2430L (2.0 GHz/6-core/60 W/15MB) Processor

  • Intel Xeon E5-2420 (1.9 GHz/6-core/95 W/15MB) Processor

Quad-Core processors 3
  • Intel Xeon E5-2407 (2.2 GHz/4-core/80 W/10MB) Processor

  • Intel Xeon E5-2403 (1.8 GHz/4-core/80 W/10MB) Processor

Cache memory (one of the following depending on model)
  • 20MB (1 x 20MB) Level 3

    4
  • 15MB (1 x 15MB) Level 3

    5
  • 10MB (1 x 10MB) Level 3

    6
Chipset
  • Intel C600 Chipset

  • Intel E5-2400 Processor Family

    7
Upgradeability
  • Upgradeable to two processors

    8
  • Up to 12 DIMM slots available for higher memory capacity

  • Up to 24 SFF hard drives or 18 LFF hard drives for expanded storage

  • 4 PCIe 3.0 and 2 PCIe 2.0 I/O slots for additional communications and storage expansion

  • Redundant Power Supplies (92% and 94% efficiency)

  • Tower to rack conversion

  • Optical drive bays (up to 2)

  • Security bezel

On system management chipset
HPE iLO (Firmware: HPE iLO4)9
Memory protection
  • Advanced ECC

  • Online Spare

  • Lock-step mode

Memory (one of the following depending on model)10
Type
HPE SmartMemory DDR3 Registered (RDIMM) or Unbuffered (UDIMM)
DIMM Slots Available
12 DIMM slots (6 DIMM slots per CPU)
Standard (Entry Models)
2GB (1 x 2GB) Unbuffered DIMMs PC3L-10600E
Standard (Base Models)
4GB (1 x 4GB) Unbuffered DIMMs PC3L-10600E
Standard (Performance Models)
8GB (2 x 4GB) Unbuffered DIMMs PC3L-10600E
Maximum Capacity (RDIMM)
192GB (12 x 16GB) RDIMMM
Maximum Capacity (UDIMM)
96 GB (12 x 8GB) UDIMM
Network controller
HPE Ethernet 1Gb 2-port 361i Adapter
Internal storage devices 11
Optical drives (One of the following depending on model)
HPE Half-Height SATA DVD-ROM Optical Drive
Hard drives
None ship standard
Hard drive bays (One of the following depending on model)
Up to 24 SFF hard drive bays or 18 LFF hard drive bays
Maximum internal storage (one of the following depending on model)
Hot Plug LFF SAS
54TB
18 x 3TB
Hot Plug LFF SATA
54TB
18 x 3TB
Hot Plug SFF SAS
28.8TB
24 x 1.2TB
Hot Plug SFF SATA
24TB
24 x 1TB
Non-Hot Plug LFF SATA
12TB
4 x 3TB
Hot Plug SFF SAS SSD
2.4TB
24 x 100GB
Hot Plug LFF SATA SSD
1.8TB
18 x 100GB
Interfaces 12
  • (1) Serial

  • (1) Video (rear)

  • (3) Network RJ-45 (1 dedicated for HPE Integrated Lights-Out)

  • HPE iLO Remote Management Network Port (1Gb dedicated)

  • (1) SD slot (internal)

  • (10) USB (4 front, 4 rear, 2 internal)

System fans 13
Two (2) Non-hot plug, non-redundant fans ship standard (support up to 4 fans).
Graphics
Integrated Matrox G200 video standard
  • 1280 x 1024 (32 b/p)

  • 1920 x 1200 (16 b/p)

HPE iLO 4 On System Management Memory
  • 16 MB Flash

  • 256 MB DDR 3 with ECC (112 MB after ECC and video)

Form factor
  • Tower 5U

  • Rackable with the purchase of tower to rack conversion tray kit

Industry standard compliance
  • ACPI 2.0b Compliant

  • PCIe 3.0 Compliant

  • PXE Support

  • WOL Support

  • Novell Certified

  • IPMI 2.0, SMASH CLP, DCMI 1.0 compliant

  • Microsoft Logo certifications

  • USB 2.0 Support

  • SMBIOS 2.7.1

NOTE: 1. All support up to 1600 MHz DDR3 memory speeds.

2. All support up to 1333 MHz DDR3 memory speeds.

3. All support up to 1066 MHz DDR3 memory speeds.

4. For Eight-core processors.

5. For Six-core processors.

6. For Quad-core processors.

7. Click here for more information regarding Intel chipsets Non-HPE site .

Disclaimer: One or more of the links above will take you outside the Hewlett-Packard Enterprise web site, HPE does not control and is not responsible for information outside of the HPE web site.

8. Total 8, 12 or 16 cores.

9. Click here for more information on HPE iLO Management Engine .

10. Click here for Memory Population table or the Online Memory Configuration tool

11. All Pre-configured Models come populated with some hard drive blanks installed. Should the customer need additional hard drive blanks, they can order more using either P/N 666987-B21: HPE SFF Gen8 Hard Drive Blank Kit or P/N 666986-B21: HPE LFF Gen8 Hard Drive Blank Kit. These part numbers for single HDD blanks below are also provided should the customer require replacement HDD blanks for their server.

12. The SD slot is not a hot-pluggable device. User should not attempt to plug an SD card into the SD slot while the server is powered.

13.Redundant Enablement Kit (part # 664046-B21) is required when redundant fans are needed.

top

Software overview

Feature
Description
Operating systems and virtualization software support for ProLiant Servers
  • Microsoft Windows Server

  • Red Hat Enterprise Linux (RHEL)

  • SUSE Linux Enterprise Server (SLES)

  • VMware

Other software
HPE Insight Management software
For more information on Operating systems and virtualization software support for ProLiant Servers, click here to visit the Operating System product site .

top

Physical specifications

Specifications
Description
Dimensions (H x W x D) (with feet/bezel)
46.2 x 21.8 x 74.0 cm (18.19 x 8.58 x 29.13 in)
Weight (approximate)
  • Maximum (all hard drives, power supplies, and processors installed)

    • 43.85 kg (96.67 lb)

  • Minimum (one hard drive, power supply, and processor installed)

    • 25.95 kg (57.21 lb)

top

Electrical specifications

Specifications
Description
Input requirements (per power supply)
Rated line voltage
100 to 240 V ac
Rated input current
7.1 A (at 120 V ac) to 3.5 A (at 240 V ac)
Rated input frequency
50 to 60 Hz
Rated input power
852 W
Power supply output (per power supply)
Rated steady-state power
  • 460 (750) W (at 100 V ac)

  • 460 (750) W (at 200 V ac)

Maximum peak power
  • 460 (750) W (at 100 V ac)

  • 460 (750) W (at 200 V ac)

BTU rating (maximum)
  • 460 W

    • 1773 BTU/hr (at 120 V ac)

    • 1715 BTU/hr (at 240 V ac)

  • 750 W

    • 2892 BTU/hr (at 120 V ac)

    • 2797 BTU/hr (at 240 V ac)

  • 1200 W

    • 3530 BTU/hr (at 120 V ac)

    • 4600 BTU/hr (at 240 V ac)

top

Environmental specifications

Specifications
Description
System inlet temperature
Operating
10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per 304.8 m (1.8°F per 1000 ft) above sea level to a maximum of 3048 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed.
System performance may be reduced if operating with a fan fault or above 30°C (86°F).
Non-operating
-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr)
Relative humidity (non-condensing)
Operating
10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.
Non-operating
5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.
Altitude
Operating
3048 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min)
Non-operating
9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min)
Acoustic noise 1
Idle
  • L WAd

    • 4.2 B (Entry models)

    • 4.2 B (Base models)

  • L pAm

    • 26 dB (Entry models)

    • 25 dB (Base models)

Operating
  • L WAd

    • 4.2 B (Entry models)

    • 4.3 B (Base models)

  • L pAm

    • 26 dB (Entry models)

    • 26 dB (Base models)

Emissions classification 2 (EMC)
FCC rating
Class B
Normative standards
CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1
NOTE: 1. Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C (73.4ºF) ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).

Configurations tested for entry models included Windows 2008 Enterprise 64-bit.

Configurations tested for base models included one (1) 1TB non-hot plug LFF SATA HDD and Windows 2008 Enterprise 64-bit.

The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels.

2. Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

top
