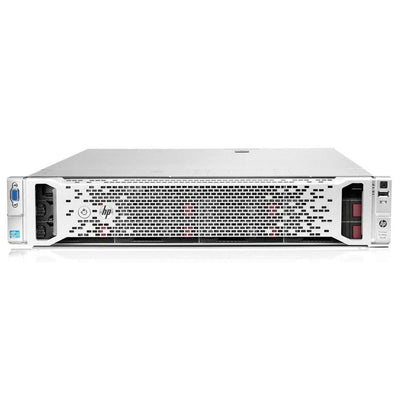

HPE ProLiant DL380p Gen8 CTO Rack Server

Part#:
DL380PG8
Brand:
HPE
Type:
CTO Servers
Condition:
ECS Refurbished & Tested

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Submit for Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Server Chassis

HPE Processors

Intel Xeon E5-2600

Supports up to (2) processors - View product features for supported memory

Intel Xeon E5-2600v2

Supports up to (2) processors - View product features for supported memory

HPE Memory

12 DIMMs per processor (up to 24 DIMMs in a dual-processor configuration)

HPE RAID Controllers

HPE SFF Drives SAS (2.5in)

HPE SFF Drives SATA (2.5in)

HPE LFF Drives SAS (3.5in)

HPE LFF Drives SATA (3.5in)

HPE PCIe Drives

6 PCIe Slots (Full Height)

HPE Network Adapters

6 PCIe Slots (Full Height)

HPE Host Bus Adapter

6 PCIe Slots (Full Height)

HPE FlexibleLOM Adapter

HPE InfiniBand Adapter

6 PCIe Slots (Full Height)

HPE Power Supplies

Supports up to (2) PSU's

HPE Expansion

6 PCIe Slots (Full Height)

HPE Options

HPE Rail Kits

HPE Optical Drives

HPE Security

ECS Warranty

HPE DL380p Gen8 CTO Rack Server Product Description

The HP ProLiant DL380p Gen8 sets the next generation standards of 2U 2-socket rack servers for the industry. With enhanced configuration flexibility, unmatched performance, and leading energy efficient design the DL380p Gen8 offers the perfect solution for the dynamic compute requirements of today's demanding data centers.

HP ProLiant DL380p Gen8 Server THE no-compromise data center standard for 2U two-socket rack servers. The HP ProLiant DL380p Gen8 Server offers increased performance via higher core processors, an increased memory footprint, a variety of internal storage capacities, FlexibleLOM network solutions, and a powerful embedded HP Smart Array technology (P420i). Besides improving expandability and flexibility, HP designers also enhanced  erviceability with improved PCIe riser solutions, HP Smart technology, and easier-to-service cabling creating the perfect solution for dynamic compute requirements of growing small businesses as well as demanding data centers.

What's New for DL380p Gen8

  • Intel Xeon E5-2600 v2 Series Processors

  • 1866 MHz DDR3 Memory

  • New FlexibleLOM Adapters including the HP FlexFabric 10Gb 2-port 533FLR-T Adapter

  • New Smart Array P430 & P431 Controllers

  • 96% Efficient Titanium Power Supply

  • 3TB ioDrive2 IO Accelerator

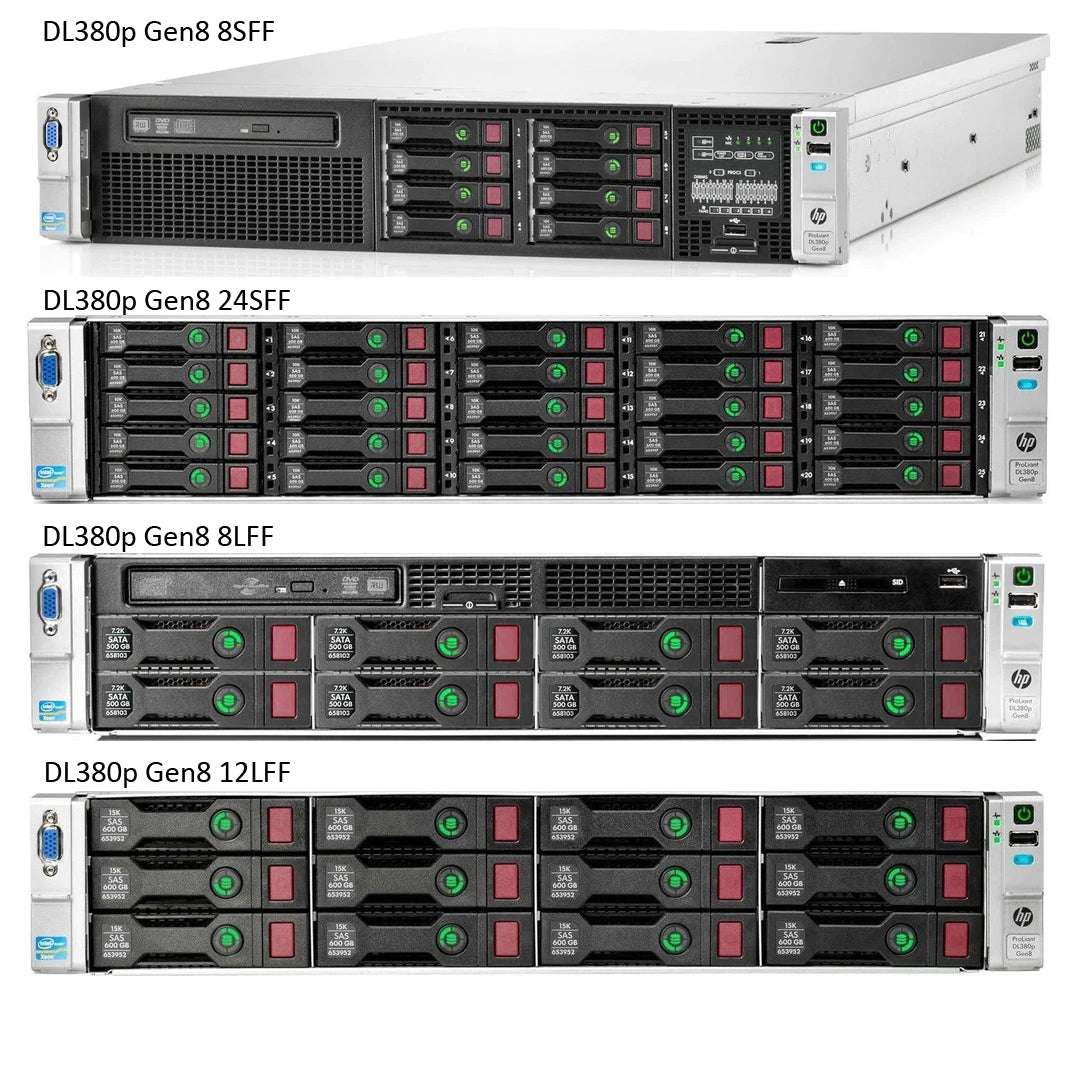

DL380p Gen8  8SFF

DL380p Gen8  8SFF

DL380p Gen8 24SFF

DL380p Gen8 24SFF

Improved Capacity and Performance on Compute and Storage

Intel Xeon processor E5-2600 v2 product family offers increased performance, improved security and efficiency; ideal for demanding workloads.

HPE SmartMemory, with speeds up to 1866MHz, prevents data loss and downtime with enhanced error handling while improving workload performance and power efficiency.

GPU compute support to maximize performance HPE SmartCache, a controller-based caching solution, caches hot data onto lower latency SSDs providing up to 4x better workload performance.

DL380p Gen8 8LFF

DL380p Gen8 8LFF

DL380p Gen8 12LFF

DL380p Gen8 12LFF

Energy Efficiency by Design

HPE Common Slot Power Supplies provide a new level of efficiency with 80 PLUS Titanium certification (96%) and new infrastructure power efficiencies with 277VAC and 380VDC input voltages.

First in industry to include 3D array of temperature sensors to help precisely control server fans to direct cooling and reduce unnecessary fan power, saving on cooling costs.

ENERGY STAR qualified server configurations illustrate HP’s continued commitment to helping customers conserve energy and save money.

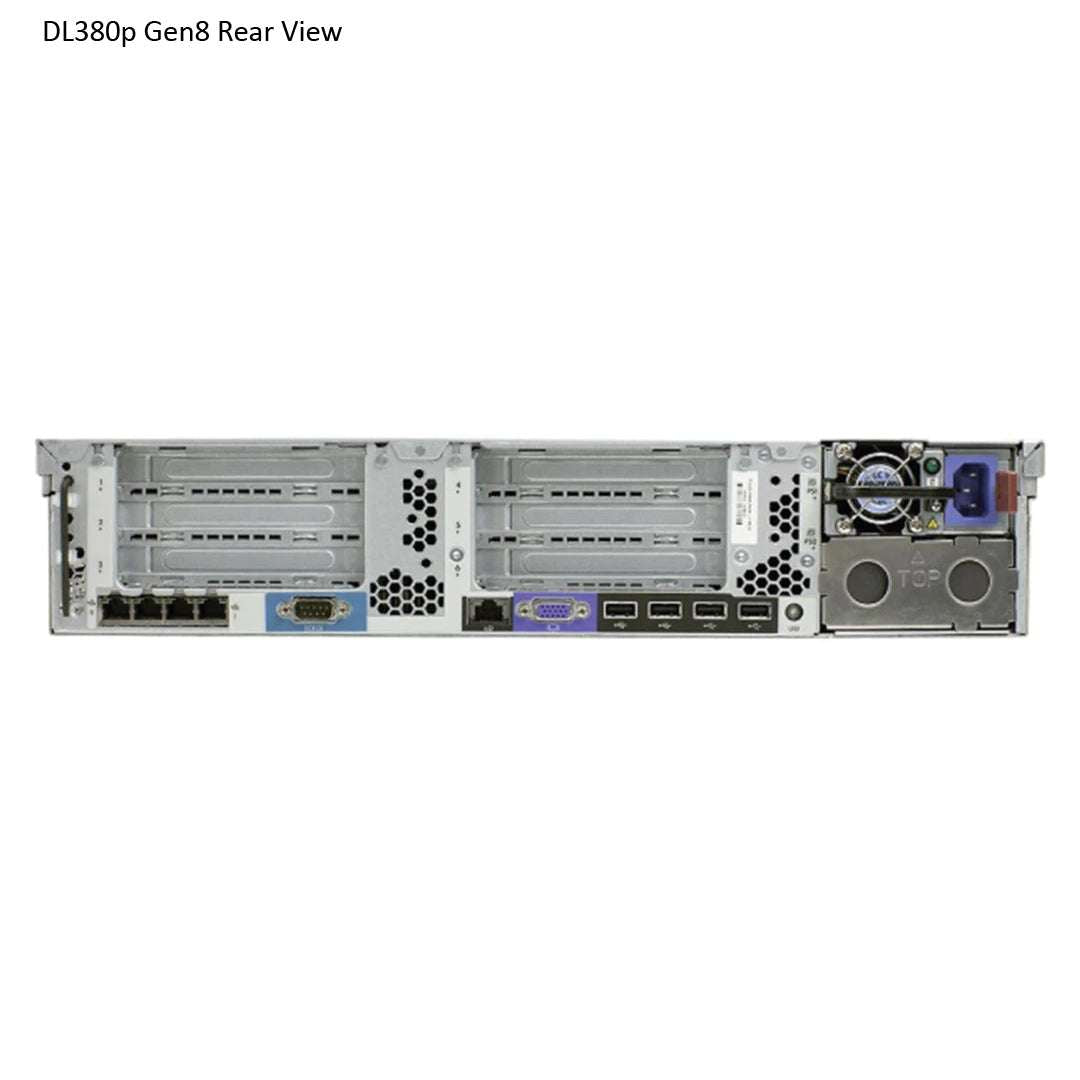

DL380p Gen8 rear

DL380p Gen8 rear

Product features

Feature
Description
Processor (One of the following depending on Model)
E5-2600 v2 series Processors
  • Entry processors:

    • Intel Xeon E5-2609 v2 (2.5 GHz/4-core/10MB/6.4GT/s QPI/80 W)

    • Intel Xeon E5-2603 v2 (1.8 GHz/4-core/10MB/6.4GT/s QPI/80 W)

  • Base processors:

    • Intel Xeon E5-2640 v2 (2.0 GHz/8-core/20MB/7.2GT/s QPI/95 W, DDR3-1600, HT, Turbo2- 3/3/3/3/3/3/4/5)

    • Intel Xeon E5-2630 v2 (2.6 GHz/6-core/15MB/7.2GT/s QPI/80 W, DDR3-1600, HT, Turbo2- 3/3/3/3/4/5)

    • Intel Xeon E5-2620 v2 (2.1 GHz/6-core/15MB/7.2GT/s QPI/80 W, DDR3-1600, HT, Turbo2- 3/3/3/3/4/5

    • Intel Xeon E5-2650L v2 (1.7 GHz/10-core/25MB/8.0GT/s QPI/70 W, DDR3-1600, HT, Turbo2- 2/2/2/2/2/2/2/2/3/4)

    • Intel Xeon E5-2630L v2 (2.4GHz/6-core/15MB/7.2GT/s QPI/60 W, DDR3-1600, HT, Turbo2- 2/2/2/2/3/4)

  • Performance processors:

    • Intel Xeon E5-2697 v2 (2.7 GHz/12-core/30MB/8.0GT/s QPI/130 W, DDR3-1866, HT, Turbo2- 3/3/3/3/3/3/3/4/5/6/7/8)

    • Intel Xeon E5-2695 v2 (2.4 GHz/12-core/30MB/8.0GT/s QPI/115 W, DDR3-1866, HT, Turbo2- 4/4/4/4/4/4/4/4/5/6/7/8)

    • Intel Xeon E5-2690 v2 (3.0 GHz/10-core/25MB/8.0GT/s QPI/130 W, DDR3-1866, HT, Turbo2- 3/3/3/3/3/3/3/4/5/6)

    • Intel Xeon E5-2680 v2 (2.8 GHz/10-core/25MB/8.0GT-s QPI/115 W, DDR3-1866, HT, Turbo2- 3/3/3/3/3/4/5/6/7/8)

    • Intel Xeon E5-2670 v2 (2.5 GHz/10-core/25MB/8.0GT/s QPI/115 W, DDR3-1866, HT, Turbo2- 4/4/4/4/4/4/5/6/7/8)

    • Intel Xeon E5-2667 v2 (3.3 GHz/8-core/25MB/8.0GT/s QPI/130 W, DDR3-1866, HT, Turbo2- 3/3/3/3/4/5/6/7)

    • Intel Xeon E5-2660 v2 (2.2 GHz/10-core/25MB/8.0GT/s QPI/95 W, DDR3-1866, HT, Turbo2- 4/4/4/4/4/4/5/6/7/8)

    • Intel Xeon E5-2650 v2 (2.6 GHz/8-core/20MB/8.0GT/s QPI/95 W, DDR3-1866, HT, Turbo2- 4/4/4/4/5/6/7/8)

    • Intel Xeon E5-2643 v2 (3.5 GHz/6-core/25MB/8.0GT/s QPI/130 W, DDR3-1866, HT, Turbo2- 1/1/1/1/2/3)

    • Intel Xeon E5-2637 v2 (3.5 GHz/4-core/15MB/8.0GT/s QPI/130 W, DDR3-1866, HT, Turbo2- 1/1/2/3)

E5-2600 series Processors
  • Entry processors

    • Intel Xeon E5-2609 (2.4 GHz/4-core/10MB/6.4GT/s QPI/80 W)

    • Intel Xeon E5-2603 (1.8 GHz/4-core/10MB/6.4GT/s QPI/80 W)

  • Base processors

    • Intel Xeon E5-2640 (2.5 GHz/6-core/15MB/7.2GT/s QPI/95 W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)

    • Intel Xeon E5-2630 (2.3 GHz/6-core/15MB/7.2GT/s QPI/95 W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)

    • Intel Xeon E5-2620 (2.0 GHz/6-core/15MB/7.2GT/s QPI/95 W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)

    • Intel Xeon E5-2630L (2.0 GHz/6-core/15MB/8.0GT/s QPI/60 W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)

  • Performance processors

    • Intel Xeon E5-2690 (2.9 GHz/8-core/20MB/8.0GT/s QPI/135 W, DDR3-1600, HT, Turbo2- 4/4/4/5/5/7/7/9)

    • Intel Xeon E5-2680 (2.7 GHz/8-core/20MB/8.0GT/s QPI/130 W, DDR3-1600, HT, Turbo2- 4/4/5/5/5/7/8/8)

    • Intel Xeon E5-2670 (2.6 GHz/8-core/20MB/8.0GT/s QPI/115 W, DDR3-1600, HT, Turbo2- 4/4/5/5/6/6/7/7)

    • Intel Xeon E5-2667 (2.9 GHz/6-core/15MB/8.0GT/s QPI/130 W, DDR3-1600, HT, Turbo2- 3/3/3/4/5/6)

    • Intel Xeon E5-2665 (2.4 GHz/8-core/20MB/8.0GT/s QPI/115 W, DDR3-1600, HT, Turbo2- 4/4/5/5/6/6/7/7)

    • Intel Xeon E5-2660 (2.2 GHz/8-core/20MB/8.0GT/s QPI/95 W, DDR3-1600, HT, Turbo2- 5/5/6/6/7/7/8/8)

    • Intel Xeon E5-2650 (2.0 GHz/8-core/20MB/8.0GT/s QPI/95 W, DDR3-1600, HT, Turbo2- 4/4/5/5/5/7/8/8)

    • Intel Xeon E5-2650L (1.8 GHz/8-core/20MB/8.0GT/s QPI/70 W, DDR3-1600, HT, Turbo2- 2/2/3/3/4/4/5/5)

    • Intel Xeon E5-2643 (3.3 GHz/4-core/10MB/8.0GT/s QPI/130 W, DDR3-1600, HT, Turbo2- 1/1/2/2)

    • Intel Xeon E5-2637 (3.0 GHz/2-core/5MB/8.0GT/s QPI/80 W, DDR3-1600, HT, Turbo2- 5/5)

Cache memory (One of the following depending on Model)
  • 30MB (1 x 30MB) Level 3 (For Twelve-core processors)

  • 25MB (1 x 25MB) Level 3 (For Ten-core processors)

  • 20MB (1 x 20MB) Level 3 (For Eight-core processors)

  • 15MB (1 x 15MB) Level 3 (For Six-core processors)

  • 10MB (1 x 10MB) Level 3 (For Quad-core processors)

  • 5MB (1 x 5MB) Level 3 (For Dual-core processors)

Chipset
  • Intel C600 series chipset

  • Intel E5-2600 and E5-2600 v2 Processor families

Upgradeability
  • Upgradeable to 2 processors (24 Cores)

  • Up to 24 DIMM slots available for higher Memory capacity

  • FlexLOM connector for 1 Gigabit or 10 Gigabit networking options

  • 8SFF Hard drive bays (total of 16 with optional upgrade)

  • Optional 3 slot riser (x16, x8, x8), or 2 slot (x16, x16)

  • Redundant Power Supply

  • Optical Drive (8SFF/8LFF only)

On System Management Processor
HP iLO (Firmware: HP iLO 4)
Memory protection
  • Advanced ECC

  • Online Spare

  • Lock-step mode

Memory (One of the following depending on Model)
Type
HP Smart Memory DDR3 Load Reduced(LRDIMM), Registered (RDIMM) or Unbuffered (UDIMM)
DIMM Slots available
24 (12 DIMM slots per processor /4 channels per processor/3 DIMMs per channel)
Maximum capacity (LRDIMM)
768GB (24 X 32GB RDIMM at 1066 MHz)
Maximum performance capacity (RDIMM)
384GB (24 x 16GB RDIMM at 1333 MHz)
Maximum performance capacity (UDIMM)
128GB (16 x 8GB UDIMM at 1600 MHz)
Maximum Capacity (HDIMM)
768GB (24 x 32GB UDIMM at 1333 MHz)
Network controller (One of the following depending on Model)
HP ProLiant Gen8 servers offer a new networking technology - FlexNET Technology. The HP ProLiant DL380p Gen8 server offers the customer the choice of 1 Gigabit and/or 10 Gigabit networking solutions.
Entry models
HP Ethernet 1Gb 4-port 331FLR Adapter
Base models
HP Ethernet 1Gb 4-port 331FLR Adapter
25SFF models
HP FlexFabric 10Gb 2-port 533FLR-T Adapter
Performance models
  • HP Ethernet 10Gb 2-port 530FLR-SFP+ Adapter

  • HP Ethernet 1Gb 4-port 331FLR Adapter

  • HP FlexFabric 10Gb 2-port 533FLR-T Adapter

Energy star models
HP Ethernet 1Gb 4-port 331FLR Adapter
Storage controller
Entry models
HP Smart Array P420i/ZM (RAID 0/1/1+0)
Base models
HP Smart Array P420i/1GB with FBWC (RAID 0/1/1+0/5/5+0)
25SFF Models
HP Smart Array P420i/2GB with FBWC (RAID 0/1/1+0/5/5+0)
Performance models
HP Smart Array P420i/2GB with FBWC (RAID 0/1/1+0/5/5+0)
Energy star models
HP Smart Array P420i/1GB with FBWC (RAID 0/1/1+0/5/5+0)
Industry standard compliance
  • ACPI 2.0b Compliant

  • PCIe 3.0 Compliant

  • PXE Support

  • WOL Support

  • Microsoft Logo certifications

  • USB 2.0 Compliant

Graphics
Integrated Matrox G200 video standard
  • 1280 x 1024 (32 b/p)

  • 1920 x 1200 (16 b/p)

Form factor
2U Rack form factor
System fans
  • 2P Models have (6) (N+1 redundancy standard)

  • 1P Models have (4) (N+1 redundancy standard)

Interfaces
Serial
1
Video
2 (1 front, 1 back) not active simultaneously
FlexibleLOM Network Ports
Some models come standard with 4 x 1Gb ports while others come with 2 x 10Gb or 2 x 10Gb base-T ports
HP iLO Remote Management Network Port
1Gb Dedicated
SD slot
1 Internal Secure
USB 2.0 Ports
Up to 7 total: up to 2 front, 4 back, 1 internal
Maximum internal storage
Hot Plug SFF SAS
50.0TB
25 x 2TB (with optional SFF drive cage)
Hot Plug SFF SATA
50.0TB
25 x 2TB (with optional SFF drive cage)
Hot Plug LFF SAS
96.0TB
12 x 8TB (with optional LFF drive cage)
Hot Plug LFF SATA
96.0TB
12 x 8TB (with optional LFF drive cage)
Hot Plug SFF SAS SSD
48.0TB
25 x 1.9TB (with optional SFF drive cage)
Hot Plug SFF SATA SSD
96TB
25 x 3.84TB (with optional LFF drive cage)
Hot Plug LFF SAS SSD
19.2TB
12 x 1.6TB (with optional LFF drive cage)
Hot Plug LFF SATA SSD
46.08TB
12 x 3.84TB (with optional LFF drive cage)

top

Software overview

Feature
Description
Operating systems and virtualization software support for ProLiant servers 1
  • Microsoft Windows Server

  • Canonical Ubuntu

  • Red Hat Enterprise Linux (RHEL)

  • SUSE Linux Enterprise Server (SLES)

  • Oracle Linux

  • VMware

  • Citrix XenServer

NOTE: 1: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for the server, visit Server Operating Systems and Virtualization Software website. Click here to access Server Operating Systems and Virtualization Software website .

top

Physical specifications

Specification
Description
Dimensions (H x W x D)(with bezel)
  • SFF Drives: 8.73 x 44.55 x 69.85 cm (3.44 x 17.54 x 27.50 in)

  • LFF Drives: 8.73 x 44.55 x 74.93 cm (3.44 x 17.54 x 29.50 in)

Weight (approximate)
  • Maximum(all hard drives, power supply, and processor installed): 27.66 kg (61.00 lb)

  • Minimum (one hard drive, power supply, and processor installed): 18.59 kg (41.0 lb)

top

Electrical specifications

Specification
Description
Rated line voltage
  • 100 to 120 V ac

  • 200 to 240 V ac

Rated input current
  • For 1200-W power supply:

    • 10 A (at 100 V ac)

    • 4.9 A (at 200 V ac)

  • For 750-W power supply:

    • 8.9 A (at 100 V ac)

    • 4.3 A (at 200 V ac)

  • For 460-W power supply:

    • 5.5 A (at 100 V ac)

    • 2.6 A (at 200 V ac)

Rated input frequency
50 to 60 Hz
Rated input power
  • For 1200-W power supply:

    • 930 W (at 100 V ac)

    • 1348 W (at 200 V ac)

  • For 750-W power supply:

    • 857 W (at 100 V ac)

    • 824 W (at 200 V ac)

  • For 460-W power supply:

    • 526 W (at 100 V ac)

    • 505 W (at 200 V ac)

BTU Rating maximum
  • For 1200-W power supply:

    • 3530 BTU/hr (at 100 V ac)

    • 4600 BTU/hr (at 200 V ac)

  • For 750-W power supply:

    • 2925 BTU/hr (at 100 V ac)

    • 2812 BTU/hr (at 200 V ac)

  • For 460-W power supply:

    • 1794 BTU/hr (at 100 V ac)

    • 1725 BTU/hr (at 200 V ac)

Power Supply Output (per power supply)
Rated Steady-State power
  • For 1200-W power supply:

    • 800 W (at 100 V ac)

    • 900 W (at 120 V ac)

    • 1200 W (at 200 to 240 V ac)

  • For 750-W power supply:

    • 750 W (at 100 to 120 V ac)

    • 750 W (at 200 to 240 V ac)

  • For 460-W power supply:

    • 460 W (at 100 to 120 V ac)

    • 460 W (at 200 to 240 V ac)

Maximum peak power
  • For 1200-W power supply:

    • 800 W (at 100 V ac)

    • 900 W (at 120 V ac)

    • 1200 W (at 200 to 240 V ac)

  • For 750-W power supply:

    • 750 W (at 100 to 120 V ac)

    • 750 W (at 200 to 240 V ac)

  • For 460-W power supply:

    • 460 W (at 100 to 120 V ac)

    • 460 W (at 200 to 240 V ac)

top

Environmental specifications

Specification
Description
Operating temperature
10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 304.8 m (1.8°F per every 1000 ft) above sea level to a maximum of 3048 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed. System performance may be reduced if operating with a fan fault or above 30°C (86°F).
Non-operating temperature
-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).
Shipping temperature
-30° to 50°C (-22° to 122°F)
Storage temperature
-30° to 60°C (-22° to 140°F)
Maximum wet bulb temperature
28°C (82.4°F)
Operating relative humidity
10% to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.
Non-operating relative humidity
5% to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.
Operating altitude
3048 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Non-
