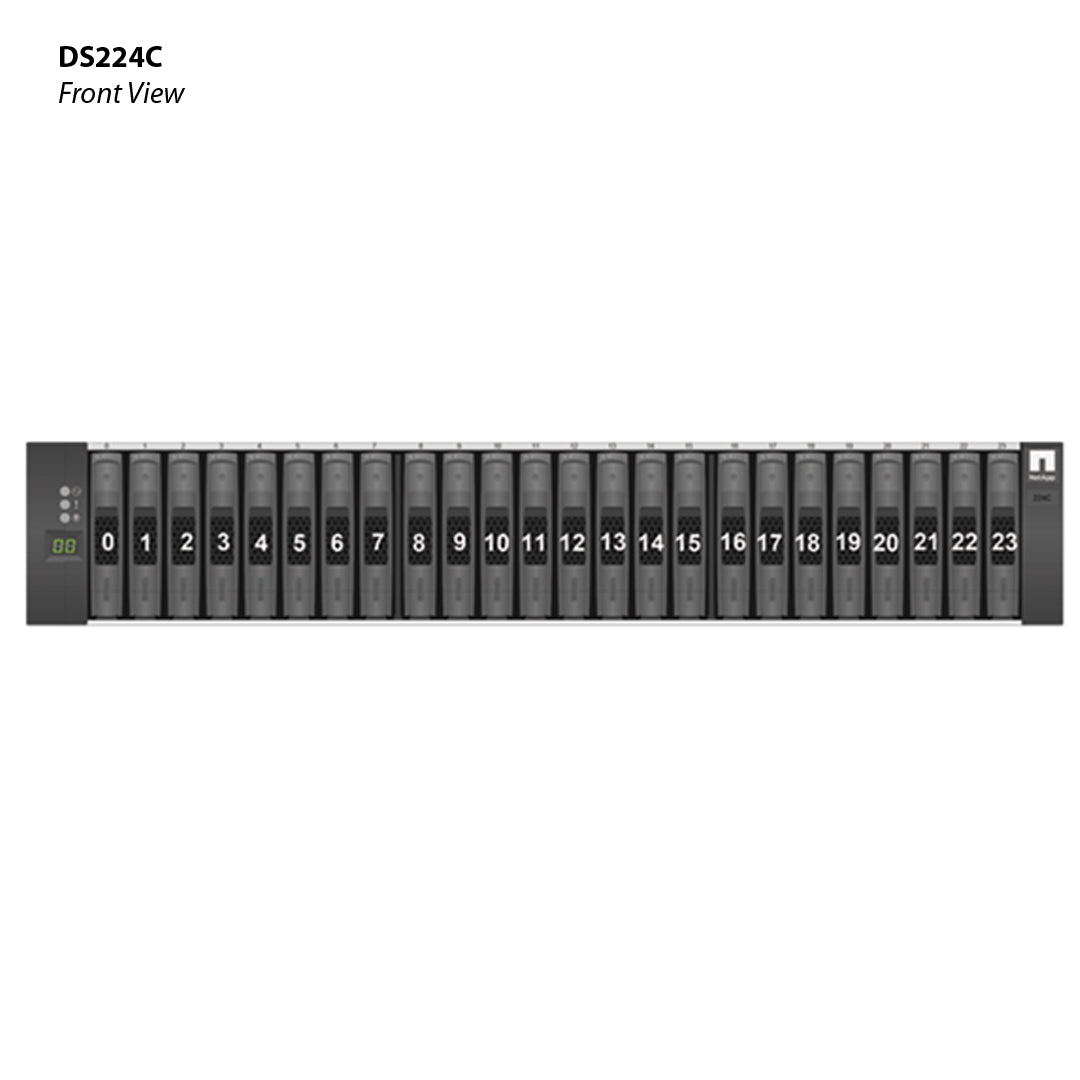

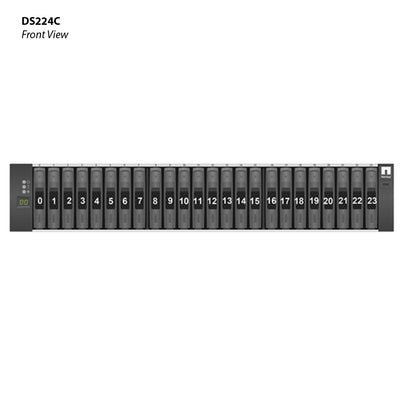

NetApp DS224C Expansion Shelf (DS224C-AF-0.8-24N-0P-C) 24x 800GB SSD NSE X440B-R6 12 G


Price: $15,950.00

Brand:
MPN:
DS224C-AF-0.8-24N-0P-C
Type:
Disk Shelves
Condition:
ECS Refurbished & Tested

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.


-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

NetApp DS224C with 24x 800GB SSD's X440A-R6 Disk Shelf achieves both storage and performance in a 2U form factor. The DS224C has the ability to use performance SAS drives, SSD's or Self-Encrypting drives. This DS224C is populated with twenty four 800GB SSD's ( X440A-R6 ), comes with all necessary parts and a 1-Year Parts Replacement Warranty as standard.

Parts Included:

  • 1x DS224C Disk shelf
  • 24x 800GB Solid State Drives ( X440A-R6 )

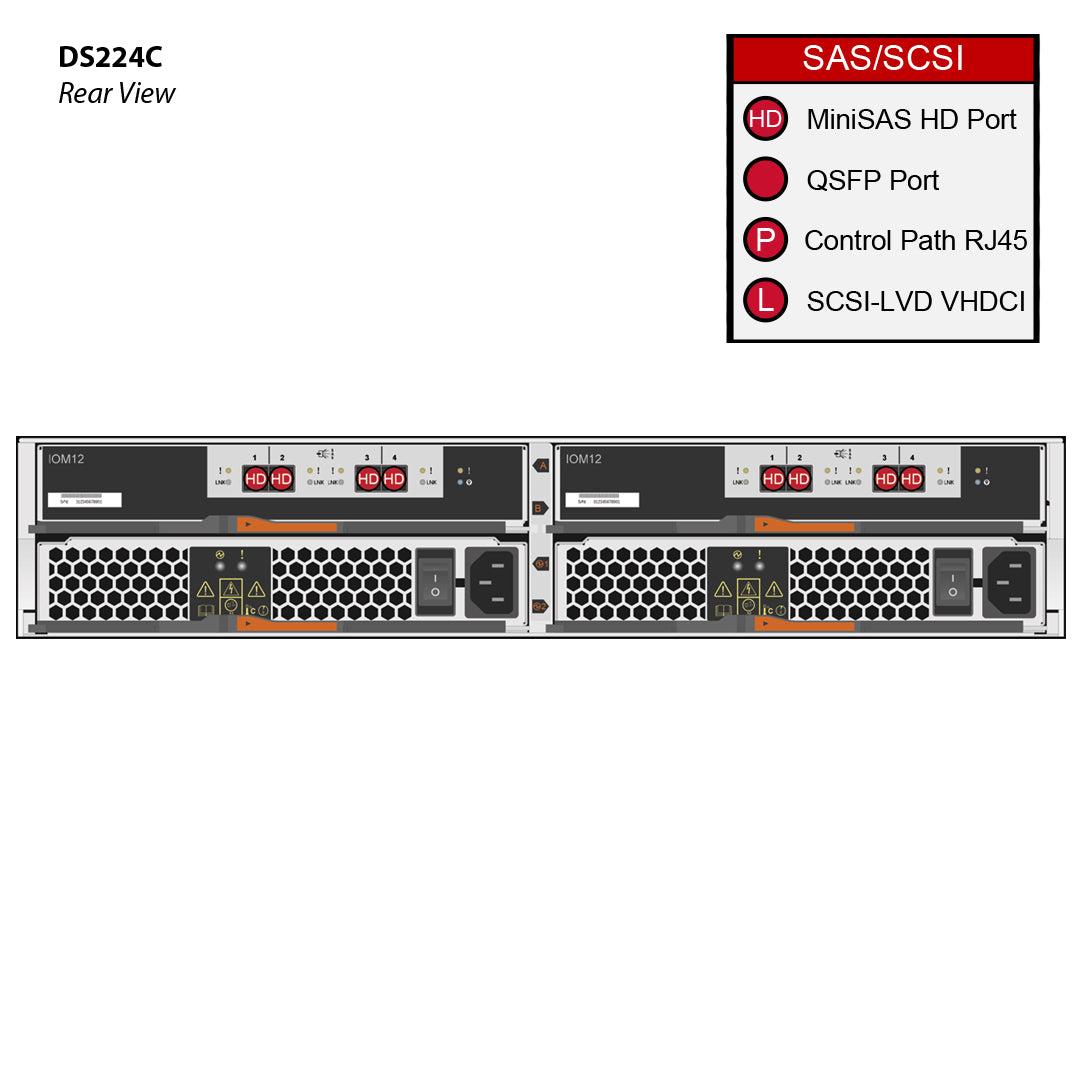

  • 2x X5720A IOM12 Controller 12gbps
  • 2x X526A-R6 913W AC PSU
  • 1x X5529A-R6 Railkit 19” 4 Post Universal (or sub)
  • 2x X66030A .5m HD Mini SAS – HD Mini SAS (longer cables available please ask for custom order)
  • 2x X800-42U C13-C14 Power Cables

NetApp DS224C Disk Shelf Technical Specifications

Technical Specifications
Drive Count 24
Physical Characteristics

Rack Units

2

Weight (Empty)

35.27 lb (16 kg)

Height

3.35'' (8.5 cm)

Width with Mounting

18.9'' (48 cm)

Width without Mounting Flanges

17.6'' (44.7 cm)

Depth with Cable Mgmt

20.2'' (51.3 cm)

Depth without Cable Mgmt

19.06'' (48.4 cm)
Clearance Dimensions

Front Clearance (Cooling/Maintenance)

6.02'' (15.3 cm)
22.01'' (55.9 cm)

Rear Clearance (Cooling/Maintenance)

12.01'' (30.5 cm)
12.01'' (30.5 cm)
Environmental Requirements

Operating Temperature Range

50 to 104 deg F
10 to 40 deg C

Storage Temperature Range

-40 to 158 deg F
-40 to 70 deg C

Transit Temperature Range

-40 to 158 deg F
-40 to 70 deg C

Operating Relative Humidity

20 to 80 %

Storage Relative Humidity

10 to 95 %

Transit Relative Humidity

10 to 95 %

Operating Altitude Range

0 to 9987.6 ft
0 to 3045 m

Storage Altitude Range

-1000.4 to 39989.76 ft
-305 to 12192 m

Transit Altitude Range

-1000.4 to 39989.76 ft
-305 to 12192 m

Acoustic Noise - Sound Power

-

Acoustic Noise - Sound Pressure

-

Input Power Voltage

100 to 120, 200 to 240

Product Specs

Supported Drives

Part NumberEncryptionCapacityRPMChecksum
Drive Type: SAS
X341A-R6 No 900GB 10k BCS
X342A-R6 No 1.2TB 10k BCS
X343A-R6 No 1.8TB 10k BCS
X416A-R5[1]    Yes 600GB 10k BCS
X417A-R6[1]    Yes 900GB 10k BCS
X421A-R5 No 450GB 10k BCS
X422A-R5 No 600GB 10k BCS
X423A-R5 No 900GB 10k BCS
X425A-R6 No 1.2TB 10k BCS
X426A-R6 No 1.8TB 10k BCS
X427A[1]    Yes 1.8TB 10k BCS
X427B-R6[1]    Yes 1.8TB 10k BCS
Drive Type: SSD
X319A No 7.6TB N/A BCS
X356A-R6 No 3.84TB N/A BCS
X357A No 3.84TB N/A BCS
X358A[1]    Yes 3.84TB N/A BCS
X359A No 30.6TB N/A BCS
X365A-R6[1]    Yes 1.6TB N/A BCS
X371A No 960GB N/A BCS
X382A No 960GB N/A BCS
X386A[1]    Yes 960GB N/A BCS
X438A-R6 No 400GB N/A BCS
X439A-R6 No 1.6TB N/A BCS
X440A-R6[1]    Yes 800GB N/A BCS
X440B-R6[1]    Yes 800GB N/A BCS
X446A-R6 No 200GB N/A BCS
X446B-R6 No 200GB N/A BCS
X447A-R6 No 800GB N/A BCS
X670A No 15.3TB N/A BCS
Footnotes
[1] Mixing NSE drives or shelves with any other type of encrypting or non-encrypting drives or shelves across a stand-alone platform or high-availability (HA) pair is not supported.

Supported Shelf Modules for NetApp DS224C

ModulePart NumberInterfaceMax Data RateMin ONTAP
IOM12 X5720A IN: miniSAS HD, OUT: miniSAS HD 12 Gbps 9.11.1RC1, 9.10.1RC1, 9.9.1RC1, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1

Cables Compatibility for Module IOM12

Mktg Part NoMfg Part NoLengthEnd 1 / End 2DescriptionSupported Speed(s)Min OS
SAS 6/12 Gbps (Copper Cables)
NetApp Cable X66030A 112-00435 0.5m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,0.5m 6/12 Gbps -
NetApp Cable X66020A-R6 112-00429 1m MiniSAS HD / QSFP Cable,Storage,MiniSAS HD/QSFP,12Gb,1m 6/12 Gbps -
NetApp Cable X66031A 112-00436 1m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,1m 6/12 Gbps -
NetApp Cable X66021A-R6 112-00430 2m MiniSAS HD / QSFP Cable,Storage,MiniSAS HD/QSFP,12Gb,2m 6/12 Gbps -
NetApp Cable X66032A 112-00437 2m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,2m 6/12 Gbps -
NetApp Cable X66033A 112-00438 3m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,3m 6/12 Gbps -
NetApp Cable X66022A-R6 112-00431 5m MiniSAS HD / QSFP Cable,Storage,MiniSAS HD/QSFP,12Gb,5m 6/12 Gbps -
NetApp Cable X66034A 112-00439 5m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,5m 6/12 Gbps -
SAS 6/12 Gbps (Optical Cables)
NetApp Cable X66040A 112-00449 1m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,AOC,1m 12 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66041A 112-00450 2m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,AOC,2m 12 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66042A 112-00451 3m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,AOC,3m 12 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66043A 112-00452 5m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,AOC,5m 12 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66047A 112-00456 5m MiniSAS HD / 4xLC Cable,Opt,miniSAS HD/LC,OM4,5m 12 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66044A 112-00453 15m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,AOC,15m 12 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66045A 112-00454 30m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,AOC,30m 12 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66048A 112-00457 30m MiniSAS HD / 4xLC Cable,Opt,miniSAS HD/LC,OM4,30m 12 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1
NetApp Cable X66046A 112-00455 50m MiniSAS HD / MiniSAS HD Cable,miniSAS HD/miniSAS HD,AOC,50m 12 Gbps 9.11.1RC1, 9.11.0, 9.10.1RC1, 9.10.0, 9.9.1RC1, 9.9.0, 9.8RC1, 9.7RC1, 9.6RC1, 9.5RC1, 9.4RC1, 9.3RC1, 9.2RC1, 9.1RC1, 9.0RC1

Supported Power Cords for NetApp DS224C

Marketing Part No.End 1 / End 2LengthDescription
Non-Cabinet Power Cords
X-50617-00 IEC60320-C20 / IEC60320-C13 2.00 m Power Cords,In-Cabinet,2m,C20-C13,E-Series
X800B-R6 CEE 7/7 (Schuko) / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Cont Europe/Korea,10A/250V
X800C-R6 BS1363 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,UK/Ireland,10A/250V
X800D-R6 JIS-C-8303 / IEC60320-C13 1.83 m Pwr Cord,Non-Cabinet,Japan,15A/125V
X800E-R6 NEMA 5-15P / IEC60320-C13 1.83 m Pwr Cord,Non-Cabinet,North America,15A/125V
X800F-R6 AS/NZS 3112 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Aus/NZ,10A/250V
X800G-R6 SEV 1011 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Switzerland,10A/250V
X800H-R6 IRAM 2073 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Argentina,10A/250V
X800I-R6 GB2099 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,China,10A/250V
X800J-R6 DHCR107-2-D1 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Demark,10A/250V
X800K-R6 SANS 164-1 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,India/S.Africa,10A/250V
X800L-R6 SI32 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Israel,10A/250V
X800M-R6 CEI 23-16 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Italy,10A/250V
X800N EL208 / IEC60320-C13 2.50 m Pwr Cord,10A,250V,2.5m,India
X800P-R6 NEMA 6-15P / IEC60320-C13 1.83 m Pwr Cord,Non-Cabinet,North America,15A/250V
X800T-R6 CNS 10917-3 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Taiwan,BSMI,15A/125V
X800VB-R6 NBR14136 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Brazil,10A/250V
X800W-R6 CNS10917/CNS690 / IEC60320-C13 1.83 m Pwr Cord,Non-Cabinet,Taiwan,10A/250V
X800Y-R6 JIS-C-830 / IEC60320-C13 1.83 m Pwr Cord,Non-Cabinet,Japan,15A/250V
In-Cabinet Power Cords
X-50617-00-0E-C IEC60320-C13 / IEC60320-C20 1.83 m Power Cord,In-Cabinet,2m,C20-C13,E-Series,0E,-C
X1558A-R6 IEC60320-C14 / IEC60320-C13 1.20 m Pwr Cord,In-Cabinet,48-In,C13-C14,10A/250V
X800-42U-35 IEC60320-C14 / IEC60320-C13 0.89 m Pwr Cord,In-Cabinet,C13-C14,35-inch
X800-42U-43 IEC60320-C14 / IEC60320-C13 1.09 m Pwr Cord,In-Cabinet,C13-C14,43-inch
X800-42U-64 IEC60320-C14 / IEC60320-C13 1.63 m Pwr Cord,In-Cabinet,C13-C14,64-inch
X800-42U-R6 IEC60320-C14 / IEC60320-C13 0.68 m Pwr Cord,In-Cabinet,27-In,C13-C14,10A/250V

Supported Rail Kits for NetApp DS224C

Footnote: Supported in 2-post front-mount configuration only

Marketing Part No.Manufacturing Part No.Description
NetApp System Cabinet Rail Kits
X877B-R6 111-00596 Rail Kit II, NetApp Cabinet, R6
X8783A-R6 111-01110 Rail Kit III, NetApp Cabinet, R6
X87880A 111-03887 Rail Kit 4,Cabinet
Third-Party Cabinet Rail Kits
X-02659-00 113-00232 Kit,4-Post,Square or Round-Hole, 24"-32" Rail
X5515A-R6 111-00232 Kit,2-Post (Round) or 4-Post (Square), 24"-32" Rail
X5526A-R6 111-00593 Kit,4-Post.Square-Hole, 24"-32" Rail
X5527A-R6 111-00864 Kit,2-Post,Round-Hole
X5529A-R6 111-00310 Kit,4-Post,Swift,Square-Hole, 24"-32" Rail
Marketing Part No.Manufacturing Part No.Description

Field Replacement Unit Parts for NetApp DS224C

Marketing Part No.Manufacturing Part No.Description
Cabinets
X870F-C - Cabinet,1280mm,Empty,No PDU,No Rails,-C
X870F-N-C - Cab,1280mm,Empty,No PDU,No Rails,-C
X870F-QS-C - Cabinet,1280mm,Empty,No PDU,No Rails,QS,-C
Chassis
X5723A 111-03068 SHELF,EMPTY,2 PSU,913W,MIDPLANE II,DS212C
Conversion Kit
X898A TBD DS212C, Kit,FAS2620 Conversion
Data Cable
X66020A-R6 112-00429 Cable,Storage,MiniSAS HD,QSFP,12G,1m
X66020A-R6-C 112-00429 Cable,Storage,MiniSAS HD,QSFP,12G,1m,-C
X66021A-R6 112-00430 Cable,Storage,MiniSAS HD,QSFP,12G,2m
X66021A-R6-C 112-00430 Cable,Storage,MiniSAS HD,QSFP,12G,2m,-C
X66022A-R6 112-00431 Cable,Storage,MiniSAS HD,QSFP,12G,5m
X66022A-R6-C 112-00431 Cable,Storage,MiniSAS HD,QSFP,12G,5m,-C
X66030A 112-00435 Cable,12Gb,Mini SAS HD,0.5m
X66030A-C 112-00435 Cable,12Gb,Mini SAS HD,0.5m,-C
X66030A-K-N 112-00435 Cable,12Gb,Mini SAS HD,0.5m
X66030A-N 112-00435 Cable,12Gb,Mini SAS HD,0.5m
X66030A-N-C 112-00435 Cable,12Gb,Mini SAS HD,0.5m,-C
X66031A 112-00436 Cable,12Gb,Mini SAS HD,1m
X66031A-C 112-00436 Cable,12Gb,Mini SAS HD,1m,-C
X66031A-K-N 112-00436 Cable,12Gb,Mini SAS HD,1m
X66031A-N 112-00436 Cable,12Gb,Mini SAS HD,1m
X66031A-N-C 112-00436 Cable,12Gb,Mini SAS HD,1m,-C
X66032A 112-00437 Cable,12Gb,Mini SAS HD,2m
X66032A-C 112-00437 Cable,12Gb,Mini SAS HD,2m,-C
X66032A-K-N 112-00437 Cable,12Gb,Mini SAS HD,2m
X66032A-N 112-00437 Cable,12Gb,Mini SAS HD,2m
X66032A-N-C 112-00437 Cable,12Gb,Mini SAS HD,2m,-C
X66033A 112-00438 Cable,12Gb,Mini SAS HD,3m
X66033A-C 112-00438 Cable,12Gb,Mini SAS HD,3m,-C
X66033A-K-N 112-00438 Cable,12Gb,Mini SAS HD,3m
X66033A-N 112-00438 Cable,12Gb,Mini SAS HD,3m
X66033A-N-C 112-00438 Cable,12Gb,Mini SAS HD,3m,-C
X66034A 112-00439 Cable,12Gb,Mini SAS HD,5m
X66034A-C 112-00439 Cable,12Gb,Mini SAS HD,5m,-C
X66034A-K-N 112-00439 Cable,12Gb,Mini SAS HD,5m
X66034A-N 112-00439 Cable,12Gb,Mini SAS HD,5m
X66034A-N-C 112-00439 Cable,12Gb,Mini SAS HD,5m,-C
X66040A 112-00449 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-C 112-00449 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C
X66040A-K-N 112-00449 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-N 112-00449 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-N-C 112-00449 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C
X66041A 112-00450 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-C 112-00450 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C
X66041A-K-N 112-00450 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-N 112-00450 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-N-C 112-00450 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C
X66042A 112-00451 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-C 112-00451 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C
X66042A-K-N 112-00451 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-N 112-00451 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-N-C 112-00451 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C
X66043A 112-00452 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-C 112-00452 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C
X66043A-K-N 112-00452 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-N 112-00452 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-N-C 112-00452 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C
X66044A 112-00453 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,15m
X66045A 112-00454 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,30m
X66046A 112-00455 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,50m
X66047A 112-00456 Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m
X66047A-C 112-00456 Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C
X66047A-N-C 112-00456 Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C
X66048A 112-00457 Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m
X66048A-C 112-00457 Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C
X66048A-N-C 112-00457 Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C
Drive
X302A-R5 108-00268 Disk Drive,1.0TB 7.2k,DS424x,FAS2240-4
X306A-R5 108-00270 Disk Drive,2.0TB 7.2k,DS424x,2554/2240-4
X308A-R5 108-00277 Disk Drive,3.0TB 7.2K,DS424x,2554/2240-4
X315A-R6 108-00368 DSK DRV,4TB 7.2k,NSE,DS424x,2554/2220/2240-4
X317A 108-00399 DSK DRV,6TB,7.2K,12G,NSE,DS212C
X318A-R6 108-00455 DSK DRV,8TB,7.2K,12G,DS212C
X322A 108-00551 DSK DRV,10TB,7.2K,12G,NSE,DS212C
X336A-R6 108-00427 DSK DRV,4TB,7.2K,12G,DS212C
X339A 108-00426 DSK DRV,2TB,7.2K,12Gb,DS212C,FAS2620
X363A-R6 108-00467 SSD,3.8TB,FAS2520/2554
X364A 108-00650 SSD,3.8TB,DS212C,FAS2620,w/MSW
X366A-R6 108-00470 SSD,1.6TB,NSE,DS4246,FAS2554
X374A 108-00573 SSD,960GB,12G,DS212C,W/MSW
X380A 108-00549 DSK DRV,10TB,7.2K,12G,DS212C
X388A 108-00885 DSK DRV,16TB,7.2K,12G,DS212C
X448A-R6 108-00253 SSD,200GB,DS4246,FAS2554/2240-4/2220
X449A-R6 108-00319 SSD,800GB,DS4246,FAS2554/2240-4/2220
X477A-R6 108-00315 DSK DRV,4TB 7.2k,DS4246,2554/2220/2240-4
X488A-R5 108-00298 Disk Drive,900GB 10K,2520/2220
X489A-R6 108-00322 Disk Drive,1.2TB 10K,2520/2220
X490A-R6 108-00425 Disk Drive,1.8TB 10K,FAS2520
X575A-R6 108-00370 SSD,400GB,DS424x,FAS2554/2240-4/2220
X576A-R6 108-00373 SSD,1.6TB,DS424x,FAS2554/2240-4/2220
X577A-R6 108-00375 SSD,800GB,NSE,DS4246,FAS2554
Power Cord
X-50617-00 - Jumper Crd,In-Cab,2m,C20-C13,E-Series
X-50617-00-0E-C - Jumper Crd,In-Cab,2m,C20-C13,E-Series,0E,-C
X1558A-R6 - Jumper Crd,In-Cab,48-IN,C13-C14
X1558A-R6-C - Jumper Crd,In-Cab,48-IN,C13-C14-C
X800-42U-35 - Jumper Crd,In-Cab,C13-C14,35-inch
X800-42U-35-C - Jumper Crd,In-Cab,C13-C14,35-inch,-C
X800-42U-35-K-N - Jumper Crd,In-Cab,C13-C14,35-inch
X800-42U-35-N - Power Cable,In-Cabinet,C13-C14,35-inch
X800-42U-43 - Jumper Crd,In-Cab,C13-C14,43-inch
X800-42U-43-C - Jumper Crd,In-Cab,C13-C14,43-inch,-C
X800-42U-43-K-N - Jumper Crd,In-Cab,C13-C14,43-inch
X800-42U-43-N - Power Cable,In-Cabinet,C13-C14,43-inch
X800-42U-64 - Jumper Crd,In-Cab,C13-C14,64-inch
X800-42U-64-C - Jumper Crd,In-Cab,C13-C14,64-inch,-C
X800-42U-64-K-N - Jumper Crd,In-Cab,C13-C14,64-inch
X800-42U-64-N - Power Cable,In-Cabinet,C13-C14,64-inch
X800-42U-R6 - Jumper Crd,In-Cab,C13-C14
X800-42U-R6-C - Jumper Crd,In-Cab,C13-C14,-C
X800B-R6 - Power Cable,Continental Europe,R6
X800B-R6-C - Power Cable,Continental Europe,-C,R6
X800C-R6 - Power Cable,UK and Ireland,R6
X800C-R6-C - Power Cable,UK and Ireland,-C,R6
X800D-R6 - Power Cable,Japan,R6
X800D-R6-C - Power Cable,Japan,-C,R6
X800E-R6 - Power Cable,North America,R6
X800E-R6-C - Power Cable,North America,-C,R6
X800F-R6 - Power Cable,Australia/New Zealand,R6
X800F-R6-C - Power Cable,Australia/New Zealand,-C,R6
X800G-R6 - Power Cable,Switzerland,R6
X800G-R6-C - Power Cable,Switzerland,-C,R6
X800H-R6 - Power Cable,Argentina,R6
X800H-R6-C - Power Cable,Argentina,-C,R6
X800I-R6 - Power Cable,China,R6
X800I-R6-C - Power Cable,China,-C,R6
X800J-R6 - Power Cable,Denmark,R6
X800J-R6-C - Power Cable,Denmark,-C,R6
X800K-R6 - Power Cable,India,South Africa,R6
X800K-R6-C - Power Cable,India,South Africa,-C,R6
X800L-R6 - Power Cable,Israel,R6
X800L-R6-C - Power Cable,Israel,-C,R6
X800M-R6 - Power Cable,Italy,R6
X800M-R6-C - Power Cable,Italy,-C,R6
X800N - POWER CABLE,INDIA BIS
X800N-C - Power Cable,India BIS,-C
X800P-R6 - Power Cable,North America,250V,R6
X800P-R6-C - Power Cable,North America,250V,-C,R6
X800T-R6 - Power Cable,Taiwan,BSMI,R6
X800T-R6-C - Power Cable,Taiwan,BSMI,-C,R6
X800VB-R6 - Power Cable,Brazil,IEC-60906-1-Plug
X800W-R6 - Power Cable,Taiwan,250V,BSMI,R6
X800W-R6-C - Power Cable,Taiwan,250V,BSMI,-C
X800Y-R6 - Power Cable,Japan,250V/15A
X800Y-R6-C - Power Cable,Japan,250V/15A,-C
Power Supply Unit
X5726A 114-00148 PSU,913W
RailKit
X-02654-00 111-02852 Rail Kit,Thin,Rnd/Sq-Hole,2-Post
X-02654-00-C 111-02852 Rail Kit,Thin,Rnd/Sq-Hole,2-Post,-C
X-02654-00-K-N 111-02852 Rail Kit,Thin,Rnd/Sq-Hole,2-Post
X-02654-00-N 111-02852 Rail Kit,Thin,Rnd/Sq-Hole,2-Post
X-02654-00-N-C 111-02852 Rail Kit,Thin,Rnd/Sq-Hole,2-Post
X-02657-00 111-02657 Rackmount Kit,212C,4-post,Adj
X-02657-00-C 111-02657 Rail Kit,Thin,Rnd/Sq-Hole,4-Post,Adj,24-32,-C
X-02657-00-K-N 111-02657 Rackmount Kit,212C,4-post,Adj
X-02657-00-N 111-02657 Rackmount Kit,212C,4-post,Adj
X-02657-00-N-C 111-02657 Rail Kit,Thin,Rnd/Sq-Hole,4-Post,Adj,24-32,-C
Shelf Module
X5720A - IOM12,SAS,12G

Size, Weight, Acoustic, Power for NetApp DS224C

Associated Part No. Configuration Rack Units Weight Sound Power Sound Pressure Line Voltage Actual (Min to Max) Amps Typical Amps Worst Watts Typical Watts Worst BTU / Hr Typical BTU / Hr Worst
Empty Shelf (with AC PSU)
DS224C-0-24-C Disk Shelf,2U24,12G,Empty,- - - - - - - - - - - -
X5721A SHELF,EMPTY,2 PSU,633W,DS224 - - - - - - - - - - -
Empty Shelf (without PSU)
X5722A SHELF,EMPTY,W/O PSU,DS224 - - - - - - - - - - -
Quickship Half Populated
DS224C-10-0.9-12S-QS 12x900GB,SAS,10K 2 43.4 lb (19.7 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.55 3.16 151 309 516 1055
DS224C-10-0.9-12S-QS 12x900GB,SAS,10K 2 43.4 lb (19.7 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.76 1.55 148 303 506 1035
DS224C-10-1.2-12S-QS 12x1.2TB,10K 2 43.4 lb (19.7 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.4 3 137 294 468 1004
DS224C-10-1.2-12S-QS 12x1.2TB,10K 2 43.4 lb (19.7 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.69 1.48 135 289 461 987
DS224C-10-1.8-12S-QS 12x1.8TB,10K 2 44.8 lb (20.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.36 2.96 133 290 454 990
DS224C-10-1.8-12S-QS 12x1.8TB,10K 2 44.8 lb (20.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.67 1.46 131 285 448 973
DS224C-AF-.96-12S-0P-C 12x960GB,SSD 2 41.7 lb (18.9 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.05 2.66 102 260 349 888
DS224C-AF-.96-12S-0P-C 12x960GB,SSD 2 41.7 lb (18.9 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.52 1.31 100 255 342 871
DS224C-AF-0.8-12N-0P-C 12x800GB,NSE,SSD 2 44.8 lb (20.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 0.89 2.49 87 244 297 833
DS224C-AF-0.8-12N-0P-C 12x800GB,NSE,SSD 2 44.8 lb (20.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.44 1.23 86 240 294 820
DS224C-AF-15.3-12S-0P-C/DS224C-SL-15.3-12S-QS 12x15.3TB SSD 2 41.7 lb (18.9 kg) 6.9 Bels 51 dBA 100 (100 to 120) 0.95 2.57 93 251 318 857
DS224C-AF-15.3-12S-0P-C/DS224C-SL-15.3-12S-QS 12x15.3TB SSD 2 41.7 lb (18.9 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.47 1.26 92 246 314 840
DS224C-AF-3.8-12N-0P-C 12x3.8TB,NSE,SSD 2 44.8 lb (20.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 0.82 2.43 80 238 274 813
DS224C-AF-3.8-12N-0P-C 12x3.8TB,NSE,SSD 2 44.8 lb (20.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.41 1.2 79 234 270 799
DS224C-AF-3.8-12S-0P-C 12x3.8TB,SSD 2 44.8 lb (20.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 0.82 2.43 80 238 274 813
DS224C-AF-3.8-12S-0P-C 12x3.8TB,SSD 2 44.8 lb (20.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.41 1.2 79 234 270 799
DS224C-AF-7.6-12S-0P-C/DS224C-S-7.6-12S-QS 12x7.6TB, SSD 2 41.7 lb (18.9 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.19 2.8 116 274 396 936
DS224C-AF-7.6-12S-0P-C/DS224C-S-7.6-12S-QS 12x7.6TB, SSD 2 41.7 lb (18.9 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.59 1.38 114 269 390 919
DS224C-S-.96-12N-QS SSD Shelf,12G,12x960GB,NSE,-Q 2 41.7 lb (18.9 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.05 2.66 102 260 349 888
DS224C-S-.96-12N-QS SSD Shelf,12G,12x960GB,NSE,-Q 2 41.7 lb (18.9 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.52 1.31 100 255 342 871
DS224C-S-.96-12S-QS 12x960GB 2 41.7 lb (18.9 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.05 2.66 102 260 349 888
DS224C-S-.96-12S-QS 12x960GB 2 41.7 lb (18.9 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.52 1.31 100 255 342 871
DS224C-SL-3.8-12N-QS SSD SHLF,12G,12x3.8TB,NSE,-S 2 44.8 lb (20.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 0.82 2.43 80 238 274 813
DS224C-SL-3.8-12N-QS SSD SHLF,12G,12x3.8TB,NSE,-S 2 44.8 lb (20.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.41 1.2 79 234 270 799
DS224C-SL-3.8-12S-QS 12x3.8TB 2 44.8 lb (20.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 0.82 2.43 80 238 274 813
DS224C-SL-3.8-12S-QS 12x3.8TB 2 44.8 lb (20.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.41 1.2 79 234 270 799
DS224C-SL-30.6-12S-QS 12 x 30.6TB SSD 2 41.7 lb (18.9 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.15 2.76 112 270 383 922
DS224C-SL-30.6-12S-QS 12 x 30.6TB SSD 2 41.7 lb (18.9 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.57 1.36 110 265 376 905
Quickship Fully Populated
DS224C-10-0.9-24S-QS 24x900GB,SAS,10K 2 51.1 lb (23.2 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.74 4.35 268 426 915 1454
DS224C-10-0.9-24S-QS 24x900GB,SAS,10K 2 51.1 lb (23.2 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.35 2.14 262 418 898 1427
DS224C-10-1.2-24S-QS 24x1.2TB,SAS,10K 2 51.1 lb (23.2 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.44 4.05 239 396 816 1352
DS224C-10-1.2-24S-QS 24x1.2TB,SAS,10K 2 51.1 lb (23.2 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.2 1.99 235 389 803 1328
DS224C-10-1.8-24N-QS 24x1.8TB,SAS,10K,NSE 2 53.8 lb (24.4 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.36 3.97 231 389 789 1328
DS224C-10-1.8-24N-QS 24x1.8TB,SAS,10K,NSE 2 53.8 lb (24.4 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.16 1.95 227 382 775 1304
DS224C-10-1.8-24S-QS 24x1.8TB,SAS,10K 2 53.8 lb (24.4 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.36 3.97 231 389 789 1328
DS224C-10-1.8-24S-QS 24x1.8TB,SAS,10K 2 53.8 lb (24.4 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.16 1.95 227 382 775 1304
DS224C-AF-.96-24S-0P-C 24x960GB,SSD 2 47.5 lb (21.5 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.48 3.09 145 302 495 1031
DS224C-AF-.96-24S-0P-C 24x960GB,SSD 2 47.5 lb (21.5 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.73 1.52 143 296 489 1011
DS224C-AF-.96-7.6-24M-C/DS224C-S-.96-7.6-24M-0P-C 6x960GB,SSD,18x7.6TB,SSD,Mixed 2 47.4 lb (21.5 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.98 3.6 194 352 663 1202
DS224C-AF-.96-7.6-24M-C/DS224C-S-.96-7.6-24M-0P-C 6x960GB,SSD,18x7.6TB,SSD,Mixed 2 47.4 lb (21.5 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.98 1.77 191 345 652 1178
DS224C-AF-0.8-24N-0P-C 24x800GB,NSE,SSD 2 53.8 lb (24.4 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.42 3.03 139 296 475 1011
DS224C-AF-0.8-24N-0P-C 24x800GB,NSE,SSD 2 53.8 lb (24.4 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.7 1.49 137 291 468 994
DS224C-AF-15.3-24S-0P-C/DS224C-SL-15.3-24S-QS 24x15.3TB SSD 2 47.4 lb (21.5 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.56 3.16 152 309 519 1055
DS224C-AF-15.3-24S-0P-C/DS224C-SL-15.3-24S-QS 24x15.3TB SSD 2 47.4 lb (21.5 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.77 1.55 149 303 509 1035
DS224C-AF-3.8-24N-0P-C 24x3.8TB,NSE,SSD 2 53.8 lb (24.4 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.29 2.89 126 283 431 966
DS224C-AF-3.8-24N-0P-C 24x3.8TB,NSE,SSD 2 53.8 lb (24.4 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.64 1.42 124 278 424 949
DS224C-AF-3.8-24S-0P-C 24x3.8TB,SSD 2 53.8 lb (24.4 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.29 2.89 126 283 431 966
DS224C-AF-3.8-24S-0P-C 24x3.8TB,SSD 2 53.8 lb (24.4 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.64 1.42 124 278 424 949
DS224C-AF-7.6-24S-0P-C/DS224C-S-7.6-24S-QS 24x7.6TB, SSD 2 47.4 lb (21.5 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.77 3.37 173 330 591 1127
DS224C-AF-7.6-24S-0P-C/DS224C-S-7.6-24S-QS 24x7.6TB, SSD 2 47.4 lb (21.5 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.87 1.66 170 324 581 1106
DS224C-AF6X183-24M-0P-C/DS224C-SL6X183-24M-QS 6x960GB,SSD,18x3.8TB,SSD,Mixed 2 47.4 lb (21.5 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.18 3.79 213 371 727 1267
DS224C-AF6X183-24M-0P-C/DS224C-SL6X183-24M-QS 6x960GB,SSD,18x3.8TB,SSD,Mixed 2 47.4 lb (21.5 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.07 1.86 209 364 714 1243
DS224C-AF6X18F-24M-0P-C/DS224C-SL6X18F-24M-QS 6x960GB,SSD,18x15.3TB,SSD,Mixed 2 47.4 lb (21.5 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.38 3.98 233 390 796 1332
DS224C-AF6X18F-24M-0P-C/DS224C-SL6X18F-24M-QS 6x960GB,SSD,18x15.3TB,SSD,Mixed 2 47.4 lb (21.5 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.17 1.96 229 383 782 1308
DS224C-S-.96-24N-QS SSD Shelf,12G,24x960GB,NSE,-Q 2 47.5 lb (21.5 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.48 3.09 145 302 495 1031
DS224C-S-.96-24N-QS SSD Shelf,12G,24x960GB,NSE,-Q 2 47.5 lb (21.5 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.73 1.52 143 296 489 1011
DS224C-S-.96-24S-QS 24x960GB 2 47.5 lb (21.5 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.48 3.09 145 302 495 1031
DS224C-S-.96-24S-QS 24x960GB 2 47.5 lb (21.5 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.73 1.52 143 296 489 1011
DS224C-SL-0.8-12N-QS 12x800GB,SSD,NSE 2 44.8 lb (20.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 0.89 2.49 87 244 297 833
DS224C-SL-0.8-12N-QS 12x800GB,SSD,NSE 2 44.8 lb (20.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.44 1.23 86 240 294 820
DS224C-SL-0.8-24N-QS 24x800GB,SSD,NSE 2 53.8 lb (24.4 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.42 3.03 139 296 475 1011
DS224C-SL-0.8-24N-QS 24x800GB,SSD,NSE 2 53.8 lb (24.4 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.7 1.49 137 291 468 994
DS224C-SL-3.8-24N-QS/DS224C-SL-3.8-24S-QS 24x3.8TB 2 53.8 lb (24.4 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.29 2.89 126 283 431 966
DS224C-SL-3.8-24N-QS/DS224C-SL-3.8-24S-QS 24x3.8TB 2 53.8 lb (24.4 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.64 1.42 124 278 424 949
DS224C-SL-30.6-24S-QS 24 x 30.6TB SSD 2 41.7 lb (18.9 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.15 2.76 112 270 383 922
DS224C-SL-30.6-24S-QS 24 x 30.6TB SSD 2 41.7 lb (18.9 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.57 1.36 110 265 376 905
DS224C-SL-30.6-24S-QS 24 x 30.6TB SSD 2 47.4 lb (21.5 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.68 3.29 164 322 560 1099
DS224C-SL-30.6-24S-QS 24 x 30.6TB SSD 2 47.4 lb (21.5 kg) 6.9 Bels 51 dBA 200 (200 to 240) 0.83 1.62 161 316 550 1079



Shipping Information

Express Computer Systems can ship to virtually any address in the world and provides you with the best shipping rates possible. Cost of shipping varies depending on what service you require, your destination and size of the shipment. Shipping costs will be calculated separately from your order and billed to you post purchase. In the notes section of your order please provide us with your preferred shipping method and we will get back to you.

Custom configured orders ship within 2 business days after all required products are in stock.

Please allow 3 business days for products that are not in stock to arrive to our facility in Irvine, California.

Domestic Shipments
  • Standard Ground
    • Shipping time: 2-7 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 2-10 business days
    • Excludes weekends, holidays or weather delays.
  • 3 Business Days
    • Shipping time: 3 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 3-6 business days
    • Excludes weekends, holidays or weather delays.
  • 2 Business Days
    • Shipping time: 2 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 2-5 business days
    • Excludes weekends, holidays or weather delays.
  • Overnight / Next Business Day
    • Shipping time: 1 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 1-4 business days
    • Excludes weekends, holidays or weather delays.
International Shipments
  • International Economy
    • Shipping time: 4-6 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 5-9 business days
    • Excludes weekends, holidays or weather delays.
  • International Priority
    • Shipping time: 1-3 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 2-6 business days
    • Excludes weekends, holidays or weather delays.

For more information on shipping view our Shipping Information page or send us a message

ECS Warranty Information

Express Computer Systems (ECS) provides a 1 year parts warranty against defects in material or workmanship that will affect the products functionality. All refurbished items are tested prior to shipping to guarantee up-time upon arrival. If you are having issues with an item we provided please Contact Us and we will do our best to assist you.

What does our ECS warranty cover?
We offer 1 year warranty as standard and additional years can be added to fit your needs. Please reach out to a sales associate via the Contact Us page or live chat for more information on extended coverage options. During the coverage period if your product fails we will offer a Next Business Day replacement. If we are unable to replace the product we will refund its original selling price. Shipping costs and tax are not refundable. Express Computer Systems retains the right to decide whether the goods will be replaced or refunded.

What is not covered by our warranty?
Our warranty does not cover any problem caused by the following conditions:

  1. accidents; misuse; carelessness; electrostatic discharge; shock; temperature or humidity beyond the specifications of the product; improper installation; operation; modification;
  2. any improper use that contravenes the instructions in the user manual;
  3. problems caused by other equipment. Our warranty is void if the product is returned with damaged, removed, counterfeit labels, or any modifications (including any component or external cover removal). Our warranties do not cover data loss or damages to any other equipment. In addition, our warranties do not cover incidental damages, consequential damages, or costs related to data recovery, removal, and installation.

Important notes:

  • Please ask for additional warranty/coverage that you may require in addition to the standard 1 ECS warranty prior to final purchase. Requesting additional warranty after your purchase can be denied.
  • FREE technical support is provided on purchased items via phone, email, or live chat.

About Express Computer Systems

Express Computer Systems is committed to transforming our customers’ IT infrastructure with high quality products at affordable costs. Our sales reps and customer support engineers understand our customers rely heavily on advanced technology to run their business but need to do so without breaking the bank.

We specialize in building custom server configurations, custom storage solutions, networking solutions, and components from top manufacturers including HPE, Dell, Cisco, NetApp, Dell EMC, HPE Nimble and many others.

Subscribe
